MIDWAY ECO LED
54” Ceiling Fan Owner’s Manual
Model Numbers
CF955LBS00 - Brushed Steel
CF955LORB00 - Oil Rubbed Bronze
CF955LWW00 - Appliance White
Net Weight: 22.5 Lbs.
• Español - página 27
• Français - page 53
Part No. F40BP75340003 Form No. BP7534-3
Revision: 01152021 ETL Model No.: CF955L
READ AND SAVE THESE INSTRUCTIONS
MODERN
1-800-777-4440
Questions, problems, missing parts: Before returning to the store, Call Customer Service

2
ETL Model No.: CF955L
Table of Contents
Section Page
Safety Instructions ................................ 2
1. Unpacking Instructions ..........................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Ceiling Fan Assembly .........................5-11
4. How to Hang Your Ceiling Fan ..................11-12
5. How to Wire Your Ceiling Fan ..................13-14
6. Final Installation ............................... 15

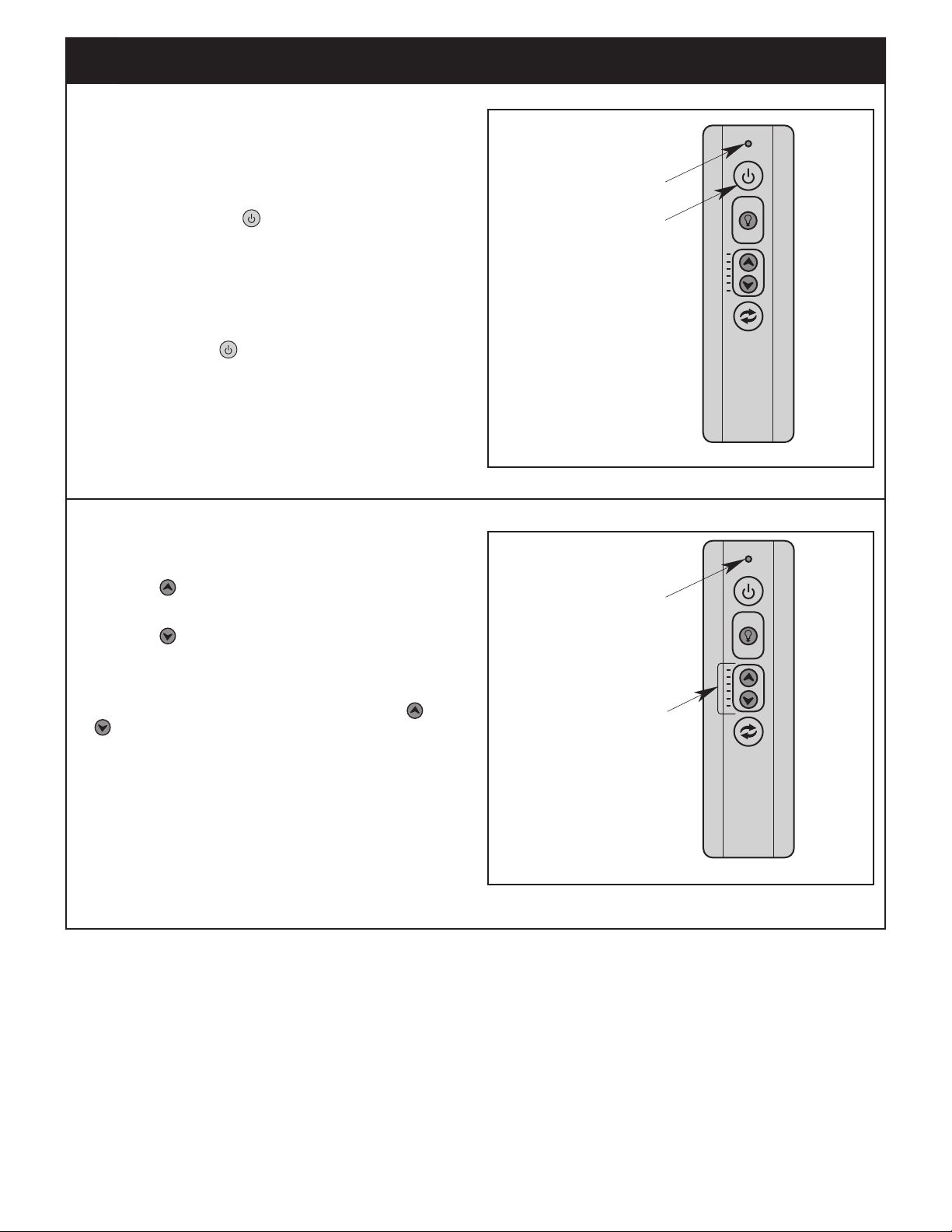

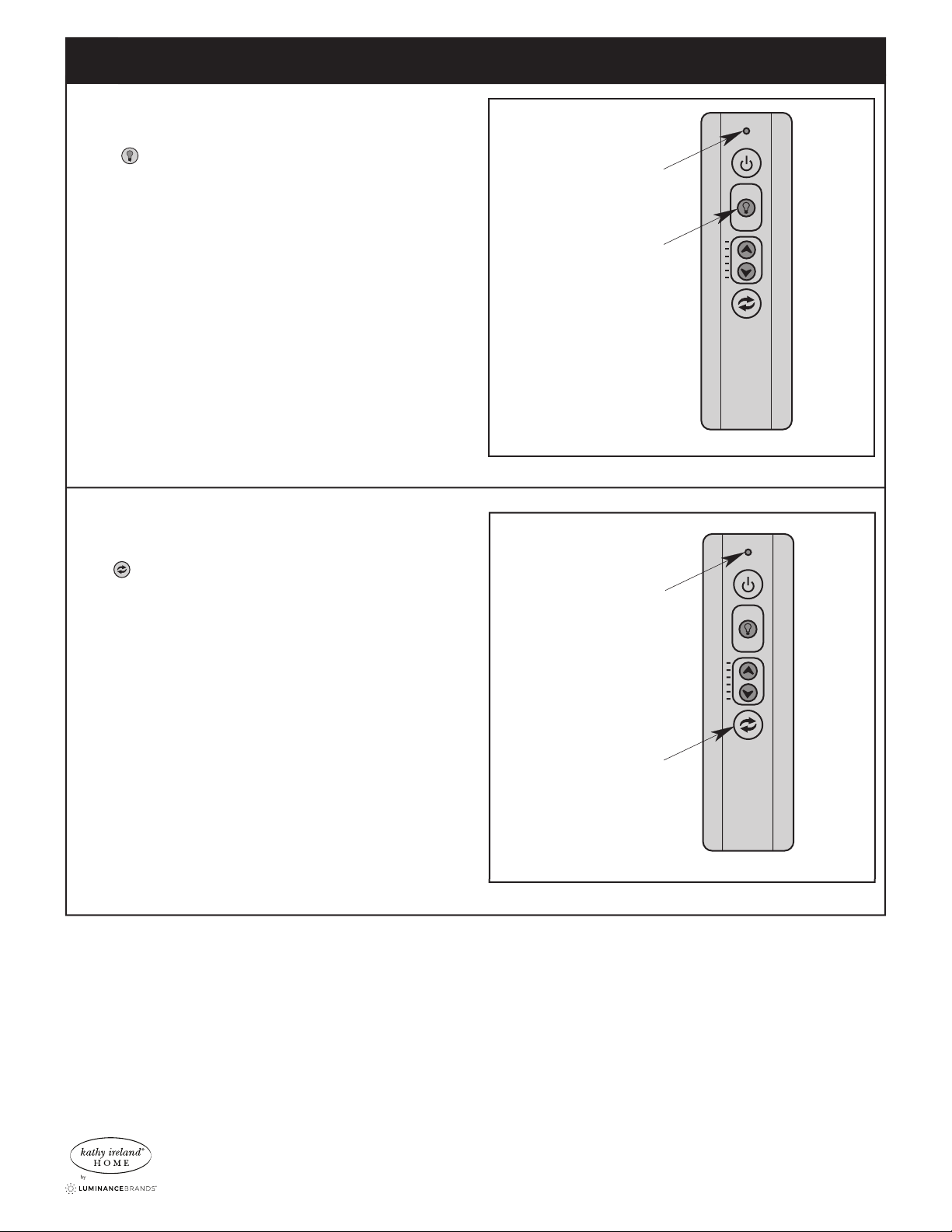

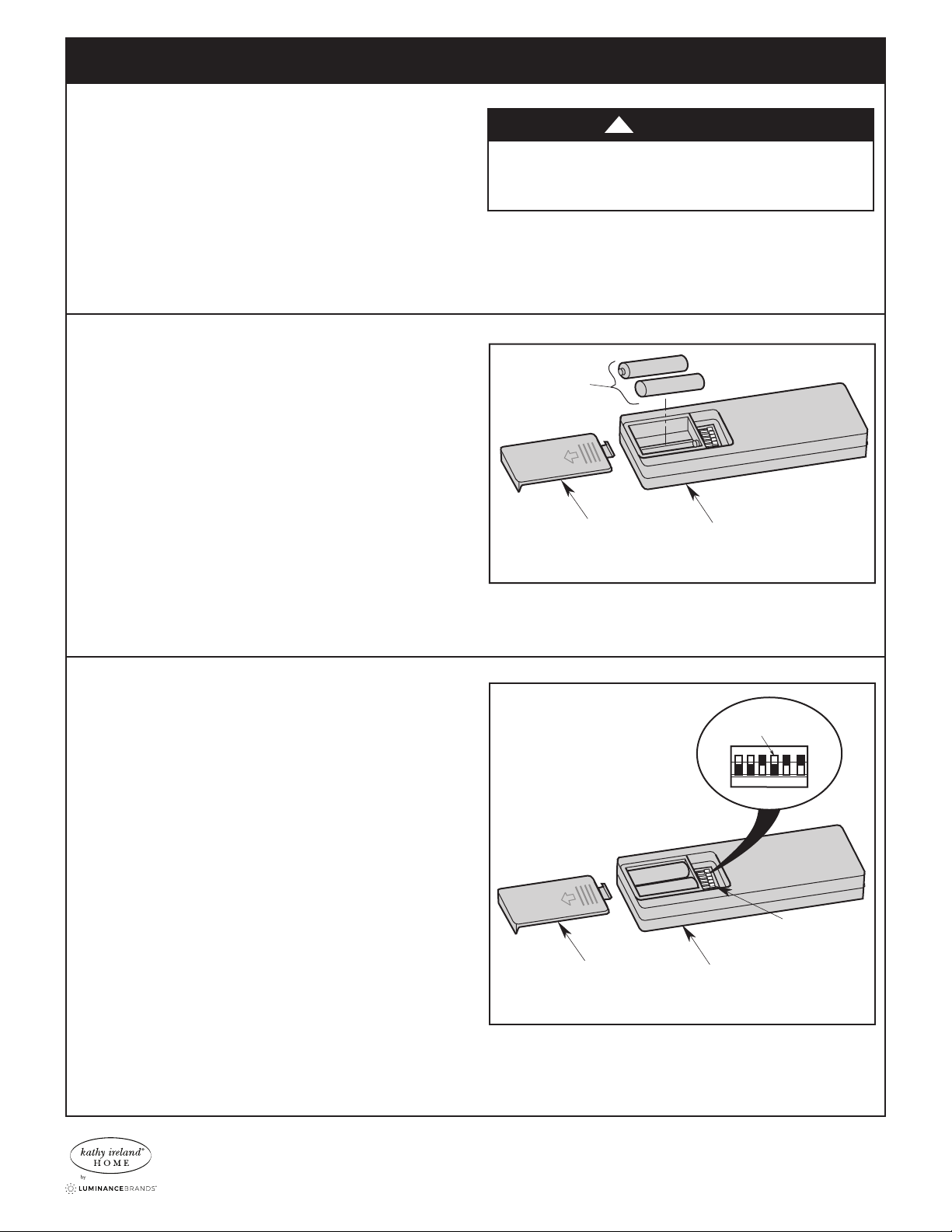

7. Remote Control Procedures ....................16-19
8. Programming the Receiver Operating Frequency &
High Speed Conditioning of Fan Control............. 19
Section Page
9. Accessories ................................. 20
10. Maintenance ................................. 20
11. Troubleshooting .............................. 21
12. Repair Parts ...............................22-23
13. Energy Efficient Use of Ceiling Fans............... 24
Ceiling Fan Limited Warranty ....................... 25
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
French ........................................ 53
Safety Instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the fuse box before wiring, and do not operate
fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
4. The downrod furnished with the fan provides the
minimum recommended floor to fan blade clearance
for a 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To reduce the risk of fire or electrical shock, this fan
should only be used with fan speed control, Model No.
RH-786R, manufactured by Rhine Electric Co., Ltd.
To avoid fire, shock or injury, do not use a Luminance
Brands or any other brand of control not specifically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use this product
by Luminance Brands Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blades during installation, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
WARNING
!

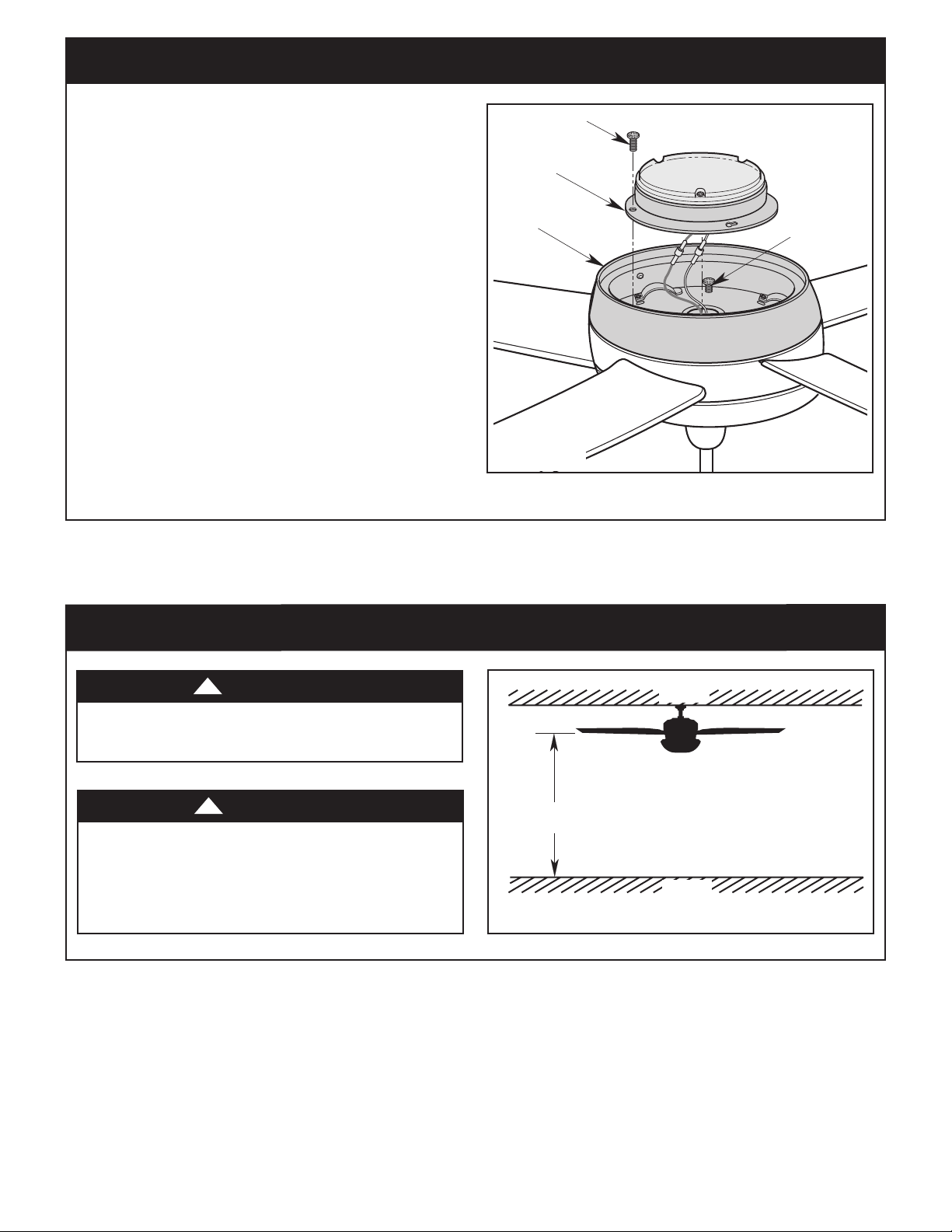

To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

1. Unpacking Instructions
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
1.1

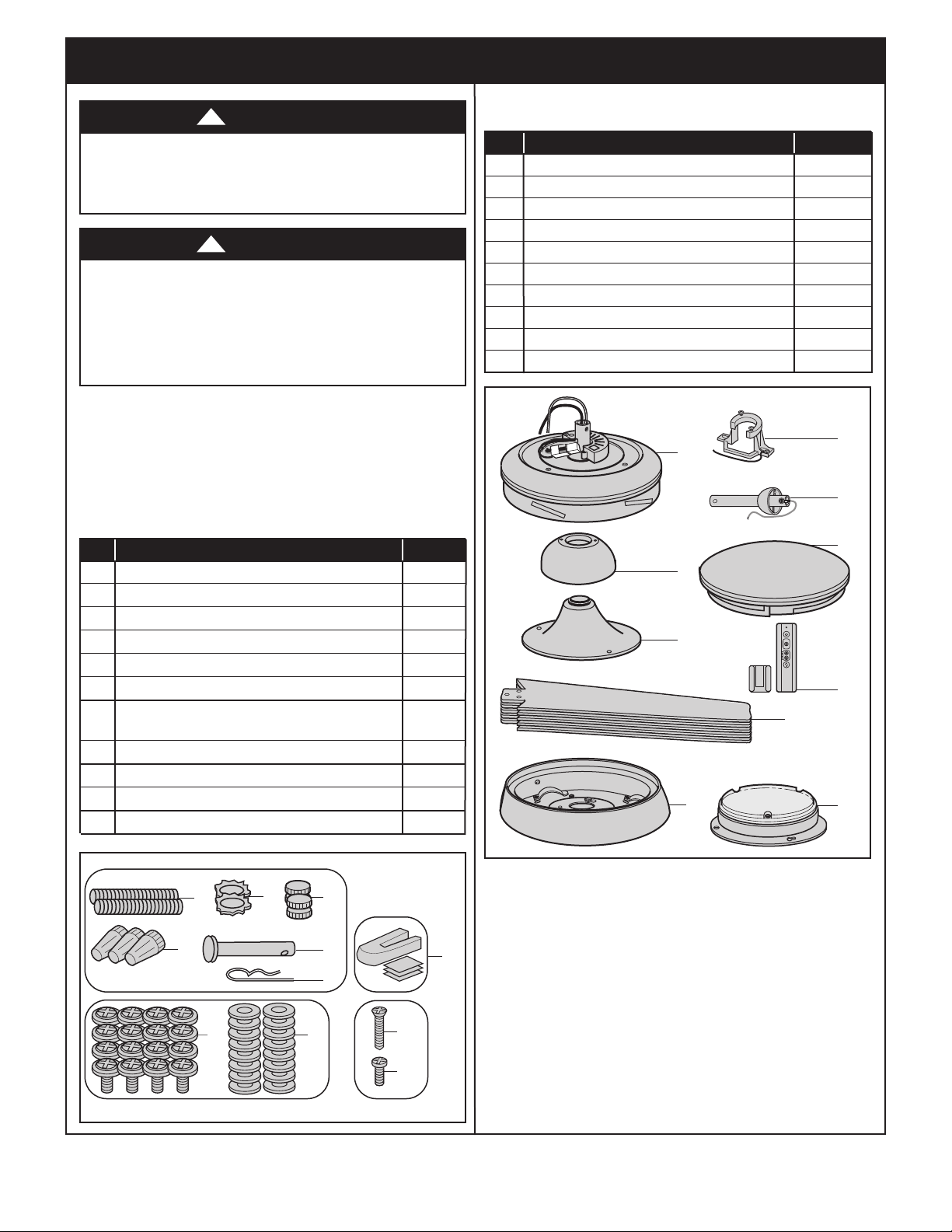

Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.
NOTE: The loose parts are individually packaged for
ease of installation. Place the parts from the loose
parts bags in a small container to keep them from
being lost. If any parts are missing, contact your
local retailer or catalog outlet for replacement before
proceeding.
1.2
Remove the fan assembly from the protective
plastic bag. Remove and discard the cardboard
shipping retainers.
Place the fan assembly into the upper foam pad with
the top of the motor facing up.
The upper foam pad serves as a holder for the fan
during the first stages of assembly.
C
A
D
G
E
F
I
J
B
H
PACKAGE CONTENTS
6
3
5
4
12
8
7
9
10
11
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Motor Coupler Cover 1
D Fan Blades 5
E Hanger Bracket 1
F Hanger Ball/Downrod Assembly 1
G Lower Housing 1
H Glass Globe 1
I Fan/Light Remote Control (transmitter) 1
J Light Fixture Assembly - LED 1
HARDWARE CONTENTS
Part Description Qty.
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Lockwashers, External Tooth #8 2
3 Knurled Knobs, #8-32 2
4 Wire Connectors 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 #10-24 x 1/2” Slotted Phillips Washer Head
Blade Screws 16
8 #10 Fiber Washers 16
9 #8-32 x .375” Pan Head Screw (spare) 1
10 #8-32 x .75” Flat Head Screw (spare) 1
11 Blade Balance Kit 1

4
ETL Model No.: CF955L
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 13).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One 1/4” Blade Screwdriver One Wire Stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Your Luminance Brands Ceiling Fan comes supplied
with a Fan/Light Remote Control which consists of
a receiver mounted on top of the motor housing.
This system allows you to regulate your Ceiling Fan
Speed and Light ON/OFF.
2. Electrical Requirements
Your new Ceiling Fan will require a Grounded Electrical
Supply Line of 120 Volts AC, 60 Hz, 15 Amp Circuit.
The Outlet Box must be securely Anchored and capable
of withstanding a Load of at least 50 Pounds.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7kg. (50 lbs.) or less”, and use
screws supplied with outlet box. Most outlet boxes
commonly used for support of light fixtures are
not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity OFF at the Main Fuse Box at this
time and remove the existing Light Fixture.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
1. Unpacking Instructions (Continued)
Controls (Sold Separately)
SR650 and SR600 Remote Controls and SW605
Wall Control (sold separately) may be used with
this MIDWAY ECO LED Ceiling Fan. Controls are
recommended for indoor use only.

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L

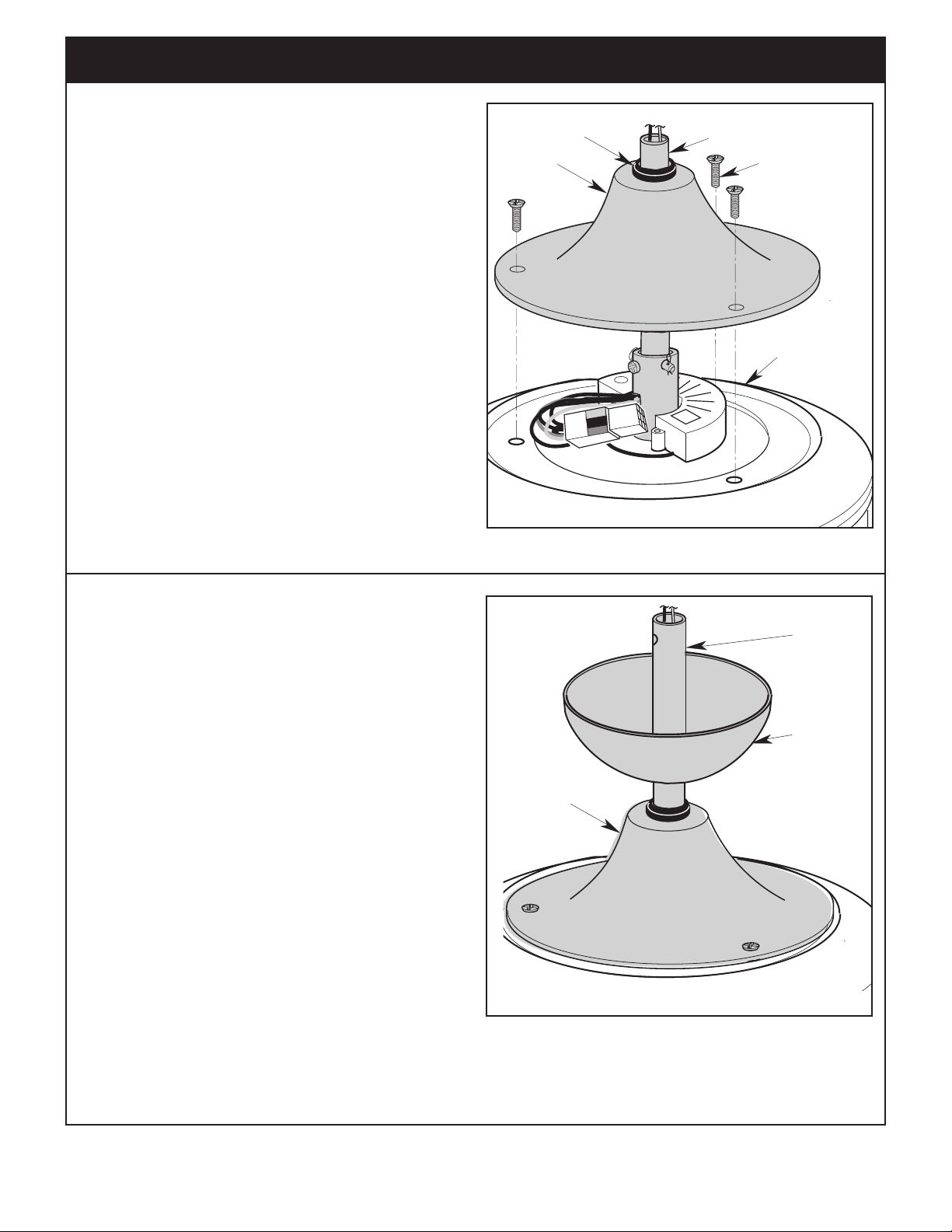

3. Ceiling Fan Assembly
Figure 2
3.2
Separate, untwist and unkink the Two 80” Motor Wires.
Route the Two 80” Black and White Motor Wires
through the Downrod (Figure 2).
MOTOR
COUPLER
DOWNROD
LOOSEN
SETSCREWS
Figure 3
3.3
Loosen the Two Phillips Head Set Screws in the Motor
Coupler for installation of the Downrod (Figure 3).
Seat the Downrod in the Motor Coupler (Figure 3).
Rotate and align the Downrod Holes with all the Holes
in the Motor Coupler (Figure 3).
PHILLIPS HEAD SET SCREW (LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE
Figure 1

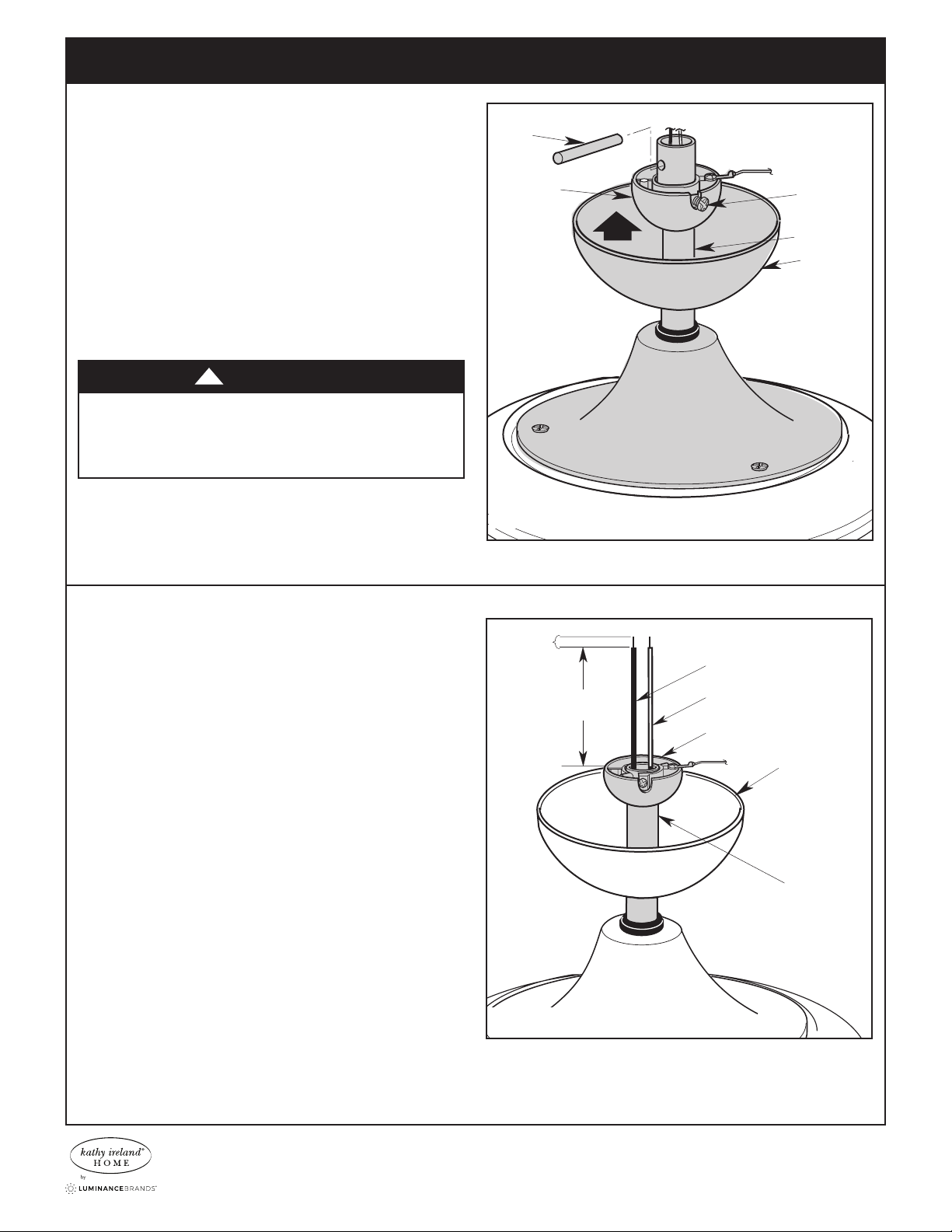

3.1
Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the Downrod (Figure 1).
Remove the Pin from the Downrod, then remove the
Hanger Ball (Figure 1).
Retain the Pin and Hanger Ball for reinstallation in
Step 3.9.
NOTE: Do not loosen the Screw holding the Green
Ground Wire.
TWO 80" MOTOR WIRES (UNTWISTED)
4.5" DOWNROD

6
ETL Model No.: CF955L
3. Ceiling Fan Assembly (Continued)
MOTOR
COUPLER
DOWNROD
RETIGHTEN
SET SCREWS
Figure 5
3.5
While pulling up on the Downrod, securely tighten the
Two Phillips Head Set Screws in the Motor Coupler
(Figure 5).
NOTE: The set screw must be properly installed as
described above, or fan wobble could result.
HAIRPIN
CLIP
MOTOR
COUPLING
DOWNROD
CLEVIS
PIN
HAIRPIN
CLIP
CLEVIS
PIN
MOTOR
COUPLER
Figure 4
#8-32 x .75" FLAT
HEAD SCREWS (3)
DOWNROD
FAN ASSEMBLY
Figure 6
3.6
Remove and retain the Three #8-32 x .75” Flat Head
Screws pre-installed on top of the Fan Assembly.
(Figure 6).
3.4
Align the Clevis Pin Holes in the Downrod with the
Holes in the Motor Coupler.
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 4).
The Clevis Pin must go through the Holes in the Motor
Coupler. It is critical that the Clevis Pin in the Motor
Coupler is properly installed and securely tightened.
It is critical that the clevis pin and set screws in the
motor coupler are properly installed and securely
tightened. Failure to verify that the pin and set screws
are properly installed could result in the fan falling.
WARNING
!

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
3. Ceiling Fan Assembly (Continued)
COUPLER
COVER
CEILING
COVER
DOWNROD
Figure 8
3.8
Place the Ceiling Cover over the Downrod.
Be sure both the Ceiling Cover and the Coupler Cover
are oriented correctly (Figure 8).
FAN ASSEMBLY
#8-32 x .75" FLAT
HEAD SCREWS (3)
GROMMET
COUPLER
COVER
DOWNROD
Figure 7
3.7
Make sure the Grommet is properly installed in the
Coupler Cover then slide the Coupler Cover on the
Downrod until it rests on the Fan Assembly.
Reinstall the Three #8-32 x .75” Flat Head Screws,
removed in Step 3.6, through the Coupler Cover and
into the Fan Assembly (Figure 7).
A spare #8-32 x .75” Flat Head Screw is supplied in the
loose parts bag, if required.

8
ETL Model No.: CF955L
HANGER BALL/
DOWNROD
ASSEMBLY
HANGER BALL
WHITE WIRE
BLACK WIRE
1/2-INCH
DOWNROD
6 TO 9
INCHES
Figure 10
3.10
The Fan comes with Black and White Wires that are
80” long.
Measure up approximately 6 to 9-inches above top of
Hanger Ball / Downrod Assembly (Figure 10).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
Carefully turn the Partially Assembled Ceiling
Fan upside down and place onto the foam pad in
preparation for mounting the Fan Blades and Light
Fixture.
HANGER
BALL
CEILING
COVER
DOWNROD
PIN
SET SCREW
Figure 9
3.9
Reinstall the Hanger Ball (Figure 9) on the Downrod as
follows:
Route the Two 80” Motor Wires through the Hanger
Ball and slide the Hanger Ball over the Downrod.
Position the Pin through the Two Holes in the Downrod
and align the Hanger Ball so the Pin is captured in the
Groove in the top of the Hanger Ball.
Pull the Hanger Ball up tight against the Pin and
securely tighten the Set Screw in the Hanger Ball.
A loose Set Screw could create Fan wobble.
3. Ceiling Fan Assembly (Continued)
It is critical that the pin in the hanger ball is properly
installed and the set screw securely tightened. Failure
to verify that the pin and set screw are properly
installed could result in the fan falling.
WARNING
!

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
3. Ceiling Fan Assembly (Continued)
MOTOR ASSEMBLY
REMOVE ONE #8-32 x .375"
PAN HEAD SCREW
LOOSEN TWO
#8-32 x .375"
PAN HEAD SCREWS
Figure 12
3.12
Remove and retain One of the Three #8-32 x .375”
Pan Head Screws in the Motor Assembly and loosen
the remaining Two #8-32 x .375” Pan Head Screws
(Figure 12).
MOTOR HUB
#10-24 x 1/2" SLOTTED
PHILLIPS WASHER HEAD
BLADE SCREW (3 PER BLADE)
FAN BLADE
BLADE SLOT
IN HOUSING
LABEL
(FACING CEILING)
#10 FIBER WASHER
(3 PER BLADE, EACH LOCA
TED
UNDER EACH SCREW)
Figure 11
REINSTALL ONE
#8-32 x .375"
PAN HEAD SCREW
RETIGHTEN TWO
#8-32 x .375"
PAN HEAD SCREWS
LOWER
HOUSING
Figure 13
3.13
Orient the Lower Housing correctly to install onto Motor
Assembly, as shown.
Route the Motor Assembly Wires and Terminals
through the Center Hole of the Lower Housing.
Rotate the Lower Housing clockwise to engage the Key
Hole Slots onto the Two loosened #8-32 x .375” Pan
Head Screws. (Figure 13).
Secure the Lower Housing by tightening the Two #8-32
x .375” Pan Head Screws.
Reinstall and tighten the previously removed #8-32
x .375” Pan Head Screw.
A spare #8-32 x .375” Pan Head Screw is supplied in
the loose parts bag, if required.

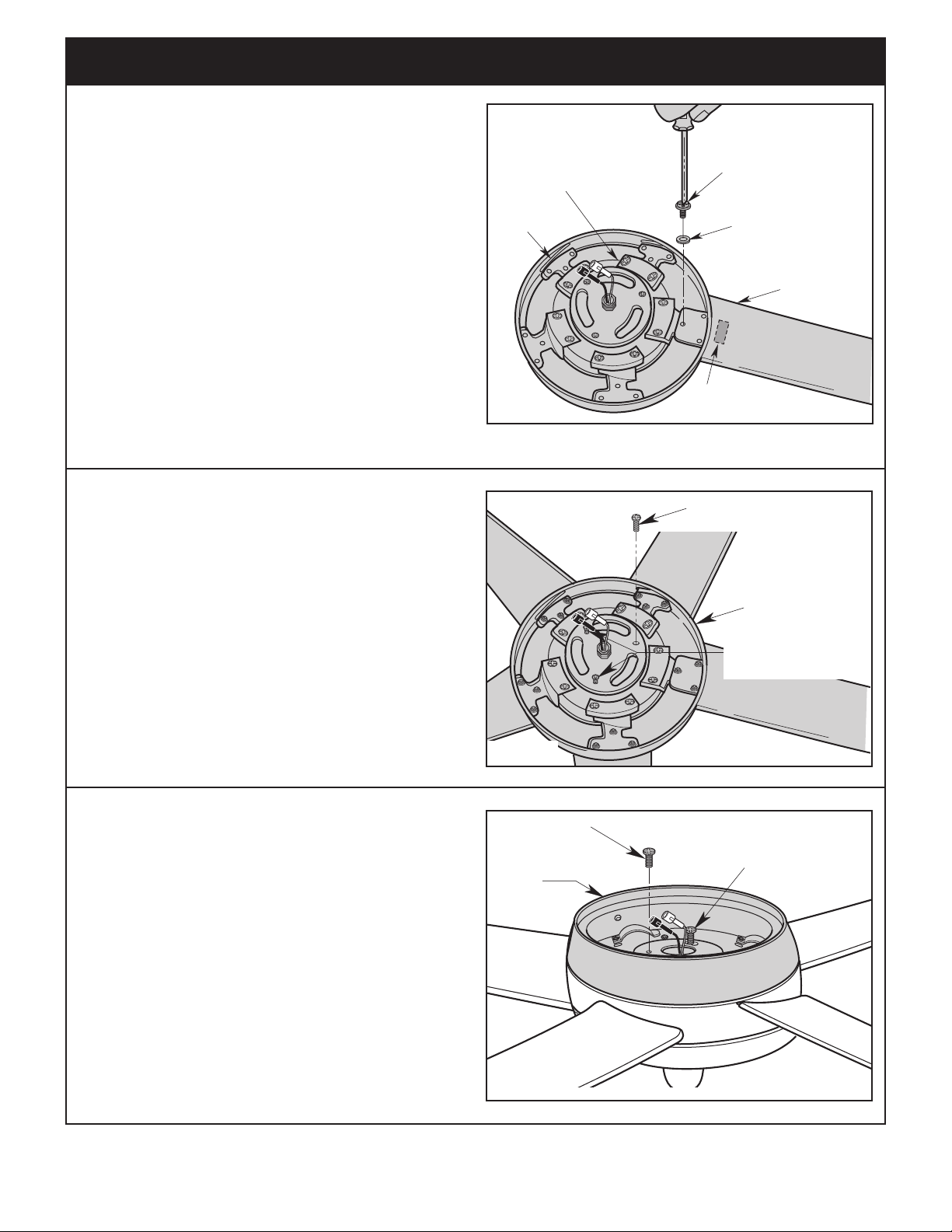

3.11
To ensure proper Blade Assembly, make sure the
Labels on the Blades are facing the ceiling.
Slide Blade through Center Slot in Fan Housing
(Figure 11).
Mount each Blade to Fan Housing using a #10 Fiber
Washer (supplied) and a #10-24 x 1/2” Slotted Phillips
Washer Head Blade Screw (supplied), 3 per Blade.
NOTE: Be sure to place one fiber washer onto each
screw before installing into the blade.
NOTE: Take care not to scratch fan housing when
installing blades.
A spare #10-24 x 1/2” Slotted Phillips Washer Head
Blade Screw and a spare #10 Fiber Washer are
supplied in the loose parts bag, if required.

10
ETL Model No.: CF955L
3. Ceiling Fan Assembly (Continued)
LOWER
HOUSING
LED LIGHT
FIXTURE
LED LIGHT FIXTURE
BLACK WIRE
LED LIGHT FIXTURE
WHITE WIRE
MOTOR ASSEMBLY
BLUE WIRE
MOTOR ASSEMBLY
WHITE WIRE
Figure 15
3.15
Securely connect the LED Light Fixture White Wire
Terminal to the Motor Assembly White Wire Terminal
(Figure 15).
Securely connect the LED Light Fixture Black Wire
Terminal to the Motor Assembly Blue Wire Terminal
(Figure 15).
Tuck Wires into the LED Light Fixture Assembly and
position on the Lower Housing Assembly.
NOTE: Make sure wires and terminals are
positioned under the LED light fixture assembly and
not pinched between LED light fixture assembly and
lower housing.
LOWER HOUSING
REMOVE ONE #8-32 x .375"
PAN HEAD SCREW
LOOSEN TWO
#8-32 x .375"
PAN HEAD
SCREWS
Figure 14
3.14
Remove and retain One of the Three #8-32 x .375”
Pan Head Screws in the Lower Housing and loosen
the remaining Two #8-32 x .375” Pan Head Screws
(Figure 14).

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
AT LEAST
7'
CEILING
FLOOR
Figure 17
4. How to Hang Your Ceiling Fan
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
LED LIGHT
FIXTURE
REINSTALL ONE
#8-32 x .375"
PAN HEAD SCREW
LOWER
HOUSING
RETIGHTEN
TWO
#8-32 x .375"
PAN HEAD
SCREWS
Figure 16
3.16
Rotate the LED Light Fixture clockwise to engage the
Key Hole Slots onto the Two #8-32 x .375” Pan Head
Screws (Figure 16).
Secure the LED Light Fixture Assembly by tightening
the Two #8-32 x .375” Pan Head Screws.
Reinstall and tighten the previously removed #8-32|x
.375” Pan Head Screw.
A spare #8-32 x .375” Pan Head Screw is supplied in
the loose parts bag, if required.
You have now completed the initial assembly of your
new Ceiling Fan. You can now proceed with hanging
and wiring your Fan.
3. Ceiling Fan Assembly (Continued)
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor (Figure 17).
CAUTION
!

4. How to Hang Your Ceiling Fan (Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION
TAB
Figure 19
4.2
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 19).
Be sure the Groove in the Ball is engaged with the
Anti-rotation Tab on the Hanger Bracket (Figure 19).
12
ETL Model No.: CF955L
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!

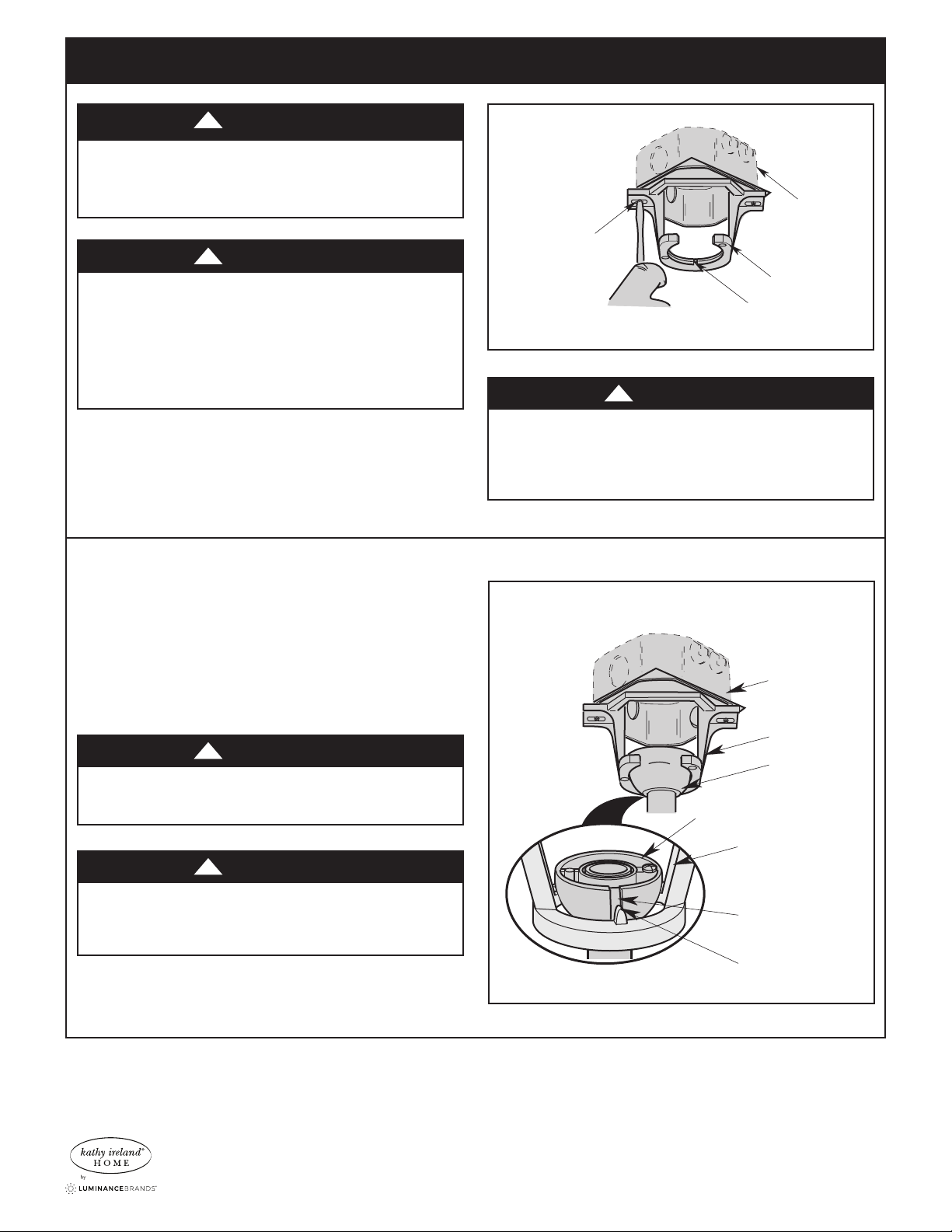

4.1
Securely attach the Hanger Bracket to the Outlet Box
using the Two Screws supplied with the Outlet Box.
(Figure 18).
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER
BRACKET
ANTI-ROTATION
TAB
OUTLET
BOX
Figure 18

If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
5.1
Connect the Green Ground Wire from the Hanger
Ball and the Green Ground Wire from the Hanger
Bracket to the Ground Conductor of Supply (this may
be a bare wire or wire with green colored insulation).
Securely connect Wires with Wire Connectors
(supplied) (Figure 20).
GROUND
CONDUCTOR SUPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 20
13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN WHITE WIRE
Figure 21
5.2
Securely connect the Fan White Wire to the Supply
White (neutral) Wire using Wire Connector (supplied)
(Figure 21).
5. How to Wire Your Ceiling Fan
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!

14
ETL Model No.: CF955L
5. How to Wire Your Ceiling Fan (Continued)
FAN BLACK WIRE
SUPPLY BLACK
(HOT)
LISTED WIRE
CONNECTOR
Figure 22
5.3
Securely connect the Fan Black Wire to the Supply
Black (hot) Wire using Wire Connector (supplied)
(Figure 22).
BLACK WIRES
WHITE WIRES
GREEN
WIRES
Figure 23
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
white and green Wires on one side of the Outlet Box
and position the Black Wires on the other side of the
Outlet Box (Figure 23).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
5.5
Screw the Two Threaded Studs (supplied) into the
Tapped Holes in the Hanger Bracket (Figure 24).
Your Fan is now wired to be turned ON and OFF from
the Fan Switch.
THREADED
STUDS (2)
Figure 24

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
6. Final Installation
LOCKWASHERS (2)
CEILING
COVER
KNURLED
KNOBS (2)
THREADED
STUD
Figure 25
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.1
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Holes in the
Ceiling Cover (Figure 25).
Secure the Ceiling Cover in place by sliding
Lockwashers over the Threaded Studs and installing
the Two Knurled Knobs (supplied) (Figure 25).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the Ceiling and the Hole in the
Ceiling Cover is clear of the Downrod.
NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.
6.2
Place the Glass Globe into the Lower Housing, aligning
the Three Flat Areas on the Top Flange of the Glass
Globe with the Three Raised Dimples on the inside of
the Lower Housing (Figure 26).
Then turn the Glass Globe clockwise until it stops
turning.
NOTE: Periodically check that the glass globe is
seated fully clockwise in the lower housing.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
FLAT AREA
OF GLASS
GLOBE
LOWER
HOUSING
RAISED
DIMPLES (3)
GLASS
GLOBE
Figure 26

16
ETL Model No.: CF955L
7. Remote Control Procedures
7.1: Preset Memory Feature
Your Receiver is equipped with a preset memory
feature. If the AC supply to the Receiver is powered
through a Wall Switch, when the Switch is turned OFF,
the Control will remember the Light Intensity and Fan
Speed.
When the Switch is turned back ON the Light and Fan
will resume operation as they were prior to the Switch
being turned OFF.
7.3: Setting Operating
Frequency of Remote Control
Remove the Battery Cover by pressing firmly below the
arrow and sliding the Cover off the Control (Figure 28).
Your Remote Control has Code Switches which must
be set in one of 32 possible code combinations.
The Five Levers (numbered 1, 2, 3, 4, and 5) on
the Switches are factory-set in the ON (up) position.
Change the Switch settings as follows:
Slide the Five Switch Levers in the Remote Control to
your choice of ON (up) or down positions. Use a ball-
point pen or small screwdriver and slide the Levers
firmly up or down.
The Sixth Switch marked ON and Iis for dimming
control of lights: Set Switch to ON to allow for dimming
of the lights. Set Switch to Ifor no dimming of the lights.
NOTE: If your fan and light go on and off without
using your control, you may be getting interference
from other remote units such as garage door
openers, car alarms or security systems.
To remedy this situations, simply change
the Combination Code in your Remote Control
Transmitter.
CODE
SWITCHES
REMOTE CONTROL
BATTERY
COMPARTMENT
COVER
REMOTE CONTROL
LEVERS
ON
1234
5I
Figure 28
7.2: Installation of Batteries
The Remote Control Transmitter is powered by Two
AAA Alkaline Batteries.
To prevent possible Battery leakage damage, be sure
to remove the Batteries when the Control is not to be
used for an extended period of time.
Remove the Battery Cover by pressing firmly below the
arrow and sliding the Cover off the Remote Control.
Install Two New AAA Alkaline Batteries into the Battery
Compartment following the correct Battery placement
printed on the Compartment (Figure 27).
Replace the Battery Compartment Cover by sliding the
Cover back onto the Remote Control.
REMOTE CONTROL
BATTERY
COMPARTMENT
COVER
TWO AAA
BATTERIES
Figure 27
Fan installation must be completed, including the
installation of the fan blades, before testing the remote
control.
WARNING
!
NOTE: Never use old and new batteries together in
unit.

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
7. Remote Control Procedures (Continued)
FAN POWER OFF
BUTTON
POWER INDICATOR
LIGHT
Figure 29
FAN SPEED BUTTONS
POWER INDICATOR
LIGHT
Figure 30
7.5
To turn the Fan ON and to Increase the Fan Speed:
Press the ( ) Button once for each of the 6 Speeds.
To turn the Fan ON and to Decrease the Fan Speed:
Press the ( ) Button once for each of the 6 Speeds.
The LED Display will light up to indicate the New Speed
selected.(Figure 30).
NOTE: If the fan is OFF, the first time the ( ) or
( ) button is pressed, it will turn the fan ON at
the speed previously selected.
7.4
Your Remote Control has full control of your Ceiling
Fan and Light
When power is restored, push and hold the FAN
POWER OFF Button ( ) for 3 to 5 Seconds to set
the Code in the Receiver (Figure 29).
NOTE: The Ceiling Fan Lights (if installed) will Blink
to indicate the Transmitter has been paired with the
Receiver.
To turn the Ceiling Fan OFF: Press and release the
FAN POWER OFF ( ) Button (Figure 29).

18
ETL Model No.: CF955L
7. Remote Control Procedures (Continued)
7.7
If Airflow is desired in the Opposite Direction: Press
the ( ) Button on the Remote Control (Figure 32).
The Fan must be operating at any Speed for the
Reverse Button to function. The Blades will turn in the
Opposite Direction and Reverse the Airflow.
NOTE:
During Summer Months: Run the Fan Counter-
Clockwise, as you look up at it, to direct airflow
downward.
During the Winter Months: Run the Fan Clockwise,
as you look up at it, to direct airflow upward.
AIRFLOW BUTTON
POWER INDICATOR
LIGHT
Figure 32
7.6
To turn the Downlight ON/OFF: Press and release
the ( ) Button. The Light will turn ON at the Light
Intensity previously selected. To change the Intensity,
hold the Button down. The Intensity will go up and
down while the Button is held. Release the Button at
the desired Intensity (Figure 31).
LIGHT INTENSITY
BUTTON
POWER INDICATOR
LIGHT
Figure 31

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF955L
8. Programming the Receiver Operating Frequency
& High Speed Conditioning of Fan Control
8.1
IMPORTANT: Ceiling fan blades MUST be installed
before high speed conditioning can begin.
Within 1 minute of restoring electricity to the Ceiling
Fan, push and hold the FAN POWER OFF Button ( )
for 3 to 5 seconds to set the code in the receiver.
The Ceiling Fan lights (if installed) will blink to indicate
the transmitted has been paired with the receiver.
IMPORTANT: Immediately after successful pairing,
the ceiling fan will automatically begin high speed
conditioning of the motor. During conditioning, the
electronic motor control software is calculating
speeds for the 2nd through 5th speed settings
based on the blades that were installed on the fan.
The Fan will run for approximately 2 minutes in the
upward direction then reverse direction to down flow
and run an additional 2 minutes. When conditioning is
complete, the Fan will come to complete stop.
IMPORTANT: Do not interrupt the conditioning until
the fan comes to a complete stop in approximately
5 minutes. All functions of the control will be
rejected during conditioning.
High speed conditioning is now complete.
8.2
If programming is unsuccessful, retry the previous
instructions after cycling the Wall Switch to restart the
1 minute programming time period.
If still unsuccessful, shut off the electricity at the fuse
box or breaker panel and change the Remote Control
Frequency (page 16). After changing the frequency
settings, repeat instruction 8.1 of this section within one
minute of restoring the electricity.
7. Remote Control Procedures (Continued)

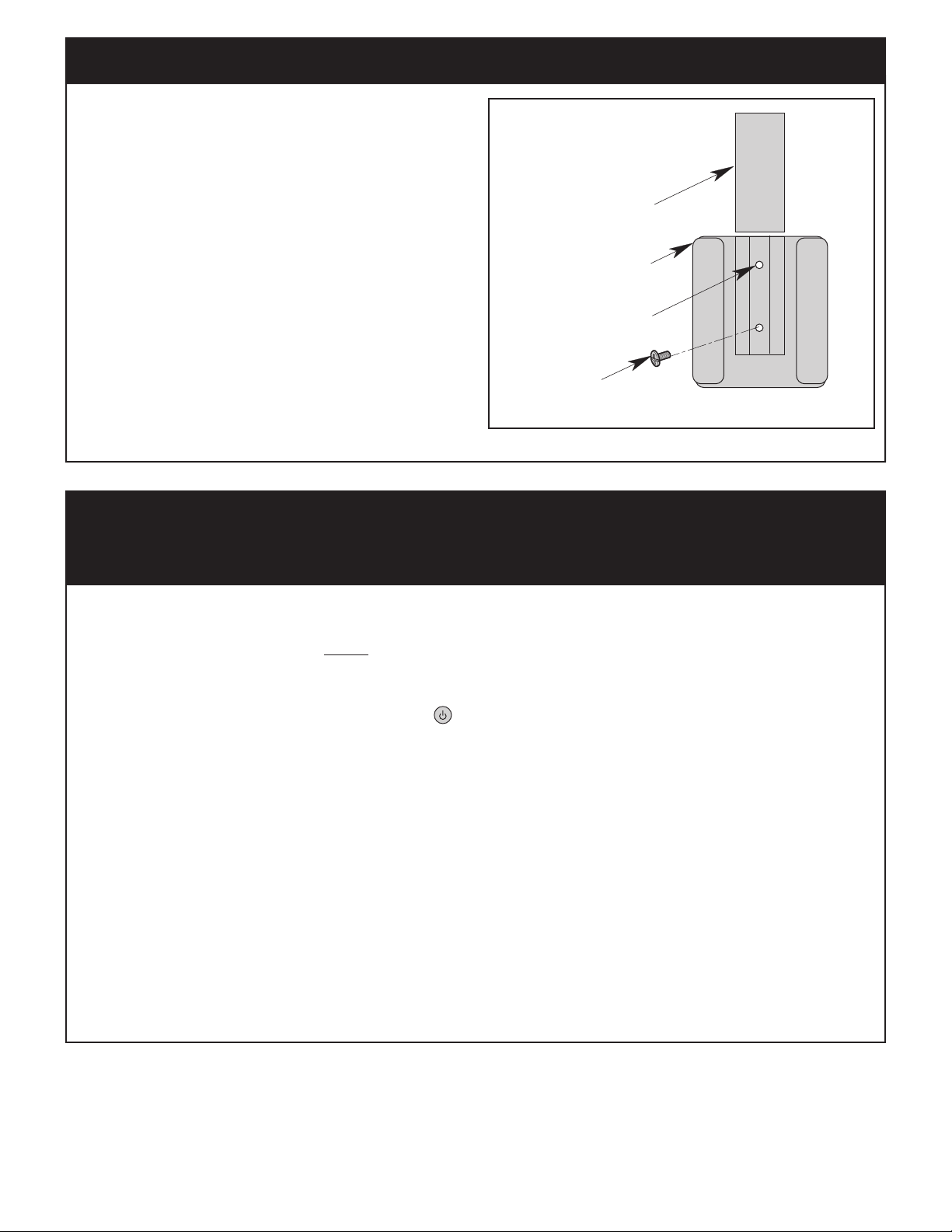

7.8: Storage Bracket Installation
A Storage Bracket is provided for holding your Remote
Control when not in use. If you desire to use the
Bracket, install it on a wall that is away from excess
heat or humidity.
Slide the Wall Bracket Cover up to expose the Screw
Holes for installation (Figure 33).
Position the Bracket on the wall in desired location.
Install the Two Screws (supplied) into the Wall Bracket
and tighten to secure to Wall.
Slide the Wall Bracket Cover back down over the
Screws.
Figure 33
COVER
STORAGE
BRACKET
HOLES (2)
SCREWS (2)

This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
See your local Luminance Brands dealer,
www.luminancebrands.com or our catalog for these
accessories:
• Downrod Extension Kits (see store or catalog).
• Accessory Ceiling Fan Controls:
SR600 - Handheld Transmitter
SW605 - Wall Transmitter
SR650 - Wall/Handheld Transmitter
9. Accessories
The use of any other control not specifically approved
for this fan could result in fire, shock and personal
injury.
WARNING
!
20
ETL Model No.: CF955L
Do not use water when cleaning your ceiling fan.
It could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
10. Maintenance
