Luminance Brands kathy ireland HOME GEODE User manual

....
CF370BQ00
Barbeque Black
CF370BS00
Brushed Steel
CF370GRT00
Graphite
CF370ORB00
Oil Rubbed Bronze
CF370PN00
Polished Nickel
CF370SW00
Satin White
READ AND SAVE THESE INSTRUCTIONS
MODERN
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Net Weight: 14.8 Lbs.
GEODE
52” Ceiling Fan Owner’s Manual
Model Numbers
• Español - página 33
• Français - page 65
Part No. F40BP75430002 Form No. BP7543-2
Revision: 02012021 ETL Model No.: CF370

Table of Contents
2
ETL Model No.: CF370
READ AND SAVE THESE INSTRUCTIONS
Safety Instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the fuse box before wiring, and do not operate
fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
4. The downrod furnished with the fan provides the
minimum recommended floor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To reduce the risk of fire or electrical shock, this fan
should only be used with fan speed control, Model No.
UC7067RA, manufactured by Rhine Electric Co., Ltd.
To avoid fire, shock or injury, do not use a Luminance
Brands or any other brand of control not specifically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blades during installation, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
WARNING
!
Section Page
Safety Instructions ................................ 2
1. Unpacking Instructions ..........................3-4
2. Electrical Requirements .......................... 4
3. Ceiling Fan Assembly ...........................5-9
4. How to Hang Your Ceiling Fan ..................10-11
5. How to Wire Your Ceiling Fan ..................12-16
6. Final Assembly ..............................17-19
7. Wall Control Procedures ......................... 20
8. Wall Control Installation........................21-24
9. Programming the Receiver Operating Frequency...... 25
10. Wall Control Operation ......................... 25
Section Page
11. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . 26
12. Maintenance ................................. 26
13. Accessories ................................. 26
14. Troubleshooting .............................. 27
15. Repair Parts ...............................28-29
16. Energy Efficient Use of Ceiling Fan ............... 30
17. Instruction to the User ......................... 30
Ceiling Fan Limited Warranty ....................... 31
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
French ........................................ 65

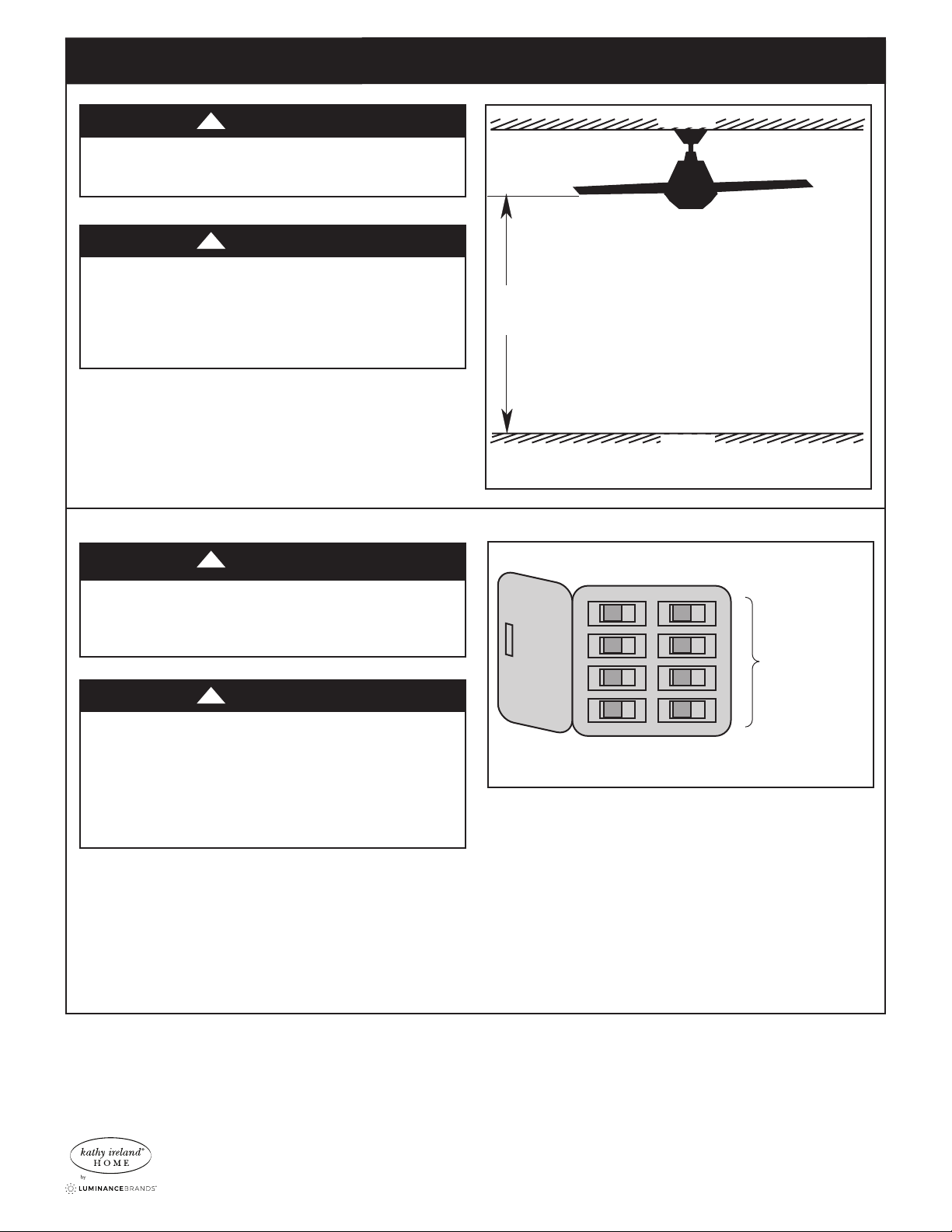

To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

1. Unpacking Instructions
3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
1.1
Open Carton containing the Fan. Remove top half of
styrofoam unit. Remove Parts and check to see that
you have received the following Hardware and Parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local retailer
or catalog outlet for replacement before proceeding.
F
K
A
E
G
H
I
B
C
D
J
OFF ON
....
OFF ON

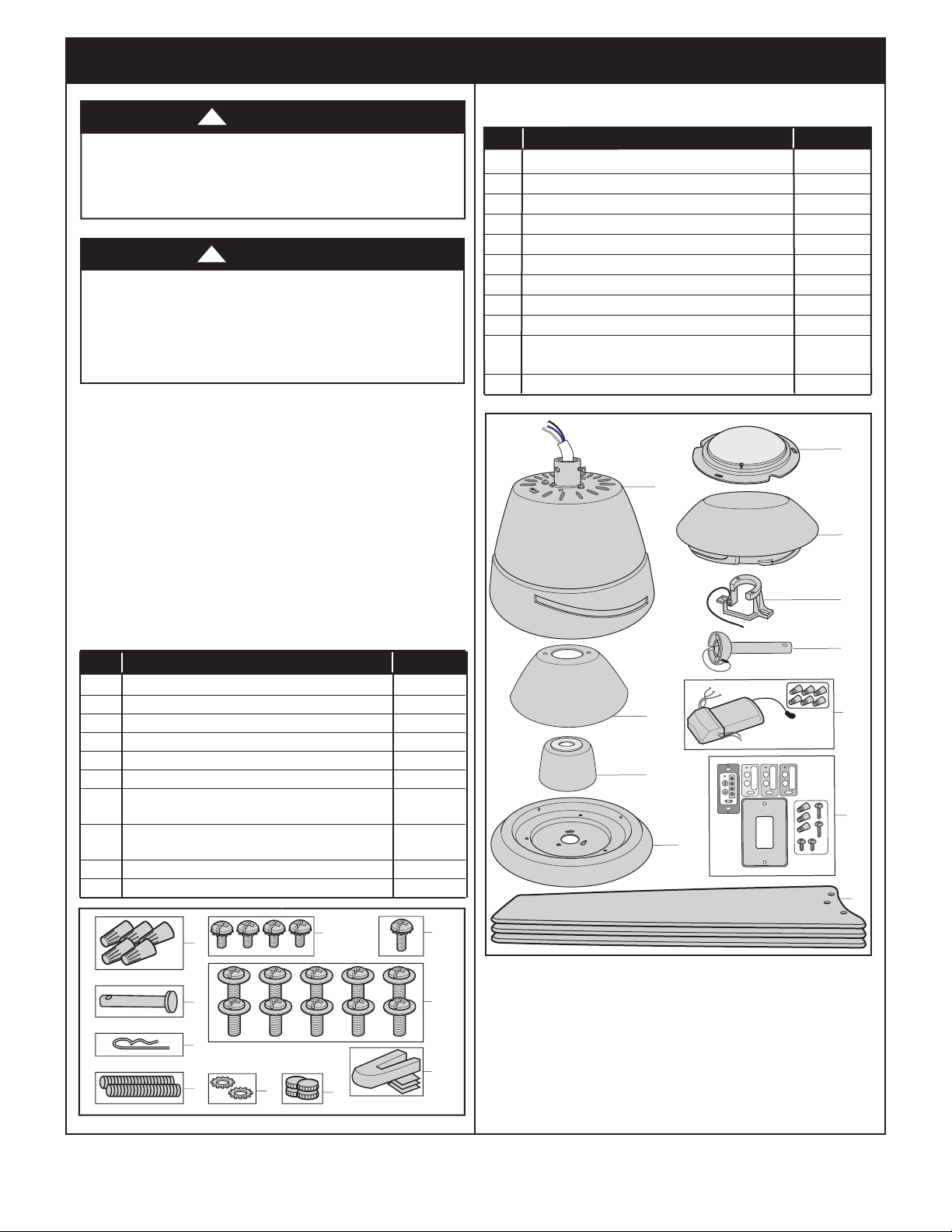

PACKAGE CONTENTS
6
5
10
8
7
9
4
3
2
1
1.2
Remove the Fan Motor Assembly from the protective
plastic bag. Place the Fan Motor Assembly onto the
upper foam pad with the bottom of the Fan Motor
Assembly facing up.
The upper foam pad serves as a holder for the Fan
during the first stages of assembly.
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Coupler Cover 1
D Lower Housing 1
E LED Light Fixture Assembly 1
F Shade 1
G Hanger Bracket 1
H Hanger Ball / 4.5” Downrod Assembly 1
I Receiver with Hardware 1
J 4 Speed Wall Control Transmitter
with Hardware 1
K Fan Blades 3
HARDWARE CONTENTS
Part Description Quantity
1 Wire Connectors, 12 ga. 5
2 Clevis Pin 1
3 Hairpin Clip 1
4 Threaded Stud, #8-32 x 1-1/4” 2
5 Lockwashers, External Tooth #8 2
6 Knurled Knobs, #8-32 2
7 #6-32 x 1/4” Truss Head Screws with
Lock Washers 4
8 #6-32 x 3/8” Truss Head Screw with
Lock Washer (spare) 1
9 #10-24 x 11 mm Washer Head Blade Screws 10
10 Blade Balance Kit 1

Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 12).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One 1/4” Blade Screwdriver One Wire Stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
4
ETL Model No.: CF370
2. Electrical Requirements
1. Unpacking Instructions (Continued)
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
Your New Ceiling Fan will require a Grounded Electrical
Supply Line of 120 volts AC, 60 Hz, 15 amp circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 Pounds.
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity Off at the Main Fuse Box at this
time and remove the Existing Light Fixture.
IMPORTANT: Your ceiling fan will not function
properly, and may be damaged, if used with any
wall dimmer switch or control other than the
Luminance Brands Fan/Light Wall Control supplied
with the fan.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
This Manual Is Designed to Make it as Easy as Possible for You
to Assemble, Install, Operate and Maintain Your Ceiling Fan
Controls (Sold Separately)
SR401 Remote Control (sold separately) may be used
with this 52” Geode Ceiling Fan.

3. Ceiling Fan Assembly
#10-24 x 11 mm WASHER HEAD
BLADE SCREWS (3 per blade)
FAN BLADES (3)
FAN MOTOR ASSEMBLY
CENTER SLOTS (3)
Figure 1
3.1
Slide a Blade through the Fan Motor Assembly Center
Blade Slot.
Mount the Blade to Fan Motor Assembly using Three
#10-24 x 11mm Washer Head Blade Screws (supplied)
(Figure 1).
NOTE: Take care not to scratch Fan Motor
Assembly when installing Blades.
Complete the installation of the remaining Two Blades
per the above instructions.
A spare #10-24 x 11mm Washer Head Blade Screw is
supplied in the parts bag, if needed.
5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
To reduce the risk of personal injury, do not bend
the blades during installation, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
WARNING
!
REMOVE ONE #6-32 x 3/8"
TRUSS HEAD SCREW
FAN MOTOR HUB
LOOSEN TWO #6-32 x 3/8"
TRUSS HEAD SCREWS
3.2
Remove and retain One of the Three #6-32 x 3/8” Truss
Head Screws in the Fan Motor Assembly Hub.
Loosen the remaining Two #6-32 x 3/8” Truss Head
Screws (Figure 2).
Figure 2

6
ETL Model No.: CF370
3. Ceiling Fan Assembly (Continued)
ENGAGE THE TWO LOOSENED
#6-32 x 3/8" TRUSS HEAD
SCREWS
LOWER HOUSING
ROTATE CLOCKWISE
3.3

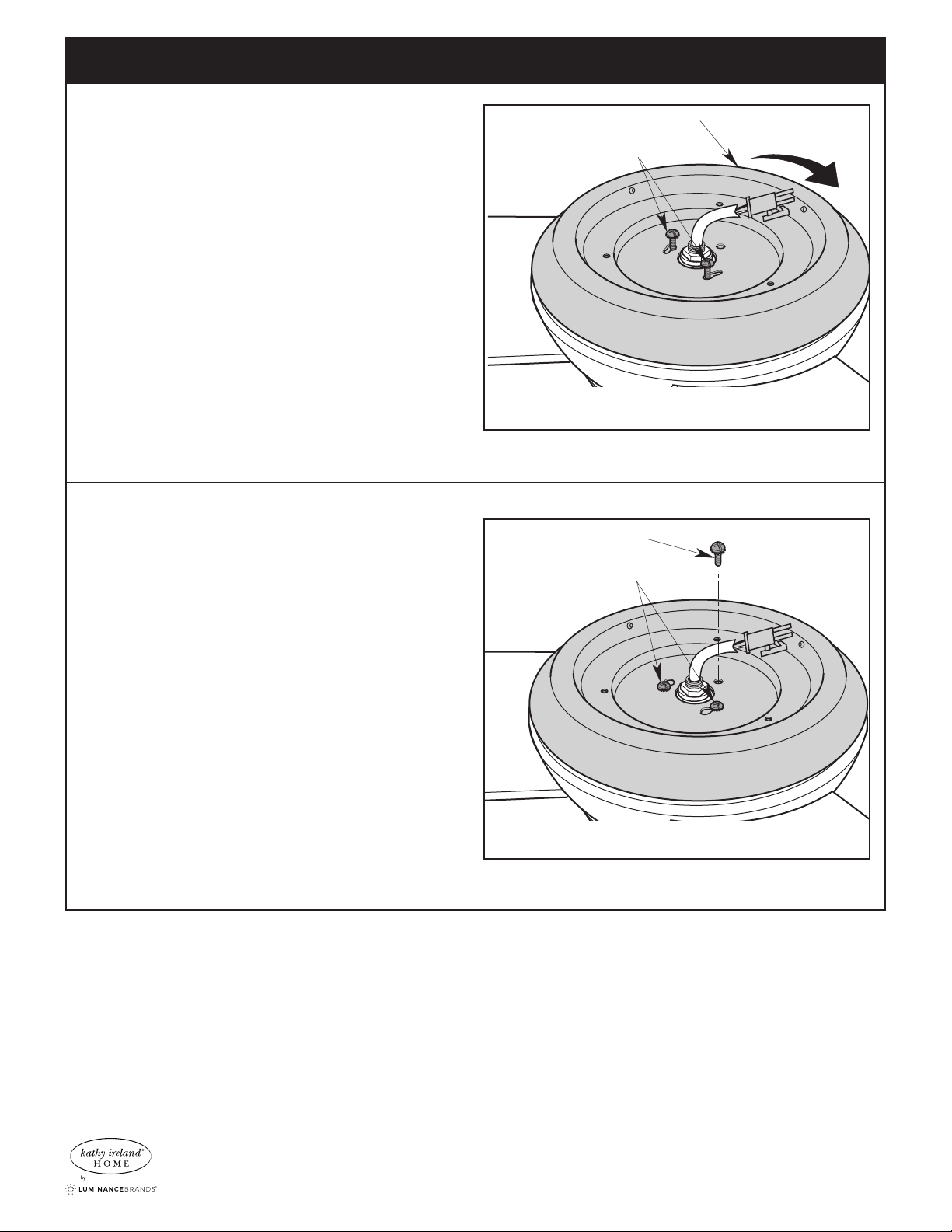

Position the Lower Housing onto the Fan Motor
Assembly Hub.
Rotate the Lower Housing Clockwise to engage the
Two loosened #6-32 x 3/8” Truss Head Screws with the
Lower Housing Key Slots (Figure 3).
TIGHTEN THE #6-32 x 3/8"
TRUSS HEAD SCREWS
REINSTALL & TIGHTEN THE
#6-32 x 3/8" TRUSS HEAD SCREW
3.4
Reinstall the #6-32 x 3/8” Truss Head Screw that was
previously removed (Figure 4).
Secure the Lower Housing by tightening the Three
#6-32 x 3/8” Truss Head Screws (Figure 4).
A spare #6-32 x 3/8” Truss Head Screw is supplied in
the parts bag, if needed.
NOTE: The LED Light Fixture Assembly will be
installed during the Final Assembly, after the
Ceiling Fan is Hung and Wired.
Figure 3
Figure 4

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
3. Ceiling Fan Assembly (Continued)
PHILLIPS HEAD SET SCREW (LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE
Figure 5
3.5
Carefully turn the partially assembled Ceiling Fan right
side up and place the Fan securely into the packing
styrofoam. Careful not to bend the Blades.
Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the 4.5” Downrod (Figure 5).
Remove the Pin from the 4.5” Downrod, then remove
the Hanger Ball (Figure 5).
Retain the Pin and Hanger Ball for reinstallation in
Step 3.12.
Note: Do not loosen the Screw that attaches the
Green Ground Wire to the Hanger Ball.
4.5" DOWNROD
THREE 80" MOTOR
WIRES (UNTWISTED)
Figure 6
3.6
Separate, untwist and unkink the Three 80” Motor
Wires.
Route the Three 80” Black, Blue, and White Motor
Wires through the 4.5” Downrod (Figure 6).
MOTOR
COUPLER
DOWNROD
LOOSEN SET
SCREWS (2)
Figure 7
3.7
Loosen the Two Phillips Head Set Screws in the Motor
Coupler for installation of the 4.5” Downrod (Figure 7).
Seat the 4.5” Downrod in the Motor Coupler (Figure 7).
Rotate and align the Two Downrod Clevis Pin Holes
with the Two Motor Coupler Clevis Pin Holes (Figure 7).

8
ETL Model No.: CF370
3. Ceiling Fan Assembly (Continued)
CLEVIS PIN
HAIRPIN
CLIP
HAIRPIN
CLIP
CLEVIS
PIN
MOTOR
COUPLER
Figure 8

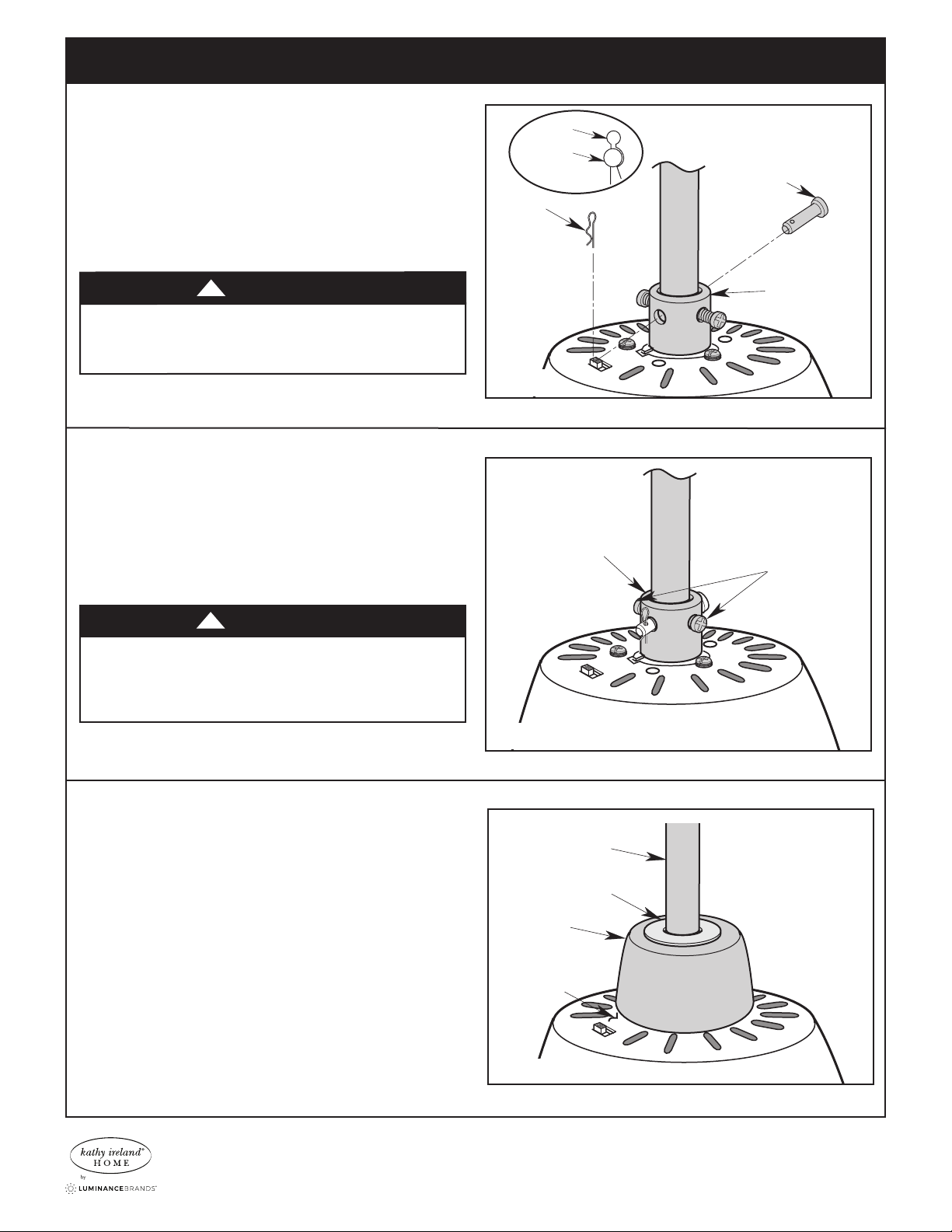

3.8
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 8).
The Clevis Pin must go through the Holes in the Motor
Coupler and Downrod. It is critical that the Clevis Pin
in the Motor Coupler is properly installed and securely
tightened.
RETIGHTEN TWO
PHILLIPS HEAD
SET SCREWS
MOTOR COUPLER
Figure 9
3.9
While pulling up on the 4.5” Downrod, retighten the Two
Phillips Head Set Screws to secure the 4.5” Downrod in
the Motor Coupler (Figure 9).
NOTE: The Set Screws must be properly installed
as described above, or fan wobble could result.
It is critical that the clevis pin in the motor coupler
is properly installed. Failure to verify that the pin is
properly installed could result in the fan falling.
WARNING
!
It is critical that the set screws in the motor coupler are
properly installed and securely tightened. Failure to
verify that the set screws are properly installed could
result in the fan falling.
WARNING
!
4.5" DOWNROD
GROMMET
COUPLER
COVER
MOTOR
HOUSING
Figure 10
3.10
Make sure the Grommet is properly installed in the
Coupler Cover, then slide the Coupler Cover on the
4.5” Downrod until it rests on the Motor Housing
(Figure 10).

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
3. Ceiling Fan Assembly (Continued)
PIN
4.5"
DOWNROD
HANGER BALL
SET SCREW
Figure 12

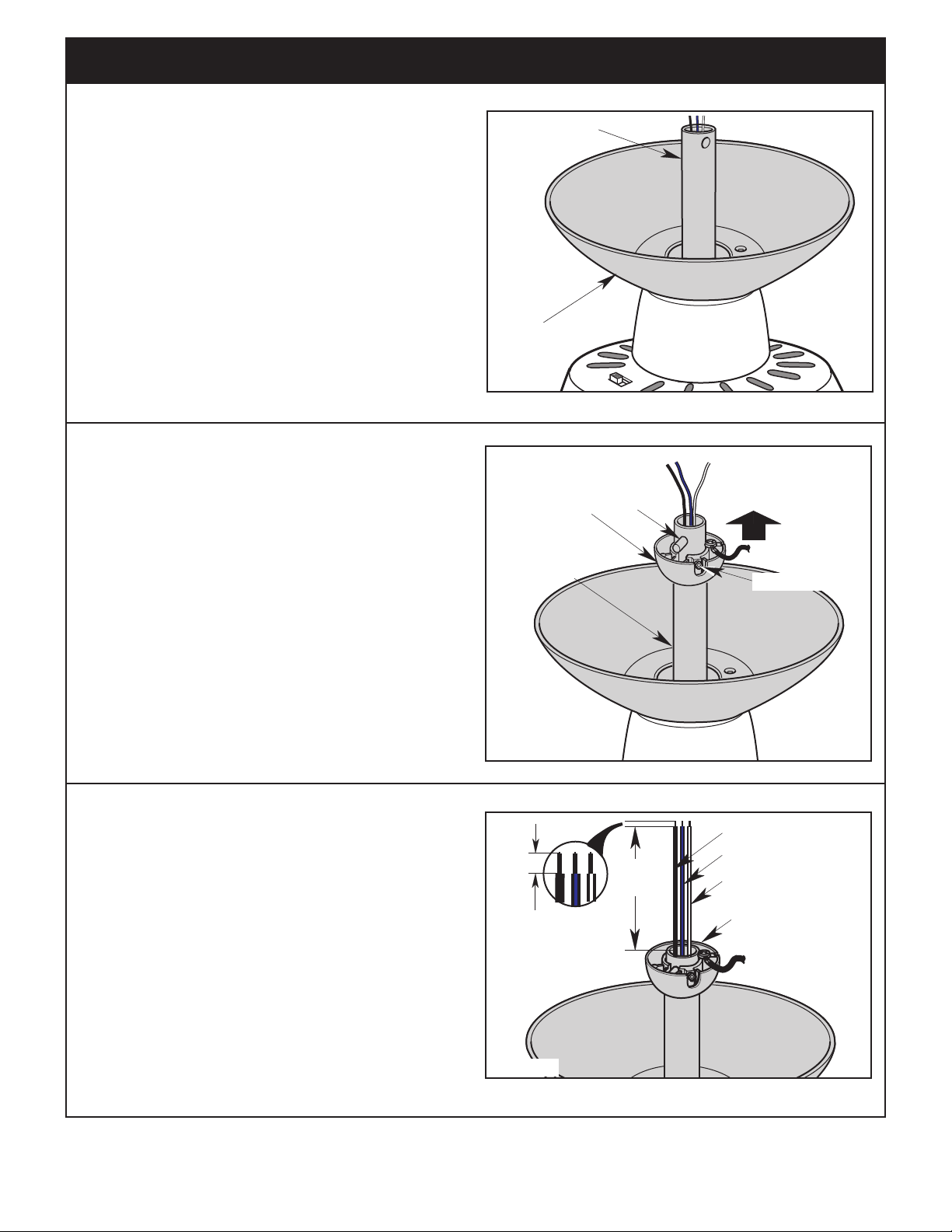

3.12
Route the Three Motor Wires through the Hanger Ball
(Figure 12).
Reinstall the Hanger Ball on the 4.5” Downrod as
follows:
Position the Pin through the Two Holes in the
4.5” Downrod and align the Hanger Ball so the Pin is
captured in the Groove in the top of the Hanger Ball
(Figure 12).
Pull the Hanger Ball up tight against the Pin and
securely retighten the Phillips Head Set Screw in the
Hanger Ball (Figure 12).
A loose Phillips Head Set Screw could create fan
wobble.
4.5" DOWNROD
CEILING
COVER
Figure 11
3.11
Place the Ceiling Cover over the 4.5” Downrod
(Figure 11).
Be sure that the Ceiling Cover and the Coupler Cover
are both oriented correctly (Figure 11).
BLACK WIRE
6 TO 9
INCHES
BLUE WIRE
WHITE WIRE
HANGER
BALL
1/2
INCH
3.13
The Fan comes with Black, Blue and White Wires that
are 80-inches long.
Before installing the Fan, measure up approximately
6 to 9-inches above top of Hanger Ball/Downrod
Assembly (Figure 13).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
Figure 13

10
ETL Model No.: CF370
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
4.1
Disconnect Electrical Power to the Branch Circuit at
the Circuit Breaker or Fuse Box before attempting to
install the Ceiling Fan Hanger Bracket on the Outlet Box
(Figure 15).
MAIN FUSE BOX
Figure 15
FLOOR
CEILING
AT
LEAST
7'
Figure 14
4. How to Hang Your Ceiling Fan
To reduce the risk of injury, install the fan so that
the blades are at least 7 ft. (2.1m) above the floor
(Figure 14).
CAUTION
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
4.2
Securely attach the Hanger Bracket to the Outlet
Box using the Two Screws supplied with the Outlet Box
(Figure 16).
HANGER
BRACKET
ANTI-ROTATION
TAB
OUTLET
BOX
TWO SCREWS
SUPPLIED WITH
OUTLET BOX
Figure 16
4. How to Hang Your Ceiling Fan (Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION TAB
4.3
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 17).
Be sure the Groove in the Ball is engaged with the
Anti-Rotation Tab on the Hanger Bracket (Figure 17).
Figure 17

12
ETL Model No.: CF370
To avoid possible fire or shock, do not pinch the
antenna wire between the hanger bracket and the
receiver.
WARNING
!
FOR LIGHT
TO MOTOR N
AC IN N
TO MOTOR L
RECEIVER ANTENNA WIRE
AC IN L
RECEIVER
Figure 18
5.2
Locate the Electronic Receiver and insert its Antenna
Wire into the opening of the Hanger Bracket above
the Hanger Ball. Continue to insert the body of the
Receiver (flat side facing up) into the opening, orient as
shown. Be careful not to pinch any Wires between the
Receiver body and the Bracket or Ball (Figure 18).
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
5.1
CAUTION: To reduce the risk of electrical shock,
disconnect the electrical supply circuit before
installing the fan, light kit or receiver.
Disconnect Electrical Power to the Branch Circuit at the
Circuit Breaker or Fuse Box before attempting to Wire
the Ceiling Fan.
5. How to Wire Your Ceiling Fan
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370

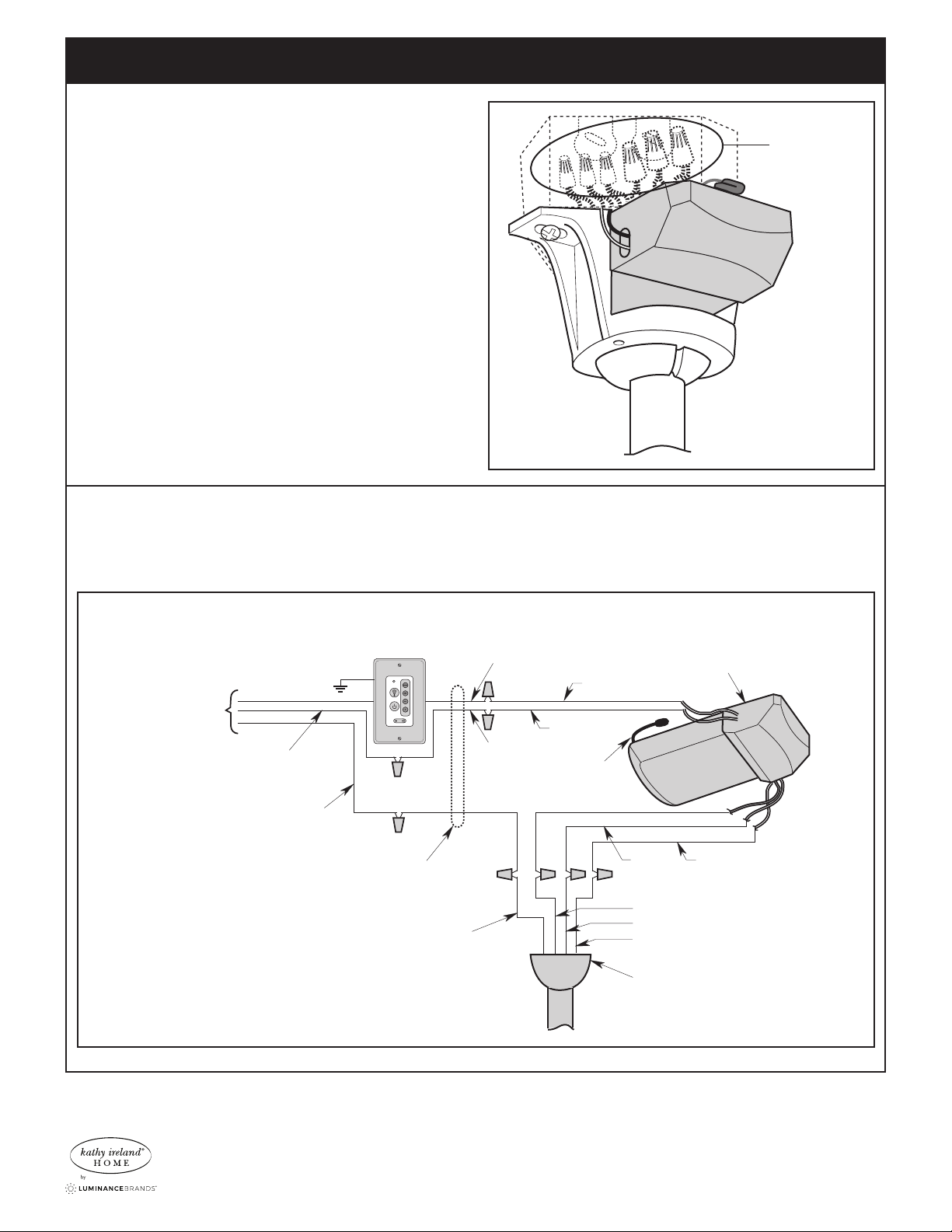

5. How to Wire Your Ceiling Fan (Continued)
FOR LIGHT
TO MOTOR L
AC IN L
TO MOTOR N
AC IN N
HANGER BALL, HANGER BRACKET, & SUPPLY GREEN
GOUNDING WIRES
12 ga. WIRE
CONNECTOR
Figure 19

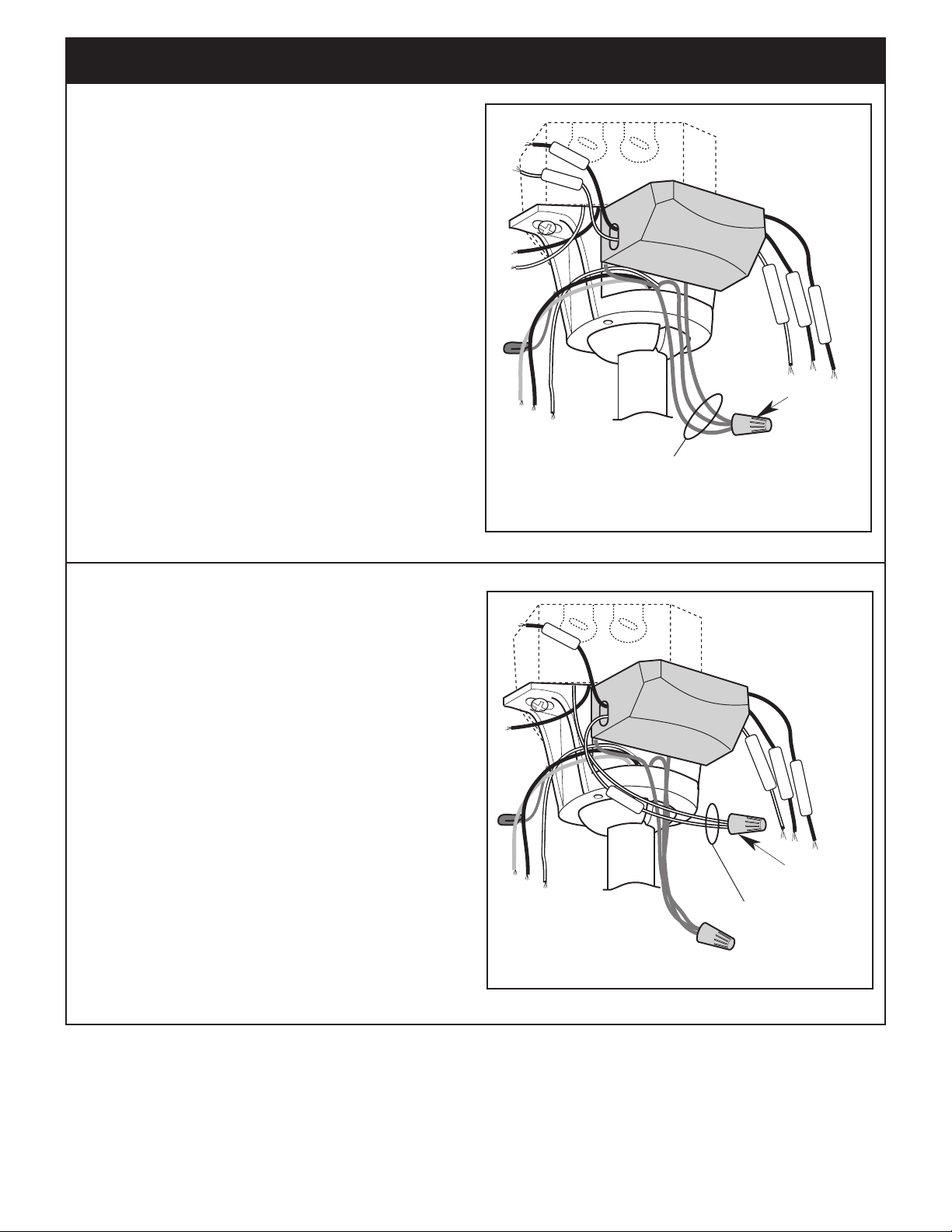

5.3
NOTE: Make all wiring connections using the
wire connectors supplied in the parts bag and
the receiver hardware bag. Make sure that all
connections are tight, including ground, and that
no bare wire is visible at the wire connectors,
except for the supply circuit ground wire.
Connect the Hanger Ball Green Grounding Wire and
the Hanger Bracket Green Grounding Wire to the
Supply Grounding Conductor (this may be a bare wire
or wire with Green Colored insulation).
Securely connect Wires with 12 ga. Wire Connector
(supplied in parts bag) (Figure 19).
FOR LIGHT
TO MOTOR L
AC IN L
AC IN N
TO MOTOR N
12 ga. WIRE
CONNECTOR
SUPPLY AND RECEIVER
WHITE WIRES
Figure 20
5.4
Securely connect the Receiver White Wire (AC IN N) to
the Supply White Wire (neutral) using the 12 ga. Wire
Connector (supplied in parts bag) (Figure 20).

14
ETL Model No.: CF370
5. How to Wire Your Ceiling Fan (Continued)

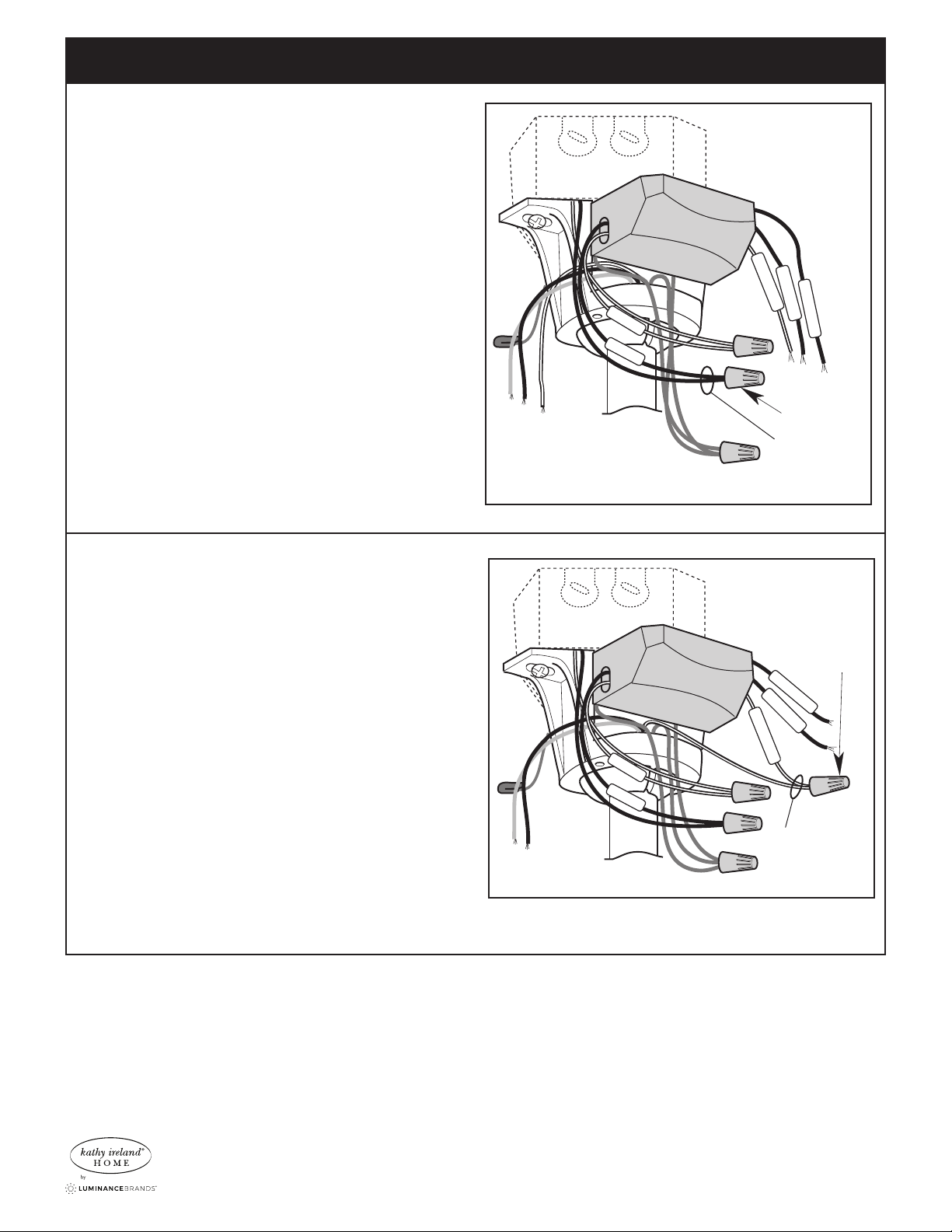

5.5
Securely connect the Receiver Black Wire (AC IN L)
to the Supply Black Wire (hot) using the 12 ga. Wire
Connector (supplied in parts bag) (Figure 21).
FOR LIGHT
TO MOTOR L
TO MOTOR N
AC IN N
AC IN L
12 ga. WIRE
CONNECTOR
SUPPLY AND
RECEIVER
BLACK WIRES
Figure 21
TO MOTOR L
TO MOTOR N
AC IN N
AC IN L
FOR LIGHT
FAN AND
RECEIVER
WHITE WIRES
18 ga. WIRE
CONNECTOR
Figure 22
5.6
Securely connect the Receiver White Wire
(TO MOTOR N) to the Fan Motor White Wire using
the 18 ga. Wire Connector (supplied with receiver)
(Figure 22).

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
5. How to Wire Your Ceiling Fan (Continued)
5.7
Securely connect the Receiver Black Wire
(TO MOTOR L) to the Fan Motor Black Wire using the
18 ga. Wire Connector (supplied with receiver)
(Figure 23).
5.8
Securely connect the Receiver Blue Wire (TO LIGHT)
to the Fan Motor Blue Wire using the 18 ga. Wire
Connector (supplied with receiver) (Figure 24).
Position the Antenna Wire on top of the Receiver. Slide
the Receiver completely onto the Hanger Ball, nestled
in the Hanger Bracket (Figure 24).
NOTE: Failure to properly connect the Receiver
Wires will damage the device and render it
non-operable.
TO MOTOR N
AC IN N
AC IN L
FOR LIGHT
TO MOTOR L
SUPPLY AND RECEIVER
BLACK WIRES
18 ga. WIRE CONNECTOR
Figure 23
TO MOTOR N
AC IN N
AC IN L
TO MOTOR L
FOR LIGHT
18 ga. WIRE CONNECTOR
SUPPLY AND RECEIVER
BLUE WIRES
ANTENNA WIRE
RECEIVER
Figure 24
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the supply circuit ground wire.
Do not operate fan until blades are in place.
Noise and fan damage could result.
WARNING
!

16
ETL Model No.: CF370
5. How to Wire Your Ceiling Fan (Continued)
WIRE
CONNECTORS
(Tucked Inside
Outlet Box)
Figure 25
5.9
While inserting the Receiver fully into the Hanger
Bracket, turn Wires upward and carefully push Wires
into the Outlet Box, with the White and Green Wires
on one side of the Outlet Box and position the Black
and Blue Wires on the other side of the Outlet Box
(Figure 25).
Figure 26
5.10
Wiring Schematic for reference (Figure 26).
GND
STANDARD ON-OFF WALL
SWITCH OR OPTIONAL
WALL CONTROL
BLACK
BLACK
WHITE
BLACK or RED
BLACK
WHITE
HANGER BALL
GREEN WIRE (GROUND) FROM
HANGER BALL AND HANGER
BRACKET
TWO-CONDUCTOR
CABLE
(WITH GROUND)
BLACK
(HOT)
WHITE
GROUND
TO
120-VOLT
SUPPLY
WHITE
BLUE
WHITE
BLUE
ANTENNA
RECEIVER

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370
6. Final Assembly
#8 EXTERNAL
TOOTH
LOCKWASHER (2)
CEILING
COVER
1-1/4"
THREADED
STUD (2)
#8-32 KNURLED
KNOB (2)
Figure 28
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Ceiling Cover
Holes (Figure 28).
Secure the Ceiling Cover in place by sliding a
Lockwasher over each of the Threaded Studs and
installing the two Knurled Knobs (supplied) (Figure 28).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the ceiling and the hole in the
Ceiling Cover is clear of the Downrod.

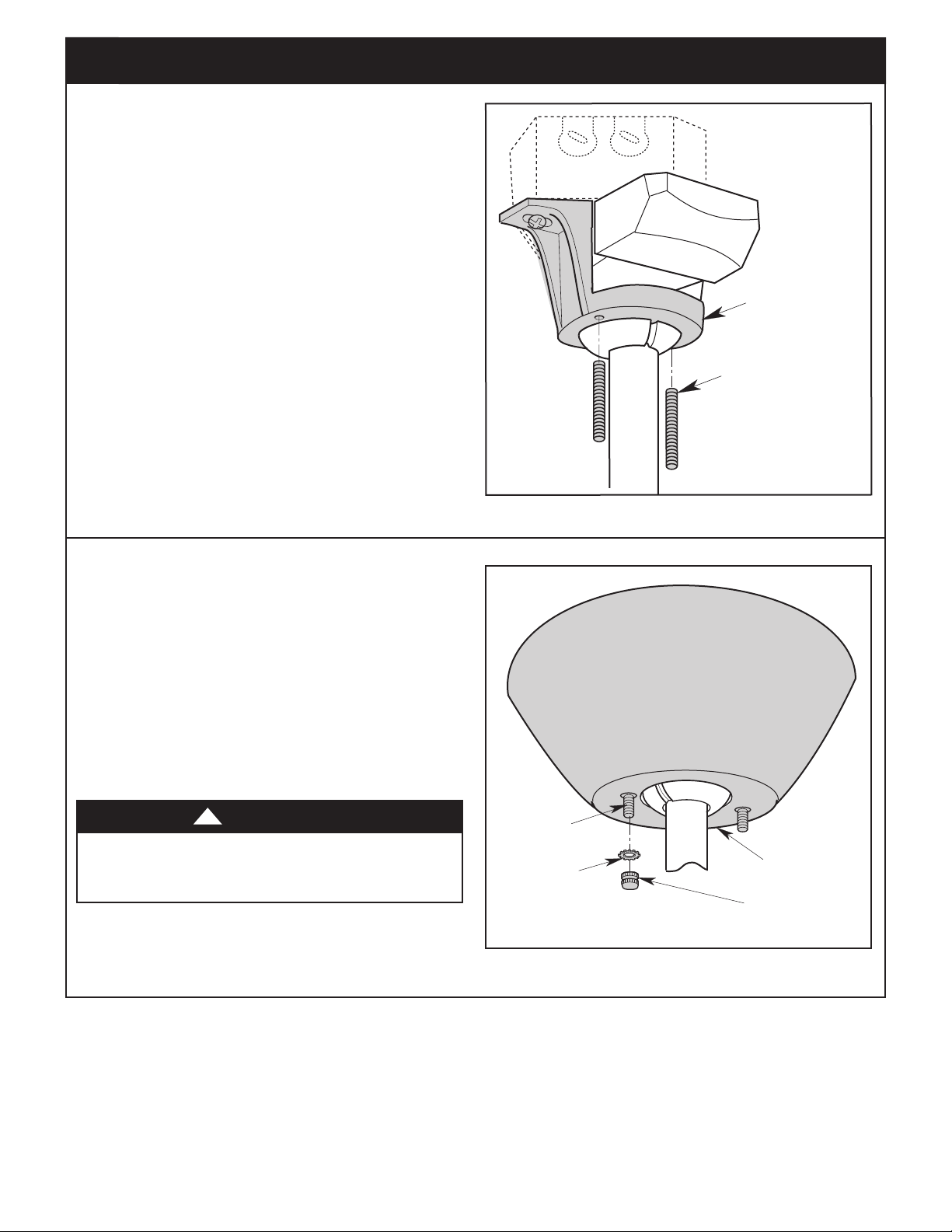

THREADED STUDS (2)
HANGER BRACKET
Figure 27
6.1
Screw the 1-1/4” Threaded Studs into the Threaded
Holes on the bottom of the Hanger Bracket with your
fingers (Figure 27).

18
ETL Model No.: CF370
6. Final Assembly (Continued)
LED LIGHT FIXTURE
ASSEMBLY CONNECTOR
FAN MOTOR
ASSEMBLY
CONNECTOR
FAN MOTOR
CONNECTOR
LED LIGHT
CONNECTOR
Figure 29
6.3
Engage the Fan Motor 2-Pin Wire Connector into the
2-pin Wire Connector of the LED Light Fixture Assembly
(Figure 29).
The connection is complete when you hear a soft click.

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF370

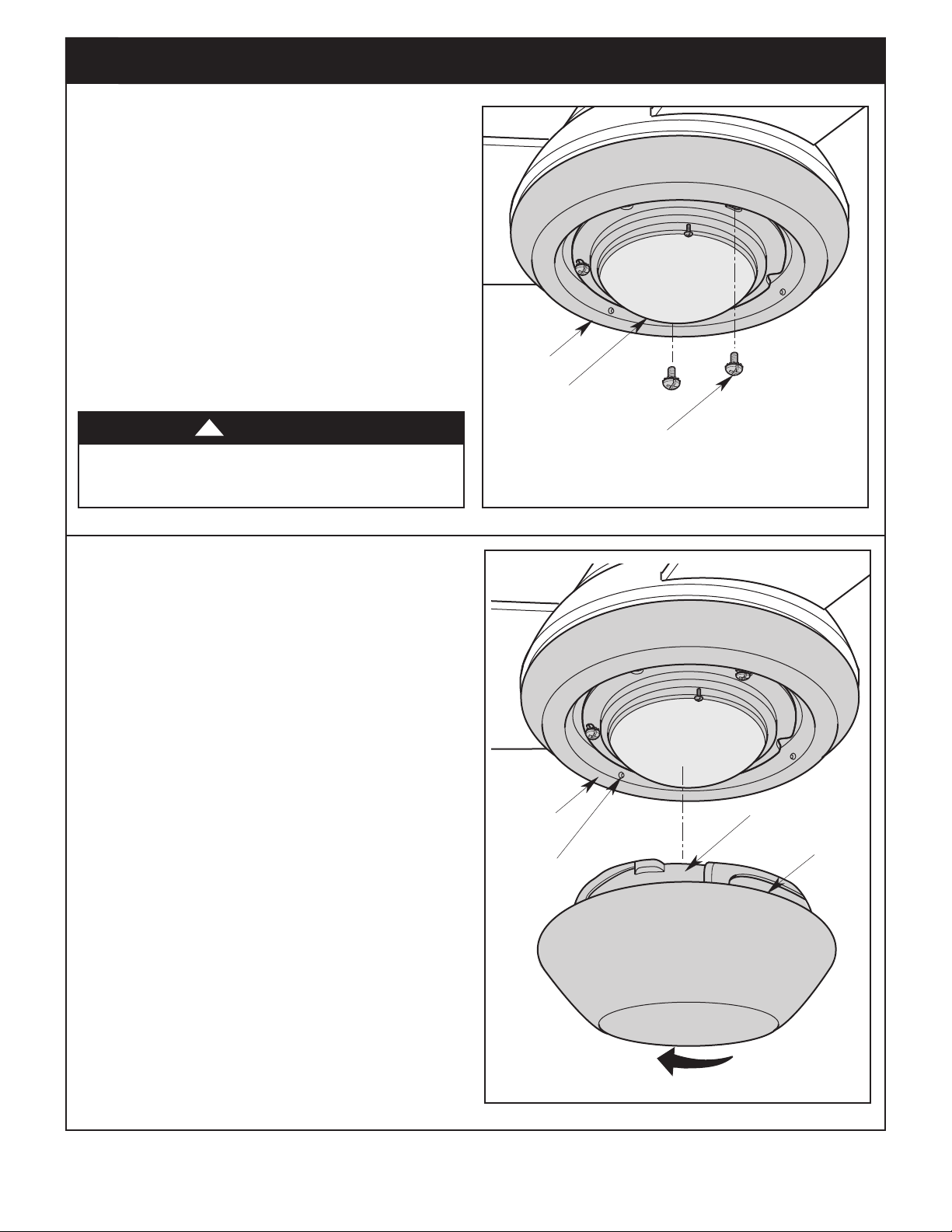

LOWER
HOUSING
LED LIGHT
FIXTURE
ASSEMBLY
#6-32 x 1/4" TRUSS
HEAD SCREWS WITH
LOCKWASHERS (3)
Figure 30
6.4
Carefully tuck all the Wires and Connectors into the
Lower Housing.
Position the LED Light Fixture Assembly onto the
Lower Housing, aligning the Three Holes.
NOTE: Verify that the wires and connectors are not
trapped between the LED light fixture assembly and
the lower housing.
Install and tighten the Three #6-32 x 1/4” Pan Head
Screws with Lockwashers (supplied) to complete
the installation of the LED Light Fixture Assembly
(Figure 30).
A spare #6-32 x 1/4” Truss Head Screw with
Lockwasher is supplied in parts bag, if needed.
6. Final Assembly (Continued)
6.5
Place the Shade into the opening in the Lower Housing,
aligning the Three Flat Areas on the top edge of the
Shade with the Lower Housing Three Raised Dimples
and turn the Shade Clockwise until it stops (Figure 31).
NOTE: Periodically check that the Shade is seated
fully clockwise in the Lower Housing.
LOWER
HOUSING
RAISED
DIMPLES (3)
FLAT AREAS (3)
SHADE
ROTATE CLOCKWISE
Figure 31
To avoid possible fire or shock, do not pinch wires
between the lower housing and the LED light fixture
assembly.
WARNING
!

20
ETL Model No.: CF370
7. Wall Control Procedures
7.1
Your Ceiling Fan/Light Control consists of Wall
Mounted Transmitter and a Receiver located inside
the Ceiling Cover. The Control is designed to remotely
operate your Ceiling Fan speed, light intensity and
direction of rotation.
Preset Memory Feature: Your Ceiling Fan/Light
Control is equipped with a preset memory feature.
When the electricity supply to the Fan is switched OFF,
the Control will remember the Light Intensity and Fan
Speed.
7.2
Your Wall Control has Code Switches which must be
set in one of 32 possible code combinations
(Figure 32). The Five Levers (numbered 1, 2, 3, 4,
and 5) on the Switches are factory-set in the ON (up)
position. Change the Switch settings as follows:
NOTE: Do not duplicate the code of an existing
control of an installed ceiling fan within 100 feet.
Slide the Five Switch Levers in the Wall Control to your
choice of ON (up) or down positions. Use a ball-point
pen or small screwdriver and slide the Levers firmly up
or down.
The Sixth Switch marked ON and Iis for Dimming
Control of Lights: Set Switch to ON to allow for
Dimming of the Lights. Set Switch to Ifor No Dimming
of the Lights.
When the power is restored after installation, push and
hold the Fan OFF button ( ) for 3 to 5 seconds to set
the code in the Receiver.
When the Switch is turned back ON, the Light and Fan
will resume operation as they were prior to the Switch
being turned OFF.
WALL CONTROL
CODE SWITCHES
1 - 5
ON
12345I
DIMMING
SWITCH
I
CODE
SWITCHES
WALL
CONTROL
Figure 32
Code Switches in the Transmitter may be set in
32 different positions. If your Fan and Light turn ON
and OFF without using your Control, you may be
getting interference from other remote units such as
garage door openers, car alarms or security systems.
To remedy this situations, simply change the Code
Switches in your Transmitter per the instructions of
Section 7.2.
