Luminance Brands kathy ireland HOME EUCLID User manual

Part No. F40BP75190002 Form No. BP7519-2
Revision: 03042021 U.L. Model No.: CF500
EUCLID
56” Ceiling Fan Owner’s Manual
Model Numbers
CF500AP00 - Antique Pewter
CF500SBS00 - Brushed Steel
CF500TORB00 - Oil Rubbed Bronze
Net Weight: 22.4 Lbs.
• Español - página 23
• Français - page 45
M2
M1
L
H
OFF
READ AND SAVE THESE INSTRUCTIONS
MODERN
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service

U.L. Model No.: CF500
2
Table of Contents
Safety Instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring, and do not operate fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
4. The downrod furnished with the fan provides the
minimum recommended floor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All setscrews must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To reduce the risk of fire or electrical shock, this fan
should only be used with fan speed control, Model
No. SW46/U.L. Model No. UDC9020, manufactured by
Rhine Electric Co., Ltd.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
Section Page
Safety Instructions ................................ 2
1. Unpacking Instructions ..........................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Ceiling Fan Assembly ..........................5-9
4. How to Hang Your Ceiling Fan ..................10-11
5. How to Wire Your Ceiling Fan ..................12-13
6. Final Assembly ............................... 14
7. Installing the Wall Control .....................15-16
Section Page
8. Operating Your Ceiling Fan ...................... 17
9. Maintenance .................................. 17
10. Repair Parts ...............................18-19
11. Accessories ................................. 20
12. Troubleshooting .............................. 20
Ceiling Fan Limited Warranty ....................... 21
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
French ........................................ 45
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
1. Unpacking Instructions
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
1.1

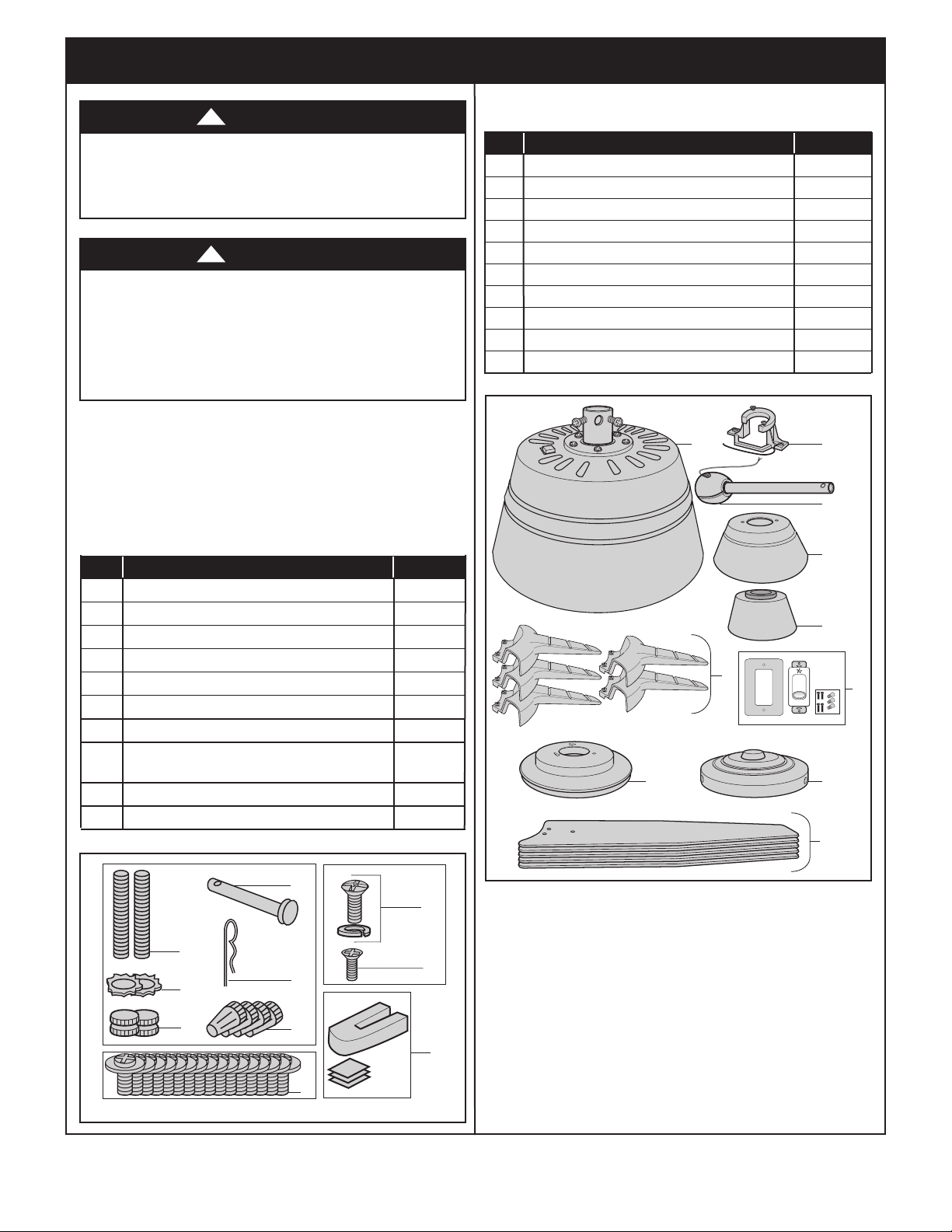

Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer

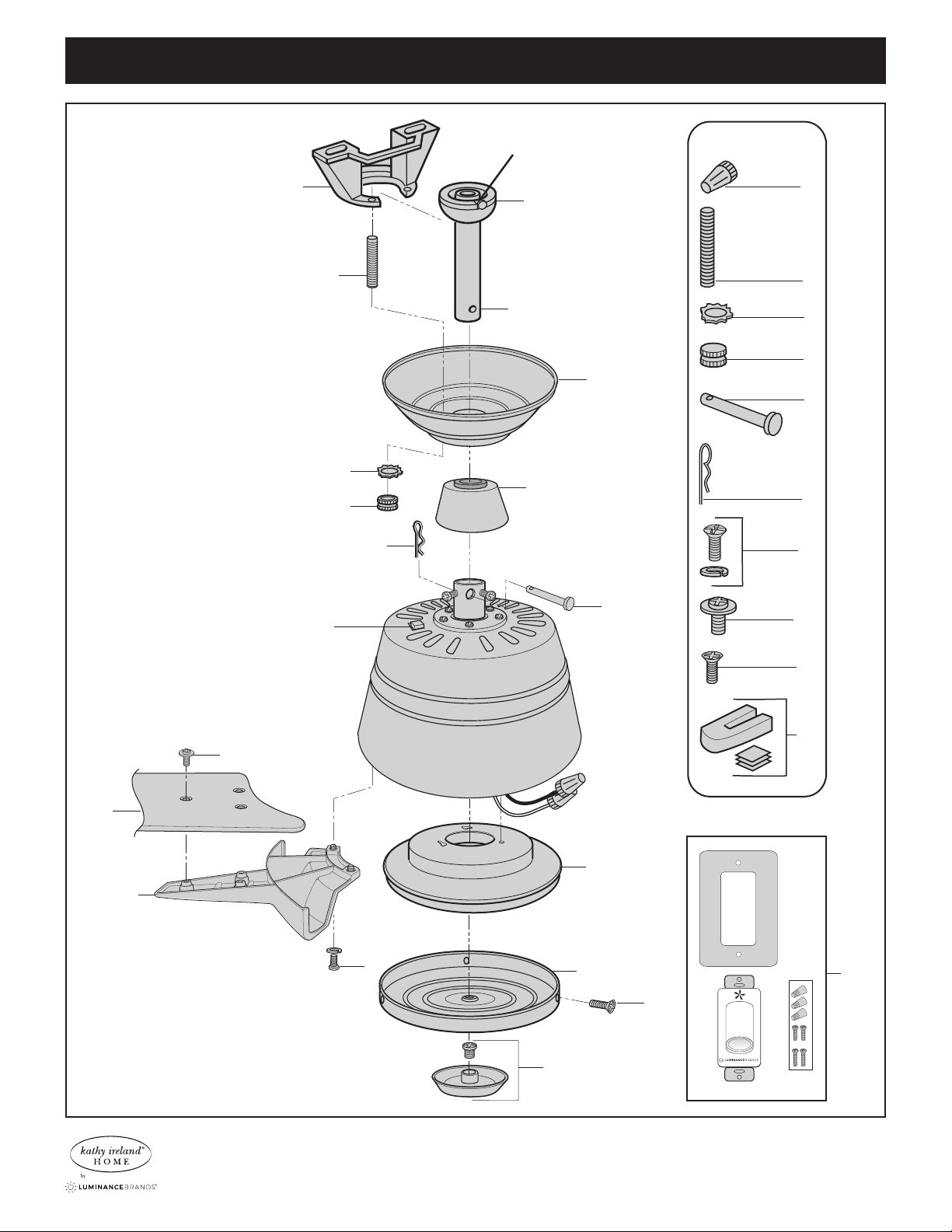

to exploded view illustration.
NOTE: The loose parts are individually packaged
for ease of installation. Place the parts from the
loose parts bags in a small container to keep them
from being lost. If any parts are missing, contact
your local retailer or catalog outlet for replacement
before proceeding.
1.2
Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper foam
pad with the top of the motor facing up.
The upper foam pad serves as a holder for the fan
during the first stages of assembly.
B
D
E
F
H
A
G
I
0
4
3
2
1
J
C
G
4
0
3
2
1
M2
M1
L
H
OFF
I
J
E
D
C
B
A
F
H
PACKAGE CONTENTS
10
7
4
3
2
1
6
5
8
9
Part Description Quantity
A Fan Motor Assembly 1
B Hanger Bracket 1
C Hanger Ball / 4.5” Downrod 1
D Ceiling Canopy 1
E Motor Coupler Cover 1
F Fan Blade Flanges 5
G SW46W Wall Control 1
H Switch Housing Adapter 1
I Switch Housing Cover 1
J Fan Blades 5
HARDWARE CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Lockwashers, External Tooth, #8 2
3 Knurled Knobs, #8-32 2
4 Clevis Pin 1
5 Hairpin Clip 1
6 Wire Connectors 4
7 Washer Head Screws #10-24 x 9/32” 16
8 Round Head Screw with Lockwasher
1/4-20 x 9/16” (Spare) 1
9 Flat Head Screw #8-32 x 5/16” (Spare) 1
10 Blade Balance Kit 1

U.L. Model No.: CF500
4
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 12).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
1. Unpacking Instructions (Continued)
2. Electrical Requirements
Your New Ceiling Fan will require a Grounded Electrical
Supply Line of 120 volts AC, 60 Hz, 15 amp circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 Pounds.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7kg. (50 lbs.) or less”, and use
screws supplied with outlet box. Most outlet boxes
commonly used for support of light fixtures are
not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity Off at the Main Fuse Box or
Circuit Breaker Panel at this time and remove the
Existing Light Fixture.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
Your Luminance Brands Ceiling Fan comes supplied
with a Fan Wall Control. This system allows you to
regulate your ceiling fan speed.
Controls (sold separately)
This Luminance Brands Ceiling Fan may be used with
the following accessories: RCFP/RC188 Receiver and
SR401/SR600/SR650 Remote Control and SW650 Wall
Control.

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
3. Ceiling Fan Assembly
#10-24 x 9/32" WASHER
HEAD SCREW
FAN BLADE FLANGE
FAN
BLADE
Figure 1
3.1
NOTE: Intermixing blades and flanges between
fans can cause excessive wobble. Keep blades and
flanges in original sets of five.
Place the Fan Blade on the Fan Blade Flange
(Figure 1).
Tighten the #10-24 x 9/32” Washer Head Screw
(supplied in parts bag) to secure the Fan Blade and Fan
Blade Flange (Figure 1).
Repeat this procedure for the other Four Fan Blade
Flanges and Fan Blades.
Make sure all the #10-24 x 9/32” Washer Head Screws
are tighten securely to the Fan Blade and Flange.
1/4-20 x 9/16" ROUND
HEAD SCREWS WITH
LOCKWASHERS
(2 per blade / flange
BLADE/ FLANGE ASSEMBLY
MOTOR HUB
Figure 2
3.2
Loosely attach One Blade/Flange Assembly to the
Motor Hub by securing the Two 1/4-20 x 9/16” Round
Head Screws with Lockwashers (Figure 2).
Repeat this procedure for the other Four Blade/Flange
Assemblies.
Securely tighten all the 1/4-20 x 9/16” Round Head
Screws with Lockwashers to the Motor Hub at this time.
NOTE: Take care not to scratch fan housing when
installing blades.
A spare 1/4-20 x 9/16” Round Head Screw with
Lockwasher supplied in parts bag, if needed.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!

U.L. Model No.: CF500
6
3. Ceiling Fan Assembly (Continued)
SWITCH HOUSING COVER
#8-32 x 5/16" FLAT
HEAD SCREWS (3)
FINIAL
SWITCH HOUSING ADAPTER
Figure 4
ROTATE ADAPTER
CLOCKWISE
#8-32 x 3/8"
ROUND HEAD SCREW
WITH LOCKWASHER
SWITCH HOUSING
ADAPTER
Figure 3
3.4
Tuck all the Wires and Wire Connectors into the Switch
Housing Adapter.
Remove the Three #8-32 x 5/16” Flat Head Screws from
the Switch Housing Adapter and retain for the installation
of the Switch Housing Cover.
Align the Three Screw Holes of the Switch Housing
Cover onto the Switch Housing Adapter (Figure 4).
Reinstall the previous removed #8-32 x 5/16” Flat Head
Screws.
Secure the Switch Housing Cover to the Switch Housing
Adapter by tightening the Three Switch Housing Screws
(Figure 4).
A spare #8-32 x 5/16” Flat Head Screw supplied in parts
bag, if needed.
The Finial may be removed for use with an Luminance
Brands Light Kit.
3.3
Remove One #8-32 x 3/8” Round Head Screw with
Lockwasher from the Motor Hub and retain for later
use.
Loosen the other Two #8-32 x 3/8” Round Head
Screws with Lockwashers on the Motor Hub for the
installation of the Switch Housing Adapter.
Place the Motor Hub Connectors through the center
Hole of the Switch Housing Adapter.
Place the Switch Housing Adapter onto the Motor Hub,
aligning the Three Screw Holes (Figure 3).
Rotate the Switch Housing Adapter Key Hole Slots
Clockwise to engage both loosened Screws (Figure 3).
Reinstall the previous removed #8-32 x 3/8” Round
Head Screw with Lockwasher.
Secure the Switch Housing Adapter to the Motor Hub
by tightening the Three Switch Housing Screws.

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500

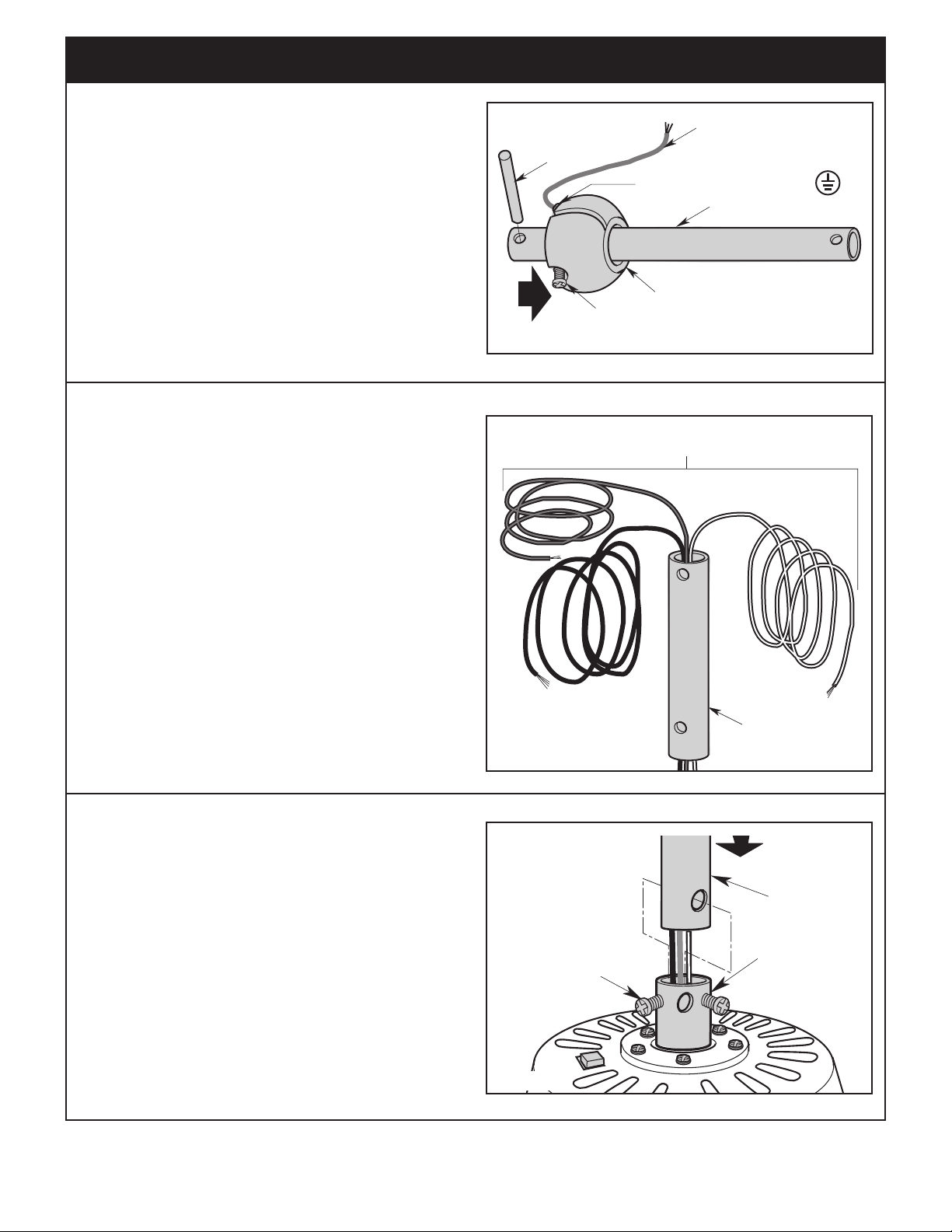

3. Ceiling Fan Assembly (Continued)
4.5" DOWNROD
THREE 80" MOTOR
WIRES (UNTWISTED)
Figure 6
MOTOR
COUPLING
4.5"
DOWNROD
LOOSEN
PHILLIPS HEAD
SET SCREWS (2)
MOTOR
COUPLER
Figure 7
PHILLIPS HEAD SET SCREW (LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE
GREEN GROUND WIRE SCREW
Figure 5
3.6
Separate, untwist and unkink the Three 80” Motor
Wires.
Route the Three 80” Black, Blue, and White Motor
Wires through the Downrod (Figure 6).
3.7
Loosen the Two Phillips Head Set Screws in the Motor
Coupler for installation of the Downrod (Figure 7).
Seat the Downrod in the Motor Coupler (Figure 7).
Rotate and align the Downrod Holes with all the Holes
in the Motor Coupler (Figure 7).
3.5
Carefully turn the partially assembled Fan right side up
and place on the styrofoam carton.
Remove the Hanger Ball by loosening the Phillips Head
Set Screw in the Hanger Ball until the Ball falls freely
down the Downrod (Figure 5).
Remove the Pin from the Downrod, then remove the
Hanger Ball (Figure 5).
Retain the Pin and Hanger Ball for reinstallation in
Step 3.11.
NOTE: Do not loosen the Screw holding the Green
Ground Wire.

U.L. Model No.: CF500
8
3. Ceiling Fan Assembly (Continued)
MOTOR
HOUSING
4.5" DOWNROD
COUPLING
COVER
COUPLING COVER
GROMMET
COUPLER
COVER
COUPLER COVER
GROMMET
Figure 9
MOTOR
COUPLING
HAIRPIN
CLIP
CLEVIS
PIN
RETIGHTEN
PHILLIPS HEAD
SET SCREW (2)
HAIRPIN
CLIP
CLEVIS
PIN
MOTOR
COUPLER
Figure 8
4.5" DOWNROD
CEILING
COVER
Figure 10
3.9
Make sure the Grommet is properly installed in the
Coupler Cover, then slide the Coupler Cover on the
Downrod until it rests on the Motor Housing (Figure 9).
3.10
Place the Ceiling Cover over the Downrod (Figure 10).
Be sure that the Ceiling Cover and the Coupler Cover
are both oriented correctly (Figure 10).
3.8
Align the Clevis Pin Holes in the Downrod with the
Holes in the Motor Coupler.
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 8).
The Clevis Pin must go through the Holes in the Motor
Coupler. It is critical that the Clevis Pin in the Motor
Coupler is properly installed and securely tightened.
Retighten the Two Phillips Head Set Screws to secure
the Downrod to the Motor (Figure 8).
It is critical that the clevis pin and setscrews in the
motor coupler are properly installed and securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
WARNING
!

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
HANGER BALL
WHITE WIRE
BLACK WIRE
1/2-INCH BLUE WIRE
6 TO 9
INCHES
Figure 12
3.12
The Fan comes with Black, Blue and White Wires that
are 80” long.
Measure up approximately 6 to 9-inches above top of
Hanger Ball / 4.5” Downrod Assembly (Figure 12).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
PIN
HANGER
BALL
PHILLIPS HEAD
SET SCREW
4.5" DOWNROD
Figure 11
3.11
Route the Three Motor Wires through the Hanger Ball
(Figure 11).
Reinstall the Hanger Ball on the Downrod as follows:
Position the Pin through the Two Holes in the Downrod
and align the Hanger Ball so the Pin is captured in the
Groove in the top of the Hanger Ball (Figure 11).
Pull the Hanger Ball up tight against the Pin and
securely retighten the Phillips Head Set Screw in the
Hanger Ball (Figure 11).
NOTE: A loose Phillips head set screw could create
fan wobble.
3. Ceiling Fan Assembly (Continued)

U.L. Model No.: CF500
10
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
4.1
Securely attach the Hanger Bracket to the Outlet Box
using the Two Screws supplied with the Outlet Box.
(Figure 14).
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER BRACKET
ANTI-ROTATION TAB
OUTLET BOX
Figure 14
FLOOR
CEILING
AT
LEAST
7'
Figure 13
4. How to Hang Your Ceiling Fan
To reduce the risk of injury, install the fan so that
the blades are at least 7 ft. (2.1m) above the floor
(Figure 13).
CAUTION
!

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
4. How to Hang Your Ceiling Fan (Continued)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION
TAB
Figure 15
4.2
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly on the Hanger Bracket that was
just attached to the Outlet Box (Figure 15).
Be sure the Groove in the Ball is engaged with the
Anti-rotation Tab on the Hanger Bracket (Figure 15).

U.L. Model No.: CF500
12
LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
Figure 17
5.2
Securely connect the Fan Motor White Wire to the
Supply White (Neutral) Wire using wire connector
(supplied) (Figure 17).
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
5.1
Connect the Hanger Ball Green Ground Wire and the
Hanger Bracket Green Ground Wire to the Supply
Ground Conductor (this may be a bare wire or wire with
green colored insulation). Securely connect Wires with
Wire Connectors (supplied) (Figure 16).
5. How to Wire Your Ceiling Fan
GROUND
CONDUCTOR SUPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 16
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box or circuit breaker
panel before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500

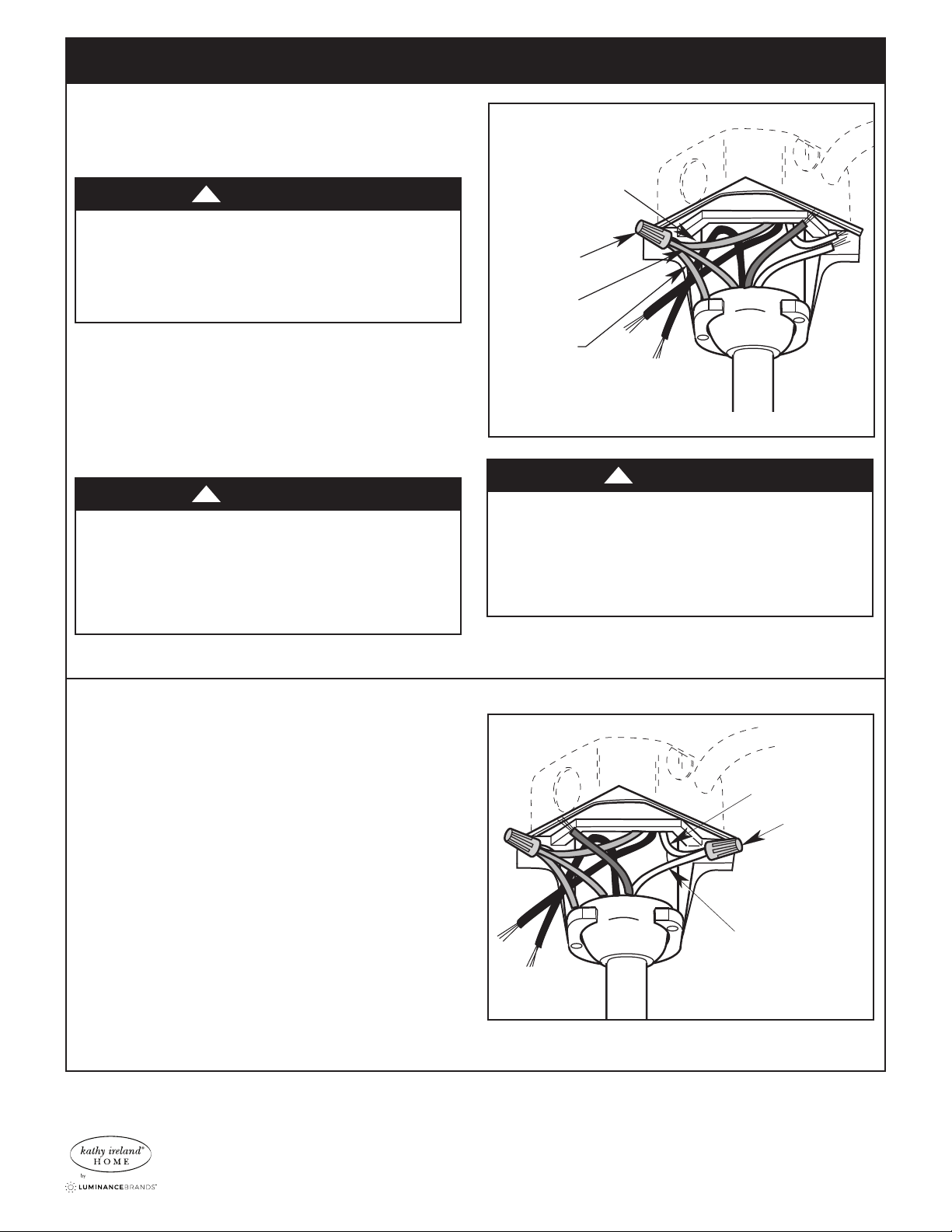

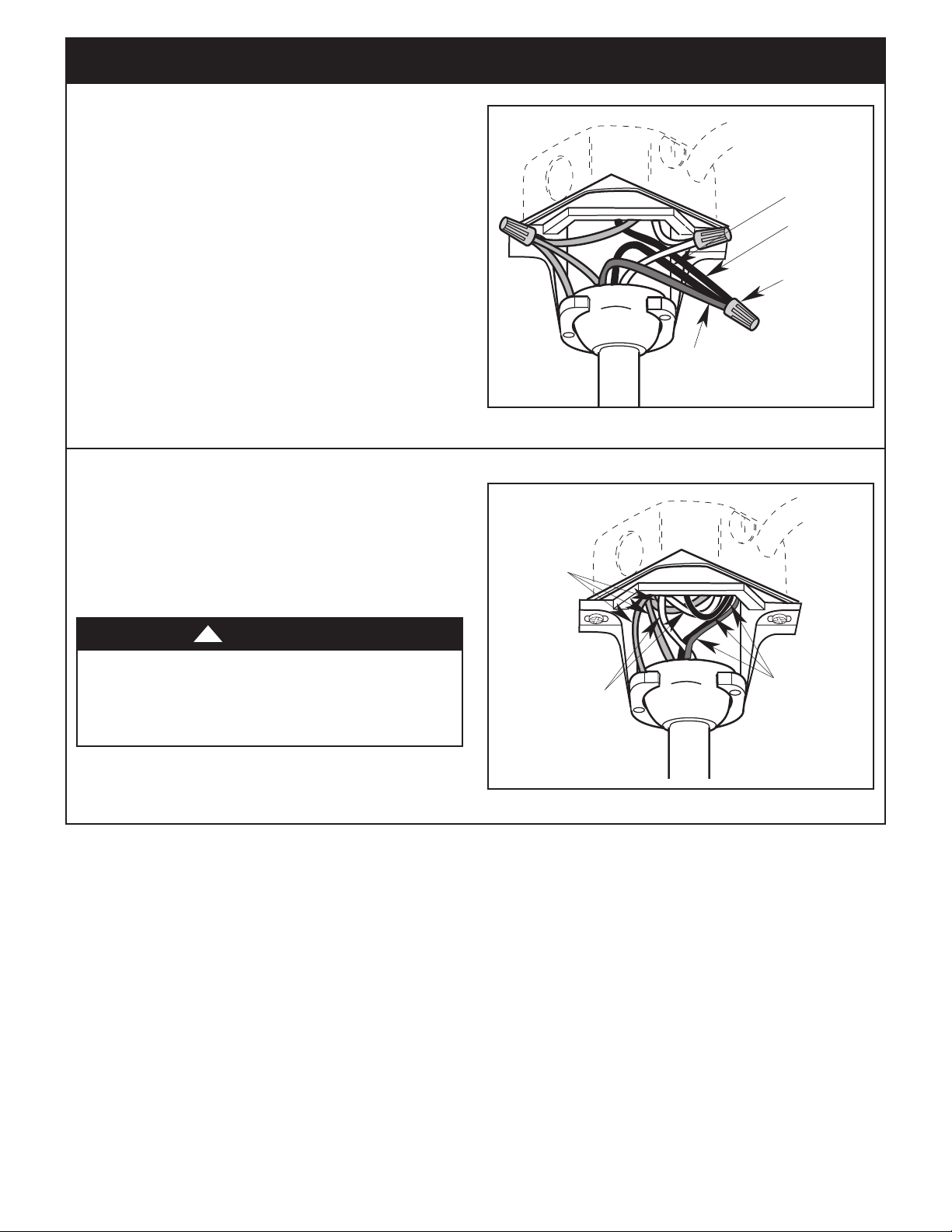

5. How to Wire Your Ceiling Fan (Continued)
FAN MOTOR
BLACK WIRE
SUPPLY
BLACK
(HOT)
FAN MOTOR
BLUE WIRE
LISTED WIRE
CONNECTOR
Figure 18
5.3
Securely connect the Fan Motor Black Wire and Blue
Wires to the Supply Black (HOT) wire using Wire
Connector (supplied) (Figure 18).
BLACK &
BLUE WIRES
WHITE WIRES
GREEN
WIRES
Figure 19
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and position the Black and Blue Wires on the other side
of the Outlet Box (Figure 19).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!

U.L. Model No.: CF500
14

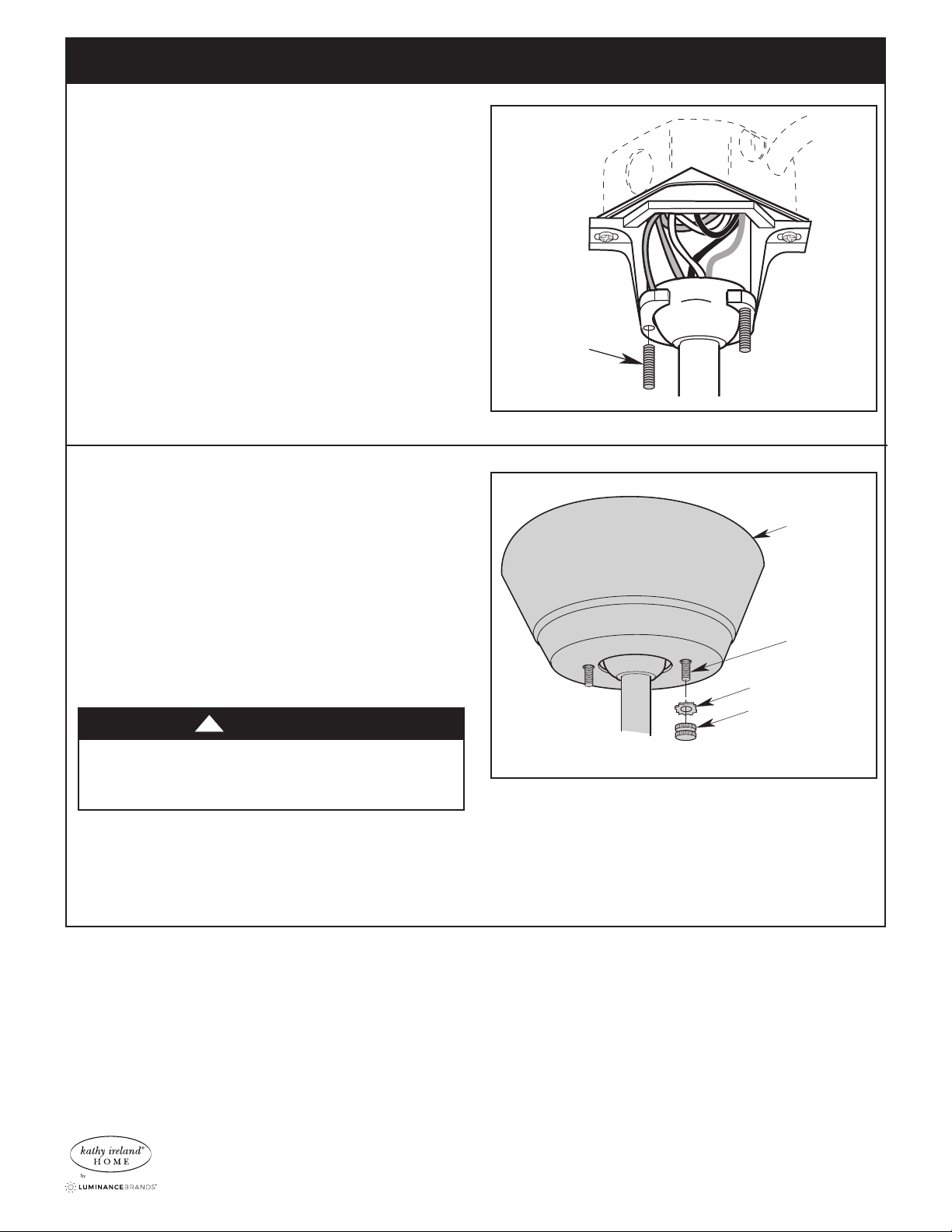

6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Holes in the
Ceiling Cover (Figure 21).
Secure the Ceiling Cover in place by sliding
Lockwashers over the Threaded Studs and installing
the Two Knurled Knobs (supplied). (Figure 21).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the ceiling and the Hole in the
Ceiling Cover is clear of the Downrod.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
6. Final Assembly
CEILING
COVER
LOCKWASHERS (2)
THREADED
STUDS (2)
KNURLED KNOBS (2)
Figure 21
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.1
Screw the Two Threaded Studs (supplied) into the
tapped holes in the Hanger Bracket (Figure 20).
THREADED
STUDS (2)
Figure 20

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
7.1
This Control is designed to operate Only ONE Ceiling
Fan.
NOTE: Electric connections should be in
accordance with the National Electrical Codes and
all Local Codes. Before starting, disconnect power
to the circuit at the main fuse box or circuit breaker
panel.
Remove the Faceplate and Screws from the Existing
Wall Switch. Pull Wall Switch out from Wall Box
(Figure 22).

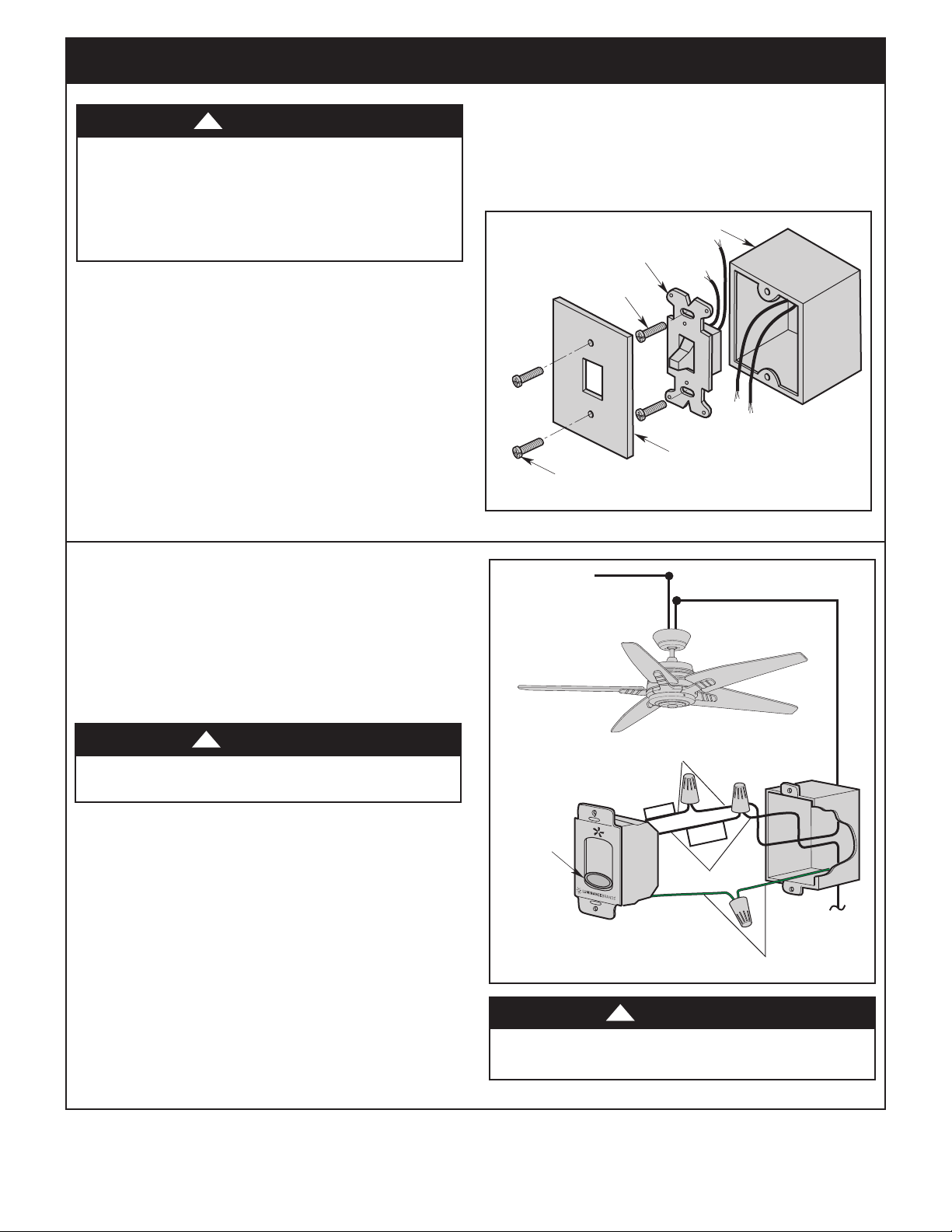

7. Installing the Wall Control
SCREWS
WALL BOX
EXISTING WALL SWITCH
FACEPLATE
SCREWS
Figure 22
7.2
NOTE: Make all wiring connections using
wire connectors (supplied). Make sure that all
connections are tight, including ground, and that
no bare wire is visible at the wire connectors,
except for the ground wire.
NOTE: Set the Fan Control to the OFF position.
Connect the Fan Control Black Wire labeled
“TO POWER SUPPLY” to the “HOT” 120V AC Supply
Source Wire. Securely connect Wires with Wire
Connector, supplied (Figure 23).
Connect the Fan Control Black Wire labeled
“TO FAN” to the “LOAD” Black Wire in Wall Box.
Securely connect Wires with Wire Connector, supplied
(Figure 23).
Connect the Fan Control Green Ground Wire to the
Supply Ground Conductor (this may be a bare wire or
wire with Green Colored insulation). Securely connect
Wires with Wire Connector, supplied (Figure 23).
4-SPEED SLIDE
CEILING FAN
CONTROL
OFF
POSITION
TO FAN MOTOR LOAD
1.25 AMP MAXIMUM
TO NEUTRAL
TO 120VAC
SOURCE HOT
BLACK WIRES
BLACK WIRES
TO POWER
SUPPLY
TO FAN
HOT
LOAD
GREEN GROUND WIRES
M2
M1
L
H
OFF
Figure 23
Determine the “HOT” Wire and the “LOAD” Wire and
disconnect these Wires from the Wall Switch.
NOTE: Do not attempt to disconnect any Wires not
already connected to Existing Wall Switch.
Check to see that all connections are tight and that no
bare wires are visible at the wire connectors.
WARNING
!
Do not connect any neutral (white) wire to this control.
Incorrect wiring will damage this control.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

U.L. Model No.: CF500
16
4-SPEED SLIDE
CEILING FAN
CONTROL
WALL BOX
6-32 x 3/4" SCREWS (2)
FACEPLATE
6-32 x 1/4" SCREWS (2)
M2
M1
L
H
OFF
7. Installing the Wall Control (Continued)
7.3
Screw the Fan Control into Wall Box using the supplied
6-32 x 3/4” Screws (Figure 24).
Leave the Fan Control in the “OFF” mode until Fan
installation is completed.
Position the Faceplate (supplied) onto the Fan Control.
Using the Two supplied 6-32 x 1/4” Screws, Screw the
Faceplate to the Wall Box (Figure 24).
Restore Power at the Main Fuse Box or Circuit Breaker
Panel.
Figure 24

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
Do not use water when cleaning your ceiling fan.
It could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
9. Maintenance
8. Operating Your Ceiling Fan
8.1
Check the operation of the Ceiling Fan by sliding the
Ceiling Fan Speed Knob through the Four positions
(Figure 25).
Slide the Ceiling Fan Speed Knob to the desired
airflow:
H = High Speed
M2 = Medium High Speed
M1 = Medium Low Speed
L = Low Speed
To Turn the Fan OFF, Slide the Ceiling Fan Speed
Knob down to the OFF position (Figure 25).
M2
M1
L
H
OFF
FAN SPEEDS
OFF
POSITION
CEILING FAN
SPEED KNOB
Figure 25
Fan installation must be completed, including the
installation of the fan blades, before testing the fan
control.
WARNING
!
8.2
Restore Electrical Power to the Outlet Box by turning
the Electricity on at the Main Fuse Box or Circuit
Breaker Panel.
During Summer Months, run the Fan Counter-
Clockwise, as you look up at it, to direct airflow
downward.
During the Winter Months, run the Fan Clockwise,
as you look up at it, to direct airflow upward.
If airflow is desired in the opposite direction, turn the
Ceiling Fan OFF and wait for the Blades to stop turning.
Slide the Reverse Switch to the opposite position, and
turn the Ceiling Fan ON again (Figure 26).
The Fan Blades will turn in the opposite direction and
reverse the airflow.
Reverse Switch Information
Season Blade Rotation Direction
Summer Counter-Clockwise
Winter Clockwise
REVERSING
SWITCH
Figure 26

U.L. Model No.: CF500
18
10. Repair Parts
PARTS BAG
8
7
6
5
4
9
11
10
12
13
3
14
15
8
9
12
4
0
3
2
1
22
5
12
11
10
7
6
18
20
19
21
17
16
22
4
0
3
2
1
M2
M1
L
H
OFF

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF500
10. Repair Parts Listing
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER • NAME OF ITEM
• PART DESCRIPTION • MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
Part Numbers
Key Model Number Model Number Model Number
No. Description CF500AP00 CF500SBS00 CF500TORB00
* Hanger Ball Assembly, Consisting of: 761655-34 761655-17 761655-32
1 Hanger Bracket (1) — — —
2 Hanger Ball (1) — — —
3 4.5” Downrod (1) — — —
* Parts Bag Containing: 764813-BLX 764813-CRM 764813-BLX
4 Wire Connectors (4) — — —
5 Studs, Threaded, #8-32 x 1-1/4” (2) — — —
6 Lockwashers, External Tooth, #8 (2) — — —
7 Knobs, Knurled, #8-32 (2) — — —
8 Pin, Clevis (1) — — —
9 Clip, Hairpin (1) — — —
10 Screw, Round Head with Lockwasher,
1/4-20 x 9/16”, Spare (1) — — —
11 Screws, Washer Head, #10-24 x 9/32” (16) — — —
12 Screw, Flat Head, #8-32 x 5/16”, Spare (1) — — —
13 Balancing Kit (1) — — —
14 Ceiling Cover (1) 764802-AP 764802-BS 764802-ORB
15 Motor Coupler Cover (1) 764803-AP 764803-BS 764803-ORB
16 Flange Set (set of 5) 764805-AP 764805-BS 764805-ORB
17 Blade Set (set of 5) 764807-CR/TM 764807-BS/BQ 764807-TW/CO
18 Switch Housing Adapter (1) 764809-AP 764809-BS 764809-ORB
19 Switch Housing Cover (1) 764810-AP 764810-BS 764810-ORB
20 Wire Harness Assembly (1) 764811 764811 764811
21 Finial Nut Assembly (1) 764812-AP 764812-BS 764812-ORB
22 Wall Control (1) SW46W SW46W SW46W
—Owner’s Manual BP7519-2 BP7519-2 BP7519-2

U.L. Model No.: CF500
20
FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE
TROUBLESHOOTING YOUR FAN.
WARNING
!
12. Troubleshooting
Make sure main power is turned OFF.
WARNING
!
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers.
2. Reversing switch in neutral position. 2. Make sure reversing switch position is all the way to
one side.
2. Fan sounds 1. Blades not attached to fan. 1. Attach blades to fan before operating.
noisy. 2. Loose screws in motor housing. 2. Check to make sure all screws in motor housing
are snug (not over-tight).
3. Screws securing fan blade flanges to 3. Check to make sure the screws which attach
motor hub are loose. the fan flanges to the motor hub are tight.
4. Screws holding blades to flanges 4. Tighten screws securely.
are loose.
3. Fan wobbles 1. Setscrews in motor coupler are loose. 1. Tighten both setscrews securely in the motor coupler.
excessively. 2. Setscrew in hanger ball/downrod 2. Tighten the setscrew in the hanger ball/downrod
assembly is loose. assembly.
3. Screws securing fan blade flanges to 3. Check to be sure screws which attach the fan
motor are loose. blade flanges to the motor are tight.
4. Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat
firmly and uniformly to the surface of the motor.
If flanges are seated incorrectly, loosen the
flange screws and retighten according to the
procedure in the section on “Ceiling Fan Assembly”.
5. Hanger bracket and/or ceiling outlet 5. Tighten the hanger bracket screws to the outlet
box is not securely fastened. box, and/or secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade pair can
redistribute the weight and result in smoother operation.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
See your local Luminance Brands dealer,
www.luminancebrands.com or our catalog for these
accessories:
• Ceiling Fan Receiver / Remote Controls
• Downrod Extension Kits
• Slope Ceiling Kit
• Ceiling Fan Light Kit
11. Accessories
The use of any other control not specifically approved
for this fan could result in fire, shock and personal
injury.
WARNING
!
