60” Ceiling Fan Owner's Manual
CF784BS03 - Brushed Steel
CF784ORB03 - Oil Rubbed Bronze
CF784SW03 - Satin White
Net Weight: 28.4 Lbs.
Model Numbers
• Español - página 23
• Français - page 45
READ AND SAVE THESE INSTRUCTIONS
TRANSITIONAL
R
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service

U.L. Model No.: CF784-3
2 3
Safety Instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for
Installation
1. To avoid possible shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring, and do not operate fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
xtures are not acceptable for fan support and may
need to be replaced. Consult a qualied electrician
if in doubt.
4. The downrod furnished with the fan provides the
minimum recommended oor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reverse switch until fan blades have
come to a complete stop.
READ AND SAVE THESE INSTRUCTIONS
Table of Contents
Section Page
Safety Instructions ...................................... 2
1. Unpacking Instructions ................................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Ceiling Fan Assembly ...............................5-11
4. How to Hang Your Ceiling Fan ......................... 12
5. How to Wire Your Ceiling Fan ........................13-14
6. Final Assembly ...................................... 15
7. Using Your Ceiling Fan .................................16
Section Page
8. Maintenance ........................................ 17
9. Accessories ........................................ 17
10. Energy Efcient Use of Ceiling Fans .................... 17
11. Repair Parts .....................................18-19
12. Troubleshooting .................................... 20
Ceiling Fan Limited Warranty ............................. 21
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
French .............................................. 45
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To avoid re, shock or injury, do not use a Luminance
Brands or any other brand of control not specically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use this product by
Luminance Brands Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the oor.
CAUTION
!

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
2 3
A
B
E
F
G
C
D
H
I
1.1

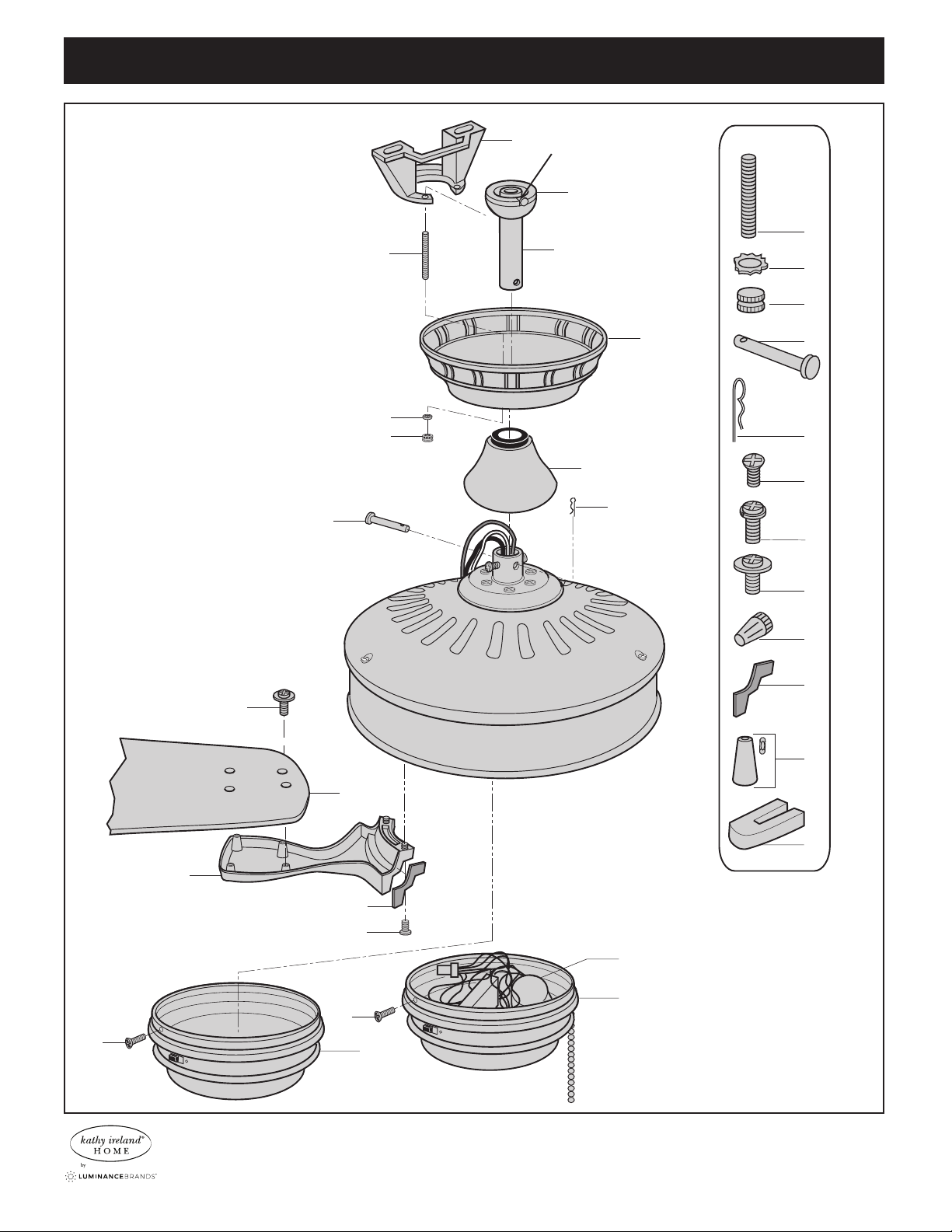

Check to see that you have received the following parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration below.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, call 1-800-777-4440
for replacement parts before proceeding.
1.2
Remove the Fan Motor Assembly from the protective
plastic bag. Place the Fan Motor Assembly into the
lower styrofoam with the bottom of the Motor facing UP.
The upper styrofoam serves as a holder for the Fan
during the first stages of assembly.
PACKAGE CONTENTS
7
9
8
5
4
3
2
1
6
12
10
11
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Motor Coupler Cover 1
D Switch Housing 1
E Switch Housing Assembly 1
F Hanger Bracket 1
G Hanger Ball / 4.5” Downrod Assembly 1
H Flange Sets 5
I Blade Sets 5
HARDWARE BAG CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Lockwashers, External Tooth #8 2
3 Knurled Knobs, #8-32 2
4 Clevis Pin 1
5 Hairpin Clip 1
6 Wire Connectors 4
7 #10-24 x 10mm Washer Head Blade Screws 21
8 #8-32 x 12mm Flat Head Screw (spare) 1
9 1/4-20 x 14mm Pan Head Screw
with Lockwasher (spare) 1
10 Flange Gasket (spare) 1
11 Die-Cast Pendant and Coupler (1 set) 1
12 Blade Balance Kit 1
1. Unpacking Instructions
Do not install or use fan if any part is damaged or
missing. Call Toll-Free for replacement parts:
1-800-777-4440
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!

U.L. Model No.: CF784-3
4 5
IMPORTANT: Your ceiling fan will not function
properly, and may be damaged, if used with any
wall dimmer switch or control other than an
Luminance Brands Fan/Light Remote Control.
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 13).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One Wire Stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
1. Unpacking Instructions (Continued)
Controls (Sold Separately)
RC188 Receiver with SR600 Remote Control or
SW605 Wall Control (sold separately) may be used with
this 60” CARRERA Ceiling Fan.
2. Electrical Requirements
To reduce the risk of re, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualied electrician if in doubt.
WARNING
!
Your new Ceiling Fan will require a Grounded Electrical
Supply Line of 120 Volts AC, 60 Hz, 15 Amp Circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 Pounds.
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity OFF at the Main Fuse Box
or Circuit Breaker Panel at this time and remove the
Existing Light Fixture.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
To avoid re or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
4 5
3.1
Rotate the Motor Hub to align the Hub Notch area over
each of the Five Screws which is holding the Shipping
Retainer to the Motor Assembly.
One by one unscrew each Screw and discard Screws
and Shipping Retainer (Figure 1).
3.2
Verify that the Flange Gaskets are preinstalled onto the
end of each of the Flanges (Figure 2).
A spare Flange Gasket is supplied in the loose parts
bag, if required.
3.3
Mount Flanges to Blades using Four #10-24 x 10mm
Washer Head Blade Screws (Figure 3).
A spare #10-24 x 10mm Washer Head Blade Screw is
supplied in the loose parts bag, if required.
BLADE
FLANGE
#10-24 x 10mm WASHER
HEAD BLADE SCREW
(4 per blade/flange)
FAN BLADE
Figure 3
FLANGE
GASKET
BLADE
FLANGE
Figure 2
MOTOR HUB
N
OTE
!
R
e
m
ov
e
R
u
b
b
er
P
a
c
ki
ng
M
ou
n
ts
A
n
d
Di
sca
r
d
Be
f
or
e
In
s
t
a
ll
at
io
n
.
N
OTA
!
Q
u
ita
r
L
o
s
S
op
o
rt
e
s
D
e
G
o
m
a
Pa
ra
E
mba
la
J
e
Y
T
ir
a
r
L
os
An
t
es
De
L
a
I
ns
ta
la
ci
on
.
REMOVE SHIPPING
RETAINER
BY REMOVING
5 SCREWS
Figure 1
3. Ceiling Fan Assembly

U.L. Model No.: CF784-3
6 7
3. Ceiling Fan Assembly (Continued)
MOTOR HUB
BLADE/FLANGE
ASSEMBLY
1/4-20 x 14mm CAPTIVE
PAN HEAD SCREW
(2 per blade/flange assembly)
MOTOR HUB
NOTCHED AREA
Figure 4
3.4
NOTE: Take care not to scratch fan housing when
installing blades.
Loosely attach One Blade/Flange Assembly to the
Motor Hub by securing the Two 1/4-20 x 14mm Pan
Head Screws with Lockwashers. Make sure the Screws
are NOT tightened (Figure 4).
Repeat this procedure for other Four Blade Assemblies.
A spare 1/4-20 x 14mm Pan Head Screw with
Lockwasher is supplied in the loose parts bag,
if required.
BLADE/FLANGE
ASSEMBLY
FLANGE
INTERLOCKING
FEATURE
FLANGE
INTERLOCKING
FEATURE
Figure 5
3.5
NOTE: Each blade/flange assembly must have
the flange gasket in place between each of the
assemblies.
The Flanges have an Interlocking Feature that must be
Fully Engaged before Tightening the Screws.
Make sure all the Flanges are properly engaged and
then tighten the Flange Screws (Figure 5).
If one of the Flanges does not seat properly on the
Motor Hub, loosen the adjacent Flange Screws,
re-engage and reseat the Flanges, then tighten the
Screws again.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
1/4-20 x 14mm PAN HEAD
SCREW WITH LOCKWASHER
(2 per blade/ange assembly)

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
6 7
3. Ceiling Fan Assembly (Continued)
SWITCH HOUSING
ASSEMBLY
CONNECTOR
MOTOR
CONNECTOR
PULL CHAIN SWITCH
SWITCH HOUSING
ASSEMBLY
SWITCH HOUSING
ADAPTER
Figure 6
Installation of Switch Housing
Assembly for Manual Control
3.6

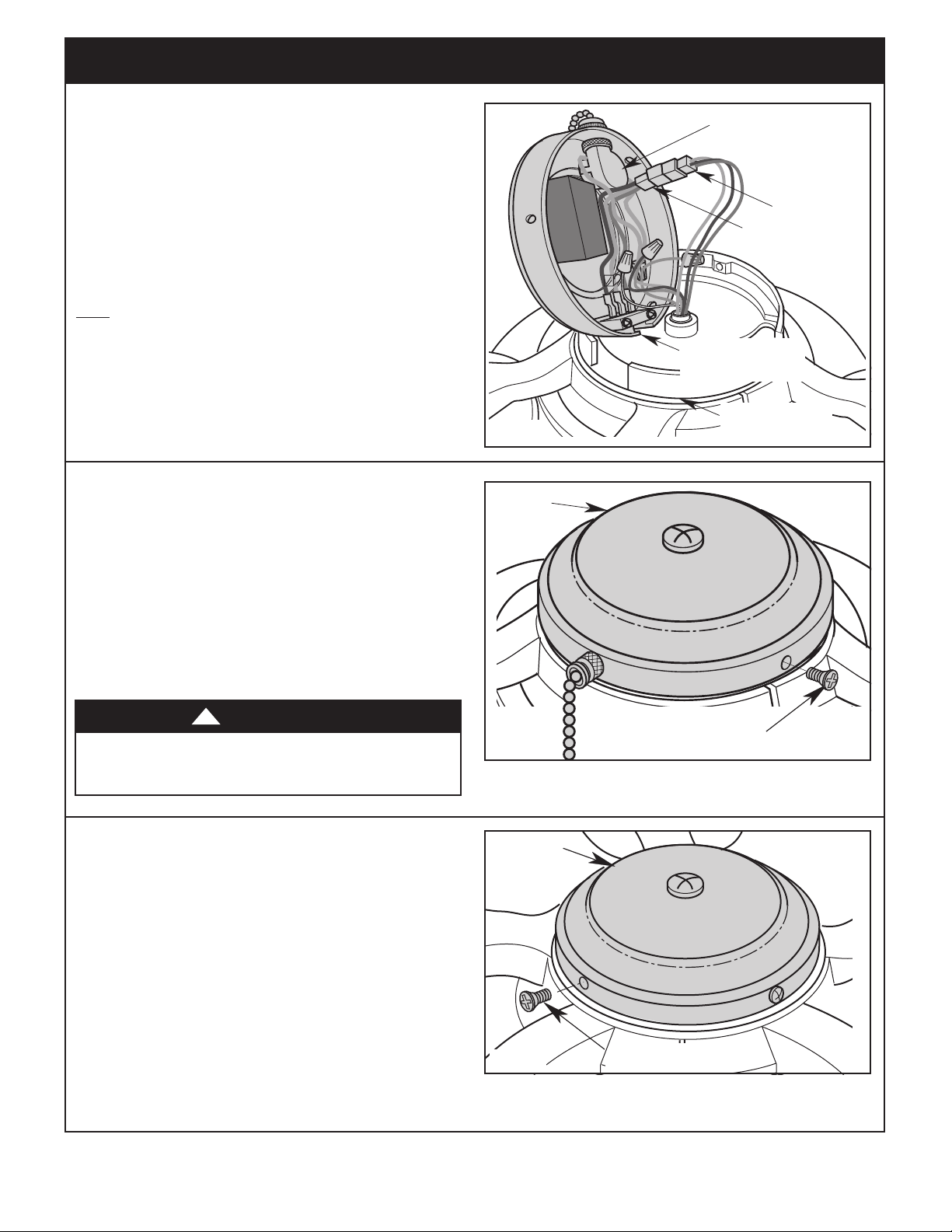

Remove and retain the Three #8-32 x 12mm Flat Head
Screws from the Switch Housing Plate.
Engage the Switch Housing Assembly Connector to the
Motor Connector (Figure 6).
The Two Connectors are Keyed and Color-coded and
must be Mated Correctly (color-to-color) before they can
be Engaged.
Make sure the Connector Latch closes properly.
SWITCH
HOUSING
ASSEMBLY
REINSTALL THE #8-32 x 12mm
FLAT HEAD SCREWS (3)
Figure 7
Installation of Switch Housing
Assembly for Manual Control
3.7
Carefully tuck all Wires and Connectors under the
Switch Housing Assembly.
Secure the Switch Housing Assembly by reinstalling
the Three #8-32 x 12mm Flat Head Screws (previously
removed) (Figure 7).
Proceed to Ceiling Fan Assembly, Step 3.9.
To avoid possible re or shock, do not pinch wires
between the switch housing assembly and the switch
housing plate.
WARNING
!
Installation of Switch Housing for
Accessory Control
If Luminance Brands Accessory RF Control is to be
used, install the accessory control switch housing.
3.8
Remove and retain the Three #8-32 x 12mm Flat Head
Screws from the Switch Housing Plate.
Position the Switch Housing on the SwitchHousing
Adapter and Align the Holes in the Switch Housing with
the Holes in the Adapter.
Secure the Switch Housing by reinstalling the Three
#8-32 x 12mm Flat Head Screws (previously removed)
(Figure 8).
Proceed to Ceiling Fan Assembly, Step 3.9.
SWITCH
HOUSING
#8-32 x 12mm FLAT
HEAD SCREWS (3)
Figure 8
A spare #8-32 x 12mm Flat Head Screw is supplied in
the loose parts bag, if required.
A spare #8-32 x 12mm Flat Head Screw is supplied in
the loose parts bag, if required.

U.L. Model No.: CF784-3
8 9
3. Ceiling Fan Assembly (Continued)
STYROFOAM
PARTIALLY ASSEMBLED
CEILING FAN
Figure 9
3.9
Turn the partially assembled Ceiling Fan right side up in
preparation for final assembly.
Carefully place the partially assembled Ceiling Fan on
the styrofoam being careful not to bend the Ceiling Fan
Blades (Figure 9).
3.11
Separate, untwist and unkink the Three 80” Motor
Wires.
Route the 80” Black, Blue and White Motor Wires
through the 4.5” Downrod (Figure 11).
It is critical that the clevis pin in the motor coupler
is properly installed and the set screws securely
tightened. Failure to verify that the pin and set screws
are properly installed could result in the fan falling.
WARNING
!
THREE 80" MOTOR LEADS (UNTWISTED)
4.5" DOWNROD
Figure 11
3.10
Remove the Hanger Ball from the 4.5” Downrod by
loosening the Set Screw in the Hanger Ball until the Ball
falls freely down the Downrod (Figure 10).
Remove the Pin from the Downrod, then remove the
Hanger Ball.
Retain the Pin and Hanger Ball for reinstallation in
Step 3.16.
NOTE: Do not loosen the screw holding the green
ground wire.
SETSCREW (LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE
Figure 10 SET SCREW (LOOSEN)
THREE 80” MOTOR WIRES (UNTWISTED)

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
8 9
3. Ceiling Fan Assembly (Continued)
HAIRPIN
CLIP
CLEVIS
PIN
HAIRPIN
CLIP
MOTOR
COUPLING
4.5"
DOWNROD
CLEVIS
PIN
LOOSEN
SETSCREWS (2)
Figure 12

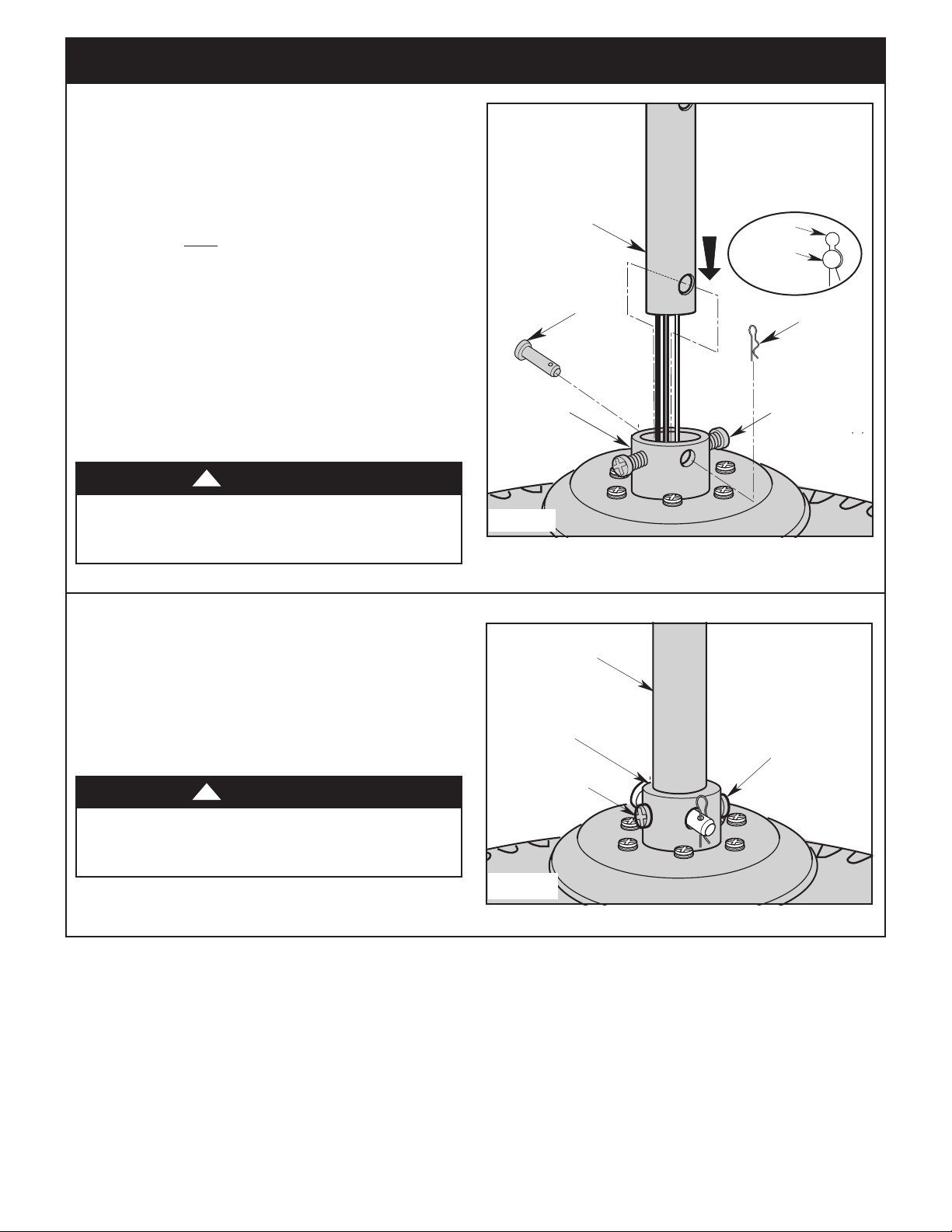

3.12
Loosen the Two Set Screws in the Motor Coupler.
Place the 4.5” Downrod into the Motor Coupler, aligning
the Clevis Pin Holes in the Downrod with the Holes in
the Motor Coupler (Figure 12).
The Clevis Pin must go through the Holes in the Motor
Coupler and the Holes in the Downrod.
Be sure to push the Straight Leg of the Hairpin Clip
through the Hole near the end of the Clevis Pin until
the Curved Portion of the Hairpin Clip snaps around the
Clevis Pin.
The Hairpin Clip must be properly installed to prevent
the Clevis Pin from working loose.
Pull on the Downrod to make sure the Clevis Pin is
properly installed.
It is critical that the clevis pin in the motor coupler
is properly installed. Failure to verify that the pin is
properly installed could result in the fan falling.
WARNING
!
4.5" DOWNROD
MOTOR
COUPLING RETIGHTEN
SETSCREWS
RETIGHTEN
SETSCREWS
3.13
While pulling up on the 4.5” Downrod, retighten the Two
Set Screws (previously loosened) in the Motor Coupler
to secure the Downrod into place (Figure 13).
NOTE: The set screws must be properly installed as
described above, or fan wobble could result.
Figure 13
It is critical that the set screws are securely tightened.
Failure to verify that the set screws are properly
installed could result in the fan falling.
WARNING
!
MOTOR
COUPLER RETIGHTEN
SET SCREW
RETIGHTEN
SET SCREW
LOOSEN
SET SCREWS (2)
MOTOR
COUPLER

U.L. Model No.: CF784-3
10 11
3. Ceiling Fan Assembly (Continued)
DOWNROD
COUPLING COVER
Figure 14
3.14
Make sure the Grommet is properly installed in the
Motor Coupler Cover then slide the Motor Coupler
Cover on the Downrod until it rests on the Motor
Housing.
Be sure the Motor Coupler Cover is oriented correctly
(Figure 14).
CEILING
COVER
DOWNROD
Figure 15
3.15
Place the Ceiling Cover over the Downrod.
Be sure the Ceiling Cover is oriented correctly
(Figure 15).
COUPLER COVER

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
10 11
HANGER BALL
PIN
4.5" DOWNROD
SETSCREW
Figure 16
3.16
Route the Three 80” Motor Wires through the Hanger
Ball.
Reinstall the Hanger Ball (Figure 16) on the Downrod
as follows:
Position the Hanger Ball Pin through the Two Holes in
the Downrod and align the Ball so the Pin is captured in
the Groove in the top of the Hanger Ball.
Pull the Hanger Ball up tight against the Pin and
securely tighten the Set Screw in the Hanger Ball.
NOTE: A loose set screw could create fan wobble.
It is critical that the pin in the hanger ball is properly
installed and the set screw securely tightened. Failure
to verify that the pin and set screw are properly
installed could result in the fan falling.
WARNING
!
3. Ceiling Fan Assembly (Continued)
HANGER BALL/
DOWNROD
ASSEMBLY
6 to 9
INCHES

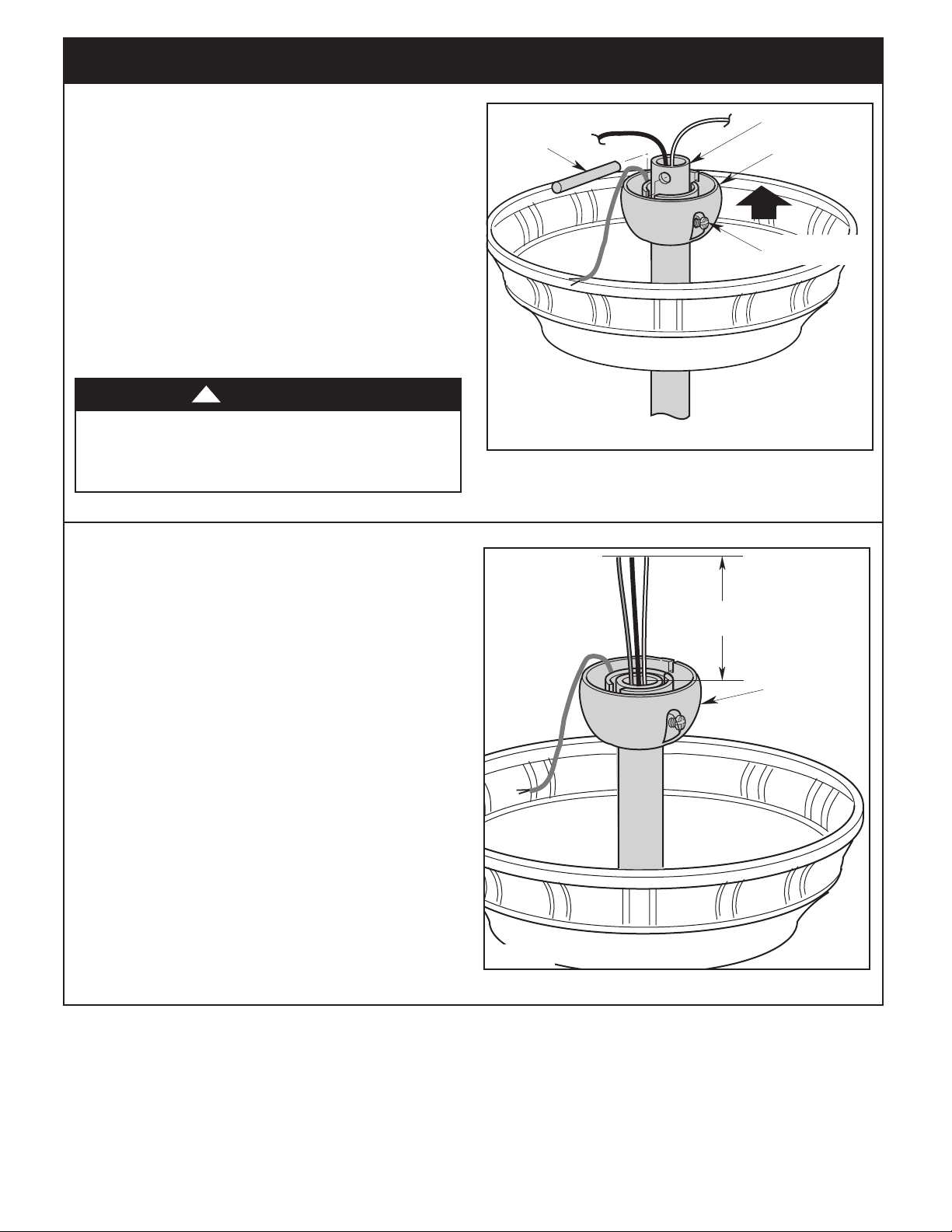

3.17
The Fan comes with Black, Blue and White Wires that
are 80-inches long.
Before installing the Fan, measure up approximately
6 to 9-inches above top of Hanger Ball/Downrod
Assembly (Figure 17).
Cut off excess Wires and strip back insulation 1/2-inch
from end of Wires.
Figure 17
SET SCREW

U.L. Model No.: CF784-3
12 13
FLOOR
AT LEAST
7'
CEILING
Figure 18
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
Failure to seat anti-rotation tab in groove could cause
damage to electrical wires and possible shock or fire
hazard.
WARNING
!
To reduce the risk of re, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualied electrician if in doubt.
WARNING
!

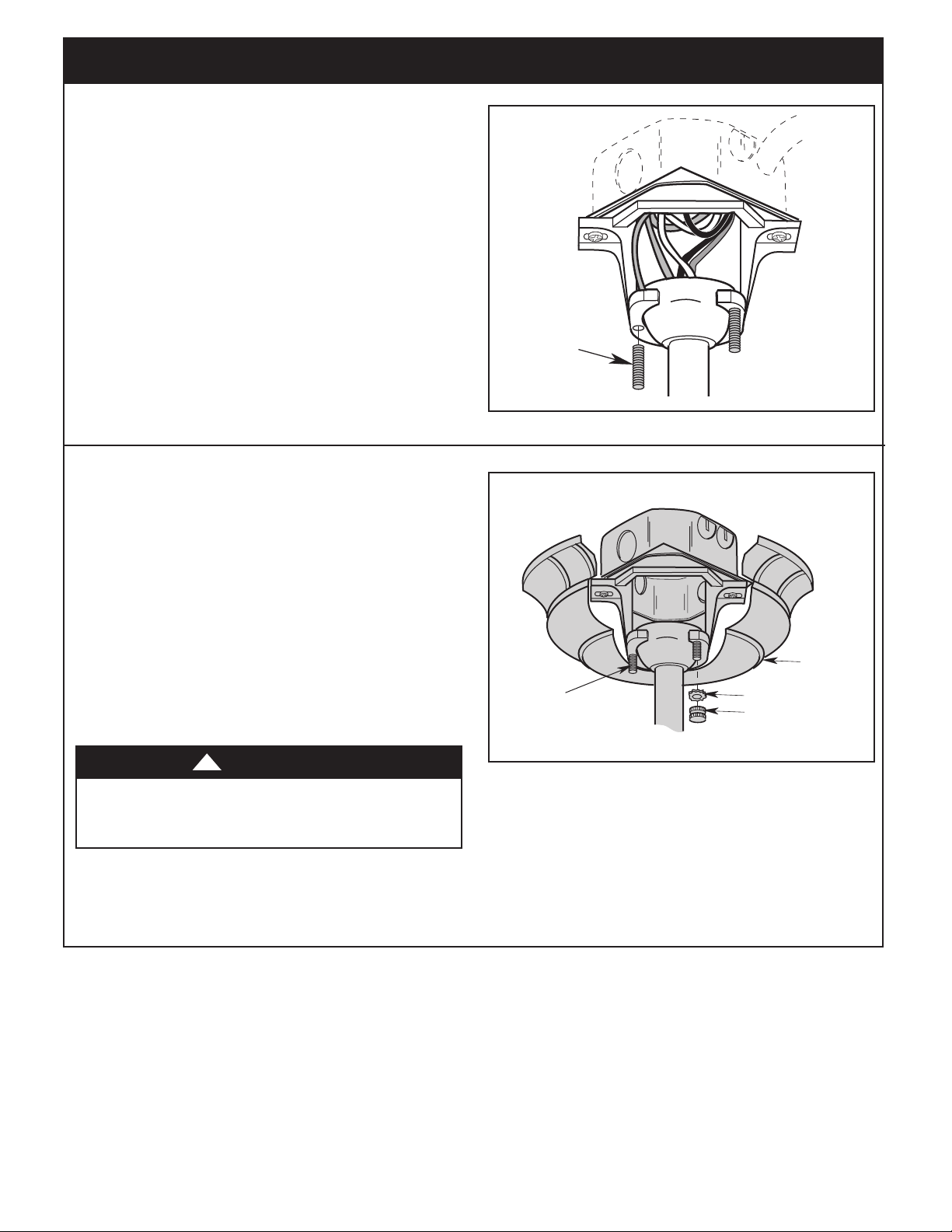

4.1
Securely attach the Hanger Bracket to the Outlet
Box using the two screws supplied with the Outlet Box
(Figure 19).
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER
BRACKET
ANTI-ROTATION
TAB
OUTLET
BOX
HANGER
OPENING
Figure 19
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
HANGER
BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION TAB
Figure 20
4. How to Hang Your Ceiling Fan
4.2
Carefully lift the Fan and seat the Hanger Ball/
Downrod Assembly into the Hanger Bracket that was
just attached to the Outlet Box (Figure 20).
Be sure the Groove in the Ball is lined up with
Anti-rotation Tab on the Hanger Bracket (Figure 20).
NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the oor (Figure 18).
CAUTION
!

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
12 13
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.

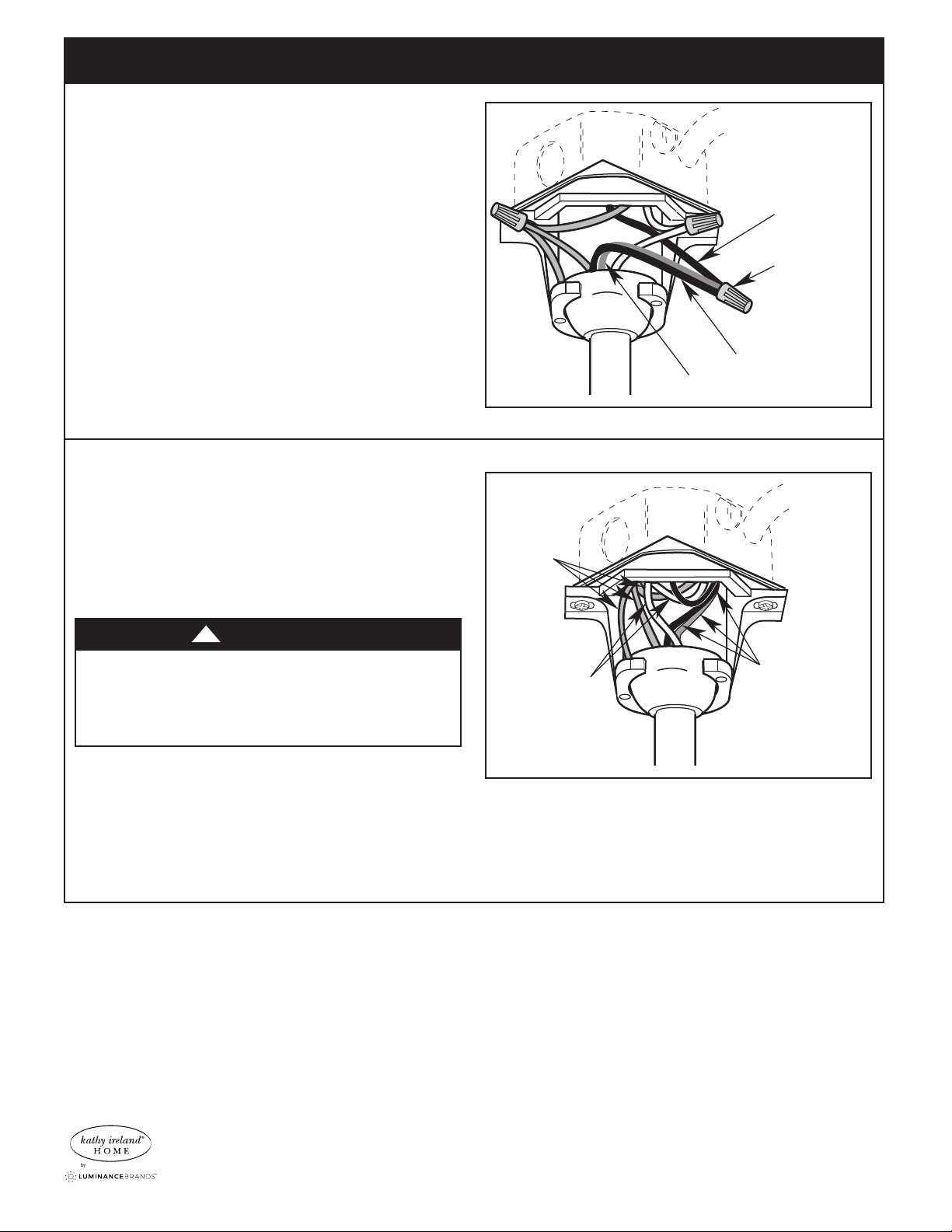

5.1
Connect the Hanger Ball Green Ground Wire and the
Hanger Bracket Green Ground Wire to the Supply
Ground Conductor (this may be a bare wire or wire with
green colored insulation). Securely connect Wires with
Wire Connectors (supplied) (Figure 21).
GROUND
CONDUCTOR SUPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 21
5. How to Wire Your Ceiling Fan
LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
Figure 22
5.2
Securely connect the Fan Motor White Wire to the
Supply White (neutral) Wire using Wire Connector
(supplied) (Figure 22).
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box or circuit breaker
panel before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

U.L. Model No.: CF784-3
14 15
FAN MOTOR
BLACK WIRE
SUPPLY BLACK
(HOT)
LISTED WIRE
CONNECTOR
FAN MOTOR BLUE WIRE
Figure 23
5.3
Securely connect the Fan Motor Black Wire and
Blue Wire to the Supply Black (hot) Wire using Wire
Connector (supplied) (Figure 23).
5. How to Wire Your Ceiling Fan (Continued)
BLACK/BLACK/
BLUE WIRES
WHITE WIRES
GREEN
WIRES
Figure 24
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and position the Black/Black/Blue Wires on the other
side of the Outlet Box (Figure 24).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
14 15
6. Final Assembly
THREADED
STUDS (2)
KNURLED KNOBS (2)
CEILING
COVER
LOCKWASHERS (2)
Figure 26
NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the Holes in the
Ceiling Cover (Figure 26).
6.3
Secure the Ceiling Cover in place by sliding
Lockwashers over the Threaded Studs and installing
the Two Knurled Knobs (supplied) (Figure 26).
Tighten the Knurled Knobs securely until the Ceiling
Cover fits snugly against the Ceiling and the Hole in the
Ceiling Cover is clear of the Downrod.
6.1
Screw the Two Threaded Studs (supplied) into the
Tapped Holes in the Hanger Bracket (Figure 25).
THREADED
STUDS (2)
Figure 25
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.

U.L. Model No.: CF784-3
16 17
7.1
Restore Electrical Power to the Outlet Box by turning
the Electricity on at the Main Fuse Box or Circuit
Breaker Panel.
Check the operation of the Fan by gently pulling on the
Pull Chain Switch.
During Summer Months: Run the Fan Counter-
Clockwise, as you look up at it, to direct airflow
downward.
During the Winter Months: Run the Fan Clockwise, as
you look up at it, to direct airow upward.
If airow is desired in the opposite direction, turn the
Ceiling Fan off and wait for the Blades to stop turning.
Slide the Reverse Switch (located on the side of the
Switch Housing Assembly) to the opposite position, and
turn the Ceiling Fan on again (Figure 27).
The Fan Blades will turn in the opposite direction and
reverse the airow.
7. Using Your Ceiling Fan
REVERSE
SWITCH SWITCH HOUSING
ASSEMBLY

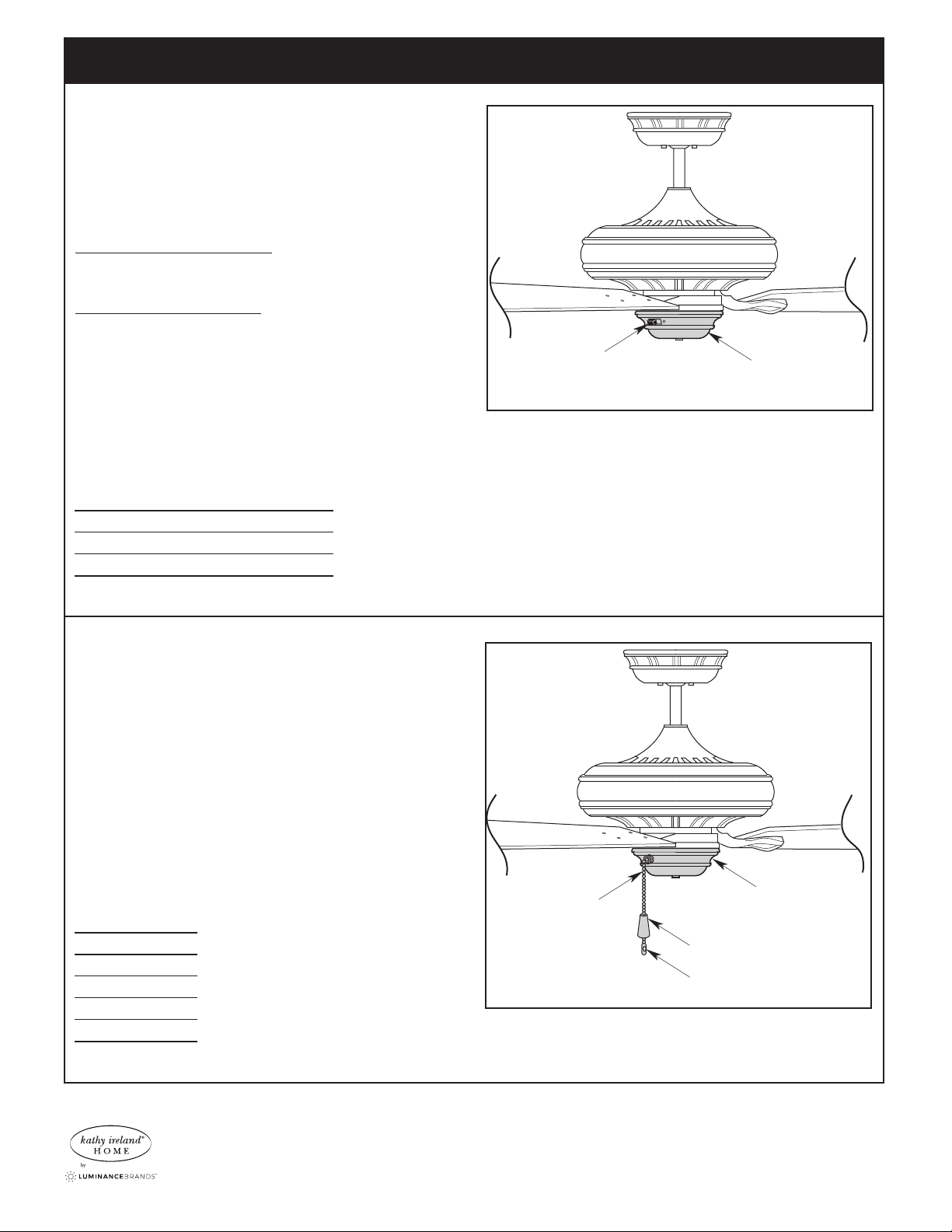

Figure 27
7.2
Check the operation of the fan by gently pulling on the
pull chain switch.
Cut the 3-speed switch pull chain to a desired length
(optional). Connect the die-cast pendant (supplied)
to the 3-speed switch pull chain by sliding the die-
cast pendant (small hole first) onto the pull chain
(Figure 28). Attach the chain coupler to the end of the
chain and allow the die-cast pendant to fall down over
the couplers.
Your fan model is equipped with a 4-position,
3-speed pull chain switch (Figure 28). The operating
sequence is as follows:
Three-Speed
1st Pull—HIGH
2nd Pull—Medium
3rd Pull—Low
4th Pull—OFF
SWITCH HOUSING
ASSEMBLY
CHAIN COUPLER
3-SPEED SWITCH
PULL CHAIN
DIE-CAST PENDANT
Figure 28
Reverse Switch Information
Season Rotation Direction
Summer Counter-Clockwise
Winter Clockwise

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
16 17
See your local Luminance Brands dealer,
www.luminancebrands.com or our catalog for these
accessories:
• Ceiling Fan Light Kits
• Ceiling Fan/Light Controls
• Downrod Extension Kits
9. Accessories
10. Energy Efcient Use of Ceiling Fans
The use of any other control not specically approved
for this fan could result in re, shock and personal
injury.
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new Ceiling Fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Do not use water when cleaning your ceiling fan.
It could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
8. Maintenance
Ceiling Fan performance and energy savings rely
heavily on the proper installation and use of the
ceiling fan. Here are a few tips to ensure quality and
product performance.
Choosing the Appropriate Mounting Location.
Ceiling Fans should be installed, or mounted, in the
middle of the room and at least 7 feet above the oor
and 18 inches from the walls. If ceiling height allows,
install the Fan 8 - 9 feet above the oor for optimal
airow. Consult your Luminance Brands Retailer for
optional mounting accessories.
Using the Ceiling Fan Year Round. In the summer,
use the Ceiling Fan in the counter-clockwise direction.
The airflow produced by the Ceiling Fan creates a
wind-chill effect, making you "feel" cooler. Select a
fan speed that provides a comfortable breeze, lower
speeds consume less energy. In the winter, reverse
the motor and operate the Ceiling Fan at low speed in
the clockwise direction. This produces a gentle updraft,
which forces warm air near the ceiling down into the
occupied space. Remember to adjust your thermostat
when using your Ceiling Fan - additional energy and
dollar savings could be realized with this simple step!
Turn Off When Not in the Room. Ceiling Fans cool
people, not rooms. If the room is unoccupied, turn off
the Ceiling Fan to save energy.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!

U.L. Model No.: CF784-3
18 19
11. Repair Parts
1
43
16
2
22
17
21
8
7
13
10
PARTS BAG
7
4
10
11
13
9
6
5
8
12
15
14
18
19
20
11
9
9
5
6

luminancebrands.com
Please contact 1-800-777-4440 for further assistance
U.L. Model No.: CF784-3
18 19
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER • NAME OF ITEM
• PART DESCRIPTION • MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
11. Repair Parts Listing
Part Numbers
Key Model No. Model No. Model No.
No. Description CF784BS03 CF784ORB03 CF784SW03
* Hanger Ball Assembly, Consisting of: 761655-17 761655-32 761655-92
1 Hanger Bracket — — —
2 Hanger Ball (1) — — —
3 Downrod (4.5”) — — —
* Parts Bag Containing: 764687-CHM 764687-BLX 764687-CHM
4 Threaded Studs (2) — — —
5 Lockwashers (2) — — —
6 Knurled Knobs (2) — — —
7 Pin, Clevis — — —
8 Clip, Hairpin — — —
9 Screw, Flat Head, #8-32 x 12mm (1) — — —
10 Screw, Pan Head, 1/4-20 x 14mm, with Lockwasher (1) — — —
11 Screw, Washer Head, #10-24 x 10mm (21) — — —
12 Wire Connectors (3) — — —
13 Flange Gaskets (1) — — —
14 Die-Cast Pendant and Coupler (1 set) — — —
15 Balancing Kit (1) — — —
16 Cover, Ceiling (1) 763785-BS 763785-ORB 763785-SW
17 Coupler Cover (1) 763786-BS 763786-ORB 763786-SW
18 Wiring Harness (1) 764689-1 764689 764689-2
19 Switch Housing Assembly
(For Use with Manual Switches) (1) 763795-BS 763795-ORB 763795-SW
20 Switch Housing (1) 764127-BS 764127-ORB 764127-SW
21 Flange Set (set of 5) 764688-BS 764688-ORB 764688-SW
22 Blade Set (set of 5) 765320-DM/WA 765320-DM/WA 765320-SW/MP
—Owner's Manual BP7501-5 BP7501-5 BP7501-5

U.L. Model No.: CF784-3
20 21
12. Troubleshooting
FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE
TROUBLESHOOTING YOUR FAN.
WARNING
!
Make sure main power is turned OFF.
WARNING
!
Make sure main power is turned OFF.
WARNING
!
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit
breakers.
2. Loose power line connections to the fan, 2. Check line wire connections to fan and switch
or loose switch wire connections in the wire connections in the switch housing.
switch housing.
3. Reverse switch in neutral position. 3. Make sure reverse switch position is all the
way to one side.
2. Fan sounds noisy. 1. Blades not attached to fan. 1. Attach blades to fan before operating.
2. Loose screws in motor housing. 2. Check to make sure all screws in motor housing
are snug (not over-tight).
3. Screws securing fan blade anges to 3. Check to make sure the screws which attach
motor hub are loose. the fan anges to the motor hub are tight.
4. Wire connectors inside switch housing 4. Check to make sure wire connectors in switch
rattling. housing are not rattling against each other or
against the interior wall of the switch housing.
5. Screws holding blades to anges are 5. Tighten screws securely.
loose.
3. Fan wobbles 1. Set screw in motor coupler is loose. 1. Tighten both set screws securely in the motor
excessively. coupler.
2. Set screw in hanger ball / downrod 2. Tighten the set screw in the hanger ball / downrod
assembly is loose. assembly.
3. Screws securing fan blade anges to 3. Check to be sure screws which attach the fan
motor are loose. blade anges to the motor are tight.
4. Fan blade anges not seated properly. 4. Check to be sure the fan blade anges seat
rmly and uniformly to the surface of the motor.
If anges are seated incorrectly, loosen the
ange screws and retighten according to the
procedure in the section on “Ceiling Fan Assembly”.
5. Hanger bracket and / or ceiling outlet 5. Tighten the hanger bracket screws to the outlet
box is not securely fastened. box, and / or secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade
pair can redistribute the weight and result in
smoother operation.
