Luminance Brands kathy ireland ASHLAND CF717AP02 User manual

CF717AP02
Antique Pewter
CF717BQ02
Barbeque Black
CF717BS02
Brushed Steel
CF717AORB02
Oil Rubbed Bronze
CF717ORB02
Oil Rubbed Bronze
CF717PN02
Polished Nickel
CF717WSW02
Satin White
• Español - página 29
• Français - page 57
52” Ceiling Fan Owner’s Manual
READ AND SAVE THESE INSTRUCTIONS
TRANSITIONAL
ASHLAND™
Model Numbers
Net Weight: 19.5 Lbs.
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Part No. F40BP74830008 Form No. BP7483-8
Revision: 02082021 ETL Model No.: CF717-2

2
ETL Model No.: CF717-2
Safety Instructions
WARNING
!
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the fuse box before wiring, and do not operate
fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
4. The downrod furnished with the fan provides the
minimum recommended floor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All setscrews must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
READ AND SAVE THESE INSTRUCTIONS
Table of Contents
Section Page
Safety Instructions ................................ 2
1. Unpacking Instructions ..........................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Installing Hanger Ball/Downrod Assembly . . . . . . . . . . . 5-7
4. Installing Ceiling Cover on Fan Motor Housing ........ 8
5. Installation of Hanger Bracket ...................9-10
6. Hanging the Ceiling Fan (Standard) ................ 11
7. Hanging the Ceiling Fan (Close-to-the-Ceiling) ....... 11
8. How to Wire Your Ceiling Fan .................... 12
9. Installation of Ceiling Cover ...................... 13
Section Page
10. Installation of Ceiling Fan Blades ................. 14
11. Installation of Light Fitter to Switch Housing . . . . . . .15-17
12. Installation of Light Kit Assembly ...............18-21
13. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . 21
14. Maintenance ................................. 22
15. Accessories .................................. 22
16. Trouble Shooting .............................. 23
17. Repair Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-26
Ceiling Fan Limited Warranty ....................... 27
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
French ........................................ 57
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To avoid fire, shock or injury, do not use an
Luminance Brands or any other brand of control not
specifically approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!

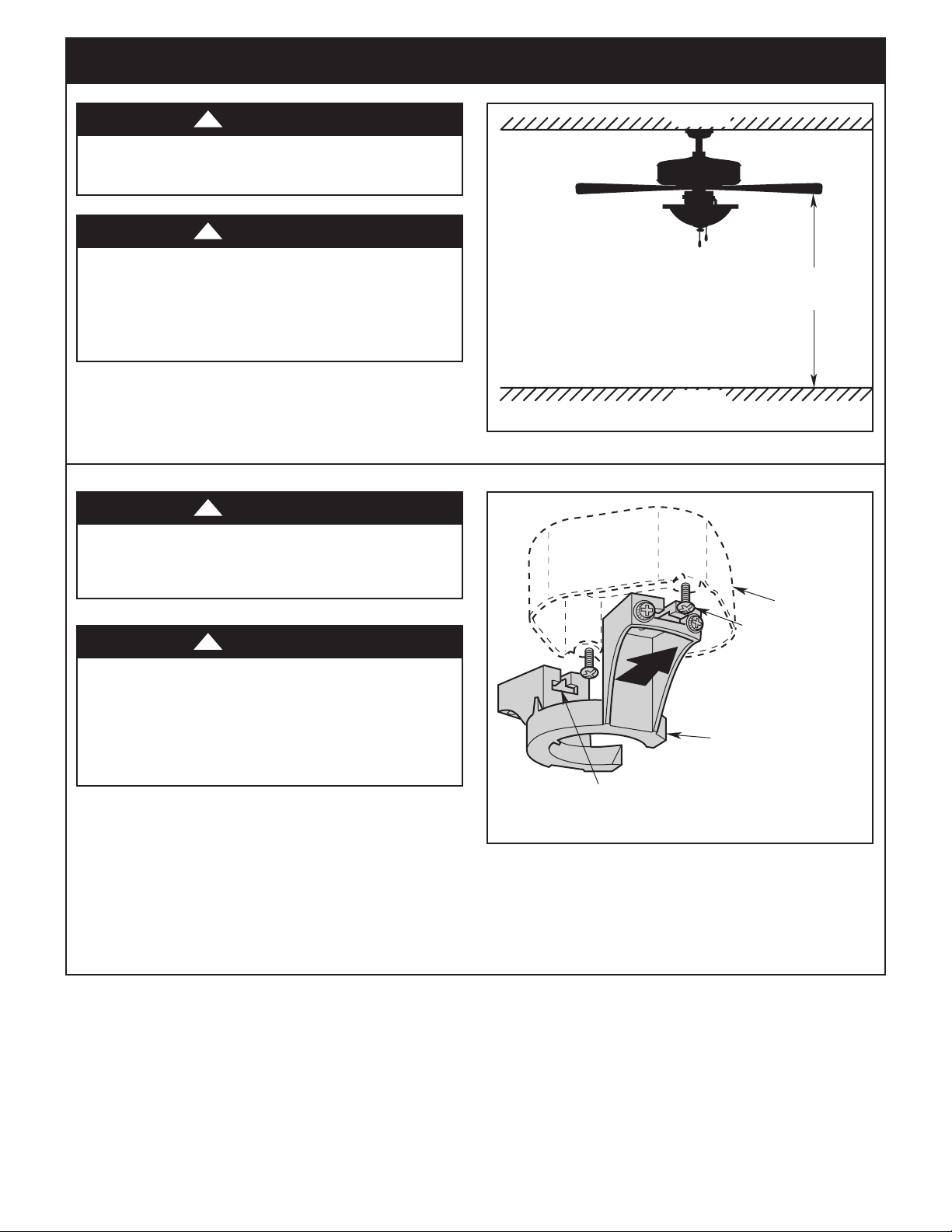

To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
1. Unpacking Instructions
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-777-4440
WARNING
!
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.
1.2
Remove the Fan Motor Assembly from the protective
plastic bag.
9
8
2
10
54
11 12 13
13
6 7
HARDWARE CONTENTS
A
B
C
D
E
F
M
L
K
I
J
G
H
PACKAGE CONTENTS
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, call 1-800-777-4440
for replacement parts before proceeding.
Part Description Quantity
1 Wire Connectors, 12 ga. 5
2 Clevis Pin 1
3 Hairpin Clip 1
4 #8-32 x 8mm Washer Head Screws 16
5 1/4-20 x 1/2” Oval Head Screws 11
6 M5 Screw (spare) 1
7 5/32” Truss Screw (spare) 1
8 Hex Jam Nut 1
9 Split Lockwasher 1
10 Rubber Gasket 1
11 Small Wood Pendant w/Coupling 1
12 Large Wood Pendant w/Coupling 1
13 Blade Balance Kit 1
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover with Decorative Cap 1
C Coupler Cover 1
D Glass Shade 1
E Flanges Set 5
F Blades Set 5
G Hanger Bracket, Dual Mount 1
H Hanger Ball/4.5” Downrod Assembly 1
I Light Fitter 1
J Switch Housing 1
K Bowl Cap 1
L Finial Nut 1
M 6.5-Watt Medium Base LED Bulbs 3

4
ETL Model No.: CF717-2
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 12).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One 1/4” Blade Screwdriver One Wire Stripper
One 9/16” or Adjustable Wrench
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
1.3
Place the Fan Assembly into the upper foam pad with
the top of the Motor facing up.
The upper foam pad serves as a holder for the Fan
during assembly.
2. Electrical Requirements
Your new Ceiling Fan will require a Grounded Electrical
Supply line of 120 Volts AC, 60 Hz, 15 Amp Circuit.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 pounds.
If your Fan is to replace an existing ceiling light fixture,
turn Electricity Off at the Main Fuse Box at this time and
remove the existing light fixture.
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
1. Unpacking Instructions (Continued)
Controls (Sold Separately)
SW90 Wall Control (sold separately) may be used
with this 52” Ashland Ceiling Fan. Controls are
recommended for indoor use only.

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
IMPORTANT
Your ceiling fan is designed to be installed either in the standard manner, or in the
close-to-the-ceiling manner. Using the standard method, the hanger ball/downrod assembly will suspend
the fan several inches below the ceiling cover. Using the close-to-the-ceiling method, the ceiling cover
installs directly on the fan motor housing, thus mounting the fan 3-1/2 inches closer to the ceiling than the
standard method. In no case should the fan blades be lower than seven feet above the floor. Depending
on your desired mounting method, proceed to “3. INSTALLING HANGER BALL/DOWNROD ASSEMBLY”
for standard mounting, or to “4. INSTALLING CEILING COVER ON FAN MOTOR HOUSING” for
close-to-the-ceiling mounting.
3. Installing Hanger Ball/Downrod Assembly
(For Standard Mounting)
Figure 1
3.1

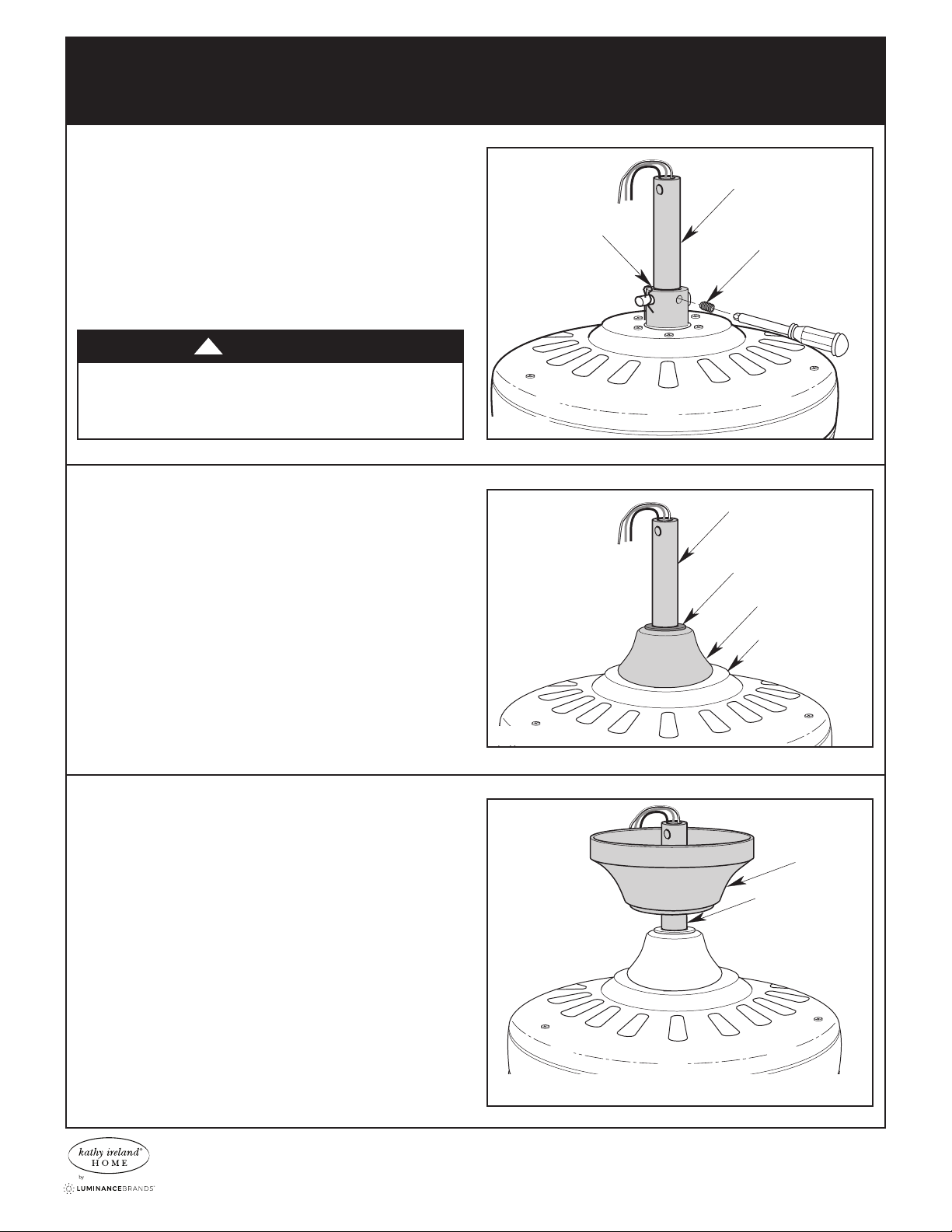

Remove the Hanger Ball by loosening the Set Screw
in the Hanger Ball until the Ball falls freely down the
Downrod (Figure 1).
Remove the Pin from the Downrod, then remove
the Hanger Ball. Retain the Pin and Hanger Ball for
reinstallation in Step 3.6.
NOTE: Do not loosen the Screw holding the Green
Ground Wire.
SETSCREW
CLEVIS PIN
MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
HAIRPIN
CLIP
MOTOR
COUPLING
SETSCREW (2)
CLEVIS PIN
DOWNROD
SET SCREWS (2)
MOTOR
COUPLER
HAIRPIN
CLIP
DOWNROD
CLEVIS PIN
Figure 2
3.2
Separate, untwist and unkink the Three 80” Motor
Wires. Route the Motor Wires through the Downrod.
Loosen the Two Set Screws preinstalled on the Motor
Coupler.
Align the Clevis Pin Holes in the Downrod with the
Holes in the Motor Coupler. Install the Clevis Pin and
secure with the Hairpin Clip (Figure 2).
The Clevis Pin must go through the Holes in the Motor
Coupler and the Holes in the Downrod. Be sure to push
the straight leg of the Hairpin Clip through the Hole near
the end of the Clevis Pin until the curved portion of the
Hairpin Clip snaps around the Clevis Pin.
The Hairpin Clip must be properly installed to prevent
the Clevis Pin from working loose. Pull on the Downrod
to make sure the Clevis Pin is properly installed.
PHILLIPS HEAD SET SCREW
(LOOSENED)
HANGER BALL
4.5" DOWNROD
PIN
GREEN GROUND WIRE

6
ETL Model No.: CF717-2
3. Installing Hanger Ball/Downrod Assembly
(For Standard Mounting) (Continued)
It is critical that the clevis pin in the motor coupler
is properly installed and the setscrews securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
WARNING
!
MOTOR
COUPLER
SET SCREWS (2)
DOWNROD
Figure 3
3.3
Securely tighten the Two Set Screws into the Motor
Coupler until they rest against the Downrod.
Pull up on the Downrod to make sure the Set Screws
are firmly installed against the Downrod (Figure 3).
NOTE: The setscrew must be properly installed as
described above, or fan wobble could result.
GROMMET
COUPLER COVER
MOTOR
HOUSING
DOWNROD
Figure 4
3.4
Make sure the Grommet is properly installed in the
Motor Coupler Cover then slide the Motor Coupler
Cover on the Downrod until it rests on the Motor
Housing. Be sure the Motor Coupler Cover is oriented
correctly (Figure 4).
DOWNROD
CEILING
COVER
Figure 5
3.5
Pass the 80-inch long Motor Wires through the opening
in the Ceiling Cover.
Place the Ceiling Cover over the Downrod. Be sure the
Ceiling Cover is oriented correctly (Figure 5).

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
3. Installing Hanger Ball/Downrod Assembly
(For Standard Mounting) (Continued)
HANGER BALL
DOWNROD
PIN
SET SCREW
3.6
Reinstall the Hanger Ball (Figure 6) on the Downrod
as follows. Route the 80-inch Motor Wires through
the Hanger Ball. Position the Pin through the Two
Holes in the Downrod and align the Ball so the Pin
is captured in the Groove in the top of the Hanger
Ball. Pull the Hanger Ball up tight against the Pin and
securely tighten the Set Screw in the Hanger Ball.
A loose Set Screw could create Fan wobble.
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened. Failure
to verify that the pin and setscrew are properly
installed could result in the fan falling.
WARNING
!
Figure 6
HANGER BALL
6 TO 9
INCHES
1/2-INCH
WHITE WIRE
BLUE WIRE
BLACK WIRE
3.7
The Fan comes with Blue, Black and White Wires that
are 80-inches long. Before installing the Fan, measure
up approximately 6 to 9-inches above top of Hanger
Ball/Downrod Assembly (Figure 7). Cut off excess
Wires and strip back insulation 1/2-inch from end of
Wires.
Figure 7

8
ETL Model No.: CF717-2
CEILING COVER
CEILING COVER
HOLES (6)
DECORATIVE CAP
CEILING COVER HOLES (6)
CEILING COVER
4.3
Gently pry the Decorative Cap from the Ceiling Cover
to expose the Six Holes in the Ceiling Cover (Figure 9).
Figure 9
CEILING COVER
CEILING COVER
HOLES (6)
MOTOR HOUSING
ASSEMBLY HOLES (6)
CUT-AWAY
SCREWS AND
LOCKW
ASHERS
(6)
4.4
Place the Ceiling Cover onto the Motor Housing
Assembly by aligning the Holes in the Ceiling Cover
with the Holes in the Motor Housing (Figure 10).
Secure the Ceiling Cover to the Motor Housing
Assembly by reinstalling the previously removed Six
Screws and Lockwashers (Figure 10).
Figure 10
4. Installing Ceiling Cover on Fan Motor Housing
(For Close-to-the-Ceiling Mounting)
REMOVE SCREWS (6) INSTALL GASKET
4.1
Remove and retain Six Screws and Lockwashers from
the top of the Motor Housing (Figure 8A).
4.2
Remove the paper backing off the Rubber Gasket
(supplied in parts bag) to expose the adhesive.
Position the Rubber Gasket on the Motor Housing
(small holes in gasket centered over the screw holes in
the housing and the notched area of the rubber gasket
over the notched area of the housing).
Press the Rubber Gasket (adhesive side down) onto
the Motor Housing to secure Gasket (Figure 8B).
Figure 8A Figure 8B

9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
5.1
Unscrew (but do not remove) the Two Mounting Screws
in the Outlet Box (Figure 12). Position the Hanger
Bracket on the Outlet Box so that the T-slots in the
Hanger Bracket are aligned with the Outlet Box Screws.
FLOOR
7'
MIN.
CEILING
Figure 11
5. Installation of Hanger Bracket
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
HANGER
BRACKET
LOOSEN TWO
SCREWS (SUPPLIED
WITH OUTLET BOX)
OUTLET BOX
SLIDE THE HANGER
BRACKET ONTO
THE OUTLET BOX
SCREWS, THROUGH
THE T-SLOT
T-SLOT
Figure 12
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor (Figure 11).
CAUTION
!

10
ETL Model No.: CF717-2
5. Installation of Hanger Bracket (Continued)
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, use leveling washers
between the hanger bracket and the outlet box until
the bracket is flush with the ceiling. If bracket and/
or outlet box are not securely attached, the fan could
wobble or fall.
WARNING
!
5.2
Slide the Hanger Bracket onto the Outlet Box Screws.
Center the Bracket over the Outlet Box and then
securely tighten the Screws (Figure 13).
HANGER BRACKET
HOOK
SECURELY
TIGHTEN
SCREWS
Figure 13

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
6. Hanging the Ceiling Fan
(Standard Method Using Hanger Ball/Downrod)
6.1
Carefully lift the fan assembly and seat the hanger
ball in the hanger bracket (Figure 14). The tab on the
hanger bracket must seat in the groove in the hanger
ball.
HANGER
BRACKET
HOOK
TAB
GROOVE HANGER
BALL
NOTE: CEILING COVER,
SUPPLY WIRES AND
FAN WIRES OMITTED
FOR CLARITY.
Figure 14
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
7. Hanging the Ceiling Fan
(Close-to-the-Ceiling Method with
Ceiling Cover Installed on the Motor Housing)
7.1
Carefully lift the Fan Assembly up to the Hanger
Bracket. Pass the Hook on the Hanger Bracket
(Figure 15) through one of the Screw Holes (not the
slots) in the Ceiling Cover (Figure 15). The Hook must
pass from the inside of the Ceiling Cover to the outside.
The Hook will hold the Fan Assembly while connecting
the wiring.
HANGER
BRACKET
HOOK
HOOK ON HANGER BRACKET
MUST PASS THROUGH SCREW
HOLE IN CEILING COVER,
INSIDE OF BRACKET TO
OUTSIDE OF BRACKET
CEILING
COVER
Figure 15
The hook must pass through the screw hole in the
ceiling cover from the inside to the outside. Any other
hanging method may cause the hook to break and the
fan to fall.
WARNING
!

12
ETL Model No.: CF717-2
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
8.1
Connect the Green Grounding Wire from the Hanger
Ball and the Green Grounding Wire from the Hanger
Bracket to the Grounding Conductor of Supply
(this may be a bare wire or wire with green colored
insulation) (Figure 16). Securely connect Wires using
Wire Connectors supplied.
8. How to Wire Your Ceiling Fan
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring
must be in accordance with National and Local codes
and the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
SUPPLY
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER
BRACKET
GREEN GROUND
WIRE FROM
HANGER BALL
Figure 16
BLACK
FAN WIRE
BLUE
FAN WIRE
BLACK
SUPPLY (HOT)
WIRE CONNECTOR
WHITE SUPPLY
NEUTRAL)
WHITE FAN WIRE
Figure 17
8.2
Securely connect the Fan Motor White Wire to the
Supply White (neutral) Wire using Wire Connector
supplied (Figure 17).
Securely connect the Fan Motor Black Wire and
Blue Wire to the Supply Black (hot) Wire using Wire
Connector supplied (Figure 17).
After Connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and the Black and Blue Wires on the other side of the
Outlet Box.
NOTE: When wiring the ceiling fan for close-to-the-
ceiling mounting, there will be no green grounding
lead from the hanger ball.

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
CEILING
COVER
TIGHTEN
SCREW
INSTALL SCREW
AND WASHER
Figure 19
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
9.2
Lift the Ceiling Cover up to the Hanger Bracket. Engage
the Slots in the Ceiling Cover with the loosened Screws
in the Bracket and turn the Cover counterclockwise
(Figure 19). Be sure that the Lockwashers are between
the Screw Heads and the Ceiling Cover.
Install the other Two Screws and Lockwashers; tighten
all Screws securely
9. Installation of Ceiling Cover
9.1
Remove the Left Screw and Lockwasher from each side
of the Hanger Bracket (Figure 18) and loosen the other
Two Screws.
NOTE: When installing the ceiling fan using the
close-to-the-ceiling method, carefully lift the fan
assembly from the hook on the hanger bracket and
proceed as follows.
REMOVE THIS
SCREW AND
LOCKWASHER
LOOSEN
THIS
SCREW
Figure 18

14
ETL Model No.: CF717-2
10. Installation of Ceiling Fan Blades
10.3
Rotate the Motor Hub to expose the Motor Flange Holes
through the Switch Housing Plate.
Attach a Blade/Flange Assembly to the Motor Hub
using Two 1/4-20 x 1/2” Oval Head Screws (supplied)
(Figure 22). Do not tighten completely at this time.
Install remaining Blade Assemblies in the same way.
Gently snug all Flange Screws to the Motor Hub,
working around the Hub in a clockwise sequence.
NOTE: Take care not to scratch fan housing
assembly when installing blades.
BLADE / FLANGE
ASSEMBY (5)
1/4-20 x 1/2" OVAL HEAD
SCREWS (2 per blade / flange
assembly)
SWITCH
HOUSING PLATE
Figure 22
10.2
Mount the Flanges to the Blades using Three
#8-32 x 8mm Washer Head Screws (supplied) per
Blade (Figure 21).
Repeat this procedure for remaining Four Blades and
Flanges.
BLADE FLANGES (5)
#8-32 x 8mm
WASHER
HEAD SCREWS
(3 per blade)
FAN BLADES (5)
Figure 21
10.1
Remove and discard the Five Motor Hub Spacers to
free the Motor for installation of Ceiling Fan Blades
(Figure 20).
MOTOR HUB
SPACERS (5)
MOTOR HUB
Figure 20
To reduce the risk of personal injury, do not bend the
blade flanges when installing the flanges, balancing
the blades, or cleaning the fan. Do not insert foreign
objects between rotating fan blades.
WARNING
!

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
11. Installation of Light Fitter to Switch Housing
11.1
Remove the Plastic Plug from the Switch Housing
(Figure 23).
NOTE: Use pliers to squeeze the base of the plastic
plug to release the plug from the switch housing
hole.
Retain the Plastic Plug for future use.
REMOVE & RETAIN SWITCH
HOUSING PLASTIC PLUG
BASE OF
PLASTIC PLUG
SWITCH
HOUSING
Figure 23
11.2
Insert the Light Fitter into the Switch Housing
(Figure 24).
Insert the Light Fitter White and Black Wire Connectors
through the Center Hole in the Switch Housing
(Figure 24). SWITCH
HOUSING
LIGHT FITTER WHITE
& BLACK WIRE
CONNECTORS
LIGHT FITTER
Figure 24

16
ETL Model No.: CF717-2
11. Installation of Light Fitter to Switch Housing (Continued)
11.4
Engage the Harness White Wire Connector to the Light
Fitter White Wire Connector until you hear a snap to
secure the Connectors (Figure 26).
HARNESS WHITE
WIRE CONNECTOR
LIGHT FITTER
WHITE WIRE
CONNECTOR
Figure 26
11.3
Rotate the Switch Housing and align the Light Kit Fitter
Plate to line up the Fan Speed Control Pull Chain
Switch for ease of Pull Chain Assembly.
Remove the rubber band and plastic from around the
Switch Housing Pull Chain for ease of assembly.
Position the Fan Speed Control Switch Pull Chain
through the Light Fitter Bushing Hole of the Light Kit
Fitter Plate (Figure 25).
Install the Split Lockwasher and Hex Jam Nut (supplied
in the parts bag) onto the Light Fitter/Switch Housing
Assembly and tighten securely (Figure 25).
LIGHT FITTER BUSHING
ROTATE AND ALIGN
SWITCH HOUSING FAN
PULL CHAIN
HEX JAM NUT
SPLIT LOCKWASHER
LIGHT FITTER
SWITCH
HOUSING
Figure 25

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
11. Installation of Light Fitter to Switch Housing (Continued)
11.5
Engage the Harness Black Wire Connector to the Light
Fitter Black Wire Connector until you hear a snap to
secure the Connectors (Figure 27).
HARNESS BLACK
WIRE CONNECTOR
LIGHT FITTER
BLACK WIRE
CONNECTOR
Figure 27

18
ETL Model No.: CF717-2
12. Installation of Light Kit Assembly
12.2
Remove the Three Switch Housing Plate Screws and
retain for future use. (Figure 29).
SWITCH HOUSING
PLATE
REMOVE & RETAIN
SWITCH HOUSING
PLATE SCREWS (3)
Figure 29
12.1
Engage the Color-Coded Connector of the Light Kit
Assembly with the Motor Connector (Figure 28).
The Two Connectors are keyed and Color-Coded and
must be mated correctly (color-to-color) before they can
be engaged.
Make sure the Connector Latch closes properly.
LIGHT KIT
ASSEMBLY
COLOR-CODED
CONNECTOR
MOTOR COLOR-
CODED CONNECTOR
Figure 28
REINSTALL SWITCH
HOUSING PLATE SCREWS (3)
LIGHT KIT
ASSEMBLY
Figure 30
12.3
Align the Light Kit Assembly Holes with the Switch
Housing Plate Holes.
Carefully tuck all the Wires and Connectors into the
Switch Cup Housing.
Secure the Light Kit Assembly by reinstalling the Three
previous removed Screws (Figure 30).
To avoid possible fire or shock, do not pinch wires
between the light kit assembly and the switch cup
plate.
WARNING
!

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF717-2
12. Installation of Light Kit Assembly (Continued)
12.5
NOTE: Be sure that the fan switch chain does not
make contact with the light bulbs. If necessary
reposition the light fitter to avoid the fan switch
chain from touching the light bulbs (Figure 32).
LIGHT KIT FITTER PLATE
FAN SPEED
CONTROL
SWITCH CHAIN
Figure 32
LIGHT KIT
ASSEMBLY
SOCKETS (3)
6.5-WATT (max.)
MEDIUM BASE
LED BULBS (3)
Figure 31
12.4
Screw the Three 6.5-watt (maximum) Medium
Base LED Bulbs in the Light Kit Assembly Sockets
(Figure 31).
To avoid risk of burns or other injuries, turn power
off and allow lamps to fully cool before attempting to
replace the medium base LED bulbs.
WARNING
!

20
ETL Model No.: CF717-2
12. Installation of Light Kit Assembly (Continued)
12.6
Position the Light Switch Pull Chain through the Center
Hole of the Glass Shade.
Position the Fan Speed Control Switch Pull Chain
through the Center Hole of the Glass Shade.
NOTE: Be sure that the fan switch chain does not
make contact with the light bulbs. If necessary
reposition the light fitter to avoid the fan switch
chain from touching the light bulbs.
Place the Glass Shade onto the Light Kit Assembly
Threaded Nipple (Figure 33).
SPEED
CONTROL
PULL CHAIN
LIGHT SWITCH
PULL CHAIN
THREADED
NIPPLE
GLASS
SHADE
Figure 33
12.7
Pass the Light Pull Chain through the Center Bushing in
the Bowl Cap.
Pass the Speed Control Switch Pull Chain through the
Offset Hole of the Bowl Cap.
Place the Bowl Cap on the Threaded Nipple and
against the Glass Shade (Figure 34).
Install Finial Nut finger tight to secure the Bowl Cap to
the Glass Shade (Figure 34).
BOWL CAP
GLASS
SHADE
FINIAL NUT
Figure 34
