Luminance Brands Kathy Ireland Home CF766LBQ00 User manual

Part No. F40BP75320002 Form No. BP7532-2
Revision: 02182021 ETL Model No.: CF766L
Net Weight: 21.7 Lbs.
4th AVENUE LED
60” Ceiling Fan Owner’s Manual
CF766LBQ00
Barbeque Black with
Charcoal Blades
CF766LBS00
Brushed Steel with
Chocolate Blades
CF766LSBS00
Brushed Steel with
Brushed Steel Blades
CF766LVS00
Vintage Steel with
Riverwash Blades
Model Numbers
• Español - página 31
• Français - page 61
....
READ AND SAVE THESE INSTRUCTIONS
MODERN
1-800-777-4440
www.luminancebrands.com
Questions, problems, missing parts: Before returning to the store, Call Customer Service

2
ETL Model No.: CF766L
Table of Contents
Section Page
Safety Instructions ........................... 2
1. Unpacking Instructions .....................3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . 4
3. Ceiling Fan Assembly .....................5-9
4. How to Hang Your Ceiling Fan .............10-11
5. How to Wire Your Ceiling Fan .............12-13
6. Final Assembly .........................14-17
7. Wall Control Procedures .................... 18
8. Wall Control Installation...................19-22
9. Programming the Receiver Operating Frequency.. . 23
Section Page
10. Wall Control Operation .................... 23
11. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . 24
12. Maintenance .............................24
13. Accessories ............................ 25
14. Instruction to the User .................... 25
15. Repair Parts ..........................26-27
16. Troubleshooting ..........................28
Ceiling Fan Limited Warranty ................. 29
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
French ................................... 61
Safety Instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a. Use this unit only in a manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power
off at service panel and lock service panel
disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a warning device, such as a tag, to the
service panel.
WARNING
!
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring, and do not operate fan without blades.
2. All wiring must be in accordance with the National
Electrical Code “ANSI/NFPA 70-2017” and Local
Electrical Codes. Use the National Electrical Code
if Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
shock. Electrical installation should be made or
approved by a licensed electrician.
3. The outlet box and joist must be securely mounted
and capable of reliably supporting at least 50 pounds.
Use only U.L. outlet boxes listed as “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use
the mounting screws provided with the outlet box.
Most outlet boxes commonly used for support of light
xtures are not acceptable for fan support and may
need to be replaced. Consult a qualied electrician if
in doubt.
4. The downrod furnished with the fan provides the
minimum recommended oor to fan blade clearance
for an 8 foot ceiling.
5. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed
by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed
controls.
NOTE: All set screws must be checked and re-tightened
where necessary before installation.
1. Read your owner’s manual carefully and keep it for
future reference.
2. Be careful of the fan and blades when cleaning,
painting, or working near the fan. Always turn off the
power to the ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electrical shock, this fan must be
installed with an isolating wall control/switch.
To reduce the risk of fire or electrical shock, this fan
should only be used with fan speed control, Model No.
UC7067RAL, manufactured by Rhine Electric Co., Ltd.
To avoid fire, shock or injury, do not use a Luminance
Brands or any other brand of control not specifically
approved for this fan.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor.
CAUTION
!

A
B
C
D
E
F
G
L
H
I
J
K
M
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
OFF ON
....
OFFON
....
OFFON
....
OFF
....
1. Unpacking Instructions
3
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
Do not install or use fan if any part is damaged or
missing. Call Toll-Free for replacement parts:
1-800-777-4440
WARNING
!
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration below.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, call 1-800-777-4440
for replacement parts before proceeding.
1.2
Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
styrofoam with the top of the motor facing up.
The upper styrofoam serves as a holder for the fan
during the first stages of assembly.
PACKAGE CONTENTS
6
3
5
4
1213
12
8
79
10
11
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Motor Coupler Cover 1
D Blade Flanges 3
E Fan Blades 3
F Hanger Bracket 1
G Hanger Ball / 8” Downrod Assembly 1
H Upper Housing 1
I Lower Housing 1
J Light Fixture Assembly - LED 1
K Glass 1
L Wall Control w/Hardware 1
M Receiver 1
HARDWARE BAG CONTENTS
Part Description Quantity
1 Threaded Studs, #8-32 x 1-1/4” 2
2 Lockwashers, External Tooth #8 2
3 Knurled Knobs, #8-32 2
4 Wire Connectors, E3 3
5 Clevis Pin 1
6 Hairpin Clip 1
7 1/4-20 x 1/2” Pan Head Screws
with Lockwashers 7
8 #8-32 x 1/2” Pan Head Screws with
Lockwashers 7
9 #8-32 x 3/8” Pan Head Screws (spares) 2
10 #10-32 x 1/4” Washer Head Screws 10
11 Upper Housing Plate 1
12 Decorative Nuts 10
13 Blade Balance Kit 1
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!

Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 12).
If you feel you do not have enough wiring knowledge
or experience, have your fan installed by a licensed
electrician.
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips Head Screwdriver One Stepladder
One 1/4” Blade Screwdriver One Wire Stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be
a 3-conductor (2-wire with ground) of following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
4
ETL Model No.: CF766L
1. Unpacking Instructions (Continued)
Remote Control (sold separately)
SR401 Remote Control (sold separately) may be used
with this 60” 4th AVENUE LED Ceiling Fan. Controls
are recommended for indoor use only.
2. Electrical Requirements
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
Your New Ceiling Fan will require a Grounded Electrical
Supply Line of 120 volts AC, 60 Hz, 15 amp circuit.
The Outlet Box must be securely anchored and capable
of withstanding a load of at least 50 Pounds.
If your Fan is to replace an Existing Ceiling Light
Fixture, turn Electricity Off at the Main Fuse Box or
Circuit Breaker Panel at this time and remove the
Existing Light Fixture.
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a licensed
electrician.
WARNING
!
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

5
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
3. Ceiling Fan Assembly

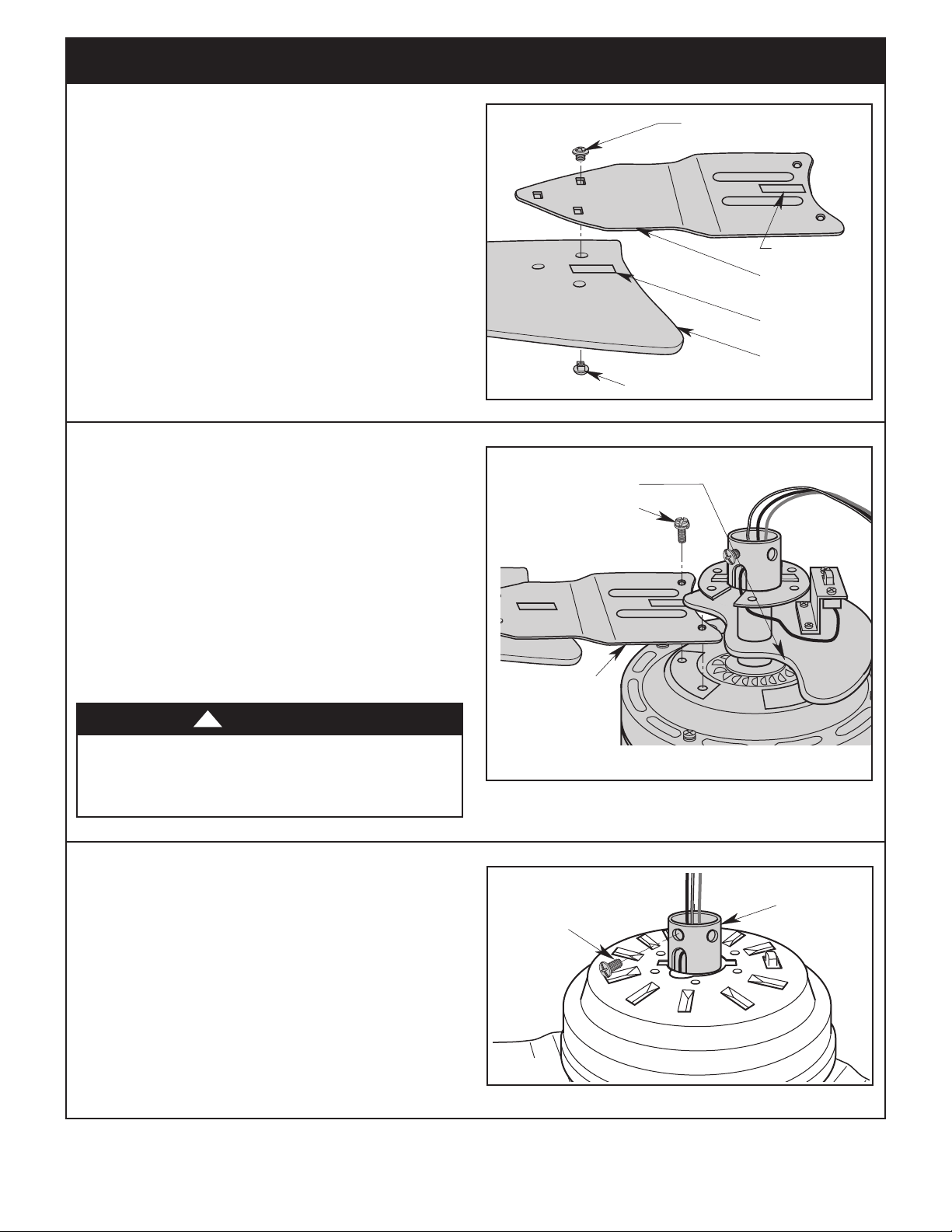

3.1
Position the flange marked “THIS SIDE UP”on top of
the blade marked “THIS SIDE UP” (Figure 1).
Place a Decorative Nut (supplied) through the
underside of the Fan Blade and attach the Blade
Flange to the Fan Blade using the #10-32 x 1/4”
Washer Head Screw (supplied).
Use three #10-32 x 1/4” Washer Head Screws per
Blade Assembly (Figure 1).
Repeat this procedure for the remaining two Blades,
Decorative Nuts, and Flanges.
THIS SIDE UP
"THIS SIDE UP"
LABEL
DECORATIVE NUT
(3 per blade/flange)
FLANGE (3)
THIS SIDE UP
"THIS SIDE UP"
LABEL
CEILING FAN
BLADE (3)
#10-32 x 1/4" WASHER HEAD
SCREW (3 per blade/flange)
Figure 1
3.3
NOTE: Take care not to scratch Fan Housing when
installing Fan Blades.
Rotate the Motor Hub so the notched area is above the
screw holes in the Motor Hub.
Install one Blade Assembly (with the markings: “THIS
SIDE UP”, facing up) on the top of the Motor Assembly
using two 1/4-20 x 1/2” Pan Head Screws with
Lockwashers (supplied) (Figure 2).
Repeat this procedure for the remaining two Blades
Assemblies.
THIS SIDE UP
THIS SIDE UP
BLADE/FLANGE
ASSEMBLY (3)
MOTOR HUB
NOTCHED AREA
1/4-20 x 1/2" PAN HEAD
SCREW WITH
LOCKWASHER (2 per
blade/flange assembly)
Figure 2
3.3
Remove the two Set Screws from the top of the Motor
Coupler (Figure 3).
Retain the Set Screws for future use.
THIS SIDE UP
THIS S
IDE UP
SET
SCREWS (2)
MOTOR
COUPLER
Figure 3
To reduce the risk of personal injury, do not bend
the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!

6
ETL Model No.: CF766L
3. Ceiling Fan Assembly (Continued)
3.4

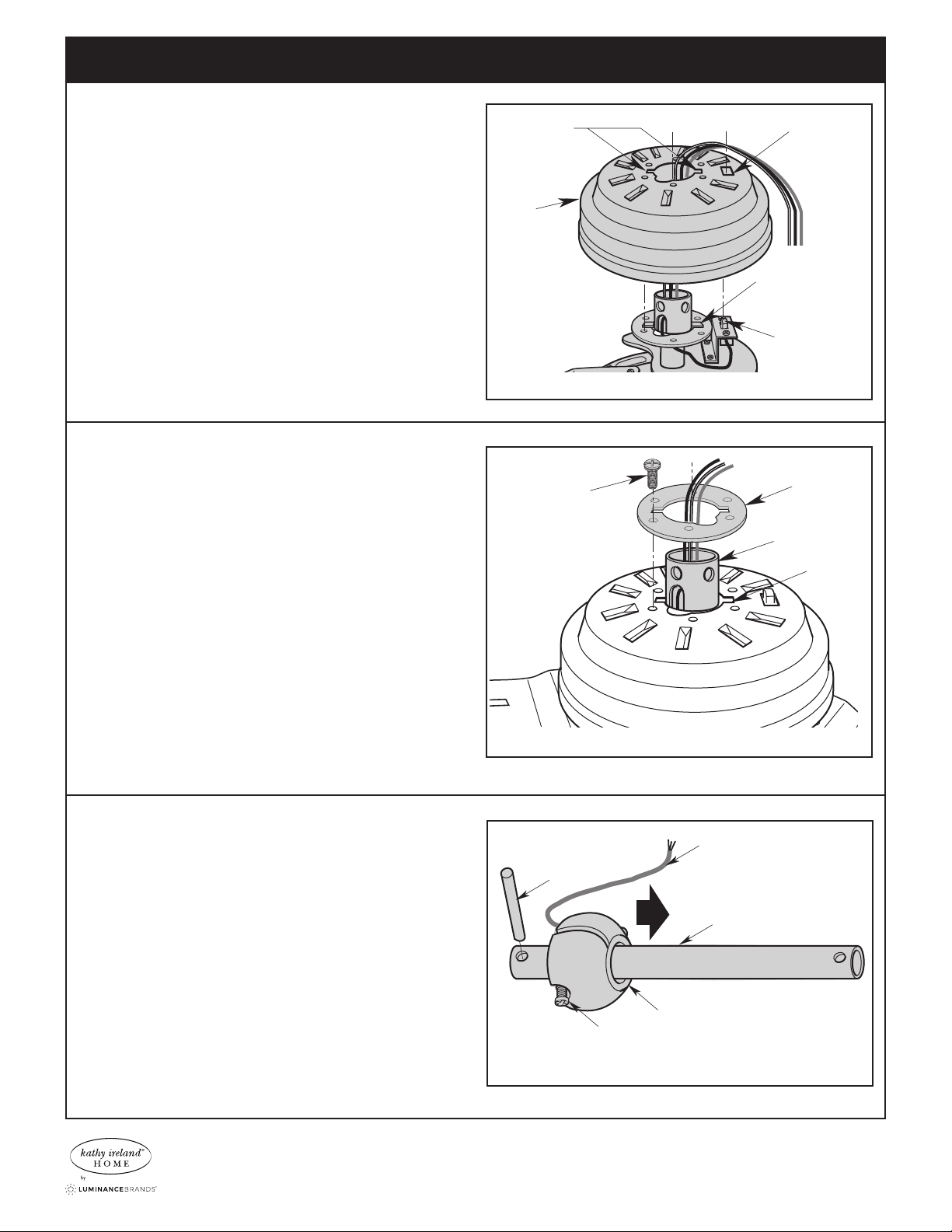

Position the Upper Housing, aligning its two Notched
Areas, the Six Screw Holes and the Reverse Switch
Hole onto the Upper Motor Housing Flange (Figure 4).
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
UPPER
HOUSING
REVERSE
SWITCH
MOTOR COUPLER
STUDS (2)
NOTCHED
AREAS (2) REVERSE
SWITCH
HOLE
Figure 4
3.5
Place the Upper Housing Plate so that the two Notched
Areas align with the two Studs on the Motor Coupler.
Aligning the six Screw Holes of the Upper Housing
Plate onto the Upper Housing.
Securely attach the Upper Housing Plate to the Upper
Housing by using the six #8-32 x 1/2” Pan Head
Screws with Lockwashers (supplied) (Figure 5).
THIS SIDE UP
THIS SIDE UP
#8-32 x 1/2" PAN
HEAD SCREWS WITH
LOCKWASHERS (6) MOTOR
COUPLER
MOTOR
COUPLER
STUDS (2)
UPPER
HOUSING
PLATE
Figure 5
3.6
Remove the Hanger Ball by loosening the Set Screw
in the Hanger Ball until the Ball falls freely down the
Downrod (Figure 6).
Remove the Pin from the Downrod, then remove the
Hanger Ball.
Retain the Pin and Hanger Ball for reinstallation in
Step 3.12.
NOTE: Do not loosen the Screw holding the Green
Ground Wire. PHILLIPS HEAD SET SCREW (LOOSENED)
HANGER BALL
DOWNROD
PIN
GREEN GROUND WIRE
Figure 6

7
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
3. Ceiling Fan Assembly (Continued)
3.7
Separate, untwist and unkink the three 80” motor leads.
Route the 80” black, blue and white motor leads
through the downrod (Figure 7).
8" DOWNROD
THREE 80" MOTOR LEADS
(UNTWISTED)
THIS SIDE UP
THIS SIDE UP
Figure 7
HAIRPIN CLIP
MOTOR COUPLER
DOWNROD
CLEVIS
PIN
HAIRPIN
CLIP
MOTOR
COUPLER
SETSCREW
CLEVIS PIN
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
Figure 8
3.8
Align the Clevis Pin holes in the Downrod with the holes
in the Motor Coupler.
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 8).
The Clevis Pin must go through the holes in the Motor
Coupler. It is critical that the Clevis Pin and Hairpin Clip
are properly installed in the Motor Coupler.
Pull on the Downrod to make sure the Clevis Pin is
properly installed.
It is critical that the clevis pin in the motor coupler is
properly installed and securely tightened. Failure to
verify that the pin is properly installed could result in
the fan falling.
WARNING
!

3. Ceiling Fan Assembly (Continued)
8
ETL Model No.: CF766L
MOTOR COUPLER
DOWNROD
REINSTALL
SET SCREWS (2)
T H I S SI D E U P
THIS SIDE UP
3.9
While pulling up on the 8” Downrod, reinstall the two
Set Screws (previously removed) in the Motor Coupler
to secure the Downrod into place (Figure 9).
NOTE: The Set Screws must be properly installed
as described above, or fan wobble could result.
It is critical that the set screws are securely tightened.
Failure to verify that the set screws are properly
installed could result in the fan falling.
WARNING
!
Figure 9
COUPLER COVER
GROMMET
DOWNROD
3.10
Make sure the Grommet is properly installed in the
Coupler Cover, then slide the Coupler Cover on the
Downrod until it rests on the Motor Housing (Figure 10).
Figure 10
CEILING
COVER
DOWNROD
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
Figure 11
3.11
Place the Ceiling Cover over the Downrod.
Be sure both the Ceiling Cover and the Coupling Cover
are oriented correctly (Figure 11).

3. Ceiling Fan Assembly (Continued)
9
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
PIN
HANGER BALL
DOWNROD
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
Figure 12

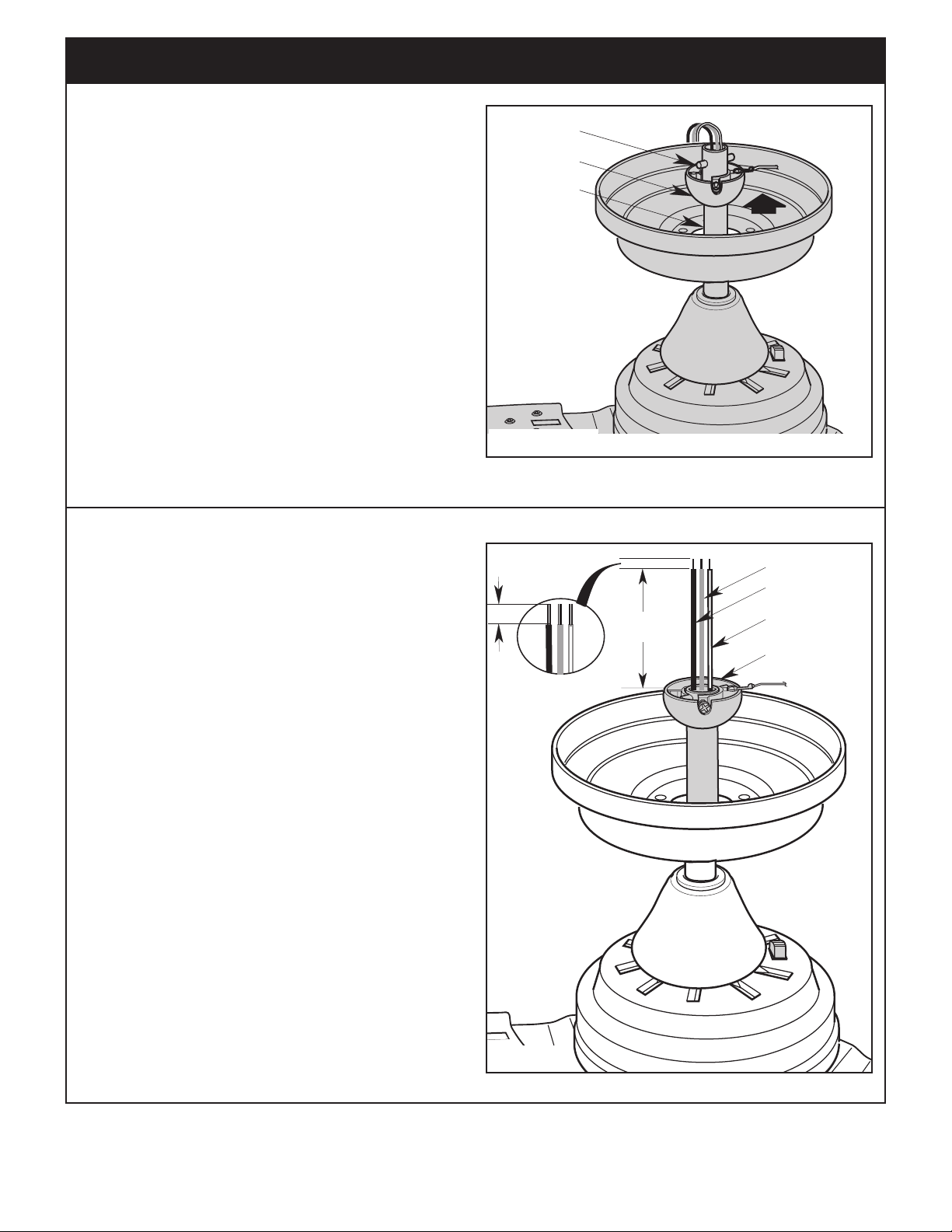

3.12
NOTE: Only use the Hanger Ball supplied with this
Ceiling Fan.
Route the three 80” Motor Leads through the Hanger
Ball.
Reinstall the Hanger Ball (Figure 12) on the Downrod
as follows:
Position the Hanger Ball Pin through the two holes in
the Downrod and align the Ball so the Pin is captured in
the Groove in the top of the Hanger Ball.
Pull the Hanger Ball up tight against the Pin and
securely tighten the Set Screw in the Hanger Ball.
NOTE: A loose Set Screw could create fan wobble.
THIS SIDE UP
T HI S S ID E U P
THIS S
IDE UP
HANGER BALL
WHITE WIRE
BLACK WIRE
1/2-INCH BLUE WIRE
6 TO 9
INCHES
Figure 13
3.13
The Fan comes with Black, Blue and White Leads that
are 80” long.
Measure up approximately 6 to 9-inches above top of
Hanger Ball / Downrod Assembly (Figure 13).
Cut off excess Leads and strip back insulation 1/2-inch
from end of Leads.
You have now completed the initial assembly of your
new Ceiling Fan. You can now proceed with hanging
and wiring your Fan.

10
ETL Model No.: CF766L
AT LEAST
7'
CEILING
FLOOR
Figure 14

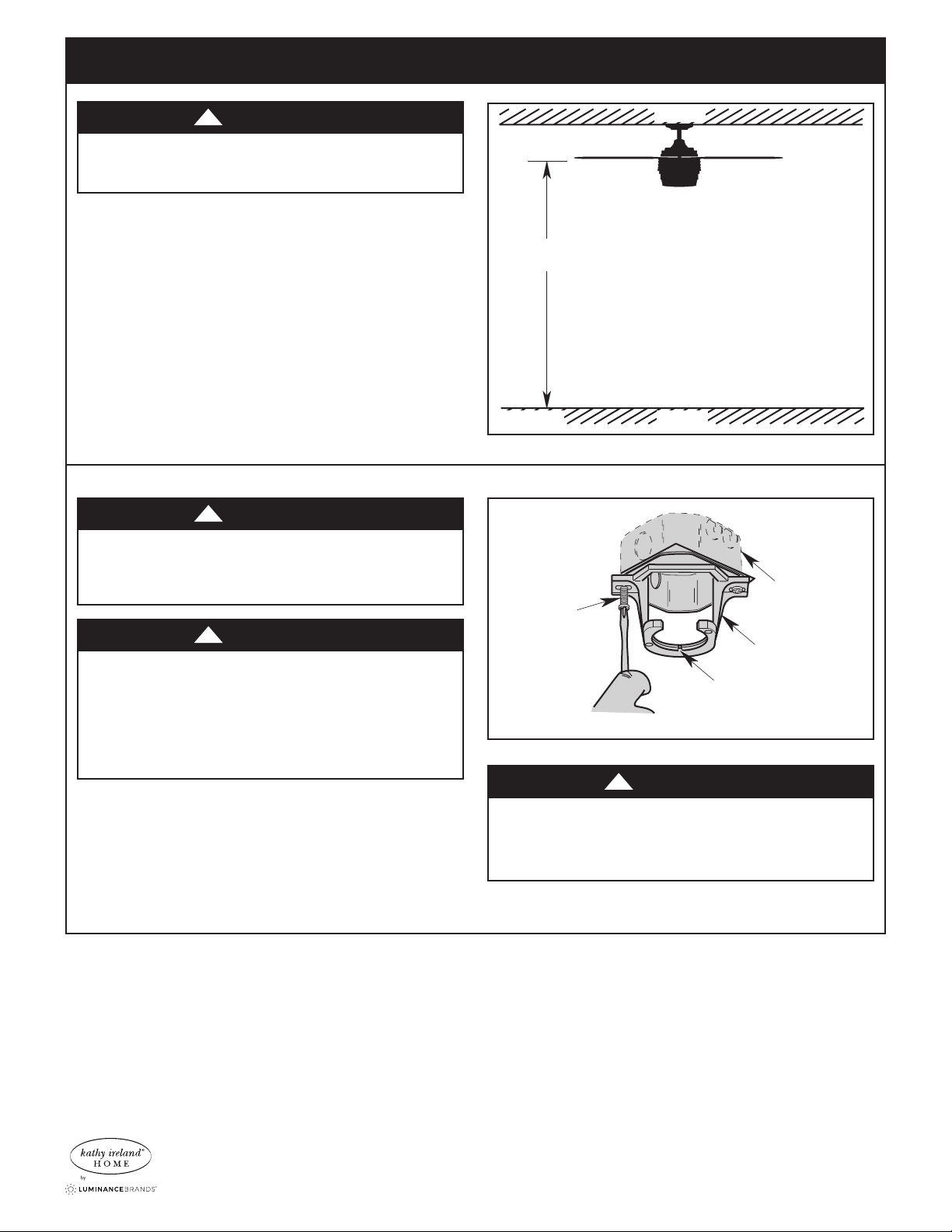

4. How to Hang Your Ceiling Fan
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support of 22.7 kg. (50 lbs.) or less”, and
use screws supplied with outlet box. Most outlet
boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
WARNING
!
4.1
Securely attach the Hanger Bracket to the Outlet Box
using the two Screws supplied with the Outlet Box
(Figure 15).
Hanger bracket must seat firmly against outlet box.
If the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER BRACKET
ANTI-ROTATION TAB
OUTLET BOX
Figure 15
To reduce the risk of injury, install the fan so that the
blades are at least 7 ft. (2.1m) above the floor (Figure 14).
CAUTION
!

11
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
HANGER BRACKET
HANGER BALL
HANGER BALL
GROOVE
ANTI-ROTATION
TAB
Figure 16
4. How to Hang Your Ceiling Fan (Continued)
4.2
Carefully lift the partly assembled Fan and seat the
Hanger Ball / Downrod Assembly on the Hanger
Bracket that was just attached to the Outlet Box
(Figure 16).
Be sure the Groove in the Ball is engaged with the
Anti-Rotation Tab on the Hanger Bracket (Figure 16).

To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box or circuit breaker
panel before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product
by Luminance Brands. Substitution of parts or
accessories not designated for use with this product
by Luminance Brands could result in personal injury
or property damage.
WARNING
!
To reduce the risk of electrical shock, disconnect the
electrical supply circuit before installing the fan or
receiver.
CAUTION
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
12
ETL Model No.: CF766L
5. How to Wire Your Ceiling Fan
GREEN GROUND
WIRE FROM
HANGER BRACKET
GROUND
WIRE
GREEN GROUND
WIRE FROM
HANGER BALL
AC
I
N
N
TO MOTOR N
FOR BOTTOM LIGHT
TO MOTOR L
AC IN L
Figure 18
AC
I
N
N
AC IN L
FOR BOTTOM LIGHT
TO MOTOR N
TO MOTOR L
REMOTE
CONTROL
RECEIVER
HANGER
BALL
Figure 17
5.2
Connect the Green Ground Wire from the
Hanger Ball and the Green Ground Wire from
the Hanger Bracket to the Ground Conductor of
Supply (this may be a bare wire or wire with green
colored insulation).
Securely connect Wires with Wire Connectors
(supplied) (Figure 18).
NOTE: Make all Wiring Connections using
Wire Connectors (supplied). Make sure that all
Connections are tight, including Ground, and that
no bare wire is visible at the Wire Connectors,
except for the Ground Wire.
5.1
Position the Supply Wires to the left side of the Outlet
Box (Figure 17); position the Fan Wires to the right
side.
Partially insert the Remote Control Receiver (flat side
up) until one end rests on the Hanger Ball as shown in
Figure 17.

13
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
5. How to Wire Your Ceiling Fan (Continued)
RECEIVER
WHITE WIRE
SUPPLY
WHITE WIRE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
AC
I
N
N
FOR BOTTOM LIGHT
TO MOTOR L
AC IN L
TO MOTOR N
RECEIVER
WHITE WIRE
Figure 19

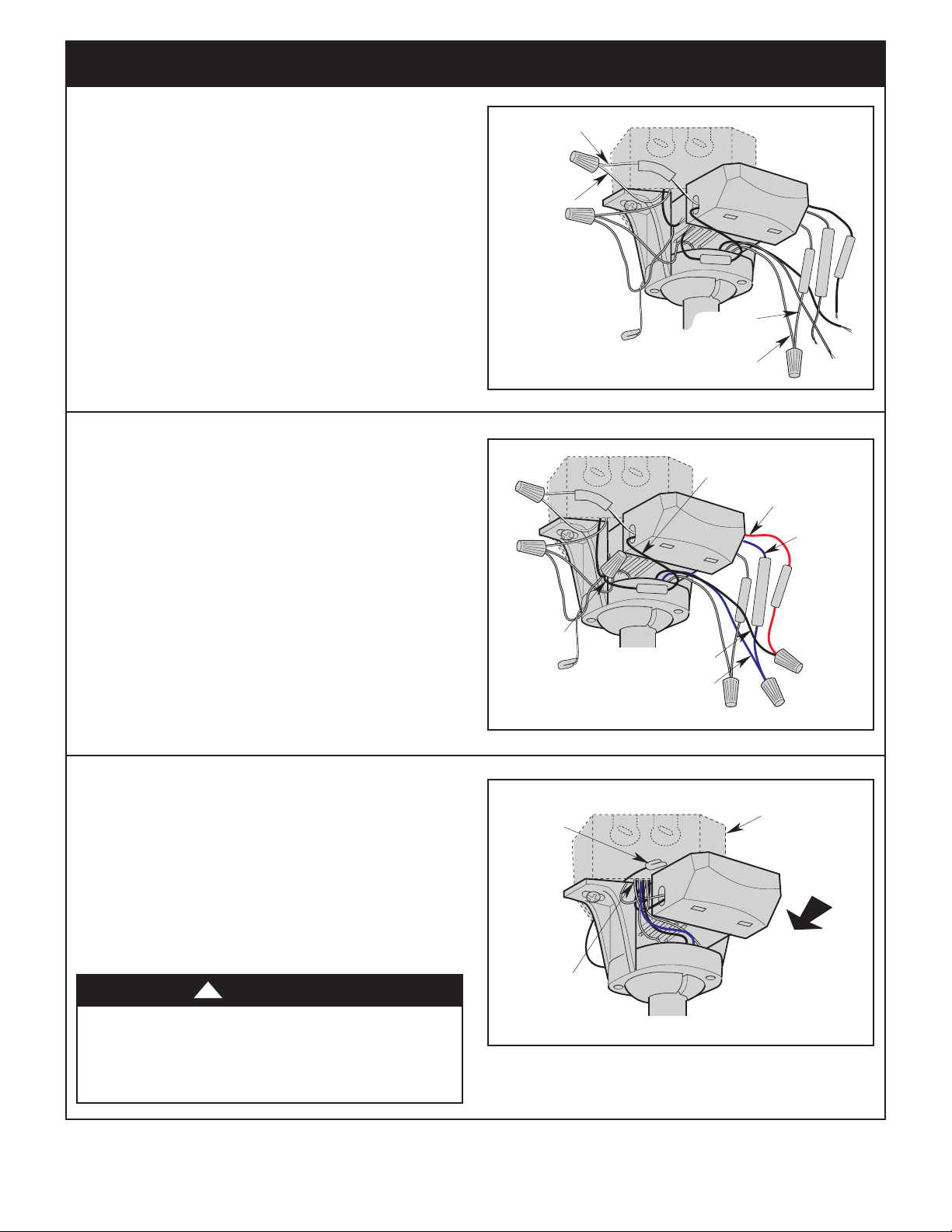

5.3
Securely connect the Supply White (neutral) Wire to
the Receiver White (AC IN N) Wire using the Wire
Connector (supplied) (Figure 19).
Securely connect the Fan Motor White Wire to the
Receiver White (TO MOTOR N) Wire using the Wire
Connector (supplied) (Figure 19).
TO MOTOR L
AC
I
N
N
FOR BOTTOM LIGHT
AC IN L
TO MOTOR N
RECEIVER
BLACK WIRE
SUPPLY
BLACK
WIRE
RECEIVER
RED WIRE
RECEIVER
BLUE WIRE
FAN MOTOR BLACK WIRE
FAN MOTOR BLUE WIRE
Figure 20
5.4
Securely connect the Supply Black Wire (hot) Wire
to the Receiver Black (AC IN L) Wire using Wire
Connector (supplied) (Figure 20).
Securely connect the Fan Motor Black Wire to the
Receiver Red (TO MOTOR L) Wire using Wire
Connector (supplied) (Figure 20).
Securely connect the Fan Motor Blue Wire to
the Receiver Blue (FOR LIGHT) Wire using Wire
Connector (supplied) (Figure 20).
OUTLET BOX
ANTENNE
WIRE
SLIDE RECEIVER
INTO HANGER
BRACKET
TUCK ALL WIRES
INTO OUTLET BOX
Figure 21
5.5
After Connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box
and position the Black and Blue Wires on the other side
of the Outlet Box (Figure 21).
Position the Antenna Wire on top of the Receiver. Slide
the RCFP Receiver completely onto the Hanger Ball,
nestled in the Hanger Bracket (Figure 21).
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!

14
ETL Model No.: CF766L
To avoid possible re or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
6. Final Assembly
THREADED
STUD (2)
HANGER
BRACKET
Figure 22
6.1
Screw the Two Threaded Studs (supplied) into the
tapped holes in the Hanger Bracket (Figure 22).
LOCKWASHERS (2)
THREADED
STUDS (2)
CEILING
COVER
KNURLED
KNOBS (2)
Figure 23
6.2
Lift the Ceiling Cover up to the Threaded Studs and
turn until Studs protrude through the holes in the
Ceiling Cover (Figure 23).
Secure the Ceiling Cover in place by sliding
Lockwashers over the Threaded Studs and installing
the two Knurled Knobs (supplied) (Figure 23).
Tighten the Knurled Knobs securely until the Ceiling
Cover ts snugly against the ceiling and the hole in the
Ceiling Cover is clear of the Downrod (Figure 23).

15
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L

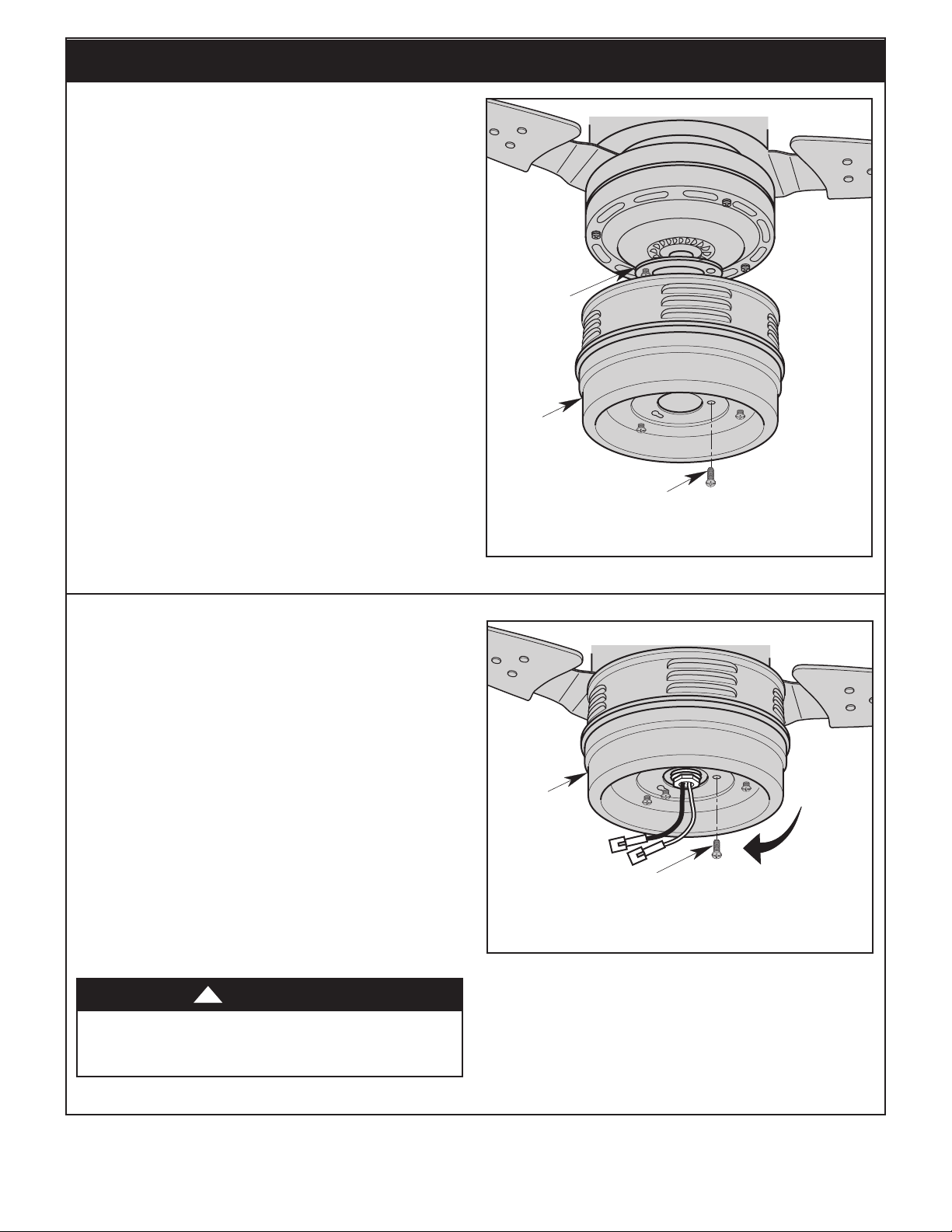

6. Final Assembly (Continued)
LOWER
HOUSING
REMOVE ONE #8-32 x 3/8"
PAN HEAD SCREW
FAN MOTOR
ASSEMBLY
Figure 24
6.3
Remove one of the Three #8-32 x 3/8” Pan Head
Screw from the Fan Motor Assembly (Figure 24).
Retain the Screw for future installation.
Loosen the other Two #8-32 x 3/8” Pan Head Screws
several turns.
REINSTALL ONE
#8-32 x 3/8" PAN
HEAD SCREW
LOWER
HOUSING ROTATE
CLOCKWISE
Figure 25
6.4
Pass the Fan Motor Wires through the center hole of
the Lower Housing.
Install the Lower Housing onto the Fan Motor Assembly
by aligning and engaging the keyhole slots of the
Lower Housing with the loosened screw heads on
the Fan Motor (Figure 25).
Rotate the Lower Housing clockwise to engage the two
loosened screws.
With the Lower Housing locked into the keyhole slots,
tighten the two previously loosened Screws.
Reinstall the #8-32 x 3/8” Pan Head Screw (previously
removed) into the Lower Housing (Figure 25).
A spare #8-32 x 3/8” Pan Head Screw is provided in
parts bag, if needed.
To avoid possible re or shock, do not pinch wires
between the fan motor assembly and the lower
housing.
WARNING
!

16
ETL Model No.: CF766L
6.5
Connect the LED Light Fixture Assembly White Wire to
the Fan Motor Assembly White Wire (Figure 26).
Connect the LED Light Fixture Assembly Black Wire to
the Fan Motor Assembly Black Wire (Figure 26).
The connections are complete when you hear a soft
click.
6. Final Assembly (Continued)
LOWER HOUSING
LED LIGHT FIXTURE
ASSEMBLY
LED LIGHT FIXTURE
ASSEMBLY WHITE WIRE
MOTOR CONNECTOR
WHITE WIRE
MOTOR CONNECTOR
BLACK WIRE
LED LIGHT FIXTURE
ASSEMBLY BLACK WIRE
Figure 26
LOWER HOUSING
REMOVE ONE #8-32 x 3/8"
PAN HEAD SCREW
LED LIGHT FIXTURE
ASSEMBLY
LOOSEN TWO #8-32 x 3/8"
PAN HEAD SCREWS
Figure 27
6.6
Remove one of the Three #8-32 x 3/8” Pan Head Screw
from the Lower Housing (Figure 27).
Retain the Screw for future installation.
Loosen the other Two #8-32 x 3/8” Pan Head Screws
several turns.

17
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L
LOWER HOUSING
LED LIGHT FIXTURE
ASSEMBLY
TIGHTEN THE #8-32 x 3/8"
PAN HEAD SCREWS
REINSTALL ONE #8-32 x 3/8"
PAN HEAD SCREW ROTATE
CLOCKWISE
Figure 28
6.7
Pass the Wire Connectors and Wires through the center
hole of the Lower Housing.
Install the LED Light Fixture Assembly onto the Lower
Housing by aligning and engaging the keyhole slots
of the LED Light Fixture Assembly with the loosened
screw heads on the Lower Housing (Figure 28).
Rotate the LED Light Fixture Assembly clockwise to
engage the two loosened screws.
With the LED Light Fixture Assembly locked into the
keyhole slots, tighten the Two previously loosened
Screws.
Reinstall the #8-32 x 3/8” Pan Head Screw (previously
removed) into the LED Light Fixture Assembly
(Figure 28).
A spare #8-32 x 3/8” Pan Head Screw is provided in
parts bag, if needed.
To avoid possible fire or shock, do not pinch wires
between the Lower Housing and the LED Light Fixture
Assembly.
WARNING
!
6. Final Assembly (Continued)
6.8
Place the Glass into the opening of the Lower Housing,
aligning the Three Flat Areas on the top edge of the
Glass with the Three Raised Dimples on the Lower
Housing and turn the Glass clockwise until it stops
(Figure 29).
NOTE: Periodically check that the Glass is seated
fully clockwise in the Lower Housing. DIMPLES (3)
FLAT AREAS (3)
LED LIGHT FIXTURE
ASSEMBLY
GLASS
ROTATE
CLOCKWISE
Figure 29
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan.

18
ETL Model No.: CF766L
7. Wall Control Procedures
7.1
Your Ceiling Fan/Light Control consists of Wall
Mounted Transmitter and a Receiver located inside
the Ceiling Cover. The Control is designed to remotely
operate your Ceiling Fan speed, light intensity and
direction of rotation.
Preset Memory Feature: Your Ceiling Fan/Light
Control is equipped with a preset memory feature.
When the electricity supply to the Fan is switched OFF,
the Control will remember the Light Intensity and Fan
Speed.
7.2
Your Wall Control has Code Switches which must be
set in one of 32 possible code combinations
(Figure 30). The Five Levers (numbered 1, 2, 3, 4,
and 5) on the Switches are factory-set in the ON (up)
position. Change the Switch settings as follows:
NOTE: Do not duplicate the code of an existing
control of an installed ceiling fan within 100 feet.
Slide the Five Switch Levers in the Wall Control to your
choice of ON (up) or down positions. Use a ball-point
pen or small screwdriver and slide the Levers firmly up
or down.
The Sixth Switch marked ON and Iis for Dimming
Control of Lights: Set Switch to ON to allow for
Dimming of the Lights. Set Switch to Ifor No Dimming
of the Lights.
When the power is restored after installation, push and
hold the Fan OFF button ( ) for 3 to 5 seconds to set
the code in the Receiver.
When the Switch is turned back ON, the Light and Fan
will resume operation as they were prior to the Switch
being turned OFF.
WALL CONTROL
CODE SWITCHES
1 - 5
ON
12345I
DIMMING
SWITCH
I
CODE
SWITCHES
WALL
CONTROL
Figure 30
Code Switches in the Transmitter may be set in
32 different positions. If your Fan and Light turn ON
and OFF without using your Control, you may be
getting interference from other remote units such as
garage door openers, car alarms or security systems.
To remedy this situations, simply change the Code
Switches in your Transmitter per the instructions of
Section 7.2.

19
luminancebrands.com
Please contact 1-800-777-4440 for further assistance
ETL Model No.: CF766L

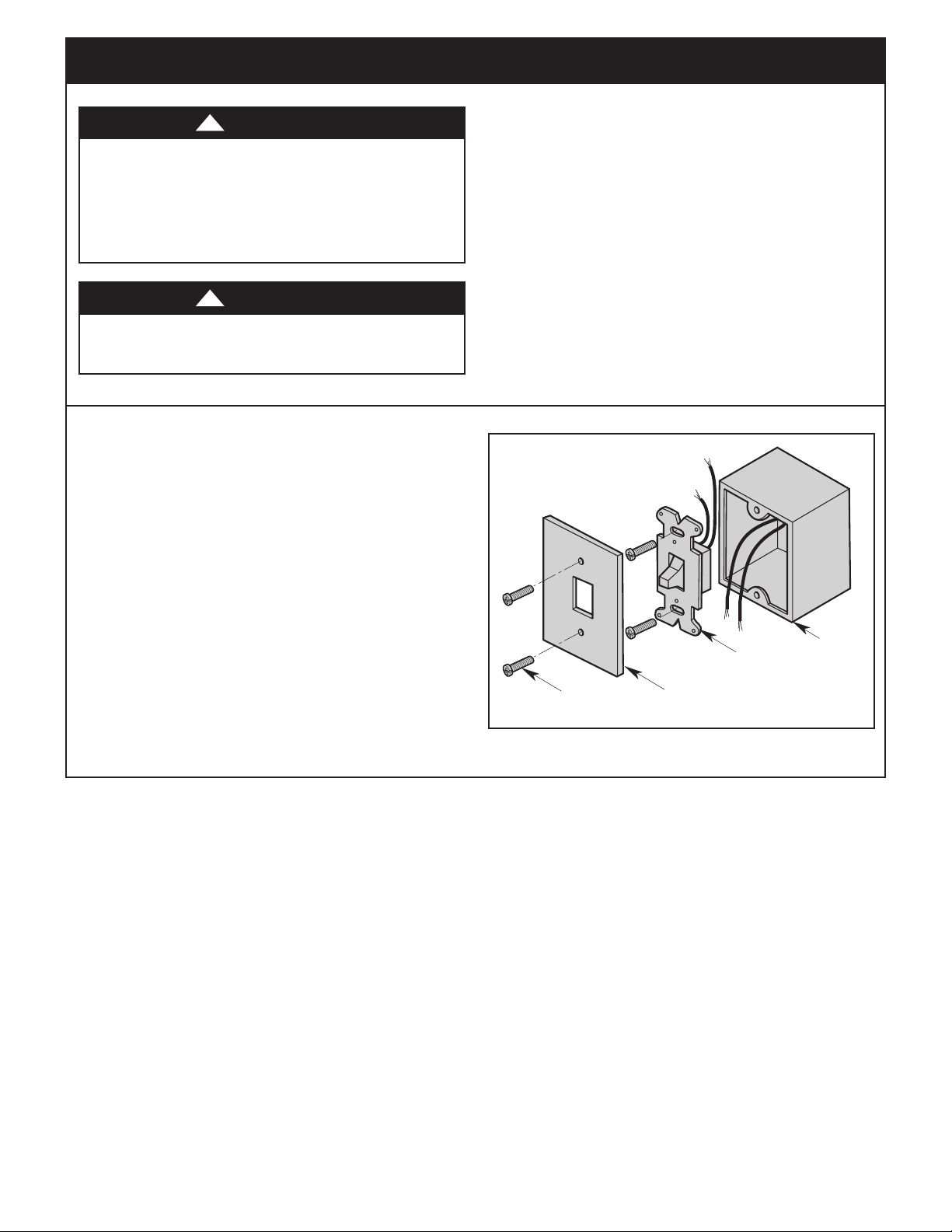

8.2
NOTE: Electric connections should be in
accordance with the National Electrical Codes and
all Local Codes. Before starting, disconnect power
to the circuit at the main fuse box or circuit breaker
panel.
Remove the Faceplate and Screws from the Existing
Wall Switch. Pull Switch out from Wall Box (Figure 31).
Determine the “HOT” Wire and the “LOAD” Wire and
disconnect these Wires from Existing Wall Switch.
NOTE: Do not attempt to disconnect any Wires not
already connected to Existing Wall Switch. SCREWS
WALL
BOX
FACEPLATE
WALL
SWITCH
Figure 31
8. Wall Control Installation
To reduce the risk of electrical shock, disconnect the
electrical supply circuit before installing the fan, light
kit or receiver.
CAUTION
!
NOTE: Make all wiring connections using
Wire Connectors (supplied). Make sure that all
connections are tight, including ground, and that no
bare wire is visible at the wire connectors, except
for the ground wire.
8.1
Disconnect Electrical Power to the Branch Circuit at
the Circuit Breaker Panel or Main Fuse Box before
attempting to install the Ceiling Fan Wall Control into the
Wall Box.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

20
ETL Model No.: CF766L
8.3
Disconnect Electrical Power to the Branch Circuit at the
Circuit Breaker Panel or Main Fuse Box before attempting
to install the Ceiling Fan Wall Control into the Wall Box.
Before installing Wall Control, place Wall Control in
“OFF” mode by pushing “ON/OFF” Switch ( )
to the “OFF” ( O ) position.
Connect the Wall Control Black Wire labeled
“TO POWER SUPPLY” to the “HOT” 120V AC Supply
Source Wire. Securely connect Wires with Wire
Connector, supplied (Figure 32).
Connect the Wall Control Black Wire labeled “TO FAN”
to the “LOAD” Black Wire in Wall Box. Securely connect
Wires with Wire Connector, supplied (Figure 32).
Connect the Wall Control Green Ground Wire to
the Supply Ground Conductor (this may be a Bare
Copper Wire or Wire with Green Colored Insulation).
Securely connect Wires with Wire Connector, supplied
(Figure 32).
BLACK
GROUND
NEUTRAL
RECEIVER LOCATED WITHIN
THE CEILING COVER
HOT
FAN/LIGHT
WALLCONTROL
BLK
GND
LOAD
BLACK
OFFON
....
Check to see that all connections are tight and that no
bare wires are visible at the wire connectors.
WARNING
!
Skip to Section 8.4 if Using a 3-way Switch
Installation.
SINGLE-POLE INSTALLATION
(One Fan Controlled by One Wall Control)
(See Figure 32).
8. Wall Control Installation (Continued)
Figure 32
Do not connect any neutral (white) wire to this control.
Incorrect wiring will damage this control.
WARNING
!
Screw Wall Control into Wall Box using the supplied
Screws. Leave Wall Control in “OFF” mode until Fan
installation is completed.
The Wall Control is supplied with a White, Ivory, and
Almond color Switch Covers. Choose the finish that
best suits your needs and snap the Cover onto the Wall
Control (Figure 32).
Install Decorative Wall Plate using the two Screws
supplied with Wall Plate. Leave the Wall Control in
“OFF” mode until Fan installation is completed
(Figure 32).
FAN/LIGHT WALL
CONTROL WALL
BOX
BLK
BLK
HOT
NEUTRAL
WIRES
DECORATIVE WALL PLATE
SCREWS (2)
SWITCH COVER
TO POWER
SUPPLY
GREEN
GROUND
T
O
1
2
0
V
A
C
S
O
U
R
C
E
T
O
L
O
A
D
G
R
O
U
N
D
OFF ON
....
OFF ON
....
TO FAN
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box or circuit breaker panel before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
