Lumineux Avon PRO 4CCT User manual

READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
• Light Fitting
• Instruction Manual
• Quick Connector
7W
Technical Helpline: [phone]
www.lumineux.co.uk
Avon PRO Gimbal
Downlight
TOOLS REQUIRED
BOX CONTENTS
• Cable
• Hole Saw
drill 70mm
This lighting  xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
luminaire to con rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the  xture
or any of its components:
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
2
1
6
4 5
on
off
INSTALLATION INSTRUCTIONS
on
off
Electrical wiring
connections
30, 60, 90 mins
Dimmable
IP65
Warranty
5 YR
4CCT
60º
Flicker
Free
70mm
Hole
Cut-Out
3
PLEASE NOTE:
Ensure cable strip length
is 15mm for strong connection.
15mm
Earth terminal for
continuity only
LIVE (L)
Brown
NEUTRAL (N)
Blue
EARTH
Green/Yellow
4CCT switch
Twist bezel to reveal
4CCT switch.
2700K 3000K 4000K 6000K
1. Isolate the circuit.
2. Drill 70mm hole cut out.
3. Strip cable sleeves to reveal 15mm wire.
Push wires into connector and push clamps
downwards to secure the wires.
4. Attach connector to other half on light  tting.
5. Twist bezel to select CCT option by
moving switch across to desired setting.
6. Grip spring clamps and move vertically.
Insert downlight into pre-drilled hole and
clamps will spring back and secure light
 tting. Repeat for any other downlights,
then connect power on.
4CCT Gimbal FRD Downlight
FF
A
G
Manby Business Park, Manby, Lincolnshire, LN11 8UT
Lumineux is a B&T Associates Ltd company.

Installation Engineers Contact Details: Luminaire Reference / Location Date
Name: Tel:
The light source of this unit is not
replaceable; when the light source
reaches its end of life the whole
luminaire shall be replaced.
Disassemble instructions for end of
life disposal available on website.
Disposal of Electronic Equipment
WEEE Directive 2002/96/EC This
product falls within the scope of
the Waste Electrical & Electronic
Equipment Directive (WEEE), which
means the product should not be
disposed of as normal household
waste. Please recycle where
facilities exist or check with your
Local Authority. RoHS – All
components and materials used in
this product are RoHS 2002/95/EC
compliant.
Specications may change from time
to time. The information contained
in this leaet is for guidance only
and should not be considered as
always accurate and should be
treated as not representative.
Standard -10º to +40ºC
Technical Helpline: [phone]
DISPOSAL
WARRANTY
PRODUCT TEMP SPECIFICATION

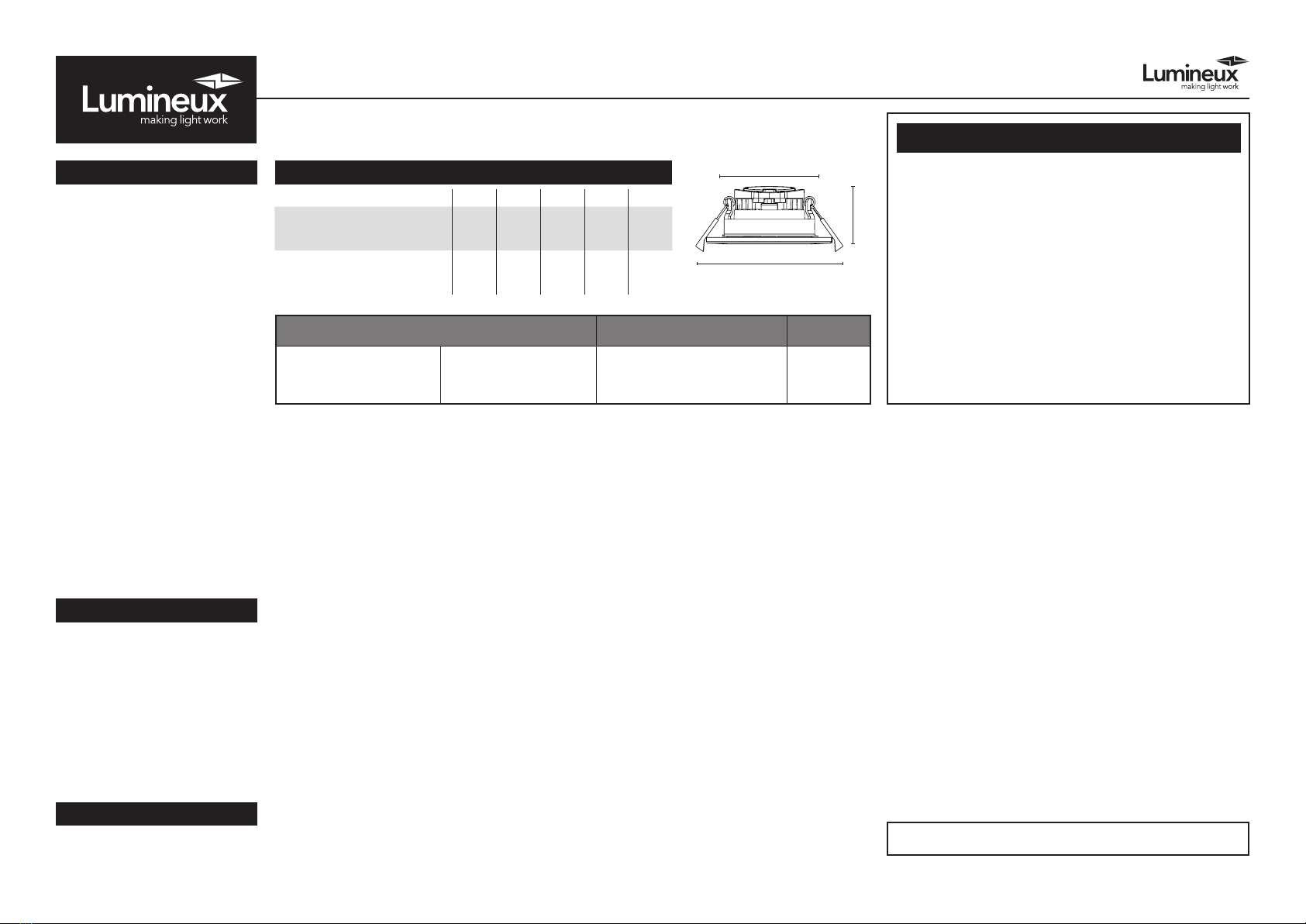

AVON GIMBAL DOWNLIGHT DIMENSIONS
Revision 2 - JULY 2022
L (mm)
H (mm)
W (mm)
This luminaire is warranted for a
period of 5 years from the date of
purchase**. The warranty could be
invalidated should the light tting
not be installed according to these
instructions, outside the scope of
the specication or the product
has been altered or tampered with
in any way. Please see website for
terms and conditions.
** Please see our website for more detailed information on warranty.
This product contains a light source of energy efciency Class F.
Dimming
To achieve good dimming results, use dimmers that have been
approved for electronic LED drivers. i.e:
• Varilight V-Pro-JDLP401S
• Zano ZGRIDLED150
• Hamilton VWP1XI_EDITB100
• Schneider GGBL6012LMS
If in doubt - contact the dimmer manufacturer for advice.
Part No. Description Watts L(mm) W(mm) H(mm) Weight
430373 Avon 4CCT Gimbal
Downlight 7W 87 65 38 0.2Kg
430373-MP Avon 4CCT Gimbal
Downlight Multipack 7W 87 65 38 0.2Kg
Avon PRO 4CCT Gimbal Fire Rated Downlight
