welcome
Everything you want to know for the proper functioning of your product is
here and on our websites. We invite you to know your product, read the
instructions and get the most advantage of it.
Parts ........................................................................................................................................ 3
Important safety instructions ........................................................................................ 6
Installation ............................................................................................................................ 7
Operation instructions .....................................................................................................
Cleaning ................................................................................................................................
9
Trouble shooting ...............................................................................................................
12
16
parts
index
2
4
5
6
7
8
9
10
3
MTV085ICER
2
4
5
6
7
8
9
10
3
15
14
13
13
16
12
11
18
14
Caution...................................................................................................................................
12

4
2
4
5
6
3
MTV095ICER
4
5
6
7
8
9
10
12
11
18
23
15
14
13
13
16
MTV110ICER
23
4
5
6
7
8
9
10
12
11
18
15
14
13
13
16
14
14

5
23
4
5
6
7
8
9
10
12
11
18
15
14
13
13
16
MTV120ICER

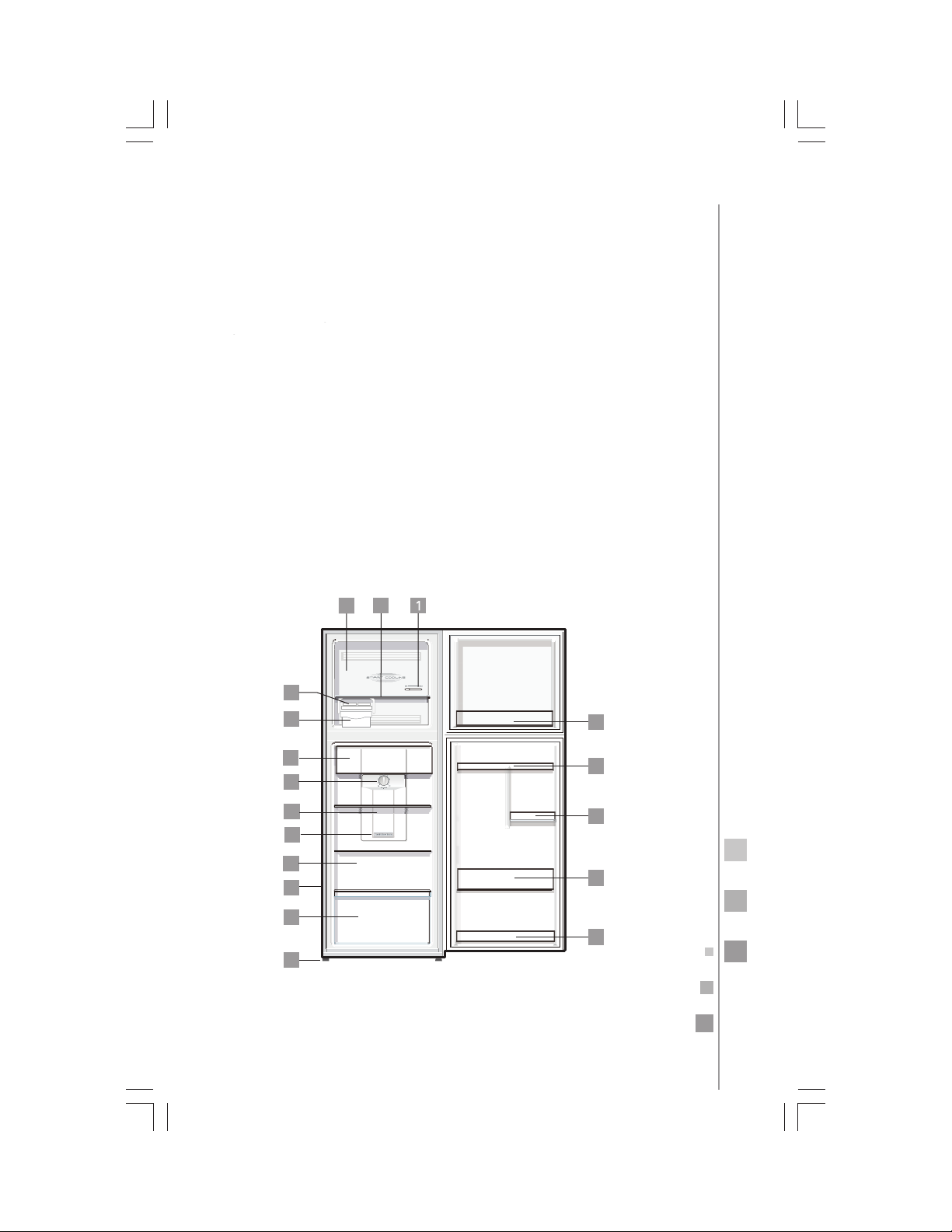

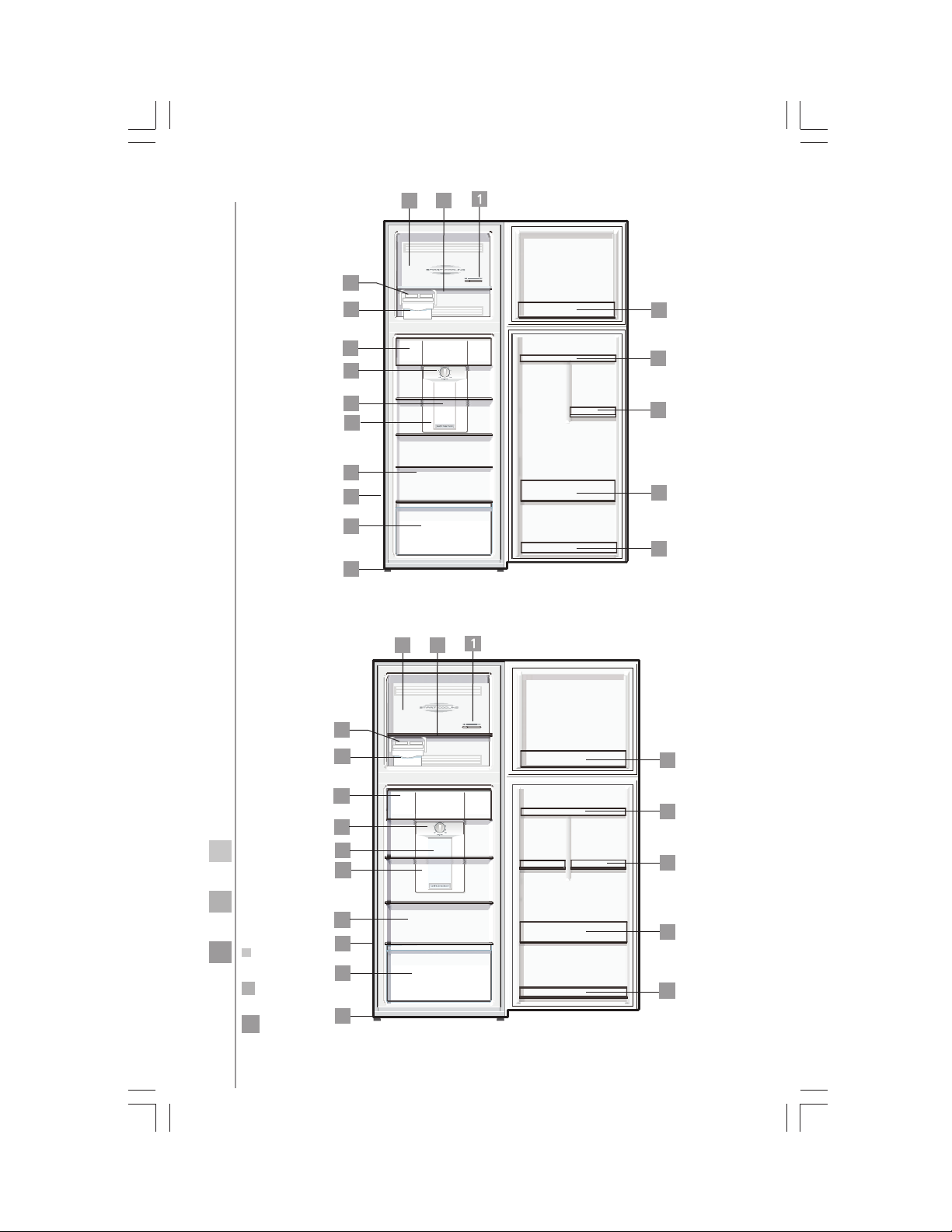

1. TemperatureControlKnob
2. FreezerShelf
3. FreezerCompartment
4. TwistIceMaker
5. IceCubeBox
6. ChilledRoom
7. Multi-AirowControlKnob
8. RefrigeratorShelf
9. RefrigeratorLamp
10. Evaporator Drain Tray
11. Vegetable Crisper
12. Adjustable Leg
13. Bottle Rack
14. Canned Food Rack
15. Egg Rack
16. Utility Rack
17. Utility Box
18. Deodorizer
14

6
important safety instructions
relocation of refrigerator.
• Disconnect the power cord.
• Remove water from the evaporating tray.
• Take food out of the refrigerator compartments.
• Fasten the doors with tape while moving to prevent them from
opening
• For safety, use 2 people to carry the refrigerator.
• Do not lift the unit in a horizontal angle, however, it may be 45
degrees tilted slightly.

7
installation
how to install

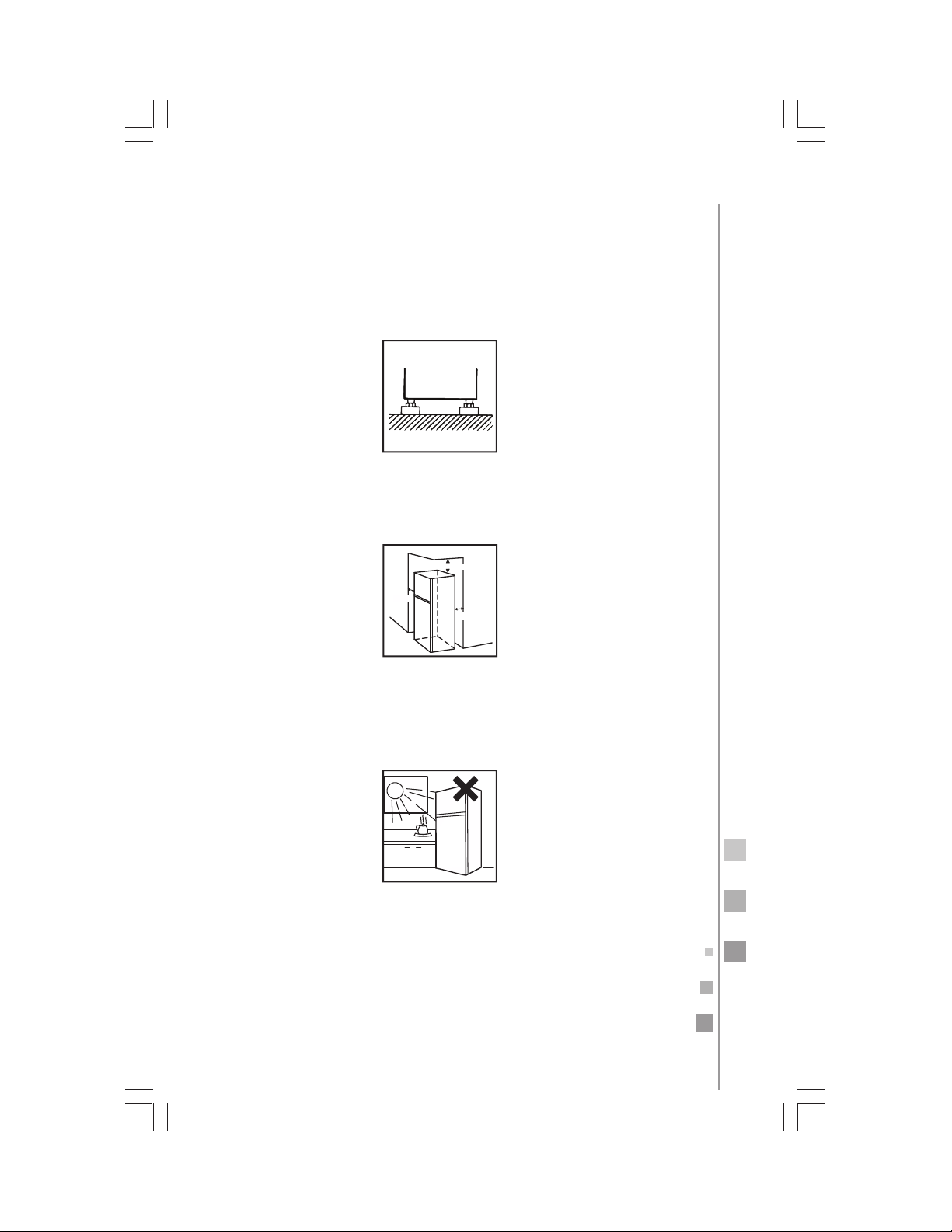

1. Select a place with strong, level oor. If the oor is not quite level,
adjust the height of the screw accordingly.
2. Allow sucient clearance between the refrigerator’s back, also the
side wall, so the door can open fully and to minimize noise.
3. Avoid direct sunlight and heat. Direct sunlight may aect the
enamel coating. Heat sources nearby will cause higher electricity
consumption.
10 cm.
30cm.
15cm.

8
4. Avoid very moist place. Too much moisture in the air will cause
frost to from very quickly on the evaporator, and the refrigerator
will have to be defrost very frequently.
5. Don’t connect multiple appliances to one outlet. It may cause re.
To avoid the possibility of electrical shock, ground the refrigerator
properly. The earth screw is located on the rear side of the
refrigeror.
6. In case of customer desire to add the ground wire with
Earth Screw junction earth symbol at the back of the
refrigerator. Should attach the ground wire to metal pipe or to
cover screw of the wall receptacle or to a rod buried at least 2.4
meters in the ground.
7. After re-located, leave the fridge statically 3-6 hours before
switcing it on. This intend to ensure a proper cooling system
operation.
refrigerator
unit
ground
wire
2.4
meters
3-6
hrs

9
FreezerCompartment
RefrigeratorCompartment
(MTV085ICER,MTV095ICER,
MTV110ICER,MTV120ICER)
installation
how to install
1. Select a place with strong, level oor. If the oor is not quite level,
adjust the height of the screw accordingly.
2. Allow sucient clearance between the refrigerator’s back, also the
side wall, so the door can open fully and to minimize noise.
3. Avoid direct sunlight and heat. Direct sunlight may aect the
enamel coating. Heat sources nearby will cause higher electricity
consumption.
operation instructions
make a test run
1.Your refrigerator is usuallyc leaned by manufacture, however you
may want to clean it before using with a soft towel cloth.
2. After cleaned, replace all parts in proper.
3. Keep the door open and plug the power cord into its own electrical
outlet.
The interior lamp should lit.
4. Properly close the door.
suggestions
temperature setting for the beginning installation
For faster cooling in refrigerator compartment, should set temperature
accordingly
Freezer Compartment: Dialtoposition“MIN”
Refrigerator Compartment : Dial to position“MAX”
Waiting the unit operates for 3 hours, then turn the freezer and
refrigerator dial knob to middle position between “MIN” and “MAX”.

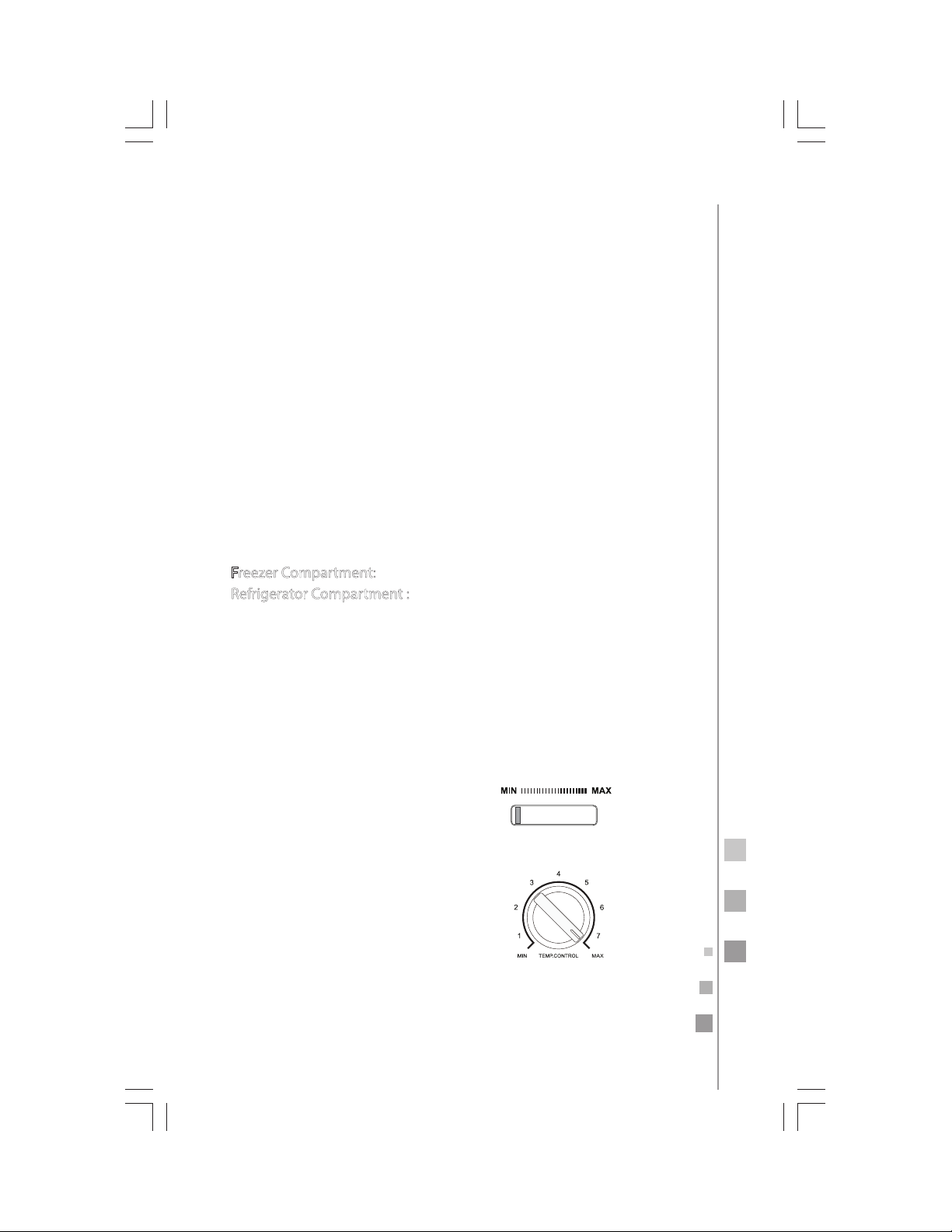

temperature control
The refrigerator is equipped with 2 independent controls to control the
degree of cooling of the refrigerator and freezer compartment.
freezer compartment
MIN. : Minimum Setting for fairly cold
in freezer compartment.
MAX. :Maximum Setting for the coldest
in freezer compartment.
refrigerator compartment
MIN. : Low volume of air circulation
in refrigerator compartment.
MAX. : High volume of air circulation
in refrigerator compartment.

10
making Ice cubes

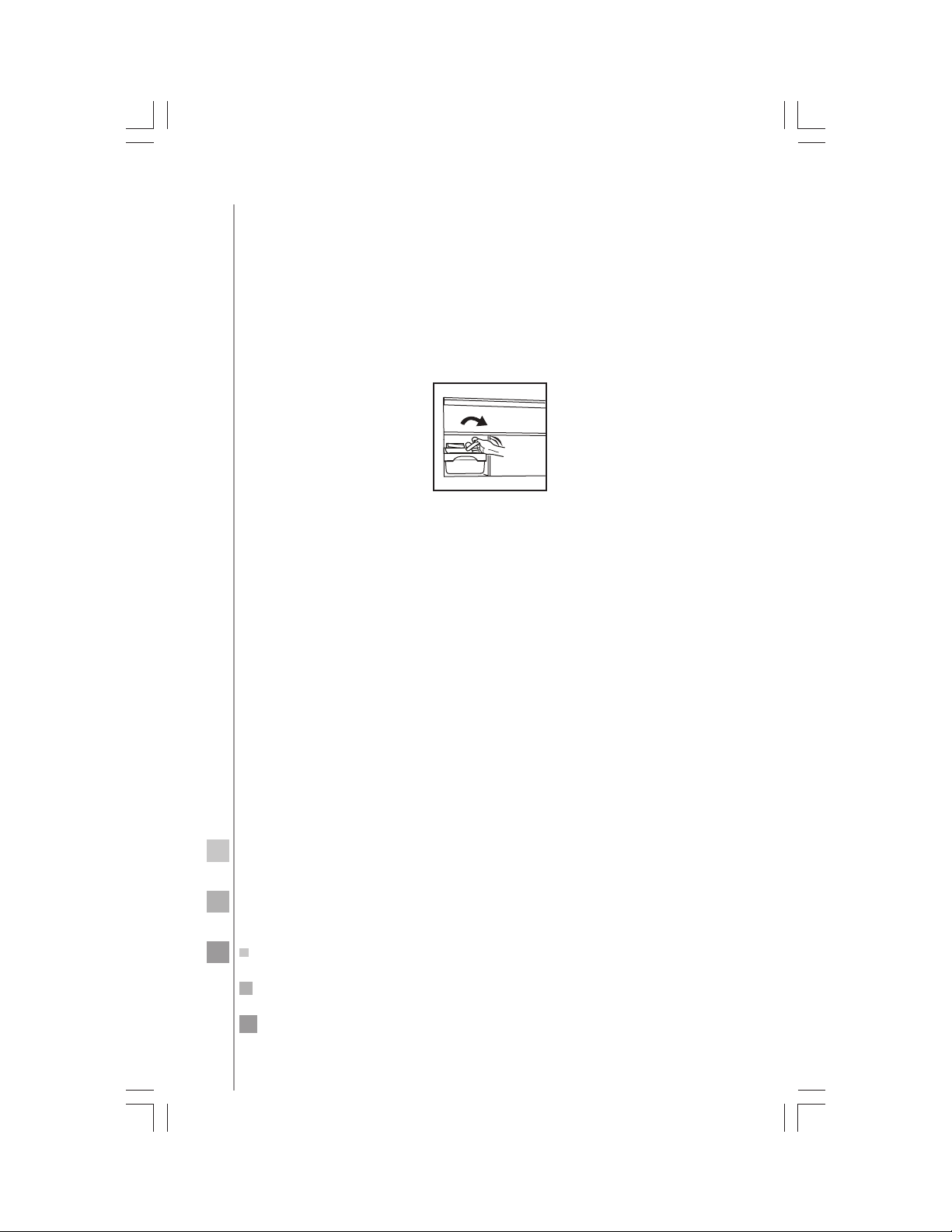

• Ice cubes are made in Twist Ice Maker, turn the lever clockwise to
empty the ice into Ice Cube Box.
• Store the ice cubes in the Ice Cube Box. Do not store wet ice cubes or
they will stick together.
• Do not use the “Ice Cube Box”as an ice making tray, or it will be
damaged.
food storage
1. Refrigerated air goes down at the rear of the fresh food compartment
and rises up at the front. Then, store the foodstus such as sh and
meats which require quick refrigeration to the rear of the
compartment.
2. Leave spaces among foodstus to help air circulation.
3. Foodstus which are easily dried should be well wrapped with waxed
paper, aluminum foil or plastic lm.
4. Wrap sh and smoked meats in moisture-vapor-proof material to
prevent transfer for odors.
5. Pre-cool hot foods, wrap them with plastic lm or put them in the
air tight receptacle.
6. Wipe the water on the surface of the bottles before storing them.
7. Be sure not to store bottles such as beer, cokes, etc. in the freezer
compartment.
8. Do not put vegetables which are liable to freeze at the rear part of the
shelves.
9. If planning to keep fresh sh and meats for a long period, wrap them
in freezer paper and store in the freezer compartment.

11

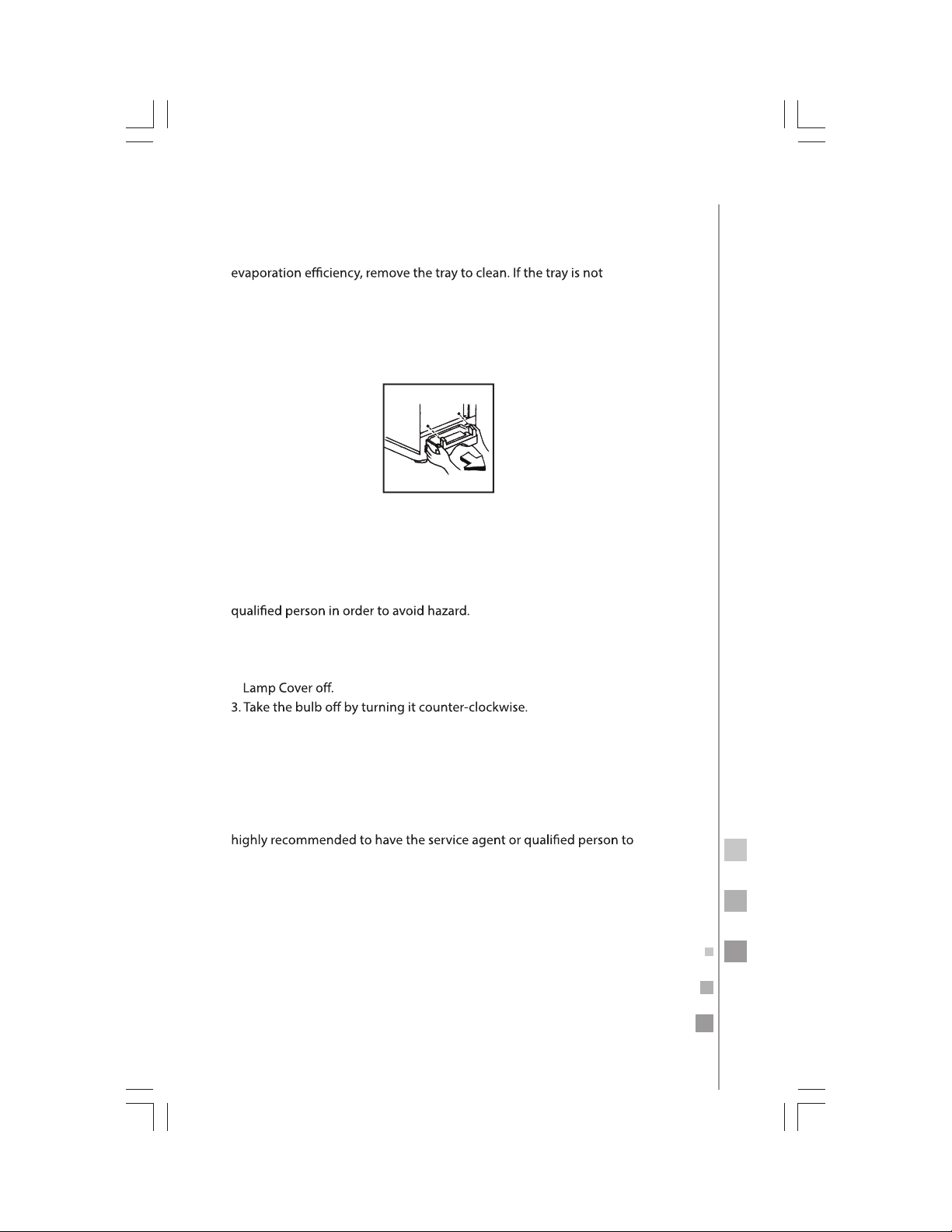

cleaning the evaporator drain tray
Since dust accumulated on the evaporator drain tray will decrease the
securely in place, defrosted water may spill or the evaporation process
may be hindered.
Suggestion: The Evaporator Drain Tray should be cleaned at least
once a month.
lamp replacement
If the illuminating does not work properly. In case of the replacement
bulb is needed, it had better be replaced by its service agent or similarly
MODEL : (MTV085ICER, MTV095ICER, MTV110ICER, MTV120ICER)
1. Disconnect the plug of the refrigerator from the outlet. 2. Take the
4. Change the bulb and turn it clockwise.
• The bulb E14, 10W characteristic at Refrigerator Compartment.
caution
To prevent any breakage do not over tighten the lamp to socket. It is
do the lamp replacement.
deodorizer
Inside the refrigerator compartment Deodorizer system Charcoal Filters
is installed, thus keeping the air in refrigerator compartment fresh.

12
cleaning
1. Before cleaning the refrigerator, you should always unplug it from the
electrical outlet and remove all food.
2. Both exterior and interior of refrigerator, wipe with damp and
warming water until dry.
3. Cleaning internal accessories using a warm water and dry it with a
soft clean cloth.
4. Cleaning door gasket with warm water and dry it with a soft clean
cloth.
5. Wipe the control knob with a soft clean cloth. Never wash it with
water because this will cause an electric shock.
6. Never use brushes, acids, chemical thinner, gasoline or benzine for
cleaning any part of the refrigerator.
7. To remove odors from your dge, mix a lemon skin and warm water.
Wipe thoroughly on odors surface and dry with a soft clean cloth.
Do not use cologne, air freshener or any other perfume.
8.Cleaning inside of the refrigerator and door gasket once a month. It is
the best to clean the freezer compartment every time when it is
defrosted.
caution
1. Do not insert the power plug for many products at the same time or
do not share other product to the same power supply socket with
refrigerator.
2. Set the power plug free from the back side of the refrigerator.
Damaged power plug may cause re due to overheating.
3. Be careful not to place the power cord underneath of the refrigerator
or other heavy objects. Damage to the power cord could cause a
short circuit and re.
4. If the supply cord is damaged, it must be replaced by the manufaturer
or its service agent or a similarly qualied person in order to avoid a
hazard.

13
5. Do not place hot container high temperature or hot object on top of
refrigerator.
6. Do not place the refrigerator close to inammable or gas area, don't
unplugged during gas leakage due to can cause sparking re and
explosion.
7. Do not place water container on the top of refrigerator.
8. Do not install the refrigerator in a moist or wet place.
9. Do not insert the power plug with a wet hand.
10.Do not try to service the refrigerator yourself, please contact service
agent.
11. Be sure grounding connection to prevent electric shock.
12. Do not take out the power plug by pull out the power cord.
13. Long period power failure such as power uctuate, should promptly
unplug the power cord and leave at least 5 minutes before plugging
in again. It will help prolong refrigerator and compressor life.
14. Frequently open door during the power failure should cause too fast
losing cool.
15. If the door is not properly close it should cause high electrical
consumption and food in refrigerator become spoil.
Wait for
5 min

14
16. When cleaning the refrigerator do not splash water directly to the
refrigerator. Follow the cleaning instructions described in this
manual.
17. Do not use a soaked water cloth wipe the refrigerator due to water
may drop into electrical parts and cause short circuit.
18. Do not use inammable sprays near the refrigerator, because there
is a danger of igniting.

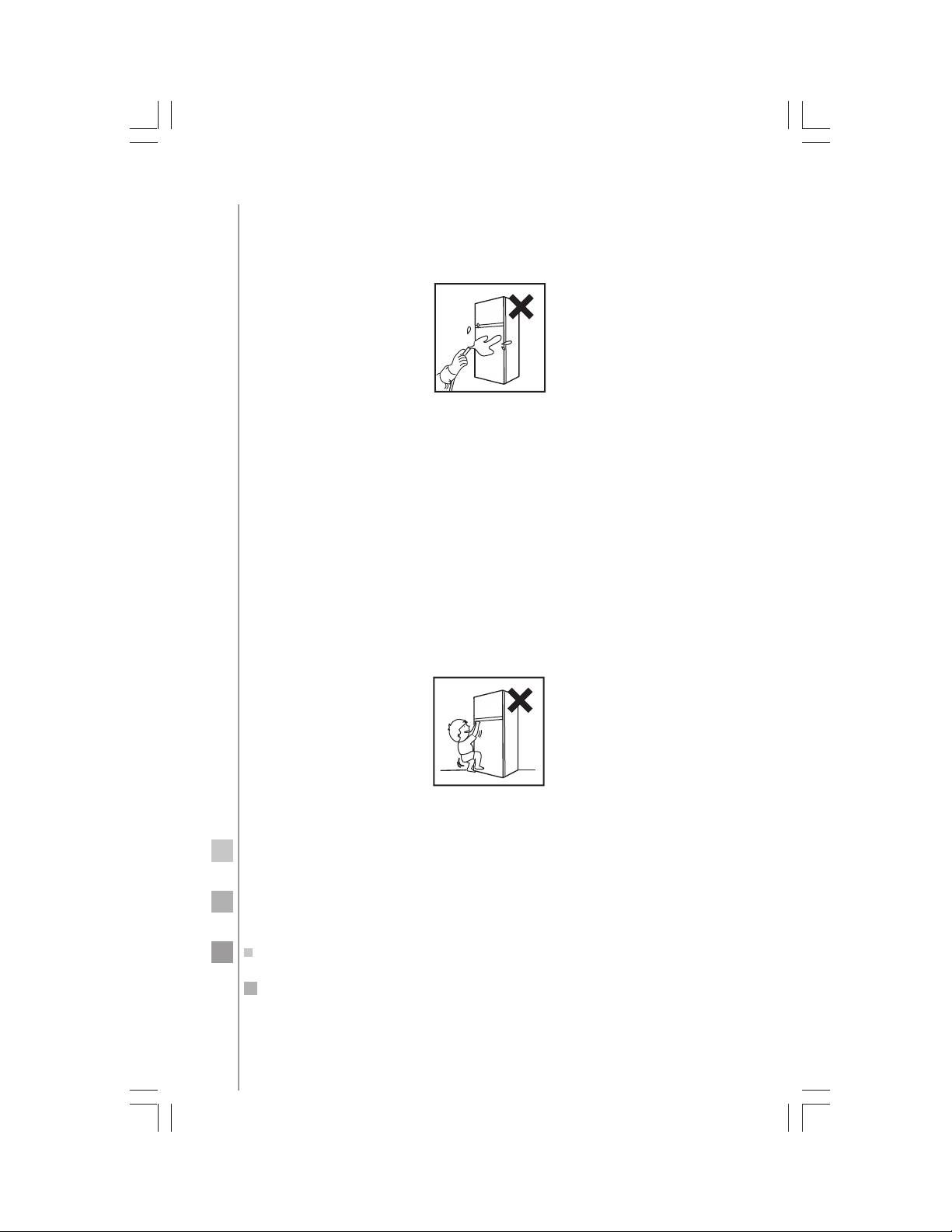

19. Do not hang on or climbing the refrigerator which will cause it
collapse.
20. This appliance is not intended for use by persons with reduced
physical including children, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by the safety way.
21. Children should be supervised to ensure that they do not play with
the appliance.
22. When not using refrigerator for long period, should disconnect the
power plug, remove all the foods o from compartment, defrosting
and clean interior and exterior parts then open the door until the
unit dry and properly close the door.
23. This fridge using refrigerant R-600a and Cyclopentane insulation,
should be kept away from heat or ame when it isn’t properly used.
Be ensure this refrigerator is disposed of correctly, you will help
prevent potential negative consequences of environment and
human health, which could other wise be caused by inappropriate
waste handling of this product. For more detail, please contact your
local city oce, your household waste disposal service.

15
5. Do not place hot container high temperature or hot object on top of
refrigerator.
6. Do not place the refrigerator close to inammable or gas area, don't
unplugged during gas leakage due to can cause sparking re and
explosion.
7. Do not place water container on the top of refrigerator.
8. Do not install the refrigerator in a moist or wet place.
9. Do not insert the power plug with a wet hand.
10.Do not try to service the refrigerator yourself, please contact service
agent.
11. Be sure grounding connection to prevent electric shock.
12. Do not take out the power plug by pull out the power cord.
13. Long period power failure such as power uctuate, should promptly
unplug the power cord and leave at least 5 minutes before plugging
in again. It will help prolong refrigerator and compressor life.
14. Frequently open door during the power failure should cause too fast
losing cool.
15. If the door is not properly close it should cause high electrical
consumption and food in refrigerator become spoil.
Warning:
- Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
- Do not use mechanical devices or other means
to accelerate the defrosting process, other than
those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food
storage compartments of the appliance, unless
they are of the type recommended by the manu-
facturer.

note:
Normal working unit, the back and side cabinet should be warm.
16
check if...
when
trouble shooting
Before you call for service please check the table below. Your problems
could be easily rectied. If you still need service, please contact the
store where you purchased or the nearest service center.
• Temperature control is set too cold.
Not operating...
Warmer
than usual...
Unusual sounds...
• Power supply cord is unplugged.
• Too frequent or too long door openings.
• Check the temperature control dial setting.
• Large amounts of food placed in refrigerator.
• You put warm food in the refrigerator.
• The oor is weak or uneven.
• Make sure the back o fthe refrigerator does
not touch the wall.
• Temperature control in“0”or“OFF”position.
• If home fuse blown or circuit breaker o?
• Normal when refrigerator is rst delivered to
your home - usually requires 24 hours to
completely cool down.
• Large amounts o ood placed in
refrigerator to be cooled or frozen.
• Hot weather -frequent door openings.
Door left open.
• Too frequent or too long door openings.
• You put warm food in the refrigerator.
• In humid weather, air carries moisture into
refrigerator when door is opened.
Motor operates
for long
periods...
Moisture
collects inside...

19

20
