contents
1. SAFETY WARNINGS ........................................................................... 4
2. INSTALLATION .................................................................................... 5
2.1 Location ........................................................................................... 5
2.2 Reversing the Door Swing .............................................................. 5
2.3 Door Space Requirements ............................................................. 12
2.4 Levelling the Unit .......................................................................... 12
2.5 Cleaning Before Use ...................................................................... 13
2.6 Before Using Your Unit ................................................................. 13
2.7 Interior Accessories ........................................................................ 14
3. PRODUCT OVERVIEW ...................................................................... 14
4. About the controls on the refrigerator ........................................... 15
4.1 Control Settings ............................................................................. 15
5. CLEANING ......................................................................................... 15
5.1 Defrosting ....................................................................................... 15
5.2 Cleaning the Interior and the Exterior of the Unit ...................... 15
5.3 Cleaning Tips .................................................................................. 15
6. MAINTENANCE ................................................................................ 16
6.1 Changing the Internal Light ......................................................... 16
6.2 Care When Handling/Moving Your Unit ...................................... 16
6.3 Servicing ......................................................................................... 16
6.4 Switching off for Long Periods of Time ....................................... 16
7. Troubleshooting ............................................................................... 17
7.1 Warm Tips ....................................................................................... 17

4
1. Safety Warnings
• WARNING: Keep ventilation openings, in the appliance en-
closure or in the built-in structure, clear of obstructions.
• WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
• The appliance has to be unplugged after use and before carrying
out user maintenance on the appliance.
• This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given super-
vision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
• If the supply cord is damaged, it must be replaced by the manufac-
turer, its service agent or similarly qualified persons in order to
avoid a hazard.
• Please abandon the refrigerator according to local regulators for it
use flammable blowing gas and refrigerant.
• Please according to local regulations regarding disposal of the ap-
pliance for its flammable refrigerant and blowing gas. Before you
scrap the appliance, please take off the doors to prevent children
from getting trapped.
• This appliance is intended to be used in household and similar ap-
plications such as:
• Staff kitchen areas in shops, offices and other working environ-
ments;
• Farm houses and by clients in hotels, motels and other residential
type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
• Do not store explosive substances such as aerosol cans with a flam-
mable propellant in this appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN
AUTHORIZED SERVICE PERSONNEL TO CARRY
OUT REPAIR JOBS WHICH INVOLVE THE RE-
MOVAL OF COVERS.

5
TO AVOID THE RISK OF AN ELECTRICAL SHOCK
DO NOT ATTEMPT REPAIRS YOURSELF.
2. INSTALLATION
2.1 Location
When selecting a location for your unit you should make sure the
floor is flat and firm, and the room is well ventilated. Avoid locating
your unit near a heat source, e.g. cooker, boiler or radiator. Also
avoid direct sunlight as it may increase the electrical consumption.
Extreme cold ambient temperatures may also cause the unit not to
perform properly. This unit is not designed for use in a garage or
outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 1/8 inch of free space is left at
both sides, 1 inch at the rear and 1/8 inch at the top of the unit. This
will allow cold air to circulate around the refrigerator and improve
the efficiency of the cooling process.
2.2 Reversing the Door Swing
NOTES:
When reversing the door swing: Read the instructions all the way
through before starting. Handle parts carefully to avoid scratching
the paint. Set screws down by their related parts to avoid using
them in the wrong places. Provide a non-scratching work surface for
the doors.
IMPORTANT: Once you begin, do not move the cabinet until door-
swing reversal is completed. These instructions are for changing the
hinges from the hinges back to the right side, follow these same in-
structions and reverse all references to left and right.
Unplug the refrigerator from its electrical outlet.

6

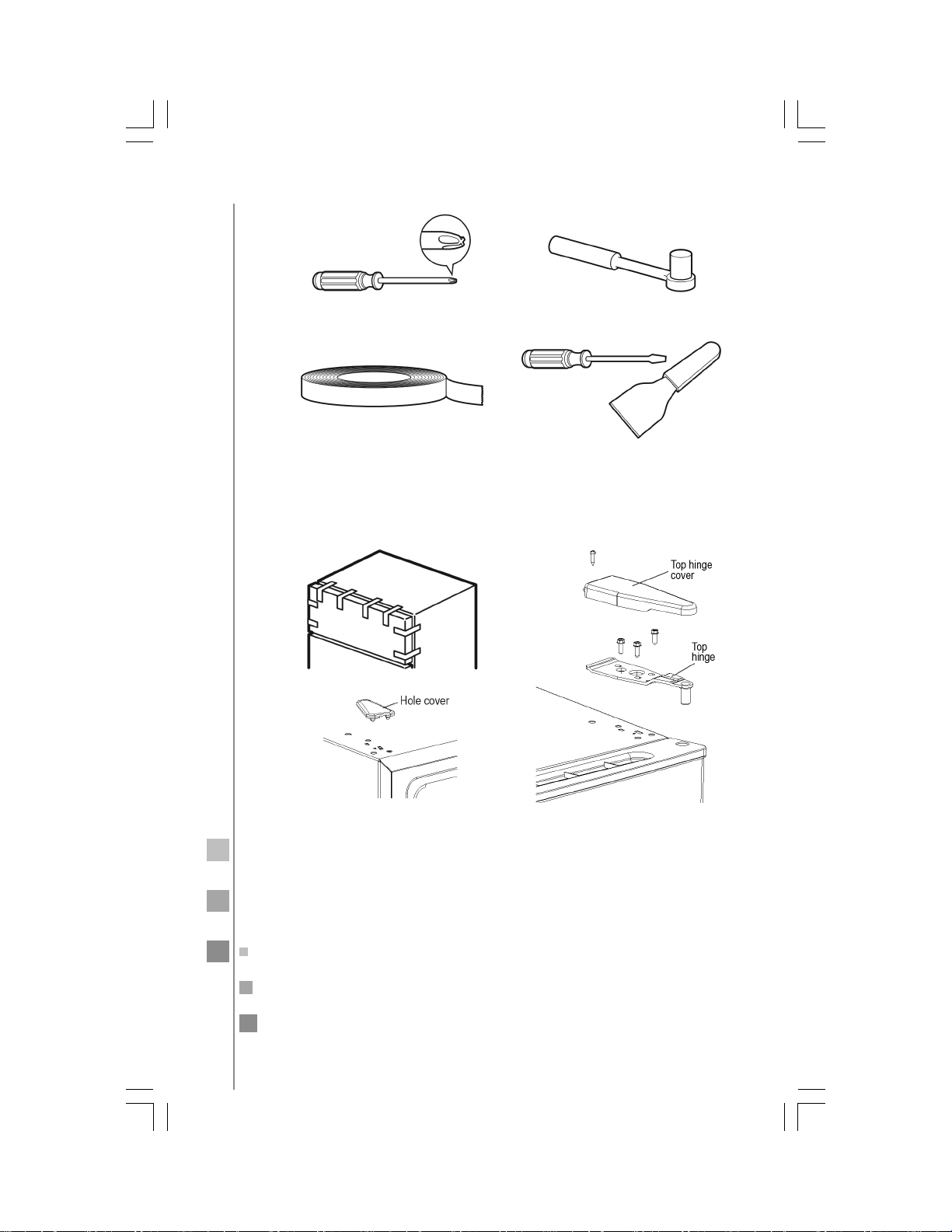

Tools You Will Need
Phillips screwdriver
Putty knife and thin-blade
screwdriver
Masking tape
1/5" Socket and ratchet
Remove Freezer Door
1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.
3. Remove one screw and hinge cover on top of the freezer door
with a Phillips screwdriver.
4. Remove the 3 screws with a 1/5" socket and ratchet, then lift the
hinge straight up to free the hinge pin from the socket in the top
of the door.
5. Remove the tape and tilt the door away from the cabinet. Lift it
off the center hinge pin.
6. Remove the hole cover with a thin-blade screwdriver on the other
side of top hinge.
NOTE: Do not misplace the washer located on the top side of the
center hinge pin. Set the door on a non-scratching surface with the
inside up.

7

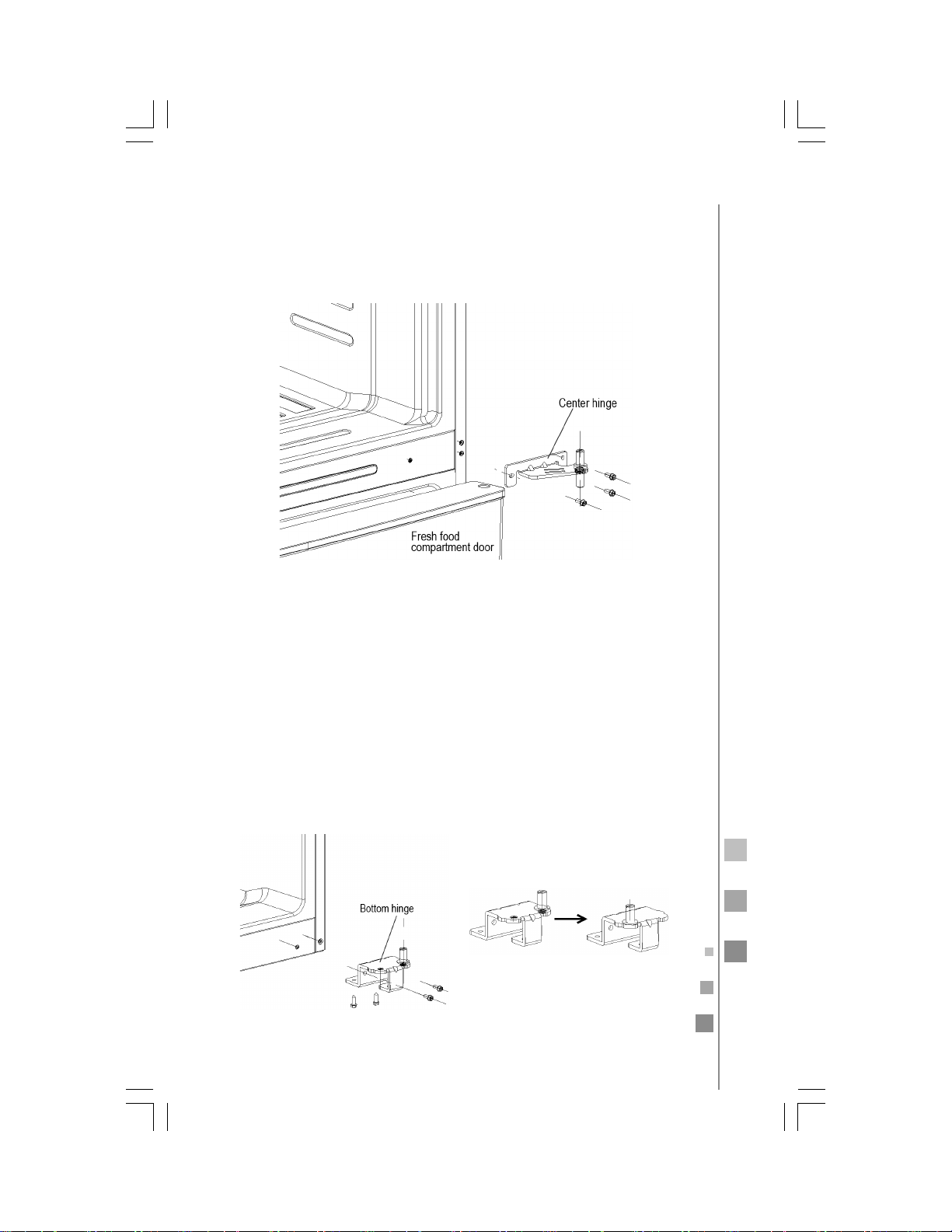

Remove Refrigerator Door
1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.
3. Remove the center hinge by removing 3 hinge screws with a 1/5"
socket and ratchet. Lift the hinge pin up and out of the door.
4. Remove the tape and tilt the door away from the cabinet. Lift the
door straight up to free its bottom socket from the pin in the bot-
tom hinge bracket.
5. Set the door on a non-scratching surface with the inside up.
CAUTION: Do not let door drop to the floor. To do so could damage
the door stop.
Remove Bottom Hinge
1. Using a 1/5" socket and ratchet, remove the 4 screws from the
bottom hinge. Taking care not to misplace the washer on the bot-
tom hinge, move the bottom hinge from the right to the left side.
NOTE: If the washer is not on the hinge bracket, check to see if it
is stuck to the bottom of the door.
2. Change axis of the bottom hinge to the other side with a thin-
blade screwdriver.

8
Transfer Door Stops
On each door, move the metal door stop from the right to the left.
Move any screws from the left to the right with a Phillips screw-
driver.

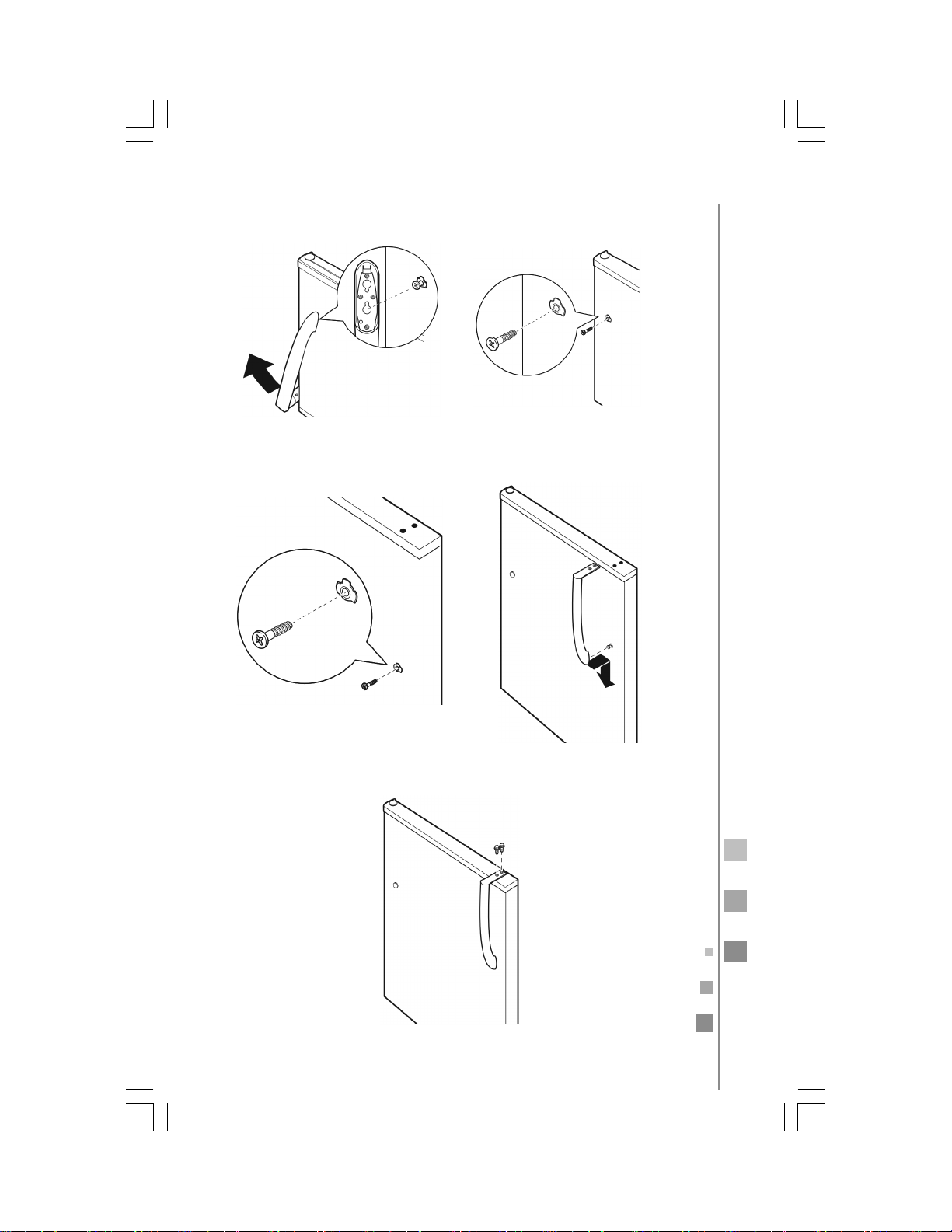

Reversing Door Handles – Transfer Freezer Door
Handle to the Right Side of the Refrigerator Door
1. Remove the two screws securing the bottom end of the handle
with a Phillips screwdriver.
2. Rotate the handle out and lift off of the mounting screw on the
freezer door.
3. Remove the mounting screw from the surface of the freezer door.

9
4. Insert the mounting screw into the surface of the right side of the
refrigerator door with a Phillips screwdriver.
5. Align the handle with the mounting screw.
6. Push the handle down.
7. Secure the top end of the handle by inserting two screws and
tightening them with a Phillips screwdriver.
NOTE: Do not overtighten.

10
Reversing Door Handles – Transfer Refrigerator
Door Handle to the Right Side of Freezer Door
1. Remove the two screws securing the top end of the handle with a
Phillips screwdriver.
2. Rotate the handle out and lift off of the mounting screw on the
refrigerator door.
3. Remove the mounting screw from the surface of the refrigerator
door.
4. Insert the mounting screw into the surface of the right side of the
freezer door with a Phillips screwdriver.
5. Align the handle with the mounting screw.
6. Rotate the handle.

11
Rehang the Refrigerator Door
1. Lower the refrigerator door onto the bottom hinge pin.
2. Screw the 4 screws into the center hinge location on the left side
with a 1/5" socket and ratchet.
3. Straighten the door and place the center hinge pin into the open-
ing on top of the door. Remember to include the washer.
4. Move the door into place, so you can align the center hinge
bracket over the center hinge holes on the left side. Insert and
tighten the two screws with a 1/5" socket and ratchet.
NOTE: Make sure the washer is in place on top of the hinge pin.
7. Secure the bottom end of the handle by inserting two screws and
tightening them with a Phillips screwdriver.
NOTE: Do not overtighten.

12
Hang the Freezer Door
1. Lower the freezer door onto the center hinge pin. Be sure the
washer is in place.
2. Lift the top hinge so the pin fits into the door socket. Support the
door on the handle side and make sure the door is straight and
the gap between the doors is even across the front. While holding
the door in place, tighten the top hinge screws.
2.3 Door Space Requirements
The unit’s door must be able to open fully as shown.
W × D > 50.8 inch × 58.5 inch
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments will
not be covered properly.
Look down from the top, clockwise and counterclockwise loosening,
tightening.

13
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate
soda. Then rinse with warm water using a ‘wrung-out sponge or
cloth. Wash the shelves and salad bin in warm soapy water and dry
completely before replacing them in the unit. Clean the exterior of
the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.6 Before Using Your Unit
The refrigerator adopts 220V/60 Hz AC power, voltage fluctuations
over the range of 196 ~ 264V will cause malfunction or even dam-
age.
Do not damage the power cord under any condition so as to ensure
safety use, do not use when the power cord is damaged or the plug
is worn.
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire acci-
dents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerator and shall be only suitable for
the storage of foods. According to national standards, household re-
frigerators shall not be used for other purposes, such as storage of
blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such
as bottled beers and beverages in the freezer to prevent bursts and
other losses.
Before placing any food in your unit, turn it on and wait for 24
hours, to make sure it is working properly and to allow it time to fall
to the correct temperature. Your unit should not be overfilled.
BEFORE PLUGGING IN
• You must check that you have a socket which is compatible
with the plug supplied with the unit.
BEFORE TURNING ON!
• Do not turn on until two hours after moving the unit.

14
2.7 Interior Accessories
Various glass or plastic storage shelves are included with your appli-
ance - different models have different combinations.
You should always slide one of the full size glass storage shelves into
the lowest set of guides, above the fruit and vegetable containers,
and keep it in this position. To do this, pull the storage shelf forward
until it can be swivelled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a different
height.
In order to make the full use of the volume of the fresh food stor-
age compartment and frozen-food storage compartment, the user
can remove one or more shelves, drawers, out of the appliance, ac-
cording to your daily use.
3. Product Overview
*All images in this instruction manual are for indication only; please refer to your indi-
vidual unit for details.
Steel Wire
Shelf
Adjustable
Glass
Shelves
Vegetable
Basket
Vegetable
Basket
Shelf
Tray
Small Tray

15
4. About the Controls on the
Refrigerator
4.1 Control Settings
Initially, set the refrigerator control to the recommended setting. Al-
low 24 hours for the temperature to stabilize.
Several adjustments may be required. Adjust the refrigerator control
one increment at a time and allow 12 hours after each adjustment
for the refrigerator to reach the temperature you have set.
Setting the refrigerator control to Off stops cooling in both the
freezer and refrigerator compartments but does not shut off electri-
cal power to the refrigerator.
Control settings will vary based on personal preferences, usage and
operating conditions, and may require more than one adjustment.
Factors that affect temperature include the amount of food in the
refrigerator or freezer, the frequency of door opening and the tem-
perature of food when it is placed in the refrigerator.
The controls on your refrigerator will look like the following
5. Cleaning
5.2 Cleaning the Interior and Exterior of the Unit
• Remove all the shelves and the salad bin. To remove the salad bin
first remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate
soda and then rinse with warm water using a wrung-out sponge or
cloth. Wipe completely dry before replacing the shelves and salad
bin.
• Use a damp cloth to clean the exterior, and then wipe with a stan-
dard furniture polish. Make sure that the door is closed to avoid
the polish getting on the magnetic door seal or inside the unit.
5.1 Defrosting
Auto-defrost for Frost-free refrigerator.
5.3 Cleaning Tips
Condensation may appear on the outside of the unit. This may be
due to a change in room temperature. Wipe of any moisture resi-
due. If the problem continues, please contact a qualified technician
for assistance.

16
6. Maintenance
6.1 Changing the Internal Light
Setting the refrigerator control to off does not remove power to the
light circuit.
1. Unplug the refrigerator.
2. The LED is located at the top of the compartment near the open-
ing.
3. Replace with an appliance LED of the same or lower wattage.
4. Plug the refrigerator back in.
Illuminating LED parameter: MAX 2W
CAUTION: Light bulb may be hot.
6.2 Care When Handling/Moving Your Unit
Hold the unit around its sides or base when moving it. Under no cir-
cumstances should it be lifted by holding the edges of the top sur-
face.
Confirm whether there before leveling feet before moving.
6.3 Servicing
The unit should be serviced by an authorized engineer and only
genuine spare parts should be used. Under no circumstances should
you attempt to repair the unit yourself. Repairs carried out by inex-
perienced persons may cause injury or serious malfunction. Contact
a qualitatively technician.
6.4 Switching Off for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it
from the mains supply, empty all food and clean the appliance, leav-
ing the door ajar to prevent from unpleasant odors.

17
7. Troubleshooting
The following simple issues can be handled by the user. Please call
the after-sales service department if the issues are not settled.
• Whether the freezer is plugged and con-
nected to power;
• Low voltage;
• Failure power or tripping circuit.
Inoperation
Odor • Odorous foods should be closely
wrapped;
• Whether foods are rotten;
• Whether the interior shall be cleaned.
Long-term operation
of compressor
• It is normal that refrigerator operates for
longer time in summer when the ambi-
ent temperature is higher;
• Do not put too much food into the
freezer at one time;
• Do not put foods until they are cooled;
• Frequent opening of refrigerator door.
Illuminating light does
not shine
• Whether the refrigerator is connected to
power,
• Whether the illuminating light is dam-
aged.
The refrigerator door
can not be properly
closed.
• The freezer door is stuck by food pack-
ages;
• Too much food;
• Tilt refrigerator.
Loud noises. • Whether the food is leveled, whether the
refrigerator is balanced;
• Whether the refrigerator parts are prop-
erly placed.
7.1 Warm tips:
• Condensation: condensation phenomenon will be detected on the
exterior surface and door seals of the freezer when the ambient
humidity is large, this is a normal phenomenon, and the condensa-
tion can be wiped away with a dry towel.
• Buzz: Buzz will be generated by running compressor specially
when starting up or shutting down.
For more information, please contact the local authority or your re-
tailer where you purchased the product.

18
technical data
Electric Diagram
60Frequency (Hz)
230Voltage (V)
200Defrosting power (W)
1.2Defrosting current (A)
N/A
Ice quantity produced per
24 hour run (g)
45Percentage running time (%)
1.067
Electric power consumption
in kw·h per 24 hour run (kW·h)
11828Rated shelf area (cm2)
610Rated gross volume (L)
M
Switch
Light
Thermostat
TM
Fuse Defrost Heater
Bimetal
Defrost Timer
F-Fan
M
M
C-Fan
Run Capacitor
Compressor
Overload
Protector
S
C
E
N L

19
