Makita 2030N User manual

Planer- Jointer
Auto feed
320 mm (1242") MODEL 2030N
With Electric Brake
Width 0 mm - 150 mm 150 mm - 240 mm 240 mm - 320 mm High Low
IO' - 5-7/87 l5-7/8" - 9.1/2"1 (9-112" - 12.1/2"1 speed speed
Feed
320
mm .weed
112~1'2"' High speed 2 mm 15/64") 1.5mm11/16"l 1 mm15/128'1 8m 5m
1.5mm11/16,,) 126ft.l (17ftI
Lowspeed 3
mm I1 18") 2 mm 15/64")
INSTRUCTION MANUAL
Manual feed
SPECIFICATIONS
3mm (1/8") __
I Cutting I
width
Auto feed
Manual feed
No. of knives
2
Max. cutting depth
I Feed rate /man
Table SIZE Fence size Stock height
320mmx
600mm 112.112" x 23-518")
~
12.7 mm - 185 mm (1 12" - 7-114")
~
155" x 1,MOmm l6-1/8' x 59") 730mmx 105" 128-3/4"
x 4-1/8"1
No load speed Overall length IW x L x HI Net weight
7,000
R/min. 780 mm x 1,500 mm x 775 mm 1303/4' x 59" x 30-1 /2"l
150 kg 1330 Ibs)

BEFORE CONNECTING YOUR TOOL
TO A POWER SOURCE
Be sure
you have read all
GENERAL POWER TOOL SAFETY RULES
GENERAL SAFETY PRECAUTIONS
(For All Tools)
1. KNOW YOUR POWER TOOL. Readthe owner's manual carefully. Learnthe
tools applicationsand limitations, as well as the specific potentialhazards
peculiar to
it.
2. KEEP GUARDS IN PLACE and in working order.
3. REMOVEADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turn-
ing
it on.
4. KEEP WORK AREA CLEAN. Cluttered areas and benches inviteaccidents.
5. DON'T USE IN DANGEROUS ENVIRONMENT. Don't use power tools in
damp or wet locations, or exposethem torain. Keep work area well lighted.
6. KEEP CHILDREN AWAY. All visitors should bekept safe distance from work
area.
7. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by
removing starter keys.
8. DON'T FORCETOOL. It will do thejob better andsafer at the ratefor which
it was designed.
9. USE RIGHT TOOL. Don't force tool or attachment to do a job for which
it was not designed.
IO. WEAR PROPER APPAREL. Wear no loose clothing, gloves, neckties, rings,
bracelets, or other jewelry
which may get caught in moving parts. Nonslip
footwear isrecommended. Wear protective hair covering tocontain longhair.
11. ALWAYS USE SAFETY GLASSES. Also useface or dust mask if cutting oper-
ationisdusty. Everyday eyeglassesonly have impact resistant lenses, they
are NOT safety glasses.
12. SECURE WORK. Useclamps or a vise to holdwork when practical. It's safer
than using your hand and
it frees both hands to operate tool.
13. DON'T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and
safest performance. Follow instructions for lubricating and changingacces-
sories.
15. DISCONNECT TOOLS before servicing; when changing accessories such
as blades, bits, cutters, and the like.
2

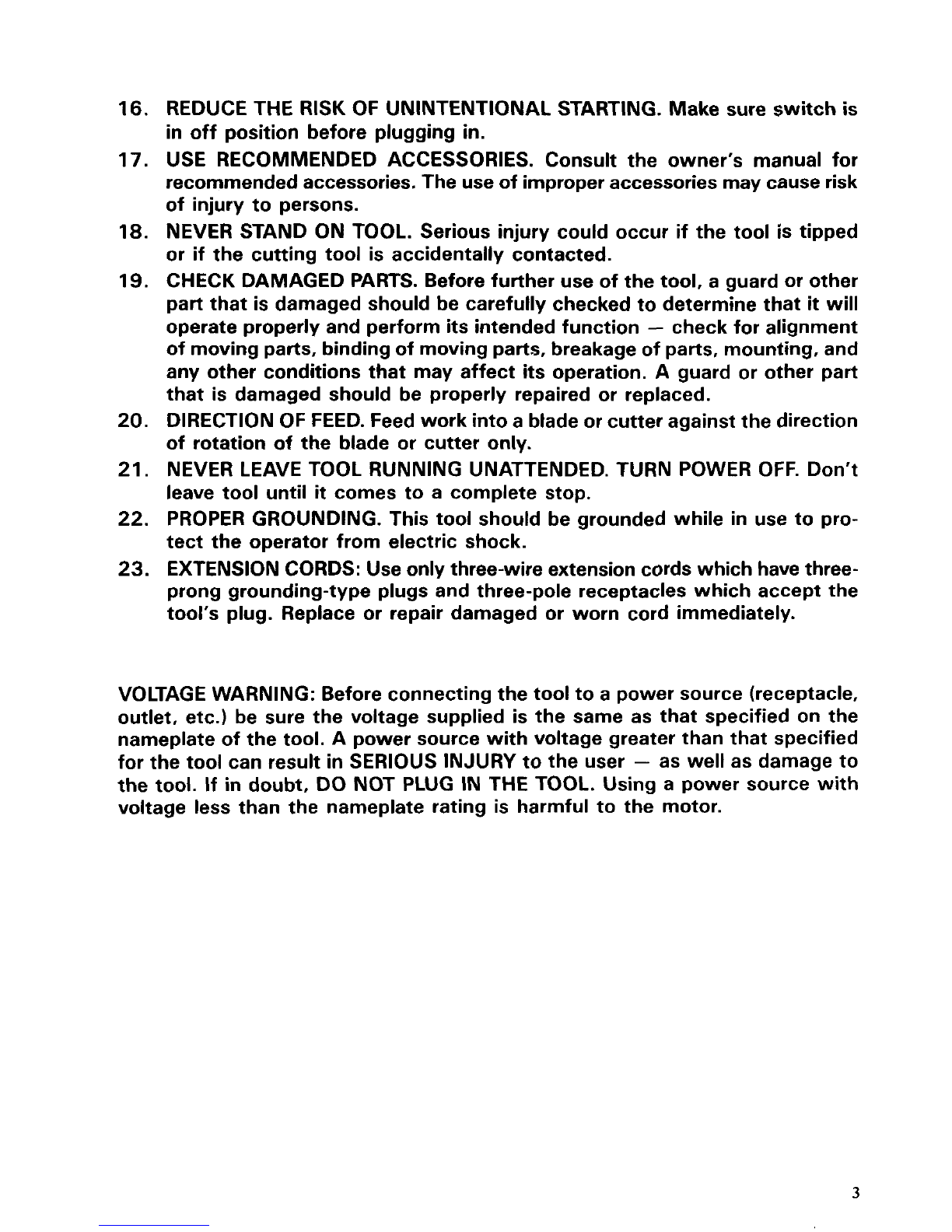

16.
17.
18.
19.
20.
21.
22.
23.
REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is
in off position before plugging in.
USE RECOMMENDED ACCESSORIES. Consult the owner's manual for
recommended accessories.The useof improper accessoriesmay causerisk
of injury to persons.
NEVER STAND ON TOOL. Serious injury could occur
if the tool is tipped
or if the cutting tool is accidentally contacted.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function
- check for alignment
of movingparts, binding of movingparts, breakage of parts, mounting, and
any other conditions that may affect its operation.
A guard or other part
that is damaged should be properly repaired or replaced.
DIRECTIONOF FEED. Feedwork intoa bladeor cutter against the direction
of rotation of the blade or cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't
leave tool
until it comes to a complete stop.
PROPER GROUNDING. This tool should be grounded while in use to pro-
tect the operator from electric shock.
EXTENSIONCORDS: Useonly three-wire extension cords which have three-
prong grounding-type plugs and three-pole receptacles which accept the
tool's plug. Replace or repair damaged or worn cord immediately.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

GROUNDING INSTRUCTIONS
ALL GROUNDED, CORD-CONNECTED TOOLS:
In the event of a malfunctionor
breakdown, grounding provides a pathof least resistance for electric current to
reducethe risk of electric shock. This toolisequipped
with an electric cord hav-
ing an equipment-grounding conductor and a grounding plug. The plug must be
plugged intoa matchingoutlet that isproperly installed and grounded
in accord-
ance with all local codes and ordinances.
Donot modifythe
plug provided -if it will not fit theoutlet, havethe proper out-
let installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result
in a risk
of electric shock. The conductor with insulation having an outer surface that is
green
with or without yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is necessary, do not connect
the equipment-grounding conductor to a live terminal.
Check witha qualified electrician or serviceman
if the grounding instructionsare
not completely understood, or
if in doubt as to whether the tool is properly
grounded.
This tool is intended for use on a circuit that has an outlet that looks like the
one illustrated
in FigureA. The toolhas a grounding plug that looks like the plug
illustrated
in Figure A. A temporary adapter, which looks like the adapter illus-
trated
in Figure B and C, may be usedtoconnectthis plugtoa 2-pole receptacle
as shown
in Figure B if a properly grounded outlet isnotavailable. The temporary
adapter should be used only
until a properly grounded outlet can be installed by
a qualified electrician. The green-colored rigid ear, lug, etc. extending from the
adapter must be connectedtoa permanent groundsuchas a properly grounded
outlet box.
GROUNDING METHODS
FIG. A FIG. B FIG. C
-Cover
of Grounded -
Outlet Box
t
GroundingPin
4
Grounding
Means

ADDITIONAL SAFETY RULES
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
14.
15.
16.
Don't use the tool in presence of flammable liquids or gases.
Handle the blades very carefully.
Check the bladescarefully for cracks or damage beforeoperation. Replace
cracked or damaged blades immediately.
Be sure the planer blade installation bolts are securely tightened before
operating.
Sharpenbothbladesevenly, or replacebothbladesor bothcutterhead covers
at the same time.
Never make jointing or planing cut deeper than
3.2 mm (1/8 inch).
Remove nails and clean the workpiece before cutting. Nail, sand or other
matter can cause blade damage.
Make sure the blade is not contacting workpiece beforethe switchis turned
on.
Wait until the blades attain
full speed before cutting.
Keep hands away from rotating parts.
Stop operation immediately
if you notice anything abnormal.
Always switch off and wait for blades tocome toa complete stop before
adjusting any parts, cleaning out chips or approaching the blade.
Never stick your finger into the chip chute. Chute may jam when cutting
damp wood. Turn off the planer-jointerandthen cleanout chips with astick.
Do not touch blades right after operation, they may be extremely hot and
could burn your skin.
Don't abusecord. Never yank cordtodisconnect from receptacle.Keepcord
from heat, oil and sharp edges.
Do not use auto-planer and jointer at the same time. Overloading of the
motor can occur.
5

ADDITIONAL SAFETY RULES FOR JOINTER
1.Maintain the proper relationships of infeedand outfeed table surfaces and cut-
terhead blade path.
2. Do not perform jointing operations on material shorter than 140 mm (5-112
inches), narrower than
19 mm(3/4inch),or less than 12.7 mm(112inch)thick.
3. Do not perform planing operations on material shorter than 140 mm (5-1/2
inches), narrower than
19 mm(314inch), wider than 155 mm (6-118inches)
or thinner than 12.7 mm (1/2inch).
4. Support the workpiece adequately at all times during operation.
5.
Do not back the work toward the infeed table.
6. Always use hold-downlpushblocks for jointing material narrower than 76.2
mm
(3 inches), or planing material thinner than 76.2 mm (3 inches).
SAVE THESE INSTRUCTIONS.
ADDITIONAL SAFETY RULES FOR AUTO-PLANER
1. Two or more pieces of narrow but similar thickness stock can be passed
through the auto-planer side by side.
However, allow some spacing between the stock to permit the feed rollers
to grip the thinnest piece.
Otherwise, a slightly thinner piece could be kicked back by the cutterhead.
WARNING
For Your Own Safety, Read Instruction Manual Before Operating Jointer
1. Wear eye protection.
2. Never perform jointing or planing operation with cutter head or drive guard
3. Never make jointing or planing cut deeper than 3.2 mm (1/8 inch).
4. Always use hold-downlpush blocks for jointing material narrower than 76.2
mm
(3 inches), or planing material thinner than 76.2 mm (3 inches).
5. Do notattempttoperform an abnormal or little-usedoperation without study
and the use of adequate hold-down1push blocks, jigs, fixtures, stops, etc.
removed.
SAVE THESE INSTRUCTIONS.
6

HOW TO USE
AUTO-PLANER
1. Adjusting depth of cut
The maximum depth of cut changes in
terms of the cutting speed and the
width of the workpiece to
be cut. See
Fig. 1.
Insert the workpiece flush with the in-
feed table top
so that the front end of
the workpiece reaches
at least 20 to
30 mm (3/4 to 1-1/8") beyond the
depth gauge. Turn the crank handle and
align the depth gauge with
a graduation
on the scale plate. This graduation
indicatesthe depth of cut.
Max. depth of cut
2 (5/64") ----
1 I=-..
1 (5/128")
nrn
low speed
_1
(6") (8") (10") (12")
0 150 200 250 300
mm Width
Fig.
1
Fig. 2
2. Dimensional adjustment c I
The graduation on the scale bar align-
ing with the arrow
is the thickness of
the workpiece after the cut.
When cutting
less than the maximum
depth of cut, first align the graduation
for the desired finished thickness with
the arrow and then cut the workpiece.
Fig. 3
7

3. Switchover of cutting speed
Turn the speed change lever to the right
for high speed, and to the left for low
speed.
CAUTION.
Change speeds while the tool
is running,
but do not attempt to do
so during an
actual planing operation.
4. Chip deflector
The ejecting distance of chips can be
adjusted
by means of the chipdeflector.
To eject the chips in the near area,
set
the chipdeflector down.
CAUTION
:
When making heavy cuts, always set the
chip deflector
at the upper position to
prevent the chip chute from jamming.
Fig. 4
Chip deflector
I
Fig. 5
8

JOINTER

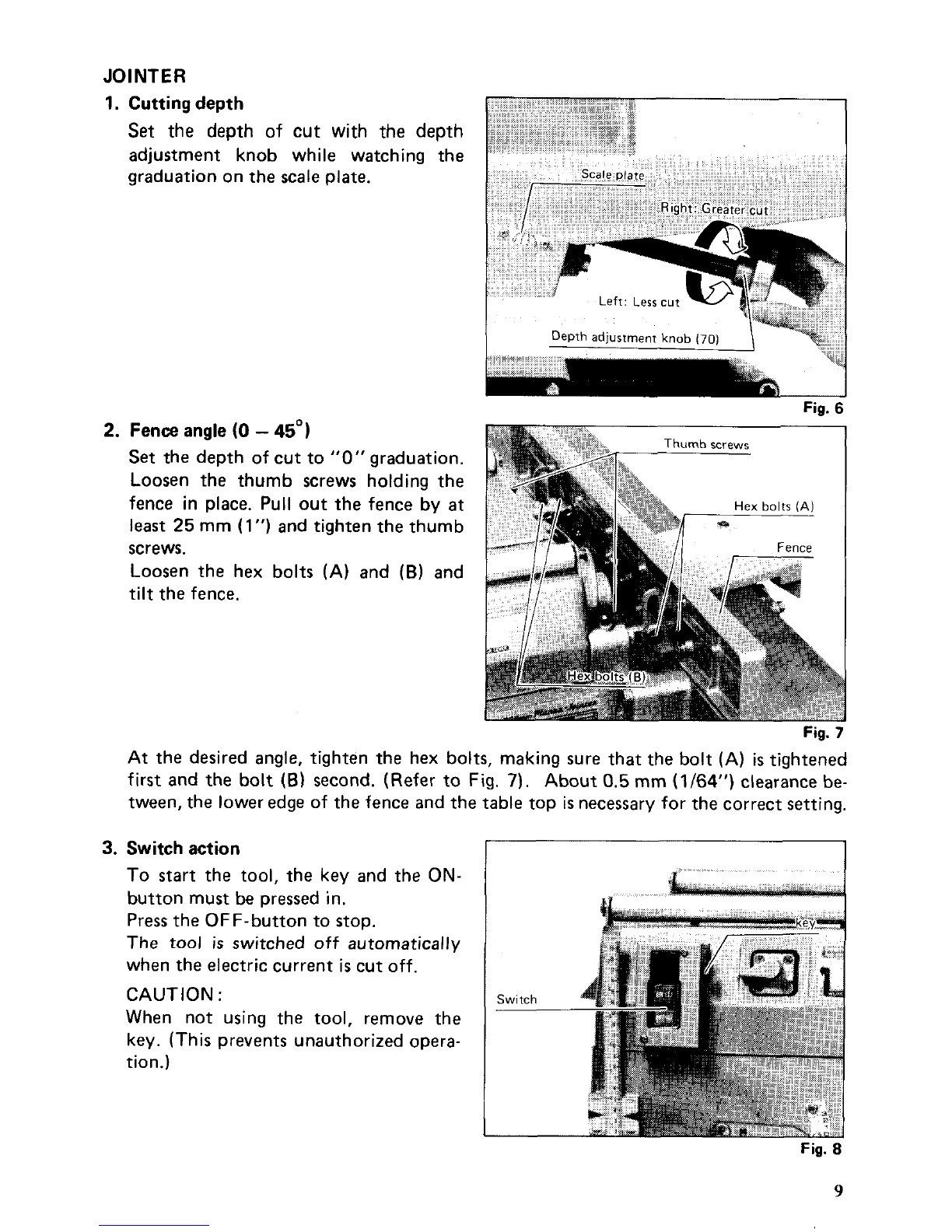

1. Cuttingdepth
Set the depth of cut with the depth
adjustment knob while watching the
graduation on the
scale plate.
Fig. 6
2. Fence angle (0 - 45')
Set the depth of cut to "0" graduation.
Loosen the thumb screws holding the
fence in place. Pull out the fence by at
least 25 mm (1") and tighten the thumb
screws.
Loosen the hex bolts
(A) and (B) and
tilt the fence.
Fig. 7
At the desired angle, tighten the hex bolts, making sure that the bolt (A) is tightened
first and the bolt
(BI second. (Refer to Fig. 7). About 0.5 mm (1/64") clearance be-
tween, the loweredge
of the fence and the table top is necessary for the correct setting.
3. Switch action
To start the tool, the key and the
ON-
button must be pressed in.
Press the OFF-button to stop.
The tool is switched off automatically
when the electric current
is cut off.
CAUTION :
When not using the tool, remove the
key. (This prevents unauthorized opera-
tion.)
Fig. 8
9

OPE RATION
1. Auto-Planer
Determinethe depth of cut and the cutting speed in terms of the width of the work-
piece you intendtocut. Insertthe workpiece flush with the table top. When cutting
the long and heavy workpiece, liftupthe end of the workpiece slightly
at the start and
the end of cutting to avoidgouging or sniping
at the extreme ends of the workpiece.
Two rollers are provided on top of the
chip cover to enable quick, efficient
return of the workpiece to the infeed
table side. This
is especially convenient
with two operators.
CAUTION
:
Stop the tool when the workpiece is
stalled. Keeping the tool running with a
stalled workpiece causes the abnormal
wearing of the feed rollers.
Return (for another pass)
I
Fig. 9
2. Jointer
Placementof hands duringfeeding
At the start of the cut, the left hand holds the workpiece firmly against the infeed
table and fence, while the right hand pushes the workpiece toward the blade. After the
cut
is under way, the new surface rests firmly on the outfeed table. The left hand
should press down on this part,
at the same time maintaining flat contact with the
fence. The right hand presses the workpiece forward and beforethe right hand passes
over the cutterhead
it shouldbe moved to the workpiece on the outfeedtable.
10

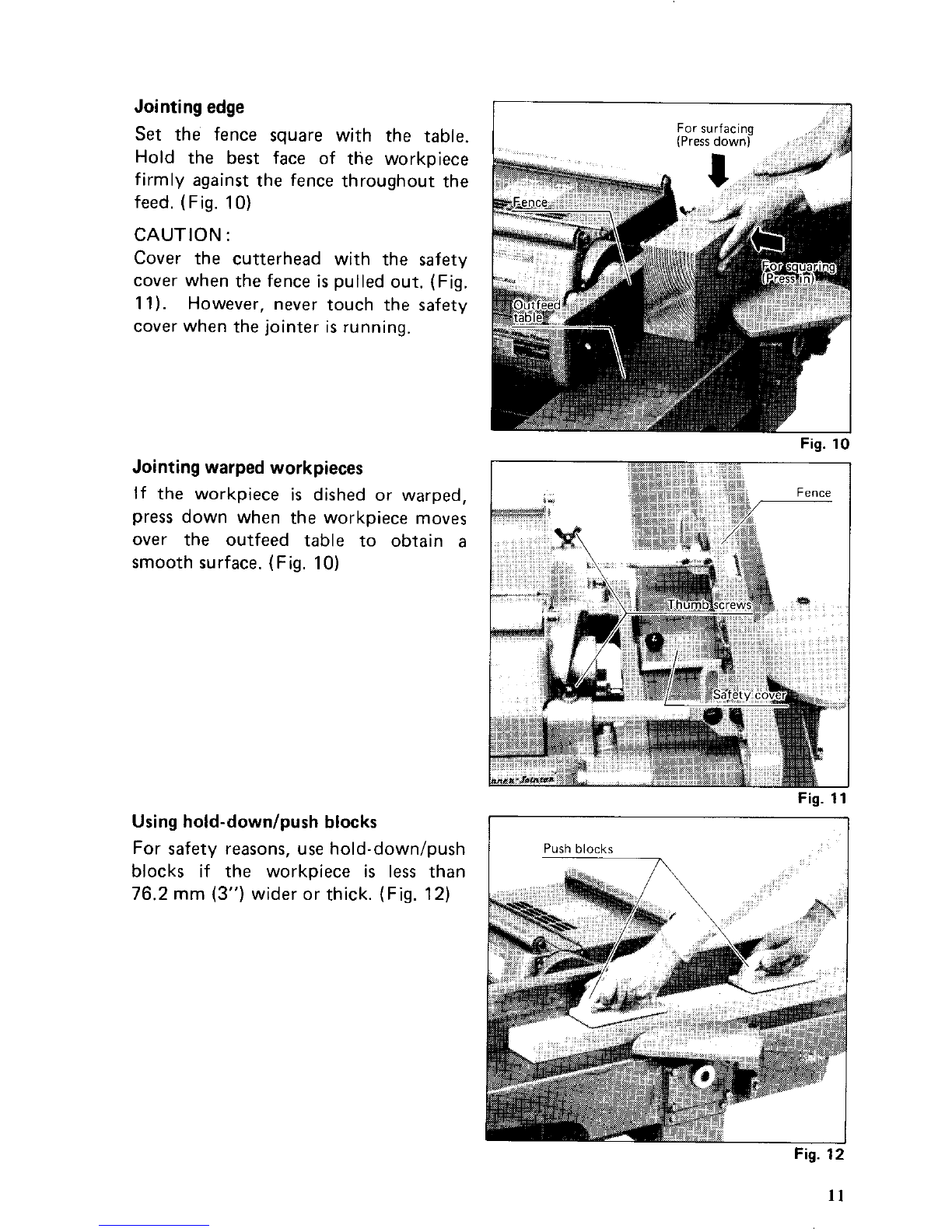

Jointingedge
Set the fence square with the table.
Hold the best face of the workpiece
firmly against the fence throughout the
feed. (Fig.
10)
CAUTION :
Cover the cutterhead with the safety
cover when the fence
is pulled out. (Fig.
11). However, never touch the safety
cover when the jointer
is running.
Jointingwarped workpieces
If the workpiece is dished or warped,
press down when the workpiece moves
over the outfeed table to obtain
a
smooth surface. (Fig. 10)
Fig. 10
Using hold-downlpush blocks
For safety reasons, use hold-downlpush
Push blocks
Fig. 12
11

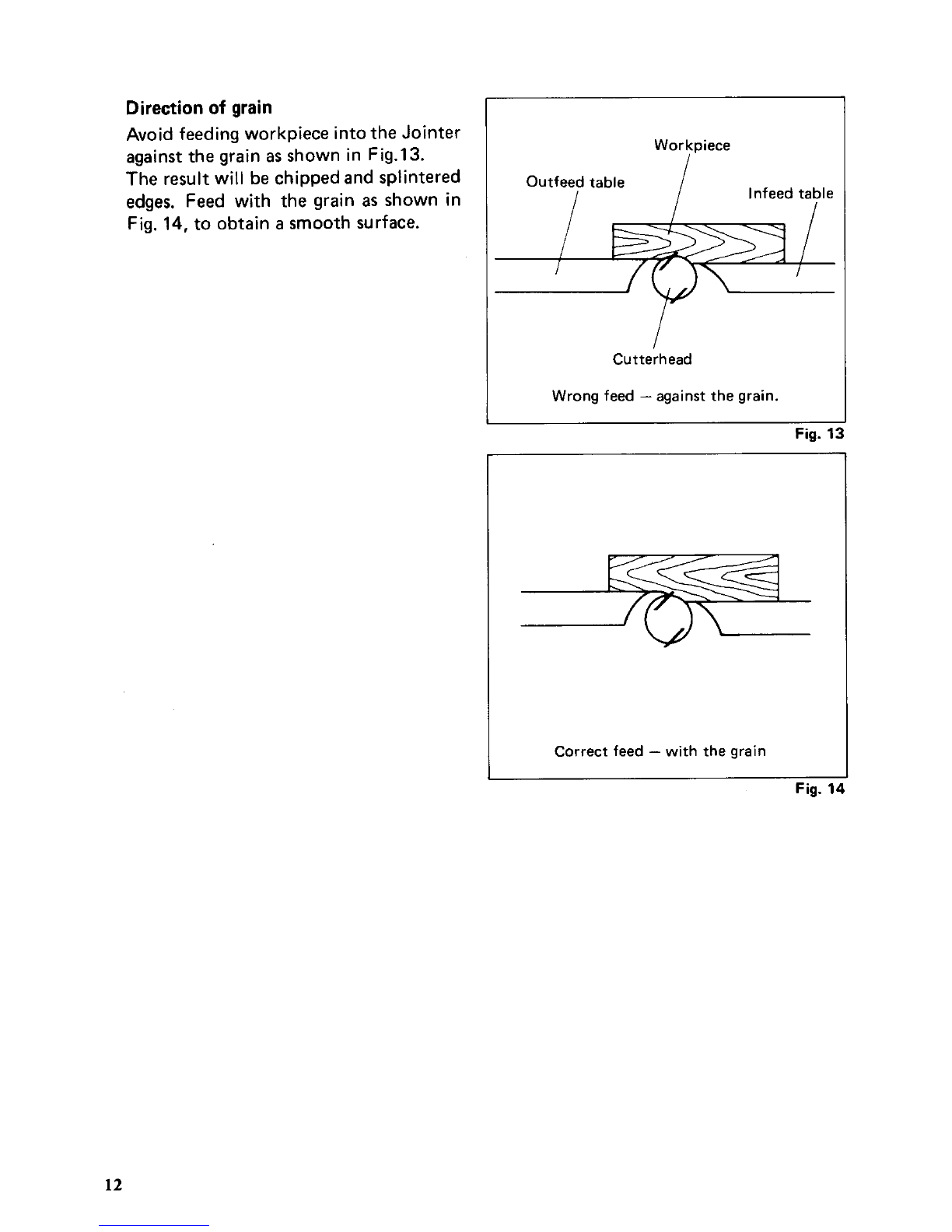

Direction of grain
Avoid feeding workpiece intothe Jointer
against the grain
as shown in Fig.13.
The resultwill be chipped and splintered
edges. Feed with the grain
as shown in
Fig.
14, to obtain a smooth surface.
Workpiece
Outfeedtable lnfeed table
Cutterhead
Wrong feed -against thegrain.
Fig. 1:
I- V-
Correctfeed - with the grain
Fig. 14
12

CHANGING PLANER BLADES
1.
a
Removing blades
1 Remove the screw
of the chip cover.
cover.
on the outfeed side
Then open the chip
Fig. 1
Loosenthe hex bolt with the wrench and lift off the safety guard assembly.
Set the depth of cut for Jointer tomaximumgraduation.
*Push the lock plate in the direction
of
the arrow and raise it slightly. Turn the
knob tolock the drum. (Fig.
16)
The drum can be locked at the position
shown in Fig.
17 or Fig. 18.
Fig. 1(
Bolt Drum cover Blade Drum
cover
Fig. 1E
Fig. 17
13

0 Lock the drum at the position shown in Fig. 17 and loosen the hex bolts with the
When removina the blade from the Auto-Planer, lock the drum at the position shown
socket wrench. Remove the hex bolts and the drum cover.
0 Insert the blade between the drum and
the blade holder.
Set the blade so that
it will protrude by 2 mm (5/64") to
3 mm (1/8") from the drum. The holes
of the blade should be aligned with the
holesof the drum.
I
in Fig. 18 and push the blade
the screwdriver.
Blade Blade holder
2mm - 3mm
out with
Fig. 19
.When removing the blade from the
Jointer, release the drum lock and turn
the knob to the position
at which the
blade can be pushed out with the screw-
driver.
Fig. 20
2. Installingblades
0 Lock the drum at the position shown in Fig. 18.
14

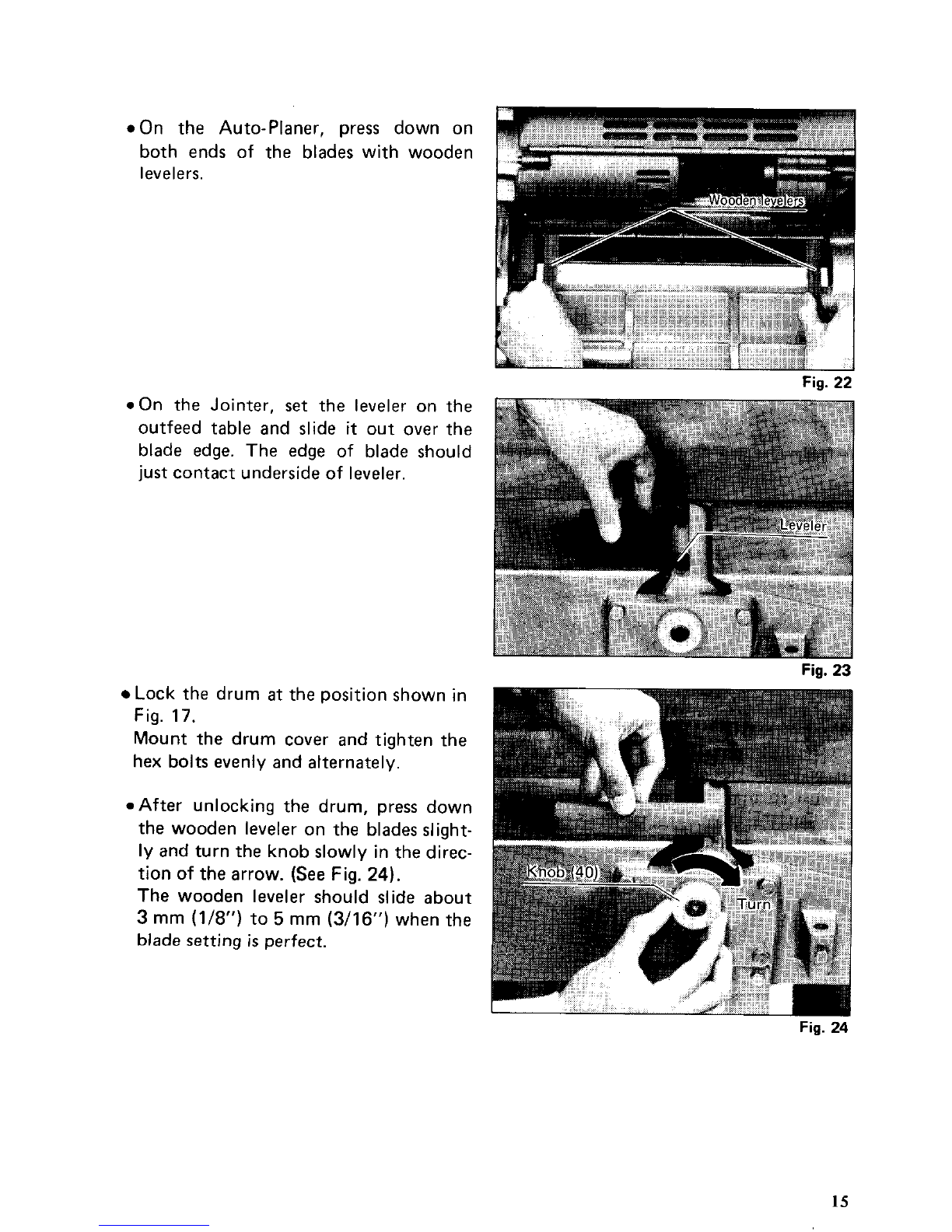

.On the Auto-Planer, press down on
both ends
of the blades with wooden
levelers.
*On the Jointer,
set the leveler on the
outfeed table and slide
it out over the
blade edge. The edge
of blade should
just contact underside
of leveler.
Lock the drum at the positionshown in
Fig.
17.
Mount the drum cover and tighten the
hex bolts evenly and alternately.
*After unlocking the drum, press down
the wooden leveler on the blades slight-
ly and turn the knob slowly inthe direc-
tion
of the arrow. (See Fig. 24).
The wooden leveler should slide about
3 mm (1/8") to 5 mm (3/16") when the
blade setting
is perfect.
~
Fig. 22
Fig. 23
Fig. 24
15

VARIOUS ADJUSTMENTS
1. Adjusting infeed/outfeedrollers(Auto-planer)
NOTE
:
The planer infeed and outfeed rollers are factory adjusted. If you notice the adjust-
ment
is off, kindly do as follows.
Use the wrench to loosen the installation nuts slightly. Turn the adjusting screw to
obtain
a level of from 0.1 to 0.3 mm above the table surface.
It is relatively simple to make the setting so that a postcard can slip in and out be-
tween the roller and the leveler. After adjusting rollers, be sure to tighten installation
nutssecurely.
A roller that protrudes too much will cause gouging or shiping in the workpiece and
rough surfaces.
2. Extension roller adjustment
Gently loosen the hex bolts,
set a rule
or yardstick on the table surface and ad-
just
so that roller arm is slightly higher
than the table. Tighten the hex bolts
securely
so that the roller arm surface is
at 90" to the column.
Roller shaft Roller
3 mm
Fig. 21
16

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection and maintenance.
Replacing carbon brushes
.Remove and check the carbon brushes
regularly. Replace when they wear down
to about
6 mm (1/4") or less. Keep the
brushes clean and free to slip in the
holders. Both brushes should be changed
at the same time. Use only Makita carbon
brushes.
Remove the screws that hold the chip
cover and the switch cover. Set the speed
change lever in the neutral position and
remove the switch cover. Open the chip
cover.
.Use
a screwdriver to remove the brush
holder cap
as shown on the figure.
U
6mm (1/4")
I
Fig. 2Z
Fig. 29
Fig. 30
17

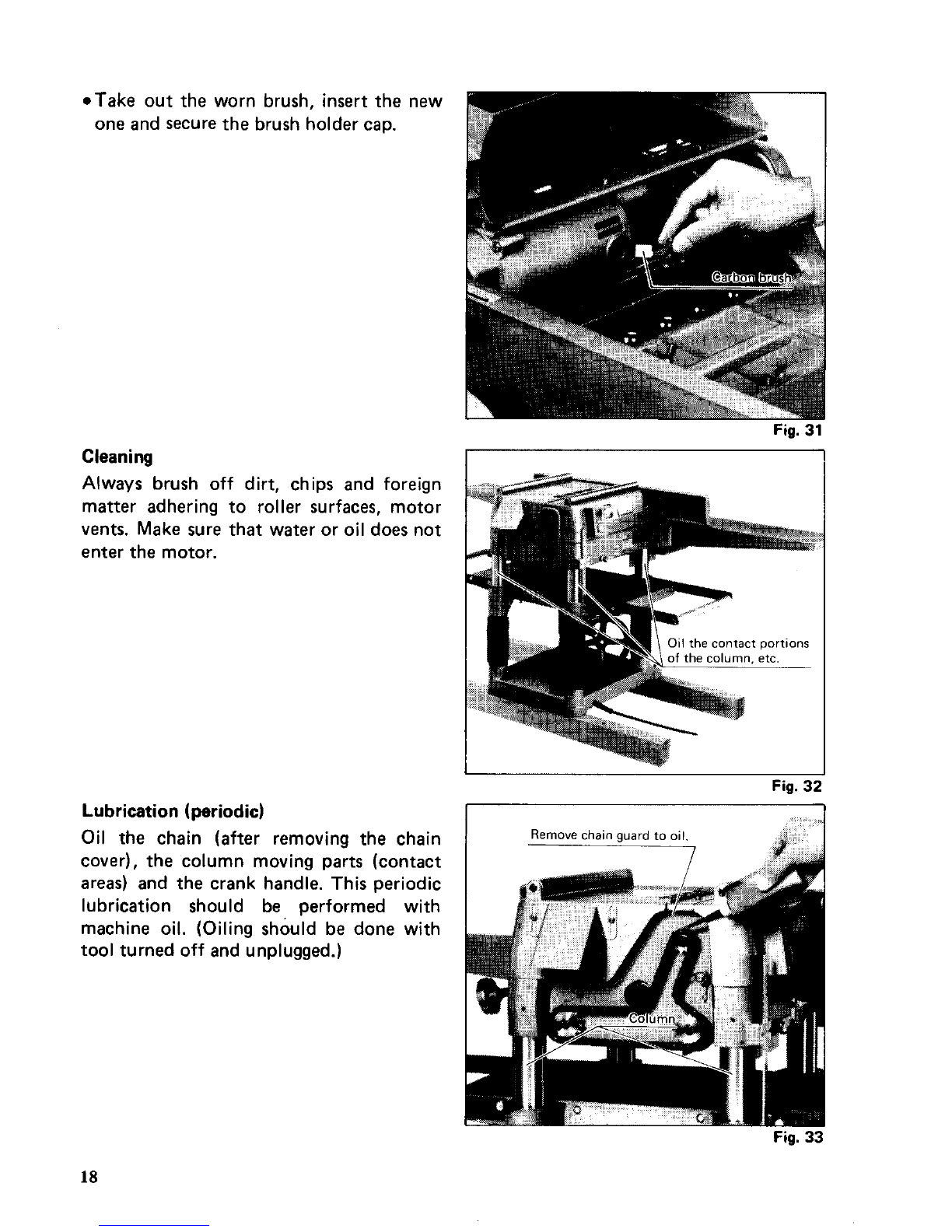

.Take out the worn brush, insert the new
one and secure the brush holder cap.
Fig. 31
Cleaning
Always brush off dirt, chips and foreign
matter adhering to roller surfaces, motor
vents. Make sure that water or oil does not
enter the motor.
Lubrication (periodic)
Oil the chain (after removing the chain
cover), the column moving parts (contact
areas) and the crank handle. This periodic
lubrication should be performed with
machine oil. (Oiling should be done with
tool turned off and unplugged.)
Fig. 3:
I
Remove chain guard to 011
I
Fig. 33
18

Sharpening planer blades
(Incase of blade width 155mm(6-1/8”))
1. Remove the two wing nuts on the
holder.
2. Set the blade A and blade B on the
holder
so that the heel of the blade will
be flush against
C and D surface of the
holder respectively.
3. Tighten the wing nuts toholdthe blades
inthe holder.
4. Sharpen with the dressing stone keeping
bothblades contacting the dressing stone
surface
at the same time.
1
Fig. 31
Wing nut
Blade B \ Dsurface\
I
Fig. 3!
Immerse dressing stone in water for 2 or
3 minutes before sharpening. Hold the
holder
so that blades both contact the
dressing stone for simultaneoussharpen-
ing
at the same angle. Stock removal is
possible up to 7.5 mm(5/16”). Blades
may be used down to 24.5mm (1”)
width.
Fig. 36
To maintain product SAFETY and RELIABILITY, repairs, any other maintenanceand
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacementparts.
19

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessoriesor attachments mightpresent a risk of injury to persons. The
accessoriesor attachments should be usedonly inthe proper and intended manner.
0 SharpeningHolder
(Part No. 123006-2)
0 Triangular Rule
(Part
No. 762001-3)
*Push Block
-
(Part No. 155508-0)
0 (+I Screwdriver
(Part
No. 783002-8)
0 ReplacementBlades
Width (mm)
1 Part No.
155 16-118") I 731021-8
-- . - . - .
155 (6;1/8") [ 731206-6
320
(12-1/2") I 731035-7
0 Socket Wrench (13)
(Part No. 782213-2)
0 Wooden Levelers
(Part No.441021-7)
Hex Wrench
(Part No. 783202-0)
0 Hex Flange Hd. Bolt M8x 30
(Part No. 251690-4)
Sprocket Set
(Part
No. 191605-8)
320 (12-1/2") I 731211-3
Material .. . Tungsten-carbide
20
