INSTRUCTION MANUAL
Cordless Oil-Pulse Driver
DTS131
DTS141
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model DTS131 DTS141
Capacities Machine screw 4 mm - 8 mm 4 mm - 8 mm
Standard bolt 5 mm - 8 mm 5 mm - 8 mm
No load speed Impact mode (Hard) 0 - 3,000 min-1 0 - 3,200 min-1
Impact mode (Medium) 0 - 2,000 min-1 0 - 2,000 min-1
Impact mode (Soft) 0 - 1,200 min-1 0 - 1,200 min-1
T mode 0 - 1,200 min-1 0 - 1,200 min-1
Impacts per minute Impact mode (Hard) 0 - 2,500 min-1 0 - 2,700 min-1
Impact mode (Medium) 0 - 2,200 min-1 0 - 2,200 min-1
Impact mode (Soft) 0 - 1,400 min-1 0 - 1,400 min-1
T mode 0 - 1,400 min-1 0 - 1,400 min-1
Rated voltage D.C. 14.4 V D.C. 18 V
Overall length 136 mm 136 mm
Net weight 1.2 - 1.4 kg 1.3 - 1.6 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• Theweightmaydifferdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Batterycartridge D.C.14.4 V Model BL1415N / BL1430 / BL1430B / BL1440 / BL1450 / BL1460B
D.C.18 V Model BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF
• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof
residence.
WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges
andchargersmaycauseinjuryand/orre.
Symbols
Thefollowingshowthesymbolsusedfortheequip-
ment.Besurethatyouunderstandtheirmeaningbefore
use.
Read instruction manual.
Ni-MH
Li-ion
OnlyforEUcountries
Donotdisposeofelectricequipmentor
batterypacktogetherwithhouseholdwaste
material!
In observance of the European Directives,
on Waste Electric and Electronic
EquipmentandBatteriesandAccumulators
and Waste Batteries and Accumulators
and their implementation in accordance
withnationallaws,electricequipmentand
batteriesandbatterypack(s)thathave
reached the end of their life must be col-
lectedseparatelyandreturnedtoanenvi-
ronmentallycompatiblerecyclingfacility.
Intended use
The tool is intended for screw driving in wood, metal
and plastic.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN62841:
(In soft impact force grade)
Sound pressure level (LpA) : 77 dB (A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
methodandmaybeusedforcomparingonetoolwith
another.
NOTE: The declared noise emission value(s)
mayalsobeusedinapreliminaryassessmentof
exposure.

3ENGLISH
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
Vibration
Thevibrationtotalvalue(tri-axialvectorsum)deter-
mined according to EN62841:
(In soft impact force grade)
Work mode : impact tightening of fasteners of the
maximumcapacityofthetool
Vibration emission (ah) : 7.0 m/s2
Uncertainty(K):1.5m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
andmaybeusedforcomparingonetoolwithanother.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.
WARNING: The vibration emission during
actual use of the power tool can differ from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
whichmayignitethedustorfumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
youtolosecontrol.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tricshockifyourbodyisearthedorgrounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection.Protectiveequipmentsuch
asadustmask,non-skidsafetyshoes,hardhator
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.Carryingpowertoolswith
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.Awrenchorakeyleft
attachedtoarotatingpartofthepowertoolmay
resultinpersonalinjury.

4ENGLISH
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
ofthepowertoolinunexpectedsituations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.

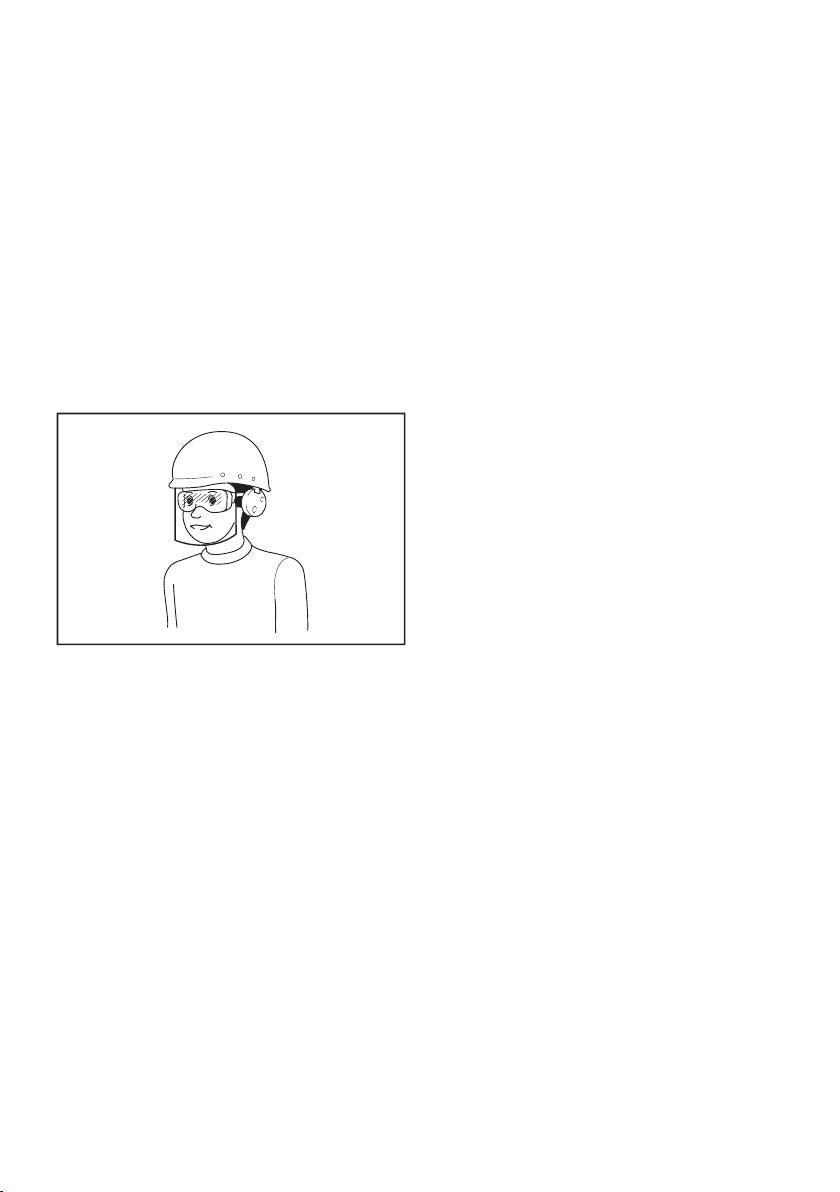

9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and off.Anypowertoolthatcannotbecontrolled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools.Suchpreventivesafetymeasuresreduce
theriskofstartingthepowertoolaccidentally.
4.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
5.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
affect the power tool’s operation. If damaged, have
the power tool repaired before use.Manyaccidents
arecausedbypoorlymaintainedpowertools.
6. Keep cutting tools sharp and clean.Properly
maintained cutting tools with sharp cutting edges
arelesslikelytobindandareeasiertocontrol.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease.Slippery
handles and grasping surfaces do not allow for
safehandlingandcontrolofthetoolinunexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
mentofclothworkglovesinthemovingpartsmay
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
2. Use power tools only with specically desig-
nated battery packs.Useofanyotherbattery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.Shortingthebatterytermi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
mayexhibitunpredictablebehaviourresultingin
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
peratureabove130°Cmaycauseexplosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions.Chargingimproperlyorattemperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower
tool is maintained.
2. Never service damaged battery packs. Service
ofbatterypacksshouldonlybeperformedbythe
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.

5ENGLISH
Cordless impact driver safety
warnings
1. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.
Fastenerscontactinga"live"wiremaymake
exposedmetalpartsofthepowertool"live"and
could give the operator an electric shock.
2. Always be sure you have a rm footing.
Be sure no one is below when using the tool in
high locations.
3. Hold the tool rmly.
4. Wear ear protectors.
5. Do not touch the bit or the workpiece immedi-
ately after operation. They may be extremely
hot and could burn your skin.
6. Keep hands away from rotating parts.
7. Use auxiliary handle(s), if supplied with the
tool.Lossofcontrolcancausepersonalinjury.
8. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring.Cuttingaccessorycontactinga"live"
wiremaymakeexposedmetalpartsofthepower
tool "live" and could give the operator an electric
shock.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
Forcommercialtransportse.g.bythirdparties,
forwardingagents,specialrequirementonpack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
inganexpertforhazardousmaterialisrequired.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tape or mask off open contacts and pack up the
batteryinsuchamannerthatitcannotmove
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
siveheat,explosion,orleakofelectrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
alsovoidtheMakitawarrantyfortheMakitatooland
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).

6ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
thebatterycartridgeisremovedbeforeadjust-
ing or checking function on the tool.
Installing or removing battery
cartridge
1
2
3
►1. Red indicator 2. Button 3.Batterycartridge
CAUTION:
• Alwaysswitchoffthetoolbeforeinstallingor
removingofthebatterycartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoffyour
hands and result in damage to the tool and
batterycartridgeandapersonalinjury.
Toremovethebatterycartridge,slideitfromthetool
while sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
uppersideofthebutton,itisnotlockedcompletely.
CAUTION:
• Alwaysinstallthebatterycartridgefullyuntilthe
redindicatorcannotbeseen.Ifnot,itmayacci-
dentallyfalloutofthetool,causinginjurytoyou
orsomeonearoundyou.
• Donotinstallthebatterycartridgeforcibly.Ifthe
cartridgedoesnotslideineasily,itisnotbeing
insertedcorrectly.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
mayhave
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydifferslightly
fromtheactualcapacity.

7ENGLISH
Switch action
CAUTION:
• Beforeinsertingthebatterycartridgeintothe
tool,alwayschecktoseethattheswitchtrigger
actuatesproperlyandreturnstothe"OFF"
position when released.
1
►1. Switch trigger
Tostartthetool,simplypulltheswitchtrigger.Tool
speedisincreasedbyincreasingpressureontheswitch
trigger. Release the switch trigger to stop.
NOTE:
• Thetoolautomaticallystopsifyoukeeppulling
the switch trigger for about 360 seconds.
Lighting up the front lamp
CAUTION:
• Do not look in the light or see the source of light
directly.
1
►1. Lamp
1
►1. Button
To turn on the lamp status, press the button for few
seconds. To turn off the lamp status, press the but-
ton for few seconds again.
With the lamp status ON, pull the switch trigger to turn on
thelamp.Toturnoff,releaseit.Thelampgoesoutapprox-
imately10secondsafterreleasingtheswitchtrigger.
With the lamp status OFF, the lamp will not turn on even
if the trigger is pulled.
NOTE:
•
Toconrmthelampstatus,pullthetrigger.Whenthelamp
lightsupbypullingtheswitchtrigger,thelampstatusisON.
When the lamp does not come on, the lamp status is OFF.
• While pulling the switch trigger, the lamp status
cannot be changed.
•
Forapproximately10secondsafterreleasingthe
switch trigger, the lamp status can be changed.
Reversing switch action
CAUTION:
•
Alwayscheckthedirectionofrotationbeforeoperation.
•
Usethereversingswitchonlyafterthetoolcomes
to a complete stop. Changing the direction of rota-
tionbeforethetoolstopsmaydamagethetool.
• Whennotoperatingthetool,alwayssetthe
reversing switch lever to the neutral position.
1
1
A
B
►1. Reversing switch lever
This tool has a reversing switch to change the direction of rota-
tion. Depress the reversing switch lever from the A side for clock-
wise rotation or from the B side for counterclockwise rotation.
When the reversing switch lever is in the neutral posi-
tion, the switch trigger cannot be pulled.

8ENGLISH
Characteristics of Cordless Oil-
impulse Driver
TheMakitaCordlessOil-impulseDriverisahydrauli-
callyoperatedimpacttoolusingoilviscositytoproduce
impacts.Sinceoilviscositychangeswiththetempera-
ture, be aware of the following two points when operat-
ing the tool.
1. Avoid using the tool below -10 ºC (14 ºF) of tem-
perature. When the tool temperature goes down
belowthedegrees,thismaycausedamagetothe
motor of tool due to poor impulse.
2. Whenthetoolbecomestoohot,itmaytakelonger
to set screws.
3. The tool can overheat, causing a failure or hand
burnifyouoperateitcontinuouslyforlonghours.
Let the tool cool off for more than 30 minutes
before changing batteries during a long, continu-
ousjob.
Changing the impact force
1
2
3
4
5
6
1. Changed in four steps 2. Hard 3. Medium 4. Soft
5. T mode 6. Button
Impact force grade
displayed on panel
Maximum blows
Application Work
Hard
Medium
Soft
Tightening when force
and speed are desired.
Tightening when a good
finishing is needed.
Tightening when excessive
tightening need to be avoided
because of potentially clogged
female screw and broken or
damaged screw head.
Tightening in underwork
material / Tightening long
screws.
1,400
(min-1)
1,400
(min-1)
1,400
(min-1)
1,400
(min-1)
2,200
(min-1)
2,200
(min-1)
2,500
(min-1)
DTS131 DTS141
T mode Tightening when speed
and good finishing are
needed.
Tightening bolt up to M8.
Tightening sash screw/
Tightening small screws
such as M6.
Tightening bolt up to M8.
Tightening in the finishing
board, plaster board.
2,700
(min-1)
Tightening when speed
and good finishing are
needed.
The impact force can be changed in four steps: hard,
medium, soft, and T mode.
This allows a tightening suitable to the work.
Everytimethebutton is pressed, the number of
blows changes in four steps.
Forapproximatelyoneminuteafterreleasingtheswitch
trigger, the impact force can be changed.
"T" is a special mode for fastening self drilling screws
and bolts. In this mode, the tool starts to drive a screw
with faster rotation, which is suited for drilling with the
self-drilling -screw tip. Once the tool starts to tighten the
screw, it impacts in soft force grade.

9ENGLISH
NOTE:
• When all lamps on the switch panel go out, the
toolisturnedofftosavethebatterypower.The
impactforcegradecanbecheckedbypulling
theswitchtriggertotheextentthatthetooldoes
not operate.
• While pulling the switch trigger, the impact force
grade cannot be changed.
• Thetoolautomaticallystopstopreventthe
damagesonthepartsduringheavyloadopera-
tion with hard or medium impact force grade. In
that case select the soft or T mode impact force
grade.
Indicating the remaining battery
capacity
(Countryspecic)
1
►1.Batterycapacity
Whenyoupulltheswitchtrigger,theLEDdisplayshows
theremainingbatterycapacity.
Theremainingbatterycapacityisshownasthefollow-
ing table.
Battery indicator status Remaining battery capacity
50% - 100%
20% - 50%
0% - 20%
Charge the battery
On Off Blinking
NOTE:
• Approximatelyoneminuteafterthemotorstops,
theindicatorsgoofftosavethebatterypower.
Tochecktheremainingbatterycapacity,slightly
pull the switch trigger.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsoffpowertothe
motortoextendtoolandbatterylife.
Thetoolwillautomaticallystopduringoperationifthe
toolorbatteryareplacedunderoneofthefollowing
conditions. In some conditions, the indicator lights up.
Overload protection
When the tool is operated in a manner that causes it to
drawanabnormallyhighcurrent,thetoolautomatically
stopswithoutanyindications.Inthissituation,turnthe
tool off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection for tool
When the tool is overheated, the tool stops automati-
callyandthebatteryindicatorshowsfollowingstate.In
this situation, let the tool cool before turning the tool on
again.
Battery indicator
Tool is overheated
On Off Blinking
ASSEMBLY
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
thebatterycartridgeisremovedbeforecarrying
outanyworkonthetool.

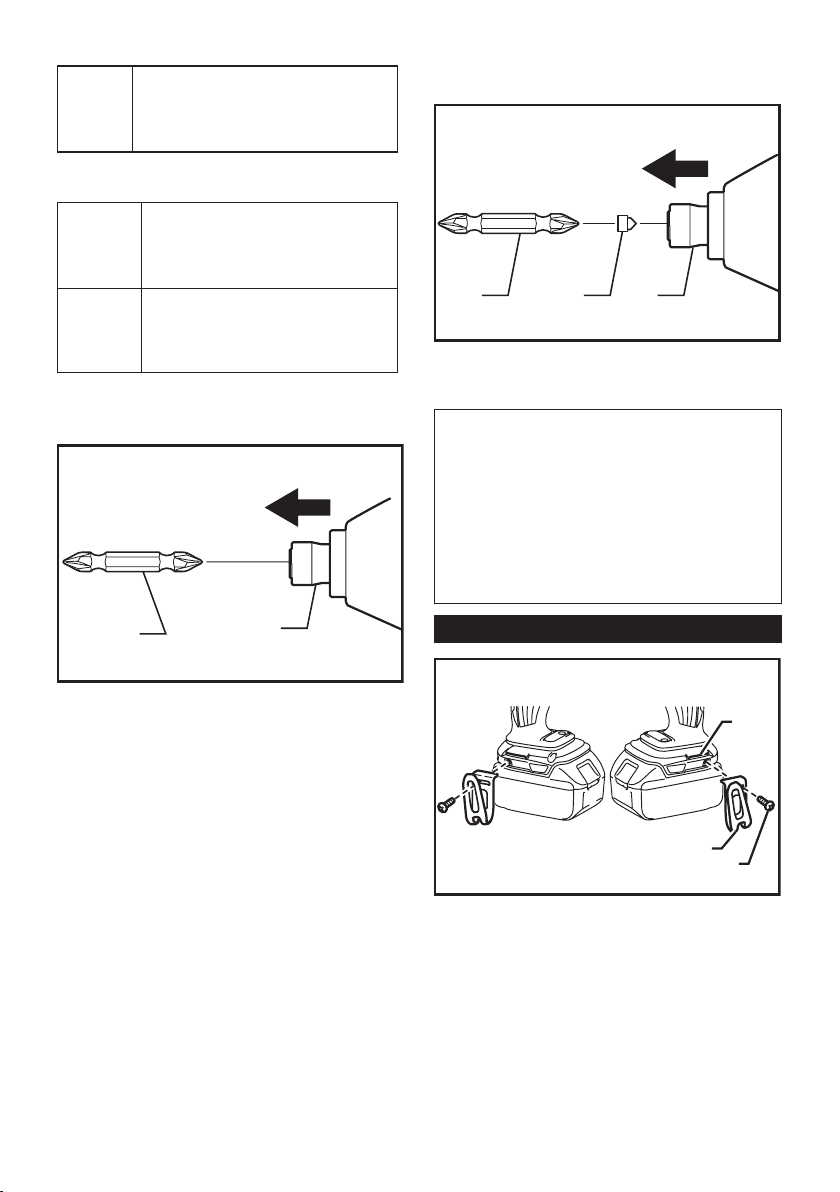

Installing or removing driver bit or
socket bit
Useonlybitsthathasinsertingportionshowninthe
gure.

10 ENGLISH
For tool with shallow bit hole
A=12 mm
B=9 mm
Use only these type of bit. Follow the
procedure (1).
(Note) Bit-piece is not necessary.
For tool with deep bit hole
To install these types of bits, follow
the procedure (1).
To install these types of bits, follow
the procedure (2).
(Note) Bit-piece is necessary for
installing the bit.
A=17 mm
B=14 mm
A=12 mm
B=9 mm
Procedure 1
For tool with normal sleeve
12
►1. Bit 2. Sleeve
To install the bit, pull the sleeve in the direction of the
arrow and insert the bit into the sleeve as far as it will
go. Then release the sleeve to secure the bit.
Fortoolwithone-touchtypesleeve
To install the bit, insert the bit into the sleeve as far as
it will go.
Procedure 2
In addition to the procedure(1) above, insert the bit-
piece into the sleeve with its pointed end facing in.
123
►1. Bit 2. Bit-piece 3. Sleeve
To remove the bit, pull the sleeve in the direction of the
arrow and pull the bit out.
NOTE:
• If the bit is not inserted deep enough into the
sleeve, the sleeve will not return to its original
position and the bit will not be secured. In this
case,tryre-insertingthebitaccordingtothe
instructions above.
• Whenitisdifculttoinsertthebit,pullthe
sleeve and insert it into the sleeve as far as it
will go.
• Afterinsertingthebit,makesurethatitisrmly
secured. If it comes out, do not use it.
Hook
1
23
►1. Groove 2. Hook 3. Screw
Thehookisconvenientfortemporarilyhangingthetool.
This can be installed on either side of the tool.
To install the hook, insert it into a groove in the tool
housing on either side and then secure it with a screw.
To remove, loosen the screw and then take it out.

11 ENGLISH

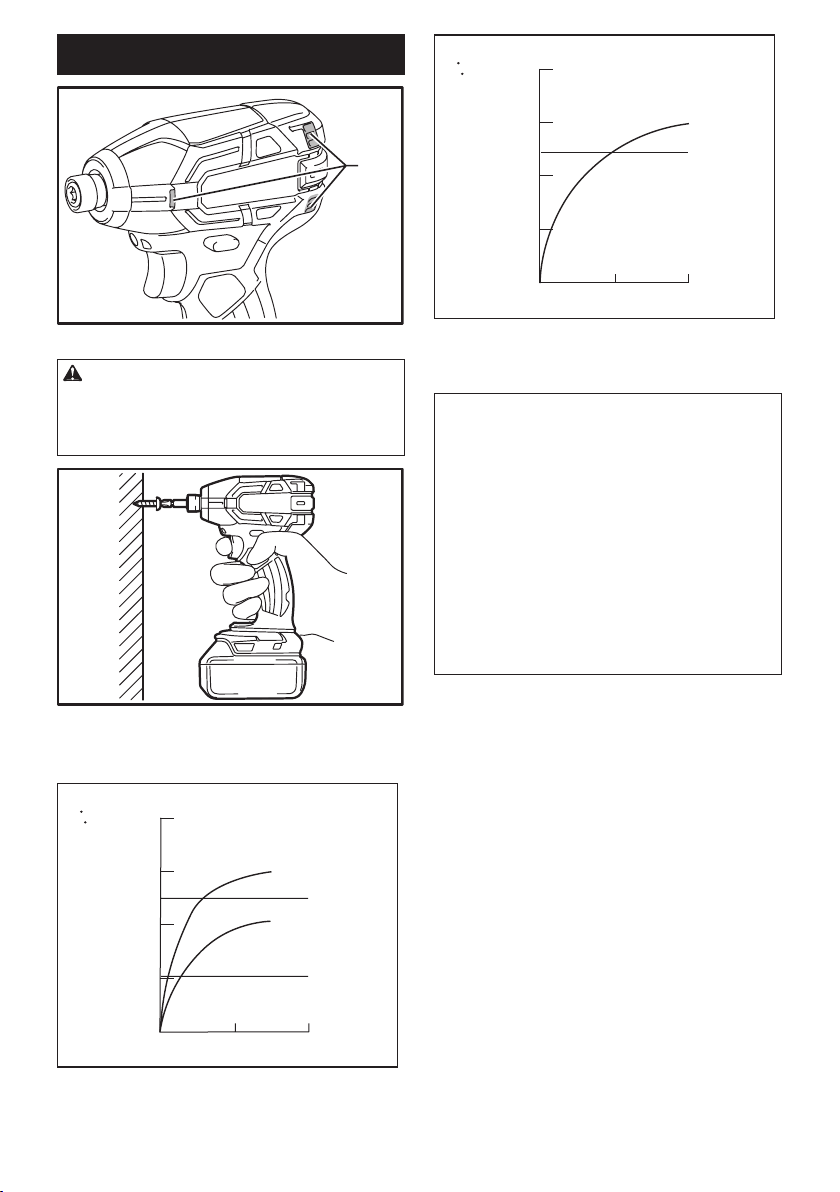

OPERATION
1
►1. Vent
CAUTION:
• Never obstruct the air vents on the side of the
tool for cooling down oil unit and motor during
operation.Failuretodosomaycausethetool
excessiveheatanddamage.
Theproperfasteningtorquemaydifferdependingupon
the kind or size of the screw/bolt, the material of the
workpiece to be fastened, etc. The relation between fas-
teningtorqueandfasteningtimeisshowninthegures.
Standard bolt
N m
Fastening torque
Fastening time (S)
Proper fastening torque
(kgf cm) 20
(204)
15
(153)
10
(102)
5
(51)
01.0 2.0
M6
M8
M8
M6
High tensile bolt
N m
Fastening torque
Fastening time (S)
Proper fastening torque
(kgf cm)
01.0 2.0
M6
M6
20
(204)
15
(153)
10
(102)
5
(51)
Holdthetoolrmlyandplacethepointofthedriverbit
inthescrewhead.Applyforwardpressuretothetoolto
theextentthatthebitwillnotslipoffthescrewandturn
the tool on to start operation.
NOTE:
• Use the proper bit for the head of the screw/bolt
thatyouwishtouse.
• Chooseaproperimpactforceandcarefully
adjustpressureontheswitchtriggersothatthe
screw is not damaged.
• Hold the tool pointed straight at the screw.
• For tightening bolt, select the soft or T mode
impact force grade.
• Iftheimpactforceistoostrongyoutighten
the screw for a time longer than shown in the
gures,thescreworthepointofthedriverbit
maybeoverstressed,stripped,damaged,etc.
Beforestartingyourjob,alwaysperformatest
operation to determine the proper fastening time
foryourscrew.
Thefasteningtorqueisaffectedbyawidevarietyof
factorsincludingthefollowing.Afterfastening,always
checkthetorquewithatorquewrench.
1. Whenthebatterycartridgeisdischargedalmost
completely,voltagewilldropandthefastening
torquewillbereduced.
2. Driver bit or socket bit
Failure to use the correct size driver bit or socket
bitwillcauseareductioninthefasteningtorque.
3. Bolt
• Eventhoughthetorquecoefcientandthe
class of bolt are the same, the proper fasten-
ingtorquewilldifferaccordingtothediame-
ter of bolt.
• Even though the diameters of bolts are the
same,theproperfasteningtorquewilldiffer
accordingtothetorquecoefcient,theclass
of bolt and the bolt length.
4. The manner of holding the tool or the material
of driving position to be fastened will affect the
torque.
5. Operating the tool at low speed will cause a reduc-
tioninthefasteningtorque.

www.makita.com
Makita Europe N.V.
Makita Corporation 3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
MAINTENANCE
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
thebatterycartridgeisremovedbeforeattempt-
ingtoperforminspectionormaintenanceexcept
for the following troubleshooting related to the
light.
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
mayresult.
To maintain product SAFETY and RELIABILITY, repairs,
anyothermaintenanceoradjustmentshouldbeper-
formedbyMakitaAuthorizedServiceCenters,always
using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
•
These accessories or attachments are recom-
mendedforusewithyourMakitatoolspeciedinthis
manual.Theuseofanyotheraccessoriesorattach-
mentsmightpresentariskofinjurytopersons.Only
useaccessoryorattachmentforitsstatedpurpose.
Ifyouneedanyassistanceformoredetailsregarding
theseaccessories,askyourlocalMakitaServiceCenter.
• Screw bits
• Socket bits
• Hook
• Plasticcarryingcase
• Makitagenuinebatteryandcharger
• Bit-piece
• Batteryprotector
• Tool hanger
NOTE:
• Someitemsinthelistmaybeincludedinthe
toolpackageasstandardaccessories.They
maydifferfromcountrytocountry.
885375D222
EN
20190417
Other manuals for DTS131
8
This manual suits for next models
1
Table of contents
Other Makita Power Tools manuals

Makita
Makita DMC300 User manual

Makita
Makita DCG140Z User manual

Makita
Makita DSC250 User manual

Makita
Makita SG1250 User manual

Makita
Makita 3620 User manual

Makita
Makita JN1601 User manual

Makita
Makita JS3201 User manual

Makita
Makita DSS610 User manual

Makita
Makita M8701 User manual

Makita
Makita HR003G User manual

Makita
Makita 4350T User manual

Makita
Makita TW100D Series User manual

Makita
Makita AN450H Manual

Makita
Makita HM1800 User manual

Makita
Makita 6917FD User manual

Makita
Makita JS1000 User manual

Makita
Makita XWT04Z User manual

Makita
Makita M193 User manual

Makita
Makita DTW190Z User manual

Makita
Makita SG1250 User manual
