Mandik FDMR User manual


2
≥ 40

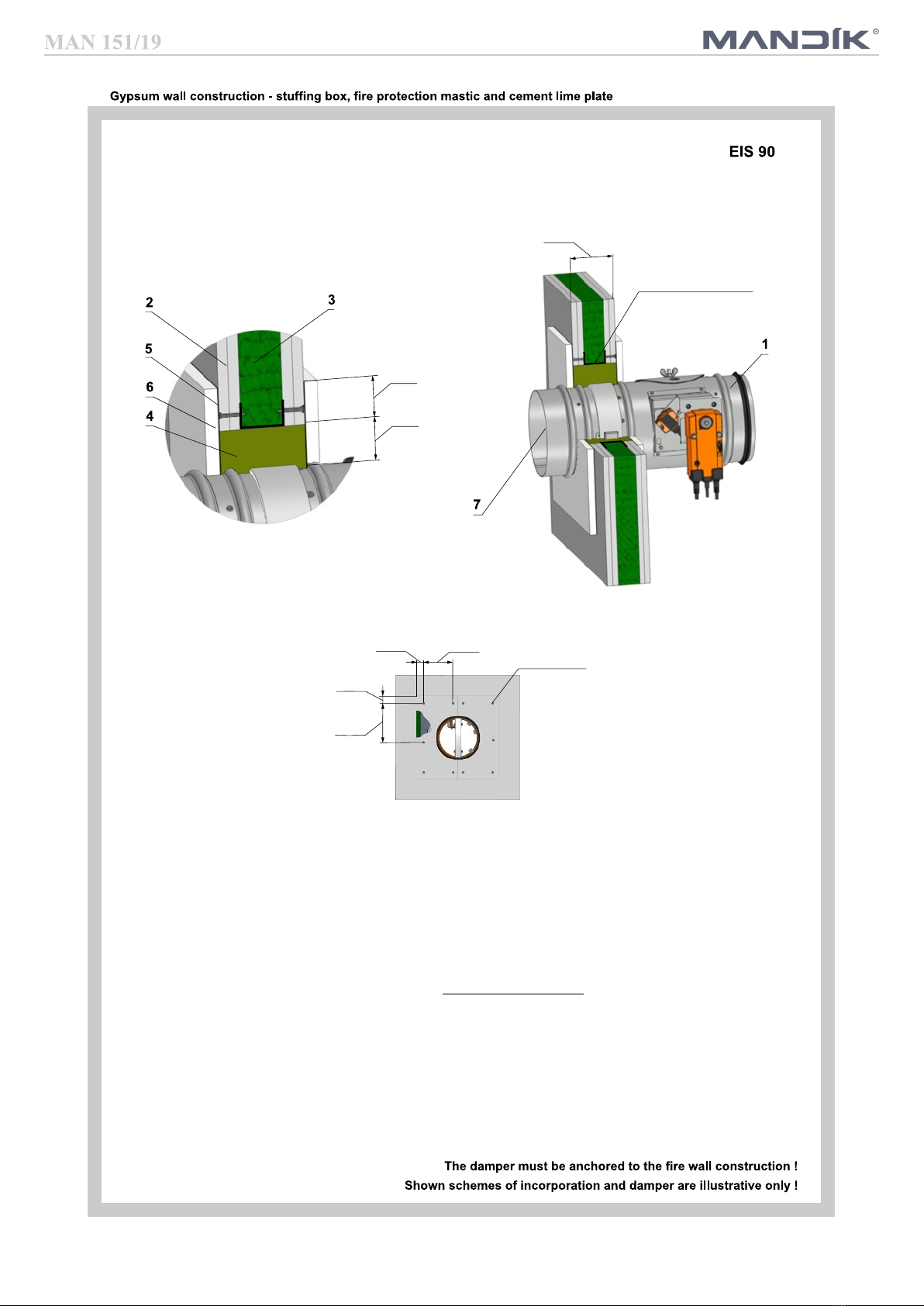

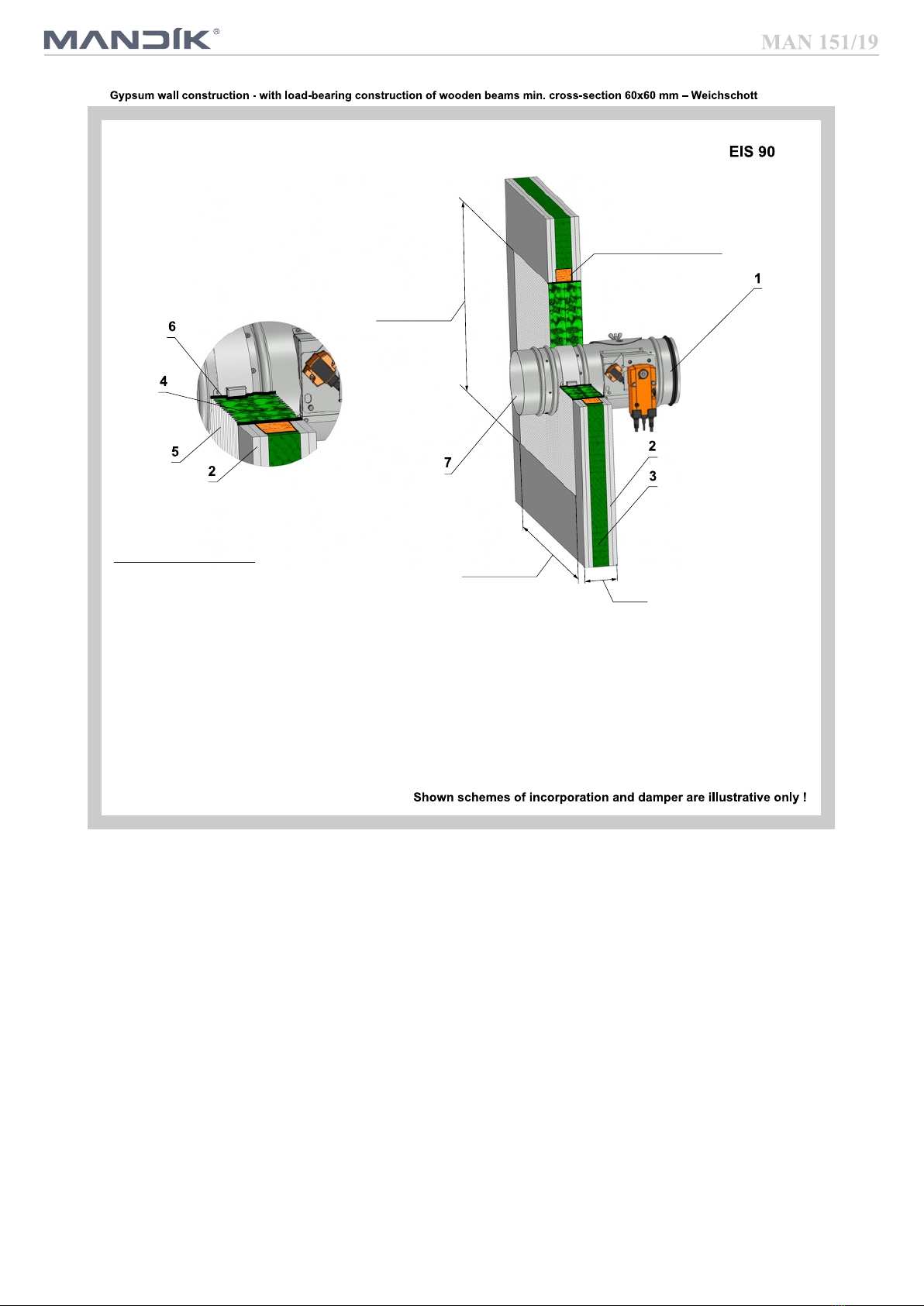

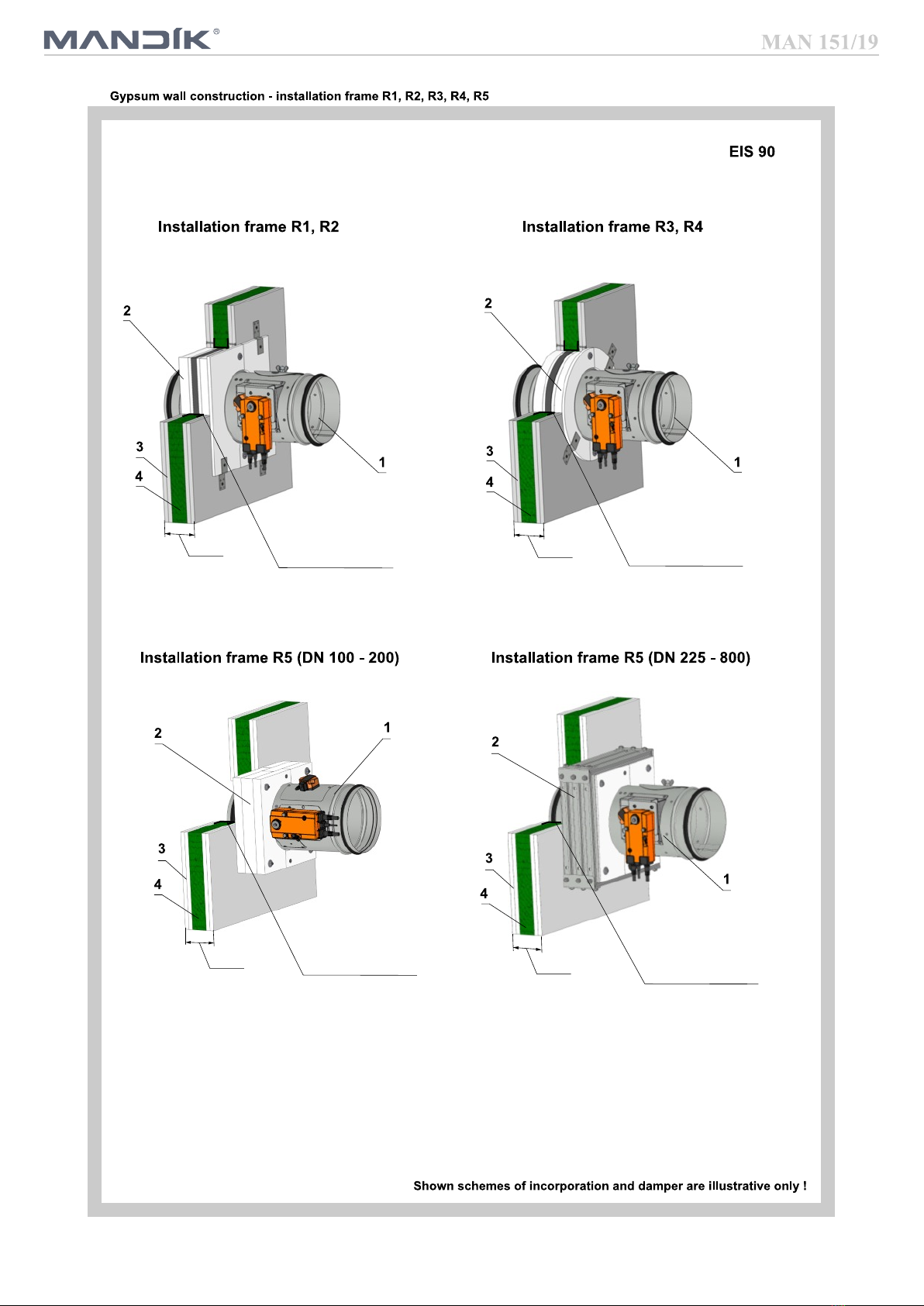

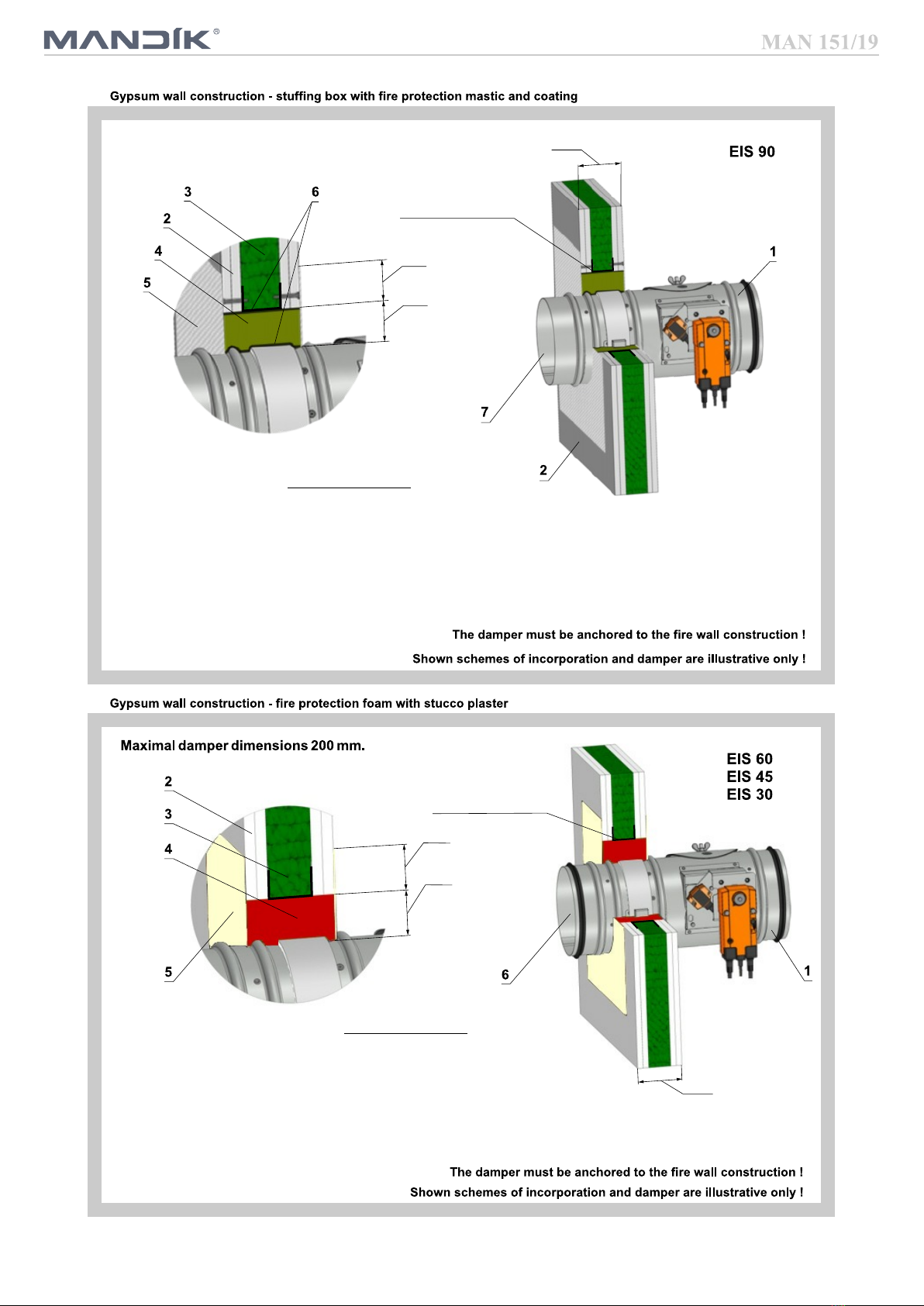

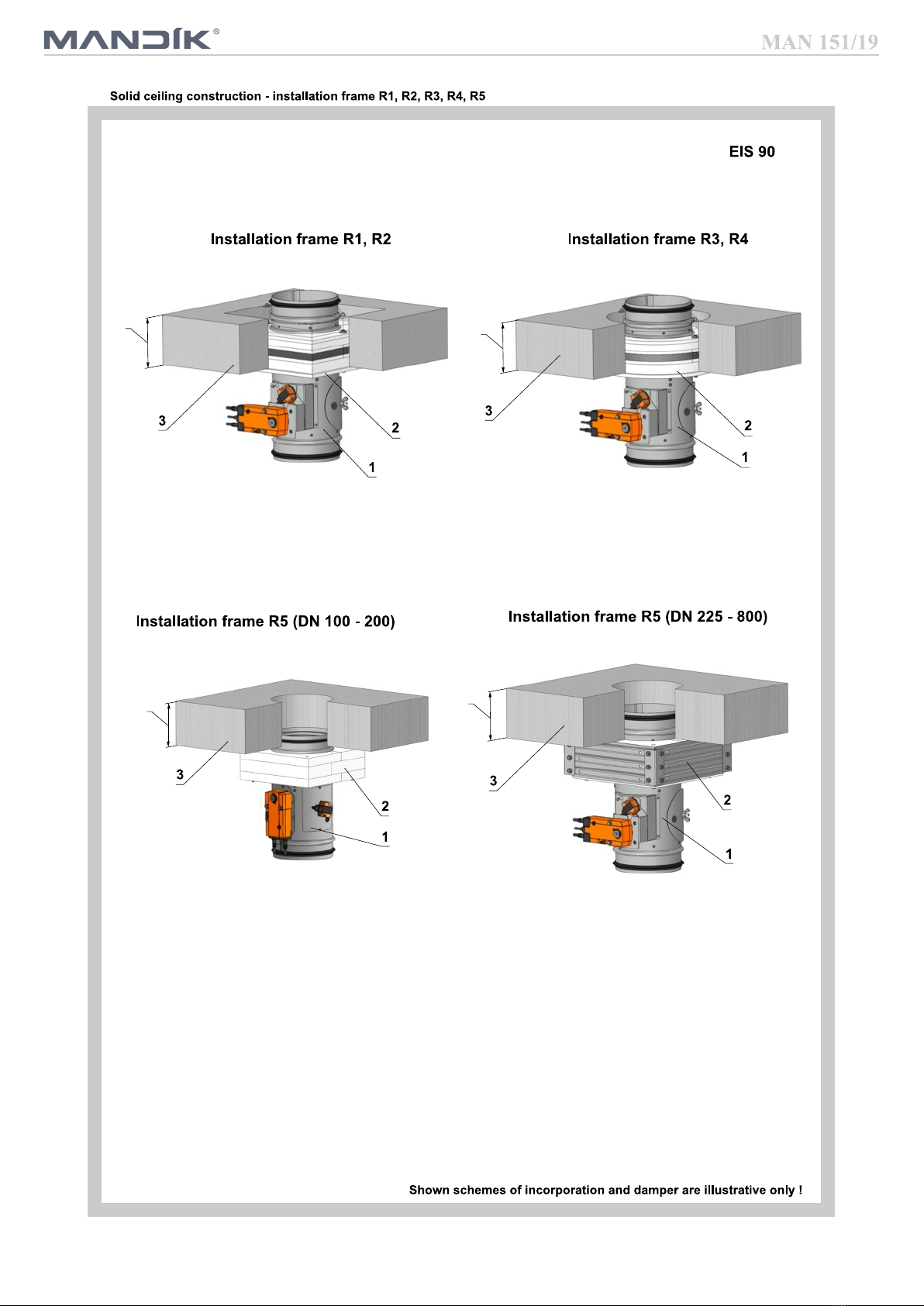

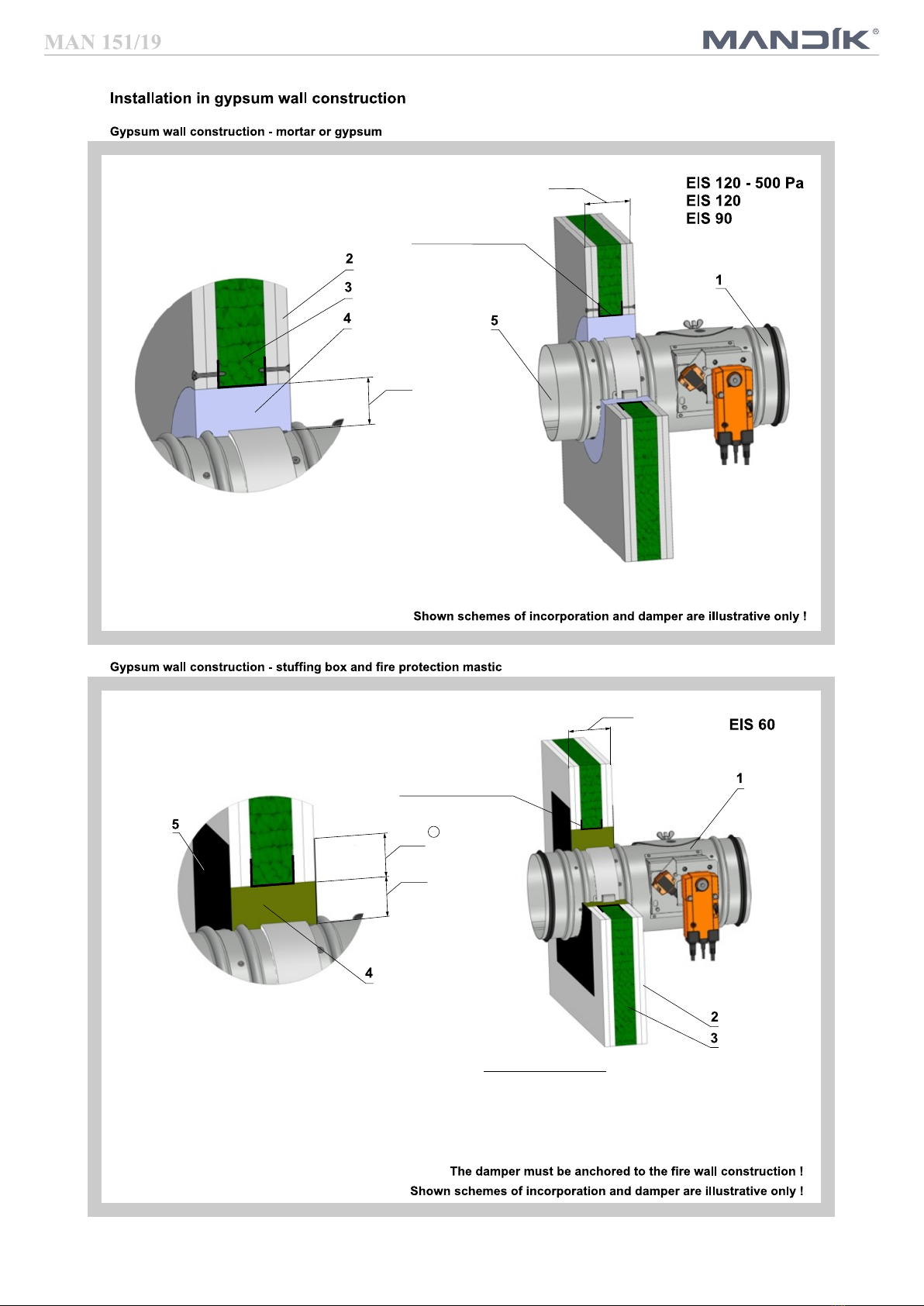

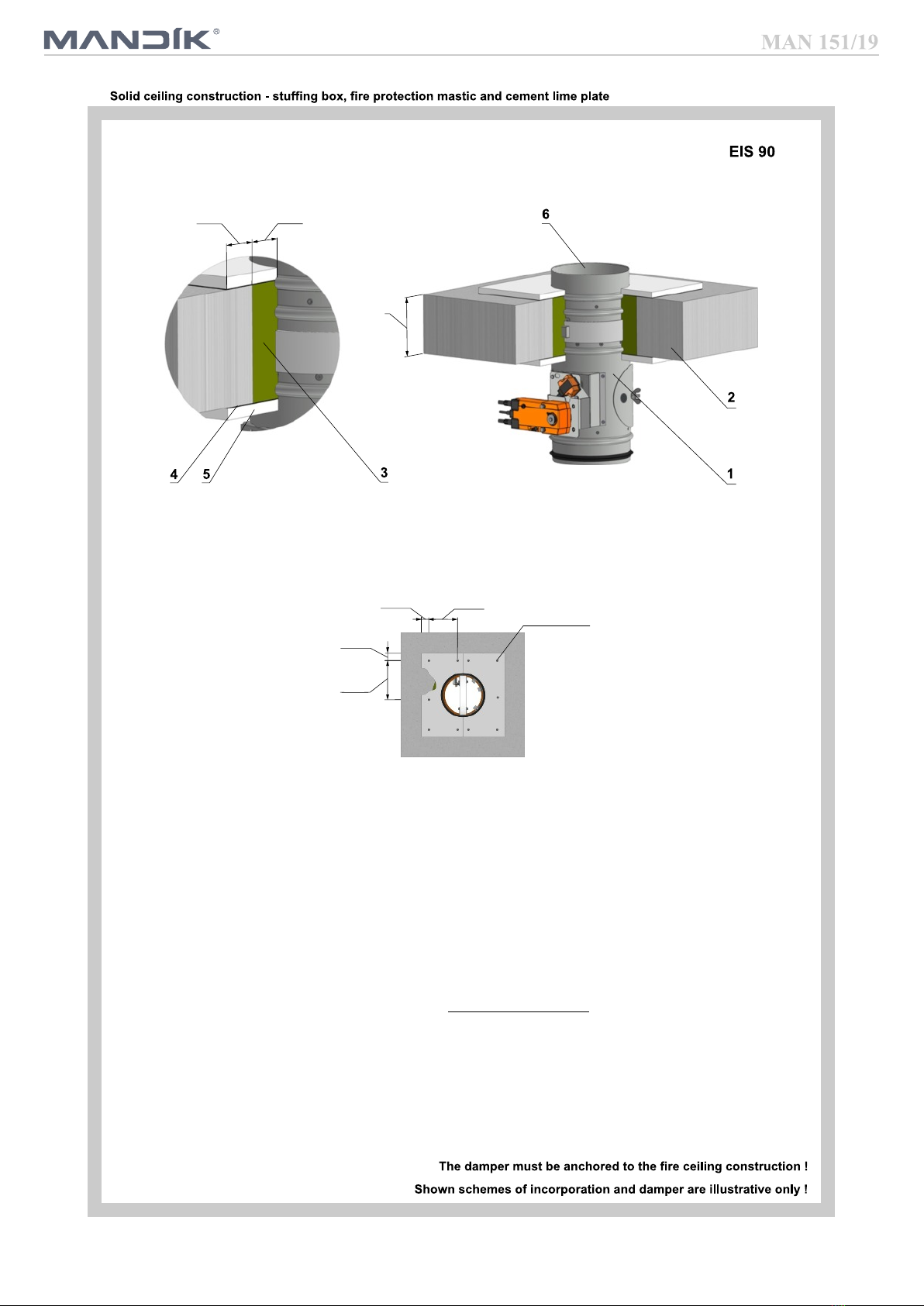

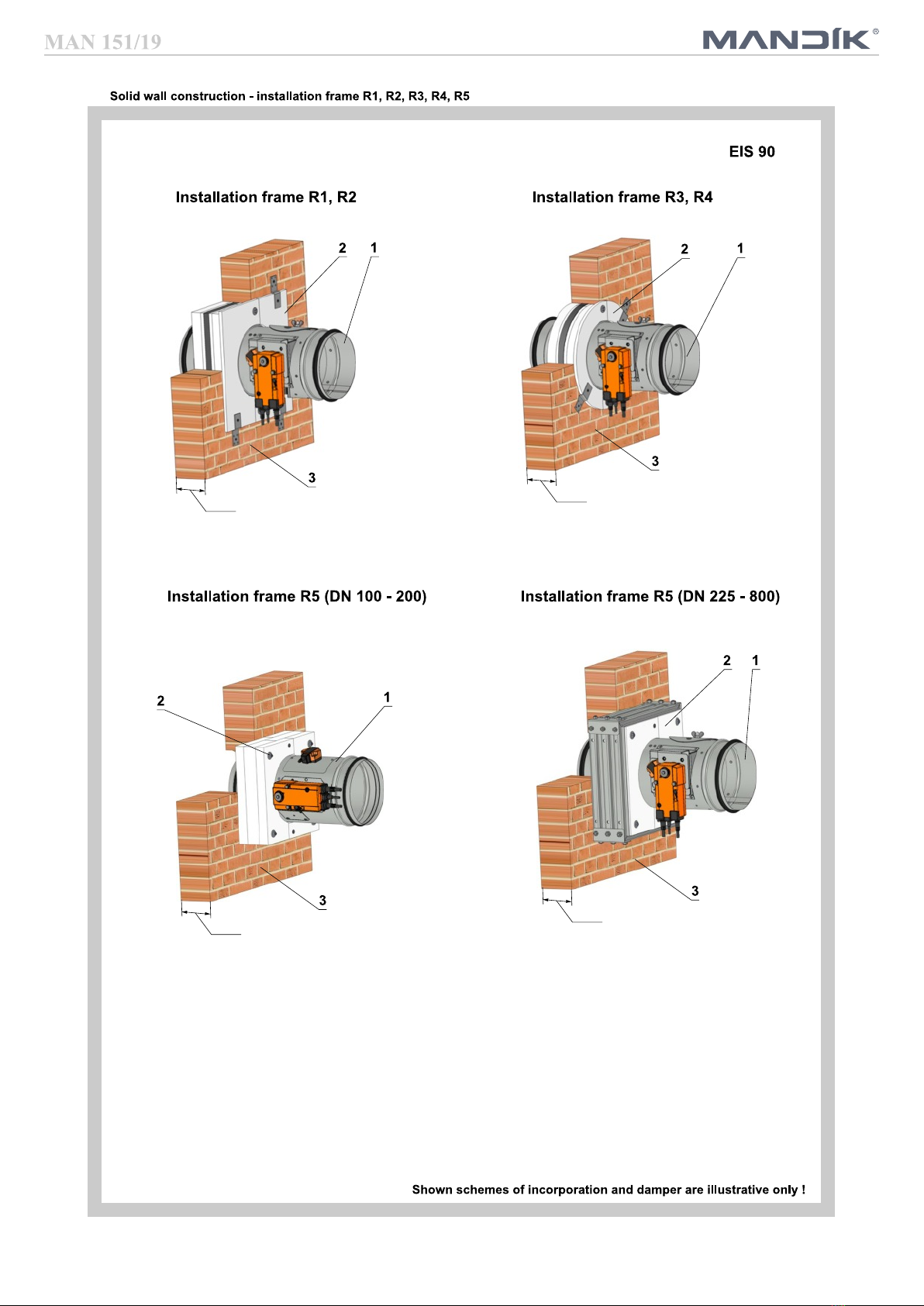

Position:
1 Fire damper
2 Solid wall construction
3 Mortar or gypsum
4 Duct
Position:
1 Fire damper
2 Solid wall construction
3
Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
≥ 50
≥ 25
4
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 100
≥ 100

3
Position:
1 Fire damper
2 Solid wall construction
3Stuffing box (mineral stone wool min. density 150 kg/m³)
4 Fire protection coating th. 1 mm
5 Fire protection mastic th. 1 mm
6 Duct
Used materials - example:*
3
HILTI CFS-CT B 1S 140/50 or
ROCKWOOL HARDROCK + coating HILTI CFS-CT
4 HILTI CFS-CT
5 HILTI CFS-S ACR
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 40
≥ 40
≥ 50
≥ 40
≥ 100
Position:
1 Fire damper
2 Solid wall construction
3 Fire protection foam
4 Stucco plaster
5 Duct
Used materials - example:
3 HILTI CFS-F FX - EIS 60
PROMAFOAM-C - EIS 45
SOUDAL, Soudafoam FR-B1 - EIS 30
DenBraven, Fire protection foam - EIS 30
≥ 100

4
≥ 40
≥ 50
≥ 100
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
≤ 300
≤ 300
Screw
(min. 4x50)
≥ 25
≥ 25
Position:
1 Fire damper
2 Solid wall construction
3Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5
Cement lime plate min. thickness 15 mm min. density 870 kg/m³
6 Duct
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
* Fire resistant insulation and fire resistant board can
be replaced by another approved fire sealing sys-
tem for damper installation with equivalent material
properties.

5
≥ 100
≥ 100
≥ 100
Position:
1 Fire damper
2 Installation frame
3 Solid wall construction
≥ 100

6
Position:
1 Fire damper
2 Solid wall construction
3 Fire resistant board
4
Fire stop coating thickness 1 mm
5 Duct
Used materials - example:*
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 100
D+60 to 800
max. 2050
D+60 to 800
max. 1650

7
Position:
1 Fire damper
2 Solid wall construction
3 Mortar or gypsum
4
Stone wool with wired mat on
one side, density 66 kg/m³
5 Duct
≥ 40*
≥ 100
* Around the perimeter
Position:
1 Fire damper
2 Solid wall construction
3 Stuffing box (mineral stone wool min.
density 150 kg/m³)
4
Fire protection mastic min. thickness 1 mm
5 Stone wool with wired mat on one side,
density 66 kg/m³
6 Duct
≥ 25*
≥ 100
≥ 40*
* Around the perimeter
4
** The materials for stuffing box, fire protection mastic, lining and insulation materials can
be replaced by another approved fire sealing system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited and
according to EN 15882-2, the required number of suspensions acc. to EN 1366-1:2014
must be used.
Used materials - example:**
4 DN 100 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 100 mm - EIS 60
DN 100 ÷ DN 315 - System ISOVER_ULTIMATE PROTECT, th. 120 mm (2x60 mm) - EIS 90
DN 350 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 160 mm (100+60 mm) - EIS 90
Used materials - example:**
3 Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 DN 100 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 100 mm - EIS 60
DN 100 ÷ DN 315 - System ISOVER_ULTIMATE PROTECT, th. 120 mm (2x60 mm) - EIS 90
DN 350 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 160 mm (100+60 mm) - EIS 90
** The materials for stuffing box, fire protection mastic, lining and insulation materials
can be replaced by another approved fire sealing system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited and
according to EN 15882-2, the required number of suspensions acc. to EN 1366-
1:2014 must be used.

8
≥ 50
≥ 100 variable**
≥ 100
≥ 40
180
240
≥ 400
≤ 300
≤ 300
Screw
(min. 4x50)
≥ 25
≥ 25
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
6Rockwool Wired Mat 105 th. 3x60 mm
7Rockwool Wired Mat 105 th. 60 mm

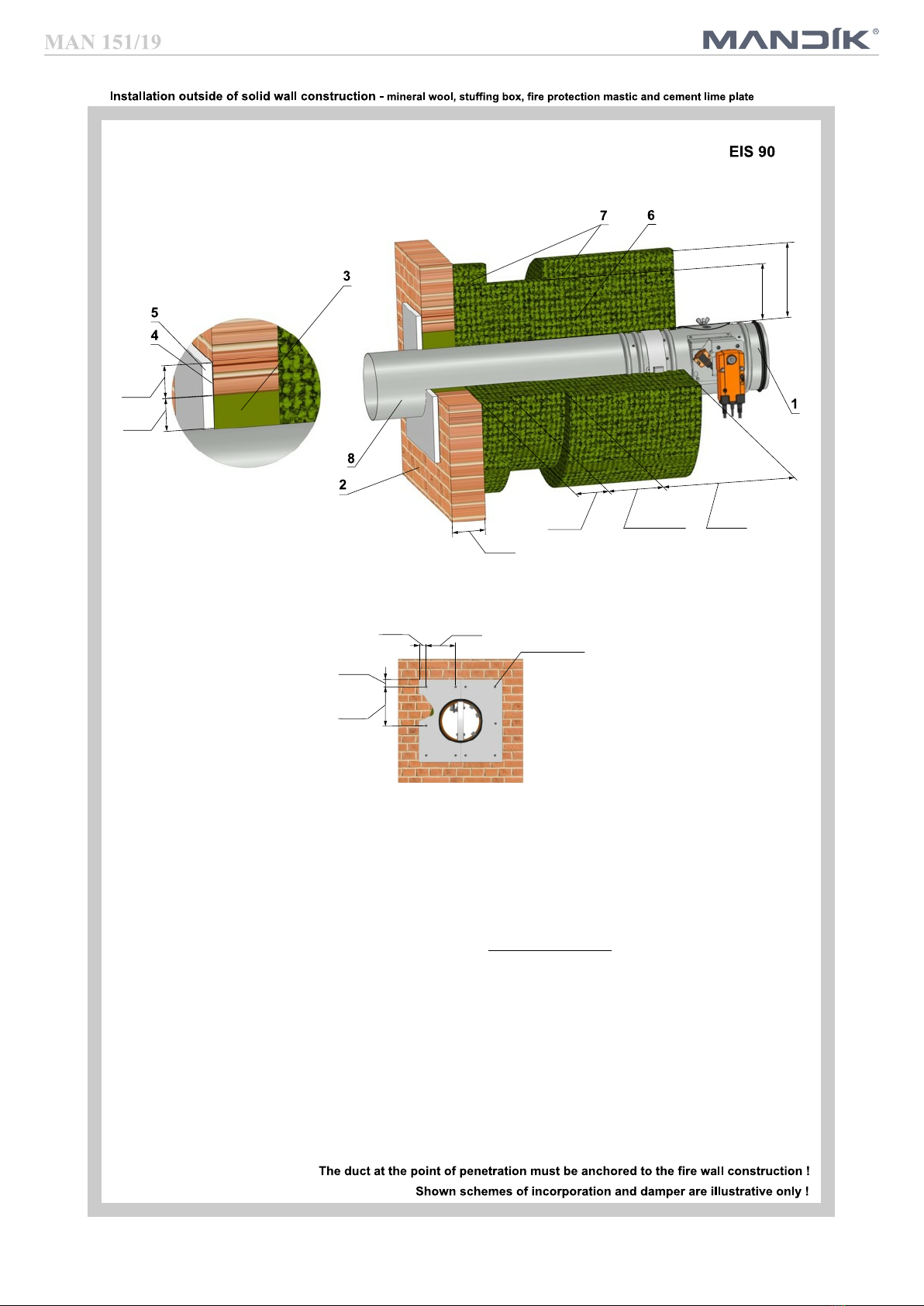

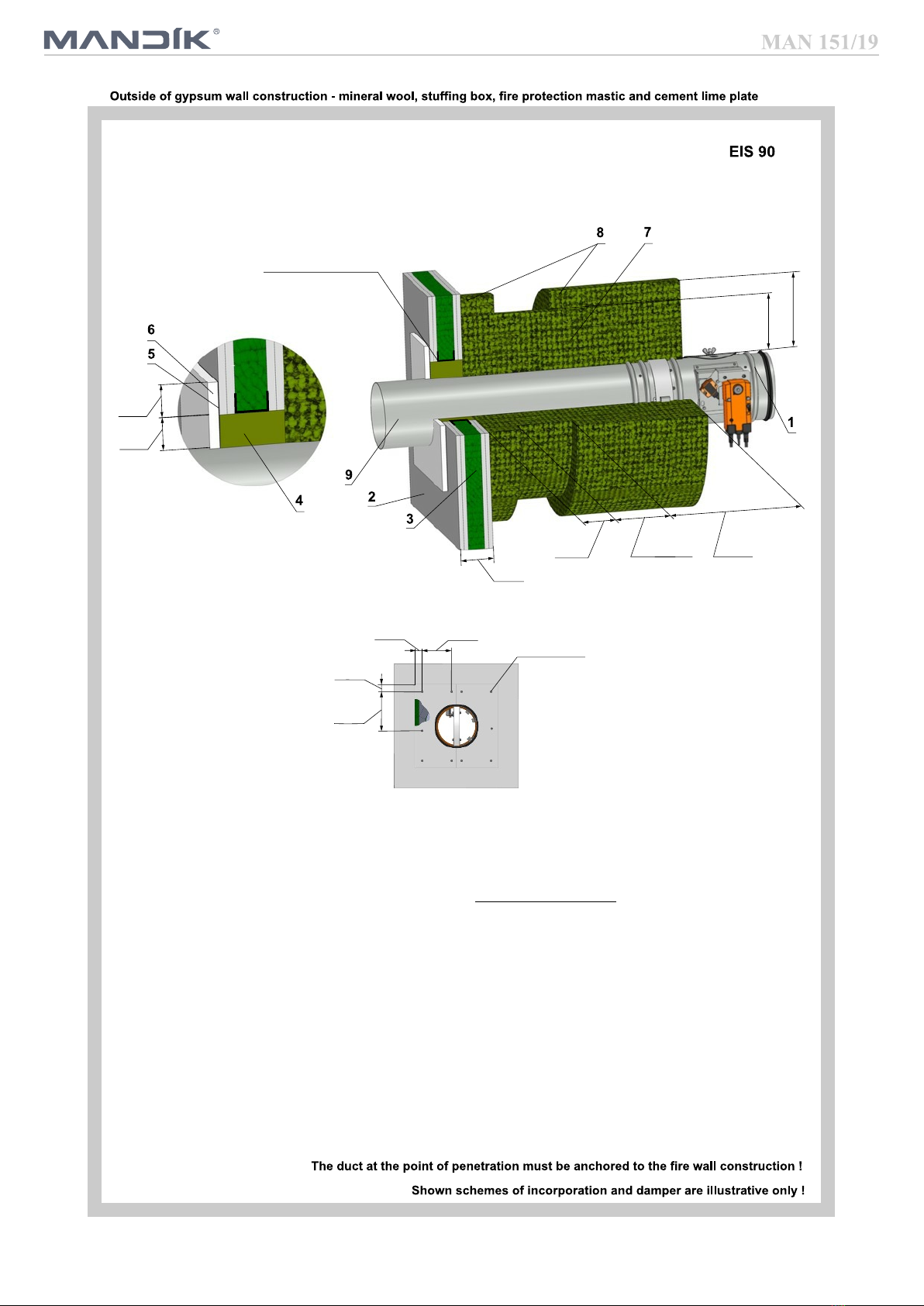

Position:
1Fire damper
2Solid wall construction
3
Stuffing box (mineral stone wool min. density 140 kg/m³)
4Fire protection mastic min. thickness 1 mm
5Cement lime plate min. thickness 15 mm
(min. density 870 kg/m³)
6Stone wool with one side stitched wire fencing (min.
density 105 kg/m³), thickness 180 mm (e.g. 3x60 mm)
7Stone wool with one side stitched wire fencing (min.
density 105 kg/m³), thickness 60 mm
8Duct
* Stuffing box, fire protection mastic, cement lime plate and
insulation materials can be replaced by another approved fire
sealing system for damper installation with equivalent material
properties.
** Depends on the distance of the flap from the construction, when
the maximum distance from the construct is not limited and
according to EN 15882-2 must use the required number of
hinges according to EN 13366-1:2014.

9
≥ 40
≥ 25
≥ 50
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Mortar or gypsum
5 Duct
Used materials - example:*
4
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Stuffing box (mineral stone wool min. density 140 kg/m³)
5 Fire protection mastic min. thickness 1 mm
≥ 100
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
5
≥ 100

10
≥ 100
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4Stuffing box (mineral stone wool min. density 150 kg/m³)
5 Fire protection coating th. 1 mm
6 Fire protection mastic th. 1 mm
7 Duct
Used materials - example:*
4
HILTI CFS-CT B 1S 140/50 or
ROCKWOOL HARDROCK + coating HILTI CFS-CT
5 HILTI CFS-CT
6 HILTI CFS-S ACR
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 40
≥ 40
≥ 50
≥ 40
≥ 100
Used materials - example:
4 HILTI CFS-F FX - EIS 60
PROMAFOAM-C - EIS 45
SOUDAL, Soudafoam FR-B1 - EIS 30
DenBraven, Fire protection foam - EIS 30
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Fire protection foam
5 Stucco plaster
6 Duct
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

11
≤ 300
≤ 300
Screw
(min. 4x50)
≥ 25
≥ 25
The screws must be firmly anchored in
the profile of gypsum wall construction.
≥ 40
≥ 100
≥ 50
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool (type depending on the type of construction)
4Stuffing box (mineral stone wool min. density 140 kg/m³)
5 Fire protection mastic min. thickness 1 mm
6
Cement lime plate min. th. 15 mm (min. density 870 kg/m³)
7 Duct
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
* Fire resistant insulation and fire resistant board can
be replaced by another approved fire sealing sys-
tem for damper installation with equivalent material
properties.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

12
≥ 100
≥ 100
≥ 100
Position:
1 Fire damper
2 Installation frame
3 Gypsum plate
4
Mineral wool
(type depending on the type of construction)
≥ 100
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

13
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool
(type depending on the type of construction)
4 Fire resistant board
5 Fire stop coating thickness 1 mm
6 Duct
Used materials - example:*
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 100
D+60 to 800
max. 2050
D+60 to 800
max. 1650
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

14
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool
(type depending on the type of construction)
4 Fire resistant board
5 Fire stop coating thickness 1 mm
6 Fire protection coating th. 1 mm
7 Duct
D+60 to 800
max. 2050
Used materials - example:*
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
≥ 110
D+60 to 800
max. 1650
* Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
The mounting hole must be
reinforced with a wooden frame
made of 60x60 mm beams.

15
≥ 25*
≥ 40*
≥ 40*
5
Used materials - example:**
4 Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
6 DN 100 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 100 mm - EIS 60
DN 100 ÷ DN 315 - System ISOVER_ULTIMATE PROTECT, th. 120 mm (2x60 mm) - EIS 90
DN 350 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 160 mm (100+60 mm) - EIS 90
≥ 100
* Around the perimeter
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool
(type depending on the type of construction)
4 Stuffing box (mineral stone wool min.
density 150 kg/m³)
5
Fire protection mastic min. thickness 1 mm
6 Stone wool with wired mat on one side,
density 66 kg/m³
7 Duct
Used materials - example:**
5 DN 100 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 100 mm - EIS 60
DN 100 ÷ DN 315 - System ISOVER_ULTIMATE PROTECT, th. 120 mm (2x60 mm) - EIS 90
DN 350 ÷ DN 800 - System ISOVER_ULTIMATE PROTECT, th. 160 mm (100+60 mm) - EIS 90
≥ 100
* Around the perimeter
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool
(type depending on the type of construction)
4 Mortar or gypsum
5
Stone wool with wired mat on one side,
density 66 kg/m³
6 Duct
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
** The materials for stuffing box, fire protection mastic, lining and insulation materials
can be replaced by another approved fire sealing system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited and
according to EN 15882-2, the required number of suspensions acc. to EN 1366-
1:2014 must be used.
** The materials for stuffing box, fire protection mastic, lining and insulation materials
can be replaced by another approved fire sealing system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited and
according to EN 15882-2, the required number of suspensions acc. to EN 1366-
1:2014 must be used.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

16
≥ 50
≥ 40
180
240
≥ 100 variable** ≥ 400
≥ 100
≤ 300
≤ 300
Screw
(min. 4x50)
≥ 25
≥ 25
The screws must be firmly anchored in
the profile of gypsum wall construction.
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4
Promapyr. Rockwool Steprock HD. Hilti CFS-CT C 1S 140/50
5Promastop - P, K, Hilti CFS-CT
6 Promatect - H
7 Rockwool Wired Mat 105 th. 3x60 mm
8 Rockwool Wired Mat 105 th. 60 mm
Position:
1Fire damper
2Gypsum plate
3Mineral wool (type depending on the type of construction)
4Stuffing box (mineral stone wool min. density 140 kg/m³)
5Fire protection mastic min. thickness 1 mm
6Cement lime plate min. thickness 15 mm
(min. density 870 kg/m³)
7Stone wool with one side stitched wire fencing (min.
density 105 kg/m³), thickness 180 mm (e.g. 3x60 mm)
8Stone wool with one side stitched wire fencing (min.
density 105 kg/m³), thickness 60 mm
9Duct
* Stuffing box, fire protection mastic, cement lime plate and
insulation materials can be replaced by another approved fire
sealing system for damper installation with equivalent material
properties.
** Depends on the distance of the flap from the construction, when
the maximum distance from the construct is not limited and
according to EN 15882-2 must use the required number of
hinges according to EN 13366-1:2014.
Installation opening has to
be reinforced by profile
(UW, CW). Profil is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

17
Position:
1 Fire damper
2 Solid ceiling construction
3 Mortar or gypsum
4 Duct
*
≥ 40
Used materials - example:**
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
** Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
≥ 25
≥ 50
*
Position:
1Fire damper
2Solid ceiling construction
3
Stuffing box (mineral stone wool min. density 140 kg/m³)
4Fire protection mastic min. thickness 1 mm
* min. 110 - Concrete/ min. 125 - Aerated concrete
* min. 110 - Concrete/ min. 125 - Aerated concrete
4

18
≤ 300
≥ 25
≥ 25
≥ 40
≥ 50
*
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
≤ 300
Screw
(min. 4x50)
Used materials - example:*
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
** Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
Position:
1 Fire damper
2 Solid ceiling construction
3Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5
Cement lime plate min. thick. 15 mm min. density 870 kg/m³
6 Duct
* min. 110 - Concrete/ min. 125 - Aerated concrete

19
≥ 40
≥ 40
*
Used materials - example:**
3
HILTI CFS-CT B 1S 140/50 or
ROCKWOOL HARDROCK + coating HILTI CFS-CT
4 HILTI CFS-CT
5 HILTI CFS-S ACR
** Fire resistant insulation and fire resistant board can be
replaced by another approved fire sealing system for
damper installation with equivalent material properties.
Position:
1 Fire damper
2 Solid ceiling construction
3Stuffing box (mineral stone wool min. density 150 kg/m³)
4 Fire protection coating th. 1 mm
5 Fire protection mastic th. 1 mm
6 Duct
* min. 110 - Concrete/ min. 125 - Aerated concrete

20
*
*
*
Position:
1 Fire damper
2 Installation frame
3
Solid ceiling construction
*
* min. 110 - Concrete/ min. 125 - Aerated concrete
Other manuals for FDMR
3
This manual suits for next models
