MAZDA5㧙1
GENUINE SATELLITE RADIO KIT
INSTALLATION INSTRUCTIONS

Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the satellite
radio kit. Your safety depends on it.
Keep these instructions with your vehicle records for future reference.

xThere are several WARNING and CAUTION sections in this booklet concerning
safety when installing. Always read and follow them in order to prevent injuries,
accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if the
warning is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle
could result if the caution is ignored.
xIf in any doubt, please ask your Mazda dealer to install the accessory in order to
prevent errors in installation.
xIf you have any questions about the use of the accessory, ask your Mazda dealer for
proper advice before using it.
xMazda and its suppliers are not responsible for injuries, accidents, and damage to
persons and property that arise from the failure of the dealer or installer to follow these
instructions.
xTo ensure safety and reliability of the work, installation, removal and disposal work
done by an Authorized Mazda Dealership is recommended.
xBe careful not to lose removed parts, and be sure that they are kept free from
scratches, grease or other dirt.
PART NAME: SATELLITE RADIO KIT
PART NUMBER: 0000 81 L25 (Harness Kit H5)
VEHICLE: MAZDA5
(Applicable to 2012 model year vehicle and after)
1ED6P11A23800
To the dealer
xPlease turn over these instructions to the customer after installation.
To the customer
xKeep these instructions after installation. The instructions may be necessary for
installing other optional parts or removal of this accessory.
xShould the vehicle or this accessory be resold, always leave these instructions
with it for the next owner.
Note
WARNING

MAZDA5㧙2

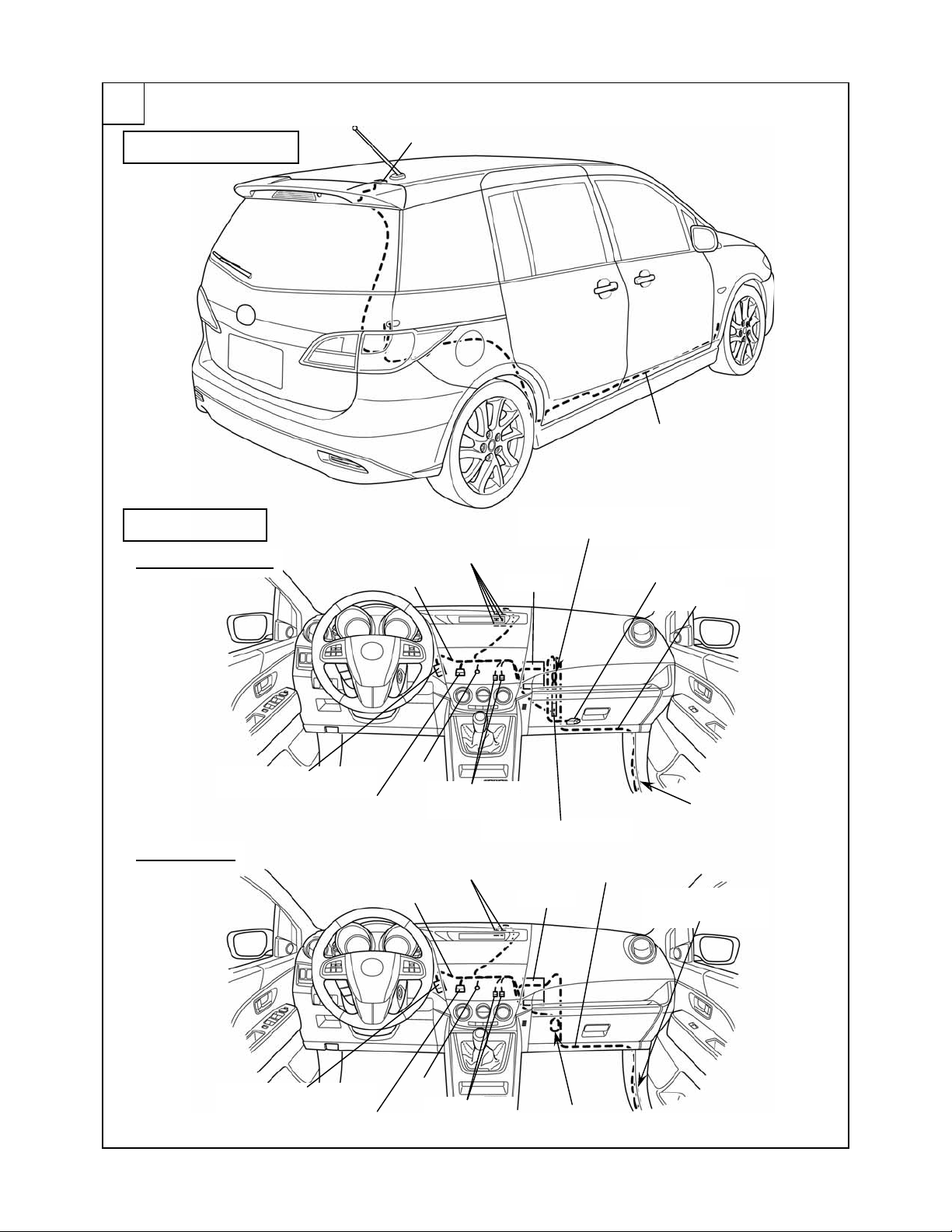

INSTALLATION VIEW
1
DLP unit
Antenna cable
Antenna
iPod integration module
SIRIUS and iPod
ANTENNA CABLE
HARNESS (H5)
SIRIUS only
Antenna cable
Electro tap
䇼CAN (+) and CAN (-)䇽
To AUX or Bluetooth H/F㩷GND
Harness (H5)
Tie redundant part
㩿iPod connection cable)㩷
To Audio unit
Tie redundant part
㩿Harness (H5))㩷
Electro tap
䇼+B and ACC䇽Tie redundant part
(Antenna cable)㩷
DLP unit
Antenna cable
Electro tap
䇼CAN (+) and CAN (-)䇽
To AUX or Bluetooth H/F㩷GND
Harness (H5)
To Audio unit
Electro tap
䇼+B and ACC䇽
Tie redundant part
(Antenna cable)㩷
iPod connection cable㩷

MAZDA5㧙3

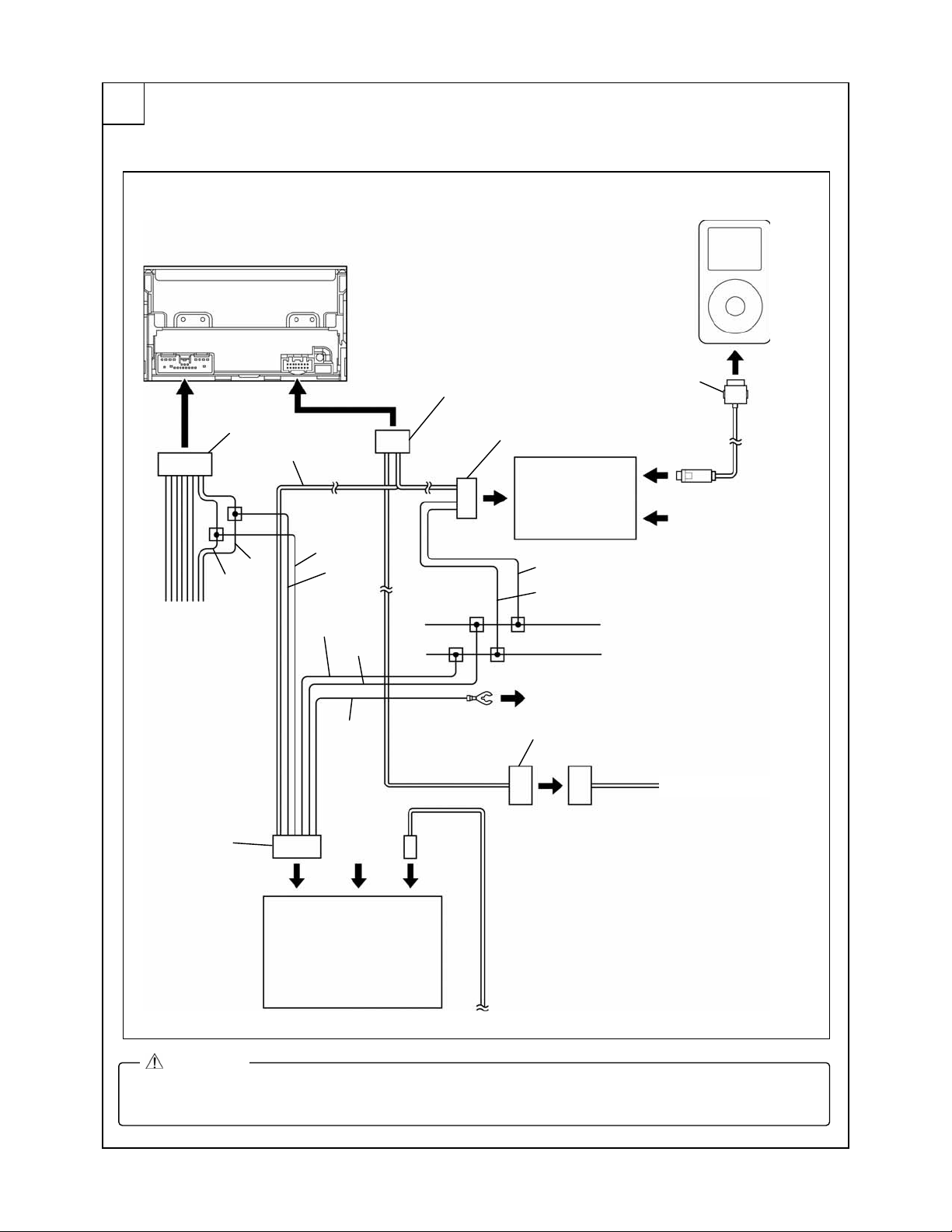

CONNECTION DIAGRAM
<Installation of SIRIUS and iPod integration module>
2
xWhen connecting a connector, be sure to insert it straight along the guide.
The connector terminal may be bent if inserted at an angle.
CAUTION

iPod
(On market product)
DLP unit
(SIRIUS)
Antenna cable
To AUX or Bluetooth H/F
iPod
integration module
NO
CONNECT
iPod connection cable
Audio unit
16 pin connector (White)
To dashboard member
CAN (+)
Harness (H5)
CAN (-)
CAN (+)
+B
ACC
A
udio 24-pin
connector
ACC
GND
+B CAN (+)
NO CONNECT
16 pin connector
(Gray)
16 pin connector
16 pin connector (Black)
CAN (-)
CAN (-)

MAZDA5㧙4

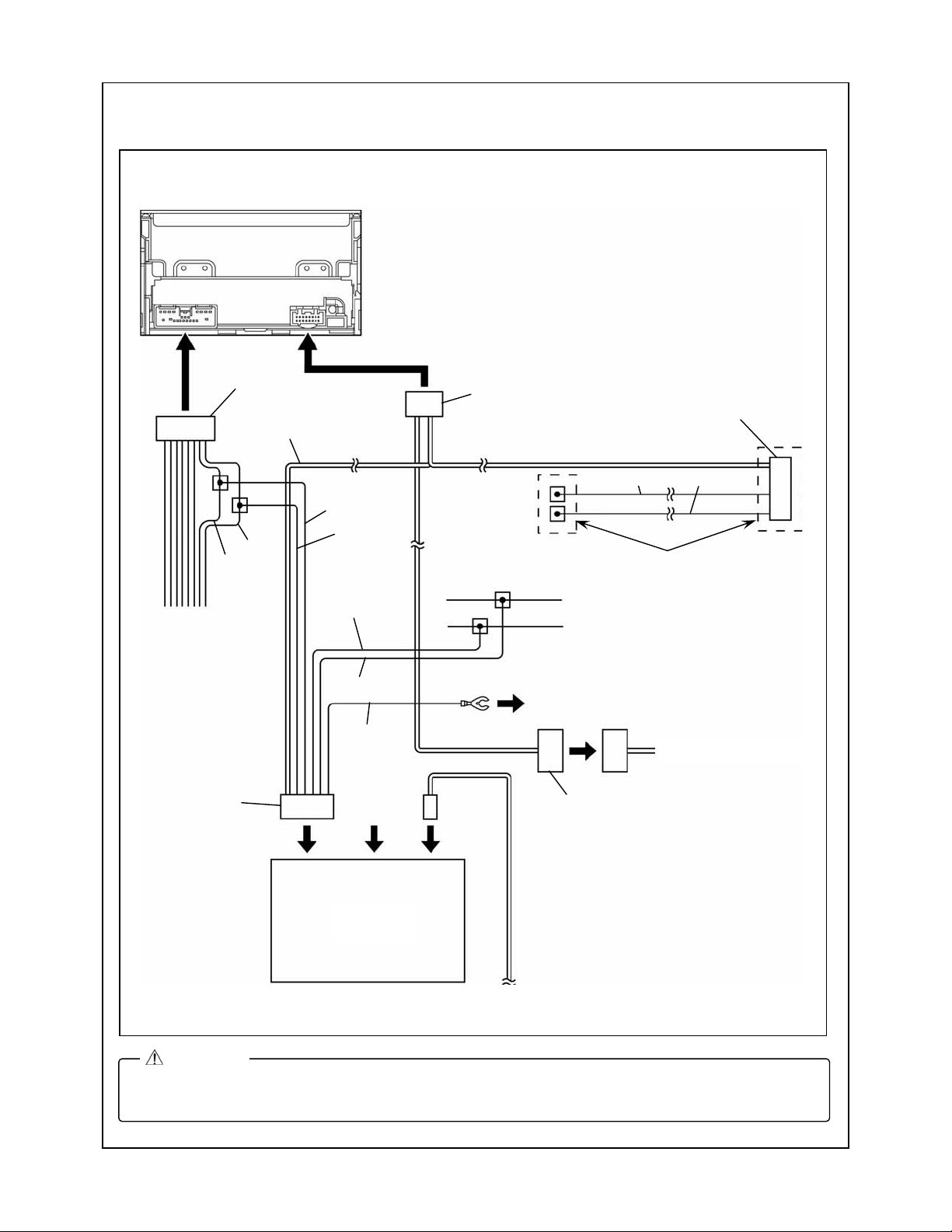

<Installation of SIRIUS only>
xWhen connecting a connector, be sure to insert it straight along the guide.
The connector terminal may be bent if inserted at an angle.
CAUTION

Antenna cable
To AUX or Bluetooth H/F
Not used
(Wrap with sponge and vinyl tape)
Audio unit
To dashboard member
CAN (+)
CAN (-)
Harness (H5)
CAN (-)
CAN (+)
+B
ACC
A
udio 24-pin
connector
ACC
GND
+B
CAN (-)
CAN (+)
NO
CONNECT
DLP unit
(SIRIUS)
16 pin connector (White)
16 pin connector
(Gray)
16 pin connector
16 pin connector (Black)

MAZDA5㧙5
PARTS
Main Kit (0000 81 Z40)
Part㩷Part name㩷Qty.㩷Part㩷Part name㩷Qty. Part㩷Part name㩷Qty.
Antenna 1 DLP unit 1 Alcohol wipe 1
Nut 2
Harness Kit H5 (0000 81 L25)
Part㩷Part name㩷Qty.㩷Part㩷Part name㩷Qty. Part㩷Part name㩷Qty.
Harness (H5) 1 Double-sided
adhesive tape 2
Pad protector 10
Pad protector
(thin) 1 Urethane 2
Sponge 2
Tie wrap
(Small) 24
Tie wrap
(Large) 14
Clip 3
Installation
instructions 1
BEFORE INSTALLATION
Rating Label Removal
1. Tear off lower part of the rating label on the bottom of DLP
unit.
2. If there is nothing written in the Sirius ID (ESN) space of
the rating label, write down the 12-digit number printed in
the location shown in the figure.
3. Affix one rating label in the last page of the Owner’s
Manual.



3
xVerify that the kit includes all the following parts and that they are free of dirt, scratches or damage.
xAll hardware required to install is contained in the two Satellite Radio Kits below.
Note
4
xThe other rating label is for the dealer (port) records.
xDo not fail to submit the record.
Note
DLP unit
Rating label Sirius ID (ESN)
Rating label
Tear off
ԘAffix to the back of the Owner’s Manual.
ԙSubmit to the manager of installation department.
ԙԘ

MAZDA5㧙6
REQUIRED TOOLS
Prepare the following tools or items before installation.
䃂Electrical vinyl tape 䃂Mat 䃂Scissors 䃂Scale 䃂Touch-up paint or Zinc primer
٨Phillips screwdriver 䃂Socket driver (8 mm, 10 mm, 14 mm) ٨Torx wrench 䃂Wrench 䃂File
䃂ISP alcohol
WARNING
When the negative battery
cable is connected during
operation, it may cause
electric shock or other
personal injuries.
Disconnect the negative
battery cable before
removal/installation.
When
connecting/disconnecting
connectors, grasp the
connectors, not the wires.
Otherwise a short, an
accident from poor contact
or fire may occur.
Do not pull the harness
with excessive force. Doing
so can cause a breakage
or a short-related accident,
as well as an electrical
short or fire.
Secure the harness with
the band (part included) so
it doesn’t dangle. If not, it
may cause a short,
accident, or fire.

CAUTION
Put the removed parts and
the parts in the kit on the
protective sheet to prevent
scratches.
Using improper tools may
cause damage and or
broken parts. Use the
correct tool for the job.
Be sure to cover the
vehicle body with
protectors or mats to
prevent stains, scratches
and damage when
removing/installing the
vehicle parts.
Excessive length of tie
wrap may interfere with
other parts and cause
damage.
Cut unnecessary part up to
about 5 mm {0.19 in} from
the fixed point.


Take care not to trap
antenna cable under
attachment nuts.

xWhen the negative battery cable is removed, the clock, radio, trip meters and other memories will be
erased. Before performing work, record the content of the memory.
Note
xWhen removing/installing the parts, park the vehicle on level
ground and apply the side brake securely. Be sure to turn the
ignition switch off, otherwise the vehicle can move, causing
personal injury or vehicle damage.
WARNING
xDuring the installation of the antenna cable make
sure the cable is not pinched, knotted “kinked” or
coiled too tightly. It is recommended that a coil of
less than 20 mm {0.78 in} be avoided if possible.
xIf this wiring procedure is not followed, the
performance of the antenna will be affected and
could result in increased audio muting.
CAUTION

20 {0.78}
mm {in}

MAZDA5㧙7
PART REMOVAL
Battery cover removal
1. Set the selector lever to D range. (ATX only)
2. Remove tabs A and lift up the front of the battery cover.
3. Pull the battery cover outward, remove pins B, and
remove the battery cover.
Negative battery cable disconnection
1. Disconnect the negative battery cable and wrap its
terminal with tape to insulate it.
Front scuff plate (passenger’s side) removal
1. Open the front scuff plate in the direction of the arrows
(1) shown in the figure, pull it in the direction of the
arrows (2) with tab A removed, remove clips B, pins C,
and pin D, and then remove the front scuff plate.
5
xWhen removing/installing the parts, park the vehicle
on level ground and apply the side brake securely. Be
sure to turn the ignition switch off, otherwise the
vehicle can move, causing personal injury or vehicle
damage.
WARNING
xWhen the negative battery cable is connected during
operation, it may cause electric shock or other
personal injuries. Disconnect the negative battery
cable before removal/installation.
WARNING
Pins B
Tab A
Vehicle front
Tab A
Battery cover
Vehicle front
Negative battery cable㩷
Pin C
Clip B
Front scuff plate
Tab A
Vehicle front
Pin D
A
A
B
C
B
C
B
C
D
(1)
(1)
(2)
(2)

MAZDA5㧙8

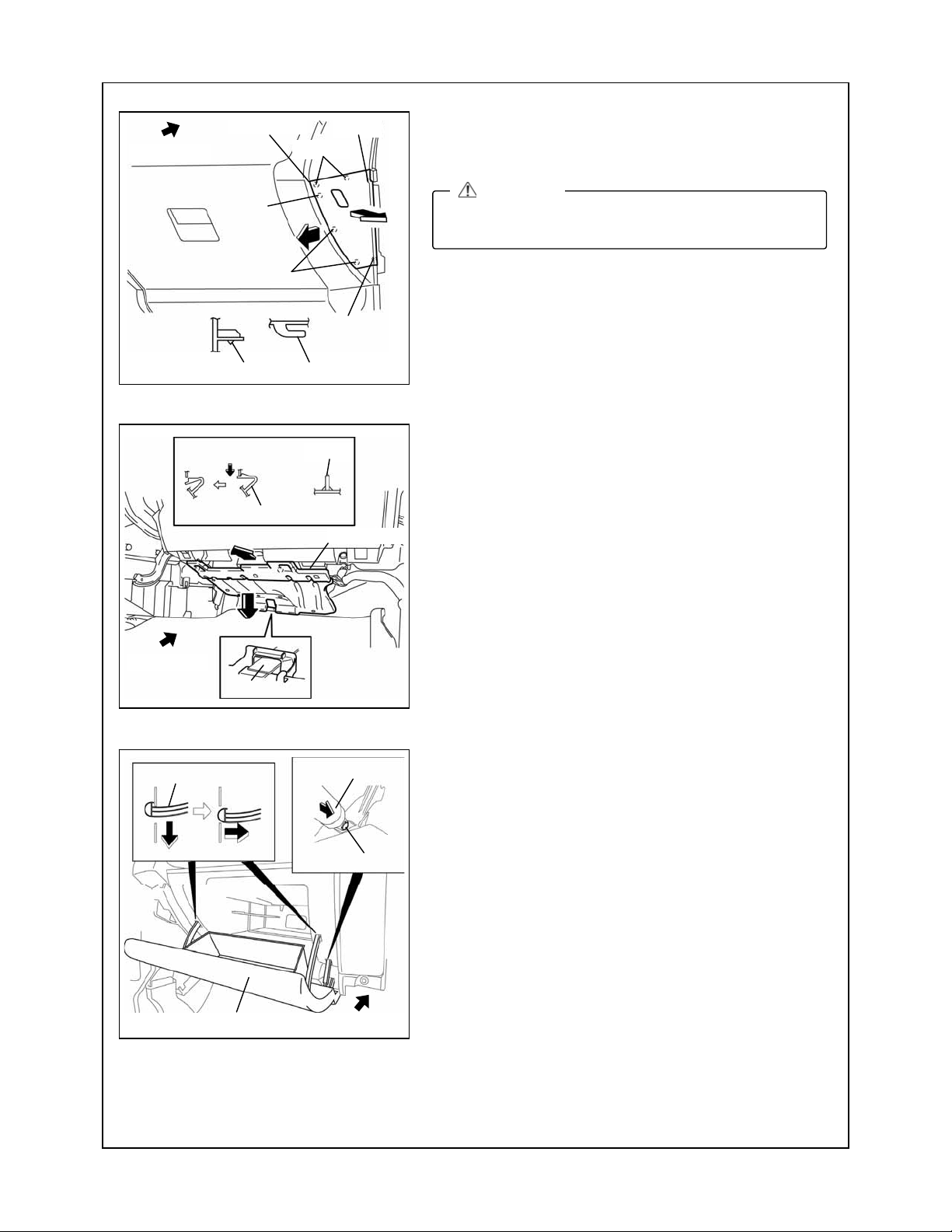

Front side trim (passenger’s side) removal
1. Partially peel back the seaming welt.
2. Remove the fastener.
3. Pull the front side trim in the direction of the arrow and
detach the clip A and pin B.
4. Remove the front side trim.
Side wall (driver’s and passenger’s side) removal
1. Remove the fastener.
2. Pull the side wall in the direction of an arrow, and
disengage the clips A and hook B.
3. Pull the side wall in the direction of the arrow shown in
the figure, then remove it while detaching the guide.
4. Remove the side wall.








Front side trim
Fastener
Vehicle front
A
B
Pin B
Clip A
Clip A
Fastene
r
Vehicle
front
Side wall
A
Hook B
B
A
Vehicle front
Guide
Side wall

MAZDA5㧙9
Front console removal
1. Pull the front cup holder upward and detach the tabs A
and tabs B to remove the front cup holder from the center
console, and disconnect the connectors.
2. Pull the front console plate outward and detach clips C to
remove the front console plate from the front console,
and disconnect the connectors.
3. Remove the screws, then remove the center console.










4. Remove the shift knob (MTX) or selector lever knob
(ATX).
5. Detach the clips A to remove the shift panel (MTX) or
indicator panel (ATX) from the front console.










6. Remove the screws (MTX:4, ATX:6).
7. Pull the front console outward and detach clips A and
tabs B to remove the front console.









Center console
Front cup holde
r
Scre
w

Cove
r

Front console plate
Scre
w

Front console
B
A B
C
C
C
C
C
C
Shift panel
Indicator panel
A
A
A
A
A
A
A
A
Vehicle front
xThere are tabs B that are very difficult to access
behind the face plate. Failure to properly release
these tabs will result in damage to the front console.
Use care to ensure these two tabs are released
before removing the front console.
CAUTION
Scre
w
s
Scre
w

Cove
r

Front console
A
A
B A
A
A
A
B
Vehicle front

MAZDA5㧙10

Switch panel removal
1. Affix protective tape to the area shown in the figure to
protect the switch panel from scratches.
2. Pull the switch panel outward and detach clips A and
pins B.
3. Disconnect the hazard switch connector and Bluetooth
connector (if equipped).
4. Remove the switch panel.






Information display removal
1. Remove the screws.
2. Remove the information display while pressing the tabs
shown in the figure.
3. Disconnect the connector and remove the information
display.
Heater control unit removal
1. Remove the screws.
2. Disconnect the heater control unit connectors.
3. Remove the heater control unit.

Center panel module removal
1. Remove the screws and bolt.
2. Pull the audio unit outward and disengage clips A.
3. Disconnect the connectors and remove the center panel
module.
Information Display
Connector
Screw
Scre
w
Vehicle front
Scre
w
s
Heater control unit
Vehicle front
Heater control unit
connectors
Center panel module
Clip A
Connectors
Screw Screws Bolt
A
A
A
A
Vehicle front
Pin B
Switch panel
A
A
A
Vehicle front
A
Clip A
A
B
AA
A A
A
B
Protective tape

MAZDA5㧙11
Side panel removal
1. Pull the side panel in the direction of the arrow (1) shown
in the figure, then remove the hooks A.
2. When pulling out the side panel, be careful not to damage
the tabs B.
3. Remove the side panel.
Dashboard under cover removal
1. Detach the hooks A and pins B in the direction of arrow (1)
shown in the figure.
2. Pull the dashboard under cover in the direction of arrow
(2).
3. Remove the dashboard under cover in the direction of
arrow (3), then remove the tab C.
Glove box removal
1. Push the stay damper in the direction of the arrow and
disengage the hook A.
2. Push down and disengage the hooks B.
Side panel
Hooks A
Vehicle front
(1)
Hook A Tab B
Tab B
Hooks A
Hook A
(2)
Tab B
xWhen pulling out the side panel, be careful not to
damage the tabs B.
CAUTION
Hook B
Vehicle front
Stay damper
Glove box
Hook A
Tab C
Hook A
Pin B
(1)
(2)
(3)
Vehicle front
Dashboard under cover

MAZDA5㧙12
3. Pull the glove box up shown in the figure, and disengage
the hooks C.
4. Remove the glove box.
Lower panel (passenger’s side) removal
1. Remove the screws.
2. Pull the lower panel in the direction of the arrow in the
order of (1) to (3), and remove the lower panel while
detaching the clips A.
Rear scuff plate (passenger’s side) removal
1. Detach tabs A while pulling the rear scuff plate in the
direction of the arrow (1) shown in the figure, then detach
pin B, clips C, pins D while pulling in the direction of the
arrow (2).
2. Remove the rear scuffplate.
Glove box
Vehicle front
Hook C
Screws
Vehicle front
Clip A
Screws
(2)
(1)
(3)
Lower panel (passenger’s side)
A
A
A
A
A
A
Rear scuff plate
B
Vehicle front
Tab A Pin B Pin D
Clip C
A
C
D
C
D
A
A
D
C
A
(1)
(2)

MAZDA5㧙13
B-pillar lower trim (passenger’s side) removal
1. Partially peel back the seaming welt.
2. Pull the B-pillar lower trim in the direction of the arrow (1),
(2) shown in the figure, detach tabs A, clips B, pins C.
3. Remove the B-pillar lower trim.











Sub trunk removal
1. Pull up the rear package tray lid, then remove the sub
trunk direction of the arrow shown in the figure.
Third-row seat removal
1. Detach the hook A and B, remove the covers.
B-pillar lower trim
Tab A Clip B Pin C Vehicle front
A A
CB
CB
(1)
(1)
(2)
Sub trunk
Rear package tray lid
Clip
Clip
Clip
Vehicle front
Hook B
Hook AHook A
Hook B
Hook A
Covers

MAZDA5㧙14

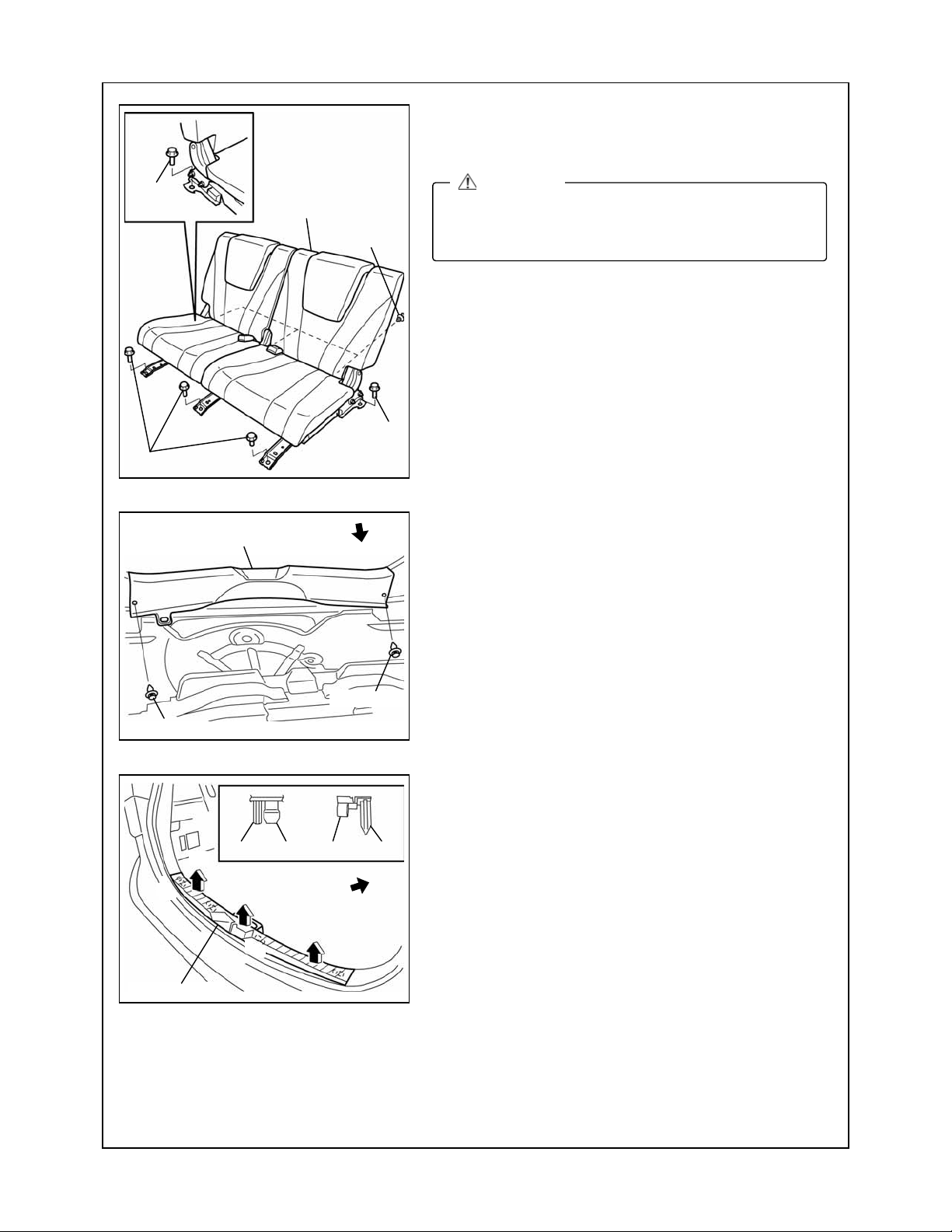

2. Remove the floor covering installation fasteners.
3. Remove the bolts in the order of (1), (2), (3), (4), (5), then
remove the third-row seat.
Trunk end trim removal
1. Remove the fasteners A.
2. Pull the trunk end trim in the direction of the arrow (1), (2),
(3) shown in the figure and remove pins B, clips C, D,
and pin E.
3. Remove the trunk end trim.
Trunk end trim
Vehicle front
Fastener A
Fastener A
Trunk end trim
Vehicle front
Pin B
(2)
(3)
(1) Clip C Pin EClip D
B
C
B
C
B
C
D
E
xTightening torque
Bolt : 37.0 – 54.0 N
ᨿ
m
{3.8 – 5.5 kgf
ᨿ
m, 28.0 – 39.0 ft
ᨿ
lbf}
CAUTION
(1)
(2)
(3)
Bolts
Bolt
Bolt
Fasteners
Third-row seat
(4)
(5)

MAZDA5㧙15
Cargo compartment light removal
1. Insert a tape-wrapped flathead screwdriver in the position
shown in the figure, detach the tab by prying it in the
direction of the arrow.
2. Disconnect the connector.
3. Remove the cargo compartment light.
Trunk side trim (passenger’s side) removal
1. Remove the screw A.
2. Remove the service hole cover, then remove the screw B.
3. Remove the bolt C, then remove the cargo net hook.
4. Remove the fasteners.
Cargo compartment light
Vehicle front
Tab
Trunk side trim
Trunk side trim
Cargo compartment light
Tape-wrapped
flathead
screwdriver
Bolt C
Vehicle front
Screw A
Trunk side trim
Cargo net hook
Service
hole cover
Screw B
Fastener

MAZDA5㧙16
5. Hold c-pillar trim with your hands and pull the trunk side
trim in the direction of the arrow (1), (2), (3), (4) and
remove hooks A and guides B.
6. Pull the trunk side trim in the direction of arrow, while
remove the clips C and pin D.
7. Remove the trunk side trim.
Vehicle front
Hook A
Trunk side trim
A
(1)
(2)
(3)
(4)
Guide B
B
B
A
A
B
A
B
B
A
Clip C
Vehicle front
D
Trunk side trim
C
Pin D
C
C
C

MAZDA5㧙17

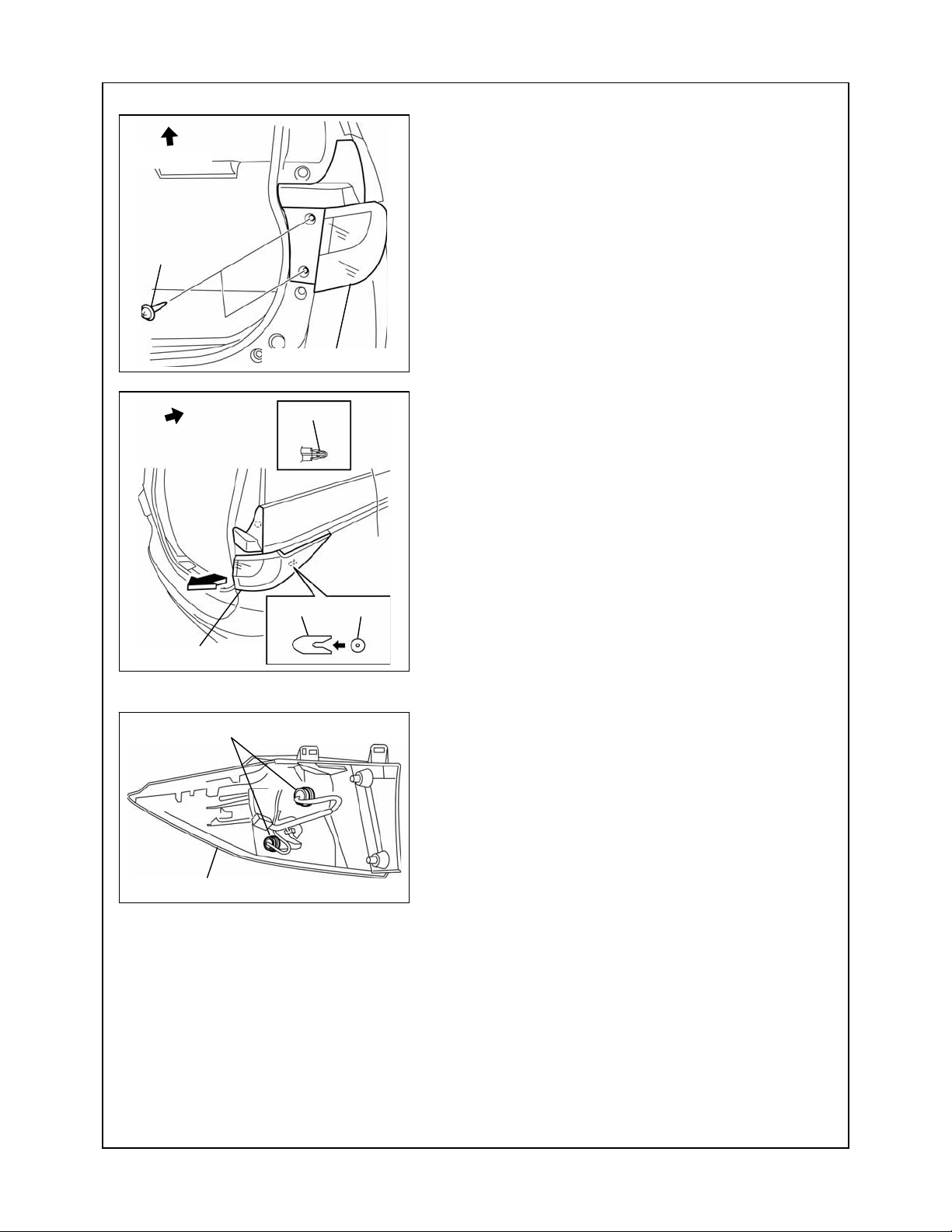

Rear combination light (passenger’s side) removal
1. Remove the screws.
2. Pull the rear combination light in the direction of the
arrow to detach the hook from clip A.
3. Detach clip B.
4. Remove the sockets.
Screws
Vehicle front
Rear combination light
Clip B
Vehicle front
Rear combination light
Clip AHook
B
Sockets
Rear combination light

MAZDA5㧙18
5. Remove the rear combination light.
6. Pull the cover in the direction of the arrow shown in the
figure and remove the rear combination light while
detaching the clips C.
Hole cover removal
1. Remove the hole cover.

Clip C
Vehicle front Rear combination light
Cover
C
C
Hole cover

Vehicle front

MAZDA5㧙19

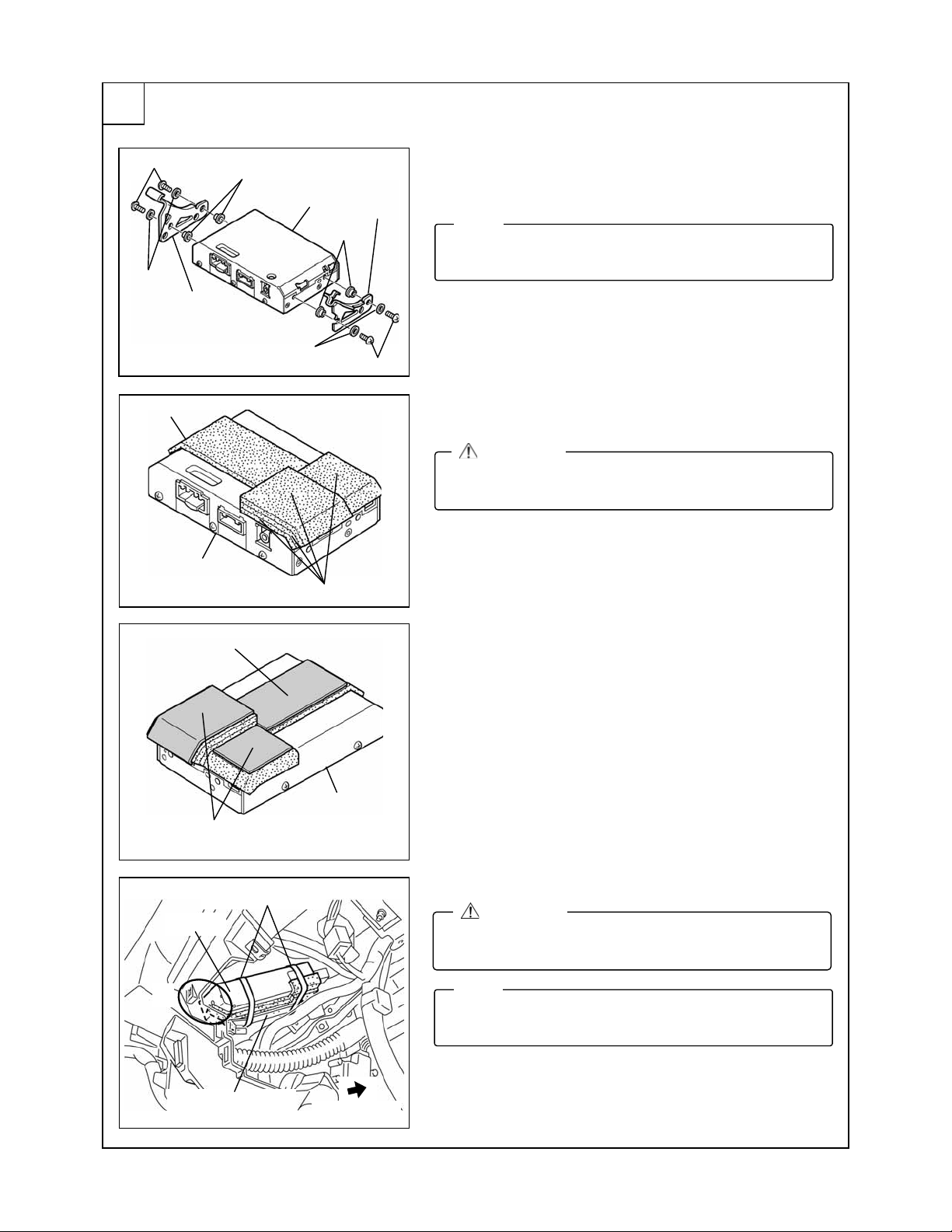

INSTALLING DLP UNIT
1. Remove the bushes (4 locations), brackets (2 locations),
washers (4 locations), and screws (4 locations) from the
DLP unit.
2. Affix the pad protectors to the DLP unit as shown in the
figure.





3. Affix the double-sided adhesive tape to the DLP unit
shown in the figure.










4. Install the DLP unit to the dashboard member.
5. Connect the two tie wraps (large) and secure the DLP
unit to the dashboard member.

6
xTo ensure proper affixing, be sure to degrease the
area where the pad protector is affixed.
CAUTION
xTo ensure proper affixing, be sure to degrease the
area where the double-sided adhesive tape is affixed.
CAUTION
Double-sided adhesive tape
DLP unit
Double-sided adhesive tape
(Cut tape and adhere)㩷
Pad protecto
r
DLP unit
Pad protector 1/2㬍4
DLP unit
Bracket
Bush
Washe
r
Scre
w
Bracket
Bush
Washe
r
Scre
w
xThe brackets are not used with the installation of this
accessory.
Note
xMake sure there is clearance from the DLP to the
glove box and glove box tab in area A.
Note
DLP unit
Dashboard member
Vehicle front
Tie wraps (large) x2
A

MAZDA5㧙20

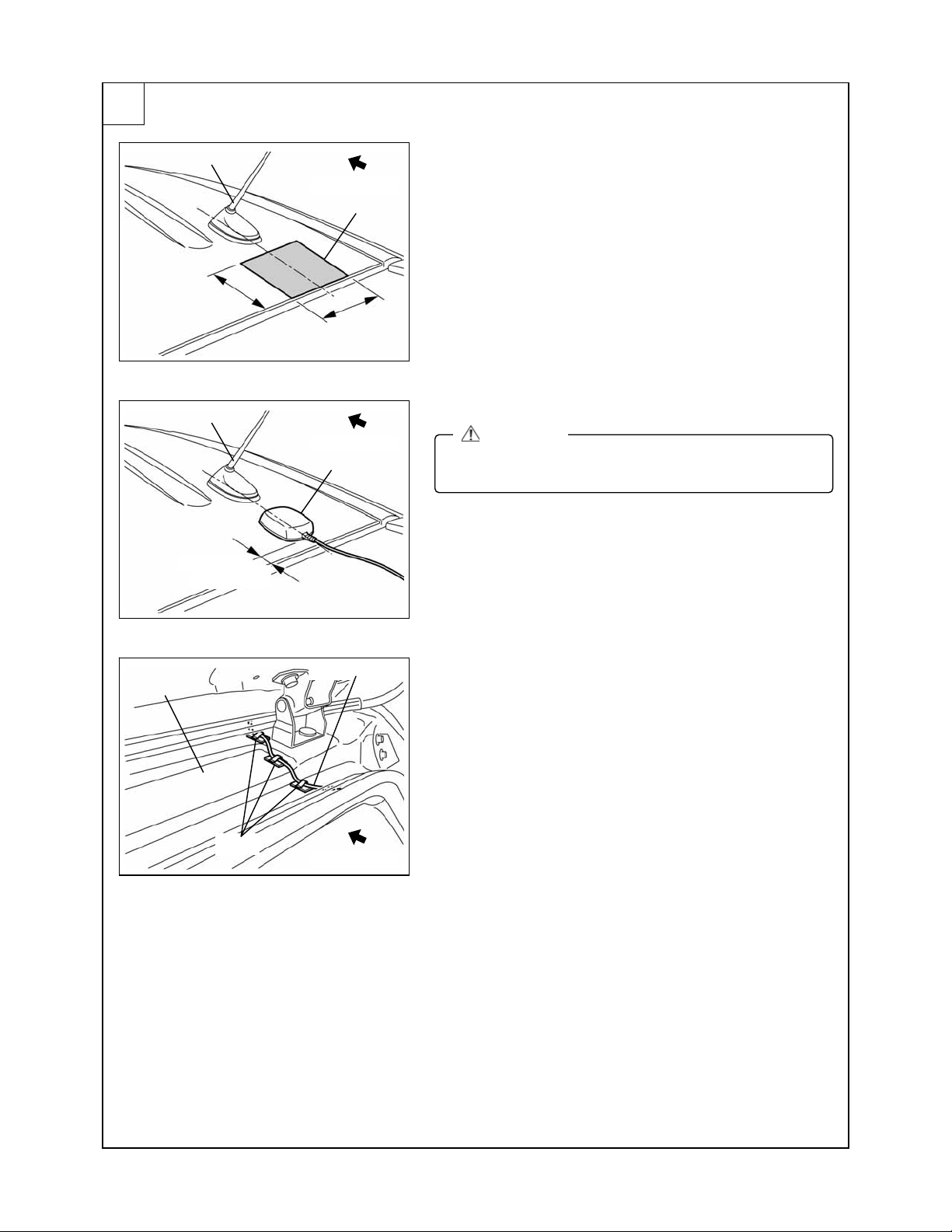

INSTALLING ANTENNA
1. Clean the adhesion area on the roof with isopropyl
alcohol (IPA).
2. Install the antenna in the position shown in the figure.
3. Clean the adhesion area on the body panel with
isopropyl alcohol (IPA).
4. Attach the clips to the vehicle in the flat areas shown in
the figure.
5. Install the antenna cable to the clips.
7
xTo ensure proper affixing, be sure to degrease the
area where the double-sided adhesive tape is affixed.
CAUTION
Adhesion area
mm {in}
Roof antenna
100 {3.93}
100 {3.93}
Vehicle front
Antenna
mm {in}
Roof antenna
Vehicle front
15㧙20
{0.59㧙0.78}
Antenna cable
Vehicle front
Clips
Body panel
