Meanwell DRA-40 Series User manual

Installation Manual
Type：DRA DIN rail power supply（Series：DRA-40, DRA-60）
DRA-40-12 INPUT: 100-240VAC 0.8A 50/60Hz OUTPUT: 12V 3.34A
DRA-40-24 INPUT: 100-240VAC 0.8A 50/60Hz OUTPUT: 24V 1.7A
DRA-60-12 INPUT: 100-240VAC 1.3A 50/60Hz OUTPUT: 12V 5A
DRA-60-24 INPUT: 100-240VAC 1.3A 50/60Hz OUTPUT: 24V 2.5A
Introduction
DRA is a DIN rail power supply series featuring adjustable output current. Users are able to set its output current to
a range of 10% - 100% of rated current via 1-10Vdc, PWM signal or resistance. Like other Mean Well’s DIN series,
they can be mounted on a TS35 Standard DIN rail.
Installation
（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a
heat source.

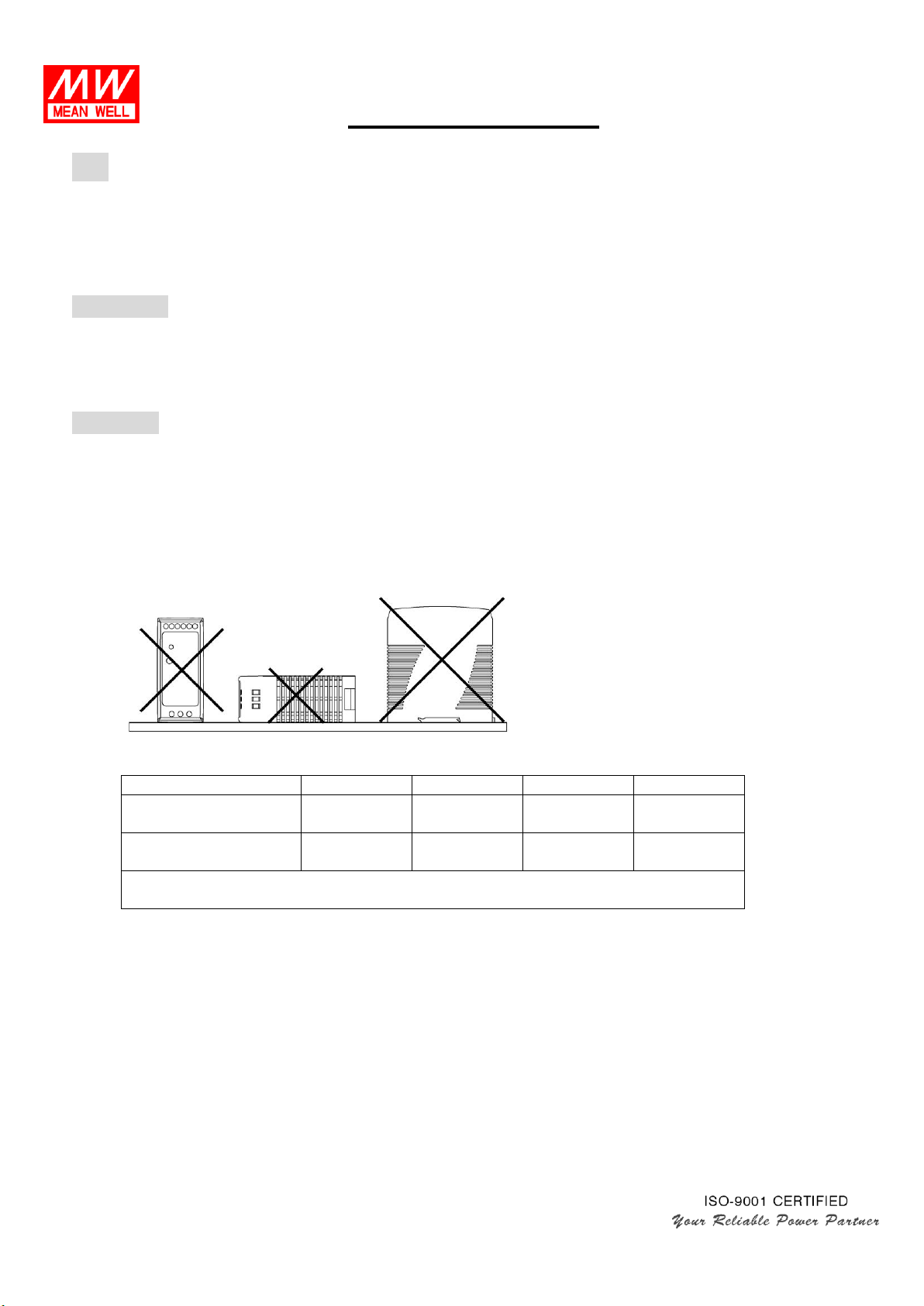

（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
（3）Use copper wire only, and recommended wires are shown as below.
AWG
18
16
14
12
Rated Current of
Equipment (Amp)
7
10
15
20
Cross-section of
Lead(mm2)
0.8
1.3
2.1
3.3
Note：Current each wire carries should be de-rated to 80% of the current suggested
above when using 4-6 wires connected to the unit.
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are
securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make
sure each contact is connected to wires to prevent too much current stress on a single contact.
（4）Use wires that can withstand temperatures of at least 80°C, such as UL1007.
（5）Recommended wire strapping length is 5mm (0.197”).
（6）Recommended screwdriver is 3mm, slotted type.
（7）The recommended torque setting for terminals(TB1) is 5 kgf‐cm (4.4 Lb‐in),
terminals(TB2) is 5.8 kgf‐cm (5 Lb‐in).
（8）Each unit requires 0.15mA when dimming function is used. Please make sure your controller is capable of
driving the units.

Installation Manual
3
1
2
4
（9）Suggested fuse and maximum number of the DRA that can be connected to a circuit breaker at 230V are shown
as below.
Model
Fuse
Circuit breaker
C16
D16
DRA-40
T2.5A/L250V
11
21
DRA-60
T2.5A/L250V
8
16
（10）Mounting Instruction：
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible.
Admissible DIN rail：TS35/7.5 or TS35/15
For rail fastening：
（a）Tilt the unit slightly rearwards.
（b）Fit the unit over top hat rail.
（c）Slide it downward until it hits the stop.
（d）Press against the bottom for locking.
（e）Shake the unit slightly to check the locking action.
（11）For other information about the products, please refer to www.meanwell.com for details.
Warning / Caution !!
（1）Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do
not remove the case of the power supply by yourself!
（2）Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides
together is not allowed.
（3）Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
（4）Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
（5）Only install the unit in a pollution degree 2 environment (Note.1).
（6）Please do not install the unit in places with high moisture or near the water.
（7）The maximum operating temperature is 45°C for the DRA-60-12, 50°C for the DRA-60-24, DRC-60A and
DRC-60B, 55°C for the DRA-40-12/24, DRC-40A and DRC-40B, please do not install the unit in places with high
ambient temperature or near fire source.
（8）The FG ( ) must be connected to PE (Protective Earth).
（9）Output current and output wattage must not exceed the rated value on its specification.
"Click"

Installation Manual
（10）Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from
supply voltage. Make sure that inadvertent connection in circuit will be impossible!
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as
control cabinets.
