Mercia Garden Products 0628LOG177-V4 Instruction manual

P 1
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
0628LOG177-V4
0628LOG177-V4 28mm corner cabin
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.

2
1
3
4
5
6
7
11
12
13
14
8
9
10
15
16
17
18
19
20
22
24
25
26
27
23
21
28
29
P 2
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Short Window Pack*
QTY 3
Double Door Pack*
0628LOG177-V4
Overall Dimensions:
Width = 4482mm
Depth = 3723mm
Height = 2923mm
Base Dimensions:
Width = 3255mm
Depth = 3899mm
Please retain product label and instructions for future reference
Starter Board - 28x66x2191mm QTY 1
LB28RT66-H-2191 (1x45 deg cut top, 1x45 deg cut bottom)
Log Board - 28x120x311mm QTY 18
LB28-BGL-311 (1x45 deg cut left)
Log Board - 28x120x311mm QTY 17
LB28-BGR-311 (1x45 deg cut right)
Log Board - 28x60x311mm QTY 1
LB28-HL-311 (1x45 deg cut left, 60mm height board)
Log Board - 28x70x311mm QTY 1
LB28-HR-311 (1x45 deg cut left bottom notch, 70mm height board)
Log Board - 28x120x2191mm QTY 1
LB28-J-2191 (1x45 deg cut left, 1x45 deg cut right top notch)
Log Board - 28x120x2191mm QTY 1
LB28-JD-2191 (1x45 deg cut left, 1x45 deg cut right top notch, door notch)
Log Board - 28x66x1625mm QTY 1
LB28RT66-AG-1625 (1x45 deg cut left)
Log Board - 28x120x1625mm QTY 6
LB28-AG-1625 (1x45 deg cut right)
Log Board - 28x120x1625mm QTY 1
LB28-J-1625 (1x45 deg cut right 50mm bottom notch)
Log Board - 28x120x1625mm QTY 1
LB28-JD-1625 (1x45 deg cut right 50mm bottom notch, window notch)
Log Board - 28x120x3625mm QTY 1
LB28-JD-3625 (1x45 deg cut left, window notch)
Log Board - 28x120x3625mm QTY 6
LB28-AG-3625 (1x45 deg cut left)
Log Board - 28x64x3625mm QTY 1
LB28-H-3625 (66mm high board, 1x45 deg deep cut left bottom)
Log Board - 28x64x5000mm QTY 1
LB28-H-5000 (66mm high board)
Log Board - 28x66x3000mm QTY 1
LB28RT66-A-3000
Log Board - 28x120x3000mm QTY 20
LB28-A-3000
Log Board - 28x120x439mm QTY 24
LB28-B-439
*All components for the Windows and Doors are
shown in the Windows and Doors instruction packs. Log Board - 28x120x5000mm QTY 20
LB28-A-5000
Log Board - 28x120x1254mm QTY 12
LB28-C-1254
Log Board - 28x120x439mm QTY 12
LB28-BGL-439 (1x45 deg cut left)
Log Board - 28x120x439mm QTY 12
LB28-BGR-439
Roof Truss - 40x70x1604mm QTY 8
AI-0628LOG177RTA-V4
Finisher Board - 28x80x1945mm QTY 1
LB28RG80-CGLR-1945 (2x45 deg cut, 1340mm nished)
Finisher Board - 28x80x1353mm QTY 3
LB28RG80-CGL-1353 (2x74 deg cut left, 1125mm nished)
Finisher Board - 28x80x1353mm QTY 3
LB28RG80-CGR-1353 (2x74 deg cut right, 1125mm nished)
Finisher Board - 28x80x625mm QTY 6
LB28RG80-C-625 (1x45 deg cut right, 595mm nished)

33
34
35
36
37
38
39
42
30
31
32
40
41
44
43
P 3
Please retain product label and instructions for future reference
Bearer - 44x44x2055mm QTY 1
F4444-2055-PT (2x45 deg cut, 1361mm nished)
Bearer - 44x44x1399mm QTY 1
F4444-1399-PT (Angled)
Main Roof Support - 45x120x2035mm QTY 1
F45120-BE-2035
Bearer - 44x44x4720mm QTY 5
F4444-4720-PT
Bearer - 44x44x2808mm QTY 1
F4444-2808-PT
Bearer - 44x44x3355mm QTY 1
F4444-3355-PT (Angled)
Bearer - 44x44x3639mm QTY 1
F4444-3639-PT(Angled)
Bearer - 44x44x3949mm QTY 1
F4444-3949-PT (Angled)
Bearer - 44x44x4569mm QTY 1
F4444-4569-PT (Angled)
Bearer - 44x44x4259mm QTY 1
F4444-4259-PT (Angled)
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
45
46
Closure Trim - 16x28x2400mm (approx length) QTY 14
S1628-2400
Felt
Roof Truss - 40x70x1604mm QTY 1
AI-0628LOG177RTB-V4
Roof Truss - 40x70x2222mm QTY 3
AI-0628LOG177-V4RTD
48
47
Fascia - 16x120x4000mm QTY 2
SR16120-4000
Fascia - 16x120x3000mm QTY 3
SR16120-3000
Fascia - 16x120x2300mm QTY 1
SR16120-2300
Roof Truss - 40x70x1604mm QTY 1
AI-06LOG5x3RTC-V4

P 4
Please retain product label and instructions for future reference
Felt Tacks x850
90mm Screw x21
Nail Bag
40mm Screw x500
30mm Screw x86
120mm Screw x13
70mm Screw x102
70mm Bolt Set x16
Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
50
53
51
52
Floor Board Pack
AI-0644LOG177-V4FBP
MB16-2748 QTY 30
MB-P-2748 QTY 1
MB-P-2652 QTY 1
MB-P-2540 QTY 1
MB-P-2428 QTY 1
MB-P-2316 QTY 1
MB-P-2204 QTY 1
MB-P-2092 QTY 1
MB-P-1980 QTY 1
MB-P-1868 QTY 1
MB-P-1532 QTY 1
MB-P-1756 QTY 1
MB-P-1644 QTY 1
MB16RG44-P-1420 QTY 1
Roof Board Pack A QTY 2
AI-0644LOG177-V4RBPA
MB16-P-2035 QTY 1
MB16-P-2143 QTY 1
MB16-P-2252 QTY 1
MB16-P-2361 QTY 1
MB16-P-2469 QTY 1
MB16-P-2578 QTY 1
MB16-P-2686 QTY 1
MB16-P-2795 QTY 1
MB16-P-2903 QTY 1
MB16-P-3012 QTY 1
MB16-P-3121 QTY 1
MB16-P-3229 QTY 1
MB16-P-3338 QTY 1
MB16-P-3446 QTY 1
MB16-P-3555QTY 1
Roof Board Pack B QTY 1
AI-0644LOG177-V4RBPB
MB16-P-92 QTY 1
MB16-P-303 QTY 1
MB16-P-514 QTY 1
MB16-P-725 QTY 1
MB16-P-936 QTY 1
MB16-P-1148 QTY 1
MB16-P-1359 QTY 1
MB16-P-1570 QTY 1
MB16-P-1781 QTY 1
MB16-P-1992 QTY 1
MB16-P-2203 QTY 1
Roof Board Pack C QTY 4
AI-0644LOG176-V4RBPC
MB16-P-33 QTY 1
MB16-P-142 QTY 1
MB16-P-250 QTY 1
MB16-P-359 QTY 1
MB16-P-468 QTY 1
MB16-P-576 QTY 1
MB16-P-685 QTY 1
MB16-P-794 QTY 1
MB16-P-903 QTY 1
MB16-P-1011 QTY 1
MB16-P-1120 QTY 1
MB16-P-1229 QTY 1
MB16-P-1337 QTY 1
MB16-P-1446 QTY 1
MB16-P-1555 QTY 1

P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
32 33
34
39
40
Pre drill
hole
70mm
screw

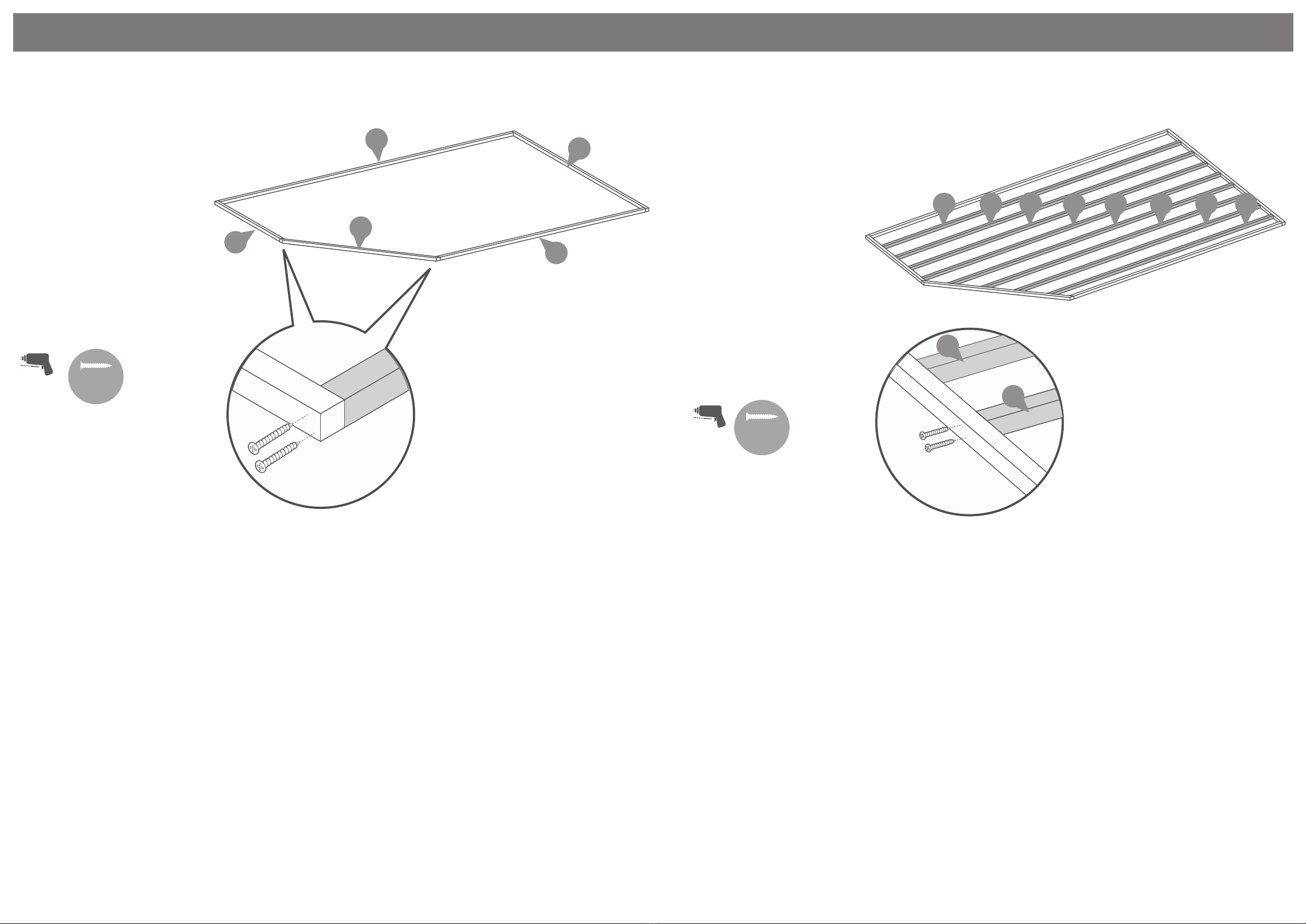

Step 1
Parts needed - No. 32 QTY 1
No. 33 QTY 1
No. 34 QTY 1
No. 39 QTY 1
No. 40 QTY 1
Lay the bearers (No. 32, 33, 34, 39 &
40) onto a rm and level surface
(free from areas where standing
water can collect) as shown in the
illustration.
Fix the framing together at each
corner using 10x70mm screws,
ensuring the frame is ush.
10x70mm Screws
Pre drill
hole
70mm
screw
Step 2
Parts needed - No. 32 QTY 4
No. 35 QTY 1
No. 36 QTY 1
No. 37 QTY 1
No. 38 QTY 1
Arrange the remaining framing
(No. 32, 35, 36, 37 & 38) as
shown in the illustration.
*Ensure there is an equal
amount of space between
each frame.
Secure each of the frames in
place using 2x70mm screws for
each side of the bearer, ensur-
ing the framing remains level.
60x70mm Screws
32
32
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
32
32
32 32
38 37 36 35
Example picture
2 screws per bearer per end

Pre drill
hole
P 6
Please retain product label and instructions for future reference

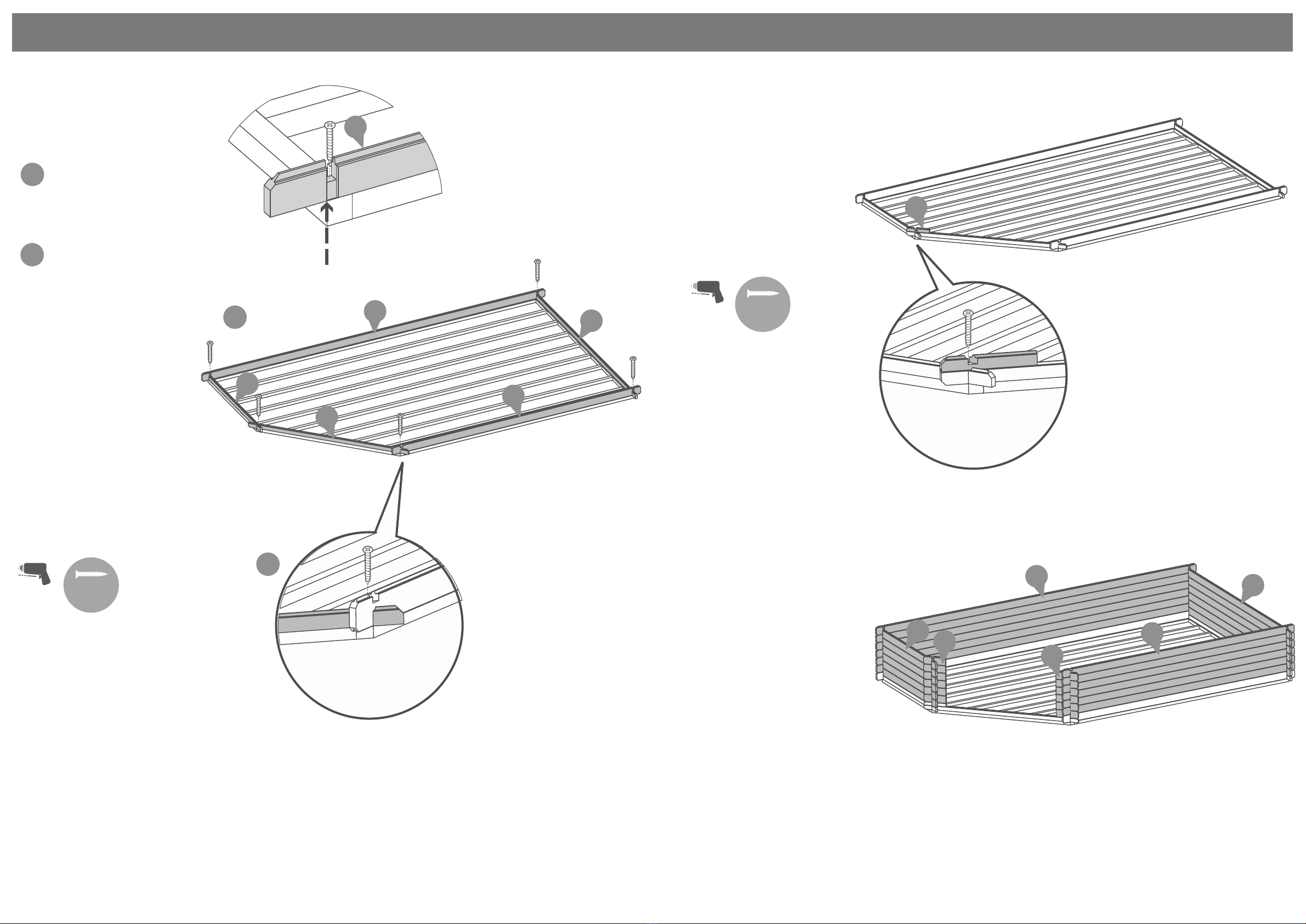

Step 3
Parts Needed - No. 3 QTY 1
No. 11 QTY 1
No. 15 QTY 1
No. 19 QTY 1
No. 21 QTY 1
Place the starter boards
(No’s. 11, 15, 19 & 21) on to
assembled base frame along the
longest sides.
To put the nal starter
board (No. 3) in the correct place
you need to lift the end of the
board to the left (No. 15) and
ensure they slot into each other.
*Ensure the notches at either
end of each board are ush
and level with the ends of the
frame.
Fix each of the starter boards to
the frame by screwing through
the notch into the frame with
1x70mm screw as shown in the
illustration.
5x70mm Screws
70mm
screw
Step 4 (See Pre-Assembly)
Parts needed - No. 6 QTY 1
Make the assembly level by
adding another board (No. 6)
as shown in the diagram.
Fix using 1x70mm screw.
**Ensure to stagger the
screws so as not to collide
with the previous screw.
1x70mm Screws
Pre drill
hole
70mm
screw
11
3
21
6
3
IMPORTANT: Pre-drill before xing screws.
a
b
a
b
Step 5 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 6
No. 12 QTY 6
No. 15 QTY 6
No. 20 QTY 6
No. 21 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the rst 6 boards (No’s. 4, 5, 12,
15, 20 & 21) onto the starter
boards to create your rst level.
Please note the right hand side
of the door will be slightly
higher. This will even out when
the rest has been assembled.
*Ensure that the boards are
level and ush with each
other as you lay each one.
IMPORTANT: Pre-drill before xing screws.
21
415
20
12
5
19
15

P 7
Please retain product label and instructions for future reference
Step 9 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 5
No. 10 QTY 6
No. 20 QTY 6
No. 21 QTY 6
No. 22 QTY 6
No. 23 QTY 12
No. 24 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 4, 5,
10, 11, 21, 22, 23, 24 & 25) onto
the assembly to bring the board
level to the top of the window
and door frames.
Please note when you get to the
top of the boards the right hand
boards will be slightly lower.
**Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the door
frame.
Step 6 (See Pre-Assembly)
Parts needed - No. 4 QTY 6
No. 5 QTY 6
No. 10 QTY 6
No. 20 QTY 6
No. 21 QTY 6
No. 22 QTY 6
No. 23 QTY 12
No. 24 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 4, 5, 10,
20, 21, 22, 23 & 24) onto the
assembly to create your second
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the door
frame by 12-13 boards, refer to
door installation instructions, if
not, you can install the door at
step 8.
24
4
23
10
10 23
5
5
21 20
22
23
24
21 20
22
23
4
Step 7 (See Window-Assembly)
Parts needed - No. 1 QTY 3
Refer to window assembly
instructions to assemble
windows.
Step 8
Parts needed - No. 1 QTY 3
Ensure that the lip of the
window frame is located on
the inside of the building .

P 8
Please retain product label and instructions for future reference
Step 11 (See Pre-Assembly)
Parts needed - No. 9 QTY 1
No. 14 QTY 1
No. 16 QTY 1
No. 20 QTY 1
No. 21 QTY 2
Following the same method
outlined in Pre-Assembly, lay the
remaining boards (No’s. 9, 14, 16,
20 & 21) onto the assembly to
bring the board level above the
window and doors.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Step 10 (See Pre-Assembly)
Parts needed - No. 7 QTY 1
Make the assembly level by
adding another right hand
board (No. 7) as shown in the
diagram.
*Ensure to stagger the screws
so as not to collide with the
previous screw.
7
20
18
Step 12 (See Pre-Assembly
Parts needed - No. 8 QTY 1
No.13 QTY 1
No. 17 QTY 1
No. 18 QTY 1
No. 20 QTY 2
Following the same method
outlined in Pre-Assembly, lay
the nal boards (No’s. 8, 13, 17,
18 & 20) onto the assembly to
bring the board level x2 boards
above the window and doors.
*Ensure that the boards are
level and ush with each
other as you lay each one.
16
9
13 8
14
21 20
17

P 9
Please retain product label and instructions for future reference
47
29

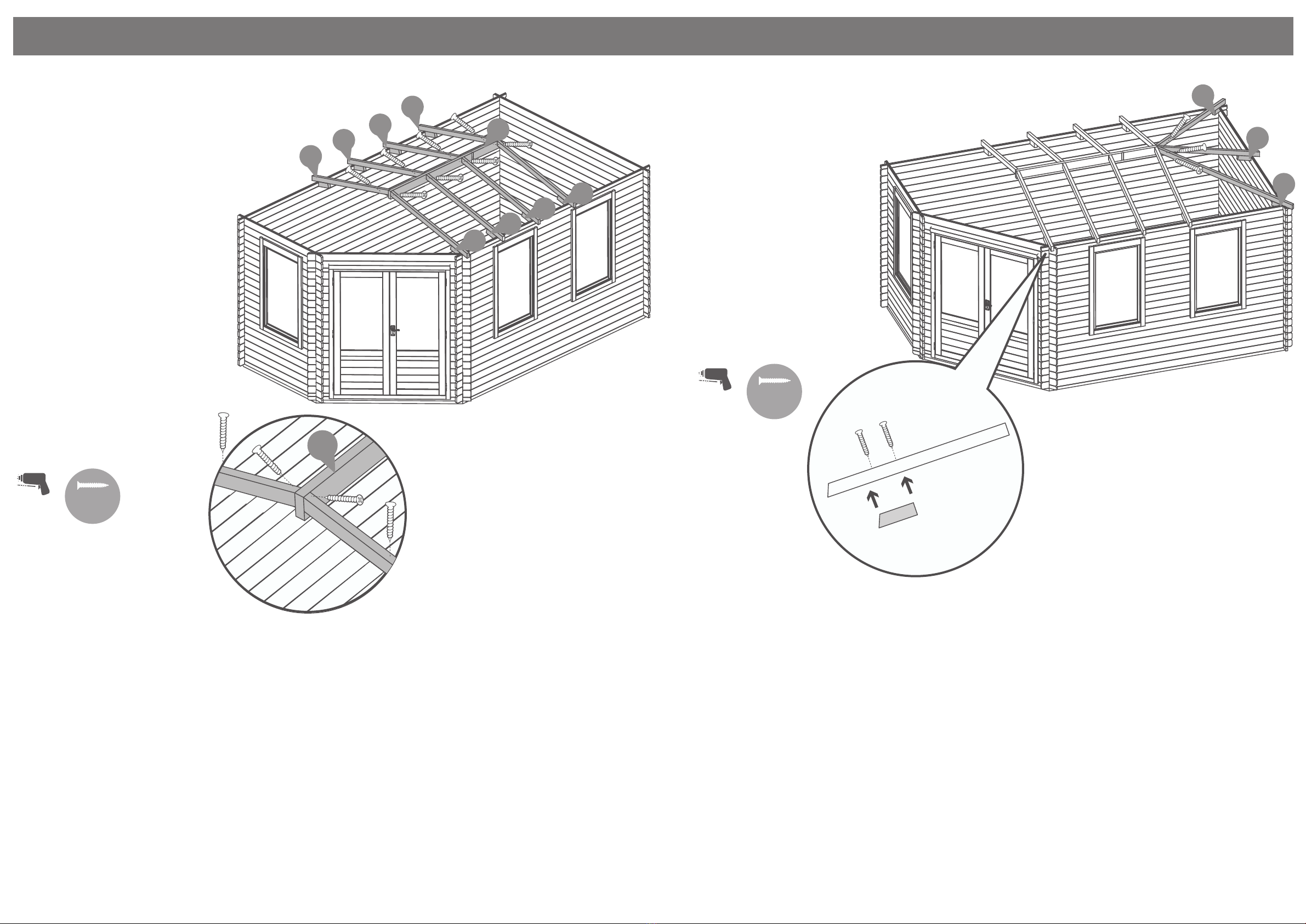

Step 13
Parts needed - No. 29 QTY 7
No. 46 QTY 1
No. 47 QTY 1
To begin building the roof structure,
start with the far end of the centre
assembly and x a roof truss (No. 29)
on the left and right hand side of
the main support (No. 47) with
2x90mm screws.
Continue this with the other 6 truss’
as shown the diagram. Please note,
the left hand truss (No. 46) closest to
the door should be attached last.
Please see the diagram.
* Do not x roof assembly to the
building at this point.
16x90mm Screws
Pre drill
hole
90mm
screw
29
Step 14
Parts needed - No. 29 QTY 1
No. 31 QTY 2
Attach the longer Truss’(No. 31)
to the back corners of the
building to the assembly using
1x90mm screws per truss. Screw
down through the truss at an
angle into the main support.
Do the same with the centre
back truss (No. 29).
* Do not x roof assembly to the
building at this point.
3x90mm Screws
Pre drill
hole
90mm
screw
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
31
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary .
31
29
29
29
29
46
29
29
47

Please note: You can adjust the
blocks attached to the roof
truss’ if necessary .
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
P 10
Please retain product label and instructions for future reference
Step 15
Parts needed - No. 30 QTY 1
No. 31 QTY 1
Secure the front Roof Truss’(No’s. 30
& 31) to the main support as shown
in the illustration using 1x90mm
screws per truss.
*Ensure the angled side of the short
truss is ush with the side of the
long truss. Then make sure the block
under the short truss is ush against
the wall of the building.
** Do not x roof assembly to the
building at this point.
2x90mm Screws
Pre drill
hole
90mm
screw
Step 17
You can now x the assembled
roof truss’ to the building,
making sure the attached blocks
sit inside the assembly. Some
adjustment may be required to
ensure the roof structure rests
correctly.
Once in position x to the
building using 1x120mm screw
per purlin as shown in the
diagram.
13x120mm Screws
27
28
25
Step 16
Parts needed - No. 25 QTY 1
No. 26 QTY 3
No. 27 QTY 3
No. 28 QTY 6
Place the nisher boards (No’s.
25, 26, 27 & 28) around the
building, locating each block
between the truss’.
Secure each board using
2x70mm screws, ensuring to
stagger the screws to avoid
colliding.
26x70mm Screws
Pre drill
hole
70mm
screw
30
31
26
Pre drill
hole
120mm
screw
27
27
28
26
26
28
28
28
28

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 11
Please retain product label and instructions for future reference

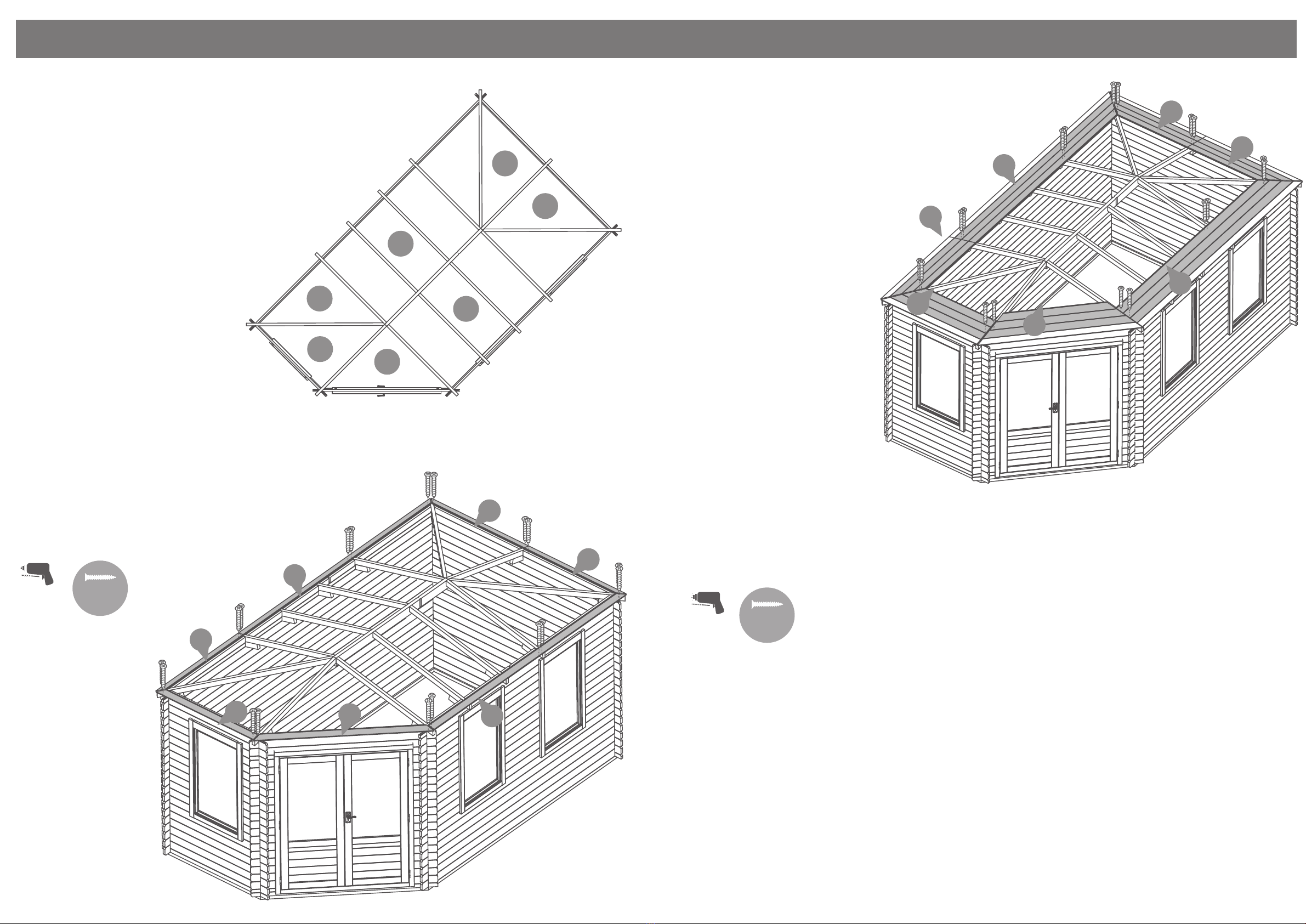

Step 18
Parts needed - No. 51 QTY 2
No. 52 QTY 1
No. 53 QTY 4
Place the rst board from each roof
board pack (A, B, & C) roof board
onto the roof assembly, working
around the structure, building
each layer of roof boards one by
one.
*HINT: keep the roof board packs
seperate so as not to mix up the
positions.
Once you are happy with the t
of the roof boards x the boards
into place using 2x40mm screws
per board ensuring to x through
the roof board into the truss below.
Once you are happy with the t
of the roof boards, x the second
board of this layer into place as
shown in the diagram. Use
2x40mm screws per board ensur-
ing to x through the roof board
into the truss below.
18x40mm Screws
Step 19
Parts needed - No. 51 QTY 6
No. 52 QTY 3
No. 53 QTY 12
Start arranging the roof board
packs (A, B & C) onto the roof
assembly, working around the
structure, building each layer of
roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the
second board of this layer into
place as shown in the diagram.
Use 2x40mm screws per board
ensuring to x through the roof
board into the truss below.
18x40mm Screws
53
53
53
52
53
53
53
Pre drill
hole
40mm
screw
Pre drill
hole
40mm
screw
53
51
52
C
C
C
C
A
B
A
51
51
51
53

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 12
Please retain product label and instructions for future reference
Pre drill
hole
40mm
screw
53
53
51
53
51
52
53
Step 20
Parts needed - No. 51 QTY 8
No. 52 QTY 2
No. 53 QTY 16
Continue arranging the roof
board packs (A, B & C) onto the
roof assembly, working around
the structure, building each
layer of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the rst
and third boards of this layer
into place as shown in the
diagram. Use 2x40mm screws
per board ensuring to x
through the roof board into the
truss below.
34x40mm Screws
Step 21
Parts needed - No. 51 QTY 6
No. 52 QTY 2
No. 53 QTY 12
Continue arranging the roof
board packs (A, B & C) onto the
roof assembly, working around
the structure, building each
layer of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the rst
and third board of this layer
into place as shown in the
diagram. Use 2x40mm screws
per board ensuring to x
through the roof board into the
truss below.
34x40mm Screws
Pre drill
hole
40mm
screw
51
53
52
53
53
51
53

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 13
Please retain product label and instructions for future reference
Step 23
Parts needed - No. 50 QTY 1
Place the oor board’s (No. 50)
inside the building ush to the log
board on one side. Continue
adding the oor boards (internally)
making sure to interlock each
individual board.
Once all the oor boards are in
position secure each board into
position using 8x40mm screws.
350x40mm Screws
40mm
screw
Pre drill
hole
This is for illustrative purposes only and may dier from your oor.
50
Pre drill
hole
40mm
screw
Step 22
Parts needed - No. 51 QTY 8
No. 52 QTY 3
No. 53 QTY 16
Continue arranging the roof
board packs (A, B & C) onto the
roof assembly, working around
the structure, building each
layer of roof boards one by one.
*HINT: keep the roof board
packs seperate so as not to
mix up the positions.
Once you are happy with the t
of the roof boards, x the
second board of this layer into
place as shown in the diagram.
Use 2x40mm screws per board
ensuring to x through the roof
board into the truss below.
18x40mm Screws
51
52
53
53
53
53
50
51

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 14
Please retain product label and instructions for future reference
*Internal view
Roof
Closure Trim
Internal
45
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 24
Parts needed - No. 45 QTY 7
Inside the building place the closure
trim (No. 45) against the boarding
and align with the roof as shown in
the illustration.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
42x30mm Screws
45
45
30mm
screw
Pre drill
hole
*Cut to t
Step 25
Parts needed - No. 45 QTY 7
Once the oor has been laid arrange the
closure trim (No. 45) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
42x30mm Screws

IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
P 15
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
Felt
tacks
Step 26
Parts needed - No. 48
Following the individual triangle
shape(s) of the roof measure and cut
the felt (No. 48) into the according
sizes and lay onto the roof in the
order shown in the illustration.
Secure along the outer edge of each
felt section using felt tacks spaced
out at approximately 100mm
intervals.
*Ensure there is 50mm of
overhanging felt around the base of
the roof.
600x Felt Tacks
HANDLE
WITH CARE
12
3
4
Felt
tacks
1.
3.
2.
4.
5.
6.
7.
8.
9.
10.
Felt Instructions.
1-2
- 5215mm (L) x 1000mm (W)
- 3751mm (L) x 1000mm (W)
3-4
- 3655mm (L) x 1000mm (W)
- 2191mm (L) x 1000mm (W)
5-6
- 3220mm (L) x 1000mm (W)
- 1756mm (L) x 884mm (W)
7-8
- 1660mm (L) x 1000mm (W)
- 928mm (L) x 984mm (W)
9-10
- 2320mm (L) x 1000mm (W)
- 983mm (L) x 436mm (W)
1. 2142mm+50mmx200mm(W)
2. 2142mm+50mmx200mm(W)
3. 2000mm+50mmx200mm(W)
4. 2142mm+50mmx200mm(W)
5. 1540mm+50mmx200mm(W)
Step 27
Parts needed - No. 48
Sealing the felt with felt stamps, follow
the measurements below.
250x Felt Tacks

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
IMPORTANT: Pre-drill before xing screws.
P 16
Please retain product label and instructions for future reference
41
42
Step 28
Parts needed - No. 41 QTY 2
No. 42 QTY 2
No. 43 QTY 2
Attach the fascias (No’s. 41, 42 &
43) around the building
following the diagram shown.
Ensure to trap the felt between
the fascia and the building.
Secure the fascia into position
using 4x40mm screws, making
sure to x through the fascia into
the roof purlin, fascia block
and/or log boards.
Once in place, mark the excess
fascia with a pencil and then trim
the fascias to follow the shape of
building as shown in the
illustration.
24x40mm Screws
Pre drill
hole
40mm
screw
43
43
Step 29
Parts needed - No. 44 QTY 8
Arrange the storm braces (No. 44)
around the building (internally).
Place 2x storm braces per side
xing into place using 2x 70mm
bolts per brace making sure the
washer & nut are tightened from
the outside of the building.
*Ensure the storm braces are
secured at the highest point
possible on each side.
**Storm braces will help your
building expand and contract
properly.
***It is important that each
bolt is tightened using a
washer so as not to damage
the log boards.
16x70mm Bolt Sets
Pre drill
hole
70mm
bolt
43
41
42
44
44
