Mercia Garden Products Helios 03HEL1010DDFW-V3 Instruction manual

P 1
03HEL1010DDFW-V3
10x10 Helios Summer House
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
**Protim Aquatan T5 (621)**
Your building has been treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Please retain product label and instructions for future reference

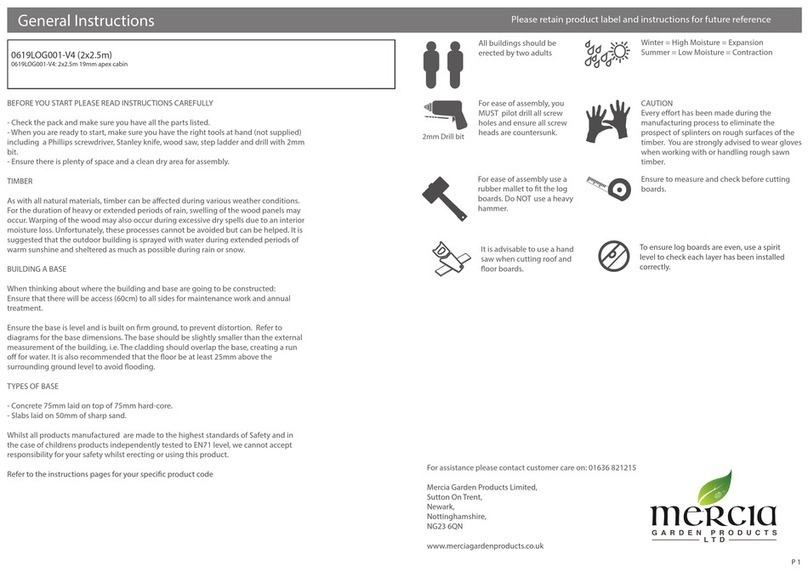

General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for you specic product code

12 3 4 5
6 7 8 9 10
11 12 13 14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Door Handle
PI-07-0001
Mortice Lock
PI-07-0017
Hinge QTY 6
PI-07-0023
Key Plate
Turn Button QTY 2
PI-07-0034
Tower Bolt QTY 2
PI-07-0114
31 32 33 34
35 36
Finial
P 2
03HEL1010DDFW-V3
Overall Dimensions:
Width = 3040mm
Depth = 3488mm
Height = 2189mm
Base Dimensions:
Width = 2919mm
Depth = 3102mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Door Panel
AI-03HELDP2392X2122-V1
Window Panel L
AI-03HELAWPL755X2140-V1
Window Panel R
AI-03HELAWPR755X2140-V1
Window Gable L
AI-03HELWGL2382X2093-V2
Window Gable L
AI-03HELWGL2382X2093-V2
Back Panel QTY 2
AI-03HELBP1459X1821-V3
Front Roof
AI-03HELTAGFR3032X964-V1
Back Roof L
AI-03HELTAGBRL1516X2356-V1
Back Roof R
AI-03HELTAGBRR1516X2356-V1
Front Floor
AI-03HELTAGFLOOR2907X717-V1
Back Floor QTY 2
AI-03HELTAGFLOOR1459X2387-V1
Master Door
AI-03HEL1010MD
Slave Door
AI-03HEL1010SD
Roof Bar QTY 4
AI-03HELRB2828X101-V1
Roof Block - 28x28x140mm QTY 8
FS2828-160mm (angled)
Lrg Rain Guard - 44x27x1272mm
F2744-1272mm (bevelled)
Sml Rain Guard - 44x27x580mm QTY 6
F2744-1272mm (bevelled)
Roof End - 121x12x2536mm QTY 2
MB112-2536mm
Roof End - 121x12x964mm QTY 2
MB112-964mm
Door Beading - 17x12x1711mm QTY 2
BDC-1711mm
Top Roof Trim - 30x12x1750mm QTY 4
S1230-1750mm
Btm Roof Trim - 30x12x1705mm QTY 4
S1230-1705mm
Fascia - 95x12x1520mm QTY 2
SR1295-1520mm
Front Trim - 44x12x2116mm QTY 2
S1244-2116mm
Corner Trim - 43x18x2093mm QTY 2
KCT4318-2093mm
Rear Trim - 25x18x1816mm QTY 2
S1225-1816mm
Floor Block - 28x28x400mm QTY 7
F2828-400mm
Post - 44x44x2078mm QTY 2
F4444-2078mm
Door Bar - 60x16x1705mm
F1660-1705mm
50mm Screw x57
40mm Screw x105
Felt Tacks x185
30mm Screw x133
60mm Screw x80
30mm Black Screw x2
Nail Bag
Pre Assembly
Remove the transportation blocks
from the bottom of each panel
before beginning assembly.
80mm Screw x14

P 3
Please retain product label and instructions for future reference
11
11
10
Step 1
Position back oor (No. 11)
sections onto a rm and level base,
x with 8x50mm screws alternate
the xing positions along the
length of the oors.
Fix the front oor (No. 10) to the 2
existing panels using the oor
joining bocks. Use 2x50mm screws
per block screwing through the
boards into the top of the block,
connecting the oor pieces.
30x50mm Screws
50mm
screw
Pre drill
hole
*Ensure your base has suitable drainage and is
free from areas where standing water can collect.
Step 2
Attach the ush hinges (No. 34)
to both the master (No. 12) &
slave (No. 13) doors using
3x30mm screws per hinge.
*Fix to the doors via the outer
plate.
Fix the doors into the door panel
(No. 1) aperture, securing into
place using 3x30mm screws per
hinge.
*Fix to the door panel via the
inner plate.
36x30mm Screws 34
1
13
29
30mm
screw
Pre drill
hole
Fit the mortice lock (No. 32)
into the recess on the master
door & x into place using with
the screws provided. Attach the
key plate (No. 33) to the slave
door, once again using the
screws provided.
Fix the door handles (No. 31)
and the metal bar (spindle)
using 8x30mm screws.
*Ensure the mortice lock opens
and closes freely. If not remove
the lock and turn the catch
around using the small grub
screw.
8x30mm Screws
30mm
screw
Pre drill
hole
The Mortice Lock is Reversible
33
32
b
34

P 4
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
Step 2 Continued...
Fix the door bar (No. 29) to the
inside of the slave door with
6x30mm screws, as shown in the
illustration.
Attach the door beading strips
to the inside of the door frame
(either side of each door) with
8x30mm screws, making sure
the beading strips sit ush with
the framing.
14x30mm Screws
34
Attach the tower bolts (No. 36)
to the door bar using the
screws provided.
*Ensure the bolts locate into
the keeps and the door locks
in place properly.
30mm
screw
Pre drill
hole
**Wood is a natural product and is
subject to movement with changing
weather conditions. It is important
that you t the turn buttons and tower
bolts as per the tting instructions.
50mm
screw
Pre drill
hole
60mm
screw
60mm
screw
Pre drill
hole
Step 3
Place the plain sides (No. 6) and the
rst right gable (No. 5) onto the oor.
connect the 2 plain sides using
3x50mm screws and secure the
gable at the corner using 3x60mm
screws.
Do NOT secure to the oor until
the roof has been tted.
3x50mm Screws
3x60mm Screws
6
65
a
4
a
a
b
b
b
b
b
b
Step 4
Fix the left gable (No. 4) to
the plain side at the
corner using 3x60mm
screws.
*Do NOT secure to the oor until
the roof has been tted.
Attach the posts (No. 28) to
the front of each gable with
3x60mm screws per post.
9x60mm Screws
a
b
25
25

P 5
Please retain product label and instructions for future reference
60mm
screw
Pre drill
hole
60mm
screw
Pre drill
hole
2
3
a
a
a
a
b
b
a
a
Step 5
Secure the left (No. 2) &
right (No. 3) window
panels to the posts using
3x60mm screws per panel.
Do NOT secure the
assembly to the oor
until the roof is tted.
6x60mm Screws
a
b
a
a
a
a
a
a
b
b
b
Step 6
Place the assemble door
panel inbetween the left
and right window panels,
xing into place using
6x60mm screws.
Do NOT secure the
assembly to the oor
until the roof is tted.
6x60mm Screws
a
b
40mm
screw
Pre drill
hole
80mm
screw
Step 6
Place the first ridge bar
(No. 14) inside the building
and line up with the upright
framing on each gable.
Align the back edge of the
ridge bar with the top of the
gable. Once in place mark
the position on both sides
with a pencil.
Place the roof support block
(No. 15) to the pencil mark
and secure in place using
2x40mm screws per block.
*Repeat this process on both sides
with the remaining roof support
bars.
Place the ridge bar(s)
(No. 14)on top of the
attached blocks and
secure through the outside
of both gables using
2x80mm screws per side.
14x40mm Screws
a
b
a
14
15
14
b
*Hint: When tting the roof bar pencil mark the centre
of the roof support bar and follow down onto the gable
at a right angle, this will give you a guide to x the
support bars in place.

P 6
Please retain product label and instructions for future reference
Please retain product label and instructions for future reference
25
8
8
8
14
8
Step 8
Rest the left roof (No. 8) on top of the
supports and secure with 20x40mm
screws as shown in the illustration.
*Ensure to align the screws with each
roof support bar.
Fix the roof (internally) to the roof
support bar using 8x40mm screws
(making sure the roof framing sits
behind the support bar) .
Repeat this process with the right
roof (No. 9), ensuring there is an equal
amount of overhang either side of the
building.
56x40mm Screws
40mm
screw
Pre drill
hole
7
20
Step 9
Place the front roof (No. 7) onto the
assembly securing into place using
4x40mm screws as shown in the
illustration.
Following the same method outlined in
step 8 x the front roof (internally) to the
roof support bar using 4x40mm screws.
8x40mm Screws
40mm
screw
Pre drill
hole
60mm
screw
Pre drill
hole
Step 10
Position the large (No. 18) and
the small (No. 19) roof ends
onto the roof.
*Ensure the tongue & groove
meet and the boards sit ush
with the roof framing.
Fix the boards in place using
12x40mm screws, making sure
to screw through the roof and
gable framing.
12x40mm Screws
40mm
screw
Pre drill
hole
a
a
aa
a
a
a
Step 11
Now the roof has been tted
secure the building to the
oor with 36x60mm screws
*Ensure to align the screws with the
oor bearers.
36x60mm Screws
a
19
18
19
18
7

Please retain product label and instructions for future reference
1
2
34
Felt
tacks
*Felt size: 3140mm
Step 12
Cut the felt into 4x strips.
Roll the felt across the roof in the order
shown in the illustration, leaving
approximatley 50mm of overhang at
the front & rear as well as an equal
amount either side of the building.
*Each sheet needs approximately 50mm
of overlap except the last sheet which
requires 250mm overlap.
165x Felt Tacks
HANDLE
WITH CARE
12
3
4
Step 13
To secure the roof felt in place,
sandwich the felt between the
top (No. 21) and bottom (No. 22)
roof trims as shown in the
illustration, xing into place using
24x30mm screws.
24x30mm Screws
30mm
screw
Pre drill
hole
Step 14
Fix the fascia’s (No. 23) to the front of the
building securing each board to the roof
framing using 8x40mm screws.
Place the nial (No. 30) over the fascia joint
and x into place with 2x40mm screws.
10x40mm Screws
40mm
screw
Pre drill
hole
14
28
14
21
22
21
22
21
22
21

30mm
screw
Pre drill
hole
30mm
screw
Pre drill
hole
Slave Door
Locking Door
24
24
25
26
25
26
26
Step 15
Fix the cover trims (No’s. 24, 25 & 26)
around the building across the joints
on each panel and at the corners
using 3x30mm screws per trim.
21x30mm Screws
Step 16
Attach the turn buttons (No. 35)
to the top & bottom of the slave
door using 2x30mm black screws.
*These turn buttons help to keep
your doors straight during high
and low levels of moisture
content in the air.
2x30mm Black Screws
35
Please retain product label and instructions for future reference
50mm
screw
Pre drill
hole
50mm
screw
Pre drill
hole
SILICONE
SEALANT
Step 17
Attach the sml rain guards
(No. 17) centrally above
each window using
3x50mm screws per guard.
18x50mm Screws
27
37
Step 18
Secure the lrg rain guard
(No. 16) above the doors,
xing into place using
4x50mm screws.
*ensure to screw into the
framing above door.
4x50mm Screws
SILICONE
SEALANT
*Hint: Silicone seal the back of each
rain guard to help reduce water
running behind.
*Hint: Silicone seal the back of the
rain guard to help reduce water
running behind.

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Please retain product label and instructions for future reference
