Remote programming
2 100 000 cts digital multimeter
Remote programming
Connection of
USB cable The multimeter can be remotely programmed using a computer or PC
with the programming kit.
1. Connect the USB cable at the rear panel to the USB input.
2. Connect the USB connector to one of the « USB » entries of the PC.
Configuration •Communication : 9600, 19200, 34800 baud
•8 data bits,
•1 stopbit,
•no parity,
•no flow control
Remote control The programming instructions comply with standard IEEE488.2, protocol
SCPI.
They provide the user with the possibility of checking the instrument
remotely from simple standard controls.
Communication between a controller and a generator enables users to:
•Configure the instrument
•Perform measurements campaign
•Receive information (configuration)

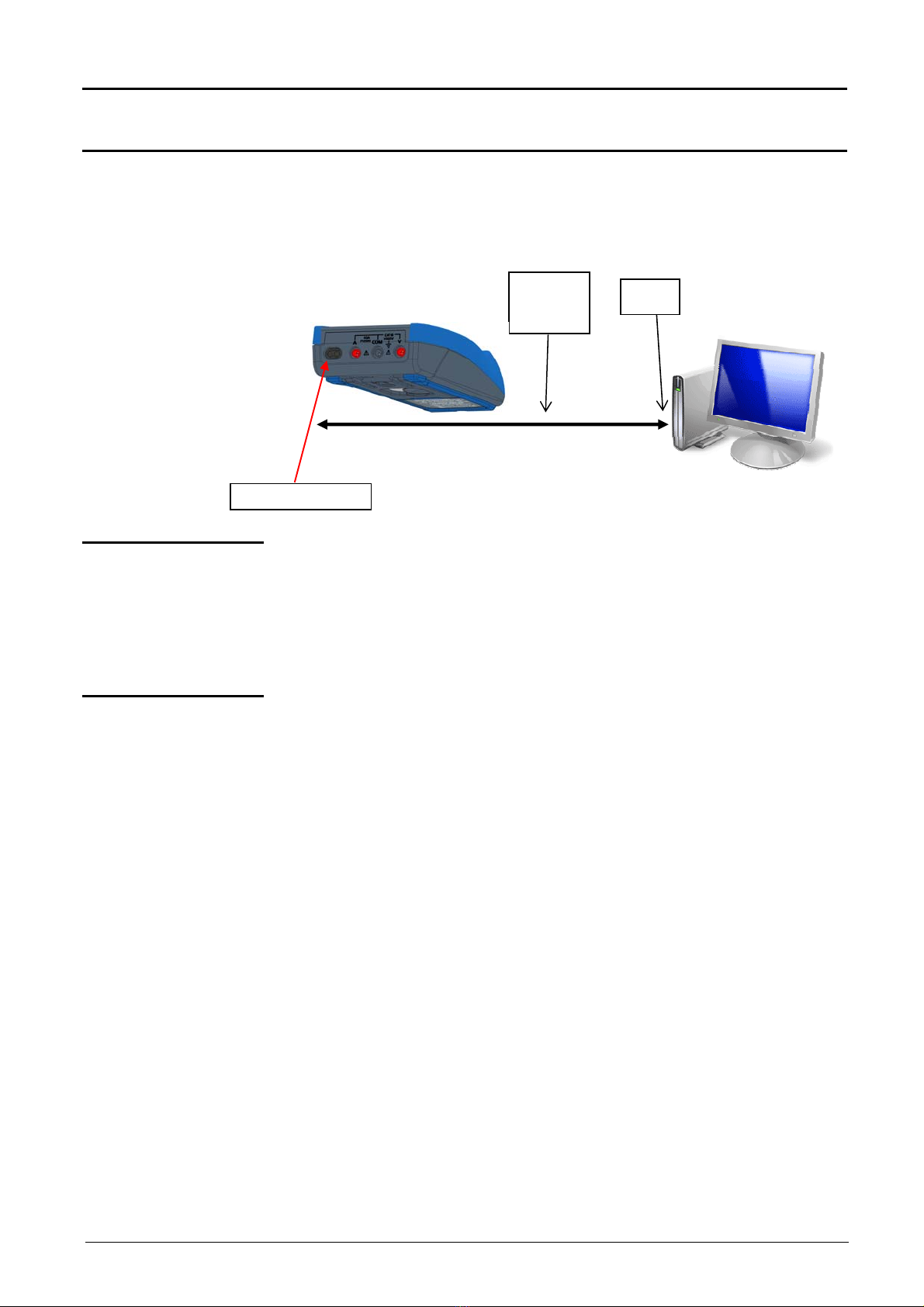

USB
plug
USB
interface
cable
USB optical cable

Remote programming
100 000 cts digital multimeter 3
Command syntax
Common
commands
Specific
commands
Keywords
#
The brackets ([ ]) are used to frame a keyword which is optional during
programming; i.e. the instrument will execute the command whether the
keyword is optional or not. Uppercase and lowercase are used to
differentiate the short form of the keyword (uppercase letters) and the long
form (whole word).
The instrument accepts the uppercase or lowercase letters without
distinction.
FUNC:SIN is equivalent to SOURCE:FUNCTION:SHAPE SINUSOID
Parameters The parameters, if any, are separated from the keyword by a space (' '). A
command can accept parameters of a defined type, a literal expression or a
combination of both.
The defined-type parameters are marked by the characters < >.
The brackets ([ ]) mean that the parameters are optional.
The vertical bar ( | ) may be read as an "or", it is used to separate the
various possible parameters.
Separators The separator ' : ' descends in the next directory or returns under the root, if
preceded by a ' ; '.
The separator ' ; ' separates two commands in the same directory or marks
the end of a directory command, enabling a return to the root level by
adding the separator ' ; '.
The separator ' ' (space) separates the keyword from the following
parameter.
Terminators <T> used as a general term designating a terminator.
T is the character CR (ASCII code 13 or 0x0D) or the CR character followed
by the LF character (ASCII code 10 or 0x0D)
A command line must not exceed 80 characters; it is ended by a terminator.
*Mn
e
m
o
ni
c
code
Terminator
Short keyword Digital
suffix
Paramete
r
Long keyword
;
:
: ' '
?
;
Terminator
?

Remote programming
4 100 000 cts digital multimeter
Programming
Convention
Tree structure The command tree diagram includes all the commands specific to the
instrument.
Common commands (standard IEEE 488.2) are listed separately, since they
do not affect the position of the syntax analyzer in the tree.
When the terminator <NL> is sent to the instrument, the analyzer is
positioned at root level.
When the analyzer is in a directory, both separators ' ;: ' are necessary to
return to the root.
IEEE 488.2
common
commands
Commands Functions
*CLS erases the event, status registers and the error list.
*ESE[?] reads or sets the event authorization.
*ESR? reads the event status register.
*IDN? reads the identifier.
*OPC[?] reads or sets the command synchronizing.
*RST re-initializes the instrument.
*SRE[?] reads or sets the authorization of service demand.
*STB? reads the status byte.
*TST? reads the autoset result.
*WAI waits until all running commands have ended their
execution

Remote programming
100 000 cts digital multimeter 5
Multimeter specific
commands
Directory Command Function
CALCulate
:AVERage:AVERage? reads the last average value
stored in monitoring mode.
:AVERage:CLEar resets the minimum and maximum
average values memorized in
monitoring mode.
:AVERage:DATE:MAX? reads the date and time when the
maximum has been stored in
monitoring mode.
:AVERage:DATE:MIN? reads the date and time when the
minimum has been stored in
monitoring mode.
:AVERage:DATE:START? reads the date and time that the
monitoring mode was started.
:AVERage:DATE:STOP? reads the date and time that the
monitoring mode was stopped.
:AVERage:MAX? reads the last stored maximum
value in monitoring mode.
:AVERage:MIN? reads the last stored minimum
value in monitoring mode.
:AVERage:Status[?] reads or sets the status of the
monitoring mode.
:FUNCtion[?] reads or sets the function of the
secondary display.
:FUNCtion:LIST? reads the list of authorized
functions of the secondary display.
:MATH:MAFactor[?] reads or sets the A coefficient of
the mathematical function of the
running measurement.
:MATH:MBFactor[?] reads or sets the B coefficient of
the mathematical function of the
running measurement.
:MATH:MUNit[?] reads or sets the unit of the
mathematical function of the
running measurement.
:REFerence[?] reads or sets the reference
measurement.
:REFerence:ABSDIFFerence? reads relative value.
:REFerence:RELDIFFerence? reads the relative percentage
value.
:REFerence:Status[?] reads or sets the status for the
relative mode.
:SPEC:DIGITs? reads the value of the specification
in digits for the running
measurement.
:SPEC:PERCent? reads the value of the specification
in percent for the running
measurement.
:SPEC:SMAX? reads the value of the upper
specification limit for the running
measurement.
:SPEC:SMIN? reads the value of the lower
specification limit for the running
measurement.
:SPEC:Status[?] reads or sets the status for the
specified mode.

Remote programming
6 100 000 cts digital multimeter
Multimeter specific
commands
(cont’d)
DATA
:CATalog? reads the list of stored measurement
campaigns.
:[DATA]:VALue? reads the values stored in a
measurement campaign.
:DELete:ALL erases all stored measurement
campaigns.
:DELete[:NAME] clears a stored measurement
campaign.
:POINts[?] reads or sets the size of the buffer
memory of the device.
:RATE[?] reads or sets the logging interval.
:STOre:Status[?] reads or sets the status for the
recording mode.
DISPlay
:LUMInosity[?]
reads or sets the brightness of the
display.
HELP[?] reads the list of commands.
HCOPy
:DEVice:CMAP? reads the color of the display.
:SDUMp[:IMMediate?]
reads the contents of the bitmap of
the display.
INPut
:COUPling[?]
reads or sets the type of running
coupling volt or ampere
measurement.
:IMPedance? reads or sets the value of the input
impedance.
MEASure? reads the measurement result without
units.
READ? reads the measurement result with
units.

Remote programming
100 000 cts digital multimeter 7
Multimeter specific
commands
(cont’d)
[SENSe:]
CLAMP:CAMP1Ratio[?] reads or sets the numerator of the ratio
used in measuring amps on the clamp
function.
CLAMP:CAMP2Ratio[?] reads or sets the denominator of the
coefficient used in measuring amps on
the clamp function.
CLAMP:CUNit[?] reads or sets the unit displayed in clamp
measurement.
CLAMP:CVOLT2Ratio[?] reads or sets the numerator of the ratio
used to measure volt in clamp function.
CLAMP:CVOLT1Ratio[?] reads or sets the denominator of the
ratio used to measure volt-ampere in
clamp function.
CLAMP:MEASure[?] reads or sets the measurement used in
clamp function.
CLAMP:Status[?] reads or sets the activity status of the
clamp mode.
FILTer[:LPASs][:Status][?] reads or sets the activity status of the
meter filter.
FREQuency:MODe[?] reads or sets the measurement range of
the frequency.
FREQuency:THReshold:VO
LTage:RANGe[?]
reads or sets the voltage range for
frequency measurement.
FUNCtion[?] reads or sets the type of main measurem.
HOLD:Status[?] reads or sets the status of HOLD mode.
MENU:DBM:IMPedance[?] reads or sets the dBm impedance
calculation.
MENU:WATT:IMPedance[?] reads or sets the calculation impedance
of power measurement.
RANGe:AUTO[?] reads or sets the activity status of the
multimeter autorange mode.
RANGe:AUTO:PEAK[?] reads or sets the status of the multimeter
autoranging mode on peak values .
RANGe[:UPPer] [?] reads or selects the range of the main
measurement.
SECondary[?] reads or sets the group of second. meas.
TEMPerature:TRANsducer[?] reads or sets the type of sensor used for
measuring temperature.
SYSTem
:BEEPer:Status[?] reads/sets the activation status of the
beeper.
:COMMunicate:SERial[:REC
eive]:BAUD[?]
reads or sets the communication speed
of the serial link.
:DATE[?] reads or sets the date.
:ERRor[:NEXT]? reads the error number.
:LANGuage[?] reads or sets the language of the menus.
:LOCal sets the meter in local mode.
:PROTocole selects the MODBUS protocol.
:TIME[?] reads or sets the time.
:VERSion? reads the SCPI release.
TRACe
:CATalog? see DATA command: CATalog
[:DATA]:VALue? see DATA command: [DATA:] VALue?
:DELete:ALL see DATA command: DELete: ALL
:DELete[NAME] see DATA command: DELete [NAME]
:POINts[?] see DATA command: POInts [?]
:RATE[?] see command DATA: RATE [?]
:STOre:Status[?] see DATA command: STOre: Status [?]
UNIT
:TEMPerature[?] reads or sets the unit of meas. of temp.

Remote programming
8 100 000 cts digital multimeter
Detailed description
of commands IEEE 488.2 common commands
*CLS
(Clear Status) (Command)
The *CLS command resets the event registries in all registry groups. It also
resets the error queue.
Command syntax :*CLS
*ESE[?]
(Standard Event
Status Enable)
(Command/Query)
To the query *ESE?, the instrument returns the event validation registry
value.
Query syntax : *ESE?
Response format :
<value><T>
The *ESE command sets the event validation registry.
Command syntax:*ESE <value>
<value>: decimal number between 0 and 255 which represents the event
validation registry value.
*ESR?
(Standard Event
Status Register)
(Query)
To the *ESR? question, the instrument returns the event status registry
value.
Query syntax : *ESR?
Response format :
<value><T>
<value>: Decimal number between 0 and 255 which represents the event
validation registry value.
*IDN?
(Identification
Number)
(Query)
To the *IDN? question, the instrument returns the type of instrument and
the soft version.
Query syntax : *IDN?
Response format :
"model", HV < hard version >, FV < soft version ><T>
"model" Instrument name (ex: "MTX 3292").
< hard version > Version of the electronic board (a letter between 'A'
and 'H'.
< soft version > Embedded soft version such as x.xx
(ex: 1.01).

Remote programming
100 000 cts digital multimeter 9
*OPC[?]
(Operation complete) (Command/Query) To the *OPC? question, the instrument returns the value 1 once all pending
commands have been executed.
Query syntax : *OPC?
Response format :
<1><T>
The *OPC command places the message « Operation complete » (bit 0) in
the standard event registry at the end of the running operation.
Command syntax : *OPC
<value>: Decimal number between 0 and 255 which represents the event
validation registry value.
*RST
(Reset) (Command)
The *RST command resets the instrument in the default factory status.
*SRE[?]
(Service Request
Enable)
(Command/Query)
To the *SRE? question, the instrument returns the register value of the
service request activation.
Query syntax : *SRE?
Response format :
<value><T>
The *SRE command sets the service request activation registry.
Command syntax : *SRE <value>
<value>: Decimal number between 0 and 255 which represents the value of
the service request activation register.
*STB?
(Read Status byte) (Query) To the *STB? question, the instrument returns the value of the status byte.
Query syntax : *STB?
Response format :
<value><T>
<value>: Decimal number between 0 and 255 which represents the value of
the status byte.
*TRG
(Trigger) (Command) The *TRG command sends a trigger demand.
Command syntax :*TRG
*TST?
(Self-Test) (Query)
To the *TST? question, the instrument sends a full autoset procedure and
returns the result.
Query syntax : *TST?
Response format :
<value><T>
<value>: 0 if successful, 1 if failed.
*WAI
(Wait-to-Continue) (Command) The *WAI command prevents the instrument from performing further
commands as long as the current command has not been terminated.
Command syntax :*WAI

Remote programming
10 100 000 cts digital multimeter
Detailed description of
commands Commands specific to the instrument
CALCulate commands
:AVERage:AVERage? (Query)
To the question CALC:AVER:AVER?, the instrument returns the average
value last memorized in SURV mode.
Response format : 005.26 mV
:AVERage:CLEar (Command)
The command CALC:AVER:CLE resets the minimum and maximum
average values memorized in surveillance mode (the surveillance mode
has to be activated).
:AVERage:DATE:MAX? (Query)
To the question CALC:AVER:DATE:MAX?, the instrument returns the
date and time when the maximum value has been memorized in
surveillance mode.
Response format : 2014,08,24 3,23,49
:AVERage:DATE:MIN? (Query)
To the question CALC:AVER:DATE:MIN?, the instrument returns the date
and time when the minimum value has been memorized in surv. mode.
Response format : 2014,08,24 3,23,49
AVERage:DATE:STAR? (Query)
To the question CALC:AVER:DATE:START?, the instrument returns the
date and time when the surveillance mode has started.
Response format : 2014,08,24 3,23,49
AVERage:DATE:STOP? (Query)
To the question CALC:AVER:DATE:STOP?, the instrument returns the
date and time when the surveillance mode has stopped.
Response format : 2014,08,24 3,23,49
:AVERage:MAX? (Query)
To the question CALC:AVER:MAX?, the instrument returns the last
maximum value memorized in surveillance mode.
Response format : 005.47 mV
:AVERage:MIN? (Query)
To the question CALC:AVER:MIN?, the instrument returns the last
minimum value memorized in surveillance mode..
Response format : 005.18 mV
AVERage:Status[?] (Command/Query)
The command CALC:AVER:STAT <0|1|OFF|ON>, activates or de-
activates the surveillance mode.
Values are 0 or OFF to de-activate and 1 or ON to activate.
To the question CALC:AVER:STAT?, the instrument returns the activation
status of the surveillance mode.

Remote programming
100 000 cts digital multimeter 11
FUNCtion[?] (Command/Query)
The command CALC:FUNC <function> sets the function of the secondary
display.
To the question CALC:FUNC?, the instrument returns the function of the
secondary display.
The authorized values of the parameter function <function> depend on the
selected main measurement.
They can be identified using the command CALC:FUNC:LIST?
FUNCtion:LIST? (Query)
To the question CALC:FUNC:LIST?, the instrument returns the list of
functions authorized for the secondary display.
MATH:MAFactor[?] (Command/Query)
The command CALC:MATH:MAF <factor> sets the A coefficient of the
mathematical function of the running measurement.
To the question CALC:MATH:MAF?, the instrument returns the A
coefficient of the mathematical function of the running measurement.
The <factor> parameter is a decimal numeric value between 9.9999e+99
and +9.9999e+99.
MATH:MBFactor[?] (Command/Query)
The command CALC:MATH:MAF <factor> sets the B coefficient of the
mathematical function of the running measurement.
To the question CALC:MATH:MAF?, the instrument returns the B
coefficient of the mathematical function of the running measurement.
The <factor> parameter is a decimal numeric value between 9.9999e+99
and +9.9999e+99.
MATH:MUNit[?] (Command/Query)
The command CALC:MATH:MUN <unit> sets the unit of the mathematical
function of the running measurement.
To the question CALC:MATH:MUN?, the instrument returns sets the unit
of the mathematical function of the running measurement.
The <unit> parameter is a chain of 3 characters maximum.
If the character chain is "OHM", the unit displays the symbol "".
REFerence[?] (Command/Query)
The command CALC:REF <reference> sets the reference of the relative
measurement.
To the question CALC:REF?, the instrument returns the relative
measurement reference.
The <reference> parameter is a decimal numeric value.
REFerence:
ABSDIFFerence? (Query)
To the question CALC:REF:ABSDIFF?, the instrument returns the relative
value.
REFerence:
RELDIFFerence? (Query)
To the question CALC:REF:RELDIFF?, the instrument returns the
percentage relative value.

Remote programming
12 100 000 cts digital multimeter
REFerence:Status[?] (Command/Query)
The command CALC:REF:STAT <0|1|OFF|ON>, activates or de-activates
the relative mode.
The values are 0 or OFF to de-activate and 1 or ON to de-activate.
To the question CALC:REF:STAT?, the instrument returns the activation
status of the relative mode.
SPEC:DIGITs? (Query)
To the question CALC:SPEC:DIGIT?, the instrument returns the
specification value in digit of the running measurement.
SPEC:PERCent? (Query)
To the question CALC:SPEC:PERC?, the instrument returns the
specification value in percentage of the running measurement.
SPEC:SMAX? (Query)
To the question CALC:SPEC:SMAX?, the instrument returns the value of
the upper limit of the specification for the running measurement.
SPEC:SMIN? (Query)
To the question CALC:SPEC:SMIN?, the instrument returns the value of
the lower limit of the specification for the running measurement.
SPEC:Status[?] (Command/Query)
The command CALC:SPEC:STAT <0|1|OFF|ON>, activates or de-
activates the specification mode.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question CALC:SPEC:STAT?, the instrument returns the activation
status of the specification mode.

Remote programming
100 000 cts digital multimeter 13
Commands DATA
CATalog? (Query)
To the question DATA:CAT?, the instrument returns the list of the
memorized measurement campaigns.
[DATA:]VALue? (Query)
To the question DATA:VAL? <campaign>, the instrument returns the
values memorized in a measurement campaign.
The parameter <campaign> is a mnemonic representing the name of the
measurement campaign.
Names of available measurement campaigns can be known using the
DATA:CAT? command.
:DELete:ALL (Command)
The command DATA:DEL:ALL deletes all memorized measurement
campaigns.
:DELete[:NAME] (Command)
The command DATA:DEL <campaign> deletes a memorized
measurement campaign.
The parameter <campaign> is a mnemonic representing the name of the
measurement campaign.
Names of available measurement campaigns can be known using the
DATA:CAT? command.
POINts[?] (Command/Query)
The command DATA:POIN <points> sets the buffer size of the
memorization unit.
To the question DATA:POIN?, the instrument returns the buffer size of the
memorization unit.
The parameter <points> is an integer value.
RATE[?] (Command/Query)
The command DATA:RATE <cadence> sets the recording cadence.
To the question DATA:RATE?, the instrument returns the recording
cadence.
The parameter <cadence> is a numerical value in second from 1000 and
86399000 representing a measurement interval from 1 second to 23 hours,
59 minutes and 59 seconds.
STOre:Status[?] (Command/Query)
The command DATA:STO:STAT <0|1|OFF|ON>, activates or de-activates
the recording mode.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question DATA:STO:STAT?, the instrument returns the activation
status of the recording mode.

Remote programming
14 100 000 cts digital multimeter
Commands DISPlay
LUMInosity (Command/Query)
The command DISP:LUMI <luminosity> selects the brightness of the LCD
display.
To the question DISP:LUMI?, the instrument returns the brightness of the
LCD.
The parameter <luminosity> is a mnemonic code among following : ECO2,
ECO, NORM, MAX.
Command HELP (Query)
To the question HELP?, the instrument returns the directory list of SCPI
command tree.
To the question HELP[?] <"*" | "INPut" | "TRACe" | "CALCulate" |
"MEASure" | "UNIT" | "DISPlay" | "SENSe" | "HELP" | "SYSTem" >, the
instrument returns the command list of the directory in parameter.
Commands HCOPy
DEVice:CMAP? (Query)
To the question HCOP:DEV:CMAP?, the instrument returns the colors of
the display in following format :
The first character is '#'.
The second character is the size of the next field which itself contains the
number of binary bytes that are transmitted.
SDUMp[:IMMediate]? (Query)
To the question HCOP:SDUM?, the instrument returns the content of the
display bitmap.
The first character is '#'.
The second character is the size of the next field which itself contains the
number of binary bytes that are transmitted.
Commands INPut
COUPling[?] (Command/Query)
The command INP:COUP <DC|AC|ACDC> selects the coupling type of the
running volt, amp or clamp measurement.
To the question INP:COUP?, the instrument returns the active coupling
type.
IMPedance[?] (Command/Query)
The command INP:IMP <impedance> selects the value of the input
impedance.
To the question INP:IMP?, the instrument returns the value of the input
impedance.
The parameter <impedance> is a numeric value which equals 1e+7 or 1e+9.
Command MEASure? (Query)
To the question MEAS?, the instrument returns the result of the running
measurement, without units.
Response format : 2.7691e-01

Remote programming
100 000 cts digital multimeter 15
Command READ?
(Query)
To the question READ?, the instrument returns the result of the running
measurement.
Response format : +276.91 mVAC
Commands [SENSe:]
CLAMP:CAMP1Ratio[?] (Command/Query)
The command CLAMP:CAMP1 <numerator> selects the numerator of
the ratio used in amp measurement in the clamp function.
To the question CLAMP:CAMP1?, the instrument returns the ratio
numerator used in amp measurement in the clamp function.
The parameter <numerator> is a numeric decimal value from +0.1e-6 to
+9999.0e+6.
CLAMP:CAMP2Ratio[?] (Command/Query)
The command CLAMP:CAMP2 <denominator> selects the
denominator of the ratio used in amp measurement in the clamp
function.
To the question CLAMP:CAMP2?, the instrument returns the
denominator of the ratio used in amp measurement in the clamp
function.
The parameter <numerator> is a numeric decimal value from +0.1e-6 to
+9999.0e+6.
CLAMP:CUNit[?] (Command/Query)
The command CLAMP:CUN <unit> sets the unit of the clamp function.
To the question CLAMP:CUN?, the instrument returns the unit of the
clamp function.
The parameter <unit> is a chain of 3 characters maximum.
If the character chain is "OHM", the unit displayed is the symbol "".
CLAMP:CVOLT1Ratio[?] (Command/Query)
The command CLAMP:CVOLT1 <numerator> selects the numerator
of the ratio used in volt measurement in clamp function.
To the question CLAMP:CVOLT1?, the instrument returns the
numerator of the ratio used in volt measurement in the clamp function.
The parameter <numerator> is a numeric decimal value from +0 to
+9999.0e+6.
CLAMP:CVOLT2Ratio[?] (Command/Query)
The command CLAMP:CVOLT2 <denominator> selects the
denominator of the ratio used in volt measurement in clamp function.
To the question CLAMP:CVOLT2?, the instrument returns the
denominator of the ratio used in volt measurement in clamp function.
The parameter <numerator> is a numeric decimal value from +0 to
+9999.0e+6.

Remote programming
16 100 000 cts digital multimeter
CLAMP:MEASure[?] (Command/Query)
The command CLAMP:MEAS <measure> selects the measure used
by the clamp function.
To the question CLAMP:MEAS?, the instrument returns the mesure
used by the clamp function.
The parameter <measure> is a chain of characters which is either
"VOLTAGE", or "CURRENT".
CLAMP:Status[?] (Command/Query)
The command CLAMP:STAT <0|1|OFF|ON>, activates or de-activates
the clamp function.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question CLAMP:STAT?, the instrument returns the activation
status of the clamp function.
FILTer[:LPASs][:Status][?] (Command/Query)
The command FILT <0|1|OFF|ON>, activates or inhibits the instrument
filter.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question FILT?, the instrument returns the filter activation status.
FREQuency:MODe[?] (Command/Query)
The command FREQ:MOD <INF200KHZ|SUP200KHZ>, selects the
frequency measurement range.
To the question FREQ:MOD?, the instrument returns used frequency
measurement range.
FREQuency:THReshold:
VOLTage:RANGe[?] (Command/Query)
The command FREQ:THR:VOLT:RANG <range>, selects the voltage
range of the frequency measurement.
To the question FREQ:THR:VOLT:RANG?, the instrument returns the
voltage range used for the frequency measurement.
The parameter <range> is a decimal numeric value which defines the
range.
If the parameter <range> has a negative value, the range change in
frequency measurement is automatic.
FUNCtion[?] (Command/Query)
The command FUNC <"VOLTage" | " CURRent " | " RESistance " | "
FREQuency " | " CONTinuity " | " DIODe " | "50 ohm" | " CAPAcitor
" | " TEMPerature " | "LOWZvoltage" | "DIODEZ" | "PREF"> selects
the main measurement type.
To the question FUNC?, the instrument returns the active main
measurement type.

Remote programming
100 000 cts digital multimeter 17
HOLD:Status[?] (Command/Query)
The command HOLD:STAT <OFF|ON|AUTO>, sets the HOLD mode
of the instrument.
To the question HOLD:STAT?, the instrument returns the HOLD mode
status.
MENU:DBM:IMPedance[?] (Command/Query)
The command MENU:DBM:IMP <impedance>, sets the calculation
impedance of the dBm measurement.
To the question MENU:DBM:IMP?, the instrument returns the value of
the selected calculation impedance for the dBm measurement.
The parametere <impedance> is an integer value from 1 to 10000.
MENU:WATT:IMPedance[?] (Command/Query)
The command MENU:WATT:IMP <impedance>, sets the calculation
impedance of the power measurement.
To the question MENU:WATT:IMP?, the instrument returns the value
of the selected calculation impedance for the power measurement.
The parameter <impedance> is an integer value from 1 to 10000.
RANGe:AUTO[?] (Command/Query)
The command RANG:AUTO <0|1|OFF|ON> activates or deactivates
the autorange of the active main measurement.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question RANG:AUTO?, the instrument returns the activation
status of the autorange.
RANGe:AUTO:PEAK[?] (Command/Query)
The command RANG:AUTO:PEAK <0|1|OFF|ON> activates or de-
activates the autorange on peak values of the active main
measurement.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question RANG:AUTO?, the instrument returns the activation
status of autoranging on peak values.
RANGe[:UPPER][?] (Command/Query)
The command RANG <range> selects the range of the active main
measurement.
To the question RANG ?, the instrument returns the number of the
range of the active main measurement.
The parameter <range> is a numeric decimal value that defines the
range.

Remote programming
18 100 000 cts digital multimeter
SECondary[?] (Command/Query)
The command SEC <group> selects the group of secondary
measurement.
ATTENTION: All groups of secondary measurements are not valid for
each primary measure.
If the selected group is not valid for the running main measurement,
an error "-221, Settings conflict" is generated.
To the question SEC?, the instrument returns the group number of
secondary measurement displayed.
The parameter <group> is an integer numeric value between 0 and
14 that corresponds to the group of secondary measurement
described below:
0: No secondary measure, graph display.
1: Frequency, period, mathematical function.
2: Frequency, dB, mathematical function.
3: dBm, dBm reference, mathematical function.
4: Peak positive, negative peak, crest factor.
5: Power, reference power, mathematical function.
6: VA, current, mathematical function.
7: Period, positive duty cycle, mathematical function.
8: Period, negative duty cycle, mathematical function.
9: Positive pulse time, positive pulse counter, mathematical
function.
10: Negative pulse time, negative pulse counter, mathematical
function.
11: Mathematical function.
12: Frequency, period.
13: Period, positive duty cycle.
14: Period, negative duty cycle.
TEMPerature:TRANsducer[?] (Command/Query)
The command TEMP:TRAN <PT100|PT1000|TCJ|TCK> selects the
type of transducer used for the temperature measurement.
To the question TEMP:TRAN?, the instrument returns the type of
transducer used for the temperature measurement.

Remote programming
100 000 cts digital multimeter 19
Commands SYSTem
BEEPer:Status[?] (Command/Query)
The command SYST:BEEP:STAT <0|1|OFF|ON>, activate or de-
activate the beeper of the instrument.
The values are 0 or OFF to de-activate and 1 or ON to activate.
To the question SYST:BEEP:STAT?, the instrument returns the
activation status of the beeper.
COMMunicate:SERial
[:RECeive]:BAUD[?] (Command/Query)
The command SYST:COMM:SER:BAUD <9600|19200|38400>,
selects the communication speed of the serial link device.
To the question SYST:COMM:SER:BAUD?, the instrument returns
the communication speed of the serial link device.
DATE[?] (Command/Query)
The command SYST:DATE <year,month,day>, sets the date.
To the question SYST:DATE?, the instrument returns the date.
The parameter <year> is an integer numeric value from 1 to 36.
The parameter <month> is an integer numeric value from 1 to 12.
The parameter <year> is an integer numeric value from 1 to 31.

Remote programming
20 100 000 cts digital multimeter
ERRor[:NEXT]?
(Query)
To the SYST:ERR? question, the instrument returns the error number positioned
at the top of the queue. The queue may have up to 10 numbers and it is
managed according to the principle of first in, first out.
As the SYST:ERR? questions progress,the multimeter returns the error
numbers in the order of their arrival, until the queue is empty.
Any additional SYST:ERR? question will cause a negative response:
"0,No error".
If the queue is full, the box located at the top of the queue takes the –350 value
(queue saturated).
The queue is emptied :
- on powering on
- on receipt of a *CLS
-on reading the last error
Response format : <error,message><T>
with: error = integer negative or null.
message = corresponding error message
Error list * Command errors : (-199 to –100)
They indicate that a syntax error has been detected by the syntax analyzer and
caused event register bit 5, called CME, CoMmand Error, to be set to 1
-101 : Invalid character
-103 : Invalid separator
-104 : Data type error
-108 : Parameter not allowed
-109 : Missing parameter
-111 : Header separator error
-112 : Program mnemonic too long
-113 : Undefined header
-114 : Header suffix out of range
-121 : Invalid character in number
-128 : Numeric data not allowed
-141 : Invalid character data
-148 : Character data not allowed
-151 : Invalid string data
-154 : String data too long
* Execution error : (-299 to –200)
They indicate that an error has been detected at the moment of command
execution, and causes event register bit 4, called EXE, Execution Error, to be set
to 1.
-200 : Execution error
-203 : Command protected
-221 : Settings conflict
-222 : Data out of range
* Instrument specific errors : (-399 to –300)
They indicate that an abnormal error has been detected during execution of a
task, and causes event registry bit 3, called DDE, Device Dependent Error
to be set to 1.
-300 : Device specific error
-350 : Queue overflow
-360 : Communication error
* Query errors : (-499 to –400)
They indicate that an anomaly in the information exchange protocol has occurred
and causes event register bit 2, called QYE, QuerY Error, to be set to 1.
-400 : Query error
