Mitutoyo 500-712-20 User manual

User's Manual
No. 99MAD030A
Date of publication: July 1, 2021 (1)
ABS Digimatic Caliper
IP67 ABS Coolant Proof Caliper
Safety Precautions
To ensure operator safety, use this product according to the directions, functions and
specications given in this User’s Manual. Use under other conditions may compromise
safety.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
WARNING
•Always keep batteries out of reach of children, and if swallowed, consult a physician
immediately.
•Batteries should never be short-circuited, disassembled, deformed or come in contact
with extreme heat or ames.
•If alkaline liquid contained in the battery does come in contact with your eyes, ush them
immediately with plenty of clean water and consult a physician. If the liquid adheres to
the skin or clothes, immediately ush it with plenty of clean water.
•Do not measure the workpiece if it is rotating. There is a risk of injury due to being
caught in the machine, etc.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
•The outside and inside measuring jaws of this caliper have sharp edges. Handle it with
great care to avoid injury.
■Conventions and wording indicating prohibited and mandatory actions
Indicates concrete information
about prohibited actions.
Indicates concrete information
about mandatory actions.
Contents
1 Type and Code Number..................... 2
2 Names of Components...................... 2
3 Precautions for Use ...........................3
4 Product Applications.........................3
5 Basic Usage........................................3
6 ConrmationbeforeMeasurement..3
7 Installing the Battery and Setting
the Origin ............................................ 4
8 In/mm Conversion .............................4
9 Measurement Method........................ 5
10 Errors and Countermeasures........... 7
11 Precautions after Use........................7
12 Specications .................................... 7
13 Standard Accessories ....................... 8
14 Optional Accessories ........................ 8
15 OutputSpecications ....................... 8

2No. 99MAD030A
1. Type and Code Number
■Standard type: with output function and thumb roller
Code No. 500-712-20 500-713-20 500-714-20 500-719-20* 500-762-20
500-763-20 500-764-20 500-768-20 500-769-20*
*Depth bar: ø1.9 mm rod
●Model with carbide-tipped jaws for outside measurement
Code No. 500-721-20 500-722-20 500-731-20* 500-732-20* 500-735-20
500-736-20
*without output function
●Model with carbide-tipped jaws for outside and inside measurement
Code No. 500-723-20 500-724-20 500-733-20* 500-734-20* 500-737-20
500-738-20
●Model without output function
Code No. 500-702-20 500-703-20 500-704-20 500-752-20 500-754-20
500-768-20*
*Depth bar: ø1.9 mm rod
●Model without thumb roller
Code No. 500-716-20 500-717-20 500-718-20
●Model without output function and thumb roller
Code No. 500-706-20 500-707-20 500-708-20
2. Names of Components
②
③
⑤⑧
⑦
⑳
⑥
①
⑰
⑯
⑮ ⑭ ⑬
⑫ ⑪
⑱
⑲
⑩ ⑨
④
①
Step measuring surface
⑪
Thumb roller (only for the type with the
thrum roller)
②
Inside measuring surface
③
Inside measuring jaws
⑫
Thumb rest
④
LCD part
⑬
Battery lid
⑤
Slider clamp screw
⑭
[in/mm] switch (only for the model using
inches)
⑥
Connector cap (only for the model with
the output function)
⑮
[ORIGIN] switch
⑦
Beam
⑯
Module part
⑧
Depth bar
⑰
Slider
⑨
Sliding surface (reference surface)
⑱
Outside measuring surface
⑩
Scale
⑲
Outside measuring jaws
⑳
Battery lid key

3No. 99MAD030A

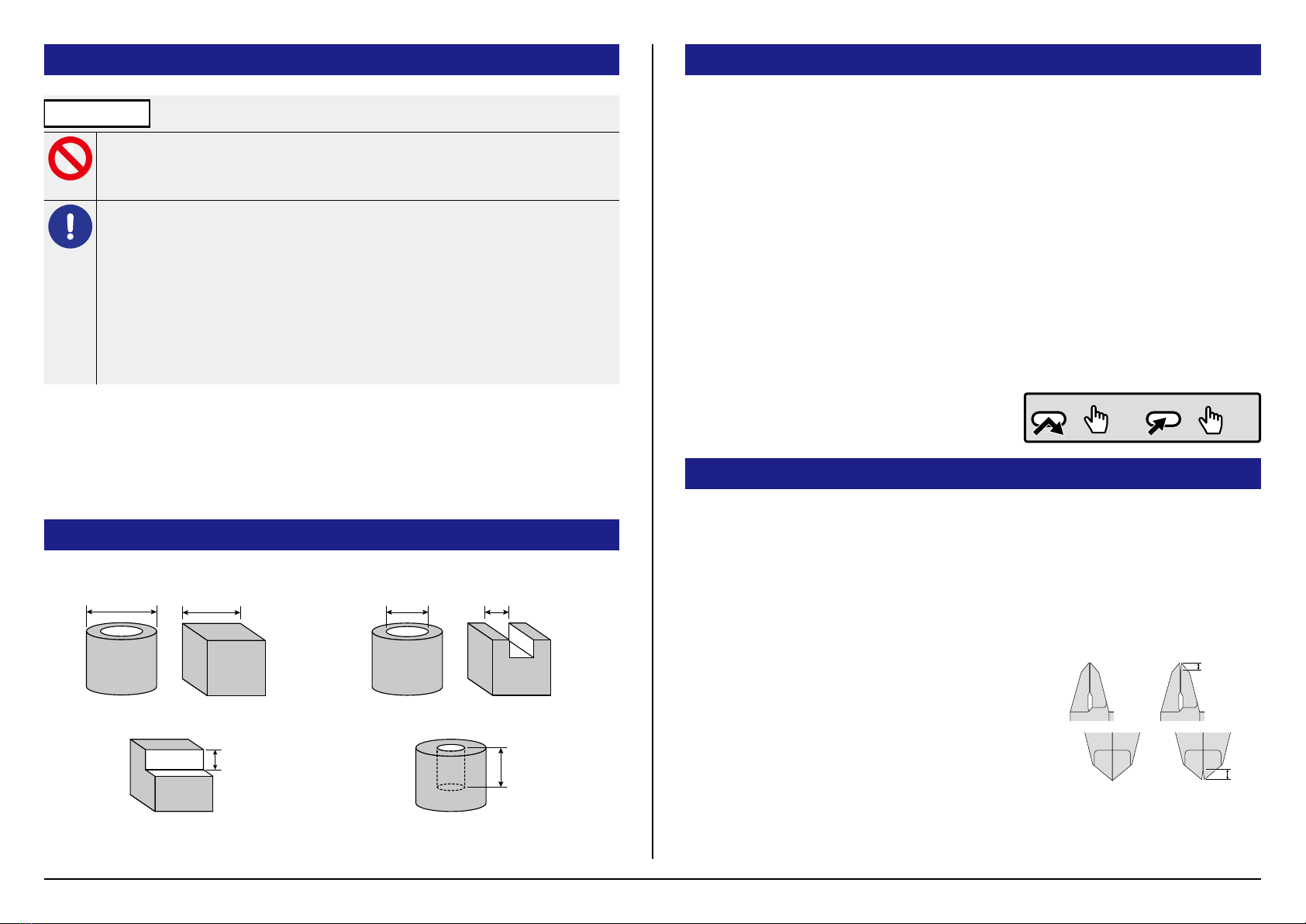

3. Precautions for Use
Indicates a potentially hazardous situation which, if not avoided, may result in
property damage.
NOTICE
• Do not use an electric engraver to put marks on the product such as numbers.
• Do not drop the product or apply excessive force to it.
• Do not scratch the main scale surface.
• Keep the operation temperature and storage temperature.
• After use, take corrosion prevention measures. Corrosion can cause the product
to malfunction.
• If the product will not be used for more than three months, remove the battery
from and store it properly. Otherwise, liquid may leak from the battery and
damage the product.
• For protecting the detection/display module from dust and water su󰀩ciently,
tighten the setscrews to secure the battery compartment lid. Also do not remove
the packing seal.
• - Before using this product for the rst time, wipe the rust preventive oil from the product
with a soft cloth soaked with cleaning oil, and install the supplied battery.
• - If rust preventive oil is dried, the product might not operate smoothly. Wipe a sliding
surface with a cloth and then apply a little oil to use the product. This can make the
product operate smoothly.
4. Product Applications
Outside measurement Inside measurement
Step measurement Depth measurement
5. Basic Usage
■Using the caliper
Grasp the beam lightly with your right hand, put your right thumb on the thumb rest, and
move the slider horizontally to measure.
■Fixing the slider
The measurement value readings are usually taken with the workpiece clamped (or in
close contact). However, depending on the measuring location, the orientation during
measurement and so on, it may be di󰀩cult to get a reading in this position. In this case,
tighten the slider clamp screw, move the caliper carefully away from the workpiece, and
read the display.
■Using the thumb roller
The thumb roller is a ne feeding device, and not a constant-force device. Measuring
force tends to be large when measuring with the thumb roller. Carefully apply an
appropriate and even measuring force when using the thumb roller.
■Using the switch (about Icons)
6. ConrmationbeforeMeasurement
■ConrmingSliderMovement
•Conrm that there is no irregular slider movement and that the slider moves smoothly
throughout the measurement range.
•Conrm that there is no play of the slider in the vertical direction against the sliding
surface.
■ConrmingClearance(Wear)betweenMeasuringsurfaces
•When the outside measuring jaws are closed and
held to the light, conrm that there is no slit observed
between the jaws against the light, or that a faint light
is uniformly visible. As well, conrm that the jaw tips
are not deformed.
•When the inside measuring jaws are closed and held
to the light, observing the jaws obliquely, conrm that
a light is uniformly visible, and that the tips are not
deformed.
=
≥ 2 sec
=
OK
OK
NG
NG

4No. 99MAD030J
7. 電池のセットと ORIGIN（原点）設定
取り扱いを誤った場合、「物的損害の発生が想定される」内容を示します。
注記
• 電池は必ず SR44（酸化銀ボタン電池）をご使用ください。付属の電池は、機
能や性能を確認するためのものです。所定の寿命を満足しない場合があります。
• 電池をセットするときは、電池端子が破損しないようにご注意ください。
消耗した電池の廃棄にあたっては、条例、規制などに従ってください。
7.1 電池のセット
1 付属の電池蓋キーを電池蓋の溝に差し込み、溝が垂直になるまで押し込みなが
ら反時計回りに回して電池蓋を緩める
2 緩んだ電池蓋を取り除く
3 電池（SR44）のプラス側を上にしてセットする
4 電池蓋のパッキンがよじれないで正しく取り付けられていることを確認する
5 電池蓋の溝が垂直（下図）になるようにして、電池蓋を乗せる
6 電池蓋キーを電池蓋の溝に差し込み、押し込みながら溝が水平になるまで時計
回りに回して電池蓋を取り付ける
»「-----」の表示が点滅する。
引き続き ORIGIN（原点）設定を行ってください。
5
4
6
SR44
3
1
2
Tips
電池をセットした後は、必ず ORIGIN（原点）設定を行ってください。
7.2 ORIGIN（原点）設定
1 外側用測定面を閉じた状態にする
2 ［ORIGIN］スイッチを長く押す
»「0.00」と表示され、ORIGIN（原点）が設定される。
2
ORIGIN
1
Tips
［ORIGIN］スイッチを押して ORIGIN（原点）が設定されるまでの間、スライダー
を移動しないでください。正常にカウントしない場合があります。
■オートオフ、オートオン機能
約20 分間スライダを動かさないと表示が消えます（原点位置は常に記憶され
ています）。再度表示させたいときは、スライダを動かしてください。

5No. 99MAD030A
9. Measurement Method
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
WARNING
Do not measure the workpiece with the caliper if it is rotating, etc.
Measuring surfaces will be worn out.
■Outside measurement
Picture: Vernier caliper
• Do not apply excessive force to the workpiece.
Excessive measuring force will cause measurement
error because of the positional deviations of the jaws.
OKNG
D
L1
D
L2
L1 < D
• Do not clamp the workpiece diagonally.
Measurement error will ensue if tilted.
OKNG
• Clamp the workpiece as close to the sliding surface as
possible. Measurement error is more likely to increase
if clamped near the outside measuring jaw tips.
OKNG
1 Insert the workpiece into the outside measuring jaws and bring jaws
into close contact with the workpiece, using appropriate and uniform
measuring force.
2 Read the display while keeping the outside measuring surfaces in close
contact.
■Inside measurement
Picture: Vernier caliper
• Insert the inside measuring jaws as deeply as possible
into the workpiece. OKNG
NG
• For inner diameter measurement, bring the inside
measuring surfaces into close contact, and read the
display when it is maximum: a direct line between the
measuring surfaces passes through the center of the
cross-section. OKNG
• For groove width measurement, bring the inside
measuring surfaces into close contact, and read the
display when it is minimum: a direct line between the
faces is perpendicular to the groove inner wall. OKNG
1 Insert the inside measuring jaws into the workpiece, and bring jaws into
close contact with the workpiece interior using appropriate and uniform
measuring force.
2 Read the display while keeping the inside measuring surfaces in close
contact.

6No. 99MAD030A
■Step measurement
Picture: Vernier caliper
• Do not use a depth bar for step measurement, as the
small contact area with the workpiece makes it di󰀩cult to
retain a stable orientation. NG
• For a stepped workpiece, bring the entire step measuring
surfaces (①, ②) into close contact with the workpiece.
OK
②
①
1 Bring the step measuring surface (①, beam side) into close contact with
the workpiece.
2 Move the slider until the step measuring surface (②, slider side) strikes
the workpiece (stepped surface).
3 Read the display while keeping the step measuring surfaces in close
contact.
■Depth measurement
Picture: Vernier caliper
The depth measuring surface of the caliper
is narrow and unstable. Bring it into contact
perpendicular with the workpiece.
OK
OK
NG
NG
②
①
②
①
1 Bring the depth measuring surface (beam side) into close contact with
the workpiece.
2 Move the slider until the depth measuring surface (depth bar side) makes
contact.
3 Read the display while keeping the depth measuring surfaces in close
contact.

7No. 99MAD030A

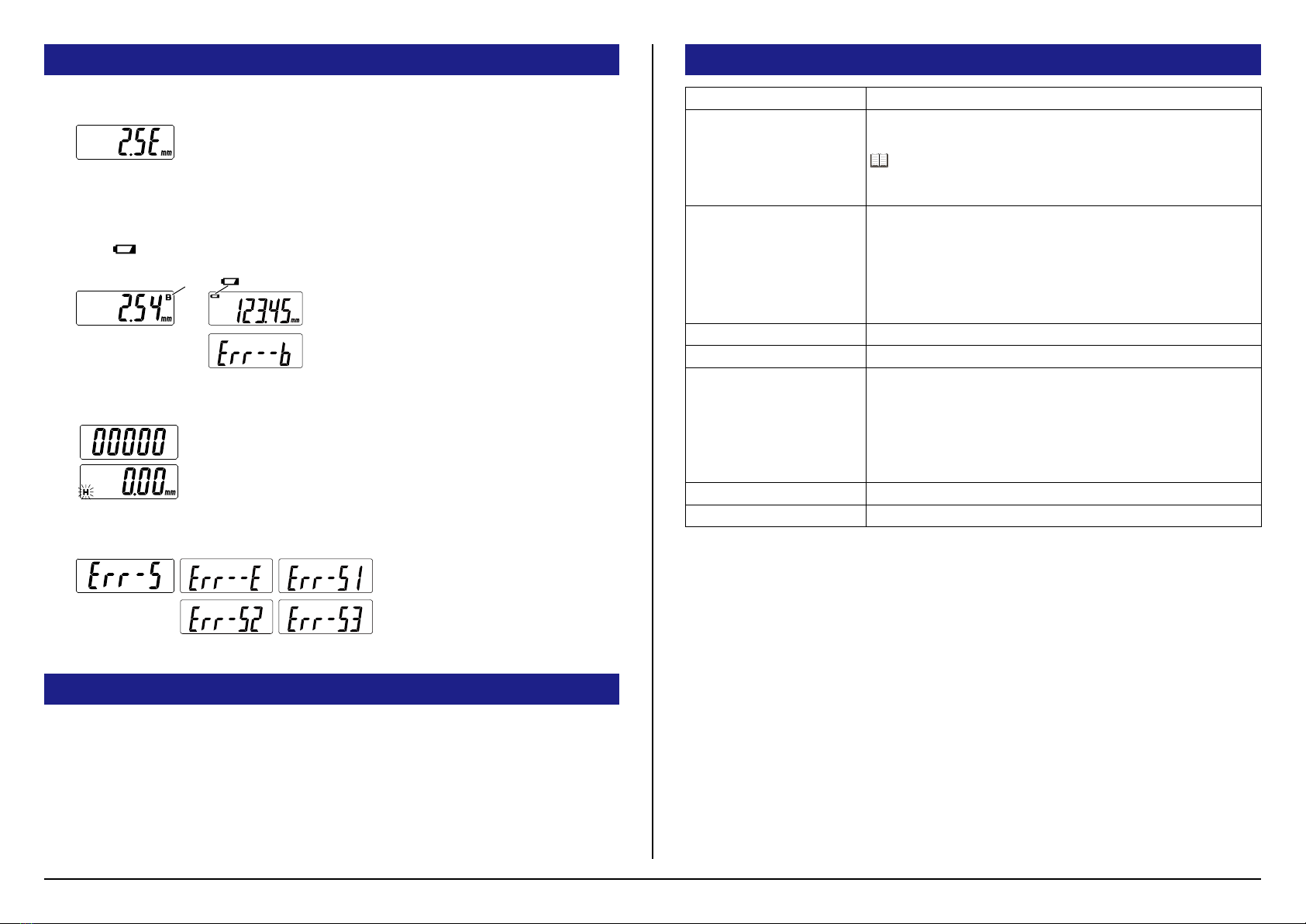

10. Errors and Countermeasures
■Minimum digit “E” display
This digit appears if the surface of the scale is dirty to an
immeasurable degree. Clean the surface of the scale cover.
If “E” still appears even after the surface of the scale cover is
cleaned, reinstall the battery. Nevertheless, if it does not disappear,
remove the battery, and then contact your distributor or sales o󰀩ce.
■“B”, “ ” and “Err--b” display
B
“B” indicates the voltage drop of the battery.
Replace the battery immediately. (For
instructions on replacing the battery, see “8.”).
■Ifallvedigitshavethesamenumber,orif“H”blinks
Remove the battery temporarily, and then reinstall it.
■Other errors
If the error shown in the gure
occurs, set the origin again.
11. Precautions after Use
•If there is dirt on the measuring surface, reference surfaces, sliding surface, etc., wipe it
away with a dry cloth or a cloth slightly moistened with alcohol.
•For long-term disuse, wipe away any dirt carefully and apply a light coating of rust
preventive oil before storage.
•Do not store in locations with high temperatures, low temperatures, high humidity, or
exposure to direct sunlight.
12. Specications
Resolution 0.01 mm
Maximum permissible error
EMPE
(outside measurement)
SMPE
(inside measurement)
See “MPE (EMPE, SMPE)”.
Protection level
IP67*
*IP67 protection level (See IEC 60529 for details.)
- Protection against foreign matter (level 6) :
Foreign matter does not enter
- Protection against water (level 7) :
The module is protected against water damage to a depth of one meter
for 30 minutes.
Maximum response speed No limit (no miscount caused by speed)
Power supply SR44 (silver oxide battery) 1 pc
Battery life
A continuous use of about 18,000 hours,
A typical use of about 5 years
The battery life depends on how many times and in which
ways it is used. Remember that the above values are a
guideline. The value of the typical use has been calculated
assuming that the product is used for about ve hours per day.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to 60 °C
The display of this product may icker or turn o󰀨 due to electromagnetic interference by electrostatic charge, but it
returns to the normal state after the electromagnetic interference is cleared.

8No. 99MAD030A
13. Standard Accessories
•SR44 silver oxide battery (No. 938882, 1 pc)
•Phillips screwdriver (No. 05CZA619, 1 pc)
•Warranty (1 copy)
•User’s Manual (No. 99MAD030M, 1 copy)
14. Optional Accessories
*only for the type with the output function
Connection cable (with the output switch) No. 05CZA624 (1 m), No.05CZA625 (2 m)
●Setting the connection cable
Set the connection cable by following the procedure below.
To fasten or remove screws, use the supplied screwdriver (No. 05CZA619) (recommended)
or a commercial No. 0 screwdriver with a 5 to 8 N•cm tightening torque. Excessive tightening
may degrade performance.
1 Remove the connector cover mount screws (M1.7 x 0.35 x 2.5/No.
09GAA376) with the above screwdriver.
2 Remove the connector cover.
3 Make sure that the packing is attached in place (Do not remove it).
4 Connect the connection cable.
5 Tighten the plug of the connection cable with the mount screws by
holdingdownitwithyourngers.
2
3
4
5
1
15. OutputSpecications
*only for the type with the output function
■Connector pin alignment
Pin No. I/O Signal
1------- GND
2 (*2) ODATA
3 (*2) OCLOCK
4------- -------
5 (*1) IREQUEST
5*1 4*1 32*2 1*2
■Data format
(1) Order of output
(2) All “F”
(3) Sign
(4) Measurement value
(5) Decimal point
(6) Unit
(1)
(4)
(5)
X.X.X.X.X.X.
d1 d5 d9d2 d6
d10 d3 d7 d11 d4 d8 d12 d13 d14
(3)
+: 0 (0000)
–: 8 (0001)
(6)
0 (0000)mm
1 (1000)inch
2 (0100)
3 (1100)
4 (0010)
5 (1010)
MSD LSD
■Timing chart
*1: DATAsw is at the LOW level while the
data output switch is pressed.
*2: DATAsw changes to the LOW level.
T5 indicating the time to a REQUEST
entry depends on performance of a data
processor.
DATA
REQUEST
CLOCK
0 ms ≤ T1 ≤ 12 ms
90 µs ≤ T2 ≤ 150 µs
100 µs ≤ T3 ≤ 150 µs
100 µs ≤ T4 ≤ 250 µs
T5*2 T1 T2 T3 T4
DATAsw*1
Typ. 1.55 V
(1.25 V to 1.7 V)
R=70 kΩ to 140 kΩ
Typ. 100 kΩ
*1
Typ. 5.5 V
(-0.3 V to +7.0 V)
IOL=1.0 mA
( VO L= 0. 2 V( MA X ))
*2
Mitutoyo Corporation
20-1, Sakado 1-Chome, Takatsu-ku, Kawasaki-shi, Kanagawa 213-8533, Japan
URL: https://www.mitutoyo.co.jp
©2020 Mitutoyo Corporation. All rights reserved.
Printed in Japan

MPE (EMPE, SMPE)
500 Sereis
0.01 mm
*L (mm) EMPE (mm) SMPE (mm)
0 ≤ L ≤ 200 ±0.02 ±0.04
200 < L ≤ 300 ±0.03 ±0.05
0.01 mm / 0.0005 in
*L (mm) EMPE (mm) SMPE (mm) *L (inch) EMPE (inch) SMPE (inch)
0 ≤ L ≤ 200 ±0.02 ±0.04 0 ≤ L ≤ 8 ±0.0010 ±0.0020
200 < L ≤ 300 ±0.03 ±0.05 8 < L ≤ 12 ±0.0015 ±0.0025
*L
jp 測定長さ sv Mätlängd zh-CN 测量长度
en Measruing length pt Comprimento de medição zh-TW 量測長度
de Messlänge cs Měřená délka th ความยาวในการวัดสูงสุด
es Longitud de medición pl Długość pomiaru vi Độ dài đo lường
fr Longueur de mesure ru Длина измерения ms Panjang pengukuran
nl Meetlengte tr Ölçme uzunluğu id Panjang pengukuran
it Lunghezza di massima ko 대 측정 길이
App-1 No. 99MAD030
