Montezuma M562411TC-H User manual

OWNER'S MANUAL
56" X 24" HUTCH
AND TOOL CABINET
M 5 62411TC - H
www.montezumastorage.com

2
LIFE ORGANIZED
Montezuma is committed to helping you succeed in both your work
and personal life by being organized, prepared and equipped with
the right tools, gear and home supplies at your finger tips.
We are here to ensure that your life is organized.
Thank you for your purchase of this Montezuma Hutch and Cabinet.
ATTENTION
TO REDUCE THE RISK OF INJURY, THE USER MUST READ AND
UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THIS
PRODUCT FOR THE FIRST TIME. SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Fill in the following information and retain
this owner's manual for future reference:
MODEL(S):
DATE OF PURCHASE:
PLACE OF PURCHASE:
RECEIPT NO:

3
SPECIFICATIONS
MAXIMUM PRODUCT WEIGHT (INCLUDING CONTENTS): 2,100 lb (952 kg)
MAXIMUM SHELF WEIGHT CAPACITY (HUTCH): 100 lb (45 kg)
MAXIMUM DRAWER WEIGHT (CABINET): 150 lb (68 kg)
POWER STRIP
MODEL: LTS-04C/CH-04C
SURGE PROTECTIVE DEVICES
RATING: 120 V AC 15 A 60 Hz 1875 W
USB: TOTAL 2.1 A – Check your device for compatibility
USB O/P: IT EQUIPMENT ONLY
VPR: 500-1000 V (L-N) TYPE 3 SPD
CONFORMS TO UL STD. NO 1363 AND ANSI/UL STD. NO. 1449
CERTIFIED TO CSA STD. C22.2 NO. 308&8

4
56" x 24" HUTCH AND TOOL CABINET
M 5 62411TC - H
OVERALL DIMENSIONS:
56" W x 24-5/8" D x 66-1/8" H
(142.2 cm W x 62.5 cm D x 168 cm H)
NET WEIGHT: 489 lb (222 kg)

5
A
B
C
D
HUTCH DIMENSIONS:
56" W x 24-5/8" D x 25" H
(142.2 cm W x 62.5 cm D x 63.5 cm H)
CABINET DIMENSIONS:
56" W x 24-5/8" D x 41-1/8" H
(142.2 cm W x 62.5 cm D x 104.5 cm H)
INSIDE DRAWER DIMENSIONS:
REF DIMENSIONS QTY
A51-7/8" W x 21-1/8" D x 5-1/8" H
(131.7 cm W x 53.8 cm D x 12.9 cm H) 1
B24-3/4" W x 21-1/8" D x 2-3/8" H
(62.9 cm W x 53.8 cm D x 5.9 cm H) 6
C24-3/4" W x 21-1/8" D x 5-1/4" H
(62.9 cm W x 53.8 cm D x 13.4 cm H) 2
D24-3/4" W x 21-1/8" D x 8-1/4" H
(62.9 cm W x 53.8 cm D x 20.9 cm H) 2
* Dimensions do not include side handles.

6
HUTCH PARTS LIST
REF DESCRIPTION PART NUMBER QTY
1Grommet 314027 4
2M8 x 20 Hex Bolt 321024 16
3Power Strip 333059 1
4Shelf 242035 1
5Washer 324002 16
6M8 x 40 Hex Bolt 321048 6
7Gas Strut 303218 2
8Lock and Key (1201–1204) 304166 2
3
4
5
2
1
7
8
6
x x x
The keys
are taped
to the door.
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.

7
x x x
Lock and Key
For securing
your valuables
Washer
For use with M8 x 20
Hex Bolt
M8 x 20 Hex Bolt
6 for attaching side panels
4 for supporting adjustable shelf
6 for connecting hutch to cabinet
without worktop (optional)
M8 x 40 Hex Bolt
For connecting the hutch
and cabinet together
Power Strip
For power management
Gas Strut
For lifting the hutch lid
Shelf
For placing at
desired height
Grommet
For cord access
2
16
16
6
1
2
1
4

8
CABINET PARTS LIST
REF DESCRIPTION PART NUMBER QTY
1Work Top 572013 1
2Power Strip 333059 1
3Grommet 314027 1
4Cabinet Handle 306142 2
5M6 x 12 mm Phillips Head Bolt 320323 10
6Cord Wrap 236870 1
7Slide Set 300380–300381 14
8Swivel Caster 302074 2
9Washer 324002 16
10 M8 x 25 mm Hex Bolt 321047 16
11 Drawer Liner 551894 10
12 Rigid Caster 302003 2
13 Lock and Key (1201–1204) 304166 1
14 Drawer Liner 551895 1
x x x
They keys
are taped to
the top of the
caster carton,
which is
placed in the
bottom right
drawer of the
cabinet.
5
6
8
9
10
12
7
13
1
3
4
2
11
14
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.

9
Washer
For use with M8 x 25 mm
Hex Bolt
M8 x 25 mm Hex Bolt
For attaching casters
Drawer Liner
For protecting
narrower drawers
16
16 10
Work Top
For using as a work surface
Cabinet Handle
For assisting in moving
the cabinet
Cord Wrap
For holding the power cord
Slide Set
Pre-installed
For installing drawers
Swivel Caster
For supporting the cabinet
M6 x 12 mm Phillips
Head Bolt
For attaching cabinet
handles and cord wrap
Power Strip
For power management
Grommet
For cord access
1
2 1
14 2
10
1 1
Rigid Caster
For supporting the cabinet
2

10
x x x
Lock and Key
For securing
your valuables
Drawer Liner
For protecting wide drawer
1 1

11
CABINET HANDLE
INSTALLATION
NOTE: Assemble the handles first to make it
easier to move the cabinet.
Position the handles over the holes in the
cabinet and attach with the M6 x 12 mm
Phillips head bolts provided. Tighten
securely using a 10 mm socket.
CASTER INSTALLATION
CAUTION: Two or more people are required
to lay down or stand up the cabinet. Use the
side handles for assistance. DO NOT stand
in front of or behind the product during this
process. Lock drawers before proceeding.
Carefully lay the cabinet on its back, with a
soft mat underneath for protection.
Position the two swivel casters on the
cabinet bottom, on either the left or right
side. Insert four M8 x 25 mm hex bolts
through washers, then through each caster
and into the bottom of the cabinet. Tighten
securely using a 14 mm socket.
Repeat for the two rigid casters on the other
side of the cabinet.

12
CABINET CORD WRAP
INSTALLATION
Position the cord wrap over the holes in the
cabinet. Attach with the M6 x 12 mm Phillips
head bolts provided. Tighten securely.
CABINET POWER STRIP
INSTALLATION
Cut the black strip holding the cord, then
pull the white strip to get the plug out of the
cabinet and through the grommet. Tighten
the grommet.
Black
White

13

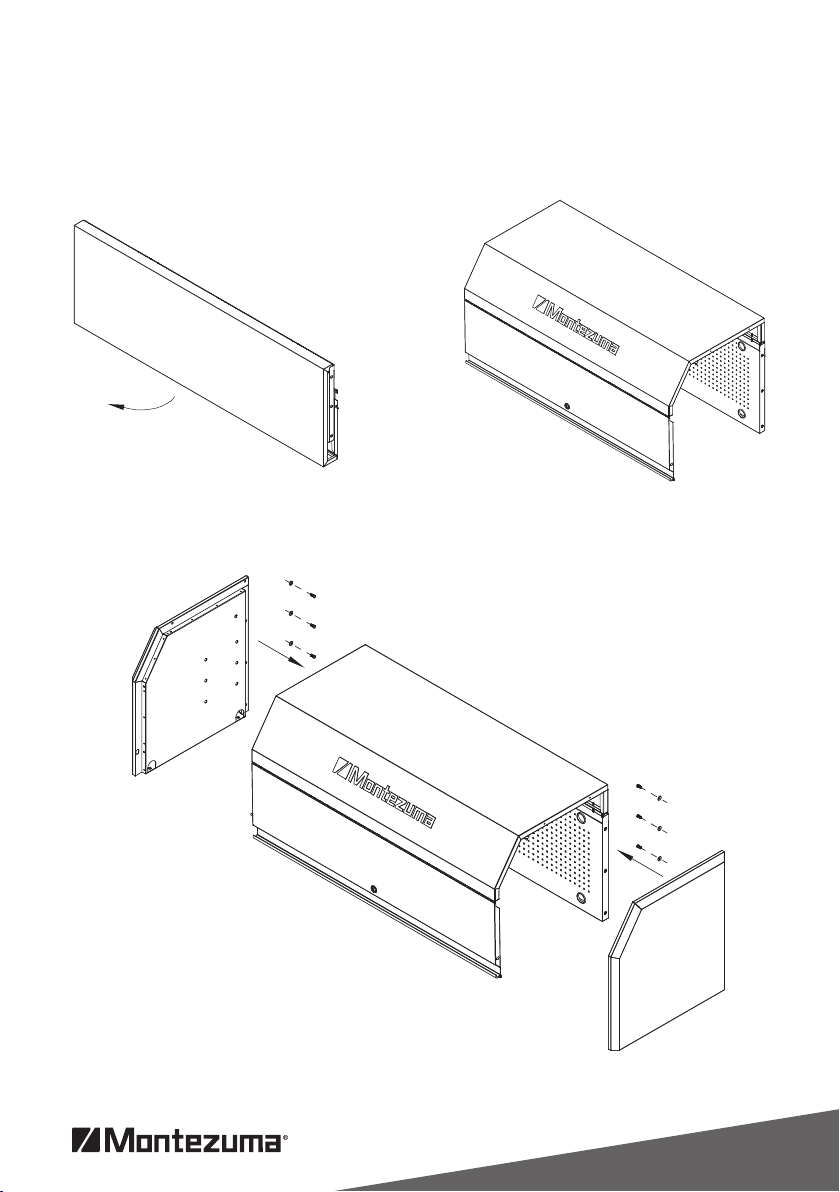

HUTCH ASSEMBLY
Unfold the hutch body as shown.
Attach the left and right side panels to the back of the hutch body using three M8 x 20
hex bolts and washers per panel.

14

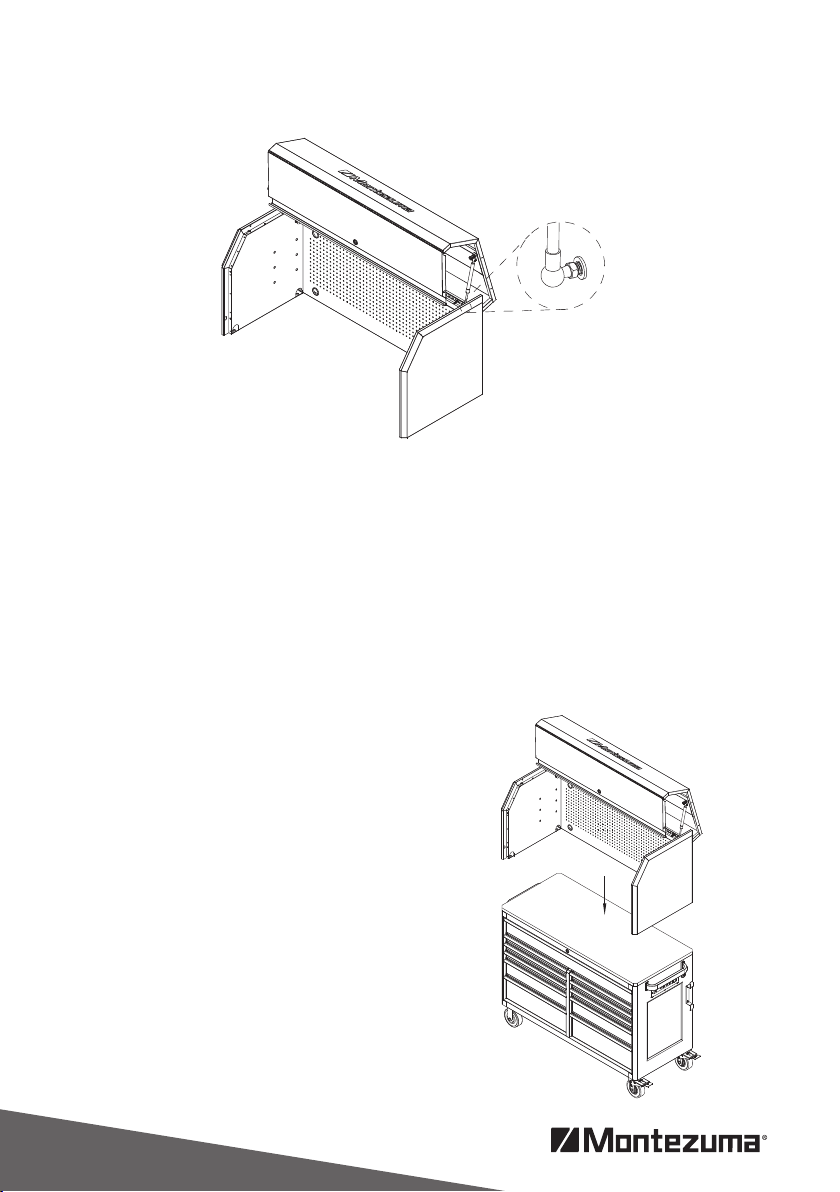

Open the hutch door and install the gas strut.
Proceed with connecting the hutch to the cabinet before installing the shelf in the hutch.
HUTCH-CABINET CONNECTION
WARNING: FOR YOUR SAFETY, MOUNT THE HUTCH TO THE CABINET USING
ONLY THE HARDWARE PROVIDED.
CONNECTING THE HUTCH TO A CABINET WITH A WORKTOP
Put the hutch onto the worktop. Make sure
that both the hutch and the worktop are
flush with the front edge of the cabinet and
that there are equal gaps on the sides.

15
On the worktop, mark the locations of the six
slotted holes in the hutch.
5
1
23
4
6
Take the hutch off the cabinet. Remove the
worktop by first removing the drawers, then
loosening the M6 x 12 Phillips head bolts.
1
2
3
4
5
6
Place the worktop on the floor. Drill six 7/16"
(1.1 cm) holes at the locations you marked.
1
2
3
4
5
6

16
Place the worktop and hutch back onto the
cabinet. Make sure that both the hutch and
the worktop are flush with the front edge of
the cabinet and that there are equal gaps on
the sides.
Connect the hutch, worktop and cabinet
together using six M8 x 40 hex bolts
and washers. An open end wrench is
recommended for tightening the hex bolts.
123
4
5
6
Install the shelf in the hutch using four
M8 x 20 hex bolts and washers.
CONNECTING THE HUTCH TO A CABINET WITHOUT A WORKTOP
You may also install the hutch on the cabinet
without a worktop.
Remove the worktop by first removing the
drawers, then loosening the M6 x 12 Phillips
head bolts.
Place the hutch directly on the cabinet
top and attach with six M8 x 20 hex bolts.
An open end wrench is recommended for
tightening the hex bolts.

17
RAISE AND RELEASE
DRAWER FRONTS
These units are equipped with raise and
release drawer fronts. To open, lift up on the
drawer front while pulling towards you. To
close, shut the drawer firmly until the latch
engages.
If the drawer does not stay closed, the hook
may be bent, or it may be rubbing against
the drawer slides. To fix this problem, lightly
bend the hook until the drawer will engage
in the slide.
Lift
DRAWER REMOVAL
Pull the drawer out so that it’s almost fully extended. Push up on the black release lever
on one side, while pushing down on the black release lever on the other side. While
holding the levers in these positions, pull the drawer outward until it is released from the
drawer slide.
ONE SIDE – PUSH UP OTHER SIDE – PUSH DOWN
DRAWER REPLACEMENT
Extend the drawer slides from the unit. Insert the brackets on each side of the drawer
into the slots in the slides, being careful that they are properly positioned. Once properly
inserted, completely close the drawer to set the slides in position.

18
MAINTENANCE
Periodically clean the drawer fronts, trim, and other surfaces with mild detergent and water.
Lubricate the casters with high quality bearing grease (annually/yearly).
Lubricate the slides (twice a year) with a product like WD40 or other quality lubricant. This
is especially important in low temperatures, which can cause the bearing to become stiff.
Grease and oil can be removed with most standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
SAFETY
RISK OF ELECTRIC SHOCK. To reduce the risk of electric shock, use indoors in a
dry location only. Do not plug the power strip into another power strip. Not for use for a
permanent installation.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Close the cover and lock the drawers before moving this product. The drawers could
come open and make the product unstable and tip, which may cause personal injury or
product damage.
Do not attempt to lift the unit by its side handles using chains, ropes or other lifting
devices. The side handle could fail, which may cause personal injury or damage to the
product.
DO NOT stand on this product or lean on the drawers or work surface.
WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could
slip, which may cause personal injury.
When moving this product, do not pull it. Push the product to prevent personal injury.
USE THE BRAKES when not moving this product. This will prevent the product from
rolling, which may cause personal injury or product damage.
BE CAREFUL when opening more than one drawer. The product could become unstable
and tip, which may cause personal injury or product damage.
DO NOT mount this product on a truck bed or any other moving object. This may cause
personal injury or product damage, and will void the warranty.
Secure this product properly before moving it with a forklift.
DO NOT tow with power equipment. The product could tip, which may cause personal
injury or product damage.
Keep the product on level surfaces. The product could become unstable and tip if stored
or moved on an uneven surface, which may cause personal injury or product damage.

19
This product is warranted to be free from defects in materials
and workmanship for a period of five (5) years from the date
of original purchase.
If this product is defective, email [e-mail]
or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). If the
product is defective, we will replace the defective part at no cost to you.
Please do not ship your product back to the store or to us
unless we send you written instructions for return.
In the event it becomes necessary for your product
to be returned, we will notify you how to proceed.
A copy of your original purchase receipt must accompany
the returned product.

M 5 62411T C - H _ 0 9 /2 0
Manufactured by:
QUALITY CRAFT
Surrey, BC, Canada V3S 5N4
[e-mail]
1-800-459-4409
(Monday to Friday, 8:00 am–4:30 pm, CST)
Made in China
www.montezumastorage.com
