Motorola DTR SERIES User manual

NOTE:
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
REMARQUE :
Cet équipement a fait l'objet de tests et a été déclaré conforme aux
limites établies pour un appareil numérique de classe A,
conformément à la section 15 des règlements de la FCC. Ces limites
sont conçues pour offrir une protection raisonnable contre les
interférences nuisibles lorsque l'équipement est utilisé dans un
environnement commercial.
Cet appareil produit, utilise et peut rayonner une énergie sous la
forme de radiofréquences et, s'il n'est pas installé et employé en
conformité avec les instructions du manuel, il peut provoquer des
interférences nuisibles au niveau des communications radios.
L'utilisation de cet équipement dans un environnement résidentiel est
susceptible de provoquer des interférences nuisibles, auquel cas
l'utilisateur devra les corriger à ses propres frais.

1
English
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating
instructions. Please read these instructions carefully and save
them for future reference.
Before using the battery charger, read all the instructions and
cautionary markings on (1) the charger and (2) the battery.
1. To reduce risk of damage to the power cords, pull the
plug rather than the cord when disconnecting from the AC
outlet or the charger.
2. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in risk of
fire and electric shock. If an extension cord must be used, make
sure that the cord size is 18 AWG for lengths of up to 6.5 feet
(2.0 m), and 16 AWG for lengths up to 9.8 feet (3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the
charger if it has been broken or damaged in any way. Take it to a
qualified Motorola Solutions service representative.
4. Do not disassemble the charger. It is not repairable and
replacement parts are not available. Disassembly of the charger
may result in risk of electric shock or fire.
5. To reduce risk of electric shock, unplug the charger from the AC
outlet before attempting any maintenance or cleaning.
6. To reduce risk of injury, charge only the rechargeable Motorola
Solutions Authorized Batteries listed in Table 1. Other batteries
may explode, causing personal injury and damage.
7. Use of accessories not recommended by Motorola Solutions may
result in risk of fire, electric shock, or injury.
OPERATIONAL SAFETY GUIDELINES
• Turn off the radio when charging the battery.
• This equipment is not suitable for outdoor use. Use only in dry
locations and conditions.
• Maximum ambient temperature around the charger must not exceed
40 °C (104 °F).
English

2
English
• Connect the charger only to an appropriate power supply and power
cord listed in Table 2, Table 3, and Table 4.
• The AC outlet to which the power cord is connected should be close
and easily accessible.
• Make sure the power cord is located where it will not be stepped on,
tripped over, or subjected to water, damage, or stress.
• Connect the power cord only to an appropriately fused and wired AC
outlet with the correct voltage, as specified on the product.
• Disconnect from line voltage by removing the power cord from the
AC outlet.
* UL certification only applied when charger kits shipped with the power supplies listed above.
Table 1: Motorola Solutions Authorized Battery
Kit Number Description
PMNN4578_ Li-Ion Battery
Table 2: Motorola Solutions Authorized Single Unit Charger And Power
Supplies
Charger Kit Description Power Supplies
PMPN4468_ DTR Single Unit Charger (SUC) Tray None
PMPN4469_ DTR Single Unit Charger (SUC) Kit for North
America PS000228A01*

3
English
* UL certification only applied when charger kits shipped with the power supplies listed above.
Programming The Radio
The DTR Series radio is programmable using a computer and the
DTR Single Unit Charger (SUC) Tray with CPS Programming Cable.
The radio profiles are cloned from one Source radio to a Target radio
by using:
• a DTR 6-Pocket Multi-Unit Charger (MUC) Tray
Table 3: Motorola Solutions Authorized Optional Power Supplies For Single
Unit Charger
Kit Number Description
PS000132A05* Switch Mode Power Supply, 3 W, Micro USB - Argentina
PS000132A08* Switch Mode Power Supply, 3 W, Micro USB - Brazil
PS000227A11* Switch Mode Power Supply, 5 W, Micro USB - North America
PS000042A15* Switch Mode Power Supply, 5 W, Micro USB - Argentina
PS000042A18* Switch Mode Power Supply, 5 W, Micro USB - Brazil
Table 4: Motorola Solutions Authorized Multi-Unit Charger And Power Cords
Charger Kit Description Power Cords
PMPN4464_ DTR 6-Pocket Multi-Unit Charger (MUC)
Tray None
PMPN4465_ DTR 6-Pocket Multi-Unit Charger (MUC) Kit
for North America 3004209T04
PMPN4466_ DTR 6-Pocket Multi-Unit Charger (MUC) Kit
for Argentina 3004209T08
PMPN4467_ DTR 6-Pocket Multi-Unit Charger (MUC) Kit
for Brazil 3004209T16
Table 5: Motorola Solutions Authorized Accessories
Kit Number Description
HKKN4027_ CPS Programming Cable
HKKN4028_ Radio-to-Radio Cloning Cable

4
English
• two DTR Single Unit Charger (SUC) Tray and a Radio-to-Radio
cloning cable (optional accessory)
Refer to the DTR Series Radio User Guide for more operational
details. The CPS Programming Cable and Radio-to-Radio Cloning
Cable are accessories sold separately. Please contact your Motorola
Solutions point of purchase for more information.
Operating Instructions For DTR Single Unit Charger
(SUC) Kit
Prior to charging a battery with radio, turn off the radio. Batteries
charge best at room temperature.
1. This DTR Single Unit Charger (SUC) Kit is able to charge DTR
Series radios with batteries or radios with batteries and holsters.
2. This DTR Single Unit Charger (SUC) Kit is able to charge stand-
alone batteries as listed in Table 1.

5
English
Charging Procedure
To charge the battery (with the radio attached), place it in a Motorola
Solutions approved DTR SUC Tray (see Table 2):
1. Place the DTR SUC Tray on a flat surface.
2. Insert the connector of the power supply into the port on the side of
the drop-in tray charger.
3. Plug the wall receptacle end of the power supply cord into
appropriate AC outlet. A successful power-up sequence in
indicated by a SINGLE FLASH GREEN on the charger indicator.
4. Turn the radio “OFF”.

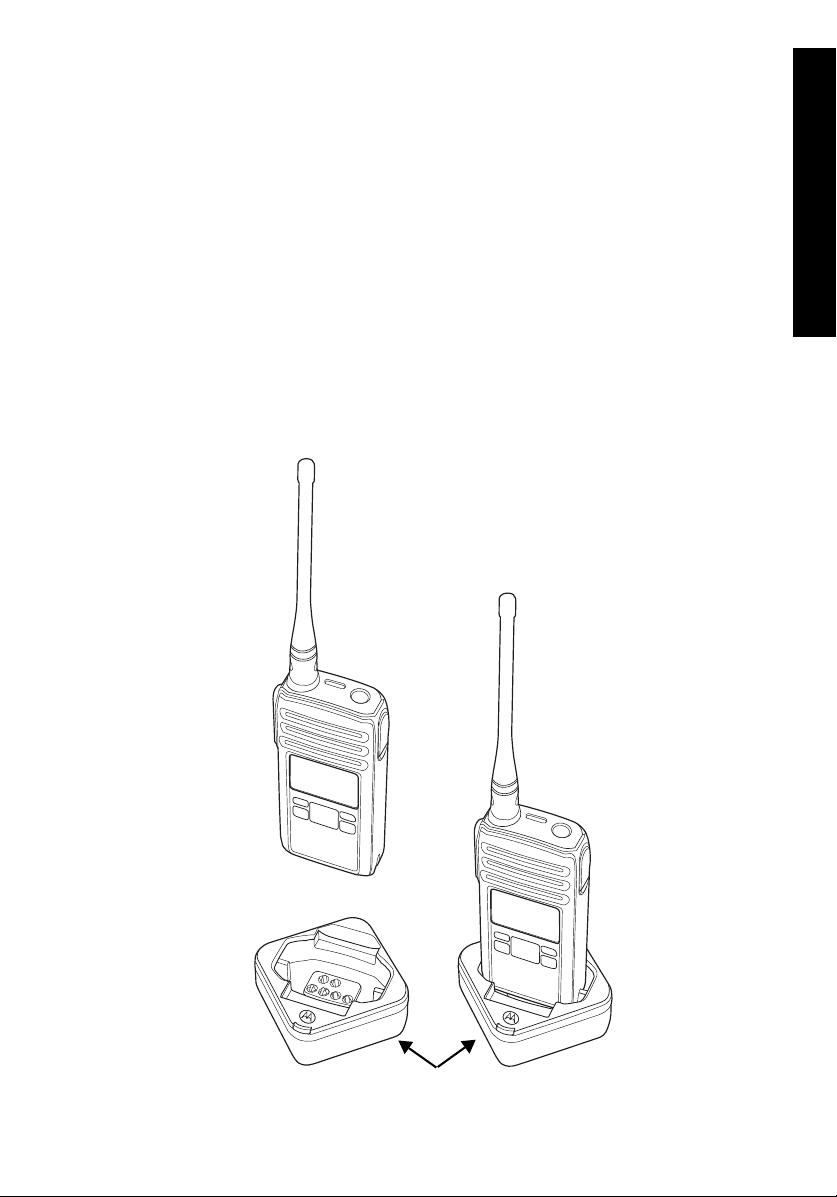

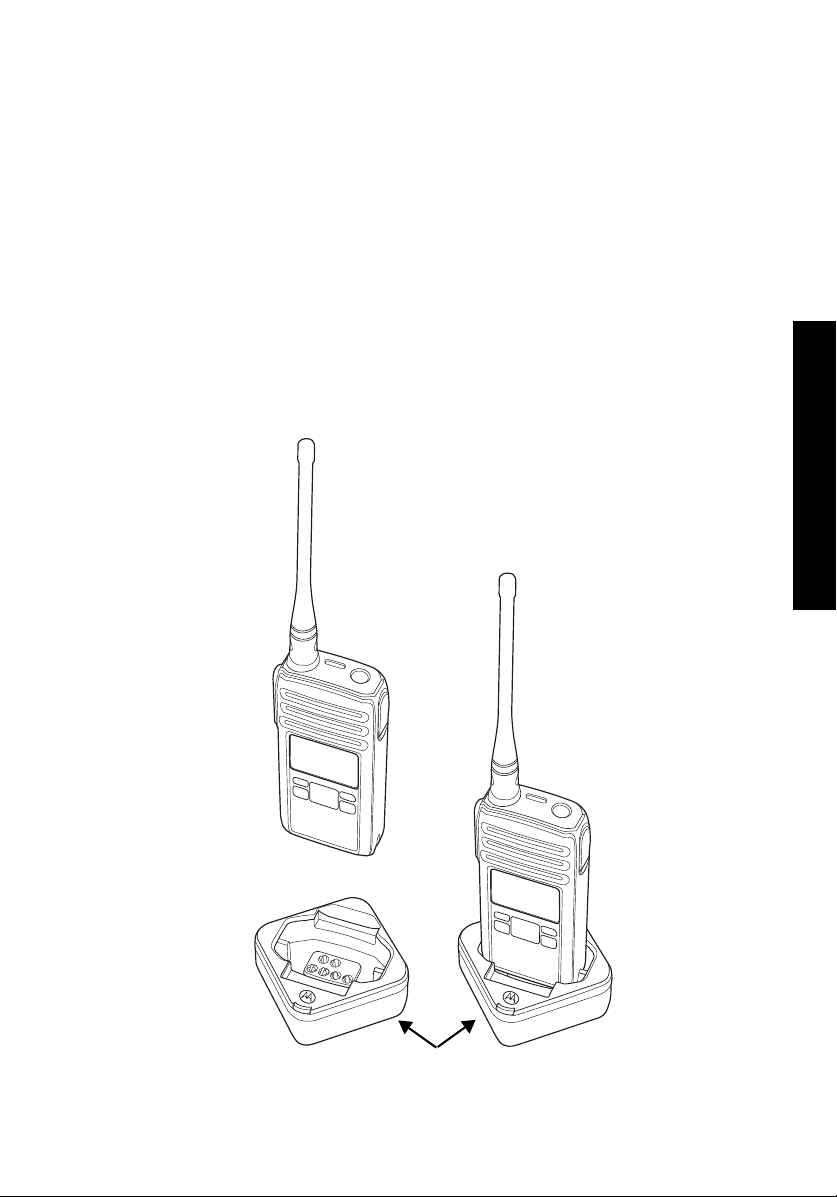

5. Insert the radio into the tray with the front of the radio facing the
front of the charger, as shown.
DTR SUC Tray

6
English
Charging A Stand-Alone Battery
To charge a battery, insert the battery into the charger pocket by:
1. Aligning the raised tab on each side of the battery with the
corresponding groove on each side of the charger pocket.
2. Pressing the battery toward the rear of the pocket.
3. Sliding the battery into the charger pocket, ensuring complete
contact between the charger and battery contacts.
4. When the battery is properly seated in the pocket, the charger
indicates the Battery Level status as shown in Table 6. The RED
LED illuminates to indicate that the battery is charging rapidly.
5. The LED changes to a STEADY GREEN light to indicate that the
battery is nearly or fully charged.
Operating Instructions For DTR 6-Pocket Multi-Unit
Charger Kit
The charger pockets 1–6 will accommodate either a radio with battery
attached or stand-alone battery.
Prior to charging a battery with radio, turn off the radio. Batteries
charge best at room temperature.
1. This DTR 6-Pocket Multi-Unit Charger (MUC) Kit is able to charge
DTR Series radios with batteries, or radios with batteries and
holsters.
2. This DTR 6-Pocket Multi-Unit Charger (MUC) Kit is able to charge
stand-alone batteries as listed in Table 1.
12

7
English
Charging Procedure
1. Plug the charger end of the power supply cord into the power
receptacle located at the bottom of the charger.
2. Plug the wall receptacle end of the power supply cord into
appropriate AC outlet. A successful power-up sequence in
indicated by a SINGLE FLASH GREEN on the charger indicator.
3. To charge a radio with battery (radio must be turned off):
a. Slide the radio into the charger pocket and align it to the groove
on each side of the radio with the corresponding raised rail on
each side of the charger pocket.
b. Ensure complete contact between the charger and radio
contacts.
4. To charge a stand-alone battery, insert the battery into the charger
pocket by:
a. Aligning the raised tab on each side of the battery with the
corresponding groove on each side of the charger pocket.
b. Pressing the battery towards the rear of the pocket.
c. Sliding the battery into the charger pocket, ensuring complete
contact between the charger and battery contacts.
5. When the radio or stand-alone battery is properly inserted into the
charger pocket, the charger indicates the Battery Level status as
shown in Table 6. The charger indicator illuminates in STEADY
RED to indicate the radio or stand-alone battery is charging rapidly.
When the battery is nearly or fully charged, charger indicator
changes to STEADY GREEN.
6. To remove a radio or stand-alone battery from the charger, use
both hands to remove a radio or battery from the charger pocket.
One hand to hold and support the charger while the other hand
removes the radio or battery.

8
English
Power Cord

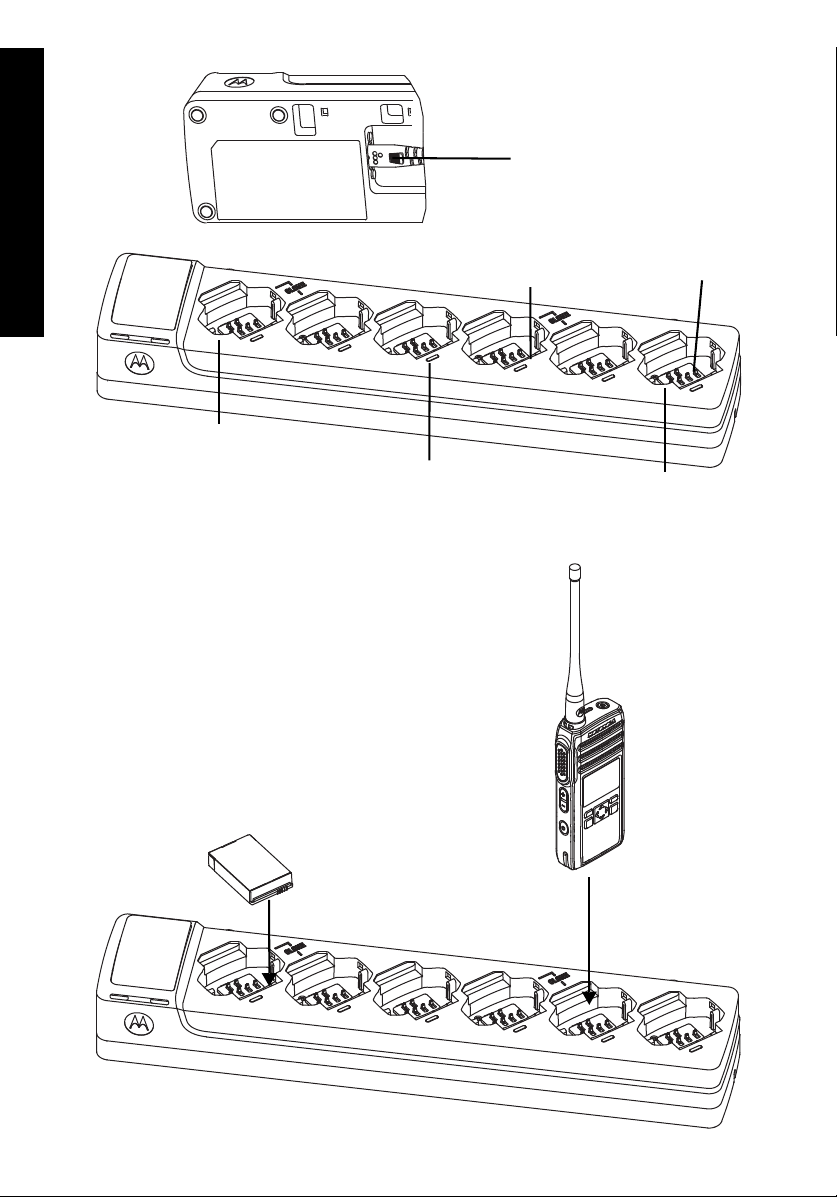

Radio
Contacts
Pocket 1
Pocket 6
Battery
Contacts
Charging
Indicator
