Operating Manual
SavOxCap 60
Order N°. 10075175/02
01_OPM_SavOxCap_10075175_02_GB_marks.pdf 1 27.08.2018 14:27:52

MSA Europe GmbH
Schlüsselstrasse 12
8645 Rapperswil-Jona
Switzerland
© MSA. All rights reserved
Operating Manual SavOxCap 60 3 −18
Gebrauchsanleitung SavOxCap 60 19 −34
Manual de funcionamiento SavOxCap 60 35 −50
Instructions d'utilisation SavOxCap 60 51 −66
Manuale d'uso SavOxCap 60 67 – 82
Bedieningshandleiding SavOxCap 60 83 – 98
Brugsanvisning SavOxCap 60 99 – 114
Bruksanvisning Bruksanvisning SavOxCap 60 115 – 130
Bruksanvisning SavOxCap 60 131 – 146
Kezelési utasítás SavOxCap 60 147 – 162
Εγχειρίδιο λειτουργίας SavOxCap 60 163 – 178
GB
DE
ES
FR
IT
NL
DK
NO
SE
HU
GR
01_OPM_SavOxCap_10075175_02_GB_marks.pdf 2 27.08.2018 14:27:52

GB
MSA CONTENTS
SavOxCap 60 3
Contents
1. Safety Regulations .............................................................................................. 4
1.1. Correct Use ................................................................................................ 4
1.2. Liability Information .................................................................................... 5
2. Description........................................................................................................... 6
2.1. Apparatus Overview ................................................................................... 6
2.2. Function ..................................................................................................... 7
2.3. Designation and marking............................................................................ 8
2.4. Demonstration and Training Unit - SavOxCap 60TR.................................. 8
3. Use........................................................................................................................ 9
3.1. Important escape rules............................................................................... 9
3.2. Wearing the Respiratory Protection Device................................................ 9
4. Maintenance and Service.................................................................................. 12
4.1. Inspection and Maintenance .................................................................... 12
4.2. Tightness Test.......................................................................................... 14
5. Transport regulations ....................................................................................... 14
6. Technical Data ................................................................................................... 15
7. Certification........................................................................................................ 16
8. Ordering Information......................................................................................... 17

GB
SAFETY REGULATIONS MSA
4SavOxCap 60
1. Safety Regulations
1.1. Correct Use
The SavOxCap 60 self-rescuer is a respiratory protection device (chemical
oxygen apparatus) for self-rescuing which is independent of the ambient
atmosphere. It protects the wearer of the apparatus during escape from a
dangerous ambient atmosphere or whilst waiting for rescue from poisonous
gases, toxic particles and oxygen depletion. It is to be used exclusively for self-
rescue under dangerous conditions and is not intended for long-term use.
The duration of use under escape conditions is approx. 1 hour.
Attention!
The apparatus may only be used once and must never be reused.
Used or opened units must be replaced by new units.
It is imperative that this operating manual be read and observed when using the
SavOxCap 60. In particular, the safety instructions, as well as the information for
the use and operation of the apparatus, must be carefully read and observed.
Furthermore, the national regulations applicable in the user's country must be
taken into account for a safe use.
Danger!
This product is a safety application that supports life and health.
Inappropriate use, maintenance or servicing may affect the function of
the device and thereby seriously compromise the user’s life.
Before using the product, its operability must be verified. The product
must not be used if the function test has failed, if it is damaged, a
competent servicing/maintenance has not been made, genuine MSA
spare parts have not been used.
Alternative use, or use outside these specifications will be considered as non-
compliance. This also applies especially to unauthorised alterations to the
apparatus and to commissioning work that has not been carried out by MSA or
authorised persons.

GB
MSA SAFETY REGULATIONS
SavOxCap 60 5
1.2. Liability Information
MSA accepts no liability in cases where the product has been used
inappropriately or not as intended. The selection and use of the product are the
exclusive responsibility of the individual operator.
Product liability claims, warranties and claims made by MSA with respect to the
product are void, if it is not used, serviced or maintained in accordance with the
instructions in this manual.

GB
DESCRIPTION MSA
6SavOxCap 60
2. Description
2.1. Apparatus Overview

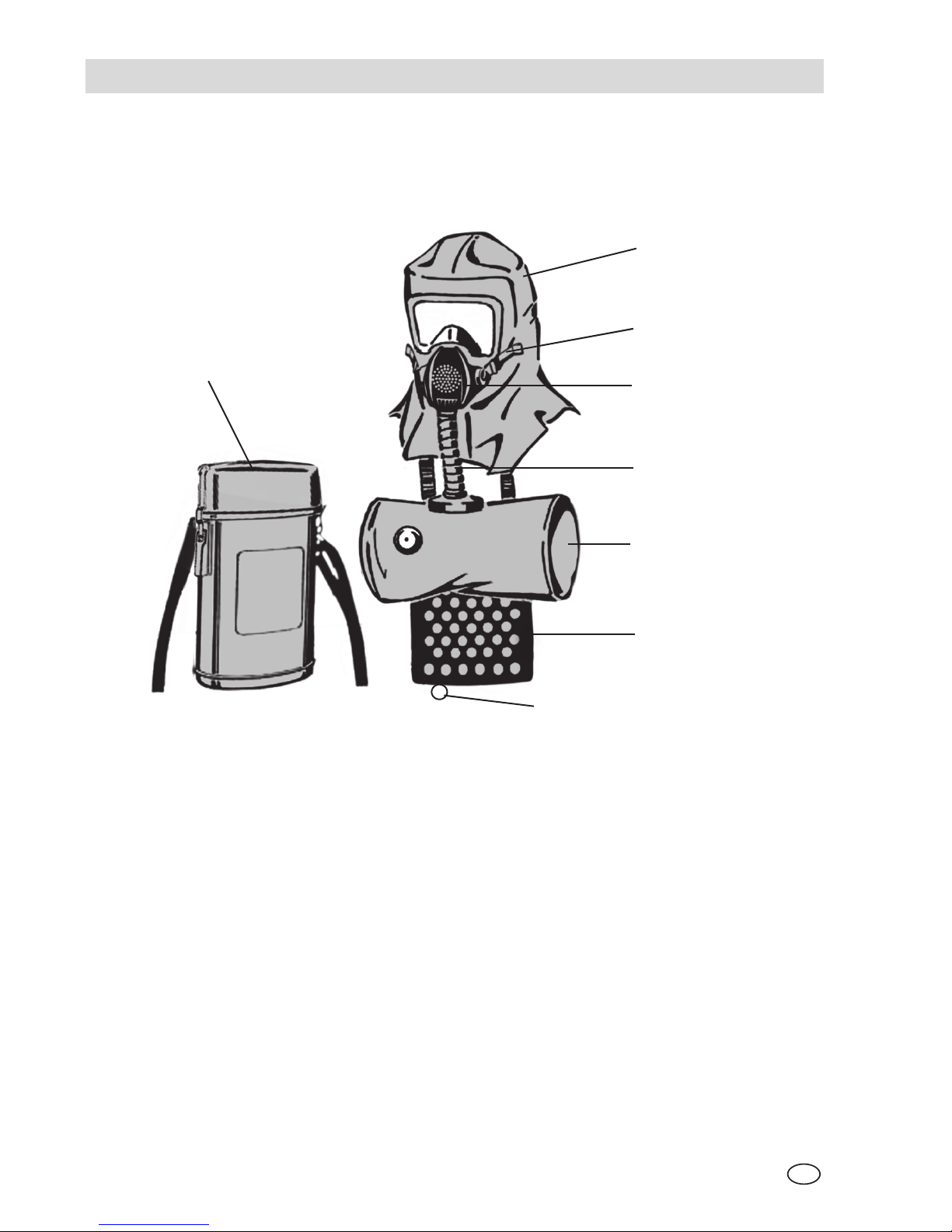

Fig. 1 Apparatus overview SavOxCap 60
1 Container with carry strap 5 Breathing tube
2 Hood 6 Breathing bag
3 Straps for tightening the mask 7 Chemical canister (KO2canister)
4 Breathing connection with half-mask
and speech diaphragm
8 Start ring
The chemical oxygen apparatus SavOxCap 60 is contained in an enclosed and
sealed container.
The respiratory protection device contained in the container includes a chemical
canister and a hood with half-mask which is connected to the canister by a
breathing tube. The canister contains potassium hyperoxide (KO2), which is
required for the regeneration of the exhaled air. The speech diaphragm which is
integrated in the breathing connection permits speech communication.
The apparatus is equipped with a starter for the initiation of use which is actuated
when the apparatus is put on. The breathing bag then fills with oxygen. During the
escape, the breathing air prepared in the KO2canister is made available in the
breathing bag.
1
2
3
4
5
6
7
8

GB
MSA DESCRIPTION
SavOxCap 60 7
2.2. Function
The SavOxCap 60 supplies the wearer of the apparatus with oxygen which is
created from the chemical potassium hyperoxide (KO2). In an emergency, the
container is opened and the respiratory protection device is taken out.
The apparatus has a closed breathing circuit. When in operation, the exhaled air
is transferred to the chemical canister with the potassium hyperoxide. The
potassium hyperoxide reacts with the humidity and the carbon dioxide of the
exhaled air and, at the same time, creates oxygen and heat. The air for inhalation
prepared in this way is fed to the breathing bag and is then inhaled again.
The amount of resulting oxygen depends on the intensity of respiration. Increased
respiration (more carbon dioxide, more humidity) increases the formation of
oxygen or vice versa.
After actuating the starter, the breathing bag immediately fills with oxygen and
breathing can begin.
When the apparatus is used for breathing, the KO2canister warms up, as does
the inhalation air, gradually. This is normal and indicates the correct operation of
the apparatus.
The supply of oxygen starts to decline if inhalation becomes more difficult and the
breathing bag starts to collapse.
Attention!
The SavOxCap 60 must only be opened for use! Otherwise humidity
from the ambient air can penetrate the open unit and affect the
performance. Used or opened units must be replaced by new units.

GB
DESCRIPTION MSA
8SavOxCap 60
2.3. Designation and marking
The SavOxCap 60 container is marked as follows on the front and on the bottom:
Designation
(front)
Marking
(bottom)
MSA
SavOxCap 60
Unit No.
Date of manufacture
SavOxCap 60
2.4. Demonstration and Training Unit - SavOxCap 60TR
The SavOxCap 60TR demonstration and training unit can be used for
demonstration and practise of wearing and breathing. The inhalation air is taken
from the ambient air and the exhalation air is expelled outside.
The SavOxCap 60TR demonstration and training unit is comparable in size,
weight, external construction, handling and breathing resistance to the
emergency use apparatus. To differentiate it from the emergency use apparatus,
the demonstration and training unit has a blue breathing bag. The unit
designation on the front of the container is: SavOxCap 60TR Demonstration Unit.

GB
MSA USE
SavOxCap 60 9
3. Use
3.1. Important escape rules
The SavOxCap 60 protects the apparatus wearer during escape from a
dangerous ambient atmosphere for approx. 1 hour. During the escape, the
following rules must always be observed:
1. Stay calm!
2. Choose the shortest route to safe ambient air!
3. Breathe calmly! Extra air will be consumed if breathing is fast and
irregular.
4. Do not damage or compress the breathing bag, otherwise lifesaving
oxygen may be lost!
3.2. Wearing the Respiratory Protection Device
The SavOxCap 60 must always be available for emergencies. The unit can be
worn with a few simple hand movements in about 20 seconds as follows:

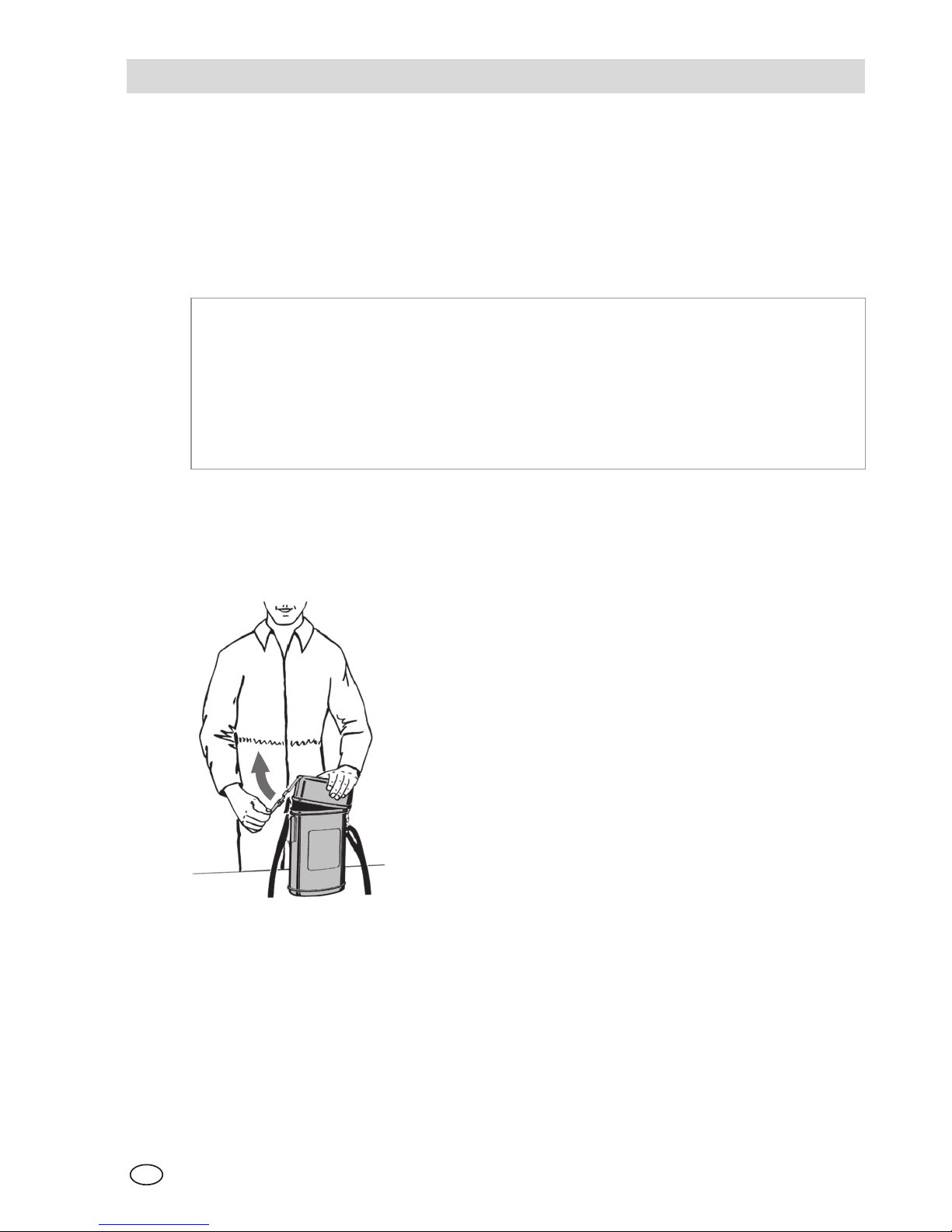

Opening the container
(1) Place the container on a solid surface. The label
"Side facing body" points to the user, the red
locking lever points to the right.
(2) Pull the locking lever upwards in the direction of
the arrow until the seal breaks
(3) Remove cover.
After opening, the first thing seen and available is
the neck strap (above the packing aid).

GB
USE MSA
10 SavOxCap 60
Fitting the neck strap
(4) Place the neck strap around the neck, straighten
and tighten until the apparatus is located across
the chest.
(5) Pull the container downwards and remove using
both hands, so that the hood can unfold.
Attention!
The apparatus must only be pulled out of the
container using the neck strap. Otherwise, the
apparatus could be damaged and thus would
no longer provide secure protection.
Attention!
Activate the apparatus before putting on
the hood.
Activating the apparatus
(6) Now pull the start ring under the apparatus
forwards.
The starter automatically fills the bag with
breathing air.
Putting on the hood
(7) Hold the hood in both hands and spread the neck
seal.
(8) Place the hood over the head.
(9) Place the inner mask on the chin and nose and
press securely in position.

GB
MSA USE
SavOxCap 60 11
Aligning the hood
(10) Align the hood on the head and pull the mask tight
to the back with the side straps.
(11) Check the neck seal for correct fit
(do not trap clothing, hair etc.).
Wearing the waist belt
Wear the waist belt and breathe calmly.
Attention!
The SavOxCap 60 provides the wearer of the
apparatus with oxygen for approx. 1 hour.
Approaching the end of the service time is
warned by the apparatus by the increase in
breathing resistance and the breathing bag
starts to collapse. The apparatus must be
removed.

GB
MAINTENANCE AND SERVICE MSA
12 SavOxCap 60
4. Maintenance and Service
4.1. Inspection and Maintenance
General instructions
To maintain readiness for use, the SavOxCap 60 must be inspected regularly,
checked for integrity and, if necessary, cleaned (do not use metal brushes!).
Other maintenance measures are not required.
As the unit contains a chemical which is sensitive to moisture, it is packed in an
airtight container and is sealed at the factory.
The frequency of inspection depends on the device load (inspection
schedules).
For used and/or opened units, the chemical canister must always be replaced,
reuse is not permitted.
Internal checks and any repairs to the unit are to be carried out by the MSA
Customer Service.
For return of used or opened units for repair, observe the following:
Pack the units and components in the device containers only after they have
cooled down and are dry.
No organic substances must enter the chemical canisters (e.g. solvents, oils,
etc.).
Observe transport instructions (Chapter 5).
Schedules
Attention!
The following details for inspection and maintenance apply only to
unused stationary stored units.
Intervals1) Inspection measures
Every 6 months Visual check of the seal on the container
Annual2) Tightness test (section 4.2)
After 10 years Replace unit, use no longer permitted
1) The criterion for the intervals is the date of manufacture (month/year) on the container.
2) It is recommended that you make a service contract with MSA Customer Service.

GB
MSA MAINTENANCE AND SERVICE
SavOxCap 60 13
Attention!
The following details for inspection and maintenance apply for devices
that are carried occasionally or regularly.
Intervals1) Inspection measures
Before and after
carrying
External status checks5)
Annual2) Tightness test (section 4.2) 4)
After 3 years Tightness test and complete inspection of all heavily
loaded units 3).
After 5 years2) Complete inspection of all devices 3)
After 8 years2) Tightness test and complete inspection of all heavily
loaded units 3).
A
fter 10 years Replace unit, use no longer permitted.
1) The criterion for the intervals is the date of manufacture (month/year) on the container.
2) It is recommended that you make a service contract with MSA Customer Service.
3) Complete inspection = Internal inspection and check. The result will decide whether the unit can be
used further.
4) Tightness test with tightness tester D1118845 or by MSA Customer Service.
5) Checks that the seal is intact and that there are no external damages on the device.
Documentation
MSA recommends keeping a file for each SavOxCap 60 where the serial
numbers, the dates of manufacture and the dates and results of the inspections
are recorded.

GB
TRANSPORT REGULATIONS MSA
14 SavOxCap 60
4.2. Tightness Test
The tightness test of the SavOxCap 60 is carried out using the MSA tightness
tester for chemical oxygen breathing protection apparatus. Detailed descriptions
of the structure, function, use and maintenance of the tightness tester can be
taken from the relevant operating instructions (Order No.: D1118845).
The tightness test of the SavOxCap 60 is carried out as follows:
(1) Push the SavOxCap 60 without carrying strap into the tightness tester in
such a way that the cover points towards the door, close the door and lock.
(2) Set timer to 90 s.
(3) Create overpressure with the lever, i.e. push the lever downwards until it
engages and start the timer at the same time.
(4) After 30 seconds, cover the black pointer with the red pointer.
(5) After a further 60 seconds, the timer signals the end of the test period. Then
read the pressure difference between the red and the black pointers.
The SavOxCap 60 is tight if the black pointer remains in the prescribed pressure
range and if the pressure difference is no more than 5 mbar.
If the pressure drop is more than 5 mbar, the unit must be replaced.
5. Transport regulations
Chemical oxygen units are classified as Dangerous Goods under Class 5.1, with
the designation "UN 3356, oxygen generator, chemical".
Undamaged and unopened units can be transported in the packing material
supplied with the unit or in a different approved method of packing.
Damaged and/or opened units should be welded into a plastic bag and packaged
as described above.
Notes concerning the various transport methods can be taken from the
data sheet - Safety information for products - provided by MSA.

GB
MSA TECHNICAL DATA
SavOxCap 60 15
6. Technical Data
Weight
with carrying containe
r
approx. 5.8 kg
Ready for use
without carrying containe
r
approx. 3.8 kg
Dimensions
Height: approx. 440 mm
Width: approx. 200 mm
Depth: approx. 100 mm
Method of carrying in
readiness with carry strap over the shoulde
r
Method of carrying in
use on the chest
Storage conditions Normal climate, temperature -20 °C to +40 °C
Temperature at start -5°C to +50°C
Temperature on standby -5°C to +50°C
Ambient temperature in
use -20°C to +50°C
Temperature class T1 to T2
Service life max. 10 years (without unit being used)
Breathing resistance less than 6 mbar
Oxygen content more than 21% by volume
Carbon dioxide content less than 1.5 % by volume
Temperature of the
inhalation air +30°C to +50°C
Service time
Depends upon wearer and his load
Under escape conditions: max. 60 min
(average breathing volume 35 l/min)
at rest: up to 5 hours
(breathing volume 10 l/min, waiting for rescue)
Designation to
DIN 58639 oxygen self-rescuer K60 - DIN 58639

GB
CERTIFICATION MSA
16 SavOxCap 60
7. Certification
The device complies with the following directives, standards or standardized
documents:
Approvals
Directive 89/686/EC or Regulation (EU) 2016/425, respectively
0158
DEKRA DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809
Bochum, Germany, Notified body number: 0158
Standards or standardized
documents
EN 13794:2002
EN 1146:2005
DIN 58639:1998
The Declaration of Conformity can be found under the following link:
https://MSAsafety.com/DoC.

GB
MSA ORDERING INFORMATION
SavOxCap 60 17
8. Ordering Information
Designation Part No.
SavOxCap 60 10073550
Demonstration and Training Unit - SavOxCap 60TR 10075670
Accessories
Shoulder strap D1118870
Training card SavOxCap 60 (donning pictogram) 10075169
Operating manual SavOxCap 60 10075175
Tightness tester D1118845
Operating manual for tightness tester D1118323
Spare parts SavOxCap 60
Pictogram 10075176
Label "Side facing body" D1122051
Label Unit Designation 10075177
Spare parts Demonstration and Training Unit - SavOxCap 60TR
Hood (complete with breathing connection, half mask and
breathing hose)
10075694
Hose clip (breathing hose) 10075696
Breathing bag TR 10075695
Locking clip D1118850
Pictogram 10075176
Label " Side facing body" D1122051
Label Unit Designation "Demo unit" 10075697

GB
NOTES MSA
18 SavOxCap 60
Notes

MSA INHALTSVERZEICHNIS
SavOxCap 60 19
Inhaltsverzeichnis
1. Sicherheitsvorschriften .................................................................................... 20
1.1. Bestimmungsgemäße Verwendung ......................................................... 20
1.2. Haftung..................................................................................................... 21
2. Gerätebeschreibung.......................................................................................... 22
2.1. Geräteübersicht........................................................................................ 22
2.2. Funktion ................................................................................................... 23
2.3. Bezeichnung und Kennzeichnung............................................................ 24
2.4. Demonstrations- und Trainingsgerät SavOxCap 60TR ............................ 24
3. Gebrauch............................................................................................................ 25
3.1. Wichtige Fluchtregeln............................................................................... 25
3.2. Anlegen des Atemschutzgerätes.............................................................. 25
4. Wartung und Instandhaltung............................................................................ 28
4.1. Inspektion und Wartung ........................................................................... 28
4.2. Dichtheitsprüfung ..................................................................................... 30
5. Transportvorschriften....................................................................................... 30
6. Technische Daten.............................................................................................. 31
7. Zertifizierung...................................................................................................... 32
8. Bestellangaben.................................................................................................. 33

SICHERHEITSVORSCHRIFTEN
MSA
20 SavOxCap 60
1. Sicherheitsvorschriften
1.1. Bestimmungsgemäße Verwendung
Das Selbstrettungsgerät SavOxCap 60 ist ein von der Umgebungsatmosphäre
unabhängig wirkendes Atemschutzgerät (Chemikalsauerstoffgerät) für die
Selbstrettung. Es schützt den Gerätträger während der Flucht aus einer
gefährlichen Umgebungsatmosphäre oder beim Warten auf Rettung vor giftigen
Gasen, schädlichen Partikeln und Sauerstoffmangel. Es ist ausschließlich für die
Selbstrettung im Gefahrenfall bestimmt und nicht für Langzeiteinsätze geeignet.
Die Einsatzdauer unter Fluchtbedingungen beträgt ca. 1 Stunde.
Achtung!
Das Gerät darf nur einmal eingesetzt und keinesfalls wieder
verwendet werden. Gebrauchte oder geöffnete Geräte müssen durch
neue Geräte ersetzt werden.
Die vorliegende Gebrauchsanleitung ist für den Gebrauch des SavOxCap 60
zwingend zu lesen und zu beachten. Insbesondere die darin enthaltenen
Sicherheitshinweise sowie die Angaben zu Einsatz und Bedienung des Gerätes
müssen aufmerksam gelesen und beachtet werden. Zusätzlich sind die im
Verwenderland geltenden nationalen Vorschriften zum sicheren Betrieb des
Gerätes zu berücksichtigen.
Gefahr!
Das Produkt ist möglicherweise eine lebensrettende oder gesundheits-
erhaltende Schutzvorrichtung. Unsachgemäße Verwendung, Wartung
oder Instandhaltung des Gerätes kann die Funktion des Gerätes
beeinträchtigen und dadurch Menschenleben ernstlich gefährden.
Vor dem Einsatz ist die Funktionsfähigkeit des Produktes zu
überprüfen. Das Produkt darf nicht eingesetzt werden, wenn der
Funktionstest nicht erfolgreich war, Beschädigungen bestehen, eine
fachkundige Wartung / Instandhaltung fehlt oder wenn keine Original-
Ersatzteile verwendet wurden.
Eine andere oder darüber hinausgehende Benutzung gilt als nicht bestimmungs-
gemäß. Dies gilt insbesondere auch für eigenmächtige Veränderungen am
Produkt und für Instandsetzungsarbeiten, die nicht von MSA bzw. autorisiertem
Personal durchgeführt wurden.
