MTS Sensors Temposonics R-Series V Reference guide

R-Series V
Brief Instructions
Temposonics®
Magnetostrictive Linear Position Sensors
GENERATION
I AM
V
THE NEW

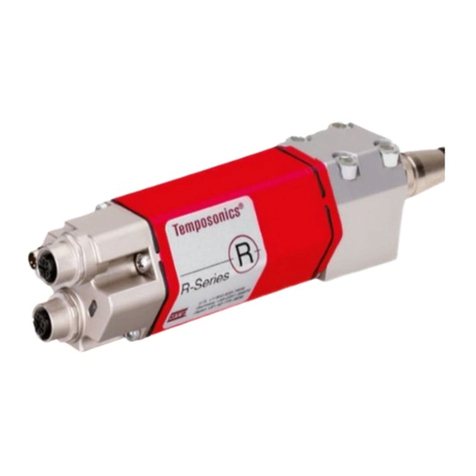

Temposonics® R-Series V
Brief Instructions
I2 I
Table of contents
1. Introduction..........................................................................................................................................................................3
2. Safety instructions...............................................................................................................................................................4
2.1 Intended use ..................................................................................................................................................................4
2.2 Foreseeable misuse........................................................................................................................................................4
2.3 Installation, commissioning and operation ....................................................................................................................5
2.4 Safety instructions for use in explosion-hazardous areas ..............................................................................................5
2.5 Warranty ........................................................................................................................................................................5
2.6 Return............................................................................................................................................................................5
2.7 Maintenance & removal .................................................................................................................................................5
3. Identification........................................................................................................................................................................6
3.1 Temposonics®RP5 ........................................................................................................................................................6
3.2 Temposonics®RH5........................................................................................................................................................6
4. Installation & mounting.......................................................................................................................................................7
4.1 Magnet installation.........................................................................................................................................................7
4.2 Mounting dimensions ....................................................................................................................................................8

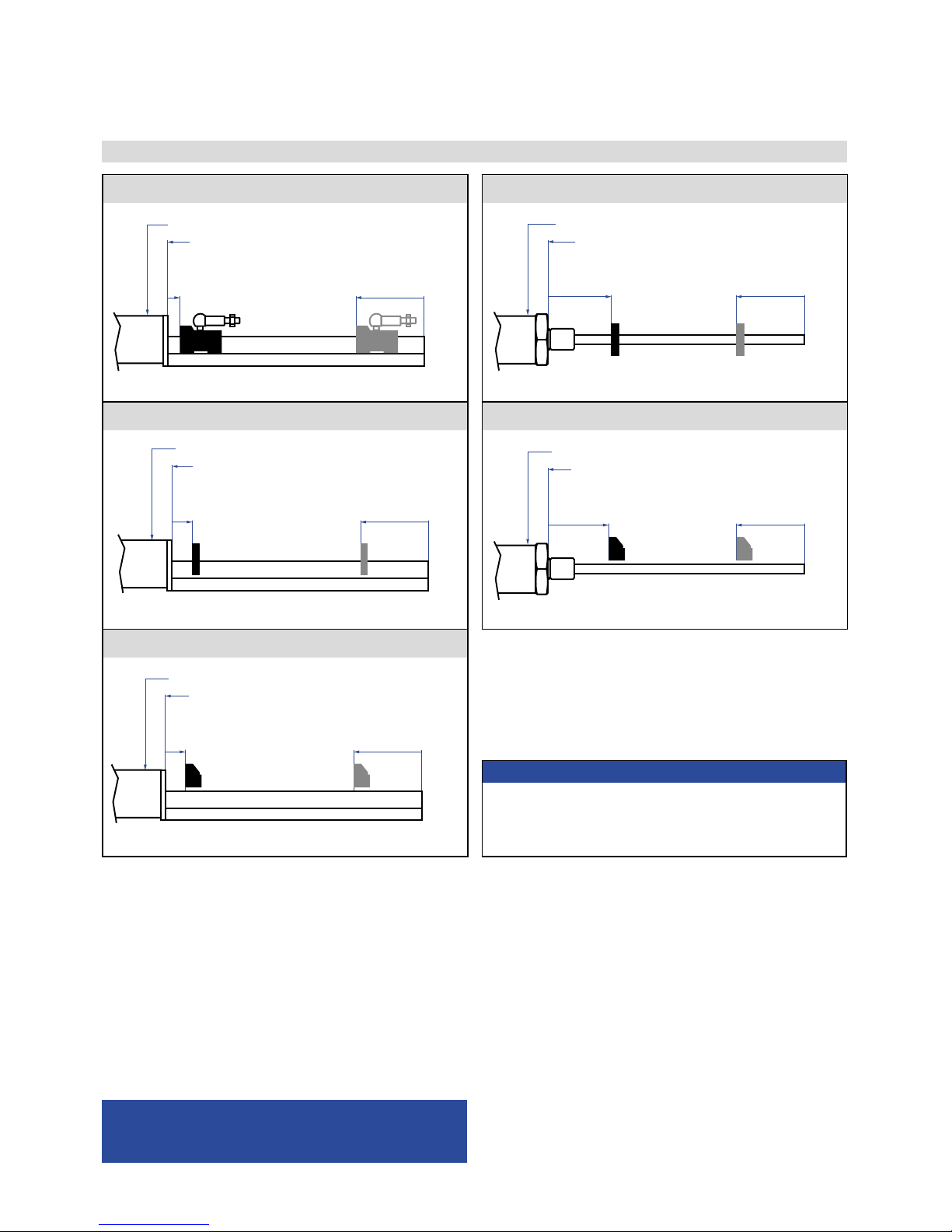

4.3 Multi-position measurement distances ..........................................................................................................................9

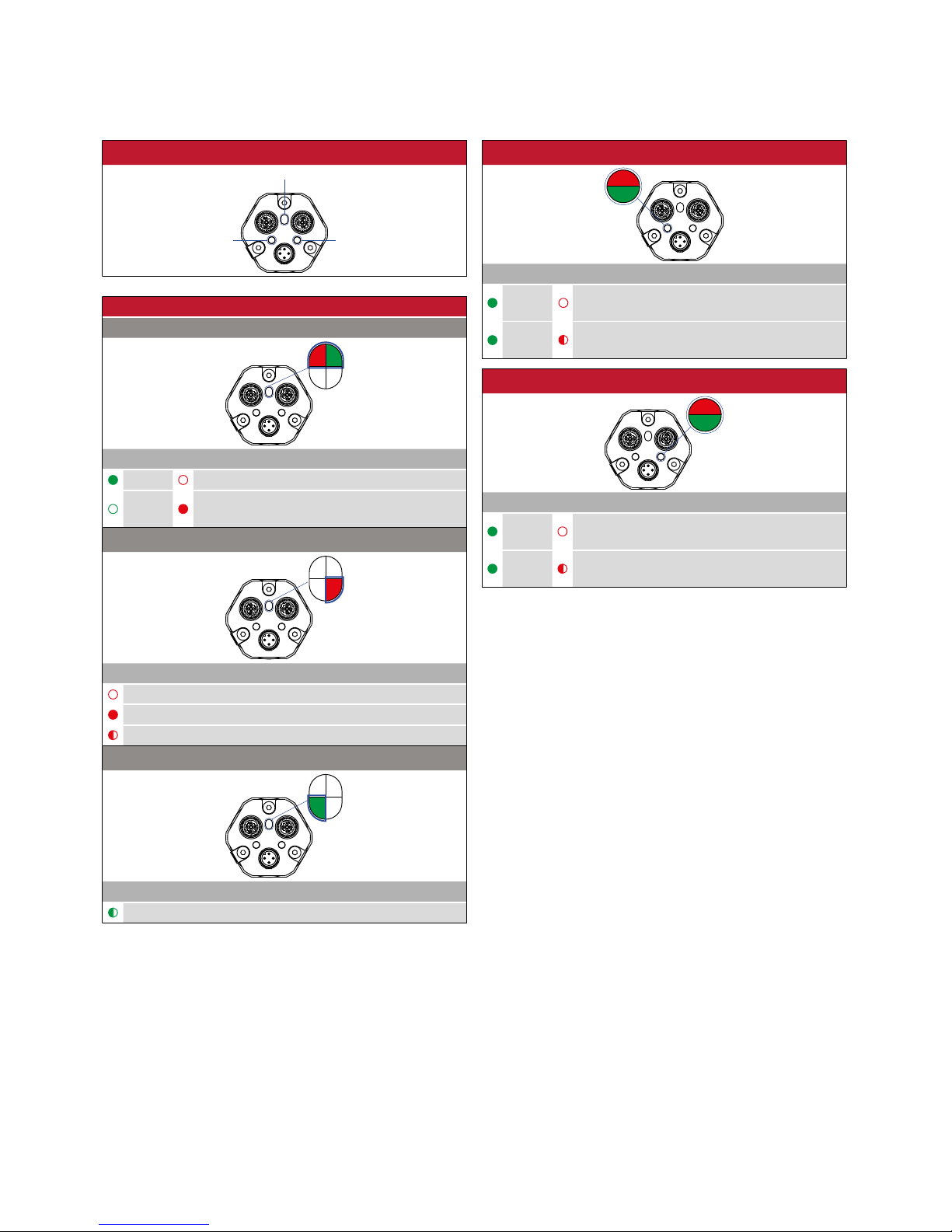

5. Electrical connections & LED status .................................................................................................................................10
5.1 Profinet ........................................................................................................................................................................10
5.2 EtherNet / IP™...............................................................................................................................................................12

Temposonics® R-Series V
Brief Instructions
I3 I
1. Introduction
1.1 Purpose and use of this manual
Before starting the operation of Temposonics®position
sensors, read this documentation thoroughly and follow the
safety information. Keep this manual for future reference!
The content of this technical documentation is intended to
provide information on mounting, installation and commis-
sioning by qualified automation personnel 1 or instructed
service technicians who are familiar with the project planning
and dealing with Temposonics®position sensors.
1.2 Used symbols and warnings
Warnings are intended for your personal safety and for avoid-
ance of damage to the described product or connected devic-
es. In this documentation, safety information and warnings to
avoid danger that might affect the life and health of operating
or service personnel or cause material damage are highlight-
ed by the pictogram, defined below.
Symbol Meaning
NOTICE
This symbol is used to point to situations
that may lead to material damage, but not
to personal injury.
1/ The term “qualified technical personnel” characterizes
persons who
• are familiar with the safety concepts of automation
technology applicable
to the particular project and
• are competent in the field of electromagnetic compatibility
(EMC) or
• have received adequate training for commissioning and
service operations or
• and are familiar with the operation of the device and know the
information required for correct operation provided in the
product documentation

Temposonics® R-Series V
Brief Instructions
I4 I
2.1 Intended use
This product may be used only for the applications defined
under item 1 and only in conjunction with the third-party
devices and components recommended or approved by MTS
Sensors. As a prerequisite of proper and safe operation, the
product requires correct transport, storage, mounting and
commissioning and must be operated with utmost care.
1. The sensor systems of all Temposonics®series are
intended exclusively for measurement tasks encountered
in industrial, commercial and laboratory applications. The
sensors are considered as system accessories and must
be connected to suitable evaluation electronics, e.g. a
PLC, IPC, indicator or other electronic control unit.
2.2 Foreseeable misuse
Manuals, Software & 3D models
available at: www.mtssensors.com
2. Safety instructions
Do not alter the sensor.
The sensor might be damaged.
Do not step on the sensor.
The sensor might be damaged.
Foreseeable misuse Consequence
Wrong sensor connection The sensor will not work
properly or can be damaged
Operate the sensor out of the
operating temperature range
No signal output
The sensor can be damaged
Power supply is out of the
defined range
Signal output is wrong /
no signal output /
the sensor can be damaged
Position measurement is
influenced by an external
magnetic field
Signal output is wrong
Cables are damaged
Short circuit – the sensor can
be destroyed / sensor does not
respond
Spacers are missing /
are installed in the wrong order Error in position measurement
Wrong connection
of ground / shield
Signal output is disturbed
The electronics can be damaged
Use of a magnet that is not
certified by MTS Sensors Error in position measurement

Temposonics® R-Series V
Brief Instructions
I5 I
2.3 Installation, commissioning and operation
The position sensors must be used only in technically safe
conditions. To maintain this condition and to ensure safe
operation, installation, connection and service, work may be
performed only by qualified technical personnel.
If danger of injury to persons or of damage to operating
equipment is caused by sensor failure or malfunction,
additional safety measures such as plausibility checks, limit
switches, EMERGENCY STOP systems, protective devices
etc. are required. In the event of trouble, shut down the
sensor and protect it against accidental operation.
Safety instructions for commissioning
To maintain the sensor operability, it is mandatory to follow
the instructions given below.
1. Protect the sensor against mechanical damage during
installation and operation.
2. Do not open or dismantle the sensor.
3. Connect the sensor very carefully and pay attention to
the polarity of connections and power supply.
4. Use only approved power supplies.
5. Ensure the sensor is operating within the defined limits
for supply voltage, environmental conditions, etc.
6. Check the function of the sensor regularly and provide
documentation of the checks.
7. Before system switch-on, ensure that nobody’s safety
is jeopardized by starting machines.
2.4 Safety instructions for use in explosion-hazardous
areas
The sensors are not suitable for operation in explosion-
hazardous areas.
2.5 Warranty
MTS Sensors grants a warranty 2period for the Temposonics®
position sensors and supplied accessories relating to
material defects and faults that occur despite correct use in
accordance with the intended application. The MTS Sensors
obligation is limited to repair or replacement of any defective
part of the unit. No warranty can be taken for defects that are
due to improper use or above average stress of the product,
as well as for wear parts. Under no circumstances will MTS
Sensors accept liability in the event of offense against the
warranty rules, no matter if these have been assured or
expected, even in case of fault or negligence of the company.
MTS Sensors explicitly excludes any further warranties.
Neither the company’s representatives, agents, dealers nor
employees are authorized to increase or change the scope
of warranty.
2.6 Return
For diagnostic purposes, the sensor can be returned to
MTS Sensors or a repair facility explicitly authorized by MTS
Sensors. Any shipment cost will be borne by the sender 2.
For a corresponding form, see detailed operation manual
(available at: www.mtssensors.com).
2.7 Maintenance & removal
Further information about maintenance and removal is
provided in the sensor specific operation manuals.
2/ See also applicable MTS Sensors sales and supply
conditions, e.g. under www.mtssensors.com

Temposonics® R-Series V
Brief Instructions
I6 I

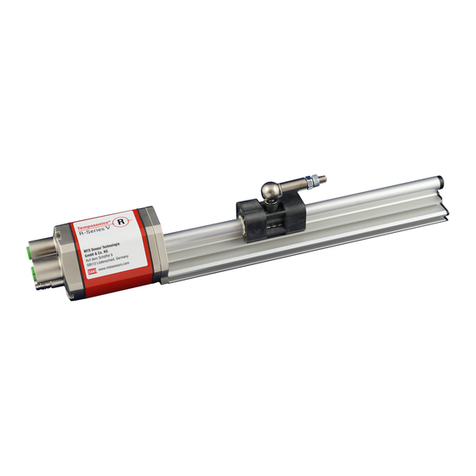

3.1 Temposonics®RP5
3.2 Temposonics®RH5
Available outputs:
• Profinet
• EtherNet/IP™
Available outputs:
• Profinet
• EtherNet/IP™
Approvals and certificates
You will find approvals and certificates in the sensor specific
operation manuals.
3. Identification
(profile housing)
(rod housing)
Manuals, Software & 3D models
available at: www.mtssensors.com
Position magnet
(Magnet slider, U- or block magnet)
Sensor profile
with sensor element
Sensor electronics housing
Ground lug
Mounting clamp
Position magnet
(Ring-, U- or block magnet)
Threaded flange
Connector
Sensor electronics housing
Pressure proof rod
with sensor element
Ground lug
RP5SA0200M00D581U402
MAC: 00-03-CA-00-58-F6
S/N: 15030203
12JAN2018
Order code
MAC address
Date of Production
Serial number
Nameplate (e.g. R-SeriesVProfinet)

Temposonics® R-Series V
Brief Instructions
I7 I
4.1 Magnet installation
Typical use of magnets
Ring magnet
For: RH
• Rotationally symmetrical magnetic field
U-magnet
For: RP & RH
• The magnet can be lifted off (RP)
• Height tolerances can be compensated
Block magnet
For:RP & RH
• The magnet can be lifted off
• Height tolerances can be compensated
Magnet slider
For: RP
• The magnet is guided by the profile.
• The distance between the magnet and
the waveguide is strictly defined
• Easy coupling via the ball joint
Concentric mounting of U-magnet
M4 1
2
Air gap
Concentric mounting
of U-magnet
Part no. 201 553:
3 ±1 (0.12 ±0.04)
Part no. 251 416-2:
1.75 ±1 (0.07 ±0.04)
1U-magnet
2Non-magnetic mounting device and screws
Install the magnet using non-magnetic material for mount-
ing device, screws, spacers etc.. The magnet must not grind
on the sensor rod. Alignment errors are compensated via the
air gap.
• Max. permissible surface pressure: 40 N/mm2
• Max. fastening torque for M4 screws: 1 Nm;
use washers, if necessary
NOTICE
Mount the ring magnet and U-magnet concentrically.
Mount the block magnet centrically.
The maximum permissible air gap must not be exceeded.
Take care to mount the primary sensor axis in parallel to
the magnet path in order to avoid damage to the carriage,
magnet and sensor rod.
4. Installation & mounting
Controlling design dimensions are in millimeters and
measurements in ( ) are in inches
Magnet mounting with magnetic material
When using magnetic material the dimensions in the drawing
beneath must be observed. If the position magnet is set
further into the piston rod install another non-magnetic
spacer above the magnet.
Sensors with stroke lengths ≥ 1 meter
Support horizontally installed sensors with a stroke length
from 1 meter mechanically at the rod end. Without the use of
a support, rod and position magnet may be damaged. A false
measurement result is also possible. Longer rods require
evenly distributed mechanical support over the entire length
(e.g. part no. 561 481). Use an U-magnet for measurement.
Magnet Magnet
1
2
3 3
A B
Magnetic
material
1Null zone, depends on sensor model
2Distance between position magnet and any magnetic
material (≥ 15 mm (≥ 0.6 in.))
3Non-magnetic spacer (≥ 5 mm (≥ 0.2 in.)) –
Recommendation: 8 mm (0.31 in.)
Centered mounting of block magnet
M4
2
1
8 ±2
(0.31 ±0.08) Sensor element
Air gap: 3 ±2
(0.12 ±0.08)
Concentric mounting
of block magnet
M4
2
1
8 ±2
(0.31 ±0.08) Sensor element
Air gap: 3 ±2
(0.12 ±0.08)
Concentric mounting
of block magnet
1Block magnet
2Non-magnetic mounting device and screws

Temposonics® R-Series V
Brief Instructions
I8 I
RP5 with magnet slider “S” / “N” / “V” / “G” RH5 with ring magnet / U-magnet
Sensor electronics housing
Reference edge of mounting
Start position
12 (0.47)
End position
82 / 87* (3.23 / 3.43*)
* Stroke length > 5000 mm (196.9 in.)
Sensor electronics housing
Reference edge of mounting
Start position
51 (2.01)
End position
63.5 / 66* (2.5 / 2.6*)
* Stroke length > 5000 mm (196.9 in.)
RP5 with U-magnet RH5 with block magnet
Reference edge of mounting
Sensor electronics housing
Start position
28 (1.1)
End position
66 / 71* (2.6 / 2.8*)
* Stroke length > 5000 mm (196.9 in.)
Sensor electronics housing
Reference edge of mounting
Start position
48.5 (1.91)
End position
66 / 68.5* (2.6 / 2.7*)
* Stroke length > 5000 mm (196.9 in.)
RP5 with block magnet
Reference edge of mounting
Sensor electronics housing
* Stroke length > 5000 mm (196.9 in.)
End position
68.5 / 73.5* (2.7 / 2.9*)
Start position
25.5 (1)
4.2 Mounting dimensions
Manuals, Software & 3D models
available at: www.mtssensors.com Controlling design dimensions are in millimeters and
measurements in ( ) are in inches
NOTICE
• The sensor can be operated in any orientation.
• On all sensors, use only the active measurement stroke,
which is between the start and end positions. The
magnet may move beyond these positions.

Temposonics® R-Series V
Brief Instructions
I9 I
4.3 Multi-position measurement distances
Manuals, Software & 3D models
available at: www.mtssensors.com
RP5 with magnet sliders “S” / “N” / “V” / “G” RH5 with ring magnets / U-magnets
≥ 75 (≥ 3)
≥ 75 (≥ 3)
RP5 with U-magnets RH5 with block magnets
≥ 75 (≥ 3)
≥ 75 (≥ 3)
RP5 with block magnets
≥ 75 (≥ 3)
NOTICE
Use magnets of the same type for multi-position
measurement, e.g. 2 × U-magnets (part no. 251 416-2).
Multi-position measurements are possible depending on the
output. It is possible to measure up to 30 positions positions
and their velocities.
The stroke length of the sensor influences the maximum
number of magnets.
Controlling design dimensions are in millimeters and
measurements in ( ) are in inches

Temposonics® R-Series V
Brief Instructions
I10 I
Placement of installation and cabling have decisive influence
on the sensor‘s electromagnetic compatibility (EMC). Hence
correct installation of this active electronic system and the
EMC of the entire system must be ensured by using suitable
metal connectors, shielded cables and grounding. Overvolt-
ages or faulty connections can damage its electronics despite
protection against wrong polarity.
NOTICE
1. Do not mount the sensors in the area of strong magnetic
or electric noise fields.
2. Never connect / disconnect the sensor when voltage is
applied.
Instructions for connection
• Use low-resistant twisted pair and shielded cables. Connect
the shield to ground externally via the controller equipment.
• Keep control and signal cables separate from power cables
and sufficiently far away from motor cables, frequency
inverters, valve lines, relays, etc..
• Use only connectors with metal housing and connect the
shielding to the connector housing.
• Keep the connection surface at both shielding ends as
large as possible. Connect the cable clamps to function as
a ground.
• Keep all non-shielded leads as short as possible.
• Keep the earth connection as short as possible with a large
cross section. Avoid ground loops.
• With potential differences between machine and electronics
earth connections, no compensating currents are allowed
to flow across the cable shielding.
Recommendation:
• Install potential compensating leads with large cross
section, or use cables with separate double shielding, and
connect only one end of the shield.
• Use only stabilized power supplies in compliance with the
specified electrical ratings.
Manuals, Software & 3D models
available at: www.mtssensors.com
5. Electrical connections & LED status
Grounding of profile and rod sensors
Connect the sensor electronics housing to machine ground.
Ground sensor types RP5 and RH5 via ground lug. In addition
you can ground the sensor type RH5 via thread.
Sensor grounding
D58
Signal
Port 1 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Port 2 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Power supply
M12 male connector
(A-coded) Pin Function
1
2
4
3
View on sensor
1 12…30 VDC (±20 %)
2 Not connected
3 DC Ground (0 V)
4 Not connected
5.1 Profinet

Temposonics® R-Series V
Brief Instructions
I11 I
Profi net RT & IRT LED status
Port 1 L/A L/A Port 2
Connection indicator
Port 1 Port 2
Connection indicator
Device status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF No Error
OFF ON Operating voltage out of range
or magnet error
Bus status LED
Port 1 L/A L/A Port 2
Red Information
OFF No Error
ON No connection to controller
Flashing Parameterization error
LED for sensor identifi cation
Port 1 L/A L/A Port 2
Green Information
Flashing Sensor identifi cation activated
Port 1 L/A
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection to the next network node
established
ON Flashing Connection to the next network device
established & communication active
Port 2 L/A
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection to the next network node
established
ON Flashing Connection to the next network device
established & communication active
Profi net RT & IRT LED status
Port 1 L/A L/A Port 2
Connection indicator
Port 1 Port 2
Connection indicator
Device status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF No Error
OFF ON Operating voltage out of range
or magnet error
Bus status LED
Port 1 L/A L/A Port 2
Red Information
OFF No Error
ON No connection to controller
Flashing Parameterization error
LED for sensor identifi cation
Port 1 L/A L/A Port 2
Green Information
Flashing Sensor identifi cation activated
Port 1 L/A
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection to the next network node
established
ON Flashing Connection to the next network device
established & communication active
Port 2 L/A
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection to the next network node
established
ON Flashing Connection to the next network device
established & communication active

Temposonics® R-Series V
Brief Instructions
I12 I
5.2 EtherNet / IP™
D56
Ports
Port 1 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Port 2 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Power supply
M8 male connector Pin Function
24
13
View on sensor
1 12…30 VDC (±20 %)
2 Not connected
3 DC Ground (0 V)
4 Not connected
D58
Signal
Port 1 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Port 2 – M12 female
connector (D-coded) Pin Function
2
3
4
5
1
View on sensor
1 Tx (+)
2 Rx (+)
3Tx (−)
4Rx (−)
5 Not connected
Power supply
M12 male connector
(A-coded) Pin Function
1
2
4
3
View on sensor
1 12…30 VDC (±20 %)
2 Not connected
3 DC Ground (0 V)
4 Not connected

Temposonics® R-Series V
Brief Instructions
I13 I
EtherNet/IP™ LED status
Port 1 L/A L/A Port 2
Connection indicator
Port 1 Port 2
Connection indicator
Module status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF IP address confi gured
Flashing OFF IP address not confi gured
OFF Flashing Duplicate of IP address recognized
Network status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection established
Flashing OFF No connection
OFF ON Unrecoverable error
OFF Flashing Recoverable error
Port 1 L/A (IN)
Port 1 L/A L/A Port 2
Green Red Information
ON OFF LINK activity on port 1
Flickers OFF Data transfer on port 1
OFF ON No magnet / Wrong quantity of magnets
Port 2 L/A (OUT)
Port 1 L/A L/A Port 2
Green Red Information
ON OFF LINK activity on port 2
Flickers OFF Data transfer on port 2
EtherNet/IP™ LED status
Port 1 L/A L/A Port 2
Connection indicator
Port 1 Port 2
Connection indicator
Module status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF IP address confi gured
Flashing OFF IP address not confi gured
OFF Flashing Duplicate of IP address recognized
Network status LED
Port 1 L/A L/A Port 2
Green Red Information
ON OFF Connection established
Flashing OFF No connection
OFF ON Unrecoverable error
OFF Flashing Recoverable error
Port 1 L/A (IN)
Port 1 L/A L/A Port 2
Green Red Information
ON OFF LINK activity on port 1
Flickers OFF Data transfer on port 1
OFF ON No magnet / Wrong quantity of magnets
Port 2 L/A (OUT)
Port 1 L/A L/A Port 2
Green Red Information
ON OFF LINK activity on port 2
Flickers OFF Data transfer on port 2

Temposonics® R-Series V
Brief Instructions
I14 I
Notes

Temposonics® R-Series V
Brief Instructions
I15 I
Notes

UNITED STATES
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive
Cary, N.C. 27513
Phone: [phone]
E-mail: [email protected]
GERMANY
MTS Sensor Technologie
GmbH & Co. KG
Auf dem Schüffel 9
58513 Lüdenscheid
Phone: [phone]
E-mail: [email protected]
ITALY
Branch Offi ce
Phone: [phone]
E-mail: [email protected]
FRANCE
Branch Offi ce
Phone: [phone]
E-mail: [email protected]
GREAT BRITAIN
Branch Offi ce
Phone: [phone]
E-mail: [email protected]
CHINA
Branch Offi ce
Phone: [phone]
E-mail: [email protected]
JAPAN
Branch Offi ce
Phone: [phone]
E-mail: [email protected]
www.mtssensors.com
MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the
United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2018 MTS Systems Corporation. No license of any intellectual
property rights is granted. MTS reserves the right to change the information within this document, change product designs, or withdraw products from availability for purchase without notice. Typographic and
graphics errors or omissions are unintentional and subject to correction. Visit www.mtssensors.com for the latest product information.
Document Part Number:
551968 Revision A (EN) 05/2018
