Nav TV NTV-KIT041 User manual

Camera Interface for
2006-Up Mercedes-Benz GL, ML, R
Class SUV’s
Compatible with Alpine made US MCS Comand
Head units. Mercesed P/N ending with 1779, 1789,
3879, 4089, 4079 3689. See 3rd page picture for
example. ��
Not compatible with Models not listed or
European Head units
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. Would not be held liable for misuse of it’s product.
If you do not agree, please discontinue use immediately and return product to place of purchase.
This product is intended for off-road use and passenger entertainment only.
WARNING: Check entire surroundings while backing. Do not become distracted by using COMAND.
3950 NW 120th Ave Coral Springs, FL 33432
Tel. [phone] Fax. [phone]
[email protected]
X164
To Activate Rear View Camera Fig. 1 - Vehicle in Reverse
With the brake depressed and engine
running, engage reverse gear.
Rear View Camera picture will show on
COMAND screen.
To Activate Video Monitoring
Fig. 2 - Video Activation
Press the steering wheel
(+) and (-) buttons simultaneously to
activate Video.
Pressing any MODE button will return
the screen to it!s normal operation mode.
OR:
Press the steering wheel
(hang) and (-) buttons simultaneously to
deactivate Video.
Operation Instructions
NTV-KIT041
Kit Contents
X164 Module
NTV-ASY107
USB Cable
NTV-CAB009
T-Harness
NTV-HAR069
VSW-R Board
NTV-ASY187 VSW-R Trigger Harness
NTV-HAR066
VSW-R I/O Harness
NTV-HAR301
X164
BHM 3/18/15
NTV-DOC026
V1 Switcher shown here, this
has been replaced with the
VSW-R in 03/15

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. Would not be held liable for misuse of it’s product.
If you do not agree, please discontinue use immediately and return product to place of purchase.
This product is intended for off-road use and passenger entertainment only.
WARNING: Check entire surroundings while backing. Do not become distracted by using COMAND.
X164

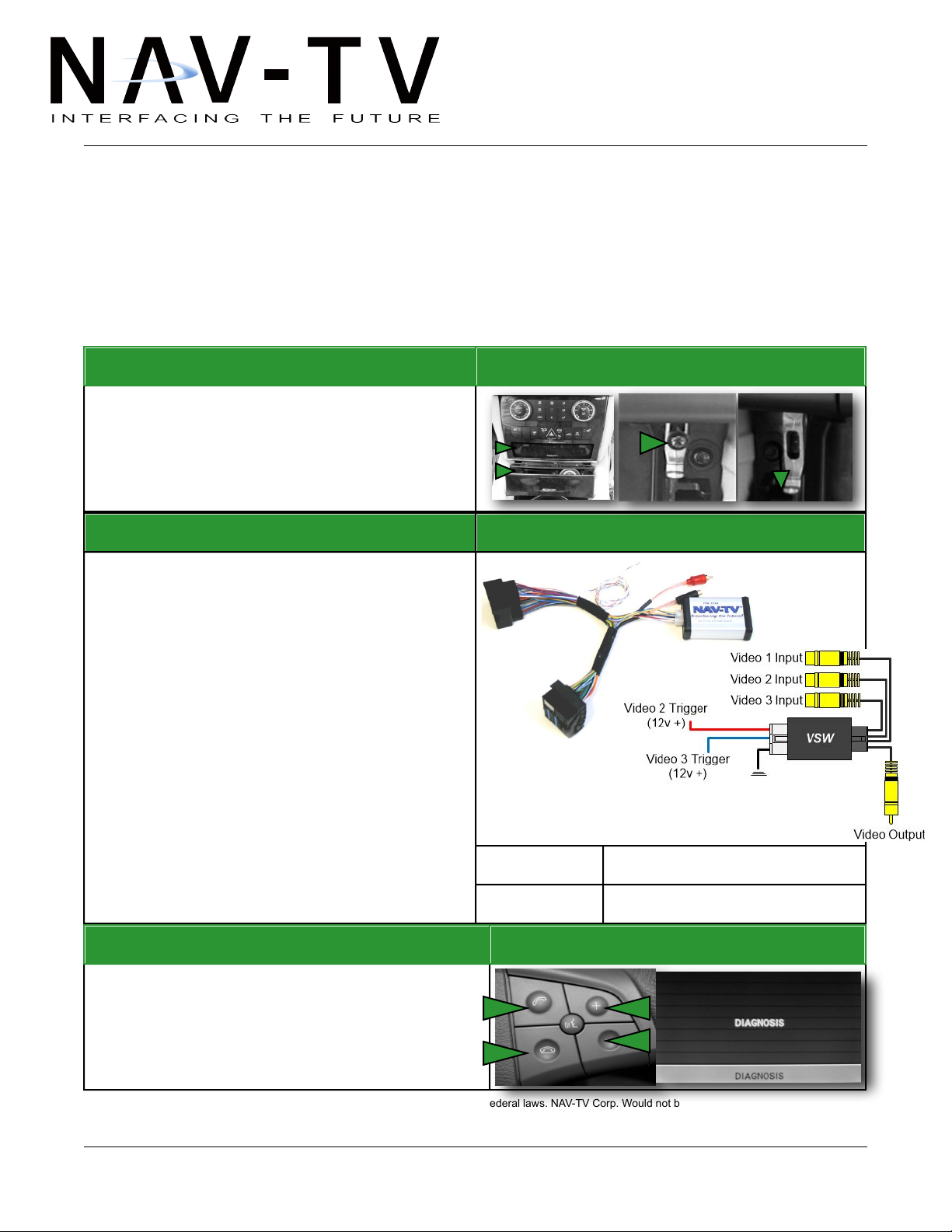

Installation Instructions
Wiring
Fig. 2 - Car Wiring Vs. X164
1. Unplug factory power connector from
radio. Plug in the X164 adapter harness to
factory harness, Radio and X164 Module.
2. Female RCA: Video input to COMAND.
Connect to Video source or Camera, or to
supplied video switcher if 2 video sources
are present (Video OUT).
3. Male RCA: Output of Factory Camera.
Plug into switcher If camera present
(Video 1).
4. Video Switcher: connect Black wire to
ground, White/Red wire to White / Blue on
X164 (Reverse +12V out). The switcher
will then activate automatically when in
Reverse.
White / Blue
+12V Reverse OUT, 500mA
White / Red
+12V Acc. OUT, 500mA
Programming - Proceed only once !
Fig. 3 - Programming
Simultaneously Press the steering wheel
(Talk) and (Hang) and (+) and (-) buttons to
program radio. Observe the DIAGNOSIS
message on the radio followed by a radio
reset.
Remove Radio
Fig. 1 - Radio Removal (GL Class)
1. Remove TORX Screws behind ashtray.
2. Remove ashtray.
3. Pull, remove bottom of A/C Wood Trim.
4. Remove TORX Screws securing locks.
5. Pull down locks, Remove Radio.
Camera Interface for 2006-Up Mercedes-Benz GL, ML, R Class SUV’s
Compatible with Alpine made US MCS COMAND Head units, Mercedes P/N ending with : 1779, 1789, 3879, 4089,4079 3689
Not compatible with Models not listed or European Head units
3950 NW 120th Ave Coral Springs, FL 33432
Tel. [phone] Fax. [phone]
[email protected]
X164
BHM 3/18/15
NTV-DOC026
