Nibe ERS S10-400 User manual

UHB EN 2110-3
531582
USER MANUAL
HRV unit
NIBE ERS S10-400
LEK

LEK

41 Important information
4Installation data
5Safety information
5Serial number
5Compatible products
62 Function of the HRV unit
73 Maintenance of ERS S10
7Regular checks
94 Disturbances in comfort
9Troubleshooting
10Contact information
3Table of ContentsNIBE ERS S10-400
Table of Contents

Installation data
ERS S10Product
Serial number
Installation date
Installer
SetFact. sett.NameNo.
75%Fan speed, exhaust air7.1.4.1
60%Fan speed, supply air7.1.4.2
Vent. heat exchanger (ERS)7.2.11
5 °C
4 °C
lowest extract air temp.
bypass at excess temperature
Serial number must always be given
It is hereby certified that the installation has been carried out in accordance with the instructions in the Installer
manual and applicable regulations.
______________________________________________Signed___________________________Date
NIBE ERS S10-400Chapter 1 | Important information4
1 Important information

Safety information
SYMBOLS
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
Serial number

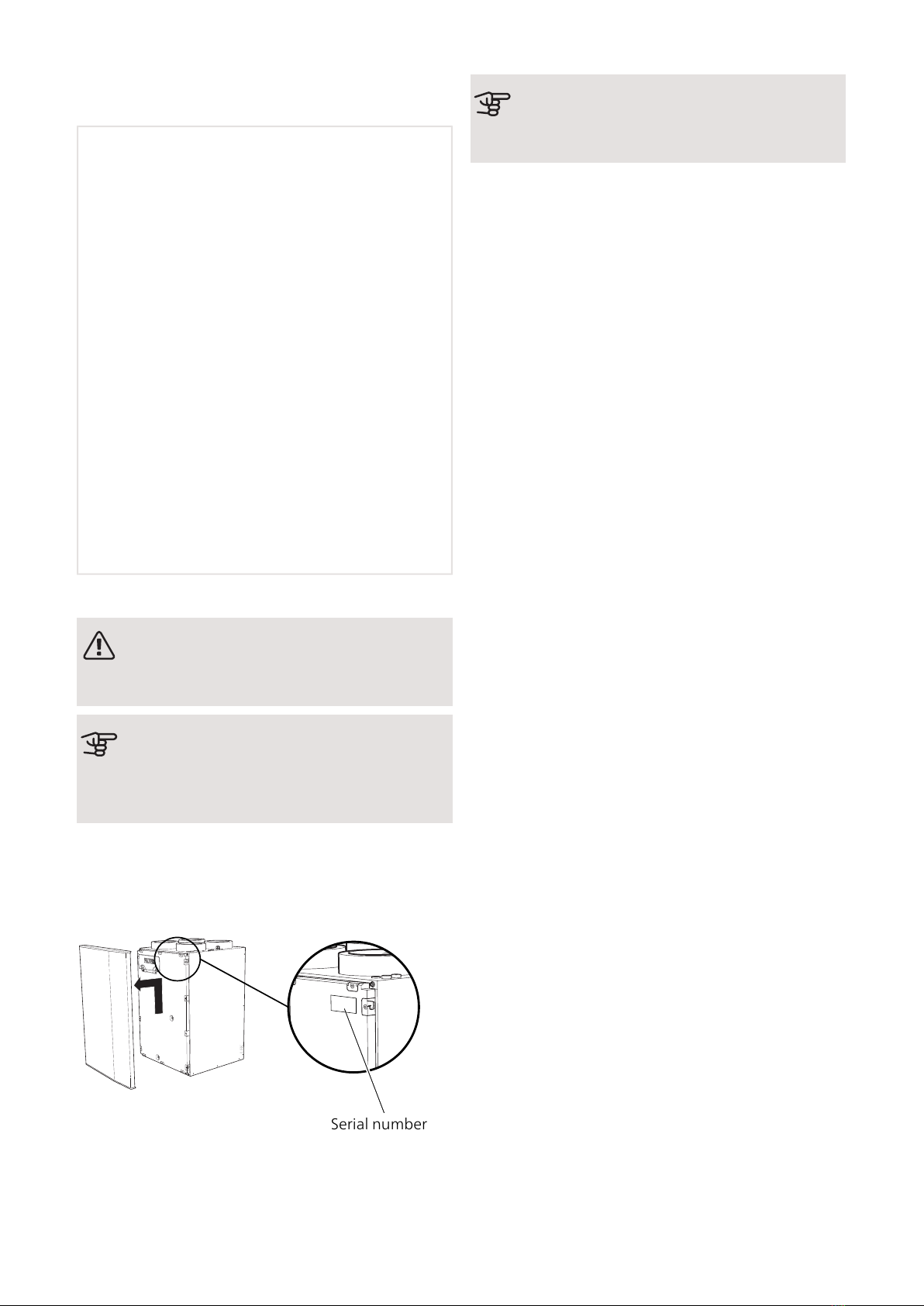

The serial number can be found at the top right inside
the front hatch.
LEK
LEK
Serial number
Caution
You need the product's serial number for servi-
cing and support.
Compatible products
S-SERIES
• SMO S40• VVM S320
• VVM S325
• S1155
• S1255
F-SERIES
• SMO 40• VVM 310
• VVM 320
• VVM 325
• VVM 500
• F1145
• F1155
• F1245
• F1255
• F1345
• F1355
5Chapter 1 | Important informationNIBE ERS S10-400
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
This is an original manual. It may not be
translated without the approval of NIBE.
Rights to make any design or technical
modifications are reserved.
©NIBE 2021.

4 ºC
0 ºC
18 ºC
22 ºC
1
2
Outdoor air
Extract air
Supply airExhaust air
A E
B
D
C
An HRV unit is a ventilation heat exchanger that utilises
the heat in the building’s ventilation air to heat the in-
coming outdoor air. From the outgoing ventilation air
(1), heating energy is recovered from the dwelling and
transported to the HRV unit. In the heat exchanger (2),
the heat from the indoor air is transferred to the incom-
ing outdoor air.
Ventilation air
The hot air is transferred from the rooms to the HRV unit via the
building’s ventilation system using a fan.
A
In the HRV unit, the air releases heat energy and the temperature
drops significantly. The cold air is then blown out of the building.
B
Outdoor air
The outdoor air is transferred to the HRV unit via the building’s
ventilation system.
C
In the HRV unit, the air absorbs the heat energy and the temper-
ature is raised.
D
A fan blows the heated air into those rooms that have supply air
inlets.
E
The temperatures are only examples and may vary between different installations and time of year.
NIBE ERS S10-400Chapter 2 | Function of the HRV unit6
2 Function of the HRV unit

Regular checks
Your HRV unit requires minimal maintenance after
commissioning. However, it is recommended that you
check your installation regularly.
If something unusual occurs, messages about the mal-
function, in the form of different alarm texts, appear in
the main product display.
NOTE
Always switch off the power and wait until the
fans have stopped before opening ERS S10.
CLEANING THE VENTILATION DEVICES
The building’s ventilation
devices should be cleaned
regularly with, for example,
a small brush to maintain the
correct ventilation.
The device settings must
not be changed.
NOTE
If you take down more than one ventilation
device for cleaning, do not mix them up.
REPLACING THE AIR FILTER
The filters in ERS S10 are of a type that should not be
cleaned, they have to be replaced instead. These must
be replaced regularly; how often depends e.g. on the
amount of dust in the ventilation air. Test to find out
what is most appropriate for your installation.
Caution
The efficiency of the installation can be reduced
by a dirty air filter.
In the main product’s display, you will receive a reminder
to check the filters. The factory setting for reminders is
every three months.
1. Switch off the power.
2. Remove the front hatch by lifting it slightly and then
pulling it towards you.
3. Pull out the filter cassettes.
4. Check the condition of the filters andreplace if
needed.
5. Carry out assembly in reverse order.
Even if the filters look clean, dirt collects in them and
this affects the efficiency of the filters. For this reason,
replace them after approx. 1 years. New filters can be
ordered via a dealer for NIBE.
Exhaust air filter: Coarse 65%
Supply air filter: ePM1 55%
Exhaust air filter
Supply air filter
7Chapter 3 | Maintenance of ERS S10NIBE ERS S10-400
3 Maintenance of ERS S10

CHECK THE WATER LOCK FOR
CONDENSATION WATER
The water seal must be checked at least once a year,
ideally in the autumn.
The water seal is located outside ERS S10. Contact your
installer if you are unsure of where to find it.
No condensation water is generated in the HRV unit
during the warm period of the year and the water seal
will dry out.
During the colder parts of the year, ERS S10 can produce
several litres of condensation water every day. If the
condensation outlet is not working, this may cause water
damage inside the home.
The water seal must not dry out during this part of the
year, because air will be drawn into the HRV unit due
to the negative pressure in the unit, which will then
prevent the condensation water from running out.
1. Check that the condensation drain and the water
seal are not clogged with dirt.
2. Pour approx. one litre of water into the water seal.
3. Check that the water runs through unobstructed.
CLEANING THE HEAT EXCHANGER
Check the heat exchanger every other year and clean if
necessary. Avoid contact with the fins.
Caution
Do not damage the fins. If you are unsure,
contact your installer for help with cleaning.
1. Remove the heat exchanger by pressing gently from
the rear.
2. Clean the heat exchanger carefully, e.g. with a vacu-
um cleaner. If necessary, you can use warm water
and mild soap.
LEK

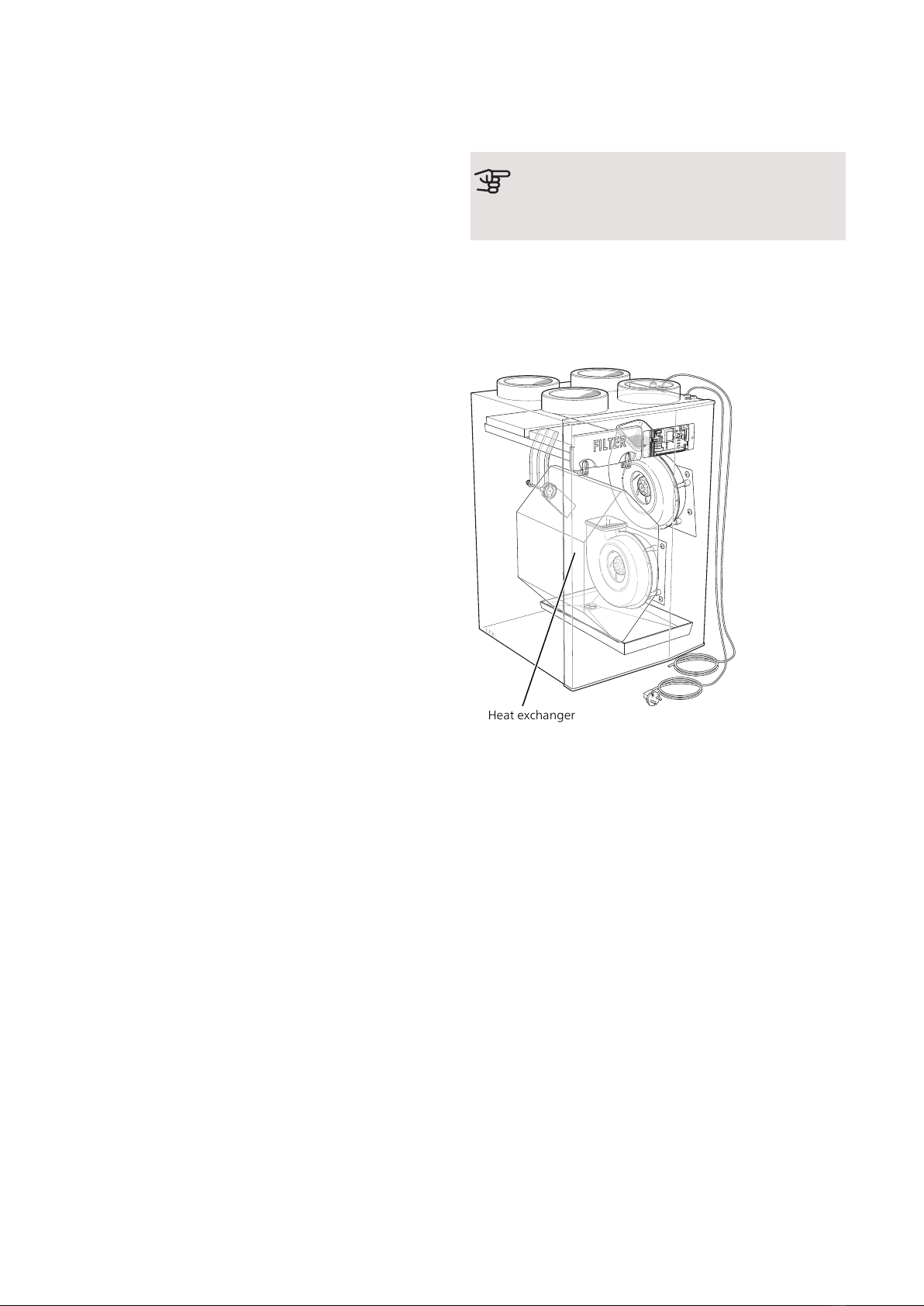

Heat exchanger
NIBE ERS S10-400Chapter 3 | Maintenance of ERS S108

In most cases, the main product notes a malfunction (a
malfunction can lead to disturbance in comfort) and in-
dicates this with alarms and shows action instructions
in the display.
Troubleshooting
If the operational interference is not shown in the display
the following tips can be used:
BASIC ACTIONS
Start by checking the following items:
• That the main product is running and that the supply
cable to ERS S10 is connected.
• Group and main fuses of the accommodation.
• The property's earth circuit breaker.
LOW OR A LACK OF VENTILATION
• Filters blocked.
– Replace the filters.
• The ventilation is not adjusted.
– Order ventilation adjustment.
•Closed, too much choke or blocked ventilation device.
– Check and clean ventilation valves (see page 7).
• Fan speed in reduced mode.
– Enter the main product’s menu 1.2.1 and select
"normal".
• External switch for changing the fan speed activated.
– Check any external switches.
• Fan running slow because of low incoming outdoor
air temperature.
– Contact the installer in the event of recurring prob-
lems.
HIGH OR DISTRACTING VENTILATION
• Filters blocked.
– Replace the filters.
• The ventilation is not adjusted.
– Order ventilation adjustment.
•Closed, too much choke or blocked ventilation device.
– Check and clean ventilation valves (see page 7).
• Fan speed in forced mode.
– Enter the main product's menu 1.2.1 and select
"normal".
• External switch for changing the fan speed activated.
– Check any external switches.
• Silencers not correctly installed.
– Contact your installer!
9Chapter 4 | Disturbances in comfortNIBE ERS S10-400
4 Disturbances in comfort

Contact information
DENMARKCZECH REPUBLICAUSTRIA
Vølund Varmeteknik A/S
Industrivej Nord 7B, 7400 Herning
Tel: [phone]
[email protected]
volundvt.dk
Družstevní závody Dražice - strojírna
s.r.o.
Dražice 69, 29471 Benátky n. Jiz.
Tel: [phone]
[email protected]
nibe.cz
KNV Energietechnik GmbH
Gahberggasse 11, 4861 Schörfling
Tel: [phone]
[email protected]
knv.at
GERMANYFRANCEFINLAND
NIBE Systemtechnik GmbH
Am Reiherpfahl 3, 29223 Celle
Tel: [phone]
[email protected]
nibe.de
NIBE Energy Systems France SAS
Zone industrielle RD 28
Rue du Pou du Ciel, 01600 Reyrieux
Tél: [phone]
[email protected]
nibe.fr
NIBE Energy Systems Oy
Juurakkotie 3, 01510 Vantaa
Tel: [phone]
[email protected]
nibe.fi
NORWAYNETHERLANDSGREAT BRITAIN
ABK-Qviller AS
Brobekkveien 80, 0582 Oslo
Tel: [phone]
[email protected]
nibe.no
NIBE Energietechniek B.V.
Energieweg 31, 4906 CG Oosterhout
Tel: [phone]
[email protected]
nibenl.nl
NIBE Energy Systems Ltd
3C Broom Business Park,
Bridge Way, S41 9QG Chesterfield
Tel: [phone]
[email protected]
nibe.co.uk
SWEDENRUSSIAPOLAND
NIBE Energy Systems
Box 14
Hannabadsvägen 5, 285 21 Markaryd
Tel: [phone]
[email protected]
nibe.se
EVAN
bld. 8, Yuliusa Fuchika str.
603024 Nizhny Novgorod
Tel: [phone]
[email protected]
nibe-evan.ru
NIBE-BIAWAR Sp. z o.o.
Al. Jana Pawla II 57, 15-703 Bialystok
Tel: [phone]
biawar.com.pl
SWITZERLAND
NIBE Wärmetechnik c/o ait Schweiz
AG
Industriepark, CH-6246 Altishofen
Tel. [phone]
[email protected]
nibe.ch
For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.

NIBE Energy Systems
Hannabadsvägen 5
Box 14
SE-285 21 Markaryd
[email protected]
nibe.eu
UHB EN 2110-3 531582
This manual is a publication from NIBE Energy Systems. All product illustrations, facts and
data are based on the available information at the time of the publication’s approval.
NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
©2021 NIBE ENERGY SYSTEMS 531582
WS name: -Gemensamt
WS version: a872 (working edition)
Publish date: 2021-03-10 14:00
