Nilox DOC E-BIKE X1 User manual

1
EN
Thanks for choosing DOC E-BIKE X1.
Super sporty, environmentally-friendly and suitable for any kind of track, it allows you to travel at a speed
of 25 km/h.
With convenient folding frame and handlebars and pedal assist system (controlled from the handlebars).
20” wheels and ergonomic saddle.
Perfect for environmentally-conscious cyclists who want to enjoy all the convenience and practicality of a
small bicycle.
The complete DOC E-BIKE X1 manual can be downloaded from the Nilox website at www.nilox.com.
Enter the DOC E-BIKE X1 code in the search field at the top right, find the technical sheet and download
the complete manual.
Although its assembly is not complex, we recommend you consult a specialist mechanic if you have
problems during assembly or repair.
TECHNICAL SUPPORT
This product is warranted in accordance with current legislation; please contact your dealer if you require
technical assistance and / or warranty service.
ENVIRONMENTAL INFORMATION
This product may contain substances that can be harmful to the environment and to the human
health, if not disposed of properly. We therefore provide you the following information in order
to optimize use of natural resources. Electrical and electronic products should not be disposed
of with normal household waste, but should be sent for separate collection to ensure proper
treatment. The crossed bin symbol shown on the product and on this page is a reminder of the
need to dispose of the product properly at the end of its useful life. In this way, you can prevent non-
specific treatment of the substances contained in these products, or improper use of the parts of the same,
from having harmful repercussions for the environment and human health. Moreover, you can contribute
to the recovery, recycling and reuse of many of the materials composing these products. This is why the
manufacturers and distributors of electrical and electronic systems organize proper collection and disposal
of the equipment themselves. At the end of the product’s lifespan, please contact your distributor for
instructions regarding disposal. When purchasing this product your distributor will inform you of the
possibility to replace your old device with a new one, on condition that the type of product and its functions
are the same or, If the dimensions are not over 25 cm, the EEE (Electrical and Electronic Equipment) can
be returned without any equivalent product purchase obligation. Disposal of the product in any other way
will be liable to the penalties foreseen by the laws in force in the country where the product is disposed
of. Moreover, we suggest adoption of additional measures favourable to the environment: recycling the
inner and outer packaging and disposing of any used batteries correctly. With your help, we can reduce
the amount of natural resources used in the manufacture of electrical and electronic equipment, minimize
use of landfills for product disposal and improve quality of life by preventing the release into the
environment of potentially dangerous substances.
BATTERY DISPOSAL
The product contains a battery. It must be separated from generic non-recyclable waste when
discarded at the end of its working life. Discard them in the appropriate containers for battery
disposal. Collection and recycling of batteries helps protect the environment and preserve
material resources, allowing recovery of valuable materials. The battery contained in this
product may not be directly removable. If this is the case, the instructions for its possible removal by
specialised personnel are available on-line at the following link: ftp://ftp.hellatron.it (user name:
disposal@hellatron - password: hellatron). For your safety, you should not attempt to remove the battery.
Incorrect battery removal may cause damage to the battery and to the device, cause personal injury and/or
render the device unsafe. We will not be held in any way liable for any loss or damage caused by failure to

2
EN
observe these warnings and precautions. The device and accessories illustrated in this manual may vary
depending on the country in which the products are distributed.
WARRANTY VALIDITY
•One year if the product is purchased by a natural or legal person who uses it in business as an
entrepreneur, sales representative, craftsman or professional or his/her intermediary.
•Two years if the product is purchased by a consumer or user (the natural person who does not use it
in business as an entrepreneur, sales representative, craftsman or professional).
•Six month on the battery, regardless of the occupation of the product purchaser.
•The warranty covers factory or material defects.
•Product support and warranty: visit www.nilox.com to learn more.
WARRANTY RESTRICTIONS
The warranty is null and void in the following cases:
•No proof of purchase (invoice or receipt).
•Tampering with and forcing parts.
•Other defects due to: inappropriate use, unauthorized changes, operations not in accordance with
technical product specifications; incorrect maintenance; defects due to use of any element not
designed to be used with the product; technical work performed by unauthorized personnel.
The above refers to consumer goods warranty principles pursuant to Directive 1999/44/EU.

3
EN
PREFACE
THE USE OF DOC E-BIKE X1 CAN BE DANGEROUS AND LOSS OF CONTROL OF THE BIKE, A CRASH OR A
FALL, COULD CAUSE SERIOUS INJURY OR EVEN DEATH.
TO GUARANTEE YOUR AND OTHERS' SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY.
SINCE THE PRODUCT IS CONSTANTLY EVOLVING, IT IS POSSIBLE THAT YOUR PRODUCT DOES NOT FULLY
CORRESPONDS TO THE CONTENTS OF THIS MANUAL.
FOR THIS REASON WE RECOMMEND YOU ALWAYS DOWNLOAD THE ON-LINE VERSION AVAILABLE FROM
THE NILOX WEBSITE.
READ AND OBSERVE ALL THE INSTRUCTIONS AND WARNING FOUND IN THE USER MANUAL.

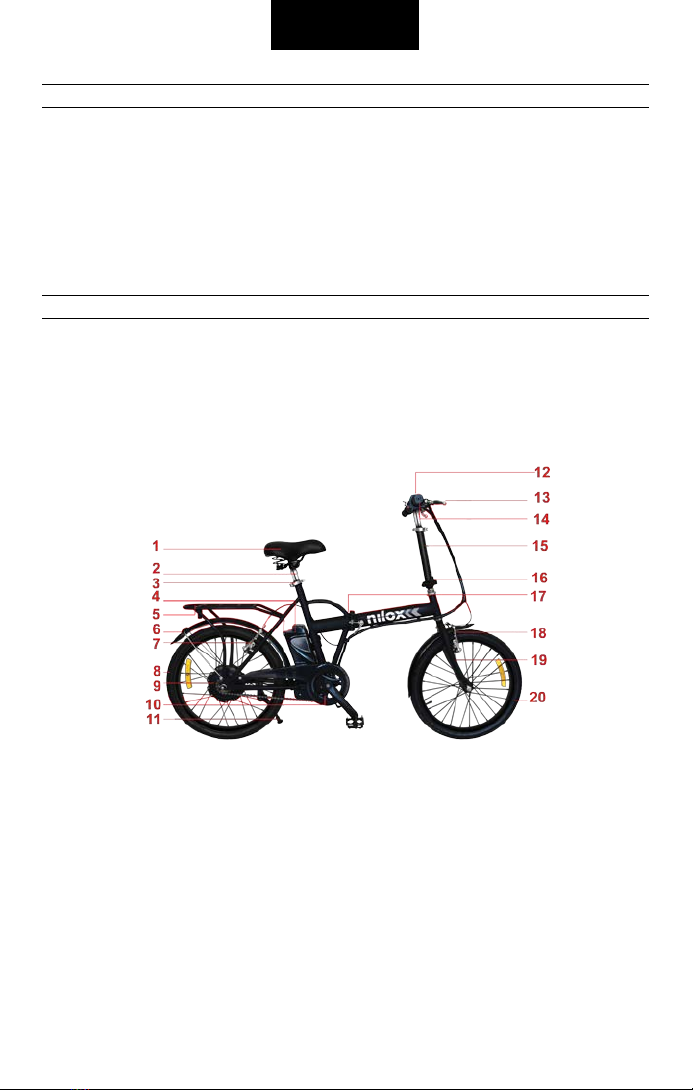

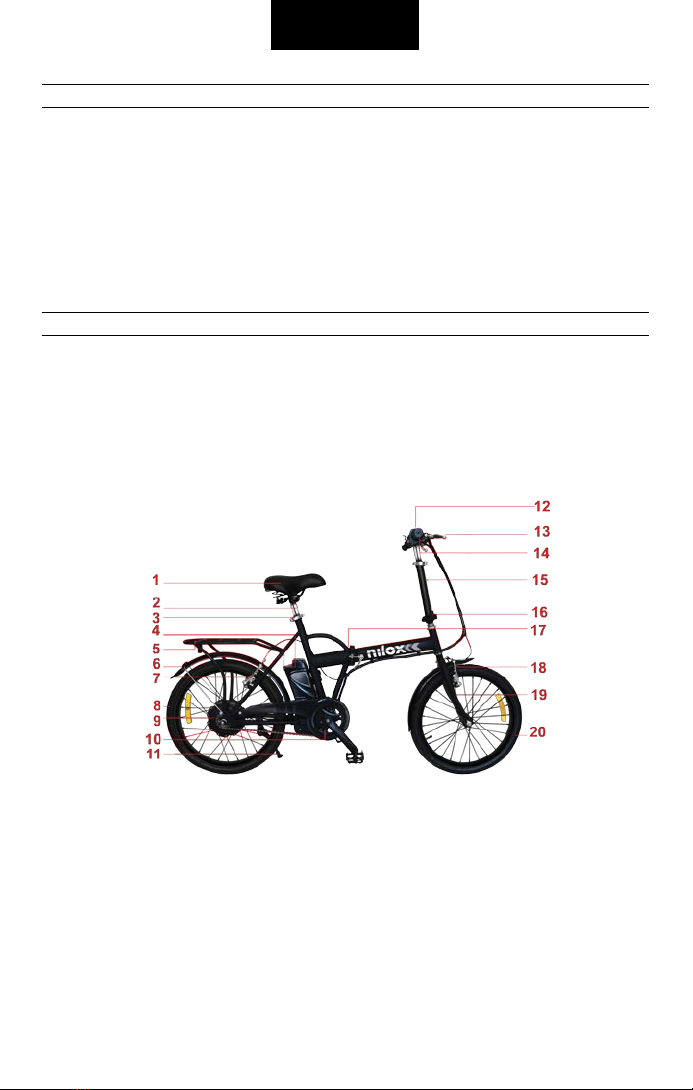

DOC E-BIKE X1: DESCRIPTION
DOC E-BIKE X1 is equipped with an electrical pedal assist system.
To activate the pedal assist function, start pedalling as this will activate the effort sensor. If on the contrary
you fail to pedal, the motor remains inactive.
The electrical assistance is guaranteed up to 25 km/h, then the motor power will cut off. It will be possible
to travel at greater speed, but only through personal effort, without the aid of the motor.
Before using this bicycle in traffic, it is necessary to become familiar with its use in open places.
In a few minutes you will familiarise yourself with the bike and find it extremely easy to use, easy to control
and incredibly fun.
1) Saddle
2) Saddle stem
3) Stem quick coupling
4) Battery
5) Bag rack
6) Fender
7) Rear brake
8) Rear wheel
9) Motor integrated into wheel
10) Crown and crown cover
11) Stand
12) Display and PAS control
13) Brake lever
14) Handle
15) Handlebar stem
16) Handlebar lock/release
17) Frame lock/release
18) Front brake
19) Front fork
20) Front wheel

4
EN
ASSEMBLY AND SETTINGS
DOC E-BIKE X1 should reach you fully assembled, with the exclusion of the PEDALS, which are supplied
separately.
Nevertheless, some parts (such as the saddle and handlebar) may arrive disassembled, or in some way
require adjusting.
HANDLEBAR
The handlebar folds up to allow your DOC E-BIKE X1 to take up less
space. To use it, put it in a vertical position and lock it in place with
the stops provided.
CAUTION: ALWAYS CHECK
THAT IT IS PROPERLY
TIGHTENED.
PEDALS
The pedals will arrive disassembled and in a separate plastic bag.
Carefully screw the pedals into the dedicated seat and tighten with the
spanner supplied.
CAUTION: In order to avoid them coming loose during travel, the
pedals (of all bicycles) have the characteristic feature of having the
left pedal with opposite thread.
In practice, when you screw them in, you will
need to do so in the opposite direction, as
though you were unscrewing.
SADDLE
Insert the sleeve of the saddle in its housing and adjust the height, by turning the screws and quick-release
terminals.

5
EN

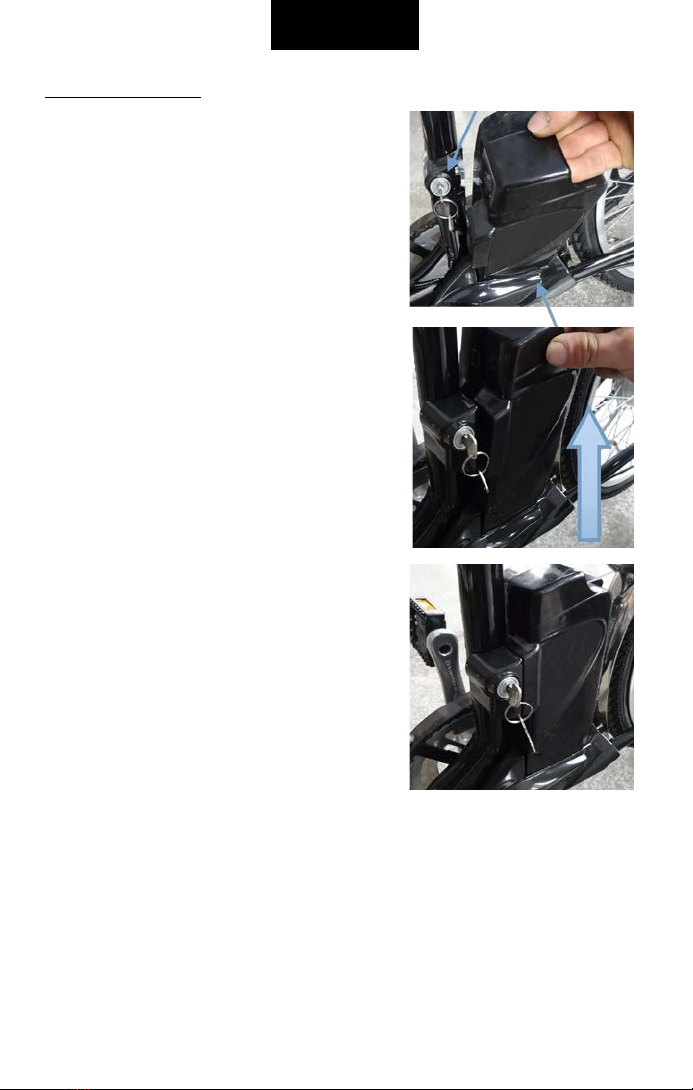

BATTERY ASSEMBLY
Insert the battery in its housing as shown in the figure.
Gently push upwards so the battery fit into its housing.
The fitted battery will look as shown in the figure.

6
EN
BRAKE ADJUSTMENT
The brake levers are made of aluminium alloy.
Next to the brake lever is a cylinder to adjust the tension of the
wiring.
During braking, the electrical part of the motor is automatically
disabled.
The brakes are classic V brakes.
BRAKE CALIBRATION
Use an Allen wrench to adjust the angle of the
braking unit and a cross-tip screwdriver to
adjust the distance of the brake pads from the
rim.
Brake pads must be kept parallel to rims, and
the distance between the brake pad and the rim
must be no more than 2-3 mm. (B+C)
PEDAL ASSIST SYSTEM (PAS)
The button for activating the pedal assist system is on the right hand side of the handlebars.
THE PEDAL ASSIST FUNCTION CANNOT BE ACTIVATED WITH THE BICYCLE AT A STANDSTILL.
PAS operation:
•Pedal and simultaneously activate the PAS. This method entails a greater use of current and a
greater wear of the motor.
•Pedal until you create a certain inertia for the bicycle, activate the PAS and resume pedalling.
This method on the other hand allows greater savings in current and therefore a greater
protection of the motor.
•Avoid sudden changes of speed.
•The current regulator automatically cuts off the electricity supply in the event of overvoltage,
re-establishing it when the electrical load is restored.
•Do not use the PAS in the rain or on excessively uneven ground.

7
EN
•Turn off the PAS before stopping DOC E-BIKE X1, the last few pedal strokes should therefore
be made without electrical assistance.

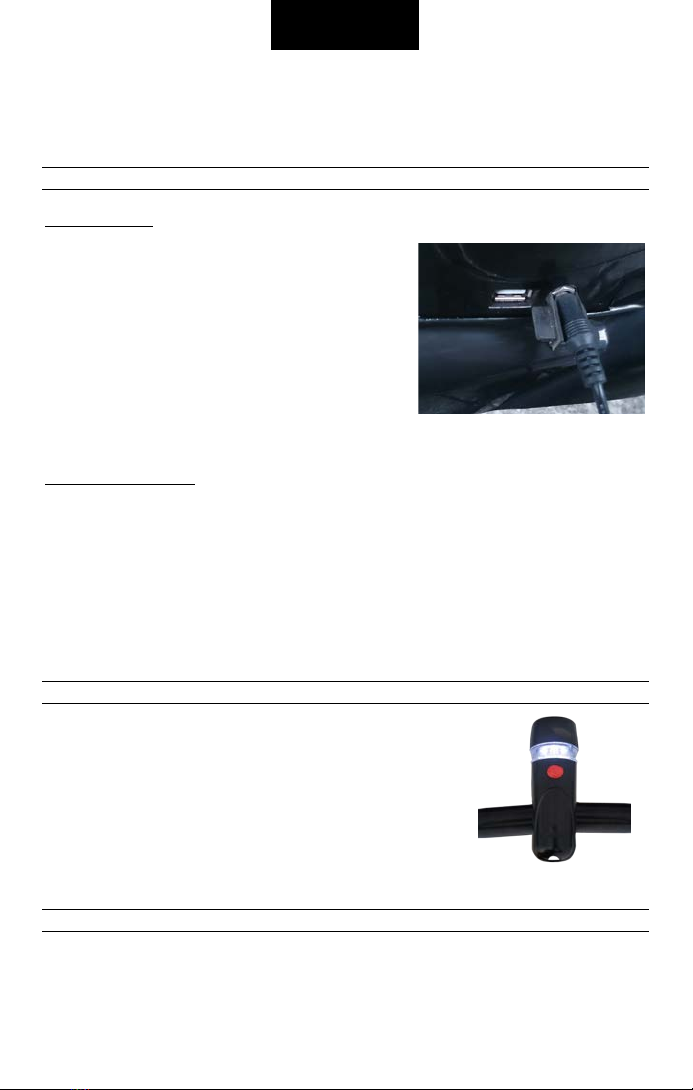

BATTERY
BATTERY CHARGE
The battery of the DOC E-BIKE X1 can be charged:
•Directly on the bike, without taking the battery
out.
•Taking the battery out and taking it home or to a
place equipped with electrical outlet.
Insert the power supply plug into the power inlet, placed on
the battery next to the USB socket and then plug the battery
charger into the mains.
Both the battery plug and the USB socket are covered with
closing caps for precaution.
If the red light on the power unit comes on, the battery is low.
If the green light is on, this means charging is complete.
BATTERY USB FUNCTION
The lithium battery of DOC E-BIKE X1 has a convenient USB output (see figure above).
It is therefore possible, by means of a dedicated cable (not supplied), to charge digital products such as
smartphones and MP3 players; you can also connect an auxiliary torch.
To start the function, press the red button located on the battery for 3 to 5 seconds until the first light next
to the button itself comes on.
To disable this function, press the button again.
THIS FUNCTION OBVIOUSLY CONSUMES ENERGY. WE THEREFORE RECOMMEND YOU DISABLE IT IF NOT
IN USE.
FRONT LIGHT
DOC E-BIKE X1 is equipped with a 5-LED torch powered by common
alkaline batteries.
USER WARNINGS
Carefully heed the following warnings for use. Use DOC E-BIKE X1 sensibly and responsibly.
DOC E-BIKE X1 is a pedal assisted means of transport.
DOC E-BIKE X1 is a hi-tech product, but its incorrect and inappropriate use can cause injuries. In order to
reduce any type of risk, we recommend you carefully heed the following warnings:

8
EN
•Always wear shoes, a helmet and appropriate safety equipment. Using a firmly buckled helmet
that provides cranial protection is recommended.
•Do not use DOC E-BIKE X1 without proper training, please read the manual before use.
•Its use is not recommended for pregnant women.
•Do not use DOC E-BIKE X1 under the influence of alcohol, drugs or other substances that could
alter the user's reflexes.
•We recommend wearing comfortable clothes during use.
•DOC E-BIKE X1 was designed to transport a single individual. Do not let two or more people
ride it.
•Make sure cycling speed always permits stopping at any time and in any situation.
•We recommend you maintain a suitable safety distance from other vehicles when driving.
•Do not perform stunts.
•Do not get down from DOC E-BIKE X1 when it is in motion.
•Periodically check the components before use.
•Observe traffic rules, slow down in the rain or snow and take these into account to adjust the
safety distance accordingly.
•In urban areas it is advisable to use the bike on even road surfaces.
•Although it is impermeable, do not use DOC E-BIKE X1 to wade through rivers. Do not immerse
the part with the electric and electronic components in water.
•Do not modify DOC E-BIKE X1 in any way; any modification will invalidate the manufacturer's
warranty
•Only use the original battery charger supplied.
•Check the efficiency of the brakes before use.
Carefully reading this manual is essential for its correct use and to reduce personal injuries.
MAKE SURE THE BATTERY IS FULLY CHARGED BEFORE USE.
CHECKS AND MAINTENANCE
To prolong the life and efficiency of your DOC E-BIKE X1, certain operations need to be performed on a
regular basis:
•Regularly check the tyre pressure.
•Check that the handlebar and saddle are always well secured.
•Adjust the chain tension and lubricate it periodically.
•Before each use always check the reliability of the braking system.
•Check that the wheel bolts are tightened.
•Check the condition of the tyres and replace them when worn.
•Do not wash DOC E-BIKE X1 directly with jets of water, especially pressurised, since this could
damage the electrical components.
•Clean dirty areas with a damp cloth and neutral detergent; then dry with care.
•Treat the metal moving parts such as the chain with lubricating oil. TAKING CARE THAT NO
OIL DRIPS ONTO THE BRAKING PARTS. We recommend you have these operations performed
by qualified personnel.
•Regularly check the tension of the chain, by releasing the quick-coupling clamp and holding
the wheel. Make sure that the wheel is perfectly in axis.
•Frequently check the reliability of the brakes.

9
EN
CORRECT USE AND MAINTENANCE OF THE BATTERY
The following covers different methods of recharging and maintaining the battery, as well as any problems
that may arise. For the safety of the consumer and to prolong the life and improve performance of the
battery, please observe the following:
•The battery and the battery charger must be kept out of children's reach.
•Only use the original battery charger; the use of a different battery charger could damage it
irreparably.
•Do not disassemble or modify the battery and/or its charger.
•Be extra careful when removing the battery from the bicycle, dropping it could damage it and
make it unusable.
•In the presence of unpleasant smells or excess temperatures during charging, stop the
procedure immediately.
•DOC E-BIKE X1 cannot be used during the battery charging process.
•Make sure the battery and charger are connected before connecting to the electricity mains.
•Never let the battery charge level fall to zero, as this could reduce its life.
•Do not submit the battery to excessive charge cycles, if not needed.
•If the bike is not used, recharge the battery at least every 2 months.
•Do not charge the battery at high temperatures (above 40 C)
•In winter, battery charging should be carried out at room temperature, if the bike was left in
the cold start the charging process after it has been brought back to room temperature.
•In the presence of unpleasant smells or excess temperatures during charging, stop the
procedure immediately.
•Batteries contain hazardous substances. Do not open the battery and do not insert anything
inside it.
•If over-charged, lithium batteries may explode.
•Please keep the charging contacts clean and dry.
•If the charging port is wet, do not charge.
•In order to avoid fire risks or electrical shock, when charging, only place the device in a room
with controlled temperature and humidity and without conductive agents of any kind.
•When charging, the device should be placed in a fully fireproof room (keep away from wood
floors, furniture, paper, sofas, rugs, flammable liquids, etc. .) with controlled temperature and
humidity.
•Charge the battery in a ventilated room to reduce overheating when charging.
•If the battery suffered shocks or if the battery or power cord are not perfectly intact, avoid
charging and contact a service centre.
•The manufacturer and distributor cannot be held liable for damages to third party products
due to improper battery and charger use.
•Almost all types of battery are influenced by the environment. Generally the harsh
temperatures significantly decrease the power of the battery.
•When the battery is removed, keep it away from metal objects that may cause a short circuit.
TRANSPORTING THE BATTERY
Lithium batteries are considered as hazardous materials. Their transportation is governed by the laws of
each Country.
International law prohibits shipping single lithium batteries by air.
If you ship your DOC E-BIKE X1 the battery must be attached.
THE BATTERY CANNOT BE SHIPPED SEPARATELY.
.

10
EN
TECHNICAL SPECIFICATIONS
Dimensions
Weight
Max. Speed
Maximum weight of user
Maximum distance travelled with 1 charge
Brakes
Battery
Charging Time
Motor
1480x530x1035/1130 MM
20 with battery
25 Km/h
100 Kg
20-25 km
Brake pad (V-Brake). Lithium
Ion Battery 24V - 5.2Ah
2-3 hours
Induction (brushless) 250W
ROAD TRAFFIC REGULATIONS
Pursuant to the provisions of Directive 2002/24/EC, DOC E-BIKE X1 does not require type-approval for
circulation as a motor vehicle, given that its maximum speed, solely with electric traction, cannot exceed
25 km/h and that its motor is not more powerful than 250W.
Every road user however is obliged to follow the traffic regulations in force in their own country.
So make sure that you do not need permissions from the authorities, nor a driving license to ride an e-bike.
In many countries it is possible to circulate on roads and public streets only with the addition of the
equipment prescribed by law, such as systems for luminous signalling, clothing with reflective bands and a
protective helmet.
Italian legislation does not differentiate an e-bike from a common bicycle.
THE USE OF A HELMET AND ANY ADDITIONAL PROTECTION IS STILL HIGHLY RECOMMENDED FOR THE E-
BIKE AND FOR ALL BICYCLES IN GENERAL.

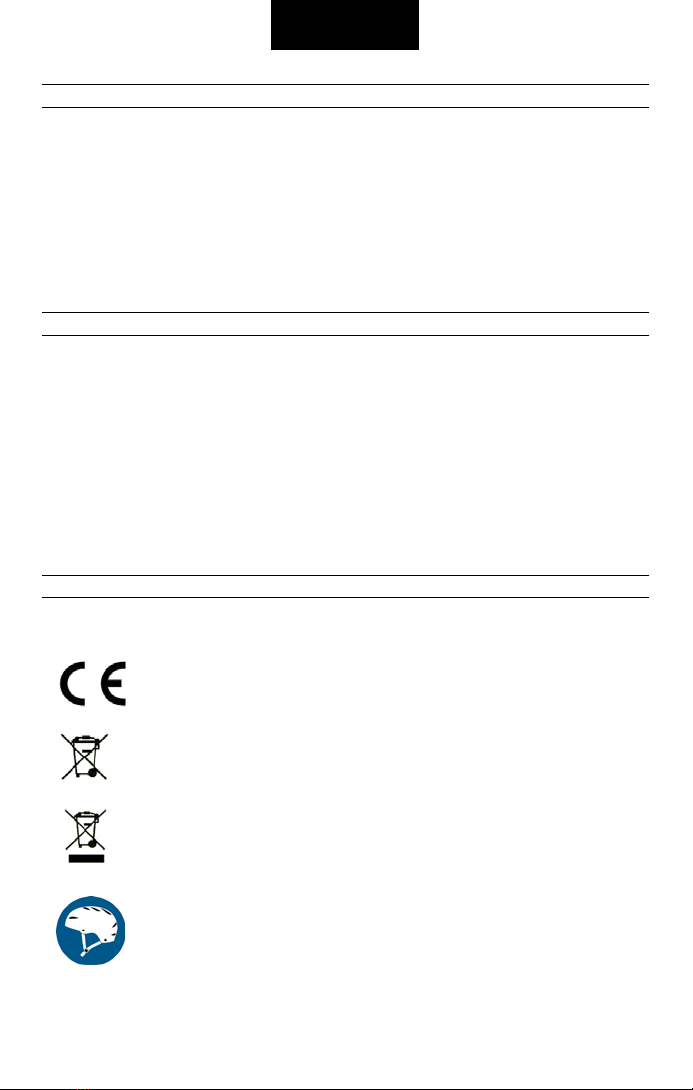

SYMBOLS AND PICTOGRAMS ON THE PACKAGING/PRODUCT
The product meets European safety directive requirements.
The product contains a battery. At the end of the battery working life in the
product, it must be separately discarded from generic waste (see introduction).
The product contains electric and electronic equipment. At the end of the
product working life, it cannot be discarded with normal urban waste and must
be sent to separate collection (see introduction).
Wear appropriate safety equipment such as knee pads, elbow pads and wrist
bands. Use a well-buckled helmet that provides cranial protection.

11
EN
Minimum weight for use 20 kg, maximum weight 100 kg.
Do not use DOC under the influence of alcohol, drugs or other substances that
could alter the user's reflexes.

1
IT
Grazie per aver scelto di acquistare DOC E-BIKE X1.
Super sportiva, ecologica e adatta ad ogni percorso; permette di viaggiare ad una velocità di 25Km/h.
Pratica e ripieghevole nel telaio e nel manubrio, dotata di pedalata assistita (attivabile da comando sul
manubrio).
Ruote da 20” e sella ergonomica.
Perfetta per chi vuole unire la comodità e la praticità di una bici dal minimo ingombro, con un occhio di
riguardo all’ambiente.
Il manuale in forma elettronica di DOC E-BIKE X1 può essere scaricato dal sito Nilox all’indirizzo
www.nilox.com.
Inserire nel campo di ricerca in alto a destra il codice della vostra DOC E-BIKE X1: cercare la scheda tecnica
e quindi scaricare il manuale completo.
Pur non essendo complesso il montaggio, si consiglia di consultare eventualmente un meccanico
specializzato, se avete problemi nell’assemblaggio o riparazione.
SUPPORTO TECNICO
Il presente prodotto è coperto da garanzia ai sensi della normativa vigente; pertanto per necessità di
assistenza tecnica e/o garanzia, rivolgersi al proprio rivenditore.
INFORMAZIONI AMBIENTALI
Questo prodotto può contenere sostanze che possono essere dannose per l’ambiente e per la
salute umana se non viene smaltito in modo opportuno. Vi forniamo pertanto le seguenti per
migliorare l’uso delle risorse naturali. Le apparecchiature elettriche ed elettroniche non devono
essere smaltite tra i normali rifiuti urbani ma devono essere inviate alla raccolta differenziata
per il loro corretto trattamento. Il simbolo del bidone barrato, apposto sul prodotto ed in questa
pagina, ricorda la necessità di smaltire adeguatamente il prodotto al termine della sua vita. In tal modo è
possibile evitare che un trattamento non specifico delle sostanze contenute in questi prodotti, o un uso
improprio di parti di essi, possano portare a conseguenze dannose per l’ambiente e per la salute umana.
Inoltre si contribuisce al recupero, riciclo e riutilizzo di molti dei materiali contenuti in questi prodotti. A
tale scopo i produttori e distributori delle apparecchiature elettriche ed elettroniche organizzano
opportuni sistemi di raccolta e smaltimento delle apparecchiature stesse. Alla fine della vita del prodotto
rivolgetevi al vostro distributore per avere informazioni sulle modalità di raccolta. Al momento
dell’acquisto di questo prodotto il vostro distributore vi informerà inoltre della possibilità di rendere
gratuitamente un altro apparecchio a fine vita a condizione che sia di tipo equivalente ed abbia svolto le
stesse funzioni del prodotto acquistato o, se le dimensioni sono non superiori a 25 cm, le AEE
(Apparecchiature Elettriche ed Elettroniche) possono essere rese senza obbligo di acquisto del prodotto
equivalente. Uno smaltimento del prodotto in modo diverso da quanto sopra descritto sarà passibile delle
sanzioni previste dalla normativa nazionale vigente nel paese dove il prodotto viene smaltito. Vi
raccomandiamo inoltre di adottare altri provvedimenti favorevoli all’ambiente: riciclare l’imballo interno
ed esterno con cui il prodotto è fornito e smaltire in modo adeguato le batterie usate (solo se contenute
nel prodotto). Con il vostro aiuto si può ridurre la quantità di risorse naturali impiegate per la realizzazione
di apparecchiature elettriche ed elettroniche, minimizzare l’uso delle discariche per lo smaltimento dei
prodotti e migliorare la qualità della vita evitando che sostanze potenzialmente pericolose vengano
rilasciate nell’ambiente.
SMALTIMENTO DELLE BATTERIE
Il prodotto contiene una batteria, alla fine del suo ciclo di vita deve essere smaltita
separatamente dai rifiuti generici indifferenziati. Gettare negli appositi contenitori per lo
smaltimento batterie. La raccolta e il riciclaggio delle batterie contribuiscono alla tutela
dell’ambiente e alla conservazione delle risorse materiali, e permettono il recupero di materiali
preziosi. La batteria contenuta in questo prodotto potrebbe non essere direttamente estraibile. In tal caso
le istruzioni per la sua eventuale rimozione, da parte di personale specializzato, sono disponibili on-line al

2
IT
link: ftp://ftp.hellatron.it (user name: disposal@hellatron - password: hellatron). Per la vostra sicurezza,
non dovete tentare di rimuovere la batteria. La rimozione non corretta della batteria potrebbe causare
danni alla batteria e al dispositivo, provocare infortuni e/o rendere il dispositivo non sicuro. Si declina ogni
responsabilità per eventuali perdite o danni causati dal mancato rispetto delle presenti avvertenze e
precauzioni. Il dispositivo e gli accessori illustrati in questo manuale potrebbero variare in base al Paese
nel quale i prodotti vengono distribuiti.
VALIDITA’ DELLA GARANZIA
•Un anno se il prodotto è acquistato dalla persona fisica o giuridica che agisce nell’esercizio della
propria attività imprenditoriale, commerciale, artigianale o professionale, ovvero da un suo
intermediario.
•Due anni se il prodotto è acquistato da consumatore o utente (la persona fisica che agisce per scopi
estranei all’attività imprenditoriale, commerciale, artigianale o professionale eventualmente svolta).
•6 mesi sulla batteria, a prescindere dalla qualità dell’acquirente del prodotto.
•La garanzia è prestata nel caso in cui il prodotto presenti un vizio di fabbrica o un difetto dei materiali.
•Supporto al prodotto e garanzia: maggiori dettagli sono disponibili sul sito www.nilox.com.
LIMITAZIONI DI GARANZIA
L’acquirente decade dal diritto alla garanzia nei seguenti casi:
•Mancanza della prova di acquisto (fattura o scontrino fiscale).
•Manomissione e forzature di parti.
•Altri difetti derivanti da: uso improprio; modifiche non autorizzate; operazioni al di fuori delle
specifiche tecniche del prodotto; manutenzione non corretta; difetti derivanti da uso diverso e da
tutti quegli elementi non progettati per essere utilizzati con il prodotto; interventi tecnici effettuati
da personale non autorizzato.
Quanto sopra fa riferimento ai principi in tema di garanzie dei beni di consumo di cui alla direttiva
1999/44/EU.

3
IT
PREFAZIONE
L’UTILIZZO DI DOC E-BIKE X1 PUÒ ESSERE PERICOLOSO E LA PERDITA DI CONTROLLO DEL MEZZO, UNO
SCONTRO O UNA CADUTA, POSSONO COMPORTARE GRAVI LESIONI, ANCHE LETALI.
PER GARANTIRE LA VOSTRA SICUREZZA E QUELLA ALTRUI, SI PREGA DI LEGGERE ATTENTAMENTE IL
PRESENTE MANUALE D’USO.
ESSENDO IL PRODOTTO IN CONTINUA EVOLUZIONE È POSSIBILE CHE IL VOSTRO PRODOTTO NON
CORRISPONDA APPIENO CON QUANTO RIPORTATO NEL PRESENTE MANUALE.
PER QUESTO MOTIVO CONSIGLIAMO DI SCARICARE SEMPRE LA VERSIONE ON-LINE DISPONIBILE SUL
SITO NILOX.
LEGGERE E RISPETTARE TUTTE LE ISTRUZIONI E LE AVVERTENZE CONTENUTE NEL MANUALE D’USO.
DOC E-BIKE X1:DESCRIZIONE
DOC E-BIKE X1 è dotata di un sistema elettrico di pedalata assistita.
Per attivare la pedalata assistita è necessario iniziare a pedalare attivando così il sensore di sforzo. Se al
contrario non si pedala, il motore resta inattivo.
L’ assistenza elettrica è garantita sino a 25 km/h, dopodiché il motore si disinserirà. Sarà possibile andare
a maggiore velocità, ma solo con lo sforzo personale, senza l’ausilio del motore.
Prima di utilizzare questa bicicletta, in mezzo al traffico, è necessario impratichirsi nel suo uso in luoghi
aperti.
In pochi minuti prenderete dimestichezza col mezzo trovandolo quindi molto semplice da usare, facile da
controllare e incredibilmente divertente.
1) Sellino
2) Stelo sella
3) Fissaggio rapido stelo
4) Batteria
5) Portapacchi
6) Parafango
7) Freno posteriore
8) Ruota posteriore
9) Motore integrato nella ruota
10) Corona e copri corona
11) Cavalletto
12) Display e attivazione PAS
13) Leva del freno
14) Manopola
15) Stelo manubrio
16) Blocco/sblocco stelo manubrio
17) Blocco/sblocco telaio
18) Freno anteriore
19) Forcella anteriore
20) Ruota anteriore

4
IT
ASSEMBLAGGIO EREGOLAZIONI
DOC E-BIKE X1 dovrebbe giungervi completamente assemblata, con esclusione dei PEDALI, che vengono
forniti separatamente.
Tuttavia alcune parti (come sella e manubrio) potrebbero giungere disassemblate, o comunque necessitare
di regolazione.
MANUBRIO
Il manubrio, al fine di rendere la vostra DOC E-BIKE X1 meno
ingombrante, è pieghevole. Per il suo utilizzo va quindi posto in
posizione verticale e bloccato
con gli appositi fermi.
ATTENZIONE: VERIFICARE
SEMPRE IL CORRETTO
SERRAGGIO.
PEDALI
I pedali arriveranno smontati e in un sacchetto di plastica a parte.
Avvitare con cura i pedali nella apposita sede e serrare con la chiave in
dotazione.
ATTENZIONE: al fine di evitare che si possano svitare durante la
marcia, i pedali (di tutte le biciclette) hanno la caratteristica di avere
il pedale sinistro con filettatura contraria.
In pratica quando lo avviterete dovrete fare il
movimento opposto, come se steste
svitandolo.
SELLA
Inserire il canotto della sella nel suo alloggiamento e regolarne l’altezza agendo sulle viti e sui morsetti, a
sgancio rapido.

5
IT
ASSEMBLAGGIO BATTERIA
Inserire la batteria, come mostrato in figura, nel suo
alloggiamento.
Spingere con delicatezza verso l’alto sino a porre la
batteria nella sua sede.
La batteria montata si presenterà come da figura.

6
IT
REGOLAZIONE FRENI
Le leve del freno sono realizzate in lega d’alluminio.
Accanto alla leva del freno è presente un cilindro per la
regolazione della tensione della cavetteria.
Durante la frenata si disattiva automaticamente la parte
elettrica del motore.
I freni sono di tipo classico a pattino (V Brake).
CALIBRAZIONE FRENI
Utilizzare una chiave a brugola per regolare
l’inclinazione del gruppo frenante ed un
cacciavite a stella per regolare la distanza dei
pattini dal cerchione.
I pattini dei freni devono mantenersi parallele ai
cerchioni e la distanza tra il pattino ed il
cerchione stesso non deve essere superiore ai 2-
3 mm. (B+C)
ATTIVAZIONE PEDALATA ASSISTITA (PAS)
Sulla parte destra del manubrio si trova il pulsante di attivazione della pedalata assistita.
LA PEDALATA ASSISTITA NON PUÒ ESSERE ATTIVATA CON LA BICICLETTA FERMA.
Gestione del PAS:
•Pedalare e contemporaneamente attivare il PAS. Questo metodo comporta un maggior
dispendio di corrente ed una maggiore usura del motore.
•Pedalare sino a dare una certa inerzia alla bicicletta, attivare il PAS e riprendere la pedalata.
Questo metodo consente invece un maggior risparmio di corrente e quindi una maggiore
salvaguardia del motore.
•Guidare evitando bruschi cambi di velocità.
•Il regolatore di corrente interrompe automaticamente l'elettricità in caso di sovratensione,
riattivandola quando il carico elettrico sarà ripristinato.
•Non utilizzare il PAS in caso di pioggia o fondi eccessivamente sconnessi.
