PRINCIPLES ULTRASONIC LEVEL MEASUREMENT
Programmed measurement range
Close end blocking (XB)
progr. value of P05=XB>Xm
LEV=( level calculated H-DIST)
VOL= volume (calculated from LEV)
EFAULT value of: P06=0 Far end blocking
DIST
Angle of repo e
DIST=di tance (mea ured)
isplayable range
application(H)
Programmed value of P04=H
Max. measuring distance of the device (X )
EFAULT value of P04=X
Min. meas. distance (Xm)
EFAULT value of P05=Xm
M
M
Max. measuring range of the device

3 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
CONTENTS
1. INTRODUCTION....................................................................................5
2. TECHNICAL DATA................................................................................6
2.1. GENERAL DATA ........................................................................................... 6
2.2. SPECIAL DATA............................................................................................. 6
2.3. SAP-100 PROGRAMMING AND DISPLAY MODULE ......................................... 7
2.4. ACCESSORIES ............................................................................................. 7
2.5. ORDER CODES............................................................................................. 7
2.6. DIMENSIONS ................................................................................................ 8
3. INSTALLATION.....................................................................................9
4. WIRING ................................................................................................12
5. PUTTING INTO OPERATION, ADJUSTING, PROGRAMMING ........13
5.1. PUTTING INTO OPERATION,USAGE ............................................................. 13
5.1.1. The SAP-100 programming and display module ...................... 14
5.1.2. Usage and the indications of the SAP-100 programming and
display module in measurement mode .....................................15
5.2. SPECIAL CONDITIONS FOR SAFE USE .........................................................16
5.3. PROGRAMMING ..........................................................................................16
5.3.1. Basic steps of the programming ................................................18
5.3.2. Current output scaling................................................................19
5.3.3. QUICKSET.................................................................................20
5.3.4. Full Parameter Access...............................................................22
5.4. PARAMETERS –DESCRIPTIONS AND PROGRAMMING ..................................23
5.4.1. Measurement Configuration ......................................................23
5.4.2. Analogue Output ........................................................................29
5.4.3. Relay Output ..............................................................................30
5.4.4. Measurement Optimisation........................................................31
5.4.5. Volume measurement................................................................37
5.4.6. Linearization...............................................................................38
5.4.7. Informational parameters (read only) ........................................39
5.4.8. Test parameters.........................................................................41
5.4.9. Simulation ..................................................................................42
5.4.10. Secret Code ...............................................................................43
5.4.11. Error Codes................................................................................44
6. MAINTENANCE, REPAIR................................................................... 45
7. STORAGE CONDITIONS ...................................................................45
8. WARRANTY........................................................................................ 45
9. PARAMETERS TABLE.......................................................................46

4 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03

BKI16ATEX0020X ♦sbd31j0a0600p_03♦5 / 48
Thank you for choosing a NIVELCO instrument.
We are sure that you will be satisfied throughout its use.
1. INTRODUCTION
The EchoTREK SBD/STD-300 series compact ultrasonic transmitters from NIVELCO are designed to measure the level of most free flowing solids (powders
and granules). Level measurement technology based on the non-contacting ultrasonic principle is especially suited for applications where, for any reason,
no physical contact can be established to the surface of the material to be measured and/or moving parts are to be avoided to eliminate mechanical wear-
out.
A total beam angle of 5° at –3 dB is a feature of all NIVELCO’s ultrasonic sensors designed for the level measurement of free flowing solids. This uniquely
narrow beam angle ensures reliable measurement in narrow silos with uneven side walls or sometimes even in the presence of dusting. Furthermore, as a
result of the narrow beam angle – the emitted ultrasonic signals have an outstanding focusing – a sufficient signal penetration through dust is ensured.
PRINCIPLE OF OPERATION
The ultrasonic level metering technology is based on the principle of
measuring the time required for the ultrasound pulses to make a round trip
from the sensor to the level to be measured and back. The sensor emits an
ultrasonic pulse train and receives the echoes reflected. The intelligent
electronic device processes the received signal by selecting the echo
reflected by the surface and calculates from the time of flight the distance
between the sensor and the surface which constitutes the basis of all output
signals of the EchoTREK.
rr
D
XD
5 m 0,7 m
10 m 1,2 m
20 m 2 m
30 m 3 m
40 m 3,8 m
50 m 4,7 m
X
Diameters corresponding to
5° beam angle.
Minimum measuring distance (Xm): (also known as the “Dead Band”) is a feature common to all ultrasonic level meters. This is a short range in front of the
sensor within which the ultrasonic device can not measure. The immeasurable range (close-end blocking) should be increased by programming in order to
avoid any measurement error caused by improper mounting or placement of the level transmitter.
Maximum measuring distance (XM): The longest range under ideal condition within which the device can measure. No measurement is possible beyond this
distance.

6 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
2. TECHNICAL DATA
2.1. GENERAL DATA
Type EchoTREK SBD / STD–3J–EchoTREK SBD / STD–3J–Ex
Transducer material Closed cell Polyurethane foam sensor face (PUR)
PP and Aluminum transducer housing and fitting
Closed cell Polyurethane foam sensor face (PUR)
Aluminum transducer housing and fitting
Total beam angle (-3dB) 5°
Housing material Paint coated aluminum
Process temperature –30 °C ... +75 °C –30 °C ... +75 °C
Max. surface temperature at the transducer 130 °C
Ambient temperature -30 … +60 °C, with SAP-100 display: –25 … +60 °C -30 … +60 °C, with SAP-100 display: –25 … +60 °C
Max. surface temperature at the head 130 °C
Process pressure (absolute) 0.07 ... 0.11 MPa (0.7 … 1.1 bar) Pabsolute and ± 0.01 MPa (0.1 bar) difference between ambient and tank pressure
Mounting 4 db M 12 screws on a ∅125 arc
Ingress protection IP65
Version I: 120 … 255 V DC / 5.5 W 85 … 255 V AC (50/60 Hz) / 6.8 VA 85 … 250 V AC (50/60 Hz) / 6.8 VAPower supply /
consumption Version II: 11.4 … 40 V DC / 4.1 W, 11.4 … 28 V AC (50/60 Hz) / 4.6 VA
Accuracy* ±(0.2 % of the measured distance + 0.1% of the measurement range)
Resolution 10 mm
Analogue: 4 – 20 mA, Rtmax= 600 Ω, protection against surge transients
Relay: SPDT, 250V AC/ 3A, AC1, Programming and display module: SAP-100 LCD display
Output
Digital communication: 4-20 mA + HART, MODBUS
Electrical protection Class I., protective earth (PE) conductor: 4 mm2
Ex marking II 1/2 D Ex ma ta/tb IIIC T85°C…T130 °C Da/Db
* Under optimal circumstances of reflection and stabilised sensor temperature
2.2. SPECIAL DATA
Type STD–34J–, SBD–34J–
STD–34J–Ex, SBD–34J–Ex
STD–33J–, SBD–33J–
STD–33J–Ex, SBD–33J–Ex
STD–31J–SBD–31J–
STD–31J–Ex SBD–31J–Ex
Maximum measuring distance ** (XM) 15 m 30 m 60 m
Minimum measuring distance ** (Xm) 0.6 m 0.6 m 1 m
Ultrasound frequency 40 kHz 30 kHz 15 kHz
Mass 7 kg 10 kg
* Under optimal circumstances of reflection and measured from the transducer face

BKI16ATEX0020X ♦sbd31j0a0600p_03♦7 / 48
2.3. SAP-100 PROGRAMMING AND DISPLAY MODULE
Field display 6-digit LCD display for measurement value, engineering unit and bargraph
Ambient temperature -25 °C…+60 °C
Housing material Fibre-glass reinforced plastic (PBT)
2.4. ACCESSORIES
• Installation and Programming Manual
• Warranty Card
• Declaration of Conformity
• EView configuration software and description on CD (only for SD – 3 – 3/4 types)
• 2× M20x1.5 cable glands (in case of Ex units certified cable glands with Ex ta protection type are included)
ACCESSORIES TO BE ORDERED
• Split flange (order code: SFA – 35)
• SAP-100 programming and display module
2.5. ORDER CODES
EchoTREK S D – 3 J – *
TYPE CODE MEASURING RANGE CODE POWER SUPPLY /OUTPUT CODE
Transmitter T 60 m 1 Version I. 120 … 255 V DC Standard Dust Ex
Transmitter + display B 30 m 3 85 … 255 V AC
15 m 4 4 – 20 mA + Relay 1 5
4 – 20 mA + Relay + HART 3 7
RS485 (MODBUS protocol) + Relay A E
*The order code of an Ex version should end in “Ex” Version II. 11.4 … 40 V DC
11.4 … 28 V AC
4 – 20 mA + Relay 2 6
4 – 20 mA + Relay + HART 4 8
RS485 (MODBUS protocol) + Relay B F

8 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03

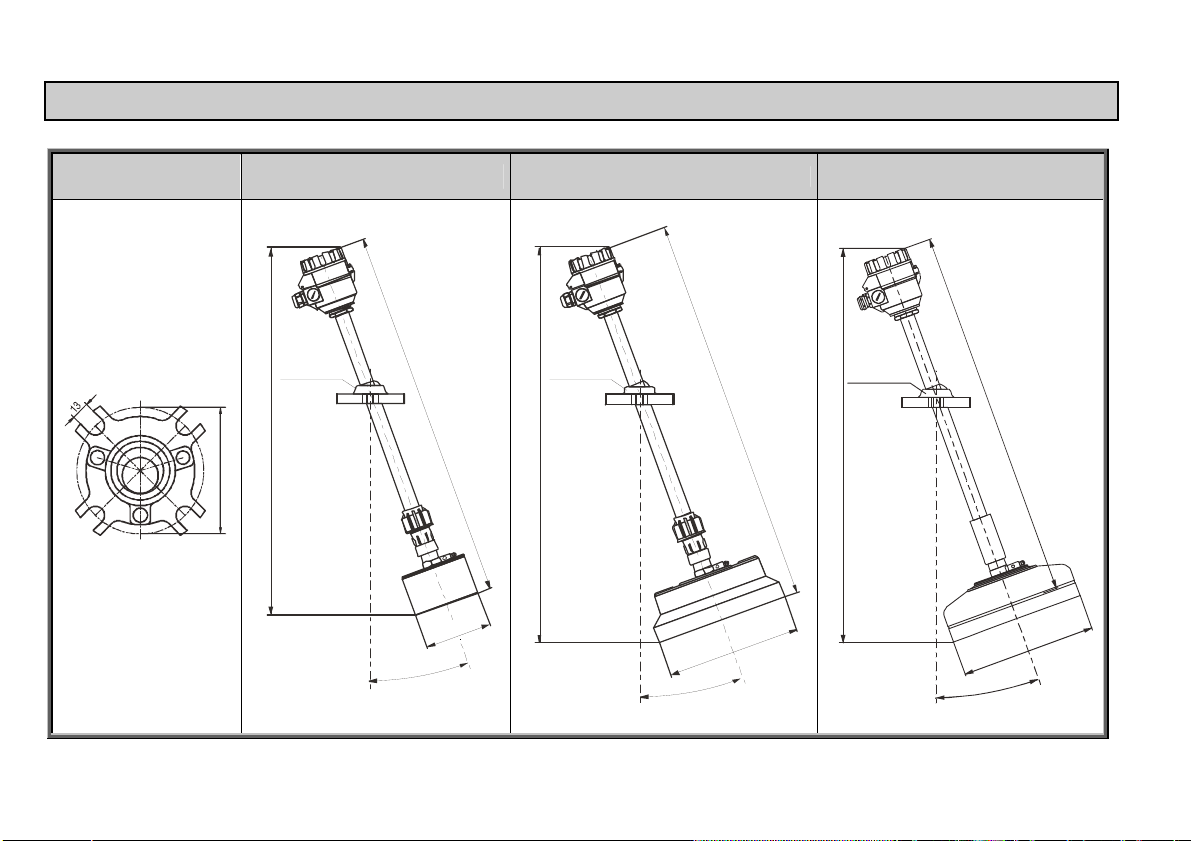

2.6. DIMENSIONS
Ball-joint housing
(view from above) SD–33J-SD–34J–SD–31J–SD–31J–Ex
125
∅
~84
2
max. 814
Ball joint
housing
-
Ø148
max.20°
~840
Ø293
max. 855
max.20°
Ball joint
housing
-
Ø294
~834
max.20°
max. 855
Ball joint
housing
-

BKI16ATEX0020X ♦sbd31j0a0600p_03♦9 / 48
3. INSTALLATION
PLACEMENT
To find the ideal position for the location of the EchoTREK level transmitter various
considerations should be made.
The transmitter should not be installed in the centre of the tank/silo when the tank roof is dome
shaped or conical. The ideal position for the EchoTREK is on the r = (0.3 … 0.5) R (in case of
cylindrical tank). Avoid that the 5° conical beam angle of the transmitter contact the tank/silo
wall. This case the transmitter is mounted too close to the wall, therefore it should be tilted (See
section “Aiming”).
To avoid overheating the instrument should be protected against direct sunshine.
r
R
Sunshade
GRAVITY FILLING
The device should be
mounted as far as possible
from the filling stream.
PNEUMATIC FILLING
Select a location where the speed of the
in-flowing material is the smallest.
Ex type units are not allowed to be
installed in the dust path of the
pneumatic filling!
Suggested location (view from above)
40 m 3,8 m
50 m 4,7 m
MOUNTING (see illustration of mounting options on the next page)
The EchoTREK consists of a sensor that is attached to the aiming arm (a pipe with a ball-joint housing incorporating a ball joint) that is attached to the housing
of the electronics. It is recommended to mount the transmitter on the roof of the tank/silo using a flange (See drawing). The Ball-joint housing has a screw-hole
diameter of 125 mm for fixing it. For easy installation we recommend to use our special flange with a split insertion, available with four sizes of
DN125/150/200/300 (to be ordered separately). Removing the split insertion, the flange is to be put around the aiming arm and the ball-joint housing is to be
fixed to the split flange. It is essential to use the washers and the bolts (4 pcs each) delivered with the split flange. The ball-joint will be pressed to the housing
by a spring allowing adjustment/aiming. The 4 pcs of M12 bolts have to only be tightened after completing the adjustment/aiming. The maximum torque for
tightening the bolts is 3.5 Nm.

10 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
Mounting EchoTREK versions S-33J-and S-34J-
1. Check the split flange for matching the bore-holes with that of the counter-flange on the silo
2. Remove the split insertion from the flange and put the flange around the aiming arm between the sensor and the Alu-base.
Slide the split insertion back to its place and screw the ball-joint housing to the flange with the 4 pcs M 12 bolts to such an extent that will allow free
movement of the aiming arm through and tilting by the ball joint for the aiming process.
3. Place the sealing below the flange (if necessary)
4. Pass the sensor through the opening cut on the roof and fasten the flange to its place.
5. Fasten the EchoTREK (with the split flange) to the counter-flange or to the roof of the silo/tank. Perform the aiming (See section “Aiming” below).
6. For fixing the position of the aiming arm tighten the 4 pcs M 12 bolts of the ball-joint housing (max. 3.5 Nm).
Mounting EchoTREK SD-31-versions, with silo/tank roof opening of ∅300 mm – 340 mm.
The procedure is the same as above but the required flange diameter is DN300.
Mounting EchoTREK SD-31-version with silo/tank roof opening less than ∅300 mm and the silo space is accessible from inside:
1. Check the split flange for matching the bore-holes with that of the bolt places or counter-flange on the silo
2. Place the sealing below the flange (if necessary)
3. Push the unit out of the silo (upwards) (See on the next page)
4. When the Alu-base with the ball-joint is above the counter-flange the special flange has to be placed around the aiming arm (See on the next page)
5. Put the split flange on the counter-flange and lower the ball-joint housing on it
6. Slide the insertion to its place (Seeon the next page)
7. Screw in the 4 pcs of M12 bolts (See on the next page) to such an extent that will allow free aiming
8. Fasten the EchoTREK (with the split flange) to the counter-flange or to the roof of the silo/tank.
9. After completing aiming, tighten the 4 pcs 12M bolts (max. 3.5 Nm).
If the entire tilting range of the aiming arm is required, the thickness of the roof can not exceed as specified on the drawing next page. The EchoTREK can also
be mounted on existing (manhole) covers, access lids or for instance on a steel structure lowered into a larger (for example: 0.5 x 0.5 m) opening on the roof.
This solution is to be used when the roof thickness is greater than 350 … 380 mm.
The apparatus nor any part of it is not suitable as a fire resistant barrier for the Zone 20 area.
The housing cover of the Ex type units can be only removed after screw in the hex socket set screw providing protection against unauthorized
(tool-free) opening of the cover. The instrument is allowed to be operated in hazardous environment only in case the cover is locked properly by the
described protective screw.

BKI16ATEX0020X ♦sbd31j0a0600p_03♦11 / 48
DIAMETER OF THE
OPENING
D
MAX.THICKNESS OF
THE ROOF
V
160 mm 110 mm
190 mm 150 mm
230 mm 200 mm
300 mm 280 mm
340 mm 300 mm
Illustration for mounting

12 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
4. WIRING
• To access the electric connection point, unscrew the bolt on the side of the
electronics housing. Use cable with a wire cross- section of 0.5 … 2.5 mm2.
• Electric connections may be carried out by using a single or two cables.
Wires in different groups (A, B, C; shown below) are not allowed to be led in
the same cable.
Group A Group B Group C
4 – 20 mA.
Low voltage power supply SELV voltage power supply
Low voltage for the relay SELV voltage power or logic
signal for the relay
RS485
(shielded twisted pair)
• The unit should be placed and the cables should be arranged that the
connecting cables outside the unit are fixed and tension-free.
• Devices should be grounded properly either at the internal or external
grounding screw terminals depending on the way of cabling.
• DC powered (Version II) devices can be 3-wire connected. In this case the
terminals ”1” and ”6” should be interconnected. In this case the galvanic
isolation will not be provided!
• After performing the electric connections, check for correct sealing and close
the housing!
7
NPT1/2" NPT1/2"
356 4 2 1
Place of M20x1.5
d
6
A
7
c
0
B
1234
5
8
3
657
4
9
L+
L
2
L-
N
1
Earthing screw
Power supply
12
L1
(+)
N
76
output
(A)
+
(B)
-
RS 485
4...20 mA or
543
Relay
output
-
()
Space for the wiring, for better overview without upper part

BKI16ATEX0020X ♦sbd31j0a0600p_03♦13 / 48
5. PUTTING INTO OPERATION, ADJUSTING, PROGRAMMING
5.1. PUTTING INTO OPERATION,USAGE
After switching on the correctly wired unit the transducer begins to click audibly. In about 20 … 50 s the ECHO LED goes on and a signal between 4 – 20 mA
appears on the current output. The factory default settings are suitable for checking the operation of the unit or solving most simple level metering tasks. For
using the advanced features of the EchoTREK it is required to modify the programming to customize it for the required measurement task. To get familiar with
the programmable features of the level transmitter and be able to solve challenging level measurement tasks it is strongly recommended reading carefully the
following chapters of this user's and programming manual.
FACTORY DEFAULT PARAMETERS
All the transducers get the same factory default parameters that can also be reset later if needed. Some of the most important parameters default values of the
EchoTREK SD-3 series can be found below:
⇒ Measurement mode: level measurement (LEV). The plug-in SAP-100 display shows level value.
⇒ Zero level is assigned to the maximum measuring distance (XM).
⇒ The output current and the bargraph of the SAP-100 module is assigned to the measured level value.
⇒ 4 mA and 0% is assigned to zero level (maximum measuring distance).
⇒ 20 mA and 100% is assigned to maximum level (minimum measuring distance).
⇒ Current output in case of error: holding the last measurement value.
⇒ Damping time: 300 s.
⇒ Relay is de-energized in case of „NO Echo”.
All the other measurement values are set to fit the values suitable for standard tasks. The functions used in special cases are switched off by default.
AIMING OF THE ECHOTREK FOR SOLIDS
To reduce week signal reflection from the material surface caused by an angle of repose building due to the filling and/or emptying process, it is recommended
to tilt the sensor by the aiming arm of the transmitter. The optimal tilting position can be adjusted during operation and recommended to be checked at multiple
levels during the filling / emptying process. In most cases, the sensor should be aimed towards the middle of the tank/silo bottom by aiming at the silo outlet.
In applications where repose is not present or with tall and narrow silos (diameter/height ≥ 5) aiming is not
critical: the sensor should face straight downwards. Aiming should also be tested also with full silo, since
due to the great angle of repose the echo might be weak despite of the fact that level is near to the sensor.
In such cases a reasonable compromise of aiming should be achieved that provide acceptable echo in
every state of the filling. Aiming is also aided by the informational parameters P70 – P75. Aiming procedure
is recommended to perform together with the full parameter access programming.

14 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
5.1.1. The SAP-100 programming and display module
The plug-in type programming and display module can be removed or plug-in during the operation of the EchoTREK level transmitter. The module has 4 push
buttons and a special multifunction LCD display.
The measured values are displayed in the central line of the display. The engineering units are displayed in the bottom or top lines, or indicated by the arrow
pointing the units on the frame of the display.
Bargraph assigned
to the current output
or echo strength
Push buttons
SYMBOLS USED ON THE LCD:
• DIST – distance (measuring) mode
• LEV – level (measuring) mode
• VOL – volume (measuring) mode
• %– measured value in percentage
• mA – output current
• °C – transducer temperature (in Celsius)
• PROG – programming mode (device under programming)
• RELAY – relay
• – level changing direction
• FAIL – measurement / device error
SYMBOLS USED ON THE FRAME:
Valid if pointed by the arrow
• M– metric (European) engineering system
• m3m cm l (liter)
• US – imperial (US) engineering system
• ft3ft in gal (gallon)
• t– tonne (calculated mass)
• °F – transducer temperature (in Fahrenheit)
• sec – second
• hour – hour
• min day – not used

BKI16ATEX0020X ♦sbd31j0a0600p_03♦15 / 48
5.1.2. Usage and the indications of the SAP-100 programming and display module in measurement mode
The device is in Measurement Mode, when PROG is not shown on the display. This case the display shows the measurement value which can be changed
according to the following steps.
By pressing the
E
(ENTER) button
the display shows the primary
measured value.
DEFAULT VALUE: LEV
By holding the (UP) arrow
button the display shows the
transducer (also the air inside
the tank) temperature.
°C/°F
By pressing the (NEXT) arrow
button repeatedly the display shows
the secondary, etc. measured values.
DEFAULT VALUE: LEV, DIST
COM RELAY
ECHO
By holding the (DOWN)
arrow button the display shows
the output current.
mA
Depending on the selected measuring mode (see P01 in Chapter
5.2.1 for further details) the following primary and other values can be
displayed:
• DISTANCE (DIST)
• LEVEL (LEV)
• LEVEL in percentage (LEV %)
• VOLUMA or MASS (VOL)
• VOLUMA or MASS in percentage (VOL %)
The unit of the displayed measurement value is indicated directly or
by the arrow pointing the units on the frame of the display.
• When “FAIL” message is blinking on the display the error
code is indicated after the measured value
(see chapter 5.4.11.).
After powering up the units the measuring mode will be the same as it
was at the last powering off.
LED INDICATIONS
• COM-LED
LED is lit during communication (Remote programming)
• ECHO-LED
LED is lit as long as the device receives a valid echo signal
• RELAY-LED
LED is lit when relay is energized

16 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
5.2. SPECIAL CONDITIONS FOR SAFE USE
 The equipment is not allowed to be installed in the dust path of the pneumatic filling!
 The apparatus nor any part of it is not suitable as a fire resistant barrier for the Zone 20 area.
 The instrument should be grounded by all its grounding screws to the EP system in order to avoid
electrostatic charges and due to the Class I. electronic protection classification.
 The diameter of the used cable should meet the specified dimensions of the cable gland.
 The device must be operated only with using properly sealed Ex ta certified protective cable glands.
 The current output should be connected to a galvanic isolator.
 The windows of the EchoTREK SBD-3-Ex devices are susceptible to electrostatic charges,
therefore cleaning is allowed only with a wet rag.
5.3. PROGRAMMING
The factory default settings can be changed by the user. The programming can be performed with using SAP-100 type plug-in programming module which is also a
field display. The EchoTREK SB-3 types include the SAP-100 programming module. After removing the windowed housing cover the programming buttons
can be accessed. The SAP-100 module is able to program any EchoTREK level transmitters for solids. The EchoTREK is able to operate without the SAP-100
module and it can be removed during operation. Remote programming via HART communication protocol or RS485 interface is the same as described except the
measurement simulation.
!
The instrument may be damaged by
electrostatic discharge (ESD) via its terminal
(SAP-100 and TEST), thus apply the
precautions commonly used to avoid
electrostatic discharge e.g. by touching a
properly grounded point before removing the
cover of the enclosure. A possible
electrostatic discharge can cause damage for
the instrument.
SAP-100 programming and display module HART, RS 485
Remote
programming
Full parameter
access programming
QUICKSET
Current output
scaling
Measuring is going on during programming in accordance with the old parameter set.
New parameter set will be valid after returning to the Measurement to the Programming Mode.
If the transmitter is left in Programming Mode by mistake, it will automatically return to Measurement Mode after 30 minutes and will operate with the parameters
entered during the last completed programming. In case of HART capable units or versions with RS 485 interface the automatic return from remote programming
mode to measurement mode is done after 1 minute.

BKI16ATEX0020X ♦sbd31j0a0600p_03♦17 / 48
PROGRAMMING MODES OFFERED BY THE SAP-100 PROGRAMMING AND DISPLAY MODULE
CURRENT OUTPUT SCALING (5.3.2.)
Assign the level values to the current output (4 and 20 mA).
All the other parameters remain unchanged.
QUICKSET (5.3.3.)
Recommended as a simple and fast way to set up the EchoTREK by 8 basic parameters
This menu driven programming mode supports the following basic settings:
• Engineering unit for the display (metric or US)
• Maximum measuring distance (H)
• Minimum level assigned of to 4 mA
• Maximum level assigned to 20 mA
• Error indication by the current output
• Damping time
• Assignment of level to energising of the relay
• Assignment of level to de-energising of the relay
FULL PARAMETER ACCESS PROGRAMMING (5.3.4.)
All the programmable features of the EchoTREK can be accessed by parameter addresses:
• Measurement configuration
• Outputs
• Measurement optimization
• 13 pre-programmed tank shapes for volume calculation
• 32-point linearization table
• test parameters
• secret code
In this programming mode, the parameters are marked with numbers. The User's and Programming Manual is necessary to identify the parameters.
The unit is continuously measuring with the actual valid parameter set during the programming. When the currently measured values are used (for example
GET LEVEL) the values are calculated according to the valid parameter set. New parameter set became valid only after returning into Measurement Mode.

18 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
5.3.1. Basic steps of the programming
Local programming of the unit can be performed with the four push buttons of the SAP-100 module. The followings give an overview about handling the
programming module and the detailed programming instructions are covered in the 5.3.2, 5.3.3, 5.3.4 and the 5.4 chapters.
SINGLE KEY PRESSING
The functions of the keys became active after the button is released.
E
ENTER – to save parameter address and go to parameter value; to return from parameter value to parameter address
NEXT – to move the blinking of the digit to the left
UP – to increase value of the blinking digit (press the key continuously to increase the value of the blinking digit faster)
DOWN – to decrease value of the blinking digit (press the key continuously to decrease the value of the blinking digit faster)
DOUBLE KEY PRESSING
Press the two keys simultaneously for desired programming step (0 ... 3 s)! The double key combination is marked with ”+” mark in the following.
ENTER INTO OR QUIT FROM PROGRAMMING MODES KEY COMBINATIONS FOR CHANGING PARAMETER VALUES
GET LEVEL function can be used only in level and in distance
measurement modes: reading out the actual measured value
Notes:
If the blinking cursor cannot be moved to the parameter value from the parameter address after pressing the ENTER
E
button,
• the parameter is either a read-only type, or
• the secret code prevents the modification (see P99).
If the parameter value keeps blinking the modification cannot be accepted because,
• the modified value is either out of the range, or
• the entered code is not valid for this parameter

BKI16ATEX0020X ♦sbd31j0a0600p_03♦19 / 48
5.3.2. Current output scaling
This programming mode is the simple and fast way to modify the scaling of the current output. For changing all parameters other than those assigned to 4 and
20 mA use either the QUICKSET (5.3.2) or the Full Parameter Access (5.3.3). Measuring is going on during programming in accordance with the old parameter
set. New parameter set will be valid after returning to measurement from programming mode! The instructions for this programming can also be found below the
screw cover on the front panel of the EchoTREK.
KEYS OPERATION
ENTER
E
+ UP (press for 3 seconds) Enter into or exit from the current output scaling programming mode
UP / DOWN / NEXT Set value (increase/decrease the blinking digit or scroll up/down) / Move left with the blinking digit
UP + DOWN "GET LEVEL" - display actual level value measured by the EchoTREK
ENTER
E
Save actual value on the screen and move to the next screen
NEXT + UP Quit current output scaling programming mode without saving the modifications (CANCEL)
NEXT + DOWN Display Factory Default of the relevant screen (DEFAULT)
In this programming mode, the display will indicate PROG and the following screens:
SCREENS ACTIONS
4 : xxxx
xxxx – level value assigned to 4 mA current output
Manual: set the level value manually (by using UP / DOWN / NEXT keys) and save it (by ENTER
E
) counted from the
maximum measuring distance (H) which is to be assigned to 4 mA output current
Automatic*:use the “GET LEVEL” function (UP + DOWN ) when the medium inside the tank is at the level what is desired
to be assigned to 4 mA value (“GET LEVEL” functions only works if ECHO LED is lit) and save the displayed value as the above
described
Default value: 0 m (empty tank)
20 : xxxx
xxxx – level value assigned to 20 mA current output
Manual: set the level value manually (by using UP / DOWN / NEXT keys) and save it (by ENTER
E
) counted from the
maximum measuring distance (H) which is to be assigned to 20 mA output current
Automatic*:use the “GET LEVEL” function (UP + DOWN ) when the medium inside the tank is at the level what is desired
to be assigned to 20 mA value (“GET LEVEL” functions only works if ECHO LED is lit) and save the displayed value as the above
described
Default value: Measurement range = XM– Xm(max. measuring distance – max. measuring distance (dead band))
*For the Automatic function the EchoTREK should be set to (LEV) level measurement mode and the ECHO LED should lit.

20 / 48 ♦BKI16ATEX0020X ♦sbd31j0a0600p_03
5.3.3. QUICKSET
RECOMMENDED AS A SIMPLE AND FAST WAY TO START UP ECHOTREK
QUICKSET programming is aided by 8 screens to set the 8 basic parameters of the device if the required application is not a challenging one. The instructions of
this programming mode are also to be found, below the screw cover, on the front panel of the EchoTREK.
KEYS OPERATION
ENTER
E
+ UP (press for 3 seconds) Enter into or exit from the quickset programming mode
UP / DOWN / NEXT Set value (increase/decrease the blinking digit or scroll up/down) / Move left with the blinking digit
UP + DOWN "GET LEVEL" - display actual level value measured by the EchoTREK
ENTER
E
Save actual value on the screen and move to the next screen
NEXT + UP Quit current output scaling programming mode without saving the modifications (CANCEL)
NEXT + DOWN Display Factory Default of the relevant screen (DEFAULT)
In this programming mode, the display will indicate PROG and the following screens:
SCREENS SETTINGS
AP : xxyy
APplication
xx= select “EU” (European) for metric or “US” for US engineering units (Use UP / DOWN keys)
yy= indicating “Li” for liquids or “So” for solids level measurement (can not be changed)
Default value: “EU” metric (European), “So” for solids level measurement
H : xxxx
H = xxxx – maximum distance to be measured – Distance between transducer face and tank/silo bottom
Manual: set the tank height value manually (by using UP / DOWN / NEXT keys) and save it (by ENTER
E
)
Automatic*:use the “GET LEVEL” function (UP + DOWN ) when the tank is empty to obtain the actual measured
distance between the sensor face and the tank bottom (“GET LEVEL” function works only if ECHO LED is lit) and save the
displayed value as the above described
Default value: maximum measuring distance XM, see Technical Data Table
