WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the loca-
tion shown. Note: The decal(s) may not be shown
at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with a
mat beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m) of
clearance in the front and rear of the elliptical
and 2 ft. (0.6 m) on each side.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack®
E7.0 elliptical. The E 7.0 elliptical provides an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

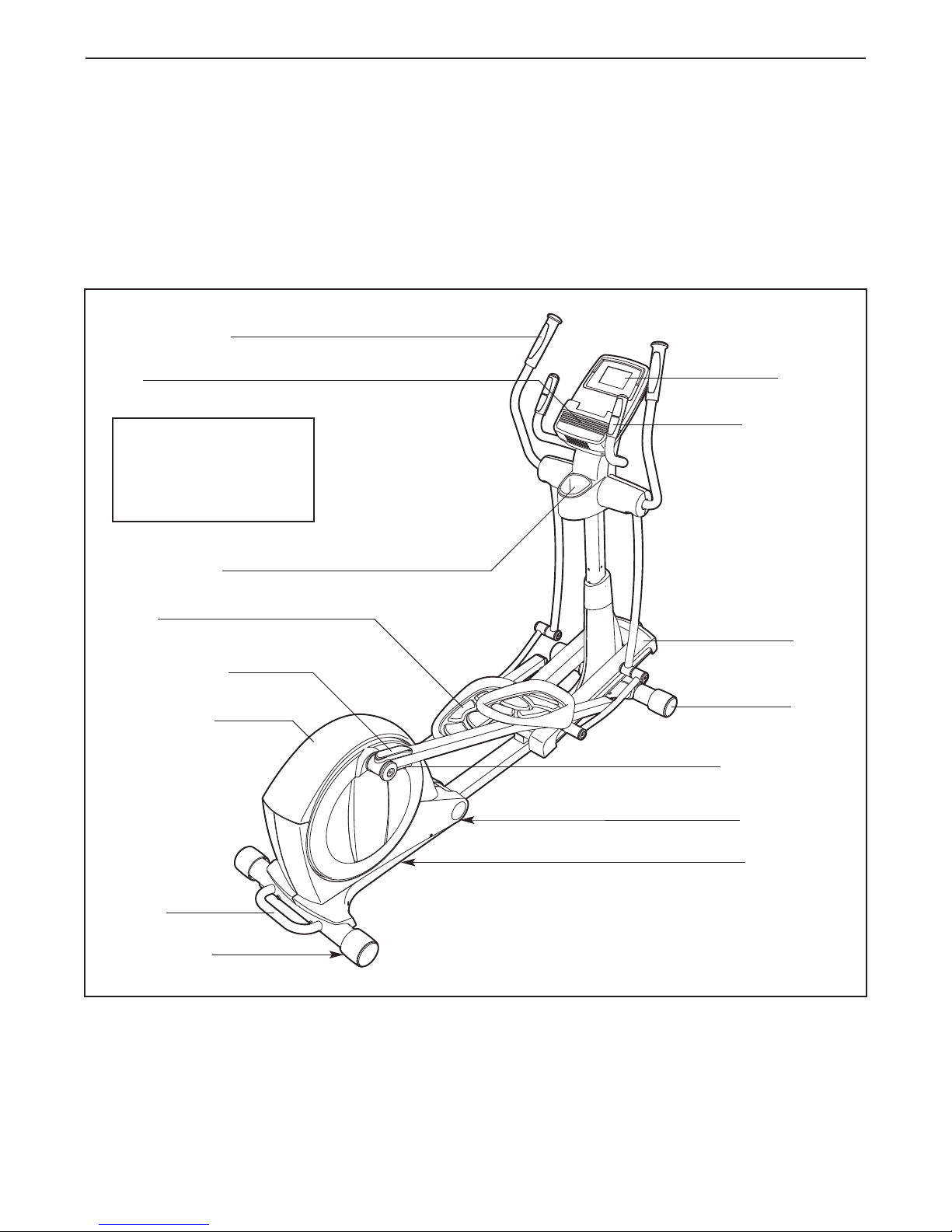

the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Access Cover Wheel
Pedal
Accessory Tray
Console
Leveling Foot
Handle
Latch Button
Ramp
Storage Magnet
Fan
Pedal Arm Latch
Leveling Foot
H: 5 ft. 2 in. (157 cm)
W: 2 ft. (61 cm)
L: 6 ft. (183 cm)
Wt.: 176 lbs. (80 kg)

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M10 x 95mm Patch
Screw (100)–4
M8 Split Washer
(103)–14
M6 x 12mm Patch
Screw (111)–4
M8 Washer
(95)–6
M8 x 16mm Patch
Screw (102)–16
Wave Washer
(118)–2
M6 Washer
(112)–8
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm Patch
Screw (62)–4
M8 x 35mm Patch
Screw (137)–2
M4 x 19mm
Screw (123)–8

6
1.

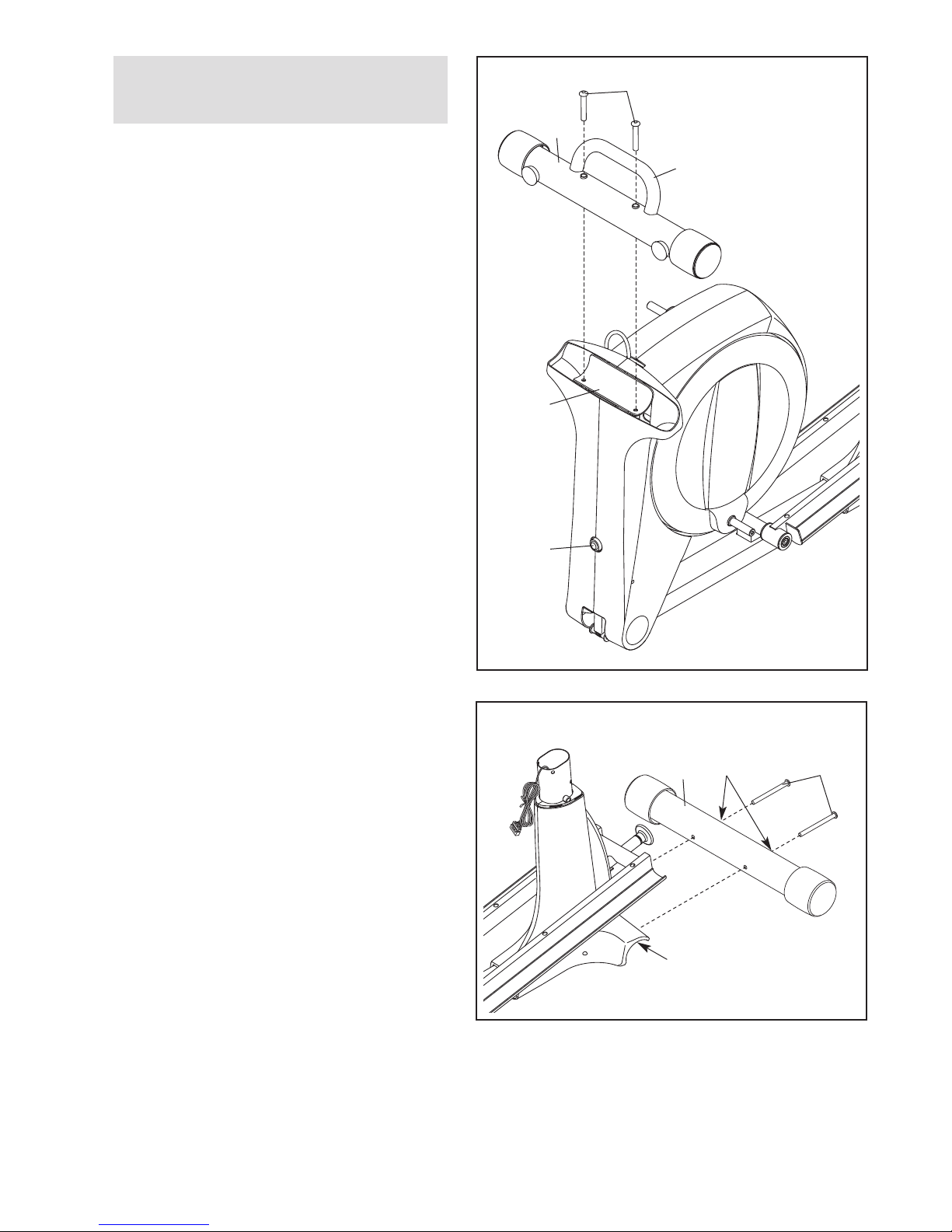

Orient the Rear Stabilizer (4) as shown.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and lower the Rear
Stabilizer and the Folding Frame (2) to the floor.
4
1
To make assembly easier, read the
information on page 5 before you begin.
100
Handle
2
67
2. Orient the Front Stabilizer (3) so that the welded
tubes are facing away from the Main Frame (1).
While a second person lifts the front of the Main
Frame (1), attach the Front Stabilizer (3) with
two M10 x 95mm Patch Screws (100).
2
3
1
100
Welded
Tubes

7

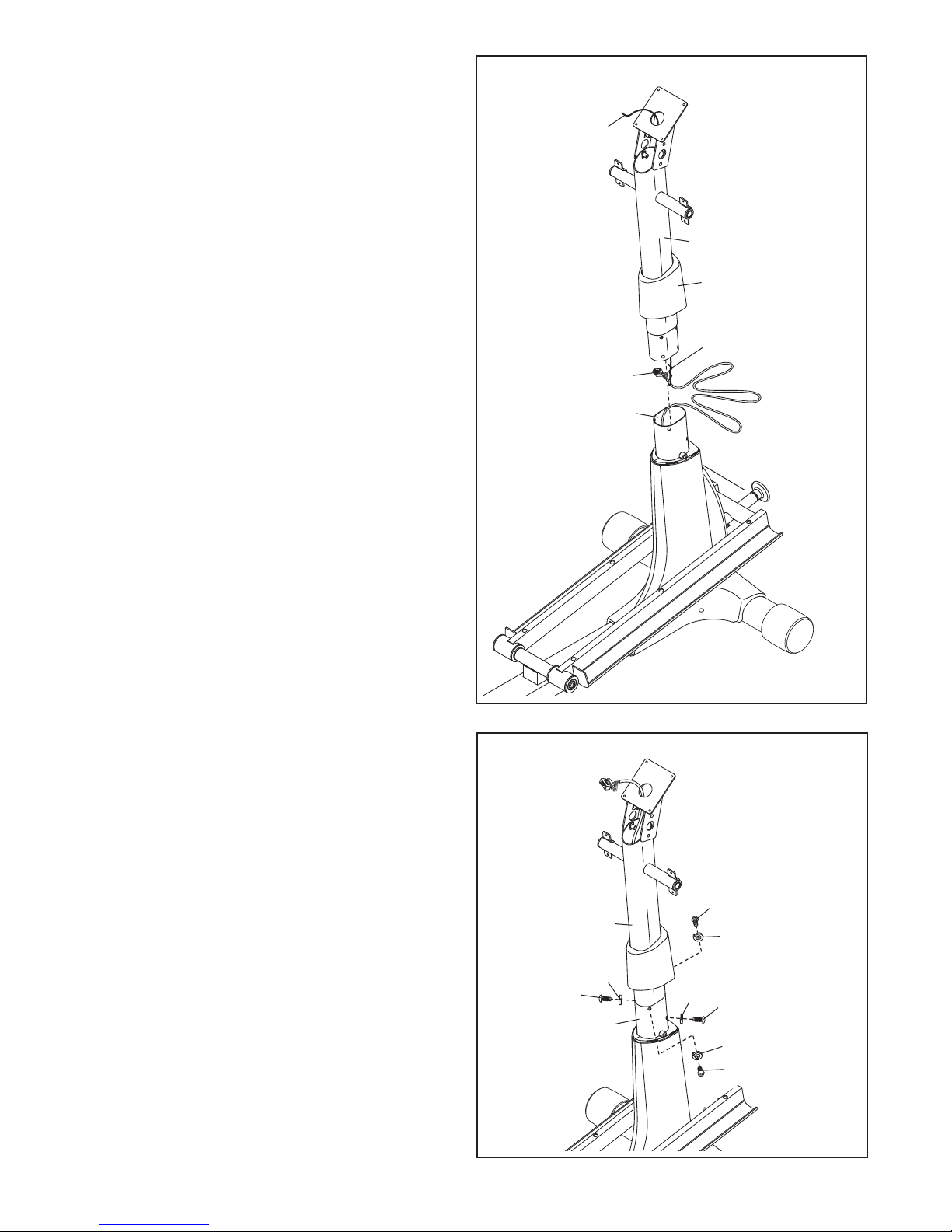

3. Identify and orient the Upright (5) and the Top
Cover (27) as shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Then, have a second person hold the Upright
(5) and the Top Cover (27) near the Main Frame
(1) until step 4.
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Main Wire (60).
Next, pull the upper end of the wire tie until the
Main Wire is routed completely through the
Upright.
Tip: To prevent the Main Wire (60) from
falling into the Upright (5), secure the Main
Wire with the wire tie.
3
5
Wire Tie
Wire Tie
27
60
1
4
4. Tip: Avoid pinching the Main Wire (60). Insert
the Upright (5) into the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
You will tighten the Patch Screws at the end
of step 11.
5
102
102
102
102
103
103
103
103
1
Avoid pinching the
Main Wire (60)

8
5
5. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave Washers
(118).
Tip: Avoid damaging the Main Wire (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.

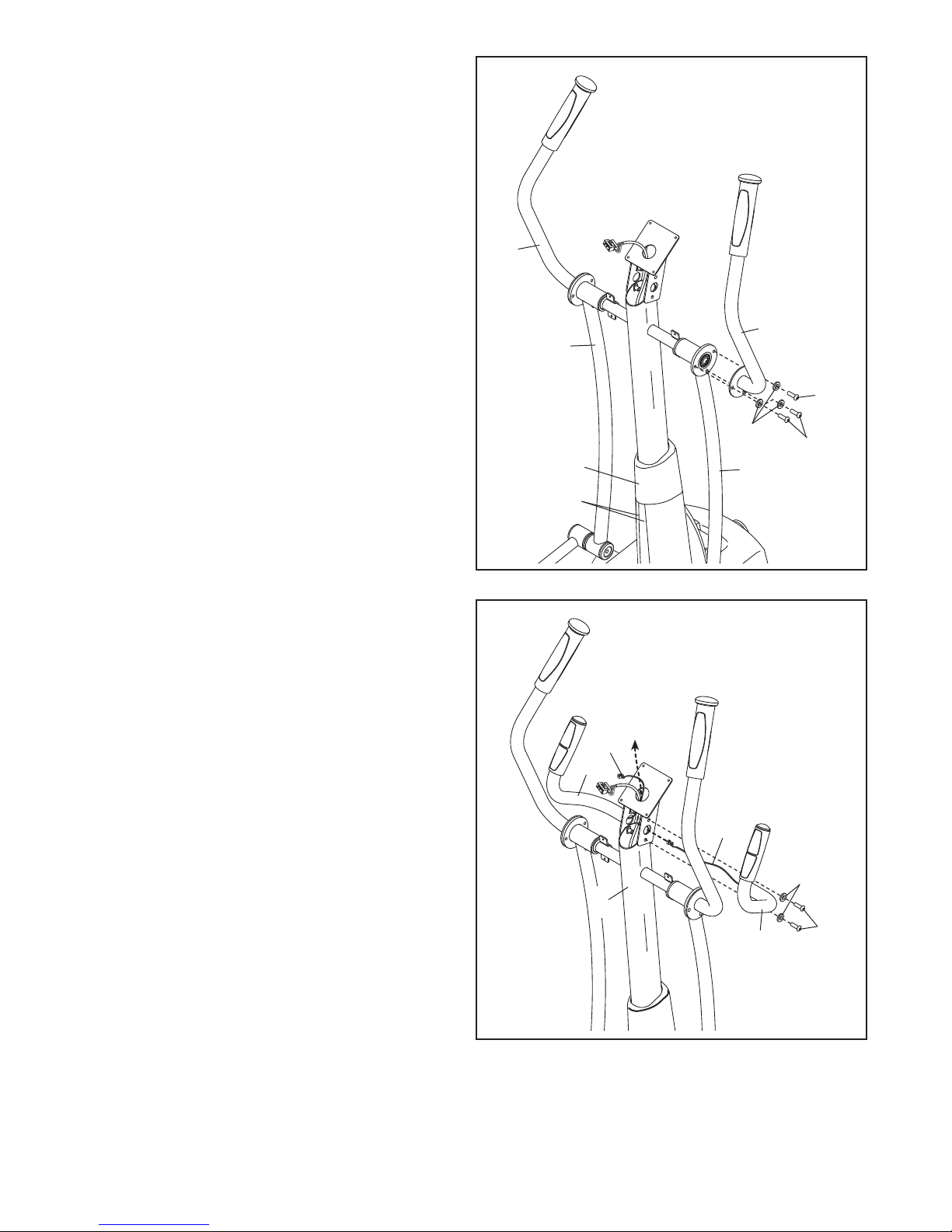

Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
Avoid damaging the
Main Wire (60)
Grease
Grease
95
5
7
102
95
102
118
48
60
6
118
6. Identify the Right Pedal (14), the Right Pedal
Pad (104), and the Right Pedal Arm (12)
assembly, which are marked with “Right” stick-
ers, and orient them as shown.
Set the Right Pedal Pad (104) on the Right
Pedal Arm (12). Then, set the Right Pedal (14)
on the Right Pedal Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 12mm Patch Screws
(111) and two M6 Washers (112); do not
tighten the Patch Screws yet.
Next, tighten two M6 x 50mm Patch Screws
(62) and two M6 Washers (112) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 12mm Patch Screws
(111).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the
same way.
6
14
12
111 112
112
62
104

9
8a

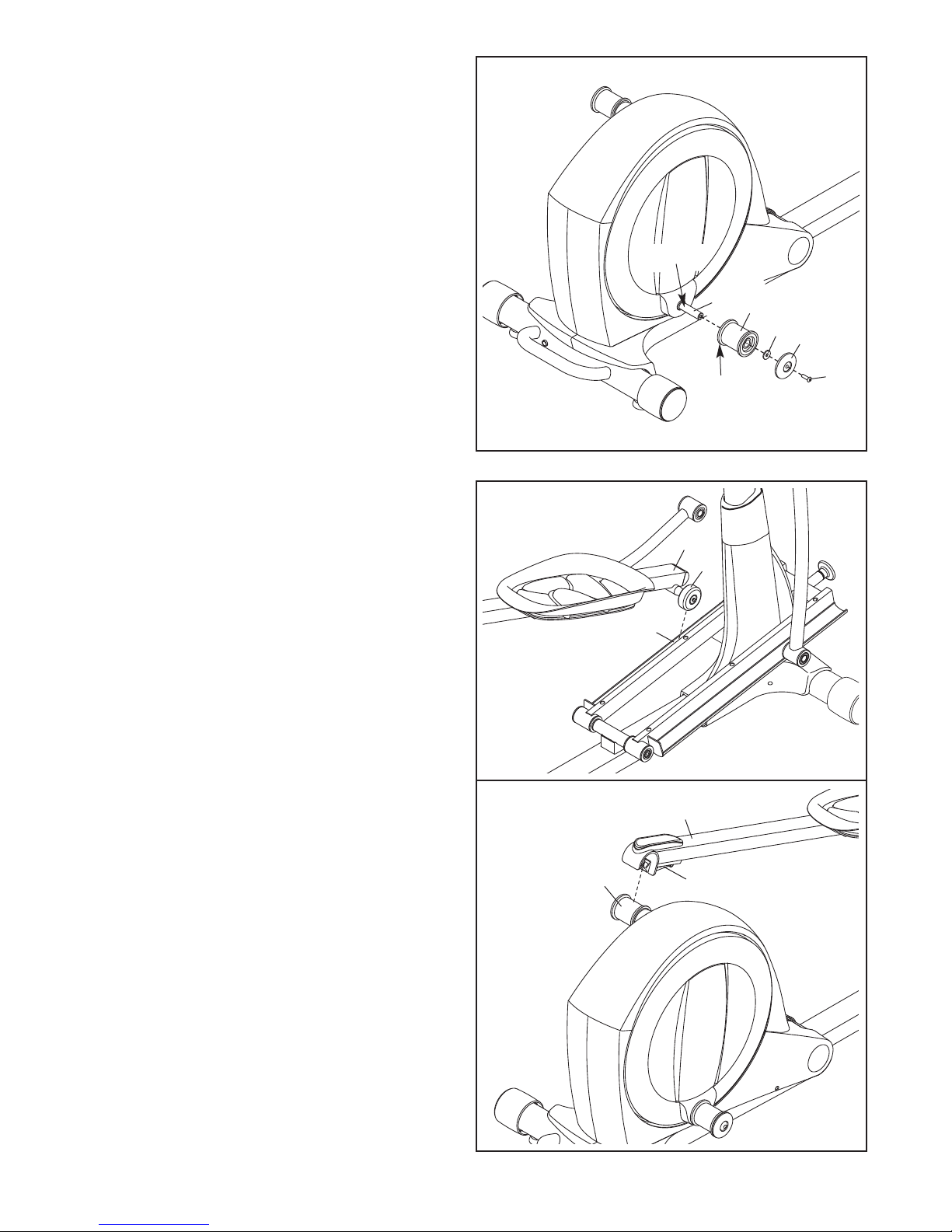

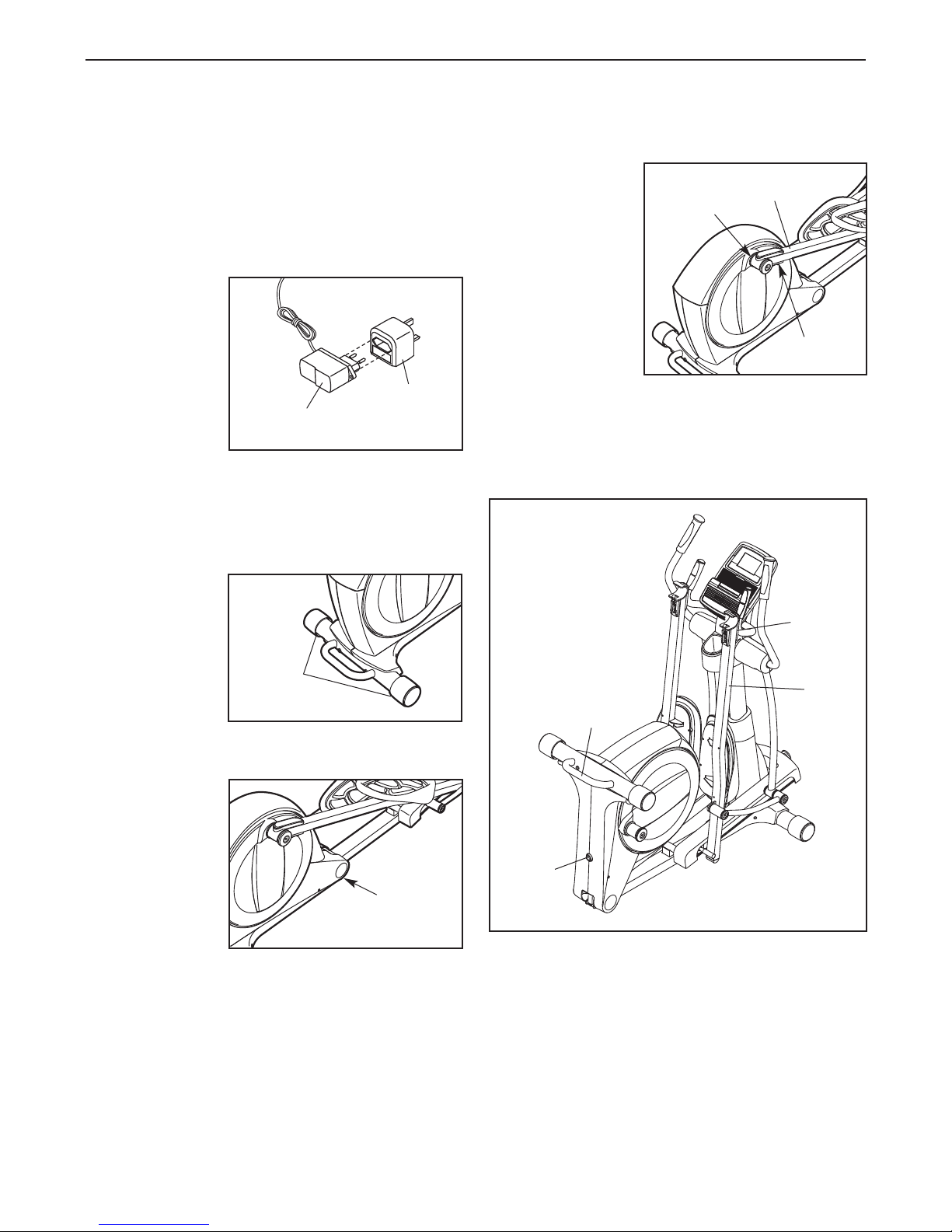

8. See drawing 8a. Locate the Pedal Arm Roller
(32) on the Left Pedal Arm (13).
Set the Pedal Arm Roller (32) on the left side of
the Ramp (130).
See drawing 8b. Pull upward on the Latch (50)
on the Left Pedal Arm (13).
Press the Left Pedal Arm (13) onto the left
Pedal Arm Sleeve (46). Make sure that the
Left Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
32
13
130
7. Apply grease to the axle on the right Crank Arm
(39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95). Tip: Avoid
damaging the Large Axle Cover when tight-
ening the Patch Screw.
Repeat this step on the other side of the
elliptical.
8b
46
13
50
7
95 113
Flat
Side
121
39
Grease
46

10

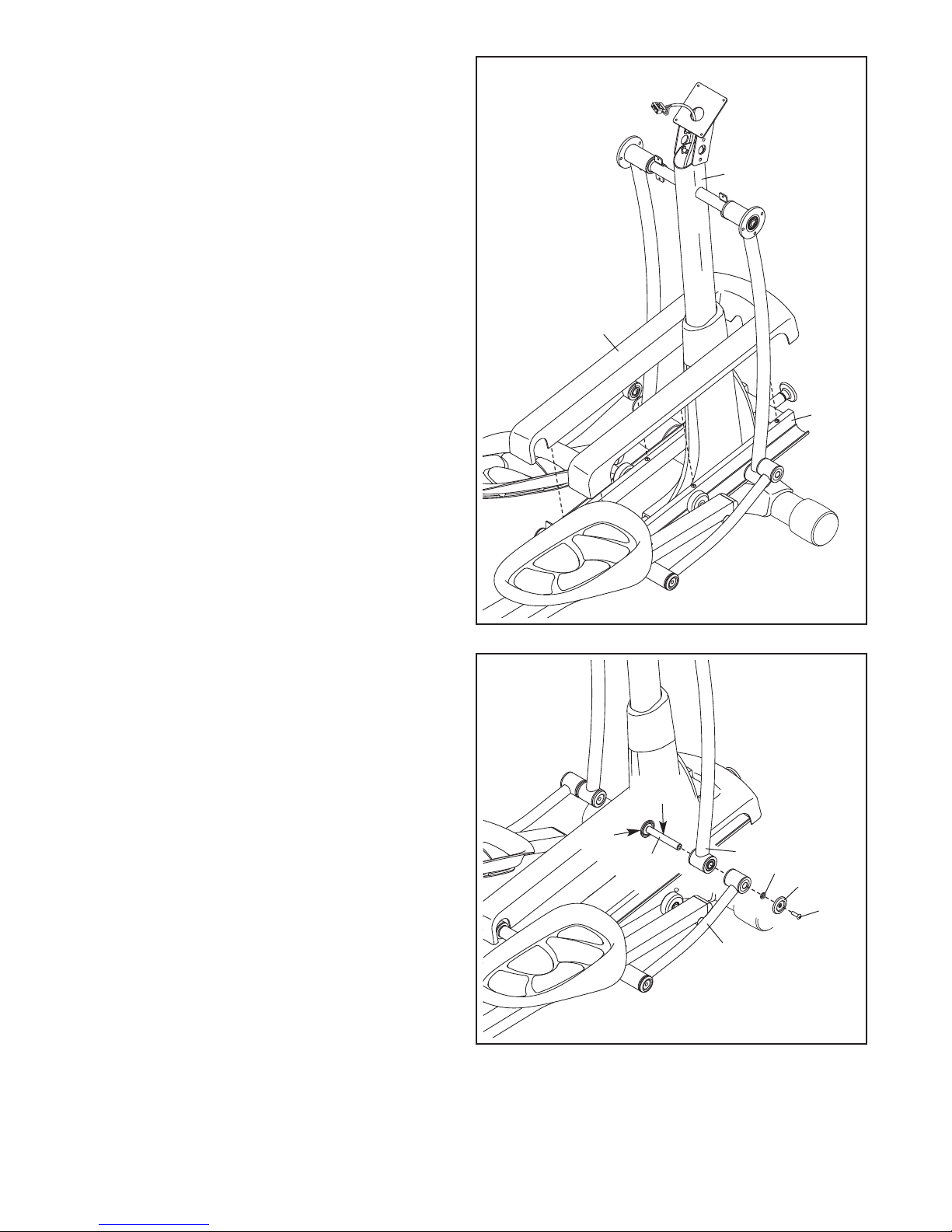

10. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Patch
Screw (137) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Patch Screw (137), a Small Axle Cover
(56), and an M8 Washer (95) into the other end
of the Link Arm Axle (114). Tip: Avoid damag-
ing the Small Axle Cover when tightening
the Patch Screw.
Repeat this step on the other side of the
elliptical.
10

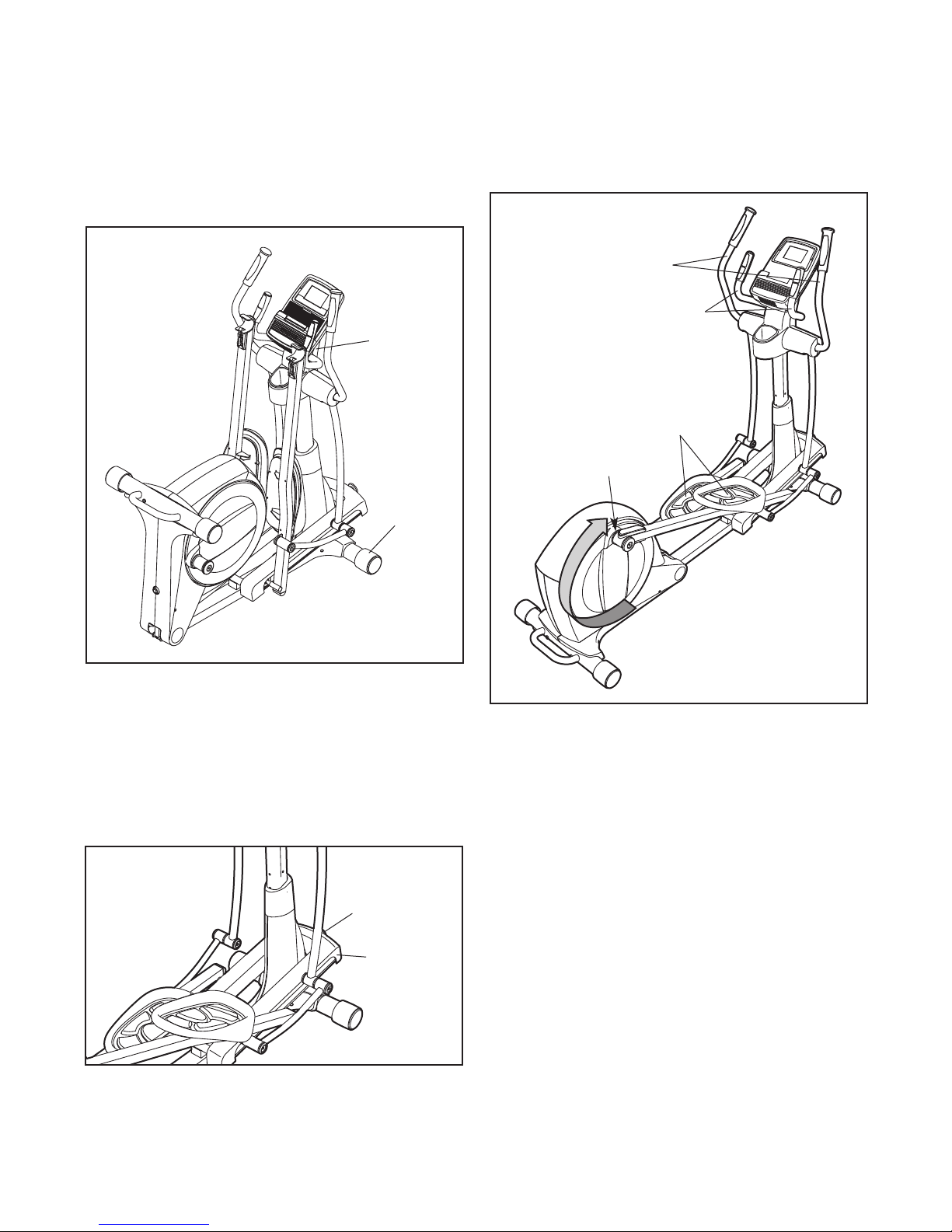

9. Orient the Ramp Cover (131) around the
Upright (5) as shown.
Press the tabs on the Ramp Cover (131) into
the Ramp (130).
9
131
130
5
95
43
56
6
114
137
137
Grease

11
12
11
9
7
6
8
102
102
103
11. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 4 on page 7. Tighten the M8 x
16mm Patch Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
12. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right
Handlebar (10) near the right side of the Upright
(5).
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Patch Screws (102)
and two M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.
102
103
105
105
10
11
5
Avoid pinching the
Pulse Wires (105)
27
21, 22

12
13
14
14. Untie and discard the wire tie attached to the
Main Wire (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Main Wire (60) and to the Pulse
Wires (105).
Insert the excess wire downward into the
Upright (5) or upward into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
19mm Screws (123).
105
5
60
25
123
5
13. Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the
Upright (5) with four M4 x 19mm Screws (123).
Avoid pinching
the wires
33
123

13
17. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
24
25
15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
5
15
139
138
16. Plug the Power Adapter (138) into the Power
Receptacle (135).
If necessary, plug the Power Adapter (138) into
the Plug Adapter (139).
To plug the Power Adapter (138) into an outlet,
see HOW TO PLUG IN THE POWER
ADAPTER on page 14.
135
16

14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before plugging in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on
the frame of the
elliptical. Next,
plug the power
adapter into the
plug adapter.
Then, plug the
plug adapter into
an appropriate
outlet that is properly installed in accordance with all
local codes and ordinances.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the level-
ing feet beneath
the rear stabi-
lizer until the
rocking motion is
eliminated.
If the frame of
the elliptical
flexes during
use, turn the
center leveling
foot until the flex-
ing motion is
eliminated.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical
is not in use, the
frame can be
folded out of the
way. First, lift the
latch under each
pedal arm, and lift
the pedal arms off
the sleeves on the
crank arms.
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will
hold the pedal arms in place. Then, hold the handle
and lift the frame until it locks in a vertical position.
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the han-
dlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
Latch
Sleeve
Pedal Arm
Handle
Latch
Button
Pedal
Arm
Magnet
Leveling
Feet
Leveling
Foot
Power Adapter
Plug
Adapter

15
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described above.
Next, stand in front of the elliptical, hold the upright,
and place one foot against one of the wheels. Pull the
upright until the elliptical rolls on the wheels. With the
help of a second person, carefully move the elliptical
to the desired location, and then lower it to the floor.
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
incline of the ramp. To change the incline, pull the
ramp knob outward, raise or lower the ramp, and
engage the ramp pin into one of the adjustment holes
in the front of the frame.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Upper Body Arms
Handlebars
Pedals
Crank Arm
Pull on
the upright
Place
your foot
here
Ramp
nob
Ramp

16
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will dis-
play continuous exercise feedback. You can also
measure your heart rate using the handgrip pulse sen-
sor or the optional chest pulse sensor.
The console also offers eighteen preset workouts—ten
weight loss workouts and eight timed workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to vary your pedaling pace as
it guides you through an effective workout.
The console also features an iFit training mode that
allows you to connect to your wireless network
through an iFit Live module. The optional iFit Live
module allows you to download personalized workouts
and to track and analyze workout information on the
iFit Live website. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To activate the console, see page 17. To use the
manual mode, see page 17. To use a preset work-
out, see page 18. To use the iFit training mode, see
page 20. To use the sound system, see page 20. To
use the information mode, see page 20.
Note: If there is a sheet of plastic on the display,
remove the plastic.

17
HOW TO ACTIVATE THE CONSOLE
The included power adapter must be used to operate
the elliptical. See HOW TO PLUG IN THE POWER
ADAPTER on page 14. When the power adapter is
plugged in, the displays will light and the console will
be ready for use.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, a tone
will sound and the console will pause.
If the pedals do not move for several minutes and the
buttons are not pressed, the console will turn off and
the display will be reset.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the elliptical may wear
prematurely.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE above.
2. Select the manual mode.
Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
increase and decrease
buttons next to the Enter
button and highlight
START. Then, press the
Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
3. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals
by pressing the Digital Resistance increase and
decrease buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels
for the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor or
the optional chest pulse sensor (see step 5 on
page 18).
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
RPM—This display mode will show your pedaling
pace, in revolutions per minute (rpm).
Strides—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, the display mode will show
the time remaining in the workout instead of the
elapsed time.
Change the volume level of the console by press-
ing the Volume increase and decrease buttons.

18
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip pulse sensor or the optional chest pulse
sensor (see page 21 for information about the
optional chest pulse sensor).
Note: If you hold the handgrip pulse sensor
and wear the chest pulse sensor at the same
time, the console will not display your heart
rate accurately.
If there are sheets of
plastic on the metal
contacts on the hand-
grip pulse sensor,
remove the plastic. To
measure your heart
rate, hold the handgrip
pulse sensor with your
palms resting against
the metal contacts.
Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Press the Coolaire Fan button repeatedly to turn
on or to turn off the fan.
7. When you are finished using the elliptical, the
console will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 17.
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE on page
17.
2. Select a preset workout.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
To select a preset work-
out, first press the
increase and decrease
buttons next to the Enter
button and highlight
WOR OUTS. Then,
press the Enter button.
Next, press the increase and decrease buttons to
highlight the desired workout category. Then,
press the Enter button.
You can also press the Workouts button repeat-
edly to select a workout category or the manual
mode.
Press the increase and decrease buttons to high-
light the desired workout subcategory. Then, press
the Enter button.
Press the increase and decrease buttons to high-
light the name of the desired workout. The
duration, the maximum rpm (pedaling pace), the
maximum resistance level, and a profile of the
resistance levels of the workout will appear in the
right side of the display. Then, press the Enter
button.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target rpm
(pedaling pace) are programmed for each seg-
ment. Note: The same resistance level and/or
target rpm may be programmed for consecutive
segments.
Contacts

19
The workout profile will
show your progress.
The flashing segment of
the profile represents
the current segment of
the workout. The height
of the flashing segment
indicates the resistance level for the current
segment.
When the first segment of the workout ends, the
resistance level and the target rpm for the second
segment will appear in the display for a few sec-
onds to alert you. The next segment of the profile
will begin to flash, and the pedals will automati-
cally adjust to the resistance level for the next
segment.
As you exercise, you will be prompted to keep
your pedaling pace (rpm) near the target rpm for
the current segment. When the word FASTER
appears in the display, increase your pedaling
pace. When the word SLOWER appears,
decrease your pedaling pace. When no words
appear, maintain your current pedaling pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling pace
(rpm) may be slower than the target rpm. Make
sure to pedal at a pace that is comfortable for
you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Digital Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next
segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. Turn on the fan if desired.
See step 6 on page 18.
7. When you are finished using the elliptical, the
console will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 17.
Current Segment

20
HOW TO USE THE IFIT TRAINING MODE
The optional iFit Live module allows your console to
communicate with your wireless network and unlocks
exciting new features. For example, you can download
personalized workouts, create your own workouts,
track your workout results, and access many other
features on the iFit Live website. To purchase an iFit
Live module at any time, go to www.iFit.com or
call the telephone number on the front cover of
this manual.
To select the iFit training mode, insert the iFit Live
module into the console. Press the Menu button and
then press the increase and decrease buttons next to
the Enter button and highlight IFIT TRAINING. Then,
press the Enter button.
For more information about the iFit training mode, go
to www.iFit.com. Note: To use the iFit Live module,
you must have access to a computer with an internet
connection and a USB port. You must also have your
own wireless network including an 802.11b router with
SSID broadcast enabled (hidden networks are not
supported). You will also need an iFit.com member-
ship.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the side of the console
and into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player or press the
Volume increase and decrease buttons on the console
(see the drawing on page 16).
HOW TO USE THE INFORMATION MODE
The console features an information mode that allows
you to view usage information, select a unit of mea-
surement for the iFit Live workouts, and to adjust the
contrast level of the displays.
When an iFit Live module is connected to the console,
you can also use the information mode to choose an
audio setting for the voice of the personal trainer,
check the status of the iFit Live module, and check for
downloads.
1. Select the information mode.
To select the information
mode, press and hold
down the Display button
for a few seconds until
the information mode
appears in the display.
2. View usage information.
The display will show the total distance that has
been pedaled on the elliptical. The display will also
show the total number of hours that the elliptical
has been used.
3. Select a unit of measurement if desired.
Note: Some iFit Live workouts will display the dis-
tance in miles or kilometers.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display to indicate the currently selected unit of
measurement.
To change the unit of measurement, press the
increase and decrease buttons until the bullet
appears next to the word UNITS. Then, press the
Enter button repeatedly to select the desired unit
of measurement.
