NordicTrack NTB49030 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this
manual for future reference.
Model No. NTB49030
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
(Behind Backrest)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Patent Pending

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly.
NordicTrack is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
The decal shown here has
been placed on the weight
rack. If the decal is missing or
illegible, please call our
Customer Service Department
toll-free at 1-888-825-2588,
Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time, to
order a free replacement
decal. Apply the decal in the
location shown.

1. Read all instructions in this manual before
using the weight rack. Use the weight rack
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight rack are ade-
quately informed of all precautions.
3. The weight rack is intended for home use
only. Do not use the weight rack in any com-
mercial, rental, or institutional setting.
4. Use the weight rack only on a level surface.
Cover the floor beneath the weight rack to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight rack is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight rack at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. Always set both weight rests at the same
height.
10. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
11. The weight rack is designed to support a
maximum user weight of 300 pounds, and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight car-
riage. Note: The weight rack is designed to
be used with an Olympic barbell. The weight
rack does not include a barbell or weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
14.
Always exercise with a partner. Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight rack.
IMPORTANT PRECAUTIONS
3

4
Safety Spotter
High Cable
Low Cable
Butterfly Arm
Weight Carriage
Right Side
Left Side
Note: The terms “right side” and “left
side” are determined relative to a person
facing away from the weight rack; they
do not correspond to right and left on the
drawings in the manual.
Weight Rest
Backrest
BEFORE YOU BEGIN
Thank you for selecting the NordicTrack®STRENGTH
PERFORMANCE SYSTEM weight rack. The weight
rack offers a selection of weight stations designed to
develop every major muscle group of the body.
Whether your goal is to tone your body, build dramatic
muscle size and strength, or improve your cardiovas-
cular system, the weight rack will help you to achieve
the specific results you want.
For your benefit, read this manual carefully before
using the weight rack attachment. If you have addi-
tional questions, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number is NTB49030. The serial
number can be found on a decal attached to the weight
rack (see the front cover of this manual).

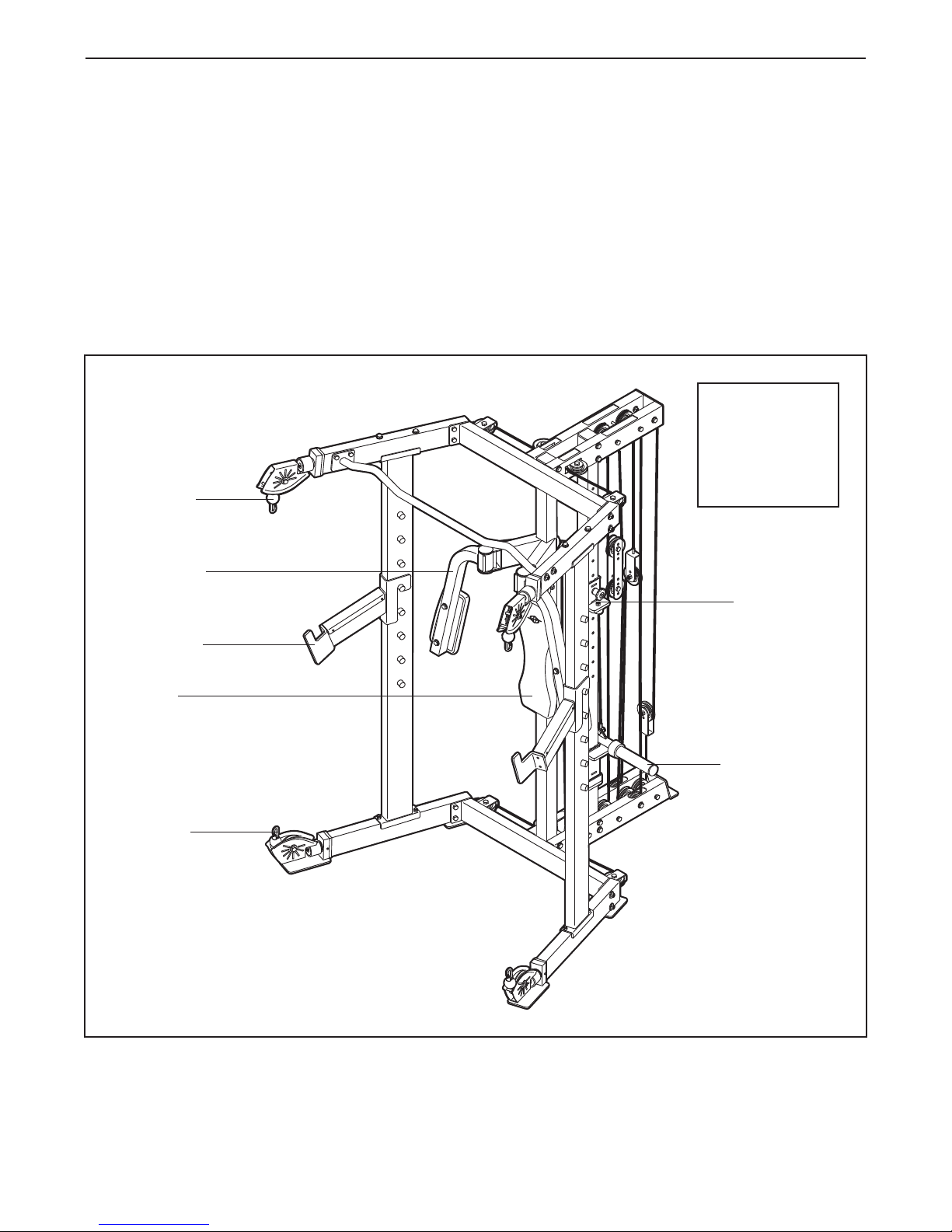

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED
DIMENSIONS:
Height: 85 in.
Width: 60 in.
Length: 68 in.

1
5
92
Warning
Decal
72
62
65
65
1
6
77

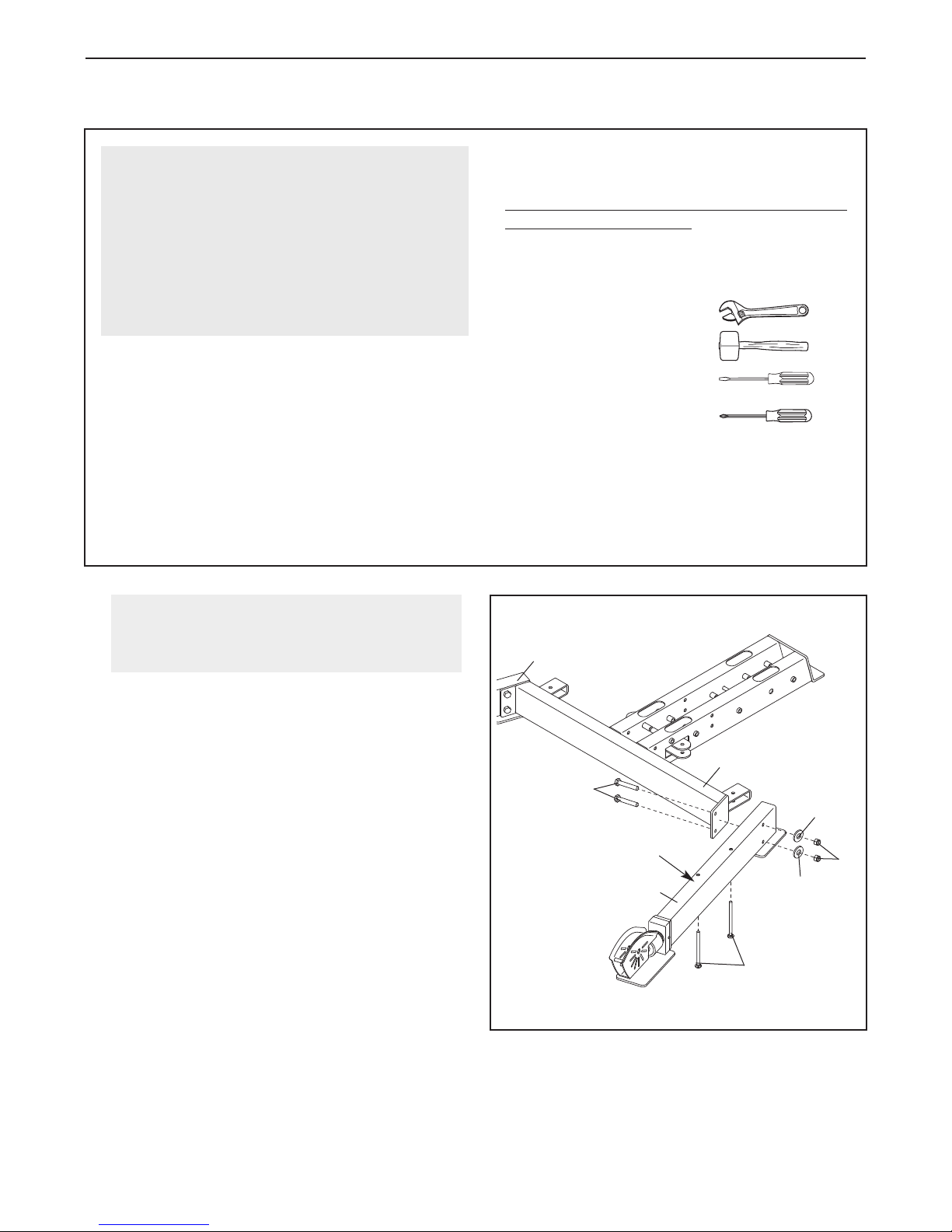

Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight rack can be assembled success-
fully by anyone. However, it is important to real-
ize that the versatile weight rack has many parts
and that the assembly process will take time.
Most people find that by setting aside plenty of
time, assembly will go smoothly.
ASSEMBLY
1.
Insert two M10 x 118mm Carriage Bolts (72) up
through the Left Stabilizer (92), which has a warn-
ing decal in the indicated location. Note: It may
be helpful to place tape over the heads of the
Carriage Bolts to hold them in place.
Attach the Left Stabilizer (92) to the Base (1) with
two M10 x 70mm Button Bolts (77), two M10
Washers (65), and two M10 Nylon Locknuts (62).
Do not tighten the Locknuts yet.
Repeat this step with the Right Stabilizer (6).
Before beginning assembly, make sure you
understand the information in the box
above.

6

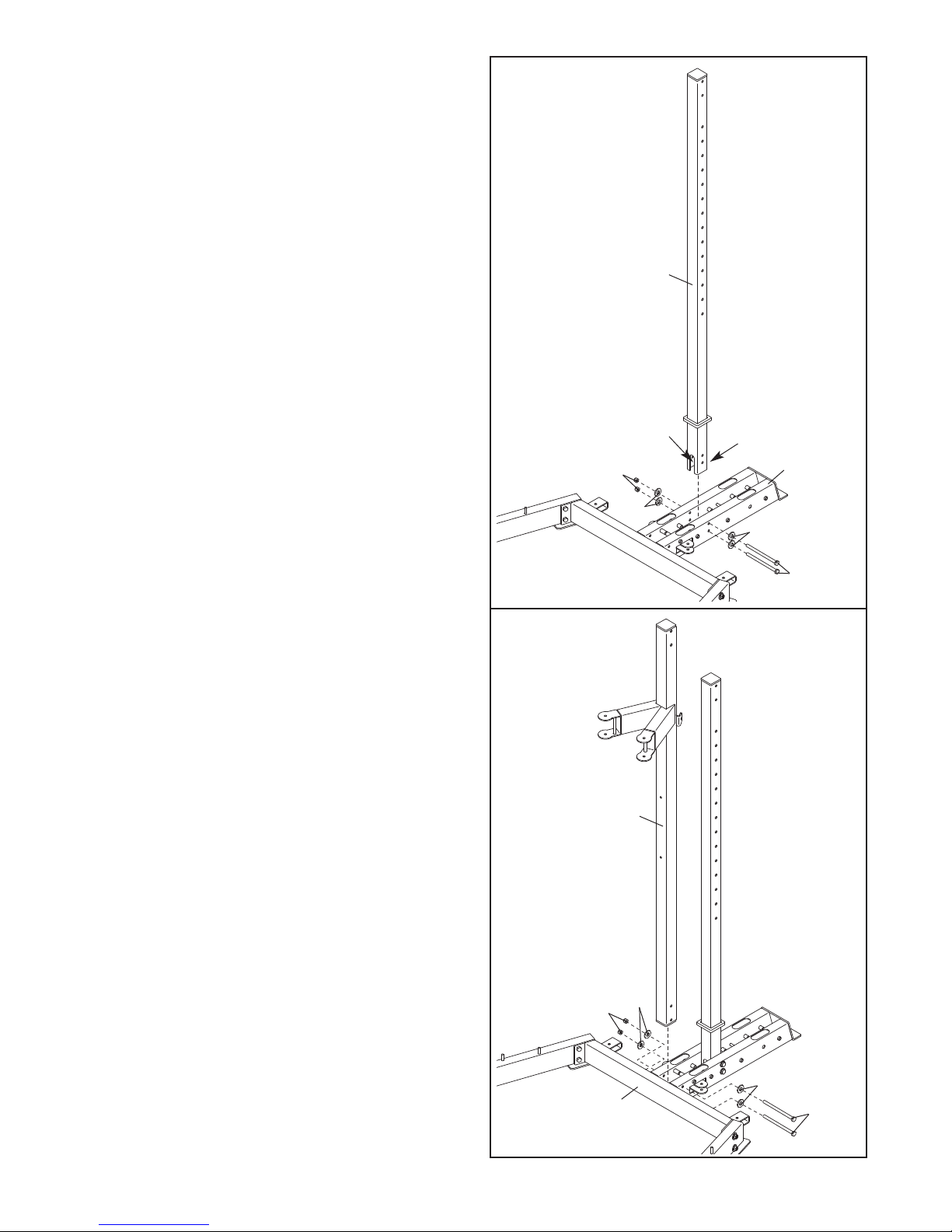

2. Attach the Rear Upright (4) to the Base (1) with
two M10 x 178mm Button Bolts (78), four M10
Washers (65), and two M10 Nylon Locknuts (62).
Make sure the large slot in the Upright is on
the indicated side. Do not tighten the
Locknuts yet.
3. Attach the Center Upright (3) to the Base (1) with
two M10 x 178mm Button Bolts (78), four M10
Washers (65), and two M10 Nylon Locknuts (62).
Do not tighten the Locknuts yet.
2
4
1
62
3
3
62 65
65
78
1
78
Large
Slot Small
Slot
65
65

7

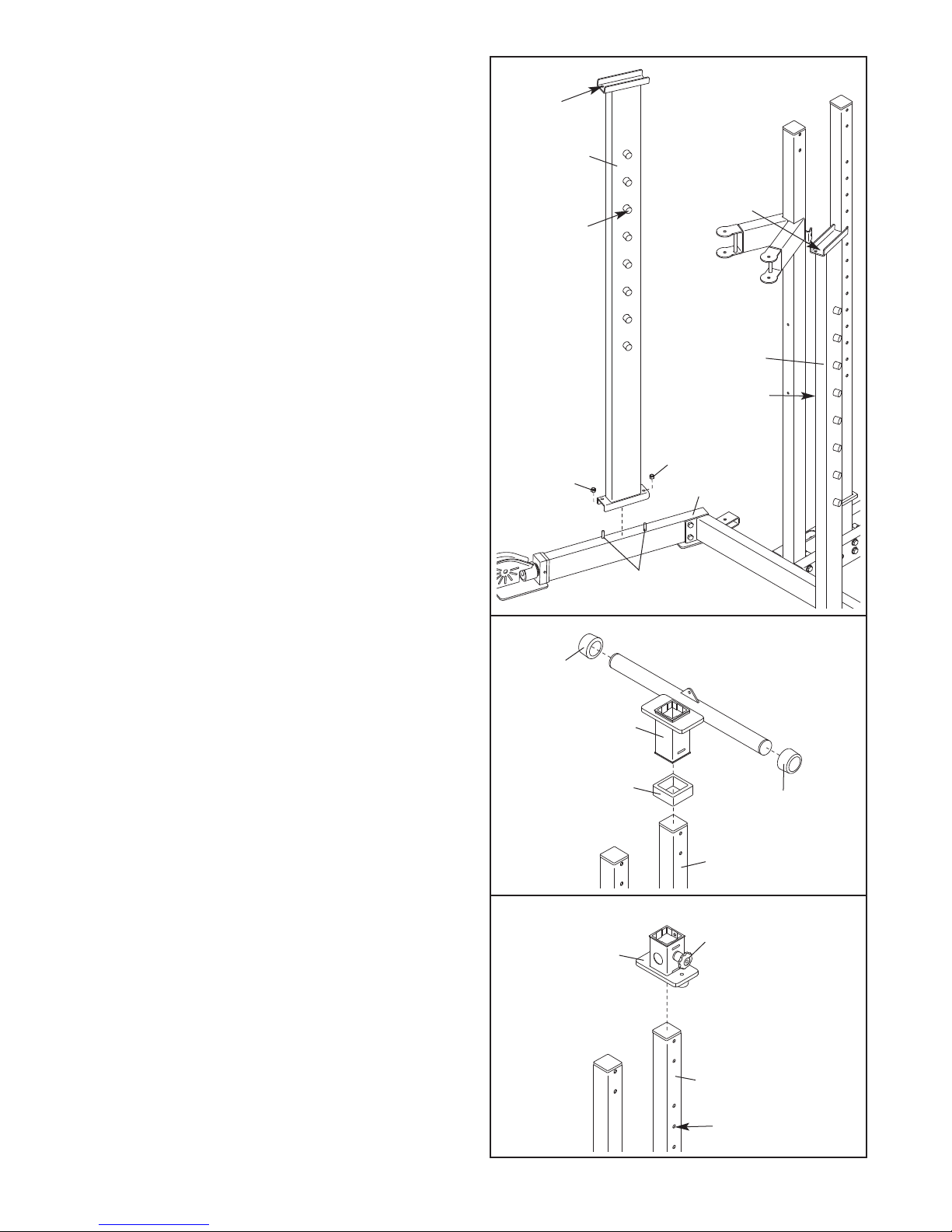

4. Identify the Right and Left Uprights (5, 85) by the
location of the numbers and the high side of the
Upright.
Orient the Right Upright (5) as shown and attach
it to the Right Stabilizer (6) with the two M10 x
118mm Carriage Bolts (72) and two M10 Nylon
Locknuts (62). Do not tighten the Locknuts yet.
Attach the Left Upright (85) to the Left
Stabilizer (not shown) in the same manner.
5. Slide two Weight Stops (36) onto the Weight
Carriage (12).
Slide the Carriage Stop (13) and the Weight
Carriage (12) onto the Rear Upright (4) as shown.
6. Pull the Pop Pin (61) out as far as it will go and
slide the Safety Spotter (11) onto the Rear
Upright (4). Engage the Pop Pin into an adjust-
ment hole in the Upright.
4
5
85
Numbers
High
Side
High
Side
Numbers
5
12
36
13
4
36
6
61
11
4
Adjustment
Hole
62
62
6
72

8
7. Attach the Center Top Frame (2) to the Rear
Upright (4) with two M10 x 178mm Button Bolts
(78), four M10 Washers (65), and two M10 Nylon
Locknuts (62). Do not tighten the Locknuts yet.
Attach the Center Top Frame (2) to the Center
Upright (3) in the same manner.
9. Orient the Chin-up Bar (10) as shown. Attach the
Chin-up Bar to a Side Top Frame (7) with two
M10 x 70mm Button Bolts (77), two M10 Washers
(65), and two M10 Nylon Locknuts (62). Do not
tighten the Locknuts yet.
Attach the Chin-up Bar (10) to the other Side
Top Frame (7) in the same manner.
Tighten the M10 Nylon Locknuts (62) used in
steps 1–9.
8. Attach a Side Top Frame (7) to the Right Upright
(5) with two M10 x 120mm Button Bolts (71), two
M10 Washers (65), and two M10 Nylon Locknuts
(62). Do not tighten the Locknuts yet.
Attach the Side Top Frame (7) to the Center Top
Frame (2) with two M10 x 70mm Button Bolts
(77), two M10 Washers (65), and two M10 Nylon
Locknuts (62). Do not tighten the Locknuts yet.
Attach the other Side Top Frame (not shown)
to the Left Upright (not shown) and the Center
Top Frame (2) in the same manner.
7
62
62 65
65
2
78
78
62
65
3
4
65
8
7
71
65 65
62 62
2
77
5
9
65
77
7
10
62
7
62

9

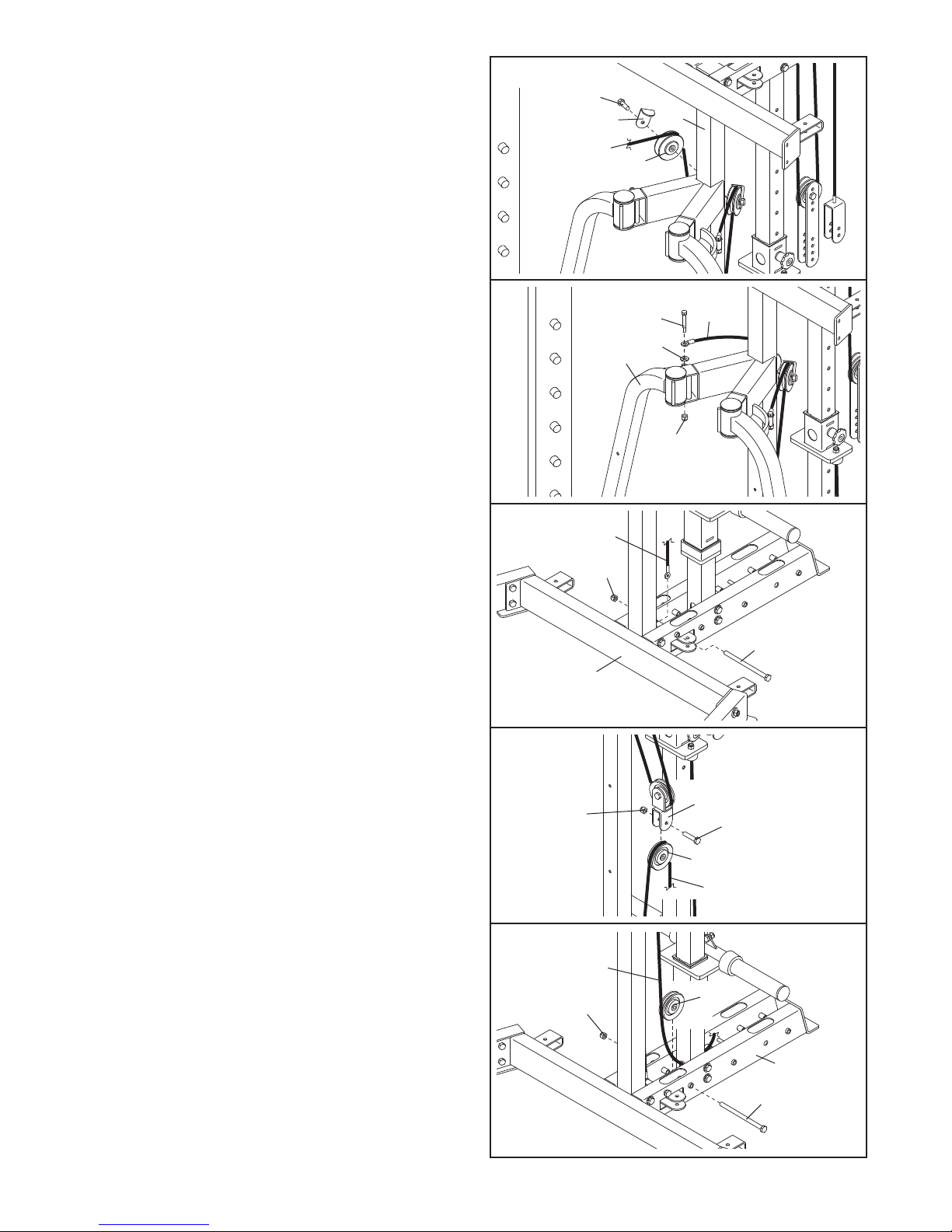

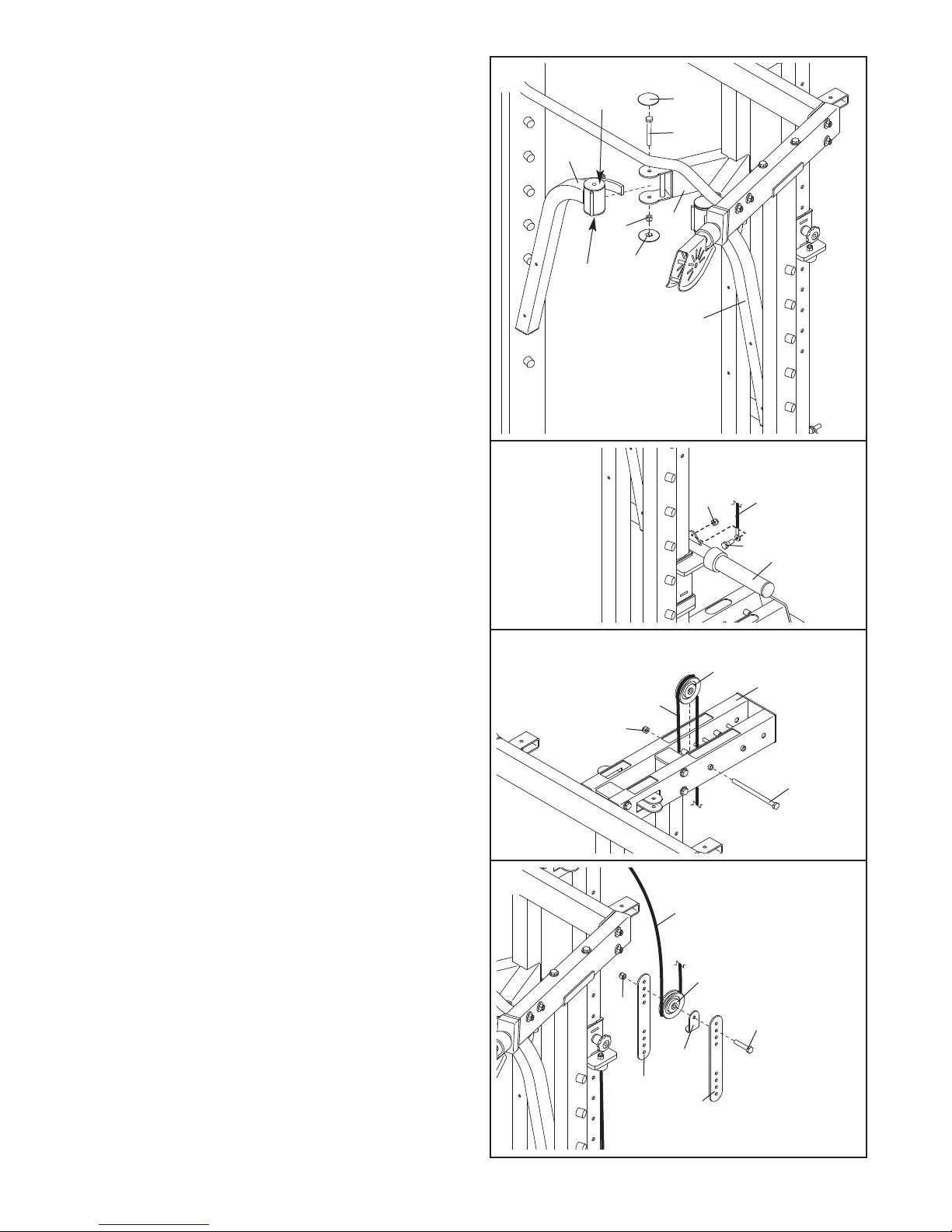

10. Grease an M10 x 112mm Bolt (76) and the Right
Butterfly Arm (8) in the indicated locations. Attach
the Arm to the Center Upright (3) with the Bolt, an
M10 Nylon Locknut (62), and two Butterfly Bolt
Caps (52). Do not overtighten the Locknut; the
Butterfly Arm must be able to pivot easily.
Repeat this step with the Left Butterfly Arm
(9).

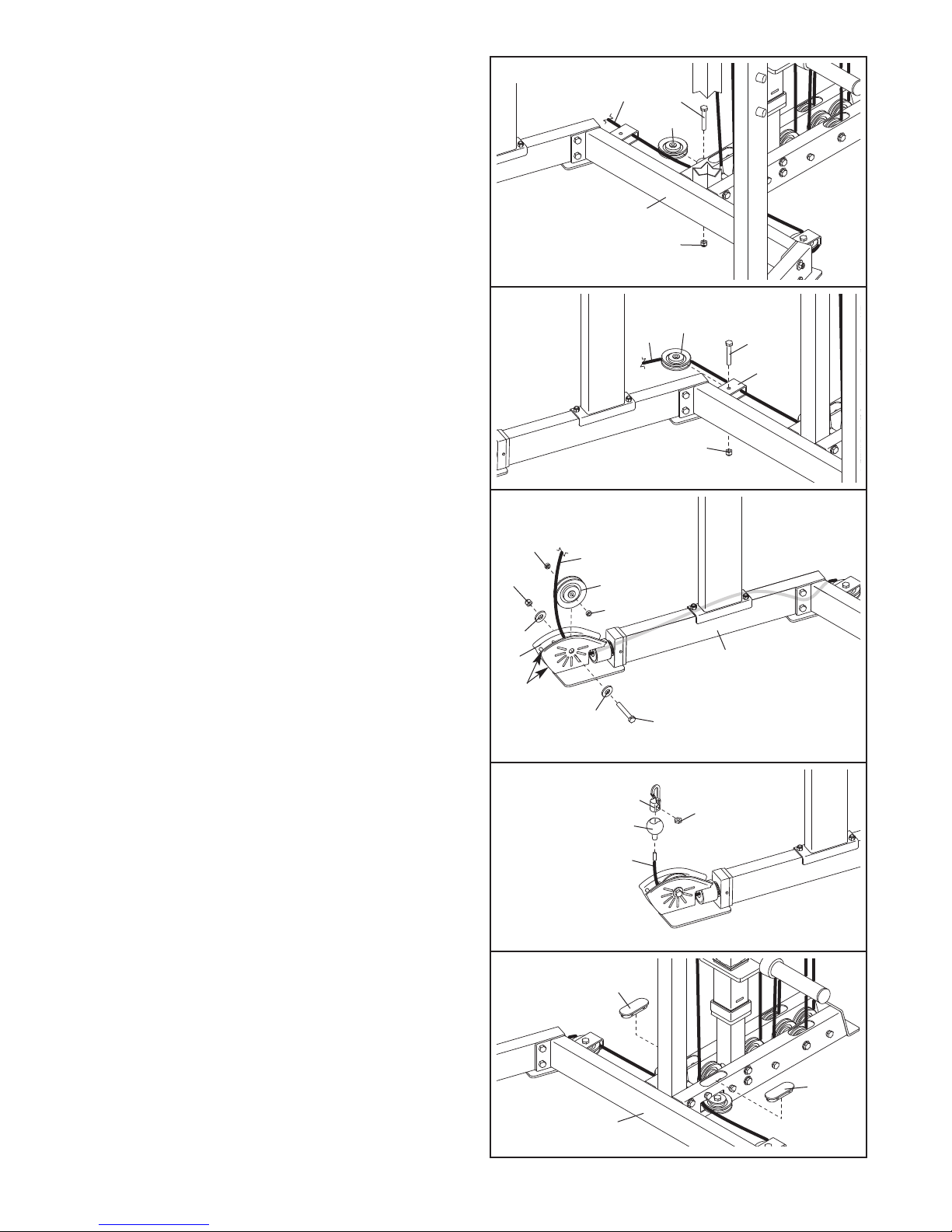

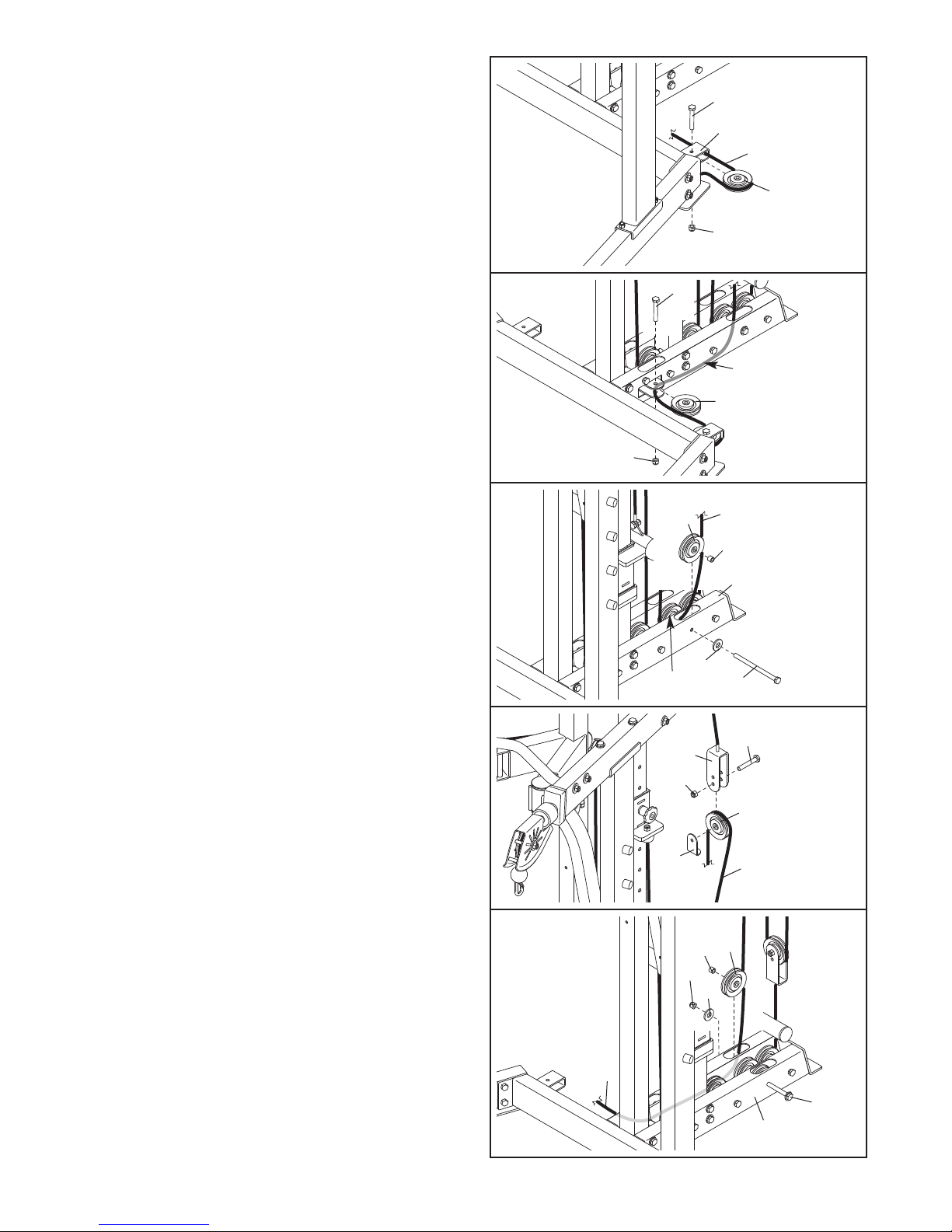

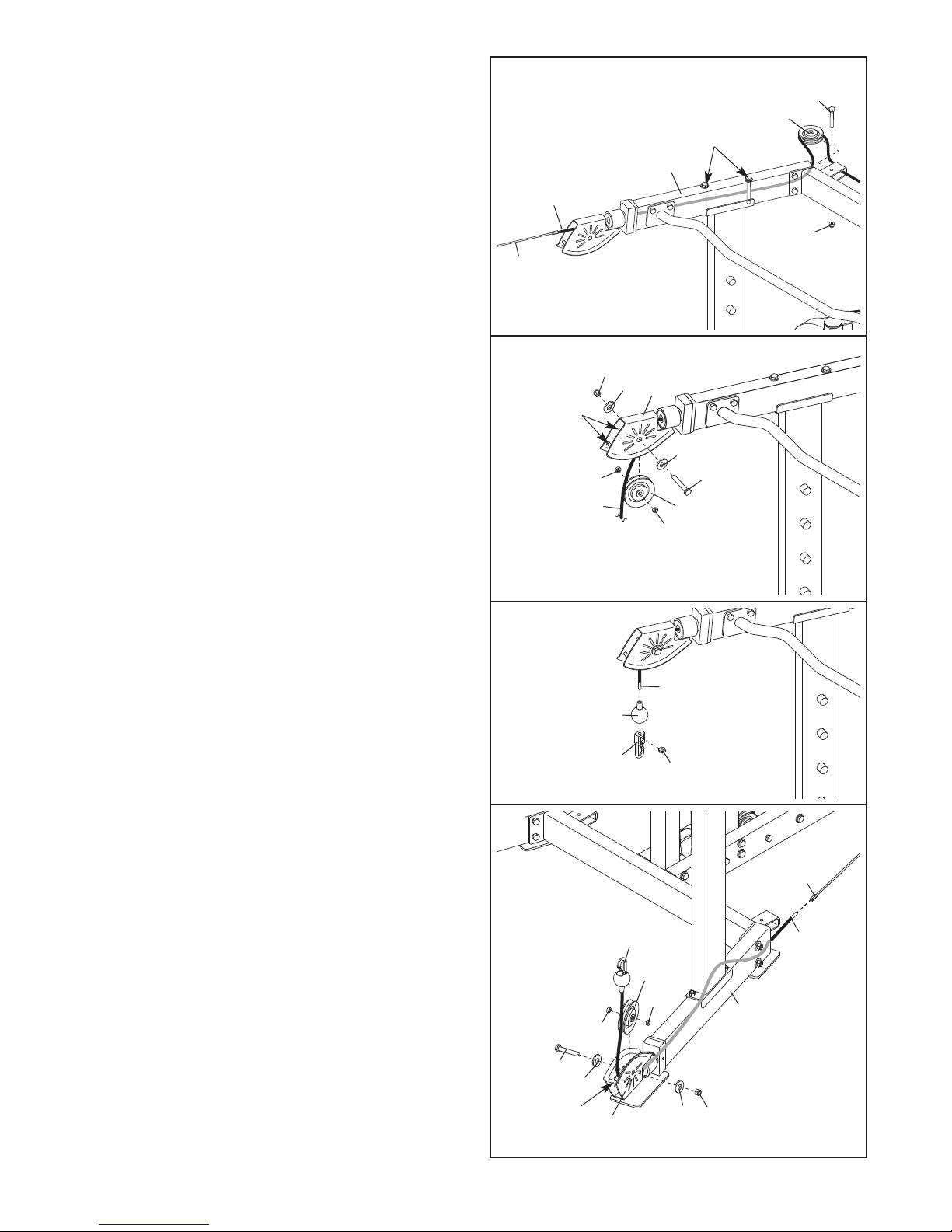

13. Wrap the Carriage Cable (56) under a 3 1/2”
Pulley (45). Attach the Pulley and a Short Cable
Trap (47) at the second set of holes from the top
of the two Pulley Plates (20) with an M10 x 54mm
Button Bolt (73) and an M10 Nylon Locknut (62).
Make sure the Cable Trap is oriented to hold
the Cable in the groove of the Pulley.
12. Wrap the Carriage Cable (56) over a 3 1/2” Pulley
(45). Attach the Pulley to the Center Top Frame
(2) with an M10 x 192mm Button Bolt (64) and an
M10 Nylon Locknut (62).
11. During steps 11–49, see the CABLE DIAGRAMS
on pages 21 and 22 of this manual to verify prop-
er cable routing and for cable identification.
Locate the Carriage Cable (56). Insert an M8 x
19mm Shoulder Bolt (80) through the eyelet on
the Cable and the Weight Carriage (12). Tighten
an M8 Nylon Locknut (82) onto the Bolt.
10
52
76
8
62
52
Grease
Grease
9
3
11
80 12
56
82
12
13
45
62
2
56
64
56
45
47
62
20
20
73

10
14. Wrap the Carriage Cable (56) over a 3 1/2” Pulley
(45). Attach the Pulley to the Center Top Frame
(2) with an M10 x 192mm Button Bolt (64) and an
M10 Nylon Locknut (62).
16. Locate the Butterfly Cable (53). Attach the
Cable to the Left Butterfly Arm (9) with an M8 x
45mm Shoulder Bolt (81), an M8 Washer (94),
and an M8 Nylon Locknut (82).
17. Wrap the Butterfly Cable (53) over a “V”-pulley
(46). Attach the “V”-pulley and a Long Cable Trap
(88) to the Center Upright (3) with an M10 x
58mm Button Bolt (75). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
18. Wrap the Butterfly Cable (53) under a 3 1/2”
Pulley (45). Attach the Pulley to the Double “U”-
bracket (21) with an M10 x 48mm Button Bolt
(74) and an M10 Nylon Locknut (62).
15. Attach the end of the Carriage Cable (56) to a
“U”-bracket (19) with an M6 Nylon Locknut (63).
Do not completely tighten the Locknut; it
should be tightened so that only two threads
of the Cable show past the Locknut, as shown
in the inset drawing.
14 45
62 2
56
64
15
63
63
19
56
56
16
53
81
82
94
9
17
3
53
46
88
75
18
45
62
21
74
53
19

11
19. Wrap the Butterfly Cable (53) over a “V”-pulley
(46). Attach the “V”-pulley and a Long Cable Trap
(88) to the Center Upright (3) with an M10 x
58mm Button Bolt (75). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
21. Locate the Base Cable (57). Attach the eyelet of
the Cable to the Base (1) with an M10 x 192mm
Button Bolt (64) and an M10 Nylon Locknut (62).
22. Wrap the Base Cable (57) over a 3 1/2” Pulley
(45). Attach the Pulley to the Double “U”-bracket
(21) with an M10 x 48mm Button Bolt (74) and an
M10 Nylon Locknut (62).
23. Wrap the Base Cable (57) under a 3 1/2” Pulley
(45). Attach the Pulley to the Base (1) with an
M10 x 192mm Button Bolt (64) and an M10 Nylon
Locknut (62).
20. Attach the Butterfly Cable (53) to the Right
Butterfly Arm (8) with an M8 x 45mm Shoulder
Bolt (81), an M8 Washer (94), and an M8 Nylon
Locknut (82).
19
75
20
81 53
8
82
94
21
22
23
62
64
1
62 21
74
45
45
57
57
62
64
57
88 3
53 46
1

12
24. Route the Base Cable (57) under the Rear
Upright (4) and a 3 1/2” Pulley (45). Attach the
Pulley to the Base (1) with an M10 x 192mm
Button Bolt (64) and an M10 Nylon Locknut (62).
26. Wrap the Base Cable (57) under a 3 1/2” Pulley
(45). Attach the Pulley to the Base (1) with an
M10 x 178mm Button Bolt (78) and an M10
Washer (65). Note: A nylon locknut will be
attached to the Bolt in step 45.
27. Wrap the Base Cable (57) under a 3 1/2” Pulley
(45). Attach the Pulley to the Base (1) with an
M10 x 192mm Button Bolt (64) and an M10 Nylon
Locknut (62).
28. Attach the end of the Base Cable (57) to a “U”-
bracket (19) with an M6 Nylon Locknut (63). Do
not completely tighten the Locknut; it should
be tightened so that only two threads of the
Cable show past the Locknut, as shown in the
inset drawing.
25. Wrap the Base Cable (57) over a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the second set of holes from the bottom of
the two Pulley Plates (20) with an M10 x 54mm
Button Bolt (73) and an M10 Nylon Locknut (62).
Make sure the Cable Trap is oriented to hold
the Cable in the groove of the Pulley.
24
45
57
62
4
64
25
62
73
45
47
57
26
27
28
45
45
57
65
62
63 63
19
19
57
57
78
64
1
57
1
20
1

13
29. Route the Cable Tool (27) through the indicated
Side Top Frame (7). Make sure that the Cable
Tool is routed around the bolts in the Top
Frame as indicated; if the High Cable (54) rubs
against a bolt, damage may occur.
Locate the High Cable (54). Thread the end of
the Cable without the Clip (42) into the Cable Tool
(27). Make sure the Cable is inside of the indi-
cated rods on the Swivel Arm (14).
Pull the High Cable (54) through the Side Top
Frame (7) and remove it from the Cable Tool (27).
31. Route the High Cable (54) around a 3 1/2” Pulley
(45) and through the bracket on the Center Top
Frame (2). Attach the Pulley inside the bracket
with an M10 x 48mm Button Bolt (74) and an M10
Nylon Locknut (62).
32. Route the High Cable (54) around a 3 1/2” Pulley
(45) and through the indicated tube on the Center
Top Frame (2). Make sure the Cable is routed
over the bolts as indicated.
Attach the 3 1/2” Pulley (45) to Center Top Frame
(2) with an M10 x 48mm Button Bolt (74) and an
M10 Nylon Locknut (62).
30. Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the High
Cable (54) rests in the groove of the Pulley.
29
7
27
54
42
Rod
Rod
Cable Tool
Path
30
73
65
14
14
65 62
48
48
54 89
31
32
74
262
54
45
45 Cable
Path
54
74
2
62

14
33. Wrap the High Cable (54) over a 3 1/2” Pulley
(45). Attach the Pulley inside the Center Top
Frame (2) with an M10 x 65mm Button Bolt (86),
two M10 Washers (65), two 12mm Spacers (49),
and an M10 Nylon Locknut (62).
35. Route the High Cable (54) up through the indicat-
ed tube on the Center Top Frame (2). Make sure
the Cable is routed over the bolts in the
Center Top Frame in the manner shown in
step 32.
Attach a 3 1/2” Pulley (45) inside the Center Top
Frame (2), under the High Cable (54), with an
M10 x 65mm Button Bolt (86), two M10 Washers
(65), two 12mm Spacers (49), and an M10 Nylon
Locknut (62). Make sure the Cable rests in the
groove of the Pulley.
36. Attach a 3 1/2” Pulley (45) to the Center Top
Frame (2) with an M10 x 48mm Button Bolt (74)
and an M10 Nylon Locknut (62). Make sure the
High Cable (54) rests in the groove of the
Pulley.
Route the High Cable (54) through the bracket on
the Center Top Frame (2).
34. Wrap the High Cable (54) under a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the top hole in the indicated “U”-bracket
(19) with an M10 x 54mm Button Bolt (73) and an
M10 Nylon Locknut (62). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
33
62 65
65 86
49
49
54
45
2
34
35
36
62
47
19
73
45
54
62
65
65
54
49
49
45
2
86
45
54 74
62
2
Bracket

15
37. Thread the end of the High Cable (54) into the
Cable Tool (27). Route the Cable Tool and Cable
through the Side Top Frame (7). Make sure that
the Cable Tool is routed through the bolts in
the Top Frame as indicated; if the High Cable
rubs against a bolt, damage may occur.
Remove the Cable Tool from the Cable.
Hold a 3 1/2” Pulley (45) inside the High Cable
(54) as shown. Attach the Pulley inside the brack-
et on the Center Top Frame (2) with an M10 x
48mm Button Bolt (74) and an M10 Nylon
Locknut (62).
39. Slide a Clip Cover (43) onto the High Cable (54).
Hold an M6 Nylon Locknut (63) inside a Clip (42),
and insert the High Cable (54) into the Clip and
the Locknut. Insert a screwdriver between the
Locknut and the Clip. Rotate the screwdriver, the
Clip, and the Locknut together until two threads of
the Cable show past the Locknut.
Slide the Clip Cover (43) over the Clip (42).
40. Route the Cable Tool (27) through the Left
Stabilizer (92). Make sure that the Cable Tool is
routed around the bolts in the Stabilizer as
indicated; if the Low Cable (55) rubs against a
bolt, damage may occur.
Locate the Low Cable (55). Thread the end of
the Cable without the Clip (42) into the Cable Tool
(27). Make sure the Cable is inside the indicat-
ed rod on the Swivel Arm (14). Pull the Cable
through the Left Stabilizer (92). Remove the
Cable from the Cable Tool.
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the Low
Cable rests in the groove of the Pulley.
37
38
39
40
54
7
Between
Bolts
45
74
62
27
Rods
62 65 14
65
73
48
48
54 89
63
27
55
92
62
65
65
Rod
73
48
14
48
89
42
42
43
54
38. Make sure the High Cable (54) is routed under
the indicated rods on the Swivel Arm (14).
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the High
Cable (54) rests in the groove of the Pulley.

16
41. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Attach the Pulley inside the bracket with an M10
x 48mm Button Bolt (74) and an M10 Nylon
Locknut (62).
43. Wrap the Low Cable (55) under a 3 1/2” Pulley
(45). Attach the Pulley inside the Base (1) with
the M10 x 178mm Button Bolt (78) and the M10
Washer (65) used in step 26, and a 12mm
Spacer (49). Make sure the 3 1/2” Pulley (45)
attached in step 26 is reattached to the Base
as shown in step 26.
44. Wrap the Low Cable (55) over a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the bottom hole in the indicated “U”-brack-
et (19) with an M10 x 54mm Button Bolt (73) and
an M10 Nylon Locknut (62). Make sure the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
45. Route the Low Cable (55) through the Base (1) in
the manner shown in step 42. Make sure the
Cable is routed under the bolts in the Base
(1).
Hold a 3 1/2” Pulley (45) over the Low Cable (55).
Attach the Pulley inside the Base (1) with the
M10 x 178mm Button Bolt (78) used in step 43, a
12mm Spacer (49), an M10 Washer (65), and an
M10 Nylon Locknut (62).
41
42. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Make sure the Cable is routed under the bolts
in the Base. Attach the Pulley inside the bracket
with an M10 x 48mm Button Bolt (74) and an M10
Nylon Locknut (62).
42
43
44
45
74
1
55
45
62
62
45
Cable Path
74
55
49
1
65
45 78
45
19 73
47
45
55
62
78
1
62
49 45
65
55

17
46. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Attach the Pulley inside the Base with an M10 x
48mm Button Bolt (74) and an M10 Nylon
Locknut (62). Make sure the Cable is in the
groove of the Pulley.
48. Thread the end of the Low Cable (55) into the
Cable Tool (not shown). Route the Cable Tool and
Cable through the Right Stabilizer (6). Make sure
that the Cable Tool is routed around the bolts
in the Stabilizer as indicated; if the Cable rubs
against a bolt, damage may occur. Remove the
Cable from the Cable Tool. Make sure the Low
Cable is routed over the rods on the Swivel
Arm (14).
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the Low
Cable (55) rests in the groove of the Pulley.
49. Slide a Clip Cover (43) onto the Low Cable (55).
Hold an M6 Nylon Locknut (63) inside a Clip (42),
and insert the Low Cable (55) into the Clip and
the Locknut. Insert a screwdriver between the
Locknut and the Clip. Rotate the screwdriver, the
Clip, and the Locknut together until two threads of
the Cable show past the Locknut.
Slide the Clip Cover (43) over the Clip (42).
50. Press two Oval Caps (32) into the Base (1).
47. Wrap the Low Cable (55) around a 3 1/2” Pulley
(45). Attach the Pulley inside the bracket on the
Stabilizer (1) with an M10 x 48mm Button Bolt
(74) and an M10 Nylon Locknut (62).
46
47
62
62
45
55
1
1
62
74
45
55
48
49
50
73
62
48
48
55
89
65
63
42
43
55
65
Rods
14 6
32
32
1

18

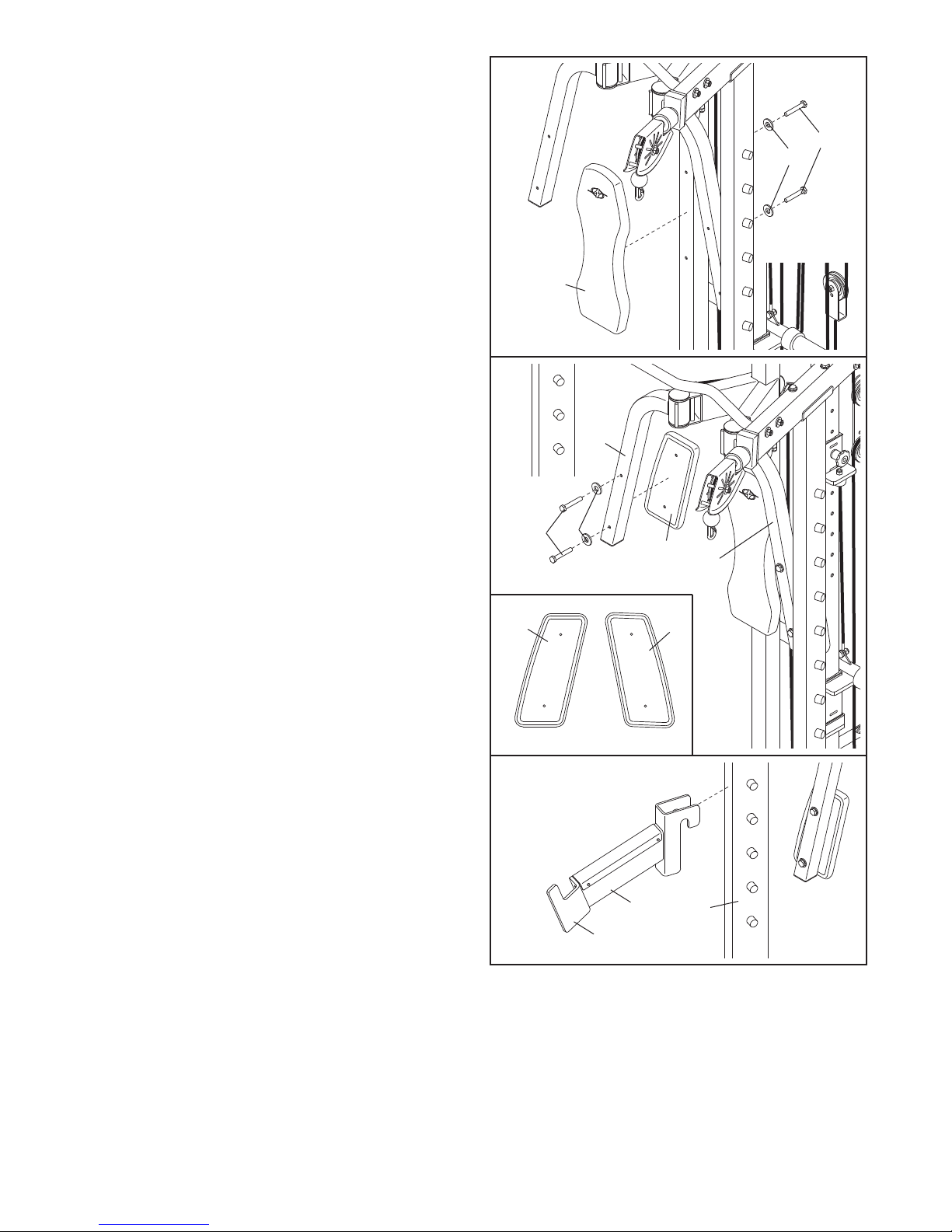

51. Attach the Backrest (60) to the Center Upright (3)
with two M6 x 70mm Screws (69) and two M6
Washers (66).
53. Locate the Weight Rest (15) with the Right
Weight Rest Hook (17) attached to it. Set the
hooks on the Weight Rest over a set of knobs on
the Right Upright (5).
Repeat this step with the other Weight Rest
(not shown). Always set both Weight Rests
(15) at the same height.
52. Identify the Right Butterfly Pad (58) (see the inset
drawing). Attach the Pad to the Right Butterfly
Arm (8) with two M6 x 63mm Button Bolts (68)
and two M6 Washers (66).
Attach the Left Butterfly Pad (59) to the Left
Butterfly Arm (9) in the same manner.
51
60
66 69
52
53
68 66
8
58 9
58
15
17
5
59
54. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the weight rack, pull each cable a few times to make sure that the cables move smoothly over
the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the
cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAMS on pages 21 and 22 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING AND
MAINTENANCE on page 23.

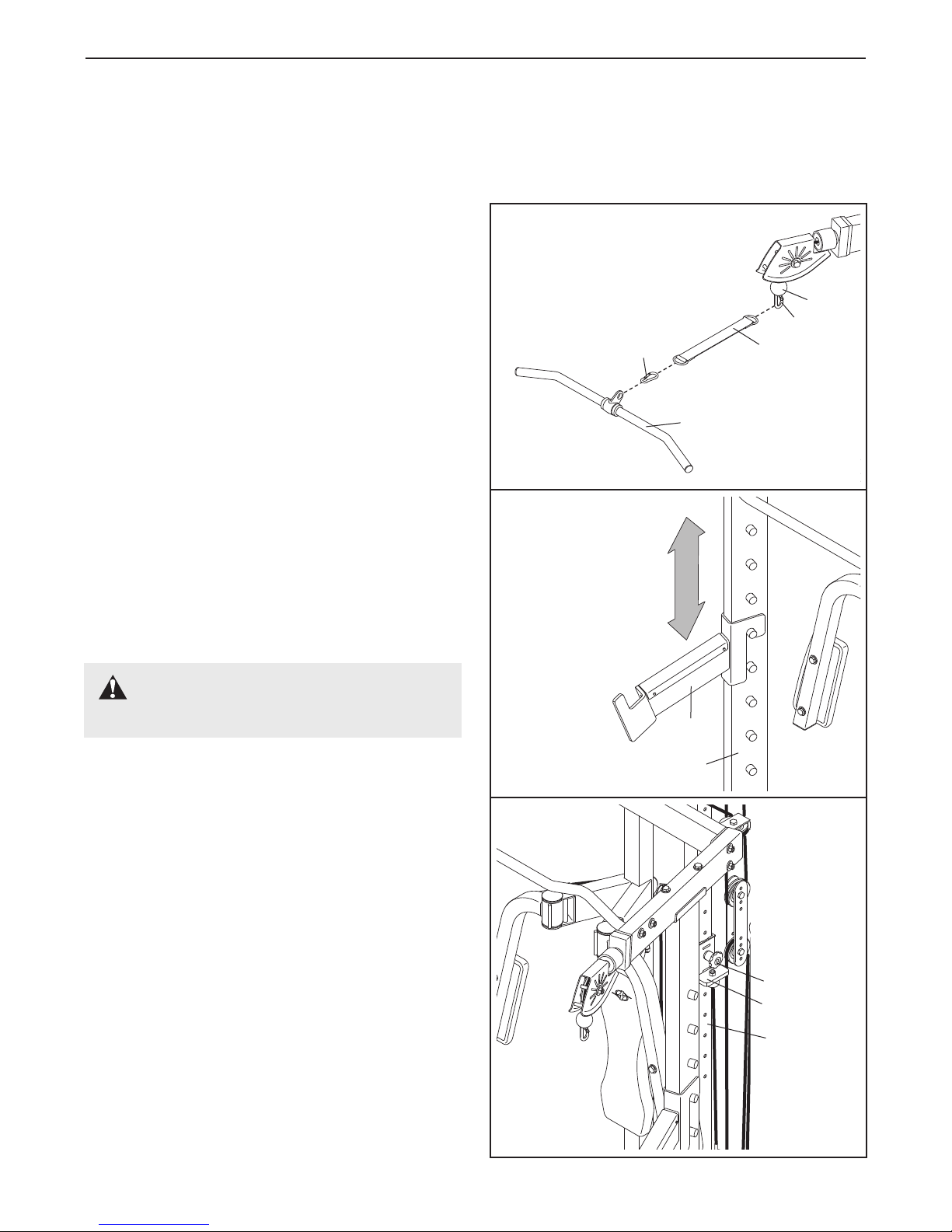

ATTACHING ACCESSORIES
The Curl Bar (22) can be attached to a Clip (42). For
some exercises, the 12” Extension Strap (31) should
be attached between the Clip and the Curl Bar with a
Cable Clip (26).
The Curl Bar and the other accessories can be
attached to the High Cable (54) or the Low Cable (not
shown) in the same manner.
This section explains how to adjust the weight rack. Make sure all parts are properly tightened each time the
weight rack is used. Replace any worn parts immediately. The weight rack can be cleaned with a damp cloth and a
mild, non-abrasive detergent. Do not use solvents.
19
ADJUSTMENTS
31
26
22
42
54
ADJUSTING THE WEIGHT RESTS
Before performing an exercise that uses a barbell (not
included), adjust the Weight Rests (15) to a comfort-
able height for lifting and replacing the barbell. To
move the Weight Rests, lift the hooks on the Weight
Rests off the Right Uprights (5, 85 [not shown]). Set
the hooks over a new set of knobs on the Uprights.
ADJUSTING THE SAFETY SPOTTER
Before performing an exercise that uses a barbell (not
included), adjust the Safety Spotter (11) to the height
that is best suited for that exercise. Moving the Safety
Spotter will change the distance that the barbell can
move.
First, attach the barbell to the high cable (see
ATTACHING A BARBELL TO THE CABLES, on page
20). Then, pull the Pop Pin (61) out as far as it will go
and move the Safety Spotter (11) to the position that
will stop the barbell at the lowest point that you want
it to go during the exercise. Engage the Pop Pin into
an adjustment hole in the Rear Upright (4) and turn it
clockwise until it is tight.
15
5
61
11
4
WARNING: Always set both
Weight Rests (15) at the same height.

20
84
29
54
15
Barbell
Weight
30
12
15

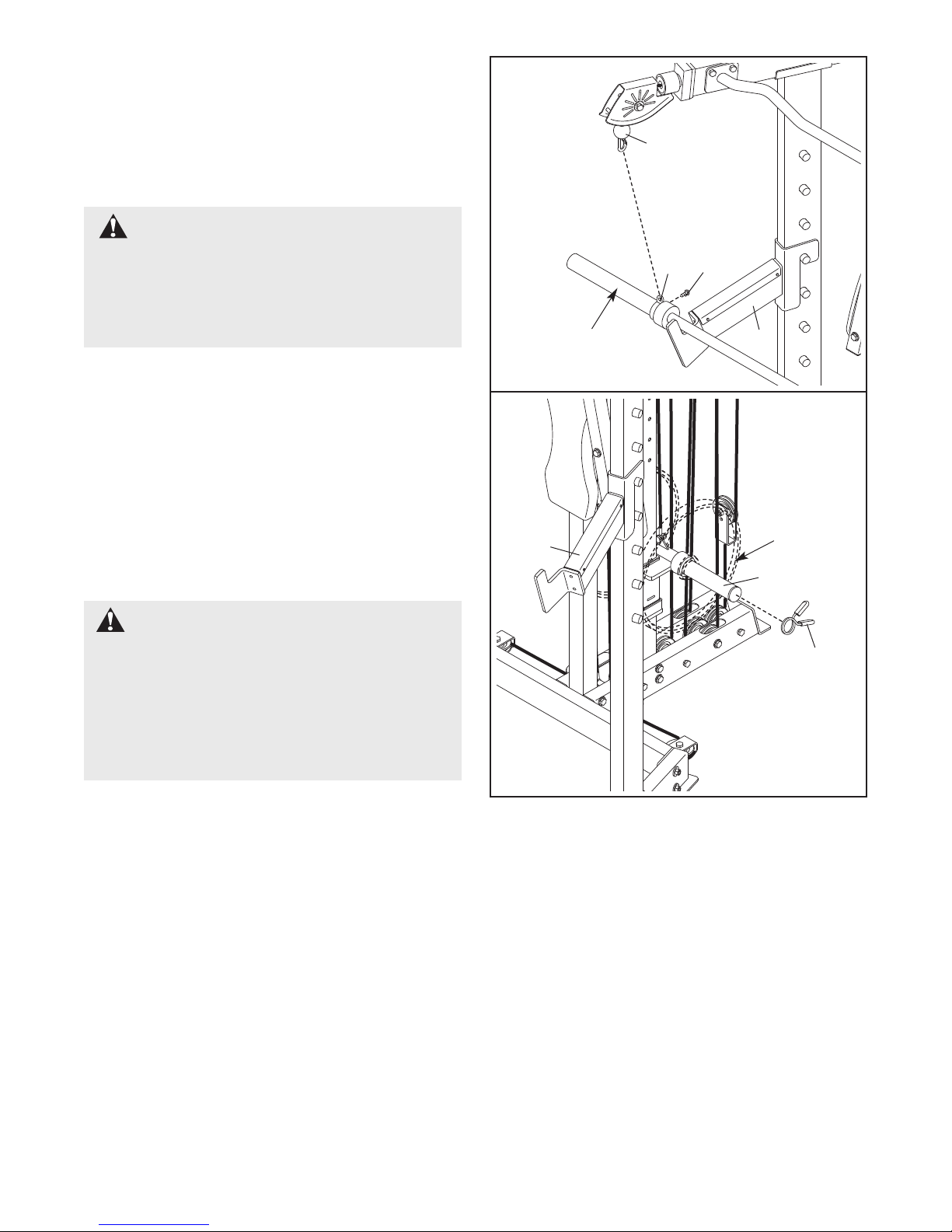

ATTACHING A BARBELL TO THE CABLES
To use a barbell (not included) with the Safety Spotter
(not shown), set the barbell on the Weight Rests (15).
Slide a Barbell Ring (29) onto each end of the barbell
and tighten the M6 x 13mm Button Screw (84). Attach
each end of the High Cable (54) to a Barbell Ring.
WARNING: Use only an Olympic
barbell (not included) with the Barbell Rings
(29). Always disconnect the barbell from the
High Cable (54) when performing an exercise
that does not require it; the barbell could be lift-
ed off the weight rests and fall.
ADDING WEIGHTS TO THE WEIGHT CARRIAGE
OR BARBELL
Slide the desired amount of weight (not included)
onto the weight tube on the Weight Carriage (12) or
the barbell (not included). Secure the weight to the
Weight Carriage with Weight Clips (30).
Do not place weights on the Weight Carriage (12)
when performing exercises that use the barbell.
WARNING: Do not place more
than 150 pounds on the Weight Carriage (12).
Do not place more than 310 pounds, including
the barbell, on the Weight Rests (15) Always
place the same amount of weight on each side
of the Weight Carriage or barbell. Always
secure the weights to the Weight Carriage with
Weight Clips (30).
