USER INSTRUCTIONS
ATLAS 3 TRANSFER DISC
P78684 Atlas 3 Transfer Disc
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
Maximum User Weight
30st
190kg
1. INTENDED USE
The Atlas 3 Transfer Disc is designed to provide
assistance when rising from and lowering into a seated
position, or seat to seat transfers. It can also be used to
encourage mobility in rehabilitation.
The user must be able to support their own weight and
maintain balance. They must also be able to grasp the
handles and understand basic instructions.
2. SAFETY
Warning: The maximum user weight must not be more
than 190Kg (30st).
Do not use the Atlas 3 Transfer Disc as a means of
transporting users.
Do not leave the user unattended when using the
product.
The carer must act as a counterbalance when the
user is rising and lowering. Consideration should be
given to whether the carer’s body weight is sufficient to
counterbalance the user’s.
3. UNPACKING
Note: Take care when unpacking, the contents are
heavy.
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1 Contents:
1 x Base Section
1 x Handle Section
4. ASSEMBLY
12
1. Loosen the upper hand-wheel by turning anti-
clockwise, then slot the handle into the base
assembly.
2. Use the handle markings to align the adjustment
holes, then re-tighten the hand-wheel fully by
turning clock-wise.
5. ADJUSTING THE TRANSFER DISC
Note: The handle and knee pad height must be adjusted
correctly for the user.
5.1 Adjust the Handle Height
Note: The handle height must be set so that the user can
comfortably reach the lower horizontal handle bar from a
sitting position.
1. Loosen the handle hand-wheel by turning anti-
clockwise.
2. Adjust the handle to the correct height for the user,
using the handle markings to align the adjustment
holes, then re-tighten the hand-wheel.
5.2 Adjust the Knee Pads Height
Note: The top of the knee pad should sit just below the
knee cap of the user.
1. Loosen the knee pad hand-wheel by turning anti-
clockwise.
2. Adjust the knee pad to the correct height for the
user, align the holes and re-tighten the hand-wheel.

2

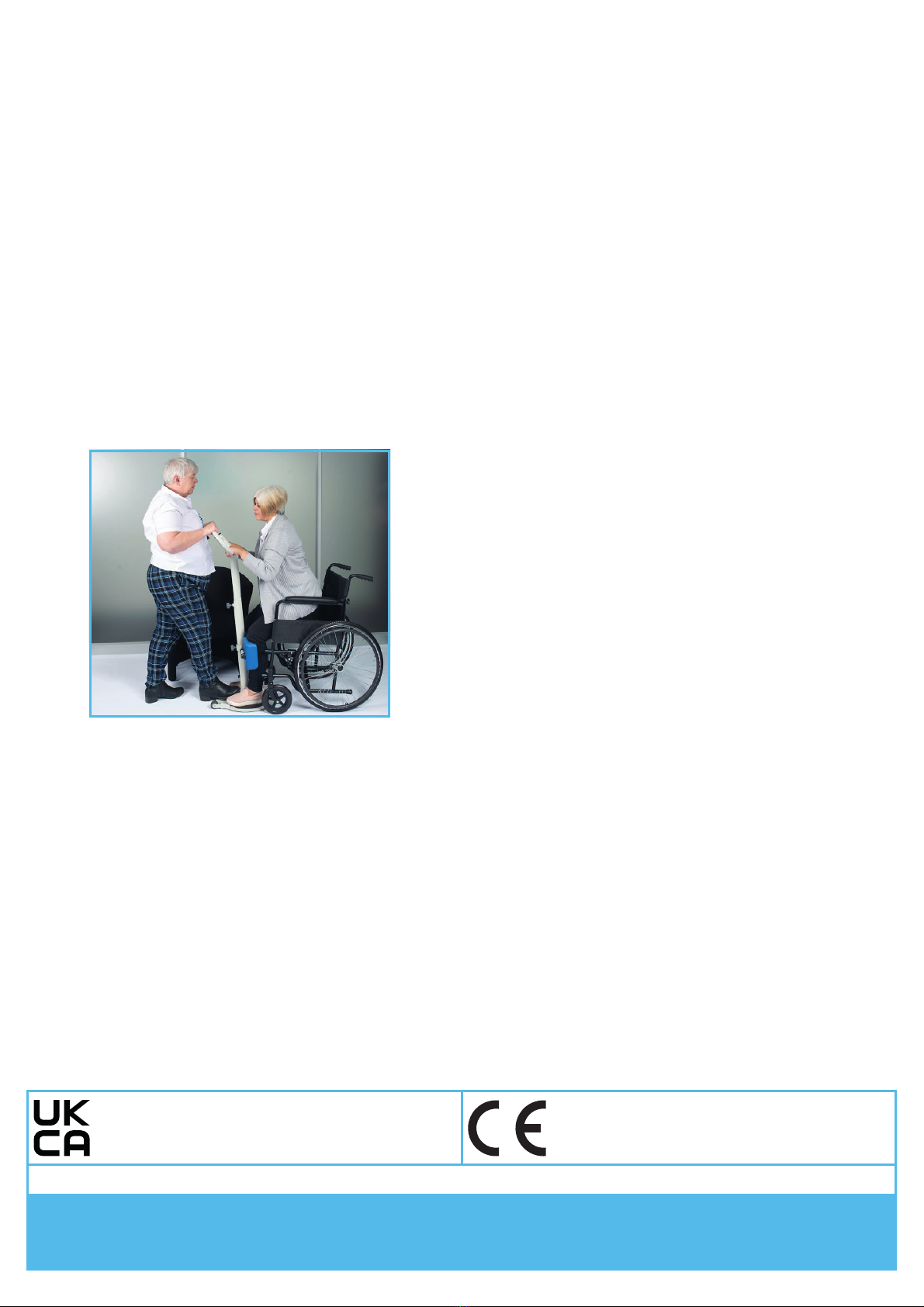

6. IN USE
Note: Make sure all hand-wheels are fully tight and
secure before use.
1. Position the transfer disc at the feet of the seated
user. Allow the user to place their feet on the
platform.
2. Slide the transfer disc forward until the knee pads
touch the users shins.
3. Tell the user to place their feet in the centre of the
platform, at hip width apart.
4. Stand behind the transfer disc, facing the user, with
one foot on the platform to counterbalance the user
and hold the top horizontal handle bar with both
hands.
5. The user should then grasp the lower horizontal
handle bar.
6. The user should use the horizontal handle bars
to progressively raise themselves to a standing
position.
Note: Make sure the user takes care to avoid bumping
their head against the handle.
7. Once the user is standing, check they are
comfortable and that their weight is centred over
the platform.
8. Rotate and manoeuvre the aid to position the user
in front of the transfer disc.
9. The carer must maintain a firm grip on the handle
bar while the user is standing on the transfer disc.
10. Stand behind the transfer disc, facing the user, with
one foot on the platform to counterbalance the user
and hold the top horizontal handle bar with both
hands.
11. The user should use the horizontal bars to
progressively lower themselves to a seated
position.
12. Once the user is safely positioned on the new
surface, tell them to lift their feet while you remove
the transfer disc.
7. MAINTENANCE
Inspect the product weekly for any signs of wear or
damage.
Check the rotating platform can swivel freely.
Check the condition of the knee pads and handle,
making sure the hand wheels are correctly located and
secure.
Any suspected faults or damage should be reported to
the supplier immediately and the product taken out of
use.
8. CLEANING INSTRUCTIONS.
Clean regularly using a general purpose, neutral
detergent and warm water.
Please check the suitability of the cleaning product
before use. Do not use abrasive cleaners or cloths as
this will permanently damage the surface and invalidate
any warranty.
9. PRODUCT DISPOSAL
This product must be thoroughly cleaned/sterilised prior
to disposal.
This product is manufactured from metal and plastic and
can be disposed of through Local Authority Household
Waste and Recycling Centres or through Local Trade
Waste Collectors.
10. PRODUCT GUARANTEE
NRS Healthcare guarantee this product for a period of
12 months, from the date of purchase, against faulty
materials and workmanship.
This guarantee does not cover; fair wear & tear, abuse,
misuse, interference or tampering with any part of the
product.
Any guarantee issued by NRS Healthcare does not
affect your statutory rights.
If you have any problems with our products, please
contact us at the address below.
NRS HEALTHCARE Sherwood House,
Cartwright Way, Forest Business Park, Bardon
Hill, Coalville, Leicestershire, LE67 1UB, UK.
NRS HEALTHCARE 4C Altona Road, Blaris
Industrial Estate, Lisburn, Co Antrim,
Northern Ireland BT27 5QB
Tel: Customer Services: 0345 121 8111 Email: [email protected]
