Safety Instructions
i. Usage environment
●Do not use the appliance in a wet condition or dusty environment as this may
result in malfunction or electric shock.
●Do not use the appliance in the bathroom.
●Do not place or store the appliance where it can fall or be pulled into a tub or
sink.
●Place the appliance in a safe location.
●Do not expose the appliance to a heater or direct sunlight.
ii. Unsuitable user
If you are experiencing health complications or conditions as stated below, please
consult your doctor before use:
- Suffering from heart disease
- Pregnancy
- Any health concerns
iii. When the product should not be used
●If the use exceeds 15 minutes at one time.
●This unit should not be used by children or invalids without adult supervision.
●Do not use this product before sleep.
●If the fabric cover is torn.
●If liquid is spilled onto the appliance.
●If the user feels abnormal or severe pain during the massage.
●If the user detects any malfunction or other abnormal conditions during
operation.
OS 3108.indd 3 5/26/2016 11:28:31 AM

4
Safety Instructions
iv. Caution and warning
●Unplug the appliance from the outlet when not in use.
●Do not use any attachments that are not recommended by OGAWA.
●Do not operate this appliance if it has a damaged cord or plug. Please return
the unit to OGAWA Service Center for examination and repairs.
●Do not insert your hands or any object into the massager’s vents and gaps.
●Use the heated surfaces carefully. It should not be used by children or
incapacitated persons. May be dangerous.
●Do not lift or carry this appliance by the power cord or any cord.
●This product is only intended for home use only.
Commercial use is prohibited.
●Do not cover the appliance during operation.
●Do not crush appliance and avoid it from sharp folds.
OS 3108.indd 4OS 3108.indd 4 5/26/2016 11:28:31 AM5/26/2016 11:28:31 AM

5
Safety Instructions
v. Note
●Please read these safety notes thoroughly beforehand to ensure the safety
and correct use of the appliance.
●The appliance is not intended for use by persons suffering from physical,
sensory or mental disabilities, or persons who lack experience and knowledge
about the product. They need to be supervised and instructed by a person
responsible for their safety.
●Extensive usage could lead to excessive heating and shorter product lifespan.
Should this occur, discontinue usage and allow the unit to cool before
operating.
●Some levels of noise during usage are normal due to vibration.
●Consult the doctor before use if the person using it is under medication or with
a medical condition. Please do not use the product if you are not feeling well.
●Do not increase the room temperature abruptly if the appliance is used in the
cold room. It is advisable that the temperature should increase gradually to a
normal level.
●If the appliance is stored in a cold place or in a warm environment, please
wait for one hour before use to reach the optimum massaging level.
●Do not remove the cover of the appliance. Touching the internal components
may result in malfunction or electric shock.
●Do not connect or disconnect the power cord from the electrical outlet with
wet hands.
●Do not use the appliance if the electrical outlet is loose.
OS 3108.indd 5OS 3108.indd 5 5/26/2016 11:28:31 AM5/26/2016 11:28:31 AM

6
Warranty Claims
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from OGAWA.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of fitness
and merchantability, are limited to the duration stated in the warranty policy.
5. Damage due to misuse, improper treatment and unauthorized modification and
repair are not covered by this warranty.
6. Warranty does not cover accessories and attachments which do not belong to the
massage unit.
7. Warranty is not effective to rental, business, commercial, institutional or other non-
residential users.
8. All services covered by this warranty must be approved by OGAWA and repaired
by authorized technicians only.
9. If replacement parts for defective materials are not available, OGAWA reserves the
right to make substitution in lieu of repair or replacement.
OS 3108.indd 6OS 3108.indd 6 5/26/2016 11:28:31 AM5/26/2016 11:28:31 AM

7

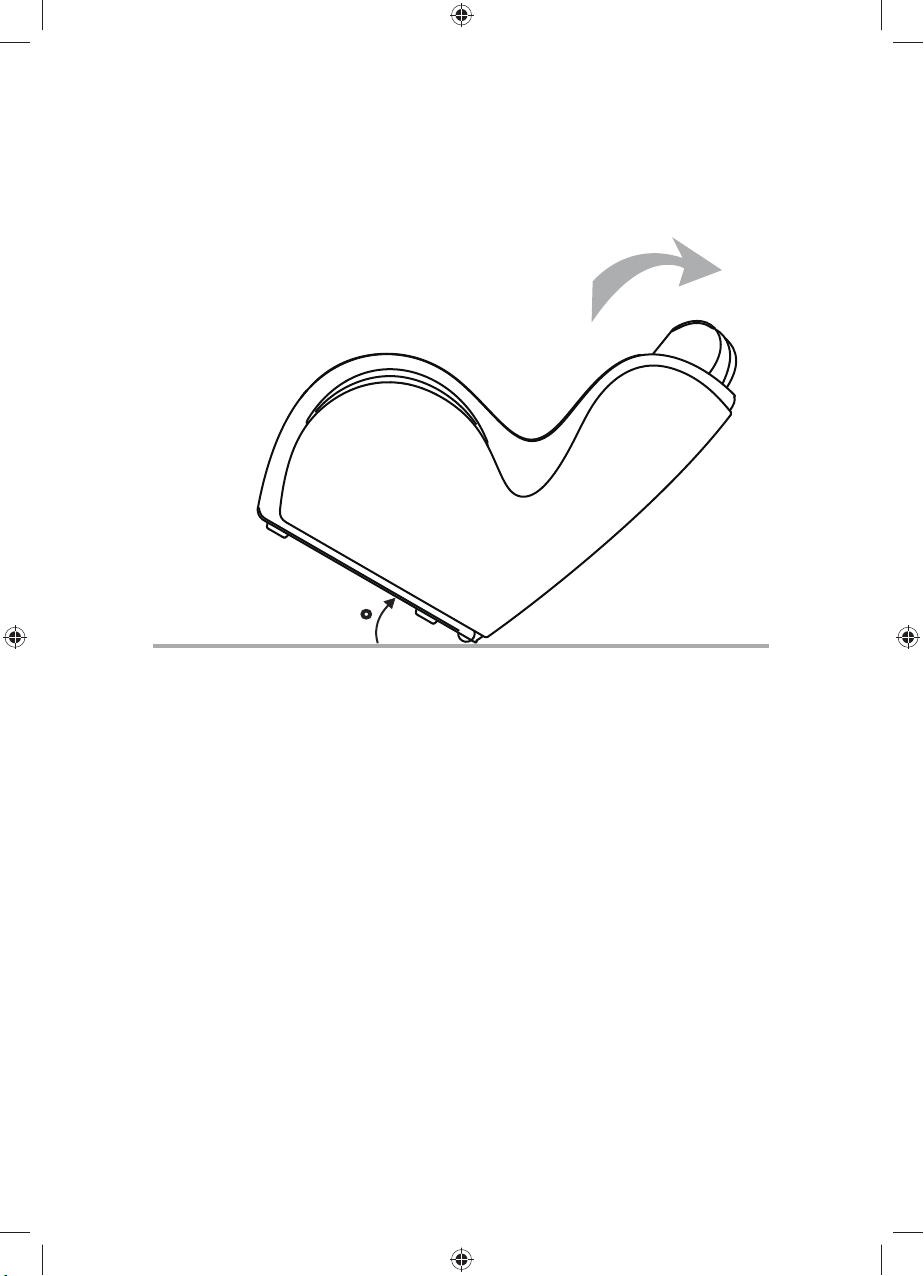

Moving the Chair

Caution:
Avoid moving the massage chair when there is someone seated on it.
Placing a mat underneath the massage chair is advisable, as the moving process
might scratch the floor surface.
OS 3108.indd 7OS 3108.indd 7 5/26/2016 11:28:31 AM5/26/2016 11:28:31 AM

8
Product Parts and Accessories
Body of the Massage Chair Controller
OS 3108.indd 8OS 3108.indd 8 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

9
Controller Diagram
4
1
5
6
7
8
2
12
9
10
11
13
3
OS 3108.indd 9OS 3108.indd 9 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

10
Control Buttons for the Massage Chair
1. ON / OFF
Place three AAA batteries into the controller with the positive and negative poles
correctly connected. Insert the plug of the massage chair into an appropriate outlet to
power the chair. If massage rollers are not at the waist, then they will return to their
original position (during this process, the ON / OFF indicator is lit, but no buttons work),
and the indicator will be unlit later. Long press (more than 2 seconds) the ON / OFF
button to activate the chair, the indicator will be lit, then a desired massage function
can be selected. After the chair is activated, the timer is preset at 15 minutes (The
CHERISH Auto mode is set at 20 minutes). After the chair is activated, short press
(less than 2 seconds) the ON / OFF button, the controller will be set to the power-
saving sleep mode. Short press the button again, the present massage parameters
will be displayed on the controller. Long press the ON / OFF button after the chair is
activated or the preset program ends, all functions will stop and the massage rollers
will return to their original position.
2. SHAPE & TONE
When the chair is operating, short press this button to start the SHAPE & TONE AUTO
mode, and the indicator will be lit. Press it again to close the mode.
3. REFRESH
When the chair is operating, short press this button to start the REFRESH AUTO
mode, and the indicator will be lit. Press it again to close the mode.
Note: this program is preset at 20 minutes.
4. REJUVENATE
When the chair is operating, short press this button to start the REJUVENATE AUTO
mode, and the indicator will be lit. Press it again to close the mode.
OS 3108.indd 10OS 3108.indd 10 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

11
5. RECHARGE
When the chair is operating, short press this button to start the RECHARGE AUTO
mode, and the indicator will be lit. Press it again to close the mode.
6. MODE
When the chair is operating and the tapping function is activated, short press this
button to switch between three tapping modes. The indicator light turns to green for
mode 1, blue for mode 2, and red for mode 3.
7. INTENSITY
After the intensity indicator is lit, short press the INTENSITY button to switch among 3
modes in cycle. The backlight of the INTENSITY button displays 3 colours based on
the present intensity levels: green for low intensity, blue for medium intensity, and red
for high intensity.
8. HEAT
When the chair is operating, press this button to start the HEAT function independently,
and the HEAT indicator will be lit. Short press the button again to stop the function, and
the indicator will be unlit.
9. TAPPING
When the chair is operating, short press this button to activate the tapping function and
start the moving massaging. The tapping mode is preset at mode 1 in green light, and
the intensity is preset at medium level in blue light. Press the WIDTH ADJUSTMENT
button to adjust the width of tapping position. Press this button again to close the
mode. If the kneading function is activated before the tapping function, then both
functions will work together. If the present tapping function is in the Spot massage
mode (when the mode light flashes), press this button, the chair will resume its moving
tapping mode and the indicator will be lit.
OS 3108.indd 11OS 3108.indd 11 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

12
10. KNEADING
When the chair is operating, short press the KNEADING button, the indicator will be
lit, and the kneading function and the moving massaging will start. The intensity is
preset at medium level in blue light. Press the button again to close the mode. If the
tapping function is activated before the kneading function, then both functions will work
together. If the present function is set at Spot massage mode (when the Spot massage
light flashes), press this button, the chair will resume a moving kneading mode and the
mode light will be lit.
11. ROLLING
When the chair is operating, short press the ROLLING button, the indicator will be
lit, and the rolling function and the moving massage will start. If there exist any other
activated massage modes, such modes will be closed before the rolling mode starts.
Short press the button again to close the rolling function, and the indicator will be unlit.
Width adjustment is also applicable for the rolling mode.
12. SPOT or Localised massage
Under the tapping or kneading function after the chair activation, press the SPOT
button (up and down arrows) to start the Spot massage function, and the mode light
will flash. Press and hold the up or down arrow to move the massage rollers upward or
downward. Release the button to stop the roller adjustment and start the Spot massage
function. Meanwhile, the corresponding upward or downward indicator light will be
turned off.
13. WIDTH Adjustment
When the rolling or tapping mode is activated, press the WIDTH ADJUSTMENT button
to adjust the rolling or tapping width. The indicator will be lit in the process of the
adjustment and unlit after the adjustment.
OS 3108.indd 12OS 3108.indd 12 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

13
Caution:
1. After the chair starts operating, the timer is preset at 15 minutes (REFRESH mode
is set at 20 minutes), and the time interval between different modes will not be
cleared. When the timer reaches zero, the chair will shut down (For the REFRESH
mode, the chair will shut down if it is switched to other modes after 15 minutes).
The timer will give three beep sounds when there are only 30 seconds left, and
when the timer reaches zero, the chair will beep and shut down.
2. Sleep Mode of the Controller
After the chair is activated, when the controller is first used to activate the massage
mode, the controller will be in the sleep mode after working 60 seconds, and then
no buttons can control the chair. In the sleep mode, press the ON/OFF button to
re-enable the controller and display its present massage parameters. 20 seconds
later, the controller will go to the sleep mode once again. If the controller shows a
low battery (under 3V), the ON/OFF, CHERISH and REVITAL indicators will flash
for 5 seconds before the controller goes to the sleep mode. If the signal between
the controller and the chair fails, the ON/OFF, FITNESS and RELIEF indicators will
flash for 5 seconds before the controller goes into the sleep mode.
3. Matching Instructions for the Controller and the Chair
Each massage chair is matched with a specific controller. If the controller fails to
connect with the chair or needs a replacement, please refer to following steps to
match the controller with the massage chair.
Step 1: Connect the power cord of the chair, turn off the switch in the back of the
chair (when the massage chair is power off), press and hold the ON/OFF button for
5 seconds;
Step 2: Release the ON/OFF button when the HEAT indicator flashes, press and
hold the HEAT button (within 5 seconds). Then turn on the switch in the back of the
chair to power the chair (within 3 seconds);
Step 3: When there are 3 continuous and short beep sounds, it indicates that the
matching is completed successfully.
OS 3108.indd 13OS 3108.indd 13 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

14
Product Features
●With a compact size and fashionable appearance, the massage chair is an
excellent partner for a healthy life.
●Its “L” shape rail is designed to make your back, waist and hip more comfortable,
giving you a better massage experience.
●Besides the traditional kneading massage, a vibrating tapping function is added to
create a more professional feeling of massage by human hands.
●4 automatic massage modes are optional for different requirements to improve your
physical conditions.
●Its precise program focuses on waist and hip massage by strengthening hip
muscles and shaping beautiful curves of the hip.
●The wireless controller with precise performance sets your free and enables a
smart home and smart life.
●With excellent and thoughtful design in details, it is an ideal choice for a delicate life
and a high-quality home.
OS 3108.indd 14OS 3108.indd 14 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

15
Product Specifications
adoMiemaNtcudorP
8013SOledoMtcudorP
~V042-001egatloVdetaR
W69rewoPdetaR
mm069xmm526xmm529noisnemiD
setunim51remiT
Battery of the Controller Three AAA batteries
Note: The REFRESH AUTO program is set at 20 minutes.
Product Maintenance
●Do not use water or other cleaning detergents to wash the massage chair.
●Do not stack, knock with hard objects, pull harshly or scratch the surface of the
massage chair.
●Press the buttons gently during operation; avoid pressing with sharp objects.
●Always pull out the power supply plug after use or before cleaning.
●Please keep the controller away from water or liquid.
OS 3108.indd 15 5/26/2016 11:28:32 AM

16
Troubleshooting
If you are caught in any problems when using this product, please refer to the following
tips or possible solutions. If the solutions are not applicable, please send the product to
our service centre or contact our authorized technical staff for inspection and repair.
Possible situations Possible reason Solutions
The chair won’t
operate
1. No power
supply
2. The ON/OFF
button is off
1. Check whether the power is
connected or connected well
2. Check whether the power switch at
the right bottom of the chair is turned
on to “I”
The chair stops
functioning suddenly
or won’t operate as
usual
1. Power off
2. Machine failure
1. Check whether the power plug is
well connected
2. Contact the service centre for help
The controller does
not work after the
ON / OFF button is
pressed
1. Dead batteries
2. Batteries are
placed in the
wrong direction
1. Change batteries
2. Insert the batteries correctly
The ON/OFF
indicator of the
controller keeps
flashing
The chair returns
to its original
position
Keep the chair in regular settings
The SHAPE &
TONE, ON/OFF
or RECHARGE
indicators are
flashing
1. The
communication
is cut without
matching
2. The chair
hasn’t been
turned on
1. Refer to the matching instructions
for the controller and the chair to
re-match them
2. Switch on the power, and press the
ON / OFF button to start the chair
OS 3108.indd 16OS 3108.indd 16 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

17
The light of
REFRESH button,
ON/OFF button
or REJUVENATE
button flashes
Low battery Change the batteries
The chair has seized
up with unusual
sounds
1. The chair is
overloaded
2. Machine failure
1. Adjust the sitting position and restart
the chair
2. Contact the service centre for
assistance
OS 3108.indd 17OS 3108.indd 17 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

18
Contact us
MALAYSIA
Healthy World Lifestyle Sdn Bhd
No. 22 Jalan Anggerik Mokara 31/47
Kota Kemuning, 40460 Shah Alam
Selangor Darul Ehsan, Malaysia
Tel: [phone]
Fax: [phone]
SINGAPORE
OGAWA Health-Care Pte Ltd
27 Tampines Industrial Avenue 5,
T5 @ Tampines
Singapore 528623
Tel: [phone]
Fax: [phone]
INDONESIA
Pt Healthy World
Lodan Center Block O No 20
Jalan Lodan Raya No 2
Jakarta Utara 14430
Tel: [phone]
Fax: [phone]
HONG KONG, CHINA
OGAWA Health Care International (HK) Ltd
31/F,YHC tower,1Sheung Yuet Road
Kowloon Bay
Kowloon
Hong Kong
Tel: [phone]
Fax: [phone]
VIETNAM
OGAWA Vietnam Co Ltd
2nd oor,Petroland Tower,
12 Tan Trao,Tan Phu ward
District 7
Ho Chi Minh
Tel: [phone] 3094
Fax: [phone]
PHILIPPINES
O-Healthcare Solution Phil. Inc.
2303, 4th Floor, G&A Building,
Chino Roces Avenue Extension,
Makati City, Philippines
Tel: [phone]
Fax: [phone]
OS 3108.indd 18OS 3108.indd 18 5/26/2016 11:28:32 AM5/26/2016 11:28:32 AM

19
目录
安全说明 20
保修权限 23
产品移动说明 24
产品零件及配件 25
遥控器说明 26
产品特点 31
产品规格 31
产品保养 31
故障排除 32
联系我们 33
OS 3108.indd 19OS 3108.indd 19 5/26/2016 11:28:33 AM5/26/2016 11:28:33 AM
