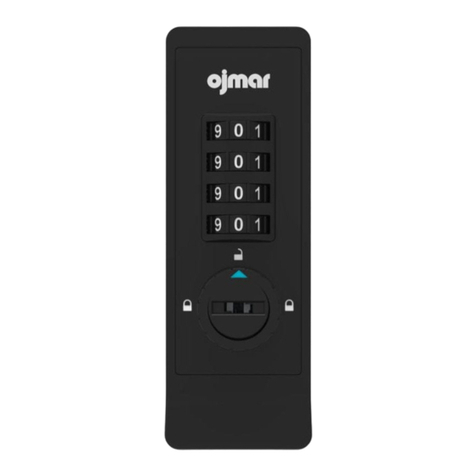

LOCKR COMBI
LOCK 8001
ASSEMBLY INSTRUCTIONS
V.03
ASSEMBLY
Plate
Door Thickness Necessary plate
1 mm (3/64”) 5 mm (13/64”) y 10 mm (3/8”)
2 mm (5/65”) to 6 mm (15/64”) 10 mm (3/8”)
7 mm (9/32”) to 11 mm (7/16”) 5 mm (13/64”)
12 mm (15/32”) to 22 mm (7/8”) 0
3.
The lock is supplied with xing screws that will allow the lock to be tted
to doors between 12mm (15/32”) and 22mm (7/8”). If doors are thiner
than 12 mm (15/32»), plater must be supplied (sold separately).
1.
Mark position of cut out on door, ensuring that cam in loc-
ked position will fit into keep or strike plate of door frame.
Cut out door as dimensioned below. Cut must be clean
and smooth free from burrs.
2.
Position the handle frame onto the lock from the rear.
Insert the lock together with handle into the door cut out.
See diagram below:
4.
Fit lock to door, placing xing plate onto the inside of the door.
See diagram below:
5.
Secure the lock to the door using correct length xing M3 screws from
inside of the door. See diagram below:
Do not overtighten, max torque of 150 Ncm, 111ftlbs.
A
B
Right Hand
Lock (RH)
Note position of
end cap in place
for RH operation
HOW TO CONVERT A RIGHT HAND (RH) LOCK TO A
LEFT HAND LOCK (LH).
2.
Unscrew the xing screw from the cam, removing both the cam and
washer. Do not turn. Please note position of end cap. See diagram
below:
IMPORTANT!
Please note all locks are supplied as stardard as RH. (See
diagram bellow) If LH locks are required please change hand
before tting.
Before converting to a LH lock please ensure key cylinder is
inserted.
1.
Ensure that the lock is in the open position with the cam
and the blue indicator in the unlocked position. See diagram
below:
3.
Remove end cap.
4.
Turn end cap horizontally 180º and replace.
Please note position of end cap. See diagram below:
Note position of
end cap in place
for LH operation
Left Hand
Lock (LH)
5.
Refit cam and washer in the open vertical
position. The lock will now work for LH
operation. See diagram below:
HOW TO CONVERT A RIGHT HAND (RH) LOCK TO A
LEFT HAND LOCK (LH).
