Oneida Air Systems Dust Deputy AXD001004 User manual

OneidaAir Systems, Inc. 2010
c
OneidaAir Systems, Inc. 1001 W. Fayette St., Syracuse, NY 13204
Ph. 1.800.732.4065 or 315.476.5151 / Fax: [phone]
www.oneida-air.com
R
The Original
Owner’s Manual for:
D.I.Y. - AXD001004
Deluxe Kit - AXD000004
Ultimate Kit - AXD000009
U.S. Patent #7,282,074
E.U. Patent Pending
ZBM000027 5_10
OneidaAir Systems, Inc. was founded in 1993 to bring
cost effective, state-of-the-art dust collection systems
and material handling ductwork to woodworking shops.
OAS designs and manufactures industrial grade dust
collection systems that create a practical, safe and
healthy work place environment.
Call today or go to our website
for a FREE catalog of all of our
systems and ductwork.

Thank You for Choosing an Oneida Air Systems Product!
OAS manufactures and sells dust collection equipment only. Our qualified technicians
and sales staff are available 7:30am - 6:00pm ESTMon. - Thurs. and 7:30am - 5:00pm
EST Fri. to answer any questions concerning OAS products and dust collection. Call for
ductwork design and ductwork quotes, including system pricing and shipping cost.
Read the entire Owner’s Manual before assembling or operating system!
I.
II.
III.
IV.
V.
VI.
VII.
VIII.
IX.
X.
XI.
XII.
XIII.
TableofContents Page
1 18
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
System Start-Up Information
D.I.Y. & Deluxe Kit Contents and Dimensions
Ultimate Kit Contents and Dimensions
D.I.Y. Dust DeputyAssembly
Deluxe Dust DeputyAssembly
Ultimate Dust DeputyAssembly
Installing the Dust Bagger for the Ultimate
Attaching Cyclone to Vacuums
Adding Cyclones
Troubleshooting
Super Dust Deputy
Accessories
Terms and Conditions
2
3
4
5
6
7 - 8
9
10 - 11
12
13
14
15
16

17 2
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
I.SystemStart-UpInformation
Read the installation and maintenance instructions as well as the recom-
mended safety practices in this manual and your shop vacuum’s owner’s
manual before assembling and using the Dust Deputy.
Some dusts are highly flammable or explosive. Learn / know
what you are dealing with. Follow all local, state, federal &
NFPAcodes and guide lines.
Safety Instructions to be Strictly Followed.
Wood dust mixtures are highly flammable and can be explosive.
NEVER introduce sparks or sources of ignition into collector.
1.) Use 10 gal. or smaller drum size.
2.) Dump drum after each use.
3.) Ground system. (See pg. 4)
The Dust Deputy is made from static dissipating plastic.Additional grounding is
recommended for increased safety. See grounding instructions.
Keep fire extinguishers handy at all times.
Can be used for collecting non-flammable liquids.
NEVER leave wood dust in a building or vehicle.
Always read your shop vacuum owner’s manual for safety procedures
regarding the operation of your shop vacuum.
Do not vacuum, or use this Dust Deputy near flammable or combustible liquids,
gases, or explosive dusts, such as gasoline or other fuels, lighter fluid, cleaners,
oil-based paints, natural gas, hydrogen, coal dust, magnesium dust, grain dust,
aluminum dust, sugar dust, flour dust or gun powder.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic
materials unless a HEPAfilter is used. Do not use or store near hazardous
materials.
WARNING/SAFETY
OtherProductsByOneidaAirSystems
Dust Cobra
V - Systems
Super Dust Gorillas
Smart Dust Collector
Pro Systems
Gorilla Vac
Adust collection
solution for portable,
table top, and hand
power tools with
small dust ports. 1.5 / 2 / 3hp dust collector
for the home hobby shop.
Self-regulating, variable
speed dust collector.
2 / 2.5 / 3 / 5hp dust
collectors for the home
and professional shop.
2 & 5hp dust collection
for professional shops.
Industrial vacuum that
easily handles most
hand power tools.
3x the air performance
of most shop vacuums. Our quietest system.
Automatically adjusts to
the collecting conditions to
deliver optimal power for
the job at hand.
Award-winning dust
collection.
5 year warranty.
No loss of suction.
Eliminates clogging.
Works for vacuuming the
floor up to your most dust
producing power tool.
Ultra-high efficiency
cyclonic separation.
Easy assembly.
HEPA media filtration.
99.97% @ 0.3 microns.
HEPA media filtration.
99.97% @ 0.3 microns.
HEPA media filtration.
99.97% @ 0.3 microns.
HEPA media filtration.
99.97% @ 0.3 microns.
HEPA media filtration.
99.97% @ 0.3 microns.
35 gal., plastic bag lined
collection drum.
Call us for our
FREE
FREE catalog showing
all of our dust collection systems, duct-
work and accessories

3 16
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010

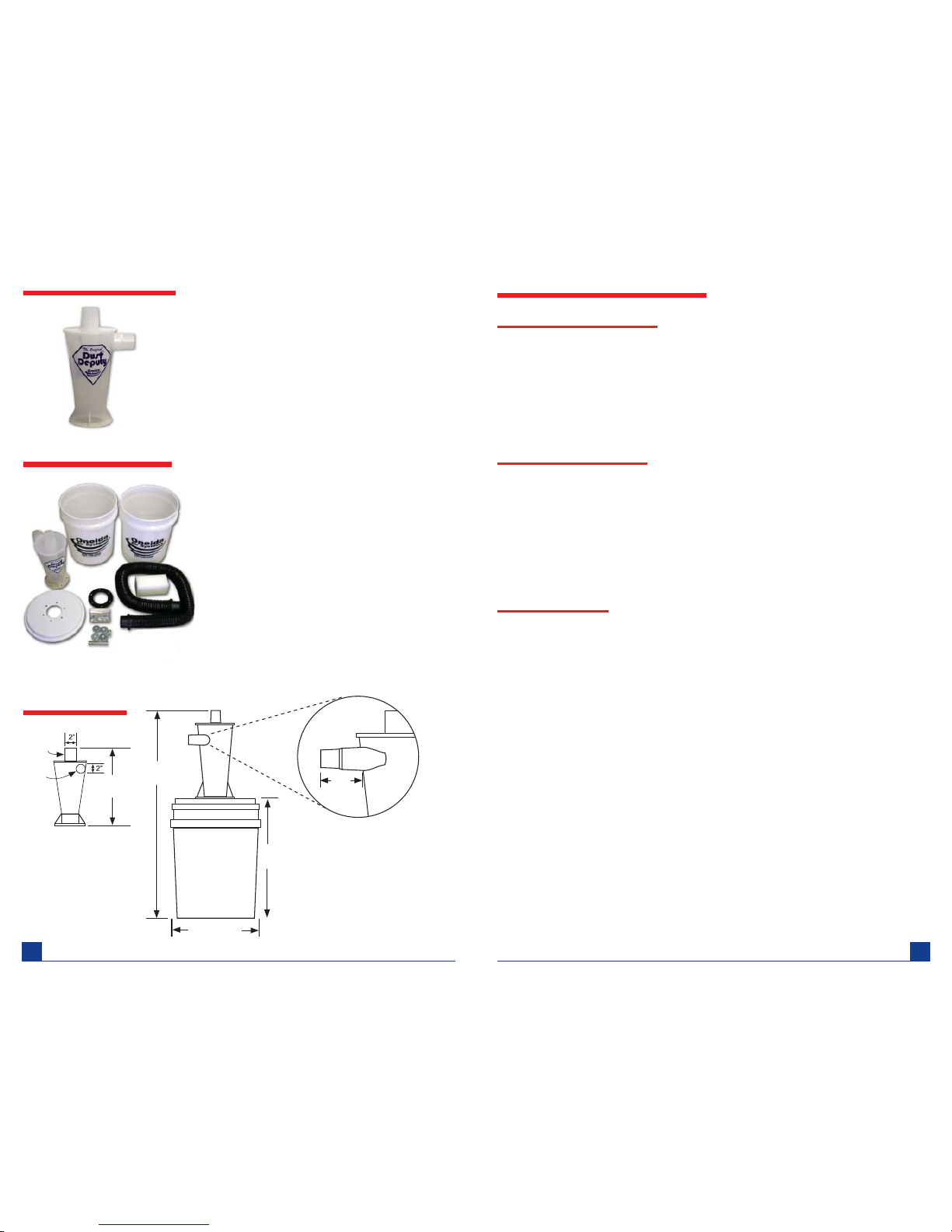

DeluxeKitContents Plastic Dust Deputy w/ Plastic Drum - AXD000004
Dimensions
- Drum Cyclone 11” Plastic (1) - VXC110002
- 5 Gal. Plastic Bucket (2) - SDS050001
- 5 Gal. Plastic Lid w/ Bolt &
Center Holes (1) - SDX050001
- 2.5” x 5’ Hose (1) -AXD250081
- Gasket for Cyclone (1)
- Foam Block 2” x 3” x 6” (1) -AFF030306
- 3.5” Carriage Bolt (2) -AFB025350
- 5/16” Fender Washer (4) -AFW170000
- 3/4” Hex Head Bolt (6) -AFS015920
- 1/4” Whiz Lock Nut (8) -AFT000005
- Washer Flat 1/4” (6) -AFW025000
- Owner’s Manual (1) - ZBM000027
II.D.I.Y. KitContents Plastic D.I.Y. Dust Deputy - AXD001004
With the D.I.Y. Dust Deputy, you only receive the plastic cyclone.
You must supply all hardware and buckets yourself.
Inlet
for Tool
Hose
Outlet
to Shop
Vacuum
14”/
355.6mm
D.I.Y. Cyclone
Deluxe Kit
12”/ 304.8mm
15.5”/
393.7mm
5 Gallons /
19 Liters
29.25”/
742.95mm
Tapered inlet from
1.9”/ 48.26mm to
2.2”/ 55.88mm.
Outlet dimensions
are the same.
2.5”/
63.5mm
Fire Hazards and Codes
Warning! Explosion and fire hazard! Never vacuum flammable fluids or gas, oil, alcohol, solvents,
etc. Do not operate near flammable fluids or gas. Never vacuum warm fluids or materials at more
than 140 deg. F (60 deg. C), such as burning cigarettes, ashes, glowing coals, etc.
Warning! Do not vacuum hazardous / carcinogenic dust unless a HEPAfilter is installed.
Always keep filter cartridge clean so the vacuum operates properly.
Empty Dust Deputy waste can frequently. Never leave flammable material in your Dust Deputy or
shop vacuum.
Returned Goods Policy
Buyer must inform O.A.S. of any shortage or damage, by so noting in writing, on the freight delivery
bill prior to signing to indicate receipt of shipment. All claims, including claims covered under the
limited warranty, are subject to inspection and investigation by O.A.S. O.A.S. reserves the right to
inspect, investigate all returned products before Buyer’s claim is settled. All products returned for a
cashrefund mustbeunused, resaleableandpurchased within30days. There areno refundsonflex
hose,custom madecomponents or partialkit items.Kitsmust bereturned infull(all components)for
credit. There will be a 25% restocking fee applied to any returned items. Buyer must call and
get an RMA(Return Authorization Number). Merchandise must be shipped to us prepaid.
Limited Warranty
Oneida Air Systems warrants products it manufactures for a period of 90 days to the original pur-
chaser from the date of purchase. Items not manufactured by O.A.S. are limited to their own manu-
facturer’s warranties. This warranty does not apply to defects directly or indirectly to misuse, negli-
gence, accidents, abuse, repairs, or alterations or lack of maintenance. This is OneidaAir Systems
solewrittenwarranty andanywarrantiesthat maybeimpliedby law,includingany merchantabilityor
fitness, for any particular purpose, are hereby limited to the duration of this written warranty. O.A.S.
does not warrant or represent that the merchandise complies with the provisions of any law or acts
unless the manufacturer so warrants. In no event shall O.A.S.’s liability under this warranty exceed
the purchase price paid for the product and any legal actions brought against Oneida Air Systems
shall be tried in the State of New York, County of Onondaga.
OneidaAirSystemsshallin noevent beliable fordeath, injuries topersons orproperty orfor inciden-
tal, contingent, special, or consequential damages arising from the use of our product.
Oneida Air Systems does not warrant or authorize use of wood dust collectors for other purposes.
This includes wood products that are treated, coated, or otherwise altered from their natural state.
XIII.Terms&Conditions

15 4
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
III.UltimateKitContents Ultimate Dust Deputy - AXD000009
Dimensions
- Drum Cyclone 11” Plastic (1) - VXC110002
- 9 Gal. Molded Plastic Dust Box (1) - SDS090000
- Connector Hose with Cuff (1) -AXD200072
- Gasket for Cyclone base (1)
- Seal for Box (1) - RGZ025050
- Connector Elbow (1) -AXD600101
- Connector for Festool Hose (1) -AXD250225
- Rubber T-Latches (2) - AFL000007
- 1/4”x 20 x 3/4” Bolts (6)
- 10 x 32 x 1” Machine Screws (4)
- 12”Anti-Static Copper Tape - VFA050015 (1)
- 36” 1/4” O.D. plastic tubing
31”/ 787.4mm
15 1/2”/
393.7mm
Width
11 1/2”/
292.1mm
Box Capacity
is 9 Gallons /
34.2 Liters
16”/ 406.4mm
Copper
tape
Copper
tape
The included copper tape
can be used as shown on
the connectors to ground
them.
XII.Accessories Replacement HEPA Filters forYour Shop Vacuum
HEPA filters 99.97% of test material from 0.3 microns.
Part # Description
FCH000001
FCH000002
FCH000003
Cleanstream HEPA Filter for Craftsman Wet/Dry Vacs.
Replaces Sears Filter 4-17816
Cleanstream HEPA Filter for Genie, Black & Decker
Wet/Dry Vacs
Cleanstream HEPA Filter for Rigid Wet/Dry Vacs
AXS000000
AXS000001 UltraClean Scraper
Extra Tungston Carbide Blade Set
Part # Description
UltraClean Scraper
AXD300000
AXD200000
AXD100000
VSHNZZ150
AKD000000
AXD200072
VSHRFE200
1.5” Hose / Cuffs 1.5” x 1.5”
1.25” Hose / Cuffs 1.25” &1.5”
1” Hose / Cuffs 1” & 1.5”
Coupler 1.5”
HoseAdaptor Kit
Hose 2” x 6’ w/ SD Cuffs
Hose 2” x 25’ w/ SD Cuffs
Part # Description
Hose Packages (10ft. Lengths) & Options
All hose is high quality, static dissipating, wire reinforced.
Hoses have at least one 1.5” dia.
cuff to attach to cyclone inlet.
Hollow handle scraper attaches
by hose to vacuum source and
sucks debris through handle
to container. Eliminates mess
from scraping that usually falls
to floor.
Industrial grade cart that can hold 5 gal. buckets and turn your
Dust Deputy mobile!
ATD000001
ATD000002 Single Cart
Double Cart
Double Cart Single Cart
Part # Description
Dust Deputy Cart
AXD000005 Dust Deputy Drum Dolly
Part # Description
Drum Dolly
Drum Dolly increases Deputy’s mobility. Velcro
straps hold drum securely for use, yet easily
releases for emptying.
TheAdaptor Kit
makes it possible
to attach 1.5” and
1.25” hoses to the
2” inlet.

5 14
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
IV.AssemblyInstructionsforD.I.Y.DustDeputy
TheDustDeputyismadeofstaticdissipatingplastic.
These are the minimum parts you will need to acquire to use the Dust Deputy:
- 2” - 2 1/4” dia. Vacuum Hose to go between the Dust Deputy outlet and
your Shop Vacuum.
- (6) 1/4” x 1” bolts with nuts and washers.
-Any suitable sealant (e.g.- Silicone) to use between the cyclone base
flange and the top of your dust container.Any air leak between the
cyclone and lid will affect separation performance. You should also seal
the inlet and outlet hose connections.
- Vacuum Hose to attach to Dust Deputy inlet and your tools.
- Shop Vacuum
- Dust drum or container that will withstand the vacuum pressure (We
recommend at least a 90 mil side thickness otherwise the container may
collapse when in use.) and has a lid that can be tightly sealed. (e.g.- 5 gal.
plastic drywall bucket) Drum must be 100% air tight.
Any air leak in lid or drum will affect separation performance.
For wood dust use a smaller container (up to 10 gal.)
To reduce the chance of fire hazard, empty container after each use.
Hose to
Vacuum
Hose
to
Tools
Make sure larger
diameter hoses are
pushed up so they fit
tightly over the inlet
HowtoMakeTemplateforDrumLidandAssembleDustDeputy
Sealant
8. Lid must completely seal to drum. Any air leaks will affect performance.
9.Attach one hose from top cyclone outlet to shop vacuum and the other hose from side cyclone
inlet to your tools or use hose by itself to pick up waste.
7. Put bolts through washer and cyclone base then fasten with nuts under drum lid.
6. Spread even layer of sealant between center hole and bolt
holes on drum lid. (See above diagram.) You must have a
complete seal between cyclone and drum lid or performance will be affected.
5. Use 5/16” drill bit to drill bolt holes.
4. Draw 3” dia. circle for drum inlet. Carefully cut out
3” hole in lid.
3. Connect opposite bolt holes with lines as shown
above to find center.
2. With pen, trace around base and bolt holes.
1. Place cyclone base in center of drum lid.
XI.SuperDustDeputy
New!
Turn Any Single Stage Collector Into A Super Cyclonic Dust Collector!
Use Your
Fan Blower.
1.AddA Super Dust Deputy Cyclone.
Dust Collector, Dust
Drum and Flex Hose
Not Included.
23”
AXD002030
Part #
Turn your inefficient single stage or two stage collec-
tor into a high efficiency cyclonic collector using your
existing blower. Retrofits to single stage 1/2hp to 3hp
dust collectors.
High efficiency cyclone separates 98% of wood waste
before the filter. Filter clogging no longer reduces air
flow.
Compact footprint. Simple installation.
Reduced filter maintenance and no dusty bags to empty.
Benefits & Features:
System
Dimensions Height approx. 23” / Inlet Diameter: 5” O.D.
Outlet Diameter: 6”
Powder Coated Paint Finish Over Steel
Included Super Dust Deputy Cyclone
5” SpiralAdapter

13 6
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
V.AssemblyInstructionsforDeluxeDustDeputyKit
1.) Place supplied gasket on plastic
drum top, lining up holes in gasket with
holes in lid.
3.) Snap lid tightly on drum and
you’re ready to go.
A
B
4.)Attach provided hose from shop
vacuum to top outlet on cyclone (A).
Use shop vacuum hose to attach to
tools. (B).
2.) Place bolt through washer then put
bolt through hole in base of cyclone.
For optional grounding, attach wire to bolt
between bolt head and washer, then attach
another washer to end of wire. Wire must
be long enough for washer to lie flat on floor.
Recommended for increased safety.
Bolt
Wire Washer
Washer
Cyclone
Gasket
Lid
Floor
Base
Gasket
(Ring Terminal Recommended)
TheDustDeputyismadeofstaticdissipatingplastic.
Make sure larger
diameter hoses are
pushed up so they fit
tightly over the inlet
X.Troubleshooting
ToPreventTippingProblems
ToPreventHosePullOff
Dust Deputy not separating well. (Only a tiny amount of dust should reach the
vacuum.)
Position one of the vac wheels directly under the
5 gal. pail to increase the center of gravity.
Wrap the inlet and outlet of the Dust Deputy with a layer of electrical tape
to increase the friction fit.
Secure with a hose clamp.
Secure with a sheet metal screw.
Position a weight (eg. brick) on the opposite side
of the vac from the 5 gal. pail to counter-balance
the pail.
Attach the 5 gal. pail to the vacuum and add a
caster to the bottom of the pail for support and
mobility..
Low air volume.
Material swirls in cyclone and won’t drop down into drum.
Material swirls in cyclone and won’t drop down into drum.
Hose connections not tight.
Air leak. Check cyclone flange / drum lid / barrel. Even small leaks
will affect performance.
Vacuum filter clogged. Blockage in hose.
Air leak in bottom of cyclone / drum lid or dust drum.
Large, bulkier material might swirl. Restart or temporarily cut off air flow to
drop material down.
Due to the varied hose diameters, flexible couplers
can be used. They are available at local hardware
stores in the plumbing section.
Some models of vacs with a short wheel base can become sligthly unstable
with the addition of a 5 gal. pail. To prevent this you can do the following:
The inlet and outlet of the Dust Deputy are shouldered and tapered to adapt
to a range of vac hose sizes. If on your model the friction fit isn’t as tight as
needed you can do the following:
Shop
Vacuum
5 Gal.
Pail
Brick or Weight
Casters
Caster

7 12
Dust Deputy Owner’s Manual © 2010 Dust Deputy Owner’s Manual © 2010
VI.AssemblyInstructionsforUltimateDustDeputy
1. With a Phillips head screwdriver, attach
the two rubber latches, one on either side of
the dust collection box using the (4) 10 x 32
x 1” machine screws included
in the hardware pack. Make sure
that the handle of the latch curves
downward when attached or when
in the up position it points out.
3. Put Gasket on box top making sure gasket holes
line up with bolt holes in top.
Gasket
2. Take the provided length of gasket, peel the
protective backing off of the gasket and carefully
place the gasket flat around the underside of the
box top as shown in the picture.
It is very important that there are no gaps in the
gasket where the ends meet. Make sure they
are butted together!
4. With a Phillips head screwdriver, attach
the Cyclone with the (6) provided 1/4”x 20
x 3/4” bolts. Tighten in a star pattern as
shown. Do NOT over tighten.
Star Bolt Pattern
Point inlet at
either latch.
IX.AddingCyclonestoImprovePerformance
Attach in Series
Increases particle efficiency.
Top View
This arrangement may be useful
for very fine dust situations.
Attach in Parallel
Same particle efficiency but
increases CFM.
Multiple Vacuums
MoreAirflow to BigTools.
More CFM.
100 CFM 100 CFM
200 CFM
Your arrangement is
only limited by your
imagination!
Top View
Top View
2 or More
- Table Saw
- Jointer
- Planer

8
Dust Deputy Owner’s Manual © 2010
VI.AssemblyInstructionsforUltimateDustDeputy
5. Pull up latch so hole in latch goes over the pin /
boss on Dust Box top.
6.Attach hose from vacuum to the top of the Dust
Deputy cyclone outlet.
7. If you are using the Festool hose, attach included
adapter, white end first on the cyclone inlet as shown,
then connect hose to adapter.
You can put the hoses in the box and turn the top
upside down and latch the top down to transport
the Dust Deputy to a job site so the cyclone is
protected.
11 Dust Deputy Owner’s Manual © 2010

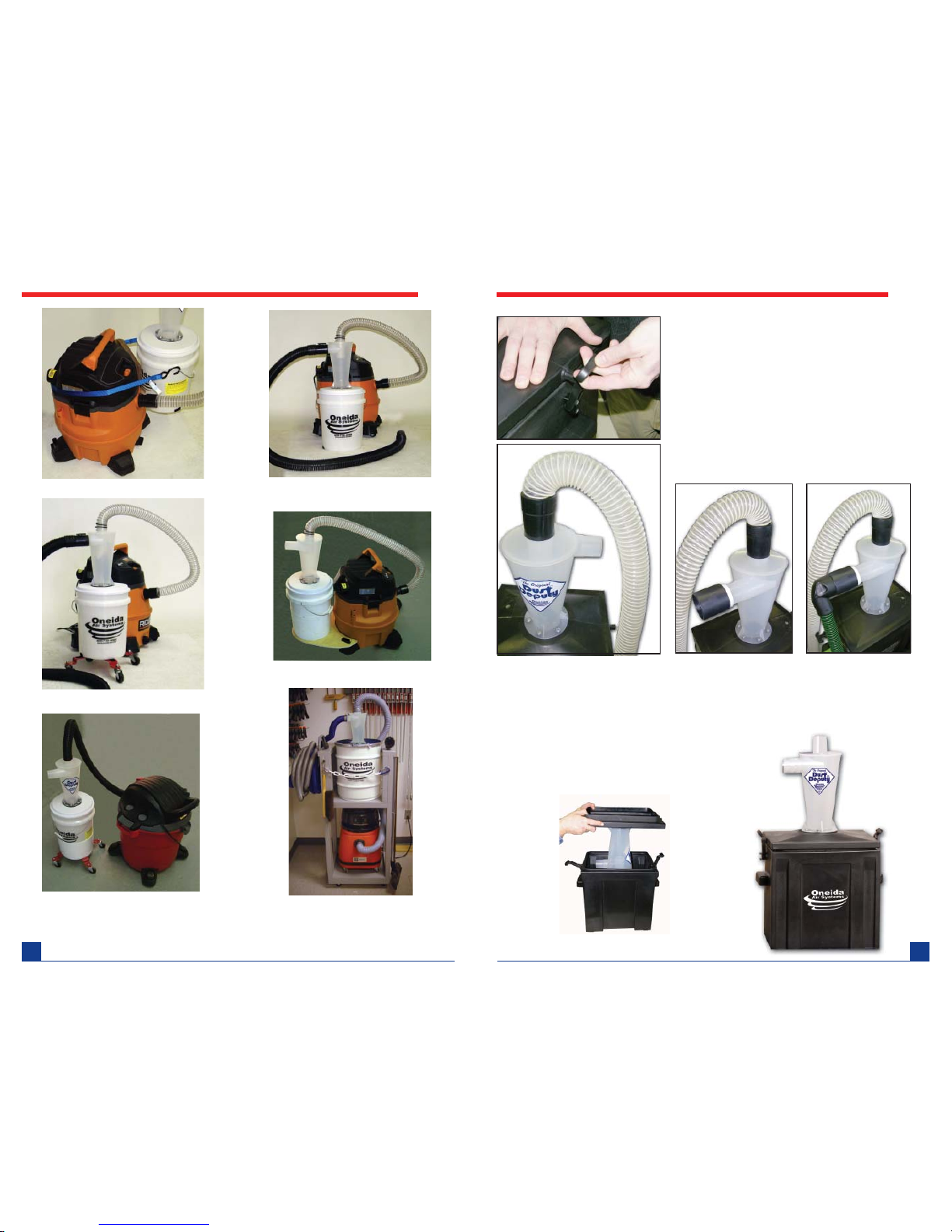

VIII.OtherOptionsforSecuringDustDeputyDeluxetoVacuum
Strap to Vacuum
Velcro to Dolly
Weight in Bottom of Drum
Bolt toAttached Platform
Home-Built Cart
Bolt Bucket to Dolly

9Dust Deputy Owner’s Manual © 2010
VII.InstallingtheDustBagger
10
Dust Deputy Owner’s Manual © 2010
VIII.PossibleWaystoAttachDustDeputyDeluxetoShopVacuums
You may want to attach your Dust Deputy
to your shop vacuum for mobility, conve-
nience or stability. There is no definitive
way to attach the Dust Deputy to a shop
vacuum. It will vary with vacuum type and
intended use. These are just a few exam-
ples of possible ways it may be done.
Some vacuums may only require one foam
block to attach the bucket. This may be
determined by vacuum body shape.
Cut the provided foam block in half. Drill
two 1/4” holes through bucket, blocks
and vacuum as shown, then using
provided long bolts, washers and nuts,
attach bucket to vac.
Cut the provided foam block to size. Drill two
1/4” holes through bucket, blocks and vacuum
as shown, then using provided long bolts,
washers and nuts, attach bucket to vac.
The mounting is only limited by your
imagination.
Use the foam blocks as spacers
between the vac and bucket then put
the assembled Dust Deputy into the at-
tached bucket to hold it securely to the
vacuum.Attach the appropriate hoses
and you’re ready to go.
Use the foam block as upper spacer between
the vac and bucket then put the assembled
Dust Deputy into the attached bucket to hold
it securely to the vacuum.Attach the appropri-
ate hoses and you’re ready to go.
To prevent tipping problems,
please see pg. 13 in this manual.
Attach vacuum hose elbow
with valve to vacuum as
shown in Fig. 5. Push in-
cluded plastic tubing into 1/4”
tubing elbow. (Fig. 1)
Push other end of tubing into
1/4” tubing valve. (Fig. 2)
Tubing can be cut to desired
length.
To remove tubing from valve,
you must push end of valve
in to release the grip. See ar-
row in Fig. 2. Ensure valve is
open when using bags. Valve
shown in open position.
Place included filter into han-
dle space of top valve inside
of box. (Fig. 3) This prevents
bag from being sucked into
valve and prevents dust from
entering valve if used without
bag.
Place bag into box, tucking
into corners and folding top of
bag over top of box. (Fig. 4)
Fig.1
Fig.2
Fig.3
Fig.4 If you want to run the Dust Deputy
without the bag, you must shut the
valve by turning the valve handle
90 degrees. The system must be
air-tight to operate properly. Fig.6
shows valve in open position.
Note: Before resuming using
plastic bags you must vacuum
off the foam filter (Fig. 3) so air
flow is not restricted.
Place top on box and latch down,
attach your hoses to the Dust
Deputy inlet and outlet and you’re
ready to go! (Fig.5)
Fig.5
Fig.6
