Oneida Air Systems Supercell XSK000030 User manual

Rev: 08/03/2021 Doc. #ZBM000038
Appearance may vary slightly
OWNER’S MANUAL
Supercell®
High-Pressure
Dust Collector
30/55 Gallon
# XSK000030
# XSK000055
U.S. Patent: #8393050,
#8377160, #9125535,
#D917806

1oneida-air.com
Table of Contents
System Start-Up Information 2
System Specications 4
Wall Bracket Dimensions 5
System Dimensions with 30 Gallon Drum 6
System Dimensions with 55 Gallon Drum 7
System Contents 30/55 Gallon Drum 8
Maintenance 22
Troubleshooting 26
F.A.Q. 27
Recommended Accessories 28
Warranty Information 30
Notes 31

2 Oneida Air Systems
System Start-Up Information
1. Install ductwork/ex hose completely before operating collector.
a. Seal ductwork with silicone sealant or duct tape if leaks are found.
b. Have dust drum in place and sealed.
2. DO NOT operate without lter in place. Debris will cause damage to the motor!
3. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.
4. is equipment incorporates parts such as switches, motors or the like that tend to produce arcs or sparks that can cause an
explosion.
5. To reduce the risk of Electric Shock, DO NOT use outdoors or on wet surfaces.
6. Exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
7. To reduce the risk of injury from moving parts - unplug BEFORE servicing.
8. Ensure that your dust collector is turned o and unplugged during installation.
9. Use this equipment for dry material collection only. DO NOT use for liquid collection.
 WARNING 
 FIRE HAZARDS 
1. Wood shaping and cutting processes generate wood chips, shavings and dust. ese materials are considered combustible. Air
borne wood dust below 420 microns in size (0.017 of an inch) in certain concentration ranges when ignited can deagrate (burn
quickly). An ignition source such as a spark or ember can ignite a dust mixture resulting in an expanding ame front, which can
cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated ne dust can raise additional dust clouds,
which can cause a series of explosions that can level an entire building. Until this type of re has been witnessed, it is dicult to
believe the devastation. is type of re is rare but worth safeguarding against.
2. e best way to avoid a wood shop re is to keep the shop clean. A shop ankle deep in dust with layers of ne dust everywhere
is an accident waiting to happen. A good dust collection system reduces overall re hazards but also adds new concerns. A re
hazard is still present. Combustible material is now in the dust collector and storage container.
3. e following points are worth heeding:
a. It is the buyer’s responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction
codes and regulations when installing and operating this dust collector.
b. Fire Marshals may want the unit located outside of the building. If the collector is located inside the facility, controls
such as spark detection, suppression, or explosion venting may be required.
c. Most local jurisdictions consult or adopt NFPA (National Fire Protection Agency) codes. However, other codes may
apply. Local codes may vary from jurisdiction to jurisdiction.
d. NFPA664 Code book, “Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities”, applies to woodworking operations that occupy areas of more than 5,000 sq. . or to areas where dust
producing equipment requires an aggregate dust collection ow rate of more than 1,500 cfm (cubic feet per minute).
is exempts some small operators from the NFPA code 664, but other codes may apply in your jurisdiction. Consult
your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664.
4. e customer assumes the responsibility for contacting their insurance underwriter regarding specic application requirements of
MAKE SURE TO READ AND UNDERSTAND THE INSTALLATION AND MAINTENANCE INSTRUCTIONS AS WELL
AS ALL RECOMMENDED SAFETY PRACTICES.

3oneida-air.com
System Start-Up Information (Continued)
explosion venting or if additional re protection and safety equipment may be required.
5. DO NOT use this product to collect ammable dust or ammable vapors! - Fire or explosion may occur!
6. NEVER collect sparks from a bench grinder into a wood dust collector.
7. NEVER introduce sparks or sources of ignition into the dust collector.
8. Check dust bin frequently for smoldering material and before leaving the shop.
9. Keep portable re extinguishers handy.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
10. Be especially careful with sanding units. ey can produce concentrations of dust in the combustible range. Make certain enough
air volume is at the suction point to capture all the particulate generated.
11. is high air volume will dilute the mixture below the lower limit of ammability. Be careful not to generate sparks into the
sanding dust.
12. Empty dust bin and clean lter oen, especially when sanding.
13. DO NOT overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
14. Sparks can be generated in several ways:
a. High speed sanders and abrasive planers may strike foreign material.
b. Saws and edgers may strike foreign material and create a red-hot metal fragment.
c. Knots in hardwood can create frictional sparks.
d. Trapped metal when drawn into the collector can spark against ductwork.
e. Check wood stock for old nails and screws which can create red hot metal fragments.
15. Avoid using excessively large wood waste bins.
16. ALWAYS check storage bins for smoldering material before leaving for the day.
17. Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drain pipe.)
18. DO NOT allow accumulation of layers of ne dust on horizontal surfaces (especially overhead lights, electrical boxes and fuse
panels which can ignite dust.)
19. UNPLUG UNIT BEFORE SERVICING OR CLEANING
Customer Service Dept.
1-866-387-8822 • [e-mail]

4 Oneida Air Systems
System Specications
OPERATION
Maximum Suction Rating 97.8" WC
MOTOR AND ELECTRICAL
Motor Type 3x 1300W Modular Motors
Horsepower 5HP Total
Motor Speed 48,880 RPM
Phase 1-Phase
Voltage 208-230V
Cycle 60Hz
Listed FLA 18A
On/O Switch Magnetic Starter with On-O Switch
Preset for Included Remote
Power Cord Length 10 feet
Power Connector NEMA 6-20
Recommended Circuit Size 20A
Recommended Circuit Type HACR
Sound Emission 80 dBA @ 10 ft
CARTRIDGE FILTER
Filter Media Type HEPA Certied
Filter Eciency 99.97% @ 0.3 microns
Filter Surface Area 40 sq ft
SYSTEM DIMENSIONS AND CONSTRUCTION
Primary Build Materials Cold Rolled Steel, Static Dissipative Polyethylene
Inlet 4" O.D.
Discharge to Drum 5" O.D.
Overall Height 30 Gallon: 79-3/16"; 2,011 mm without Universal Drum Dolly
55 Gallon: 84-1/4"; 2,140 mm without Universal Drum Dolly
Overall Weight 30 Gallon: 95 lbs
55 Gallon: 102 lbs
e Supercell requires a 20 Amp
outlet receptacle to be installed by a
licensed electrician.

5oneida-air.com
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
Wall Bracket Dimensions
2"
51 mm
2"
51 mm
8"
203 mm
16"
406 mm
1/2"
13 mm
6"
152 mm
20"
508 mm
Floor
30 Gallon: 45-13/16" ; mm
30 Gallon with Dolly: 49-13/16" ; mm
55 Gallon: 49-7/8"; 1267 mm
55 Gallon with Dolly: 53-7/8"; 1368 mm 15-1/4"
388 mm

6 Oneida Air Systems
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
Allow for an additional 24" of clearance above the Motor Assembly to allow for its removal during lter replacement and other
maintenance. If you purchased the Universal Drum Dolly, add an additional 4" to the height of the unit.

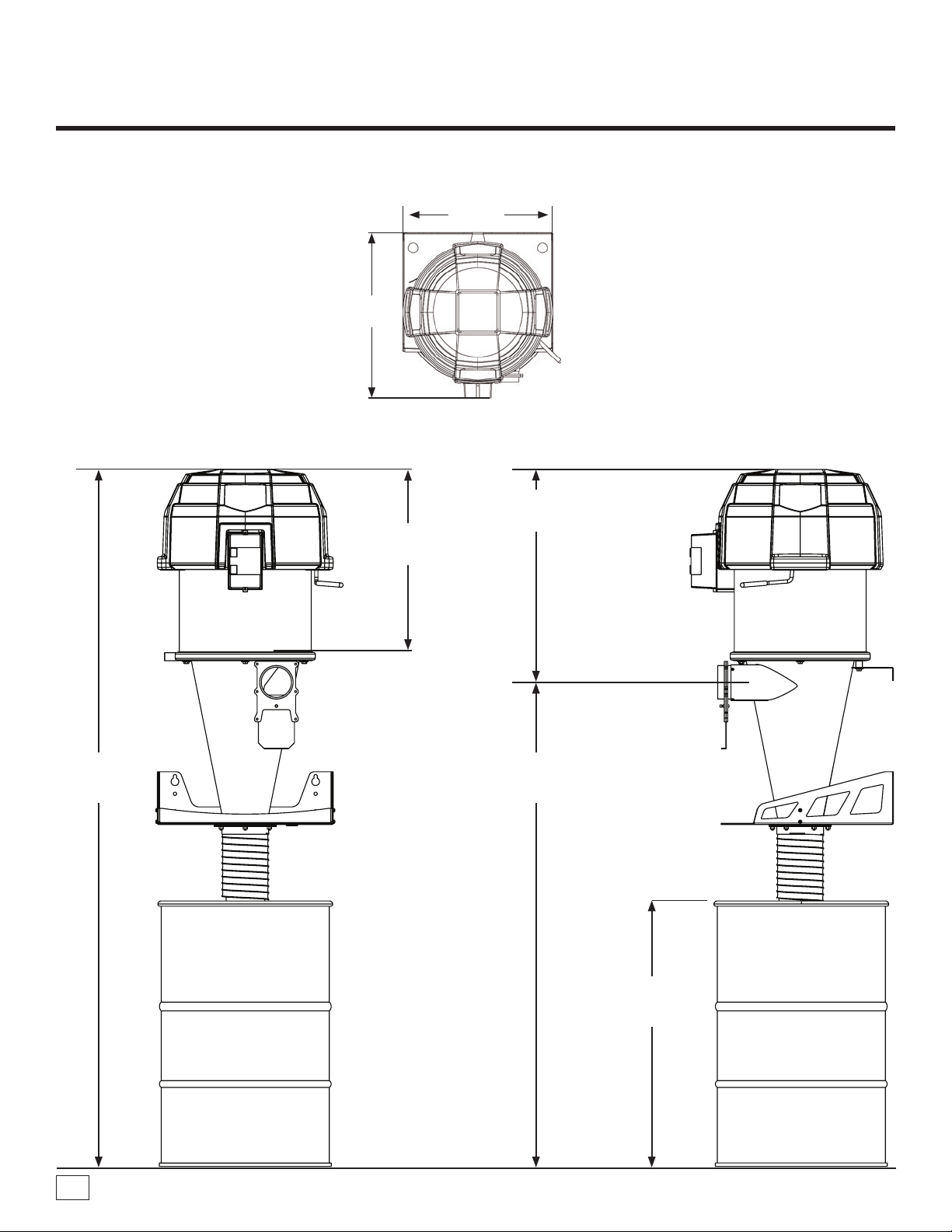

System Dimensions with 30 Gallon Drum
24-1/4"
616 mm
54-15/16"
1,395 mm
29-9/16"
751 mm
21-9/16"
548 mm
Top View 20"
508mm
23"
584 mm
79-3/16"
2,011 mm

7oneida-air.com

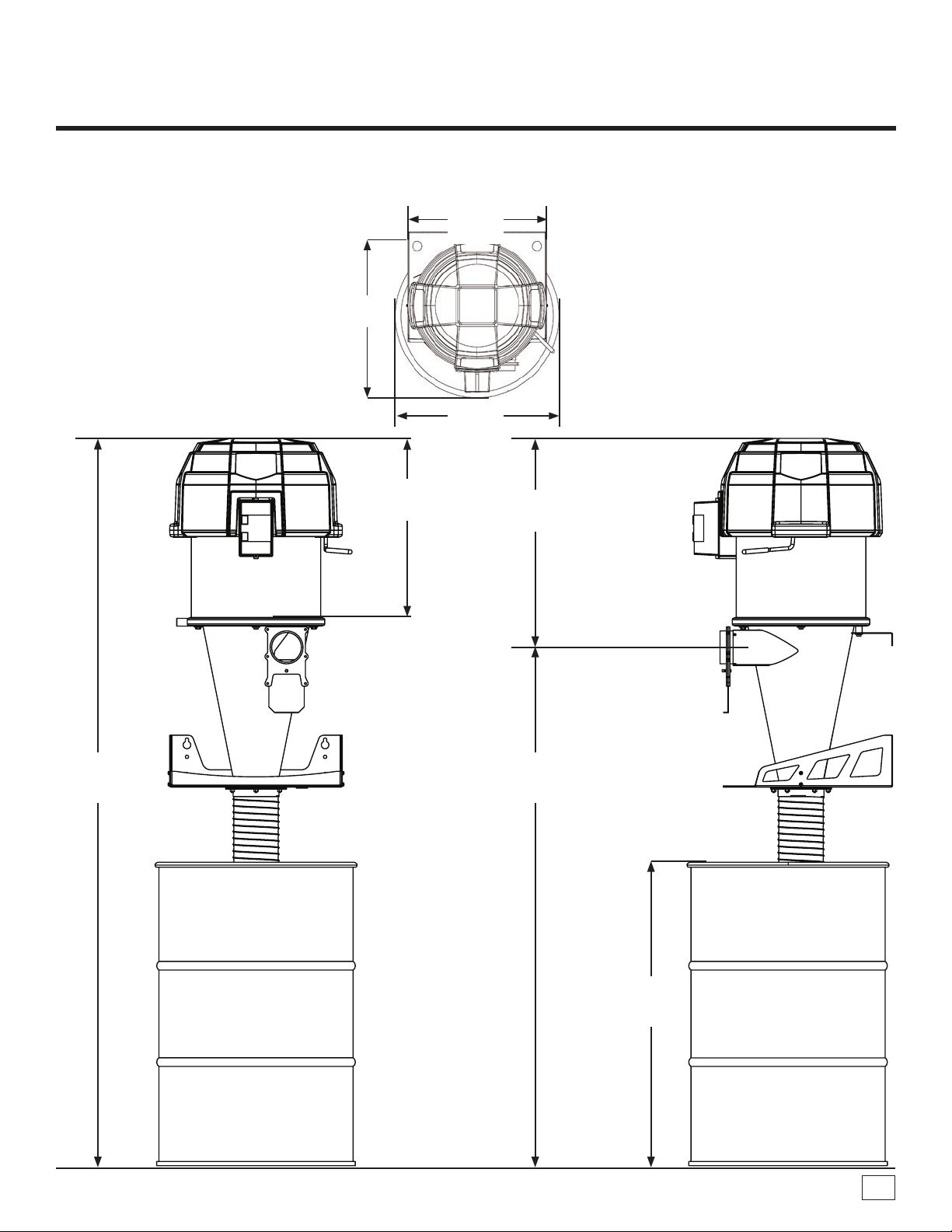

System Dimensions with 55 Gallon Drum
24-1/4"
616 mm
59"
1,499 mm
35"
889 mm
21-9/16"
548 mm
Top View
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing.
Allow for an additional 24" of clearance above the Motor Assembly to allow for its removal during lter replacement and other
maintenance. If you purchased the Universal Drum Dolly, add an additional 4" to the height of the unit.
20"
508 mm
23-1/2"
597 mm
23-3/4"
603 mm
83-1/4"
2,115 mm

8 Oneida Air Systems
System Contents 30/55 Gallon Drum
If you cannot find an item on the list, examine the packaging materials very carefully.
Certain components have been pre-installed.* There may be hardware leftover.
ID Part number Part description Qty
A BXI001501 Supercell Motor Assembly 1
B FPX040001 Filter Hold Down Plate 1
C FCS131040H 13 x 13" Conical HEPA Cartridge Filter 1
D GCZ150000 15" Ring Clamp 1
E SCX040000 Cone 1
E1* DGA040000* 4" Aluminum Blast Gate 1
E2* DAB040000* 4" Male Duct Adapter 1
E3* AFR316066 Rivets 5
F SMS040001 Supercell Wall Bracket 1
G AHX000022 35/55 Gallon Hardware Pack 1
G1 ZBT040001 Supercell Wall Bracket Template 1
G2 RGF000015 15" Barrel Gasket 1
G3 RGZ051820 Supercell Flange Gasket 2
G4 AFB025125 1/4"-20 x 1-1/4" Hex Head Bolt 6
G5 AFW025000 1/4" Flat Washer 6
G6 AFT900006 1/4"-20 Nylock Nut 6
G7 AFB155180 5/16-18" x 2-1/2" Hex Head Bolt 4
G8 AFW180000 5/16" Flat Washer 4
G9 AFW180516 5/16”Rubber Washer 4
G10 AFT900516 5/16-18" Nylock Nut 4
G11 AFT155175 5/16 " Whiz-Lock Nut 4
G12 AFW516075 5/16 x 3/4" Nylon Spacer 1
G13 SMS040000 Rear Support Brace 1
ID Part number Part description Qty
G14 DLX050000 5" Collared Flange 1
G15 ACB060000 3"-6" Quick-Release Hose Clamp 2
G16 VRV050500 1/2" ID Clear Vinyl Tubing 7
G17 AHX000018 Quick Disconnect Kit 1
G17A RLH000006 1/4" NPT Nylon Elbow 1
G17B RLH000005 3/8”Socket 1
G17C RLH000004 3/8" Male Plug 1
G17D RLH000002 Nylon Washer 1
G17E RLH000003 Rubber O Ring 1
G17F RLH000007 Nylon Nut 1
G17G RLH000008 Round Tapered Plug 1
G18 VAB251555 35-55 Gallon Drum Liner Bag 5
G19 RLH000023 23 mm Button Plug 2
G20 ACB640000 4-1/2" Turn-Key Band Clamp 2
G21 AMR000000 Remote 1
H DHF050008 5" Diameter x 8" Length Flex Hose 1
I DHF042502 4" x 25' Vacuum Pressure Rated Flex-Hose 1
J AXB999110B Dust Sentry Automatic Dust Bin Level
Indicator 1
K* SEX300500
SEX550500
30 Gallon Steel Drum Lid with 5" Collar
55 Gallon Steel Drum Lid with 5" Collar 1
K1* RHL000604 Drum Window 1
LSES300000
SES300000
30 Gallon Drum w/ Clamp
55 Gallon Drum w/ Clamp 1
Please unpack the parts carefully and conrm you have received each item listed here.
*Some components are pre-installed at the factory and are listed here for your convenience.

9oneida-air.com
System Contents 30/55 Gallon Drum (Cont.)
A
E
K
L
G1
C
G4 G5
G6
H
G19
G3
Thewall bracket should be installed to a sturdy, reinforced surface e.g. concrete wall, brick
wall,drywall with wooden studs.The wall bracket is designed to work with standard 16” stud
spacing.This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
SupercellWall Bracket Template
#ZBT040001
DrillHere DrillHere
DrillHere DrillHere
LEVEL THIS LINE
TheCyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicularto the wall. Decide how you want your system oriented during installation to
bestmeet your shop’s needs. Other positions will not work as they will hinder installation of
theRear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
G2
G14
G17
G17A
G17E G17F
G17G
G17B G17C
G17D
G18G16
D
J
SHEET 1 OF 1
NAME:
14Ga Galv
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Oneida Air Systems Inc. AND SHALL
NOT BE USED OR DISCLOSED TO
OTHERS, IN WHOLE OR IN PART,
WITHOUT THE WRITTEN AUTHORIZATION
OF Oneida Air Systems Inc.
5 4
3
2
1
PART NO.
SIZE
A
DO NOT SCALE
DRAWN DATE: 7/18/2019
ONEIDA AIR SYSTEMS INC.
1001 WEST FAYETTE STREET
SYRACUSE, NEW YORK 13204
1-800-732-4065
MFG APP:
DRAWN BY:
ENG APP:
TOL:
.XX
.10
.XXX .015
PROPRIETARY AND CONFIDENTIAL
MATERIAL: FINISH:
DIMENSIONS
ARE IN
INCHES
REV:
FPX040001
3RD ANGLE
FPX040001 - Filter Hold Down 14ga rev 3
3
KWG
B
G21
G20
I
G15
Wall Bracket Hardware
Drum Hardware
Filter Hardware
Filter Hardware
Drum Hardware
Drum Hardware
Rivnuts
Note: e Wall Bracket (F)
is universal to all Supercell
systems. e Rivnuts are used
only for the 14 gallon model.
F
G7
G8
G9
G10
G11
G12
G13
Filter Hardware

The wall bracket should be installed to a sturdy,reinforced surface e.g. concrete wall, brick
wall,drywall with wooden studs. The wall bracket is designed to work with standard 16”stud
spacing.This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
Supercell Wall Bracket Template
#ZBT040001
Drill Here Drill Here
Drill Here Drill Here
LEVEL THIS LINE
The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicular to the wall. Decide how youwant your system oriented during installation to
best meet your shop’s needs.Other positions will not work as they will hinder installation of
the Rear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
Thewallbracket should be installed to a sturdy,reinforced surface e.g. concrete wall, brick
wall,drywallwithwoodenstuds. The wall bracket is designed to work with standard 16” stud
spacing.Thistemplateindicatesthe proper drill holes and the full, assembled size of the wall
bracket.
WallBracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
SupercellWallBracketTemplate
#ZBT040001
DrillHere DrillHere
DrillHere DrillHere
LEVELTHIS LINE
TheCyclonecanbe rotated in 90-degree increments so that the inlet is facing parallel or
perpendiculartothewall. Decide how you want your system oriented during installation to
bestmeetyourshop’s needs. Other positions will not work as they will hinder installation of
theRearSupportBrace.
CycloneMounting Positions
RIGHTFORWARD LEFT
10 Oneida Air Systems
Assembly Instructions
You will need the following tools:
WALL MOUNTING BRACKET CYCLONE BODY
Stud Finder Light Adhesive Tape 7/16" Wrench
Tack / Center Punch / Nail Tape Measure / Ruler 7/16" Socket Wrench
Wall Mounting Fasteners * Level 1/2" Wrench
Power Drill Pencil / Marker 1/2" Socket Wrench
Drill Bit (for your wall fastener)
*You will need to supply your own wall mounting hardware. Use appropriate fasteners for the wall type you are
installing your system onto (e.g. lag bolts, drywall anchors, etc.).
1Identify where you will install the Supercell
in your shop. It must mount to a reinforced
wall (studs, concrete, etc.) and is designed to
accommodate standard 16" stud spacing.
Center the wall bracket Template (G1)
between your wall studs [FIG. 1].
2Mark a straight level line 45-13/16" (30-Gallon
drum), or 49-7/8" (55-gallon drum) from the
ground. Align the top of the Template (G1)
with the marked line [FIG. 2] and temporarily
secure the Template (G1) to the wall with a
tack or non-marking tape. If you purchased
the Universal Drum Dolly, add an additional
4".
Note: If you wish to mount your system higher
than the recommend height, you will need
additional 5" dia. ex hose.
FIG. 2
FIG. 1
45-13/16"
1,164 mm
16"
406 mm
G1
G1
49-7/8"
1,267 mm

oneida-air.com 11
Assembly Instructions (Continued)
Mark
Here
16"
406 mm
4"
102 mm
1/2"
13 mm
FIG. 4
FIG. 3a
FIG. 3b
FIG. 5
Wall
Mark
Here
3Place a mark through the Template's (G1)
paper at each indicated crosshair (four keyway
holes and one center hole), then remove the
Template (G1) from the wall [FIG. 3a].
Measure 15-1/4" up from the center hole and
mark a straight level line to help with the
install of the Rear Support Brace (G13) [FIG.
3b].
Note: e line you have marked for the Support
Brace is where the fasteners will be installed to.
Refer to Step 9 for more information.
4Using appropriate fasteners for the wall type
you are installing your system onto, drill into
and install fasteners into the wall at all marked
locations [FIG. 4].
a. Maximum Fastener Size: 5/16" diameter for
the 4 keyholes
b. Maximum Fastener Size: #12 screw for the rear
support brace holes
c. Maximum Washer Size: 3/4" outside diameter
5 Place washers onto each fastener and thread
the fasteners into all four holes, leaving at least
1/2" outside of the hole to t the Wall Bracket
(F) and Rear Support Brace (G13) [FIG. 5].

Oneida Air Systems, Inc.12
Assembly Instructions (Continued)
FIG. 7
FIG. 6

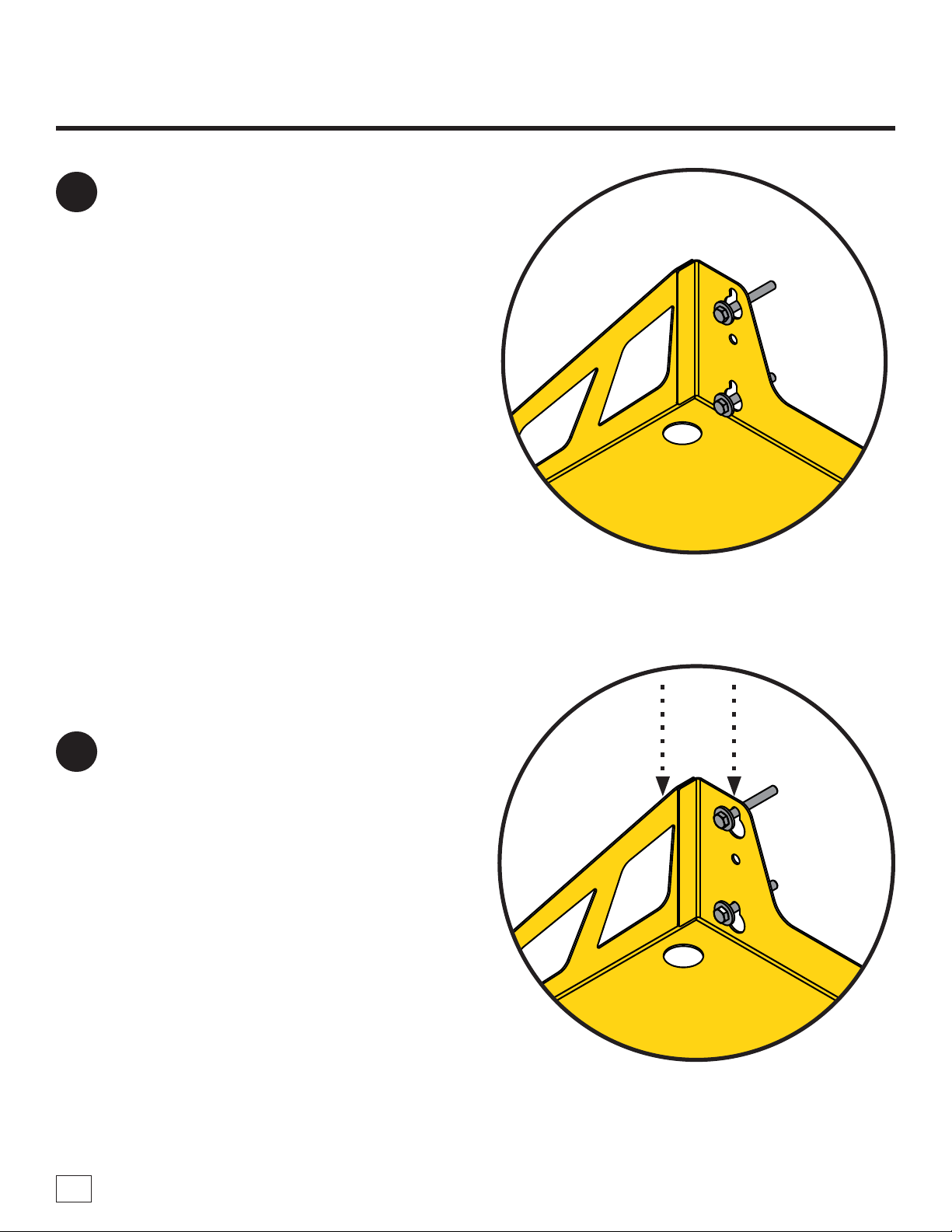

6 Li the Wall Bracket (F) up and over the
fasteners so that the washer is on the inside of
the bracket [FIG 6].
7 Slide the Wall Bracket (F) down so that the
fastener is snugly inside the smaller section of
each keyhole [FIG 7].

Inlet
Facing
Right
Inlet
Facing
Forward
Inlet
Facing
Left
oneida-air.com 13
Assembly Instructions (Continued)
8 Tighten these four fasteners to secure the Wall
Bracket (F) to the wall [FIG. 8].
Note: If installing over drywall, avoid
overtightening as it may damage the wall.
9 Fasten the Rear Support Brace (G13) to the
wall using your own suitable hardware [FIG.
9]. Refer to the previously marked line for the
suitable mounting location of this Brace.
Note: is hardware is not load bearing and
only needs to connect the brace to the wall to
add additional support to the system during
operation. Fasten through at least one hole.
FIG. 9
FIG. 8
Wall
FIG. 10
10 e Cyclone (E) can be rotated so that the inlet
is facing parallel or perpendicular to the wall.
Decide how you want your system oriented
[FIG. 10].
Note: e cone’s inlet can be rotated in
90-degree increments to best connect to your
ductwork and/or tools. Other positions will not
work as they will hinder installation of the Rear
Support Brace.
F

Oneida Air Systems, Inc.14
Assembly Instructions (Continued)
Wall
FIG. 11
E
G13
11 Align the Rear Support Brace (G13)
underneath the hole closest to the wall on the
upper ange of the Cyclone (E) [FIG 11].
FIG. 14
G4
G3
G14
G5
E
12 Connect the Cyclone (E) and the 5" Collared
Flange (G14) to the Wall Bracket (F) with a
Flange Gasket (G3) placed between each one.
Secure together using six Hex Head Bolts
(G4), six Flat Washers (G5), and six Nylock
Nuts (G6) [FIG. 14].
G3
G6
F

oneida-air.com 15
Wall
FIG. 12
G11
G9
G12
G13
E
G8
G7
Assembly Instructions (Continued)
FIG. 13
G11
G9
E
G8
G7
13 Secure the Rear Support Brace (G13) to the
Cyclone (E) using a 2-1/2" Hex Head Bolt
(G7), Flat Washer (G8), Nylon Spacer (G12),
Rubber Washer (G9), and Whiz-Lock Nut
(G11) as shown in [FIG 12].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.
14 Install the three remaining Hex Head Bolts
(G7), Flat Washers (G8), Rubber Washers
(G9), and Whiz-Lock Nuts (G11) to the three
remaining holes in the Cyclone’s (E) upper
ange [FIG 13].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.

Oneida Air Systems, Inc.16
Assembly Instructions (Continued)
15 Place the Filter (C) on top of the Cyclone (E)
with the open side facing down [FIG. 15].
Note: Position the Filter (C) on the Cyclone (E)
so that is centered between all four Hex Head
Bolts (G8).
16 Slide the Filter Hold-Down Ring (B) over the
Filter (C) and the previously installed bolts
(G7) and secure in place using four Nylock
Nuts (G10) [FIG .16].
Note: Tighten hardware so that the Filter's pre-
installed foam gasket is rmly compressed (by
roughly 50%).
17 Open and slide the Ring Clamp (D) over the
assembly so that it rests outside the upper
ange of the Cyclone (E) [FIG. 17].
FIG. 16
FIG. 17
FIG. 15
G10
B
C
C
C
E
E
D
G7

Pulse
Bar
oneida-air.com 17
18 Install the Barrel Gasket (G2) onto the
rounded, bottom edge of the Motor Assembly
(A). e Barrel Gasket (G2) should be oriented
so that the "ribbed" side is facing downwards
[FIG. 18].
Assembly Instructions (Continued)
FIG. 19
G16
A
19 Attach one end of the Vinyl Tubing (G16)
onto the barbed tting located underneath the
Motor Assembly's (A) plastic cowl. e tting
will be on the side opposite to the pulse bar.
Push the hose onto the tting so that all of
barbs are covered [FIG 19].
Note: e Motor Assembly's plastic cowling can
be temporarily removed for easier access to this
tting during installation. Li the foam placed
at the top of the cowl to access the retaining nut.
Replace the foam and the hardware when you
have nished attaching the Vinyl Tubing. Refer
to maintenance section as shown on page 22.
FIG. 18
G2
A
DO NOT TURN ON OR PLUG IN YOUR DUST COLLECTOR UNTIL INSTALLATION IS COMPLETED.
NEVER RUN THE SYSTEM WITHOUT THE MOTOR COWLING IN PLACE.

Pulse Bar
Magnetic Starter
Oneida Air Systems, Inc.18
Assembly Instructions (Continued)
21 Li and close the Ring Clamp (D) over the
Barrel Gasket (G2) and the Cyclone's upper
ange. Secure the Ring Clamp (D) using the
Clamp's cotter pin [FIG. 22].
22 Take the Vinyl Tubing (G16) and route it
through the closest retaining hole located in
the back corner of the Wall Bracket (F) [FIG.
23].
20 Carefully li the Motor Assembly (A) up
and over the Filter (C) and down onto the
Cyclone's (E) upper ange. Align the Motor
Assembly so its perimeter is ush with the
Cyclone's (E) ange below it [FIG. 21].
Note: e Motor Assembly can be freely rotated
to best position the Magnetic Starter and Pulse
Bar to suit your needs. Some positions will not
work as these items may impact with the wall.
Either Hole
THE MOTOR ASSEMBLY IS HEAVY AND CUMBERSOME; BE SURE TO HAVE ADEQUATE HELP WHEN LIFTING!
G16
F
E
A
C
G16
FIG. 20
FIG. 21
FIG. 2
