Orient EMAM80 User manual

EMAM80
AX
MECHANICAL WATCH
AUTOMATIC &
HAND WINDING MECHANISM

1
ENGLISH
ENGLISH
MECHANICAL WATCHES <AX (F6E)>
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum
performance, please read this instruction manual carefully and familiarize
your-self with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to
prevent any possible physical danger and property damage to you as well as
other people concerned.
... A demarcation with this symbol represents the contents
assuming possibility for death or serious injury
when the product is used in any manner different from
given instructions.
... A demarcation with this symbol represents the contents
assuming possibility of causing human injury or
material damage only when a product is used in any
manner different from given instructions.
WARNING
!
CAUTION
!

2
ENGLISH
TABLE OF CONTENTS
This Instruction Manual explains the following contents in order.
SAFETY PRECAUTIONS
IN HANDLING THE WATCH
FEATURES
SPECIFICATIONS
NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS
AUTOMATIC AND HAND WINDING MECHANISM
MODELS WITH SCREWED-DOWN CROWN
HOW TO SET THE TIME & CALENDAR
USING THE ROTATING INDICATOR RING
HOW TO USE THE INTERNAL ROTATING INDICATOR RING

3
ENGLISH
IN HANDLING THE WATCH
(1) Water-resistance
Conditions
of use
Type
Underwater
operation of
crown and
operation
of crown
with drops
of water
on it
Exposure
to small
amounts
of water
(face-wash-
ing, rain,
etc.)
Water sports
(swimming,
etc.),
frequent
contact with
water (car-
washing,
etc.)
Skin diving
(air tanks
are not
used)
Scuba
diving
(air tanks
are used)
Mixed-gas
Diving
(using
helium
gas)
Non water resistant
Without
WATER
RESISTANT
(WATER
RESIST)
××××××
Water
resistant
watches
Water
resistant for
daily life
WATER
RESISTANT
(WATER
RESIST) ×××××
Reinforced
water
resistance
for daily
life I
WATER
RESISTANT
(WATER
RESIST)
5bar (50m)
×  ×××
Reinforced
water
resistance
for daily
life II
WATER
RESISTANT
(WATER
RESIST)
10bar (100m)
20bar (200m)
×× ×
Diver’s
watches
Diver’s
watch for Air
Diving
AIR DIVER’S
100m / 150m
200m ××
Diver’s
watch for
Mixed-gas
Diving
He-GAS
DIVER’S
200m / 300m /...
×
* It is recommended that you use the watch correctly following the above-mentioned scope of usage
after ascertaining water resistance precautions marked on the dial or caseback.

4
ENGLISH
WARNING
!
1A watch with water resistance for daily life 3 bar (30m) can be used
during face-washing, etc. but cannot be used in an environment in which
it will be submerged in water.
2A watch with reinforced water resistance for daily life I 5 bar (50m) can be
used while swimming, etc. but cannot be used during any type of diving
including skin diving.
3A watch with reinforced water resistance for daily life II 10 or 20 bar
(100m or 200m) can be used while skin diving, but cannot be used while
scuba diving using oxygen tanks or saturation diving using helium gas,
etc.
4Keep the crown pushed in at all times (in the normal position) while using
the watch. If the crown is the screwed-down type, check that it is securely
screwed down.
5Do not operate the crown underwater, or while the watch is wet. Water
may enter the interior of the watch and defeat the water resistance.
6If your watch is non-water resistant, beware of splashes of water (during
face washing, rain, etc.) and sweat. If the watch becomes wet from water
or sweat, wipe the moisture off with a dry, soft cloth.
7Even with a water resistant watch for everyday use, avoid directing
strong jets of mains water onto the watch. Water pressure above the limit
can apply, which may defeat the water resistance.
8With a water resistant watch for everyday use, rinse sea water off the
case after exposure, then wipe it thoroughly to avoid corrosion and other
effects.
9The interior of the watch contains some amount of moisture, which may
cause fogging on the inside of the glass when the outside air is cooler
than the internal temperature of the watch. If the fogging is temporary
it causes no harm inside the watch, but if prolonged, or if water enters
the watch, consult your place of purchase and do not leave the problem
untreated.
CAUTION
!

5
ENGLISH
(2) Shock
1Be sure not to carry the watch when you engage in
strenuous sports, whereas playing such light sports as golf,
etc., will not adversely influence the watch.
2Avoid a violent shock such as dropping the watch on the
floor.
(3) Magnetism
1If the watch is left at a location with strong magnetism for an extended
period of time, the components may be magnetized, resulting in
malfunction. Be careful.
2The watch may temporarily speed up or slow down when exposed to
magnetism. Precision is restored when placed away from magnetism. In
such a case, reset the time.
(4) Vibration
The watch may lose precision if subjected to strong
vibrations such as from riding motorcycles, using
jackhammers, chain saws, etc.
(5) Temperature
In environments below and above normal temperatures (5°C-35°C), the
watch may malfunction and stop.
CAUTION
!
Do not use the watch at high temperatures, such as in a sauna. The
watch may heat and cause burns.
(6) Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases,
mercury, chemicals (paint thinner, gasoline, various solvents, detergents
containing such components, adhesives, paint, drugs, perfumes,
cosmetics, etc.), and so forth. Such may cause discoloration of the
watchcase, watchband, and dial face. Discoloration, deformation, and
damage to various resin-based component parts may also occur.

6
ENGLISH
(7) About accessory parts
CAUTION
!
Do not attempt to disassemble or modify the watch.
WARNING
!
Store the bracelet/strap pin and other small parts out of the reach of
children.
If any small parts are swallowed, immediately contact a doctor.
(8) Allergic reactions
CAUTION
!
If you develop a skin rash or your skin becomes abnormally irritated due
to contact with the watch or strap, stop wearing the watch immediately
and consult a doctor.
(9) About “luminous light”
This watch has luminous light on the hands and dial.
The luminous light is a safe paint that stores sunlight and artificial light
without using any radioactive material, and emits that light in a dark
setting. As the paint discharges the stored light, it will become dimmer
over time. The amount of light emitted and the time that light is emitted
depends on various factors when the light is stored, such as the shape
of the glass, the thickness of the paint, surrounding brightness level, the
distance from the watch to the light source, and the light absorption level.
Please note that when not enough light energy is stored, the watch may
emit weak light or emit light for only a short time.
(10)Water resistant watchband
Some products employ leather and nylon bands on which a special
treatment to resist perspiration and water absorption have been applied.
Please understand that the water resisting effect of this watchband can
be lost depending on the period and conditions of use.

7
ENGLISH
FEATURES
(1) This watch is an automatic winding mechanical watch (with a hand
winding mechanism).
(2) In addition to showing the time, this watch has day of the week and date
indicator.
(3) It comes with a second hand halt mechanism.
(4) Shock-proof bearings to protect the balance with hairspring from shocks.
SPECIFICATIONS
(1) Vibrations: 21,600 vibrations/1 hour
(2) Number of Jewels: 22 jewels
(3) Daily accuracy: +25 sec. to -15 sec.
(4) Drive system: Mainspring winding (Hand-winding)
(5) Running time: At least 40 hours
The stated daily accuracy is in the following conditions:
 
the dial facing up.
 
deviate from the stated “daily accuracy” depending on the following
conditions: amount of time the watch is worn each day, position of the
watch, movement of your arm, winding condition of the mainspring.
 
Product specifications may change without notice, for improvement.

8
ENGLISH
 NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS
A: Hour hand 1. Normal position
B: Minute hand 2. First click: Calendar setting
C: Second hand 3. Second click: Time setting
D: Date
E: Day of the week
F: Crown
G: Dial
* The position of the crown may differ depending on the model.
C
A
B
F
D
G
E
123

9
ENGLISH
 AUTOMATIC AND HAND WINDING MECHANISM
(1) This is an automatic winding mechanical watch (with a
hand winding mechanism).
(2) The mainspring is wound by natural movements of your
arm when wearing the watch on your wrist.
In addition, you can also wind the mainspring by turning
the crown.

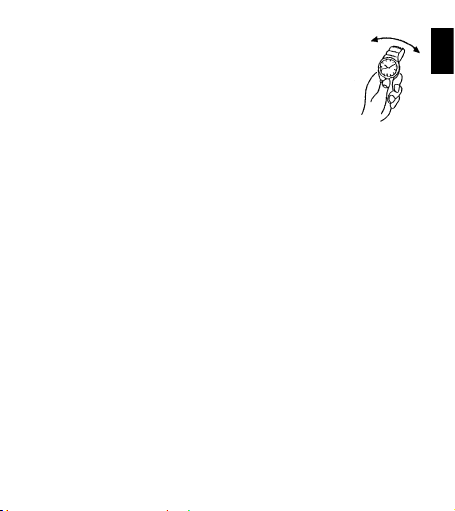

(3) If your watch stops, either swing the watch back and forth
ten or more times or turn the crown to wind the mainspring in order to
restart your watch.
After it starts moving, set the calendar and time.
(4) This watch will run approximately 40 hours after it is fully wound. If it is
not wound enough, the watch may lose accuracy. In order to maintain the
watch’s accuracy, we recommend wearing the watch at least 8 hours a
day.
MODELS WITH SCREWED-DOWN CROWN
Depending on the model, you may not be able to pull the crown out without
unscrewing it (models with screwed-down crown).
Operate this type of watch as follows:
(1) Before setting the time, first turn the crown counterclockwise to loosen
the screw lock.
(2) After setting the time, turn the crown clockwise while pressing in, until it
stops turning to securely tighten the screw.
