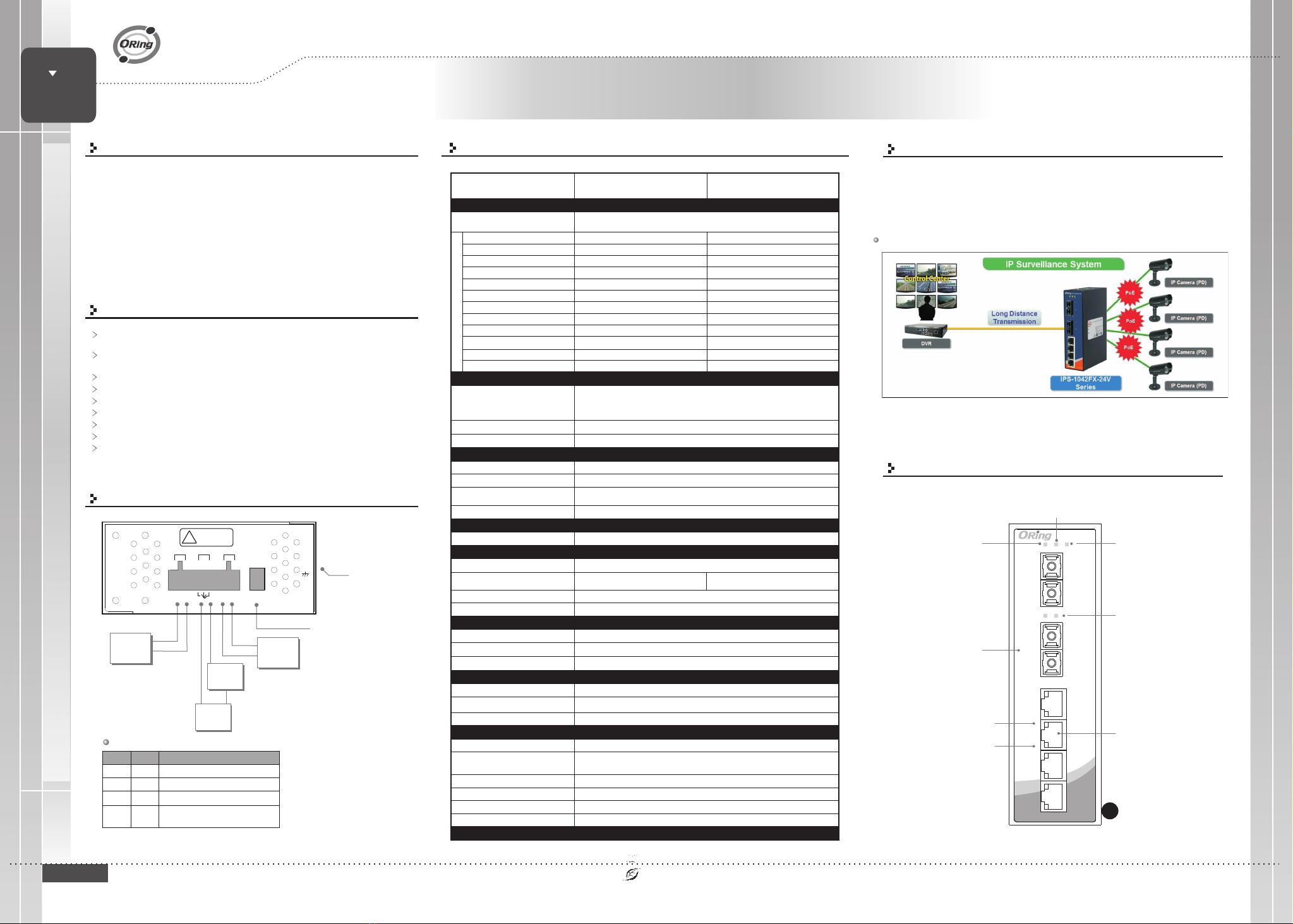

ORiNG IPS-1042FX-24V Series User manual

IPS-1042FX-24V
10/100TX
1
2
3
4
5
6
P1 P2 Fault
LINK/ACT
TX
RX
TX
RX
Practical Operation
QIG Quick Installation Guide
IPS-1042FX-24V Series
IPS-1042FX-24V Series
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Features
IPS-1042FX-24V series
IPS-1042FX-24V series
IPS-1042FX-24V series
IPS-1042FX-24V series
are unmanaged PoE Ethernet switches with
4x10/100Base-T(X) P.S.E. and 2x100Base-FX ports.
supports Power over Ethernet, a system to transmit electrical power, along with
data, to remote devices over standard twisted-pair cable in an Ethernet network.
has 4x10/100Base-T(X) P.S.E.Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will
provide power in a PoE setup. support redundant
power inputs, configurable relay output alarm and rigid IP-30 housing. In addition,
the wide operating temperature range from -40 to 70 C can satisfy most of
operating environment.
o
Introduction Specifications
IPS-1042FX-24V series can be used in connecting several Ethernet devices like
Ethernet I/O, IP-Camera or other Ethernet switches. In addition, there are two
r power inputs at terminal block to avoid interruption caused by power
down. When the primary DC power input fails, the backup power input will take over
immediately to guarantee a non-stop operation.
edundant
Industrial Unmanaged PoE Switch
IPS-1042FX-24V series provide 4x10/100Base-T(X) PoE (P.S.E.) and 2x100Base-
FX single/multi-mode fiber ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Slim type rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Power Connection Guide
Front Panel
A
1907-2-29-IPS1042FX-0
Connections of Ethernet devices
PRINTED ON RECYCLED PAPER
ORing Switch Model
Physical Ports
Technology
Ethernet Standards
LED Indicators
Green: Power LED x2Power indicator
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX with P.S.E.
IPS-1042FX-MM-SC-24V
4
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table 2048 MAC addresses
Environmental
-40to85C(-40to185F)
oo
Storage Temperature
Operating Temperature
5% to 95% Non-condensingOperating Humidity
Regulatory Approvals
-40to70C(-40to158F)
oo
Amber:IndicatePWR1orPWR2failure
Fault indicator
Fault Contact
Relay Relay output to carry capacity of 1A at 24 VDC
Power
Redundant Input power
Power consumption(Typ.) 6.48 Watts
(power consumption of P.S.E. is not included)
Overload current protection
Reverse polarity protection
Present
Not Present
Physical Characteristic
Enclosure IP-30
Dimension(WxDxH)
Weight (g) 395g
Dual DC inputs 24~36VDC on 6-pin terminal block
41.0(W)x94.9(D)x144.3(H)mm(1.61x3.74x5.68inches)
10/100Base-T(X)RJ45 Port
Indicator
Green for port Link/Act.
Green for PoE power injected.
Processing Store-and-Forward
Fiber Ports Number 2
Green for port Link/Act.
100Base-FX Fiber Port Indicator
Fiber Link/Act LED
Green: PoE power injected
Green: Link/Act
Fiber Port
LAN Port
Power 1 LED Power Fault LED
SWITCH
INDUSTRIAL
PoE
Power 2 LED
2
Fiber Ports standard 100Base-FX 100Base-FX
Fiber Mode Multi-mode Single-mode
Fiber Diameter (µm) 62.5/125 m & 50/125 mµ µ 9/125 mµ
Fiber Optical Connector SC SC
Typical Distance (Km) 2 Km 30 Km
Wavelength (nm) 1310 nm 1310 nm
Max. Output Optical Power (dbm) -14 dbm -8 dbm
Min. Output Optical Power (dbm) -23.5 dbm -15 dbm
Max. Input Optical Power (Saturation) 0dbm 0dbm
Min. Input Optical Power (Sensitivity) -31 dbm -34 dbm
Link Budget (db) 7.5 db 19 db
Fiber Ports Specification
5.4 Watts
(power consumption of P.S.E. is not included)
FCC Part 15, CISPR (EN55022) class AEMI
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
EMS
IEC60068-2-27Shock
IEC60068-2-32
IEC60068-2-6Vibration
Free Fall
Warranty
5 years
EN60950-1Safety
Frame Ground
G
Power
Supply
24-36VDC
V+
V-
Warning
Device
GND+24V
V+
V-
DIP Switch Select for
Power Alarm Relay Output
Power
Supply
24-36 VDC
Power
Supply
DIP-2
OFF
OFF
ON
DIP-1
Power failure relay alarm disabled
PWR-1 failure, alarm enabledrelay
PWR-2 failure, alarm enabledrelay
DIP Switch Function
OFF
ON
OFF
Description
ON PWR-1 or PWR-2 failure,
alarm enabledrelay
ON
PWR-1PWR-2
V2-V2+ V1-V1+
1A@24V
Check Polarity First.
！
Warning !!!
24-36Vdc Input only
IPS-1042FX-MM-SC-24V

QIG Quick Installation Guide
PRINTED ON RECYCLED PAPER
Accessory Communication Connections
RJ45 (8-pin) to RJ45 (8-Pin) Straight-Through Cable Wiring
RJ45 Plug Pin1
Straight-Through Cable
Switch Port
RJ-45
Connector
Tx+
Tx-
Rx+
Rx-
3
6
1
2
NIC Port
RJ-45
Connector
Rx+
Rx-
Tx+
Tx-
3
6
1
2
RJ45 (8-pin) to RJ45 (8-Pin) Cross-Over Cable Wiring
RJ45 Plug Pin1
Cross-Over Cable
Switch Port
(NIC Port)
RJ-45
Connector
Tx+
Tx-
Rx+
Rx-
3
6
1
2
RJ-45
Connector
Rx+
Rx-
Tx+
Tx-
1
2
3
6
Switch Port
(NIC Port)
(Rx+)
(Rx-)
(Tx+)
(Tx-)
(Tx+)
(Tx-)
(Rx+)
(Rx-)
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Installation
DIN-Rail Install Step Wall-mounted Install Step 10/100Base-T(X) Ethernet Connection
I1X1, 2X4, 3X8,
X1
X2,
A
IPS-1042FX-MM-SC-24V
Model name Model Description Accessory
Front Panel
Industrial 6-port unmanaged PoE Ethernet
switch with 4x10/100Base-T(X) P.S.E. and
2x100Base-FX, multi-mode, 2Km/1310nm,
SC connector, 24VDC power input
6
4
5X1,
Packing list Pin Definition
10/100Base-T(X) PoE P.S.E.
Port
RJ45 Pin Definition
Pin No.
TD+ with PoE Power input +
#1
Description
#2
#3
#6
TD- with PoE Power input +
RD+ with PoE Power input -
RD- with PoE Power input -
I
A
Industrial 6-port unmanaged PoE Ethernet
switch with 4x10/100Base-T(X) P.S.E. and
2x100Base-FX, single-mode,
30Km/1310nm, SC connector, 24VDC
power input
1X1, 2X4, 3X8,
X1
X2,
6
4
5X1,
Industrial Unmanaged PoE Switch
SWITCH
INDUSTRIAL
PoE
100Base-FX Connection
SC-Port to SC-Port Cable Wiring
SC-Port Pinouts
SC-Port Pinouts
SC-Port Pinouts
SC-Port Pinouts
Tx
Rx
Rx
Tx
Cable Wiring
Tx Rx
Rx Tx
DIN-Rail Install Step Wall-mounted Install Step
ORing Industrial Networking Corp.
Copyright© 2013 ORing
All rights reserved.
TEL: [phone]
FAX: [phone]
Website: www.oring-networking.com
E-mail: [email protected]
Dust Cover (RJ-45)
2
QIG
6
Round Screw (M3 X3)
3Wall-mounted kit
4
40mm DIN-Rail kit
5
6-Pin Terminal block
1
IPS-1042FX-SS-SC-24V
