ORiNG TGXPS-1080-M12-24V Series User manual

Quick Installation Guide
Version 1.0
Quick Installation Guide
Introduction
PRINTED ON RECYCLED PAPER
Q I G
The is an un-managed PoE Ethernet switchTGXPS-1080-M12-24V series
with 8x10/100/500/1000Base-T(X) P.S.E. ports, specifically designed for
the toughest environment and fully compliant with EN50155 requirement.
The P.S.E ports enable the to transmitTGXPS-1080-M12-24V series
electrical power, along with data, to remote devices over a standard
twisted-pair cable. With EN50155 compliance and M12 connectors, the
device ensures reliable and robust connections against environmental
disturbances, such as vibration and shock. In addition, the wide operating
temperature range from -40 C to 75 C allows the device to operate in extreme
o o
weather. The -BP2 model also provides two sets of bypass ports that ensure
constant network connectivity during power failure. Even if the switch loses
power, traffic will continue to flow unimpeded through the link.

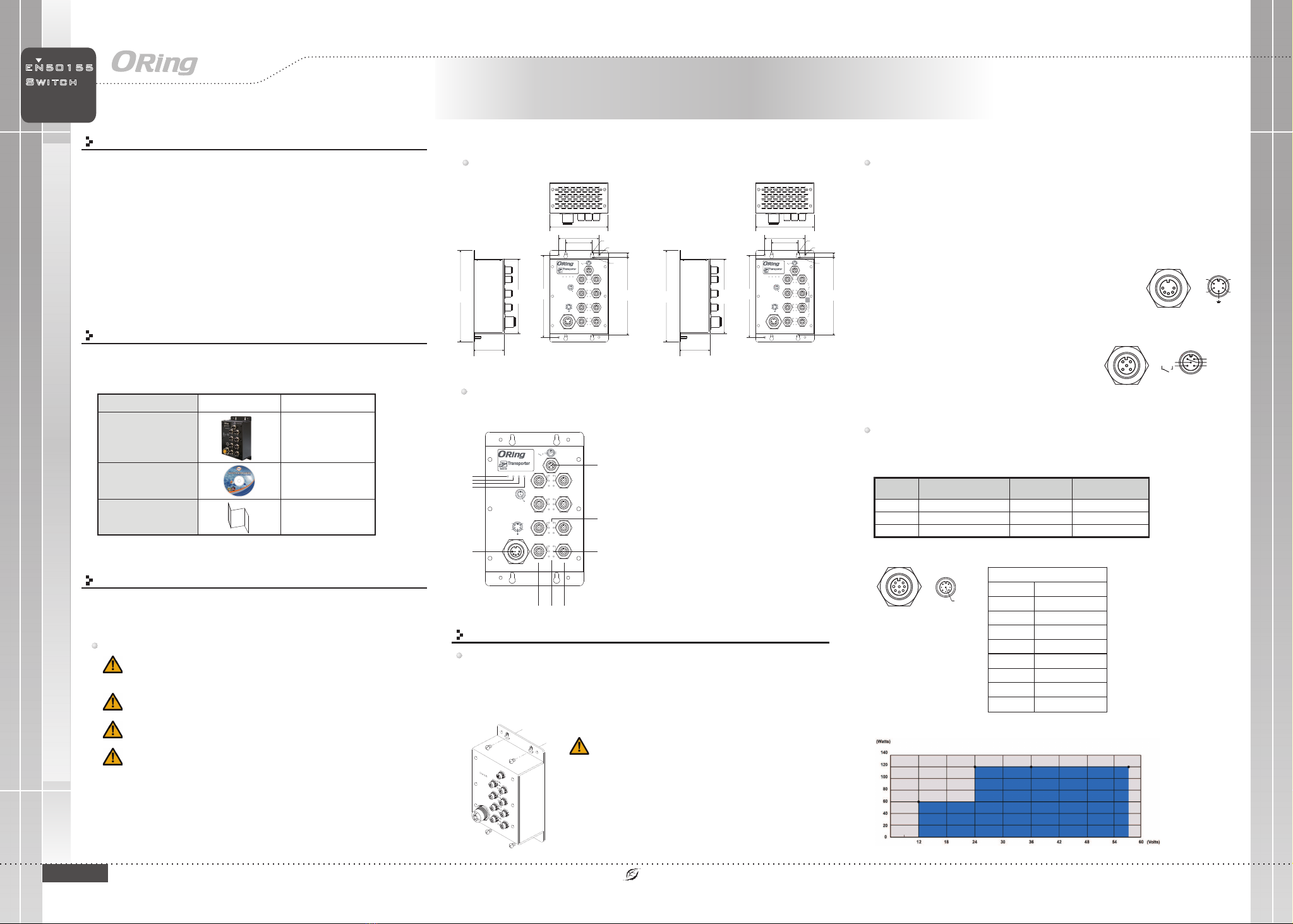

Package Contents
Installation
Wall-mount
The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the evice upright against the walld
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the evice downwards and tighten the four screws for added stability.d
The device is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Safety & Warnings
For pin assignments of power, console and relay output ports, please refer to the following tables.
Contents
TGXPS-1080-M12-24V or
TGXPS-1080-M12-BP2-24V
Pictures Number
1
CD 1
Dimension
TGXPS-1080-M12-24V TGXPS-1080-M12-BP2-24V
Panel Layouts
Front View
1. Power status LED
2. Power1 status LED
3. Power2 status LED
4. Fault LED
5. Power input port
6. Relay output port
7. LNK/ACT & Speed LED for Gigabit ports
(1Gbps/10Mbps/100Mbps)
8. LNK/ACT & Speed LED for Gigabit ports (500Mbps)
9. Gigabit Ethernet ports
(G5-G8 of TGXPS-1080-M12-BP2/-24V are bypass ports)
10. PoE status LED
Wiring
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Power port pinouts
The device supports two sets of power supplies and uses the M23 5-pin
female connector on the front panel for the dual power inputs.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.
V1+
V1-
V2+
V2-
Relay output port pinouts
Relay N.C.
3A@24VDC
Network Connection
The device provides Ethernet ports in M12 connector type. According to the link type, the switch
uses CAT 3, 4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
TGXPS-1080-M12-24V Series
TGXPS-1080-M12-24V Series 1907-2-29-TGXPS1080M1224V-1.0
S w i tc h
E N 5 0 1 5 5
EN50155 8-port unmanaged
Gigabit PoE Ethernet switch
I N D U S T R I A L
125 .0
196 .0
155 .8
65. 0
7.5 0
168 .4
56. 5
86. 0
125 .0
196 .0
155 .8
65. 0
7.5 0
168 .4
56. 5
86. 0
1
2
3
4
5
6
7
8
99 10
Instead of screwing the screws in all the way, it is advised to
leave a space of about 2mm to allow room for sliding the switch
between the wall and the screws.
The switch uses the M12 A-coded 5-pin male connector on
the front panel for relay output. Use a power cord with an
M12 A-coded 5-pin female connector to connect the relay.
The relay contacts will detect user-configured events and
form an open circuit when an event is triggered.
PoE Power Distribution
For pin assignments of the LAN ports, please refer to the following tables.
QIG 1
PoE
LNK/AC T
10/100/1G
500M
PoE
LNK/AC T
10/100/1G
500M
PoE
LNK/AC T
10/100/1G
500M
PoE
LNK/AC T
10/100/1G
500M
TGXPS -1080-M1 2-BP2
G1 G5
G2 G6
G3 G7
G4 G8
FaultPWR2
Powe r
PWR1PWR
Relay N. C.
3A@24V DC
Rela y Outpu t
V1+
V1-
V2+
V2-
Power
Failur e
Bypass
4
5
6
7
8
21
3
1B I_DC+
2B I_DD+
3B I_DD-
4B I_DA- / Po E Vout+
5B I_DB+ / P oE Vout-
6B I_DA+ / P oE Vout+
7B I_DC-
8B I_DB- / P oE Vout-
G1~ G8
PoE
LNK/AC T
10/100/1 G
500M
PoE
LNK/AC T
10/100/1 G
500M
PoE
LNK/AC T
10/100/1 G
500M
PoE
LNK/AC T
10/100/1 G
500M
TGXPS -1080-M1 2-24V
G1 G5
G2 G6
G3 G7
G4 G8
FaultPWR2
Powe r
PWR1PWR
Relay N. C.
3A@24V DC
Rela y Outpu t
V1+
V1-
V2+
V2-
4
5
6
7
8
21
3
1B I_DC+
2B I_DD+
3B I_DD-
4B I_DA- / Po E Vout+
5B I_DB+ / P oE Vout-
6B I_DA+ / P oE Vout+
7B I_DC-
8B I_DB- / P oE Vout-
G1~ G8
PoE
LNK/ ACT
10/100/1G
500M
PoE
LNK/ ACT
10/100/1G
500M
PoE
LNK/ ACT
10/100/1G
500M
PoE
LNK/ ACT
10/100/1G
500M
TGX PS-10 80-M1 2-24V
G1 G5
G2 G6
G3 G7
G4 G8
Faul tPWR2
Pow er
PWR1PWR
Rela y N.C.
3A@2 4VDC
Rel ay Outp ut
V1+
V1-
V2+
V2-
4
5
6
7
8
21
3
1 BI_D C+
2 BI_D D+
3 BI_D D-
4 BI_D A- / PoE Vout +
5 BI_D B+ / PoE Vou t-
6 BI_D A+ / PoE Vou t+
7 BI_D C-
8 BI_D B- / PoE Vou t-
G1~ G 8
Cable
Type
Max. Length
Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) M12 A-coding connector
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) M12 A-coding connector
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft) M12 A-coding connector
4
5
6
7
8
21
3
10/100/1000Base-T(X) M12 port
PIN Definition
1BI_DC+
2BI_DD+
3BI_DD-
4BI_DA- / PoE Vout+
5BI_DB+ / PoE Vout-
6BI_DA+ / PoE Vout+
7BI_DC-
8BI_DB- / PoE Vout-
Ø5. 0
Ø8. 00
Ø4. 0
175 .9
Ø5. 0
Ø8. 00
Ø4. 0
175 .9
Unit =mm (Tolerance ±0.5mm)

Q I G Quick Installation Guide
PRINTED ON RECYCLED PAPER
Quick Installation Guide
Version 1.0
Q I G
S w i tc h
E N 5 0 1 5 5
I N D U S T R I A L
EN50155 8-port unmanaged
Gigabit PoE Ethernet switch
Configurations
After installing the switch and connecting cables, start the evice byd
turning on power. The green power LED should turn on. Please refer to the
following tablet for LED indication.
LED
Color
Status
Description
PWR Green On Power is enabled
PWR1 Green On DC power module 1 activated
PWR2 Green On DC power module 2 activated
Fault Amber On Power 1 or Power 2 module failure
10/100/500/1000Base-T(X) Ethernet ports
LNK/ACT Green On Port is linked
Speed (Upper
LED)
Green On Port is running at 1Gbps
Amber On Port is running at 10/100 Mbps
Speed (Lower
LED) Amber On Port is running at 500Mbps
PoE Blue On PoE power is enabled
Regulatory Approvals
EN 55032, CISPR32 , EN 61000-3-2, EN 6100 0-3-3, FCC Part 15B class A
EMI
EN 55024 (IEC/EN 61 000-4-2 (ESD), IE C/ EN 61000-4-3 (RS) ,IEC/EN 61000-4 -4 (EFT),
IEC/EN 61000-4- 5 (Surge), IEC/EN 6 10 00-4-6 (CS), IE C/ EN 61000-4-8(PF MF), IEC/EN 61000 -4 -11 (DIP))
EMS
IEC60068-2-27
Shock
IEC60068-2-31
IEC60068-2-6
Vibration
Free Fal l
MTBF
442602 hrs
Specifications
Power
Redundant Inp ut Power
Power Consump tion(Typ.) 8 Watts (p ow er consumptio n of P.S.E . is n ot included)
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 125(W) x 65(D) x 196( H) m m (4.92 x 2.56 x 7.66 inc h. )
Weight ( g) 979 g
Environmental
-40 to 85 C (-40 to 185 F)
o o
Storage Temperature
5% to 95% Non-conde nsing
Operating Hum idity
Fault Contact
Rela y Relay ou tput to carry capac it y of 3 A at 24VDC on M12 conne ctor (5-pin M12 A-coding)
Overload Cu rrent Protection
Reve rse Po larity Protection
Present
Present
-40 to 75 C (-40 to 167 F)
o o
Operating Temperatur e
ORing Switch Model
10/100/500/1000B ase-T(X)
Port s in M12 With P.S.E . 8 x M12 connector (8 pin A-coding)
Physical Ports
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Bas e-TX
IEEE 802.3ab for 1000B ase-T
IEEE 802.3x for Flow con trol
IEEE 802.3at complia nt PoE specific ation (Ma ximum 30Watts per por t)
4K MAC addresses
MAC Table
Store-and -Forward
Processing
8 x M12 connector (8-pin A-coding,
bypass function included on port5~8)
1001 g
TGXPS-1080-M12-24V TGXPS-1080-M12-BP2-2 4V
Dual DC inputs. 24 (1 2~ 57VDC) VDC on 5-pin M 23 connector
PoE Output Power 60 Watts (12~2 4VDC)/ 120 Wat ts ( 24~57VDC)
Warranty
5 ye ars
273770 hrs
ORing Industrial Networking Corp.
Copyright© 2018 ORing
All rights reserved.
TEL: [phone]
FAX: [phone]
Website: www.oringnet.com
E-mail: [e-mail]
TGXPS-1080-M12-24V Series
TGXPS-1080-M12-24V Series
LED indicators
Green : Power LED x 3
Power Indicat or
Amber : Indicate PWR1 or P WR2 failure
Fault In dicator
Top for 10/100/100 0Mbps por t Link/Act in dicator.
Green for 1Gbps link, Amber for 10/ 100 Mbps link
Middle Amber for 500Mb ps port Link/Act indic ator
Bottom blue for PoE Injected indicato r
10/100/500/1000B ase-T(X)
M12 port indicator and PoE
indicator
CE EMC (EN 55024, EN 55 032), FCC Part 15B, EN 50121-3- 2 (E N 50155)
EMC
EN 60950-1
EN 50155
Other
Safety
