AS5045B
12-bit Rotary Position Sensor with Digital Angle
(Interface), PWM and ABI output
User Manual – AS5045B-AB-v1.0

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 2/15
Table of Contents
1General Description .............................................................................................................3
2The AS5045B adapter board ............................................................................................... 3
2.1 Board description ................................................................................................................. 3
2.2 Mounting the AS5045B adapter board.................................................................................4
3AS5045B adapter board and pinout.....................................................................................6
4Operation cases................................................................................................................... 8
4.1 Standalone SSI output mode............................................................................................... 8
4.2 Standalone PWM output mode............................................................................................ 9
4.3 Standalone incremental Output .........................................................................................11
4.4 Daisy chain mode...............................................................................................................12
5Programming the AS5045B ...............................................................................................13
6AS5045B-AB-Hardware.....................................................................................................14
6.1 AS5045B-AB-1.0 Schematics............................................................................................14
6.2 AS5045B –AB –1.0 PCB layout.......................................................................................14
7Copyright............................................................................................................................15
8Disclaimer .......................................................................................................................... 15
9Contact Information............................................................................................................15
Revision History
Revision
Date
Owner
Description
1.0
01.10.2009
Initial revision
1.1
05.07.2013
azen
Updated to new template

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 3/15
1 General Description
The AS5045B is a contactless magnetic rotary encoder for accurate angular measurement over a full
turn of 360°. It is system-on-chip, combining integrated Hall elements, analog front end and digital
signal processing in a single device.
To measure the angle, only a simple two-pole magnet, rotating over the center of the chip, is required.
The magnet may be placed above or below the IC. This is shown in Figure 1.
Figure 1:
Rotary Position Sensor AS5045B + Magnet
2 The AS5045B adapter board
The AS5045B adapter board is a simple circuit allowing test and evaluation of the AS5045B rotary
position sensor quickly without building a test fixture or PCB.
2.1 Board description
The PCB can be used as standalone unit or attached to a microcontroller. The standalone operation
requires a 5V power supply only; the magnet’s angle can be read on the PWM or analog output.

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 4/15
Figure 2:
AS5045B Adapterboard
2.2 Mounting the AS5045B adapter board
A diametric magnet must be placed over on under the AS5045B encoder, and should be centered on
the middle of the package with a tolerance of 0.5mm.
The airgap between the magnet and the encoder casing should be maintained in the range
0.5mm~2mm. The magnet holder must not be ferromagnetic. Materials as brass, copper, aluminum,
stainless steel are the best choices to make this part.
AS5045B magnetic
position sensor
4 x 2.6mm
mounting holes
J1 connector (Prg,
power supply, serial
interface)
J2 connector (PWM,
and status output)

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 5/15

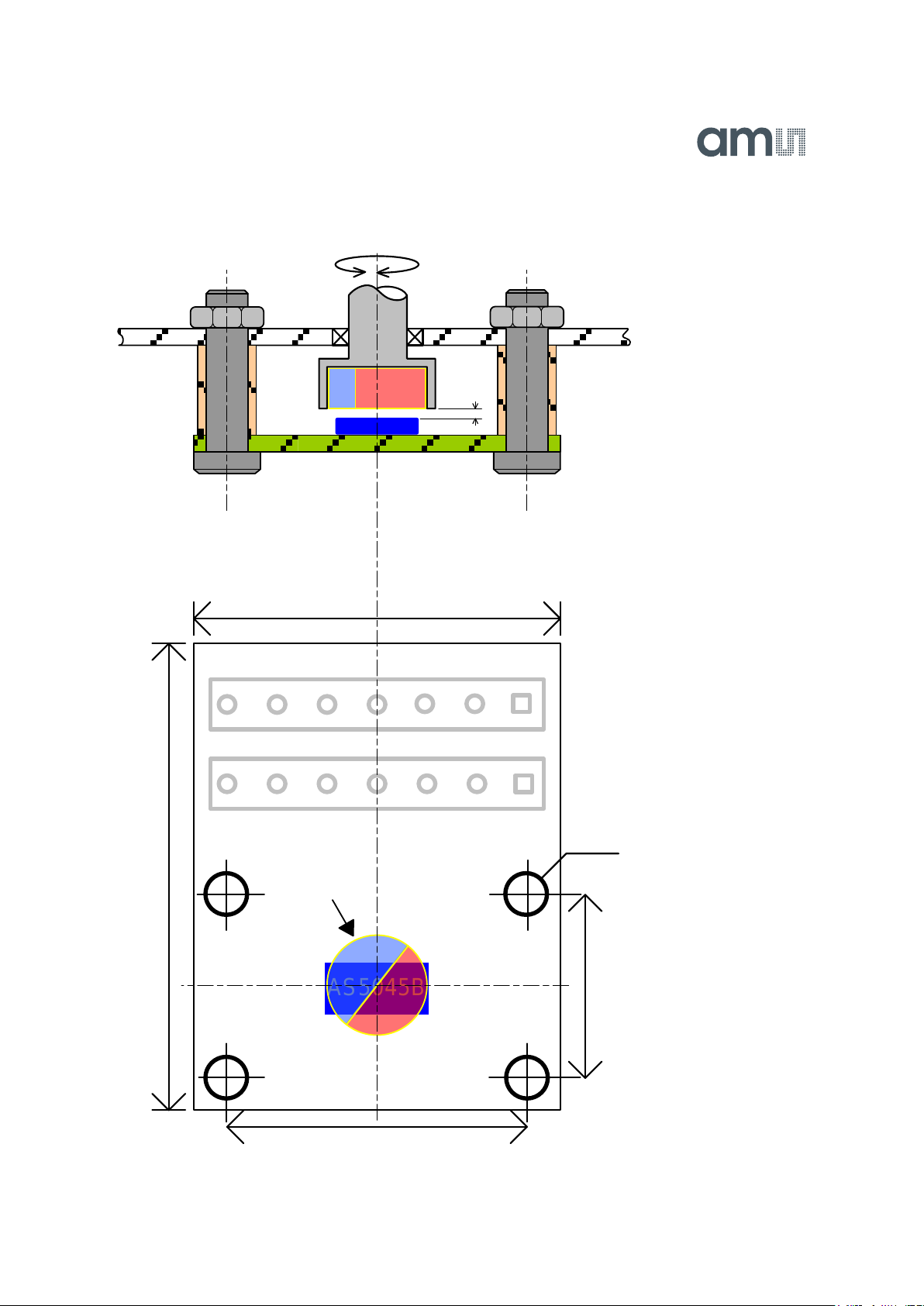

Figure 3:
AS5045B –AB - mounting and dimension
AS5045B
0.5~2mm
AS5045B
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
18mm
11mm
28mm
22mm
Diametral
Magnet
4x2.6mm
Magnet
NS

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 6/15
3 AS5045B adapter board and pinout
Figure 4:
AS5045B adapter board connectors and encoder pinout
AS5040
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
AS5045B-AB-1.0
,
Table 1:
Pin description
Pin#
Board
Pin#
AS5040
Symbol
Board
Type
Description
JP1 - 1
7
GND
S
Supply ground
JP1 - 2
9
DO
DO_T
Data Output of Synchronous Serial Interface
JP1 - 3
10
CLK
DI_ST
ClockInput of Synchronous Serial Interface; Schmitt-Trigger input
JP1 - 4
11
CSn
DI_PU_ST
Chip Select, active low; Schmitt-Trigger input, internal pull-up resistor (~50k)
connect to VSS in incremental mode
JP1 - 5
15
3V3
S
3V-Regulator Output
JP1 - 6
16
5V
S
5V Supply
JP1 - 7
8
Prg
DI_PD
OTP Programming Input and Data Input for Daisy Chain mode. Internal pull-
down resistor (~74k).
May be connected to VSS if programming is not used
JP2 - 1
7
GND
S
Supply ground
JP2 - 2
1
MagINC
DO_OD
Magnet Field Magnitude INCrease; active low, indicates a distance reduction
between the magnet and the device surface.
JP2 - 3
2
MagDEC
DO_OD
Magnet Field Magnitude DECrease; active low, indicates a distance increase
between the device and the magnet
JP2 - 4
3
A
DO
AS5040 –AS5140 –AS5145 (programmed) only
Mode1.x: Quadrature Achannel
Mode2.x: Least Significant Bit
Mode3.x: Usignal (phase1)

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 7/15
Pin#
Board
Pin#
AS5040
Symbol
Board
Type
Description
JP2 - 5
4
B
DO
AS5040 –AS5140 –AS5145 (programmed) only
Mode1.x: Quadrature Bchannel quarter period shift to channel A.
Mode2.x: Direction of Rotation
Mode3.x: Vsignal (phase2)
JP2 - 6
6
Ind
DO
AS5040 –AS5140 –AS5145 (programmed) only
Mode1.x and Mode2.x : Index signal indicates the absolute zero position
Mode3.x: Wsignal (phase3)
AS5045 –AS5145 (unprogrammed)
Mode input, connect to VDD5 (Fast mode) or GND (Slow mode); do not change
during operation
JP2 - 7
12
PWM
DO
Pulse Width Modulation of approx. 1kHz; LSB in Mode3.x
Pin types: DO_OD digital output open drain S supply pin
DI_PD digital input pull-down DO_T digital output /tri-state
DI_PU digital input pull-up ST schmitt-trigger input
DI digital input DO digital output

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 8/15
4 Operation cases
The most complete and accurate solution for a MCU to read the angle of a magnet is the serial
interface.
4.1 Standalone SSI output mode
The serial word contains 12 bits for AS5045B angle value and some other indicator bits like MagINC,
MagDEC, which can be read at the same time.
Figure 5:
Using the analog output with the adapter board
AS5045B
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
MCU
out in
VDDp
+5V
GND
Regulated
Power
Supply
out
GND
3.3V reg.
Power
Supply
OR
+3V3
GND

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 9/15
4.2 Standalone PWM output mode
The AS5045B provides a pulse width modulated output (PWM), whose duty cycle is proportional to the
measured angle. The PWM signal (J2 pin #7) with a period of 1025us (1us step) and 5V pulse voltage
can be connected to the capture/timer input of a microcontroller in order to decode the angle value.

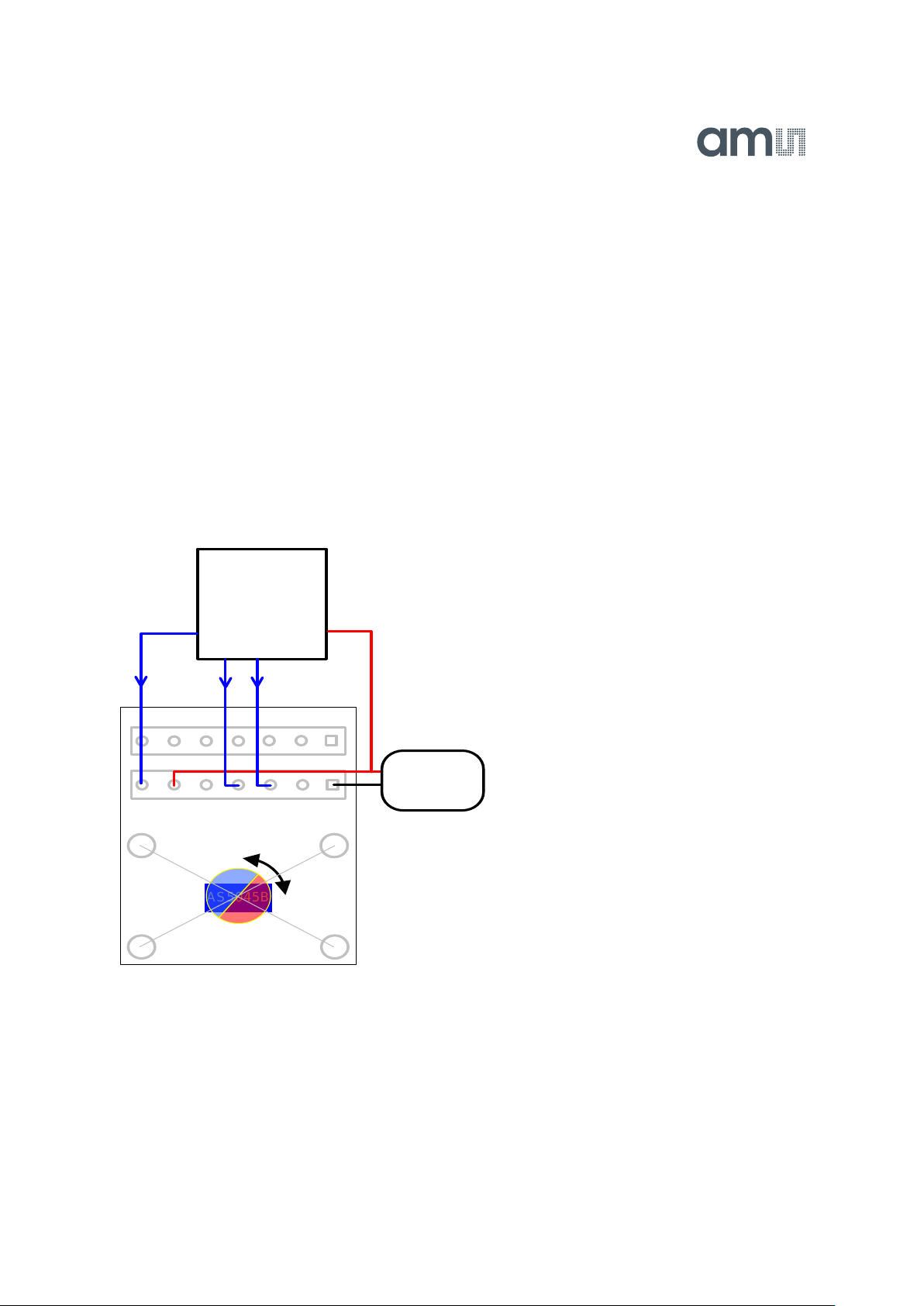

Figure 6:
Using the PWM output with the adapter board
AS5045B
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
MCU
in VDDp
+5V
GND
Regulated
Power
Supply
GND

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 10/15
Figure 7:
PWM duty cycle depending on magnet position
Angle
359.65 deg
(Pos 1023)
0 deg
(Pos 0)
1µs
1025µs
PWMIN
PWMAX
1024µs

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 11/15
4.3 Standalone incremental Output
Three different incremental output modes are possible with quadrature A/B being the default mode
(two-channel quadrature, step / direction incremental signal (LSB) and the direction bit in clockwise
(CW) and counter-clockwise (CCW) direction.
The pre-programmed version AS5045B provides a 12bit incremental output.
Figure 8:
Using the Incremental output with the adapter board
AS5045B
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
MCU
in in
VDDp
+5V
GND
Regulated
Power
Supply
in
GND

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 12/15
4.4 Daisy chain mode
By using more than one adapter board, a setup in daisy chain mode is possible.
Note: In this mode capacitor C3 (Fig.12) must be disconnected when using the 1nF capacitor shown
in Fig.9. or directly replaced by this capacitor.
The serial data of all connected devices is read from the DO pin of the first device in the chain. The
Prog pin of the last device in the chain should be connected to VSS. The length of the serial bit stream
increases with every connected device (board) by n * (16+1) bits.
Due to R = 100R and C = 1nF, the CLK is limited the maximum 1MHz.

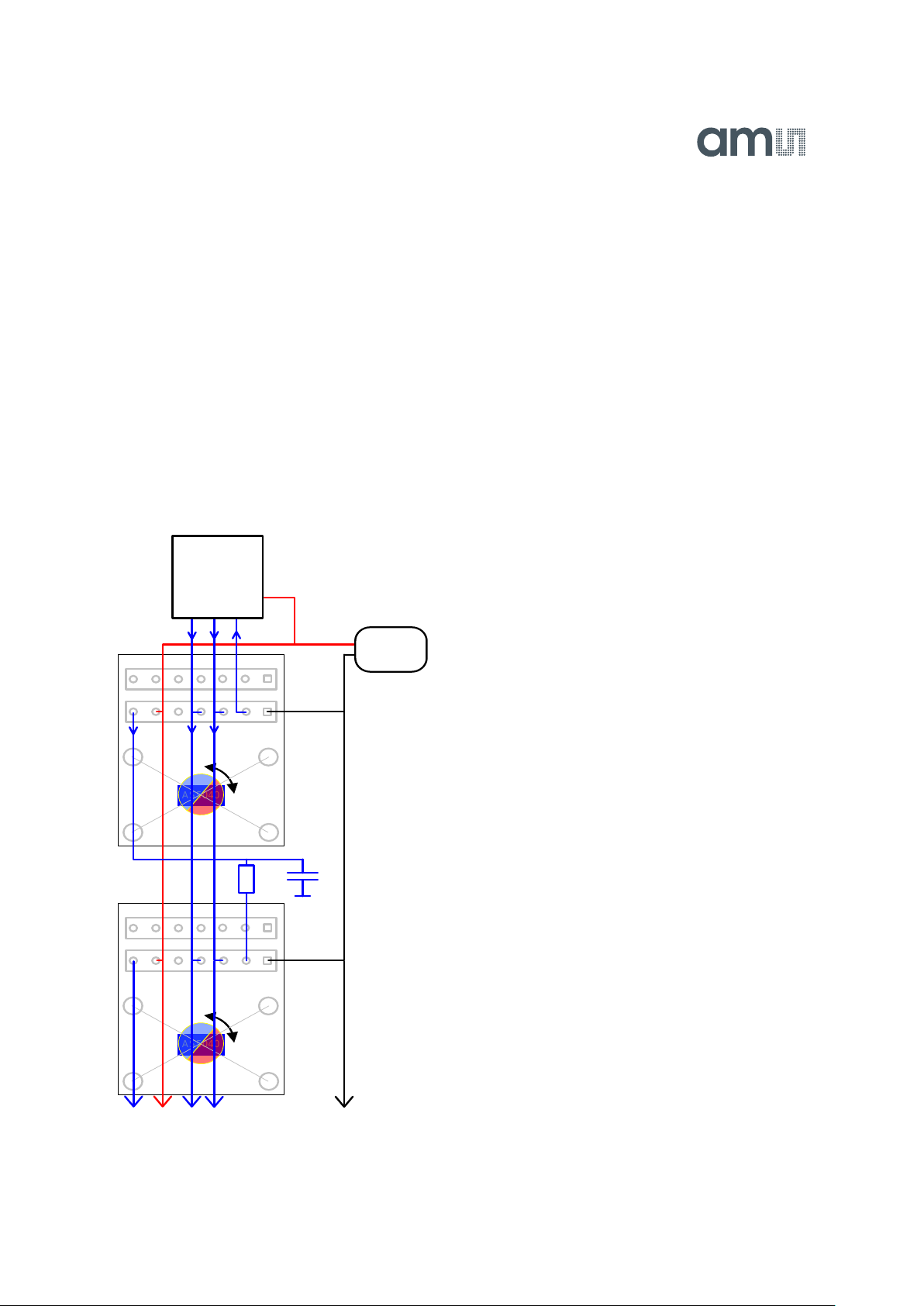

Figure 9:
Using Daisy-Chain mode with the adapter board
AS5040
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
AS5040
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
+5V
GND
Regulated
Power
Supply
MCU
out in
VDDp
out
100R 1nF
next Board

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 13/15
5 Programming the AS5045B
After power-on, programming the AS5045B is enabled with the rising edge of CSn with Prog = high
and CLK = low. 16 bit configuration data must be serially shifted into the OTP register via the Prog-pin.
The first “CCW” bit is followed by the zero position data (MSB first - 12 bit for AS5045B) and some
mode settings (please refer to datasheet). Data must be valid at the rising edge of CLK.
After writing data into the OTP register it can be permanently programmed by rising the Prog pin to the
programming voltage VPROG of 7.3-7.5V. 16 CLK pulses must be applied to program the fuses.
For exiting the programming mode, the chip must be reset by a power-on-reset. The programmed data
is available after the next power-up.
Figure 10:
Programming the AS5045B
AS5045B
J2J1
GNDPWM Ind B A Mag
INC
GNDPrg 5V 3V3 CSn CLK DO
Mag
DEC
NS
MCU
out
out VDDp
+5V
GND
Regulated
Power
Supply
out

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 14/15
6 AS5045B-AB-Hardware
Following the schematic and layout of the Adapterboard can be found.
6.1 AS5045B-AB-1.0 Schematics

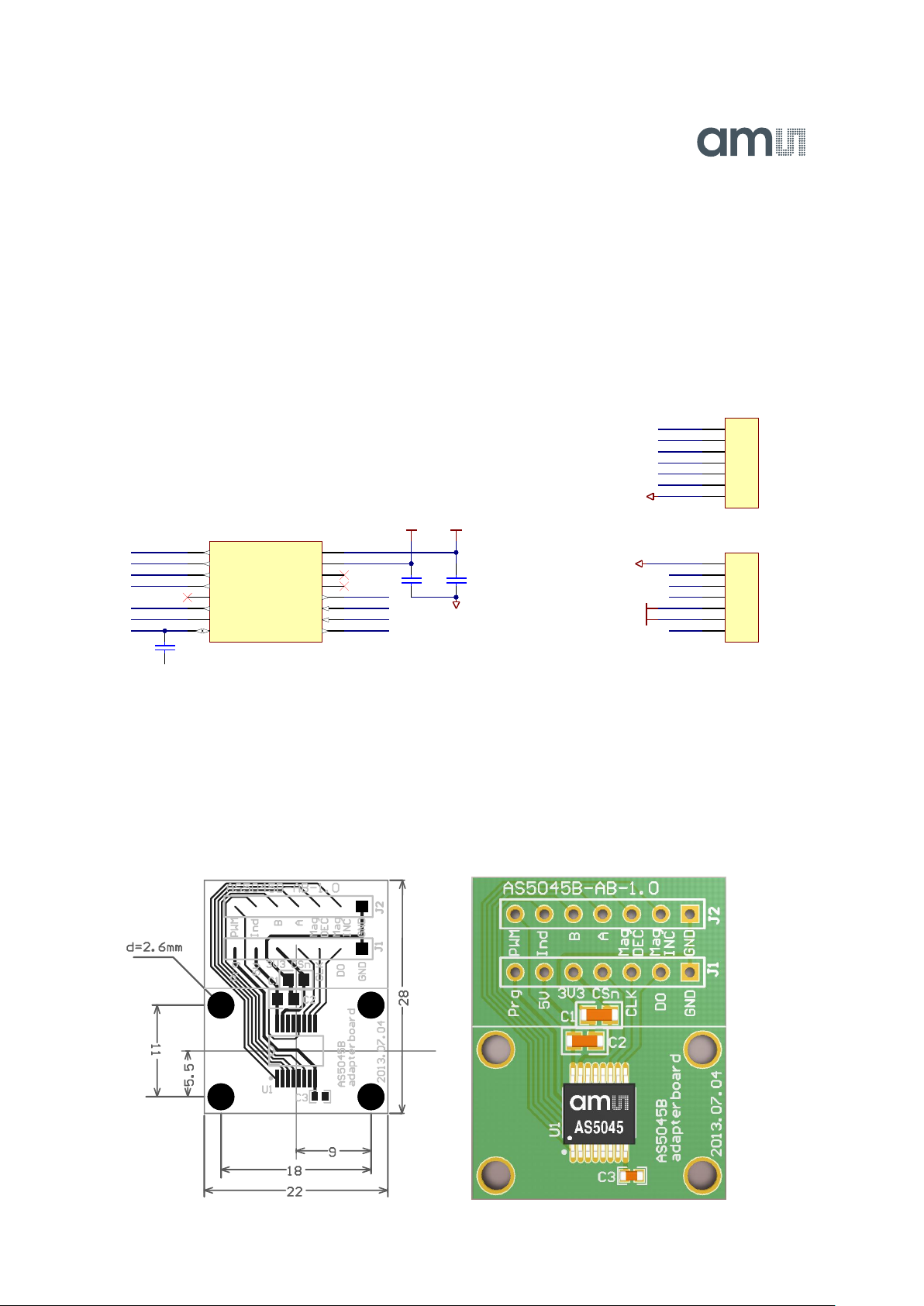

Figure 11:
AS5045B-AB-1.0 adapterboard schematics
6.2 AS5045B –AB –1.0 PCB layout
Figure 12:
AS5045B-AB-1.0 adapter board layout
1
1
2
2
3
3
4
4
D D
C C
B B
A A
Size
Date
Project Title Revision
Sheet ofOriginator Originator
ProjTitleA4 Rev
ProjDate TotalNrSheets
3
PWM
B
A
Index
MagDECn
PROG DO
CLK
5V
GND
1
2
3
4
5
6
7
J2
Header 7
GND
1
2
3
4
5
6
7
J1
Header 7
GND
5V
CSn
CLK
DO
CSn
MagINCn
PROG
C1
10u/10V
C2
10u/10V
3.3V
3.3V
C3
100n
PWM
Index
B
A
MagDECn
MagINCn
MagINCn
1MagDECn
2A_LSB_U
3B_DIR_V
4nc
5Index_W
6VSS
7Prog
8DO 9
CLK 10
CSn 11
PWM_LSB 12
nc 13
nc 14
VDD3V3 15
VDD5V 16
U1
AS5045B

User Manual –AS5045B-AB
www.ams.com Revision 1.1 / 05.07.2013 page 15/15
7 Copyright
Copyright ams AG, Tobelbader Strasse 30, 8141 Unterpremstätten, Austria-Europe. Trademarks
Registered. All rights reserved. The material herein may not be reproduced, adapted, merged,
translated, stored, or used without the prior written consent of the copyright owner.
8 Disclaimer
Devices sold by ams AG are covered by the warranty and patent indemnification provisions
appearing in its Term of Sale. ams AG makes no warranty, express, statutory, implied, or by
description regarding the information set forth herein. ams AG reserves the right to change
specifications and prices at any time and without notice. Therefore, prior to designing this product
into a system, it is necessary to check with ams AG for current information. This product is intended
for use in commercial applications. Applications requiring extended temperature range, unusual
environmental requirements, or high reliability applications, such as military, medical life-support or
life-sustaining equipment are specifically not recommended without additional processing by ams
AG for each application. This Product is provided by ams “AS IS” and any express or implied
warranties, including, but not limited to the implied warranties of merchantability and fitness for a
particular purpose are disclaimed.
ams AG shall not be liable to recipient or any third party for any damages, including but not limited
to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect,
special, incidental or consequential damages, of any kind, in connection with or arising out of the
furnishing, performance or use of the technical data herein. No obligation or liability to recipient or
any third party shall arise or flow out of ams AG rendering of technical or other services.
9 Contact Information
Headquarters
ams AG
Tobelbader Strasse 30
8141 Unterpremstaetten
Austria
T. [phone]
For Sales Offices, Distributors and Representatives, please visit:
http://www.ams.com/contact
