Ozito ASG-GFK User manual

GRAVITY FEED
SPRAY GUN
100-190 ml/min
INSTRUCTION MANUAL
SPECIFICATIONS
Working Air Pressure: 43psi (3Bar)
Max Air Pressure: 87psi (6Bar)
Air Consumption: 141-283L/min (5-10cfm)
Nozzle Size: ø1.4mm
Spray Width: 40-70mm
Flow Rate: 100-190ml/min
Feed Type: Gravity
Paint Pot Size: 600ml
Air Inlet: 1/4” BSP
WHAT’S IN THE BOX
Spray Gun
Paint Pot
Filter
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
ASG-GFK
0414
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

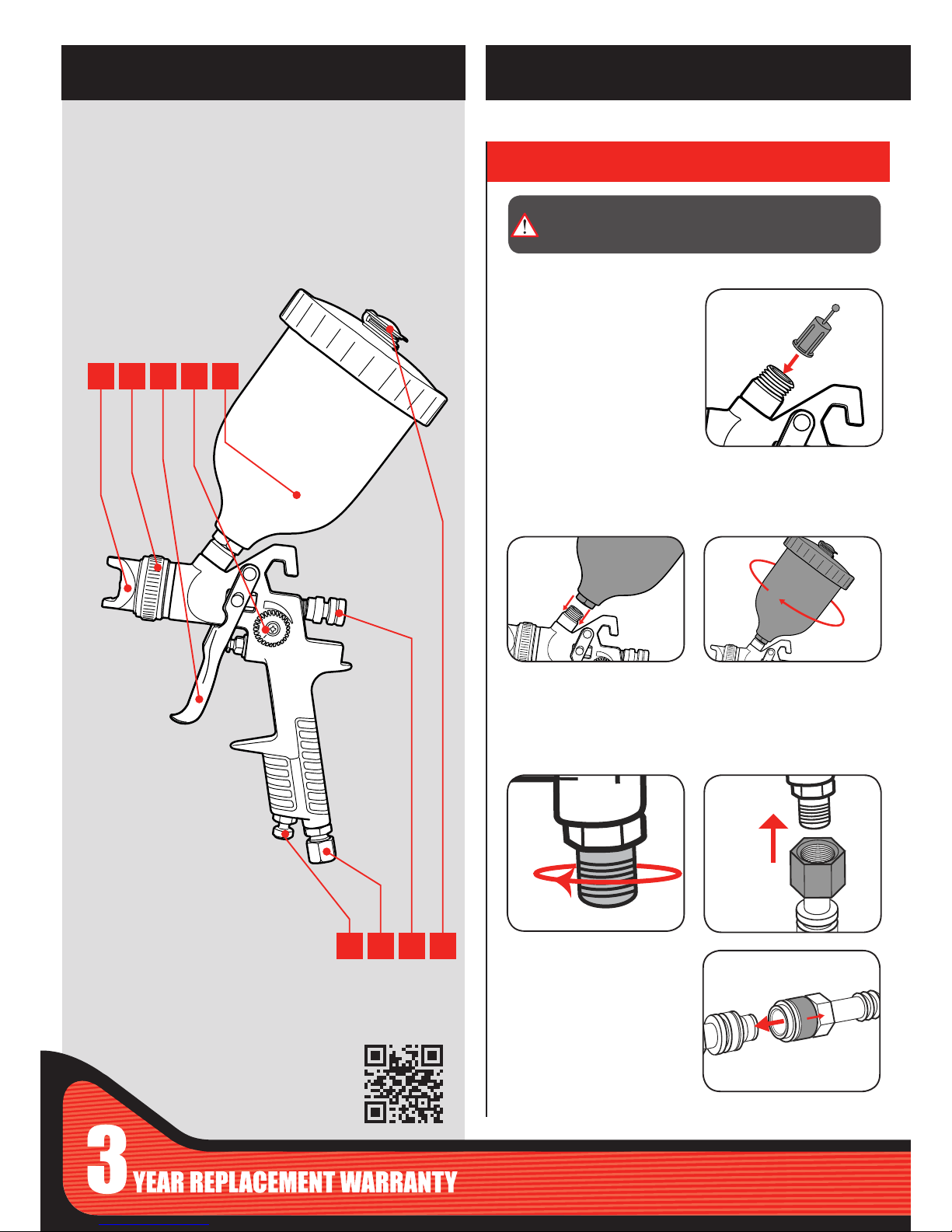

1 Nozzle
2 Nozzle Collar
3 Variable Trigger
4 Fan Adjustment Dial
5 Paint Pot
6 Air Regulator Valve
7 Air Inlet
8 Fluid Adjustment Dial
9 Air Vent
GRAVITY FEED SPRAY GUN
KNOW YOUR PRODUCT
12345
6 7 8 9
1. ASSEMBLY
SETUP & PREPARATION
WARNING! ENSURE THE TOOL IS DISCONNECTED FROM
THE AIR SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.

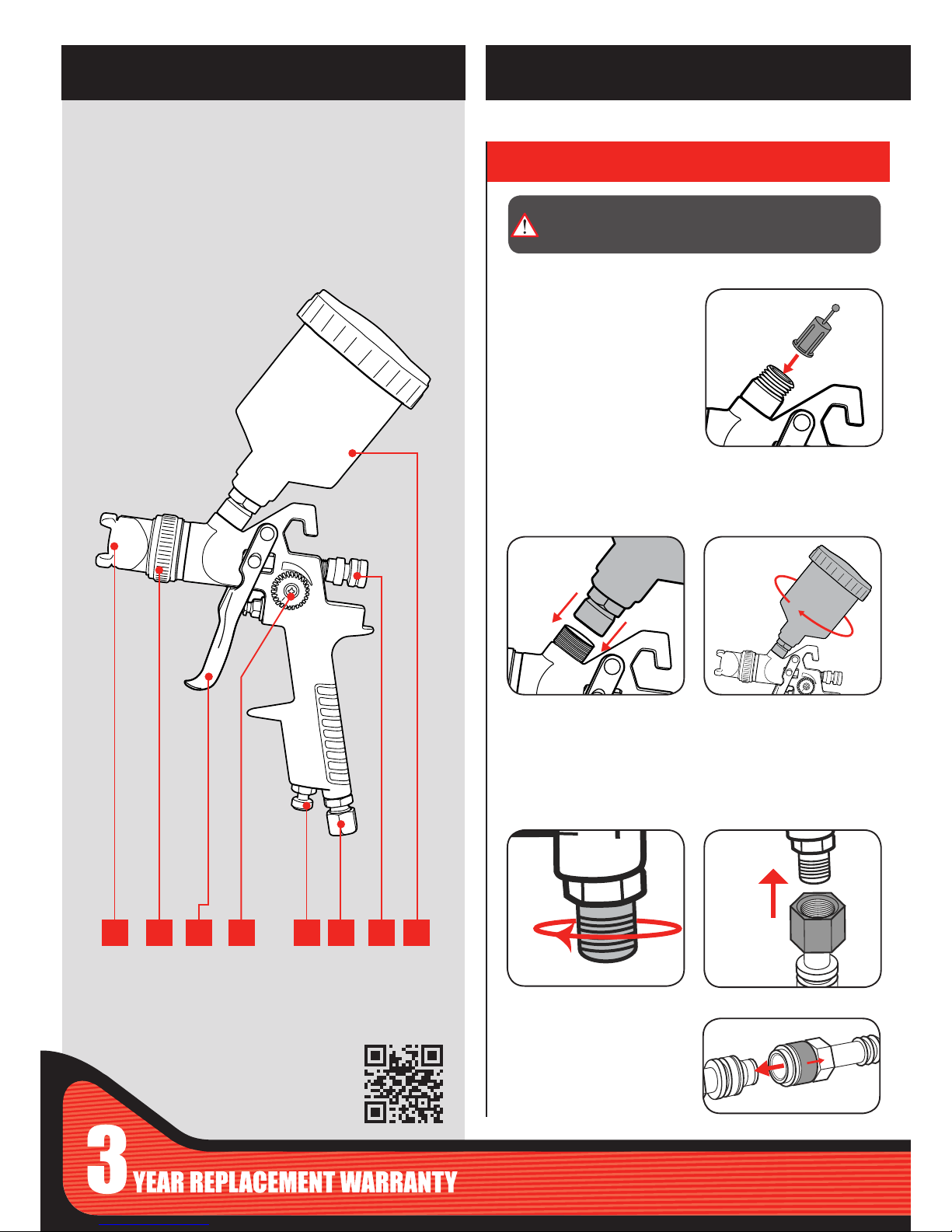

1 Align the paint pot with the
hole on the top of the spray
gun.
1 Wrap the threaded male air
inlet of the spray gun with
teon tape in a clockwise
direction.
1 Simply place the lter into
the top hole of the spray
gun with the knob facing
up.
3 Pull back the sleeve on
hose tting, insert male
end & release sleeve
on hose tting.
2 Screw the paint pot in
tightly by hand.
2 Screw the female tting
clockwise onto the male
end of the air inlet.
Fitting the Paint Pot
Attaching to Compressor
Inserting the Filter

3. ADJUSTING THE SPRAY GUN
OPERATION
2. PREPARATION
1 Before pouring any paint
or thinners work out how
much of each substance is
needed.
3 Once the correct viscosity
is obtained, pour the
mixture into the paint pot.
Thinning is particularly important when spraying. Most paints
are supplied ready for brush application and need to be diluted
sufciently for spraying purposes.
Follow the manufacturers guide for thinning ratios which
should be labelled on the paint container.
2 Pour the required paint and
thinners through a lter into
a mixing cup and then mix
thoroughly.
Thinning
NOTE: FOR BEST RESULTS, SURFACE PREPARATION AND PAINT
THINNING ARE THE TWO MOST IMPORTANT AREAS. ENSURE
ALL SURFACES ARE FREE OF DUST, DIRT AND GREASE.
IMPORTANT! THE SPRAY GUN CANNOT BE USED WITH
MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES,
CAUSTIC AND ALKALINE SUBSTANCES.

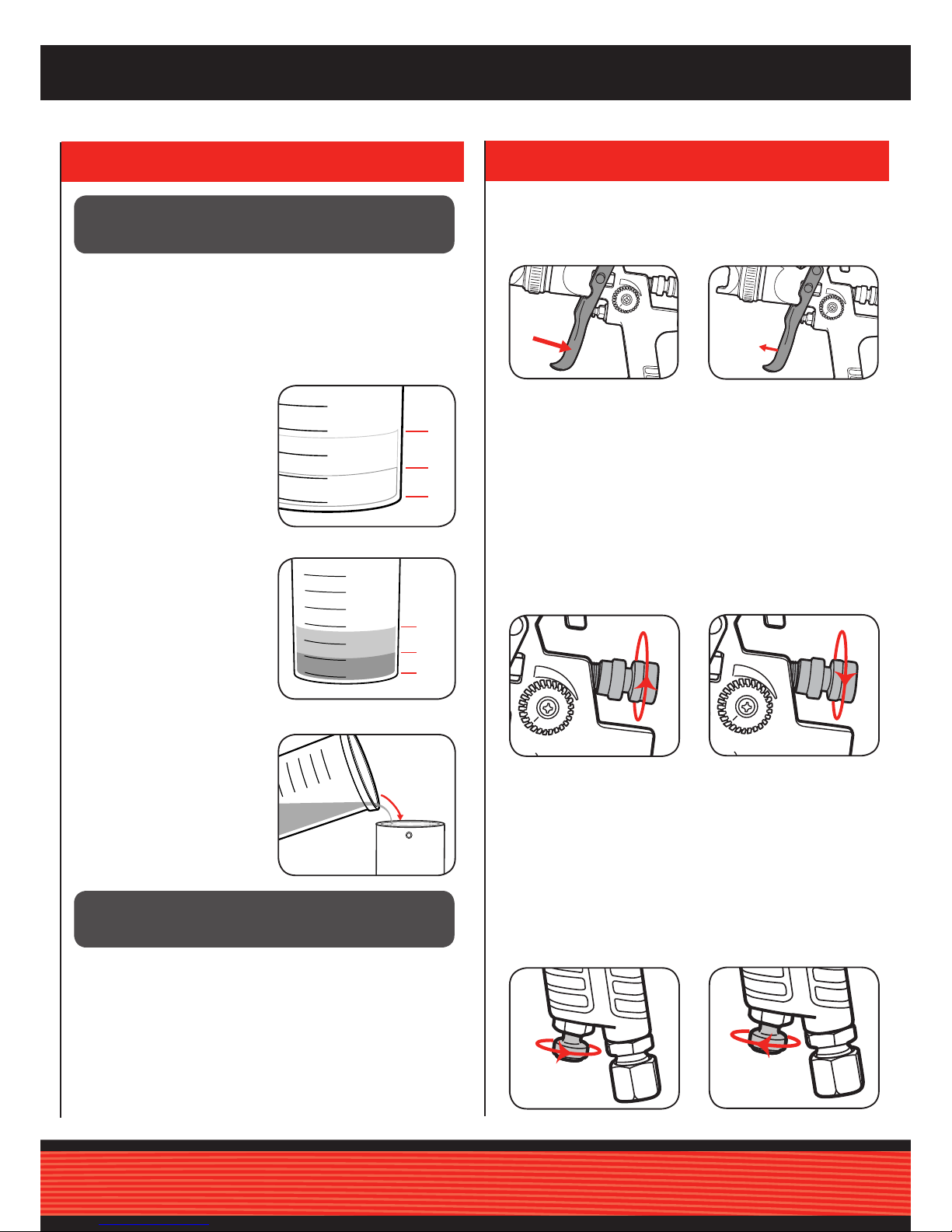

Note: The further the variable trigger is pressed, the more uid
will ow through the gun.
1 Fully tighten the uid
adjustment dial.
The uid adjustment dial is a stop that limits the distance the
trigger can be pressed and can therefore limit the amount of
paint being sprayed.
2 Slightly loosen the uid
adjustment dial, then test
setting on a scrap piece of
material.
Variable Trigger
Fluid Adjustment Dial
PAINT
THINNERS
PAINT
THINNERS
3 Repeat step 2 until desired uid output is reached.
1 To restrict the air pressure
entering the spray gun
turn the valve clockwise.
Air Regulator Valve
1 Squeeze the variable
trigger to start spraying.
2 Release the variable
trigger to stop spraying.
The air regulator valve controls the air pressure entering the gun.
2 To increase air pressure
entering the gun, turn the
air valve anti-clockwise.

4. ADJUSTING THE SPRAY GUN CONT. 5. SPRAYING TECHNIQUE
ASG-GFK
3 Begin 15cm off the edge of the area being sprayed. Start
the movement of the stroke before squeezing the trigger.
Release trigger once passed the opposite edge of the
workpiece.
For vertical surfaces:
1 To change the spray
pattern, loosen the nozzle
collar and rotate the nozzle
to the desired position.
Tighten nozzle collar to
secure nozzle in place.
For horizontal surfaces:

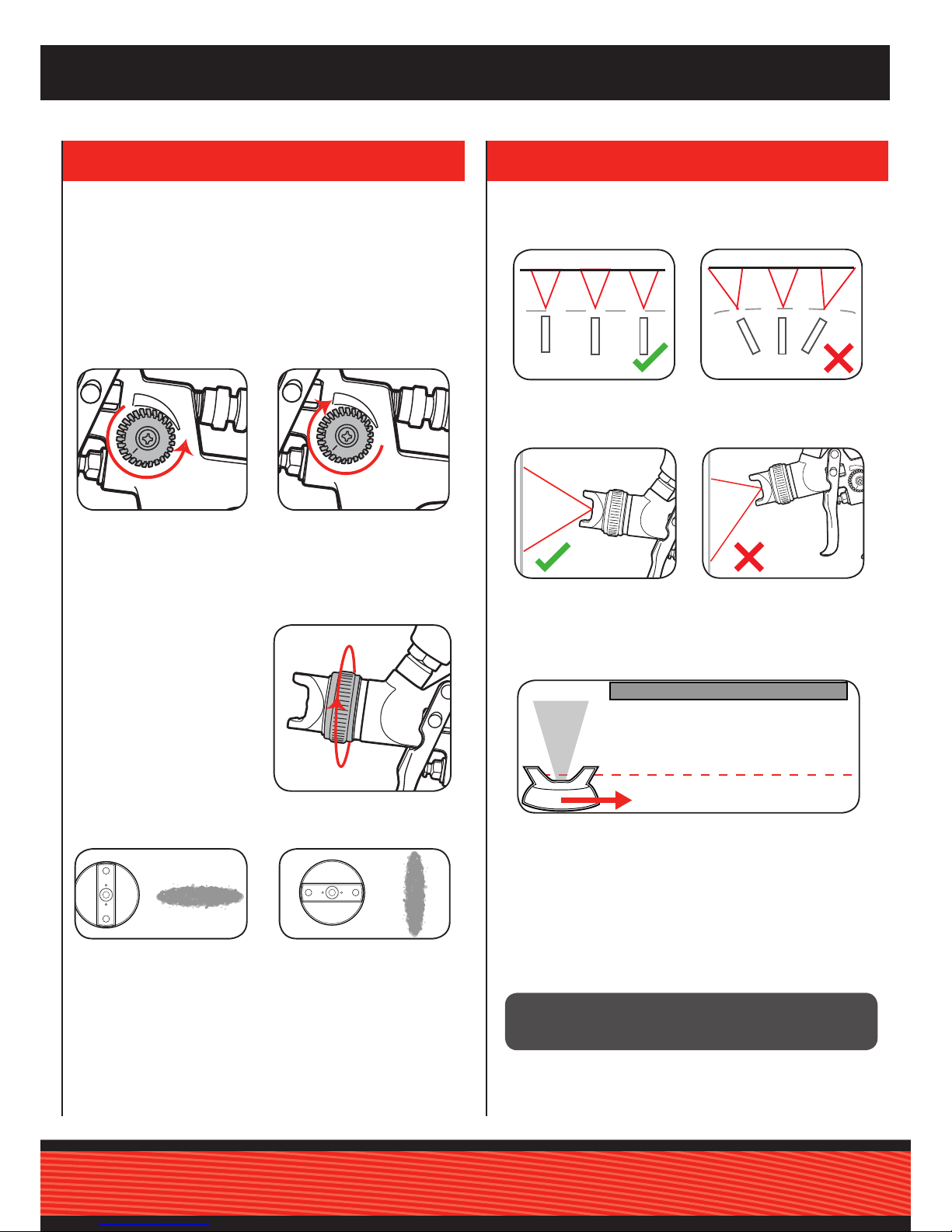

Choosing Spray Patterns
1. Move the gun with the entire arm, not by exing the
wrist. This will keep the spray gun at right angles to the
surface, keeping the pattern even.
2. Keep the spray gun perpendicular to the surface, so
spray distance is consistent.
Helpful Hints
1. Maintain the same distance from workpiece (approx 15cm)
throughout each pass.
2. Maintain the same speed throughout each pass.
3. Always allow a coat to completely dry before adding another coat.
4. Avoid stopping and starting in the middle of workpiece as this can
lead to a patchy nish.
1 Start with the fan
adjustment dial completely
loosened.
2 Partly tighten the dial then
test setting on a scrap
piece of material.
Fan Adjustment Dial
3 Repeat step 2 until desired fan pattern is reached.
NOTE: After each use it is essential that the spray gun is
cleaned thoroughly. Failure to do so will likely cause blockages
which will prevent the tool from working.
FAILURE TO CLEAN THE TOOL WILL VOID THE WARRANTY.
The fan adjustment dial controls the distribution of paint in the
fan. Turned all the way clockwise, paint is concentrated in the
centre of the fan. As the dial is turned anti-clockwise more paint
is distributed toward the edges.

CLEANING PROCEDURE TROUBLE SHOOTING
SPARE PARTS
4 Connect the spray gun to the air
supply then spray solution into a
bucket.
3 Fill paint pot with appropriate
cleaning solution.
9 Dry all components and then re-assemble the spray gun.
5 Repeat steps 3-4 until the cleaning solution runs clear from gun.
If coating material was water based (acrylic paint), use ONLY
water when performing the cleaning procedure. Use of solvent
based cleaning materials on water based paints will result in a
new substance that will be extremely difcult to clean.
If coating material was oil based (enamel paint, lacquer etc.)
use ONLY the appropriate cleaning solution. Read the cleaning
instructions printed on the coating material’s label to determine
which cleaning material you need. The following solvent based
cleaning products are safe to use in the paint sprayer:
• Diggers Easy Cleanup Turpentine Substitute (highly
recommended)
• Mineral Turpentine
• Paint Thinner

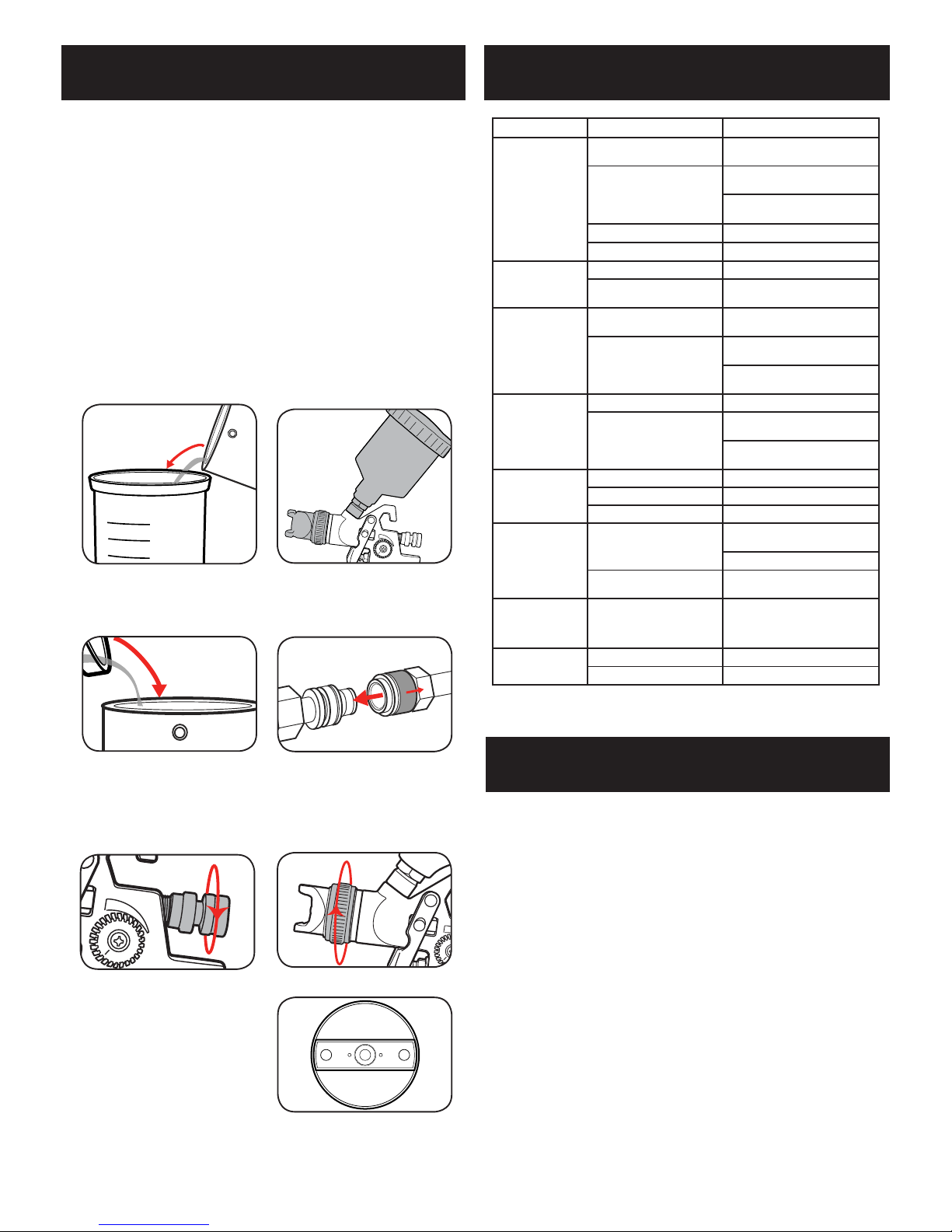

1 Empty the paint pot of remaining
material.
2 Rinse paint pot & nozzle with
cleaning solution. Wipe all parts
with a clean cloth.
6 Unscrew and remove uid
adjustment dial, needle & spring.
Clean all parts in cleaning solution.
7 Unscrew and remove nozzle.
Clean in cleaning solution.
8 Take note of the 4 holes on the
nozzle, if blocked clean carefully
using a small needle.
Nozzle Assembly SPASGGFK-B33A
Needle Assembly SPASGGFK-B16A
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
PROBLEM CAUSE REMEDY
Little or no material
ow
Fluid adjustment dial too limited Turn uid adjustment dial further out
clockwise
Air pressure too low
Increase air pressure at the
compressor
Turn air regulator valve further out
clockwise on gun
Material too thick Thin material
Nozzle clogged Clean nozzle
Material leaking
Nozzle loose Tighten nozzle
Nozzle worn Contact Ozito for replacement spare
parts
Spray pattern is
heavy in the middle
Fan requires adjustment Turn fan adjustment dial further out
anti-clockwise
Air pressure too low
Increase air pressure at the
compressor
Turn air regulator valve further out
clockwise on gun
Spray pattern
heavy at the edges
Fan requires adjustment Turn fan adjustment dial in clockwise
Air pressure too high
Reduce air pressure at the
compressor
Turn air regulator valve further in
clockwise on gun
Spray jet pulsates
Material in paint pot running out Rell paint pot
Nozzle clogged Clean nozzle
Material too thick Thin material
Pattern runs or
sags
Too much material is being
applied
Turn uid adjustment dial further in
clockwise
Increase spray speed
Material is too thin Thicken material by adding more
paint
Too much
overspray
Gun too far from the spray
surface
Reduce distance & turn uid
adjustment dial further in clockwise
to reduce the amount of paint being
applied.
Pattern is very light
and splotchy
Material is too thick Thin the material
Moving the spray gun to fast Decrease spray speed

DESCRIPTION OF SYMBOLS CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
SPRAY GUN SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
d. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
e. Check the maximum pressure rating of any tools or accessories that you intend using with the
compressor. The output pressure of the air from the compressor must be regulated so that it never exceeds
the rated pressure of the tool or accessory.
f. Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an
accessory towards any part of your body or towards another person.
g. Use safety equipment including safety goggles or shield, ear protection, breathing or respirator mask and
protective clothing.
h. The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual
will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or
injury resulting from such cases of misuse.
WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the
compressor. A broken air line which is not supported is extremely dangerous and can whip around
very quickly, both with the capability of striking people, and blowing foreign particles into the air.
• Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air supply to
the hose, turn off the compressor at the On / Off button, and then remove the hose from the compressor.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given the supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
GENERAL AIR TOOL SAFETY WARNINGS
WARNING!
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Using an Extension Hose
Always use an approved extension hose suitable for the air input of this tool. Before
use, inspect the hose for signs of damage, wear and ageing. Replace the extension
hose if damaged or defective.
When using an hose on a reel, always unwind the lead completely.
It is recommended that the hose is a maximum of 25m in length.
NEVER under any circumstances aim the nozzle at another person or animal.
• In the event of an injury occurring, seek medical advice immediately.
• The spray gun must not be used for spraying ammable paints and solvents with a
ash point of less than 21ºC.
• Always ensure there is adequate ventilation when spraying.
• The use of ear protection is recommended.
• Eye protection is recommended to keep hazardous vapours and liquids out of eyes.
• Always wear a face mask when spraying.
• Always read the paint manufacturers thinning instructions before using.
• Always keep the spray nozzle in place during use. Never allow the spray to come in
direct contact with the skin.
• Never immerse the spray gun in liquid.
• The spray gun must not be cleaned by using ammable liquids with a ash point of
less than 21ºC.
NEVER spray near a naked ame, including an appliance pilot light.
NEVER smoke whilst spraying.
NEVER allow children to operate or play with the spray gun.
• Before cleaning, always disconnect the appliance from the air supply.
• Always disconnect from air supply when relling the paint pot.
• After every use ensure you clean your spray gun thoroughly.
NEVER use the spray gun outside when it is raining.
Warning Read instruction
manual
Wear eye protection
and breathing mask
Cubic feet per minute
Wear ear protection
Millilitres per minute
ml/min cfm

TOUCH-UP GRAVITY
FEED SPRAY GUN
INSTRUCTION MANUAL
WHAT’S IN THE BOX
Spray Gun
Filter
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
ASG-GFK
0414
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
SPECIFICATIONS
Working Air Pressure: 30psi (2Bar)
Max Air Pressure: 58psi (4Bar)
Air Consumption: 28-113L/min (1-4cfm)
Nozzle Size: ø0.8mm
Spray Width: 20-50mm
Flow Rate: 70-110ml/min
Feed Type: Gravity
Paint Pot Size: 100ml
Air Inlet: 1/4” BSP
70-110 ml/min

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 Nozzle
2 Nozzle Collar
3 Variable Trigger
4 Fan Adjustment Dial
5 Air Regulator Valve
6 Air Inlet
7 Fluid Adjustment Dial
8 Paint Pot
GRAVITY FEED SPRAY GUN
KNOW YOUR PRODUCT
1 2 3 4 5 6 7 8
1. ASSEMBLY
SETUP & PREPARATION
WARNING! ENSURE THE TOOL IS DISCONNECTED FROM
THE AIR SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
1 Align the paint pot with the
hole on the top of the spray
gun.
1 Wrap the threaded male air
inlet of the spray gun with
teon tape in a clockwise
direction.
1 Simply place the lter into
the top hole of the spray
gun with the knob facing
up.
3 Pull back the sleeve on
hose tting, insert male
end & release sleeve
on hose tting.
2 Screw the paint pot in
tightly by hand.
2 Screw the female tting
clockwise onto the male
end of the air inlet.
Fitting the Paint Pot
Attaching to Compressor
Inserting the Filter

3. ADJUSTING THE SPRAY GUN
OPERATION
2. PREPARATION
1 Before pouring any paint
or thinners work out how
much of each substance is
needed.
3 Once the correct viscosity
is obtained, pour the
mixture into the paint pot.
Thinning is particularly important when spraying. Most paints
are supplied ready for brush application and need to be diluted
sufciently for spraying purposes.
Follow the manufacturers guide for thinning ratios which
should be labelled on the paint container.
2 Pour the required paint and
thinners through a lter into
a mixing cup and then mix
thoroughly.
Thinning
NOTE: FOR BEST RESULTS, SURFACE PREPARATION AND PAINT
THINNING ARE THE TWO MOST IMPORTANT AREAS. ENSURE
ALL SURFACES ARE FREE OF DUST, DIRT AND GREASE.
IMPORTANT! THE SPRAY GUN CANNOT BE USED WITH
MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES,
CAUSTIC AND ALKALINE SUBSTANCES.
Note: The further the variable trigger is pressed, the more uid
will ow through the gun.
1 Fully tighten the uid
adjustment dial.
The uid adjustment dial is a stop that limits the distance the
trigger can be pressed and can therefore limit the amount of
paint being sprayed.
2 Slightly loosen the uid
adjustment dial, then test
setting on a scrap piece of
material.
Variable Trigger
Fluid Adjustment Dial
PAINT
THINNERS
PAINT
THINNERS
3 Repeat step 2 until desired uid output is reached.
1 To restrict the air pressure
entering the spray gun
turn the valve clockwise.
Air Regulator Valve
1 Squeeze the variable
trigger to start spraying.
2 Release the variable
trigger to stop spraying.
The air regulator valve controls the air pressure entering the gun.
2 To increase air pressure
entering the gun, turn the
air valve anti-clockwise.

4. ADJUSTING THE SPRAY GUN CONT. 5. SPRAYING TECHNIQUE
ASG-GFK
3 Begin 15cm off the edge of the area being sprayed. Start
the movement of the stroke before squeezing the trigger.
Release trigger once passed the opposite edge of the
workpiece.
For vertical surfaces:
1 To change the spray
pattern, loosen the nozzle
collar and rotate the nozzle
to the desired position.
Tighten nozzle collar to
secure nozzle in place.
For horizontal surfaces:
Choosing Spray Patterns
1. Move the gun with the entire arm, not by exing the
wrist. This will keep the spray gun at right angles to the
surface, keeping the pattern even.
2. Keep the spray gun perpendicular to the surface, so
spray distance is consistent.
Helpful Hints
1. Maintain the same distance from workpiece (approx 15cm)
throughout each pass.
2. Maintain the same speed throughout each pass.
3. Always allow a coat to completely dry before adding another coat.
4. Avoid stopping and starting in the middle of workpiece as this can
lead to a patchy nish.
1 Start with the fan
adjustment dial completely
loosened.
2 Partly tighten the dial then
test setting on a scrap
piece of material.
Fan Adjustment Dial
3 Repeat step 2 until desired fan pattern is reached.
NOTE: After each use it is essential that the spray gun is
cleaned thoroughly. Failure to do so will likely cause blockages
which will prevent the tool from working.
FAILURE TO CLEAN THE TOOL WILL VOID THE WARRANTY.
The fan adjustment dial controls the distribution of paint in the
fan. Turned all the way clockwise, paint is concentrated in the
centre of the fan. As the dial is turned anti-clockwise more paint
is distributed toward the edges.

CLEANING PROCEDURE TROUBLE SHOOTING
SPARE PARTS
4 Connect the spray gun to the air
supply then spray solution into a
bucket.
3 Fill paint pot with appropriate
cleaning solution.
9 Dry all components and then re-assemble the spray gun.
5 Repeat steps 3-4 until the cleaning solution runs clear from gun.
If coating material was water based (acrylic paint), use ONLY
water when performing the cleaning procedure. Use of solvent
based cleaning materials on water based paints will result in a
new substance that will be extremely difcult to clean.
If coating material was oil based (enamel paint, lacquer etc.)
use ONLY the appropriate cleaning solution. Read the cleaning
instructions printed on the coating material’s label to determine
which cleaning material you need. The following solvent based
cleaning products are safe to use in the paint sprayer:
• Diggers Easy Cleanup Turpentine Substitute (highly
recommended)
• Mineral Turpentine
• Paint Thinner
1 Empty the paint pot of remaining
material.
2 Rinse paint pot & nozzle with
cleaning solution. Wipe all parts
with a clean cloth.
6 Unscrew and remove uid
adjustment dial, needle & spring.
Clean all parts in cleaning solution.
7 Unscrew and remove nozzle.
Clean in cleaning solution.
8 Take note of the 4 holes on the
nozzle, if blocked clean carefully
using a small needle.
Nozzle Assembly SPASGGFK-S11A
Needle Assembly SPASGGFK-S37A
Filter SPASGGFK-S43
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
PROBLEM CAUSE REMEDY
Little or no material
ow
Fluid adjustment dial too limited Turn uid adjustment dial further out
clockwise
Air pressure too low
Increase air pressure at the
compressor
Turn air regulator valve further out
clockwise on gun
Material too thick Thin material
Nozzle clogged Clean nozzle
Material leaking
Nozzle loose Tighten nozzle
Nozzle worn Contact Ozito for replacement spare
parts
Spray pattern is
heavy in the middle
Fan requires adjustment Turn fan adjustment dial further out
anti-clockwise
Air pressure too low
Increase air pressure at the
compressor
Turn air regulator valve further out
clockwise on gun
Spray pattern
heavy at the edges
Fan requires adjustment Turn fan adjustment dial in clockwise
Air pressure too high
Reduce air pressure at the
compressor
Turn air regulator valve further in
clockwise on gun
Spray jet pulsates
Material in paint pot running out Rell paint pot
Nozzle clogged Clean nozzle
Material too thick Thin material
Pattern runs or
sags
Too much material is being
applied
Turn uid adjustment dial further in
clockwise
Increase spray speed
Material is too thin Thicken material by adding more
paint
Too much
overspray
Gun too far from the spray
surface
Reduce distance & turn uid
adjustment dial further in clockwise
to reduce the amount of paint being
applied.
Pattern is very light
and splotchy
Material is too thick Thin the material
Moving the spray gun to fast Decrease spray speed

DESCRIPTION OF SYMBOLS CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
SPRAY GUN SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
d. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
e. Check the maximum pressure rating of any tools or accessories that you intend using with the
compressor. The output pressure of the air from the compressor must be regulated so that it never exceeds
the rated pressure of the tool or accessory.
f. Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an
accessory towards any part of your body or towards another person.
g. Use safety equipment including safety goggles or shield, ear protection, breathing or respirator mask and
protective clothing.
h. The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual
will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or
injury resulting from such cases of misuse.
WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the
compressor. A broken air line which is not supported is extremely dangerous and can whip around
very quickly, both with the capability of striking people, and blowing foreign particles into the air.
• Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air supply to
the hose, turn off the compressor at the On / Off button, and then remove the hose from the compressor.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given the supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
GENERAL AIR TOOL SAFETY WARNINGS
WARNING!
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Using an Extension Hose
Always use an approved extension hose suitable for the air input of this tool. Before
use, inspect the hose for signs of damage, wear and ageing. Replace the extension
hose if damaged or defective.
When using an hose on a reel, always unwind the lead completely.
It is recommended that the hose is a maximum of 25m in length.
NEVER under any circumstances aim the nozzle at another person or animal.
• In the event of an injury occurring, seek medical advice immediately.
• The spray gun must not be used for spraying ammable paints and solvents with a
ash point of less than 21ºC.
• Always ensure there is adequate ventilation when spraying.
• The use of ear protection is recommended.
• Eye protection is recommended to keep hazardous vapours and liquids out of eyes.
• Always wear a face mask when spraying.
• Always read the paint manufacturers thinning instructions before using.
• Always keep the spray nozzle in place during use. Never allow the spray to come in
direct contact with the skin.
• Never immerse the spray gun in liquid.
• The spray gun must not be cleaned by using ammable liquids with a ash point of
less than 21ºC.
NEVER spray near a naked ame, including an appliance pilot light.
NEVER smoke whilst spraying.
NEVER allow children to operate or play with the spray gun.
• Before cleaning, always disconnect the appliance from the air supply.
• Always disconnect from air supply when relling the paint pot.
• After every use ensure you clean your spray gun thoroughly.
NEVER use the spray gun outside when it is raining.
Warning Read instruction
manual
Wear eye protection
and breathing mask
Cubic feet per minute
Wear ear protection
Millilitres per minute
ml/min cfm
