Ozito Power X Change PXOSGS-018 User manual

STANDARD EQUIPMENT
PXOSGS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
Max. Flow Rate: 600ml/min
Max. Viscosity: 50DIN-s
Pot Capacity: 1L
Nozzle Sizes: Ø1.5, Ø1.8, Ø2.2mm
Weight: 1.1kg
ozito.com.au
0419
Cordless Outdoor Spray Gun
Viscosity Measuring Cup,
Cleaning Needle, & Cleaning
Brush
Splash Proof Battery Cover
3 x Spray Nozzles, Spare
Deector Ring
CORDLESS
OUTDOOR
SPRAY GUN
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

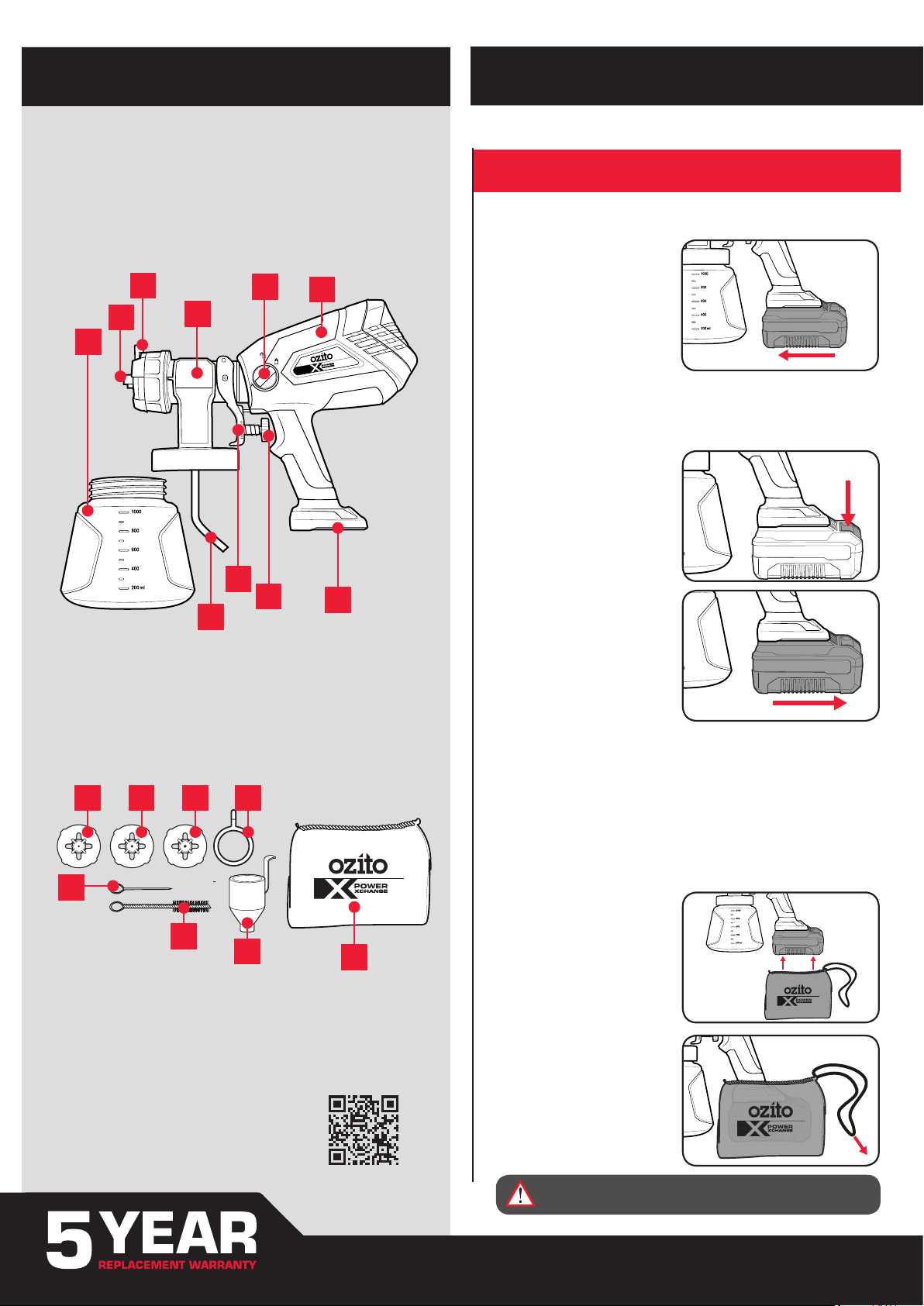

Installing The Battery Pack
1. Slide the battery into the tool
base until it clicks into place.
Removing The Battery Pack
1. Hold down the battery release
button.
2. Slide the battery out.
Covering The Battery
A Splash Proof Battery Cover has been provided with this unit to prevent
paint splatters from marking up your battery.
1. Slide the Battery Cover over the
attached battery.
2. Pull the drawstring taut to secure
it.
1. 1L Paint Pot
2. Spray Pattern Adjustor
3. Spray Width Deector
4. Detachable Spray Head
5. Spray Head Locking Knob
6. Spray Gun
7. Battery Seating
8. Flow Regulator Dial
9. On/Off Trigger
10. Suction Tube
11. Ø1.5mm Nozzle
12. Ø1.8mm Nozzle
13. Ø2.2mm Nozzle
14. Spare Deector Ring
15. Splash Proof Battery Cover
16. Viscosity Measuring Cup
17. Cleaning Brush
18. Cleaning Needle
This tool is compatible with all batteries & chargers from the Ozito Power X Change
range.
CORDLESS OUTDOOR SPRAY GUN
ACCESSORIES
BATTERY & CHARGER
KNOW YOUR PRODUCT
1. FITTING THE BATTERY
SETUP & PREPARATION
2
1
356
4
18
7
10
9
8
17
11 12 13 14
16 15
WARNING! ENSURE THE BATTERY COVER IS USED
WITH THE PAINT SPRAYER AT ALL TIMES.

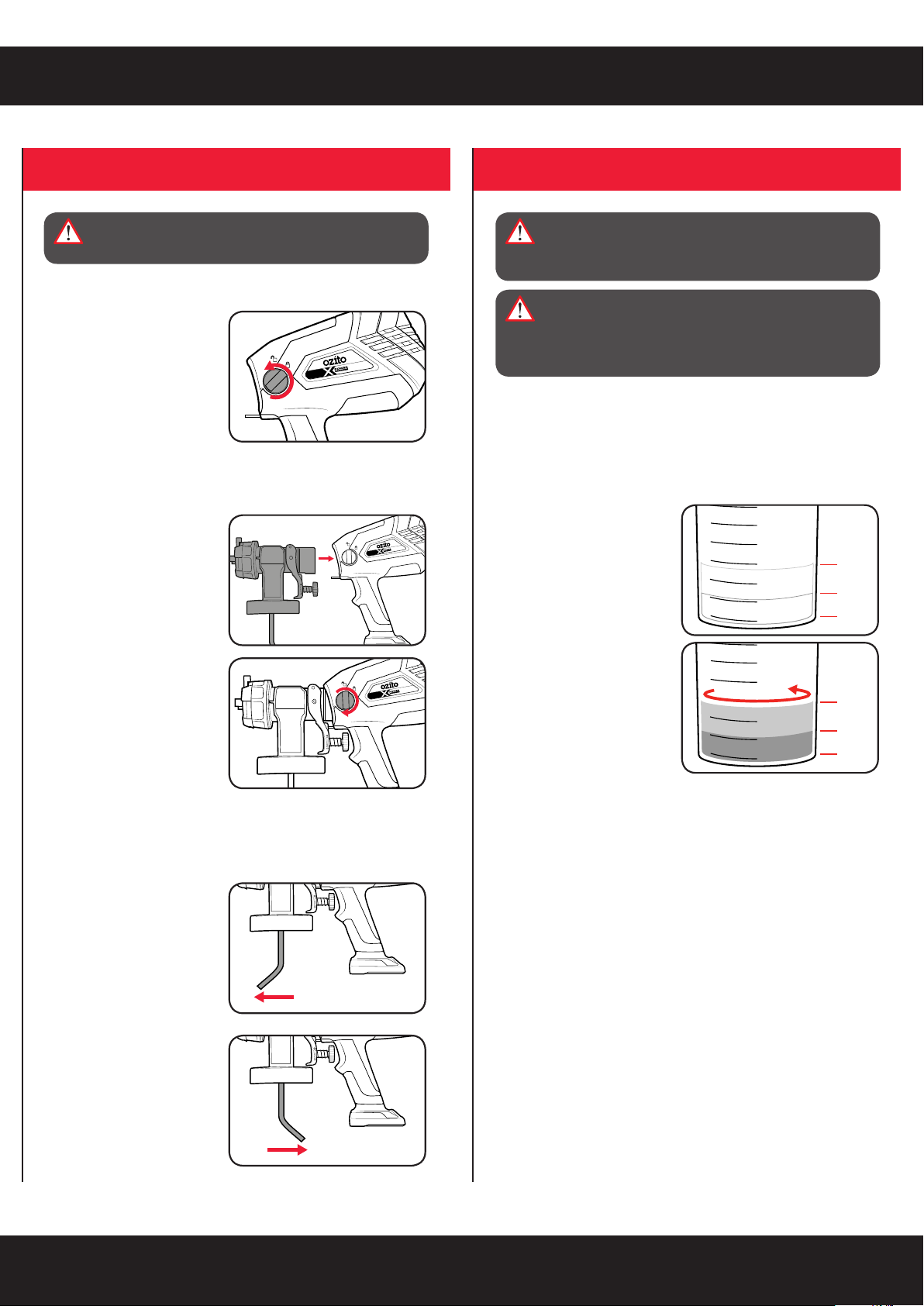

Attaching The Spray Head
1. Press the Spray Head Locking
Knob and turn it anti-clockwise to
the unlocked position.
Note: Ensure the Spray Head and Spray Gun body are aligned correctly for
proper tting.
2. Insert the Spray Head fully into
the Spray Gun.
3. Press the Spray Head Locking
Knob and turn it clockwise to
the locked position to secure the
Spray Head in position.
Aligning The Suction Tube
1. When spraying horizontal or low
objects, turn the Suction Tube so
that the opening faces forwards.
2. When spraying overhead objects,
turn the Suction Tube so that the
opening faces backwards.
Thinning Paints
Thinning is particularly important when spraying. Most paints are supplied
ready for brush application and need to be diluted sufciently for spraying
purposes. Follow the manufacturers guide for thinning
ratios which should be labelled on the paint container.
1. Before pouring any paint or
thinners work out how much of
each substance is needed.
2. Pour the required paint and
thinners through a lter into a
mixing cup and mix thoroughly.
2. ASSEMBLY 3. PAINT PREPARATION
PAINT
THINNERS
PAINT
THINNERS
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! FOR BEST RESULTS, SURFACE
PREPARATION AND PAINT THINNING SHOULD BE
PERFORMED. ENSURE ALL SURFACES ARE FREE OF
DUST, DIRT, & GREASE.
WARNING! PAINTING CAN BE A MESSY TASK.
WEAR SUITABLE CLOTHING AND ENSURE THE
SURROUNDINGS ARE PROPERLY COVERED
AND PROTECTED. USE OF A DROPSHEET IS
RECOMMENDED WITH THE SPRAYER.

Determining Viscosity
It is vital to determine the viscosity of the spray material to see if it is
suitable to be used in the spray gun.
Note: You will need to have a timer or stopwatch to perform this step.
1. Stir the material to make sure it’s evenly mixed. If bubbles are formed
during stirring, wait until these have dissipated before proceeding to the
next step.
2. Submerge the viscosity
measuring cup into the material
and ll it to the brim.
2. Raise the cup out of the liquid by
the handle and start the timer.
3. Time how long it takes to empty
the cup in seconds.
Note: The viscosity is measured
in DIN-seconds (DIN-s), so if it
takes 30 seconds for the liquid to
drain out of the measuring cup, the
material has a viscosity of 30DIN-s.
4. If the material is above 50DIN-s, the material will need to be thinned out
more and re-measured.
WARNING! THE SPRAY GUN CANNOT BE USED
WITH MATERIALS CONTAINING ABRASIVE
SUBSTANCES, GLAZES, DISPERSION PAINTS,
CAUSTIC AND ALKALINE SUBSTANCES, OR
TEXTURED COATINGS.
Choosing The Spray Direction
To change spray patterns, the Spray
Direction Adjustor can be rotated
clockwise to the desired direction.
1. For surfaces that are taller than
they are wide (vertical surfaces),
use a horizontal fan spray. This
can be achieved by rotating the
Spray Direction Adjustor to the
position shown.
2. For surfaces that are wider than
they are tall (horizontal surfaces),
use a vertical fan spray. This can
be achieved by rotating the Spray
Direction Adjustor to the position
shown.
3. For corners, edges and other
hard to access areas, use a round
spray. This can be achieved by
rotating the Spray Direction
Adjustor to the position shown.
Adjusting The Spray Fan Width
1. For a narrow fan spray, push the
Spray Width Deector anti-
clockwise.
2. For a wide fan spray, push the
Spray Width Deector clockwise.
4. CONTROLS
OPERATION

Adjusting The Spray Flow Rate
The Flow Regulator Dial is a stop that limits the distance the trigger can
be pressed. This results in less material being sprayed when the trigger is
pressed.
1.To lessen the amount of material
sprayed, turn the Dial clockwise.
2. To increase the amount sprayed
in one go, turn the Dial anti-
clockwise.
Note: After making any adjustments, always test the spray gun settings
on a scrap surface before using it on your project.
On/Off Trigger
1. Squeeze the On/Off Trigger to
start Spraying.
2. Release the On/Off Trigger to
stop spraying.
Quick Start Checklist
1. Measure out the amount of coating material required. Remember to take
into account the amount of thinner that will be added.
2. Check that the viscosity of the coating material is less than 50DIN-s.
3. Pour the material into the Paint Pot.
Note: Pouring the material through a ne lter (such as nylon stockings)
is recommended to remove any ne particles that may clog up the spray
nozzles.
4. Adjust the Suction Tube, Spray Pattern Adjustor, Spray Width Deector
and Flow Regulator Dial to the desired settings.
5. Test the settings on a scrap piece of material; repeat Step 4 as necessary.
Spraying Technique
1. Maintain a distance of roughly 20cm from the workpiece and keep the
Spray Gun perpendicular to the worksurface.
Note: Start spraying just before the start of your workpiece and end just
after to ensure a consistent spray on the edges of your workpiece.
2. Move the Spray Gun along the surface at a steady pace whilst maintaing
the distance and perpendicular angle.
3. Overlap each pass over the
workpiece by 2cm to achieve an
even coating.
PXOSGS-018
6. SPRAYING GUIDE

MAINTENANCE

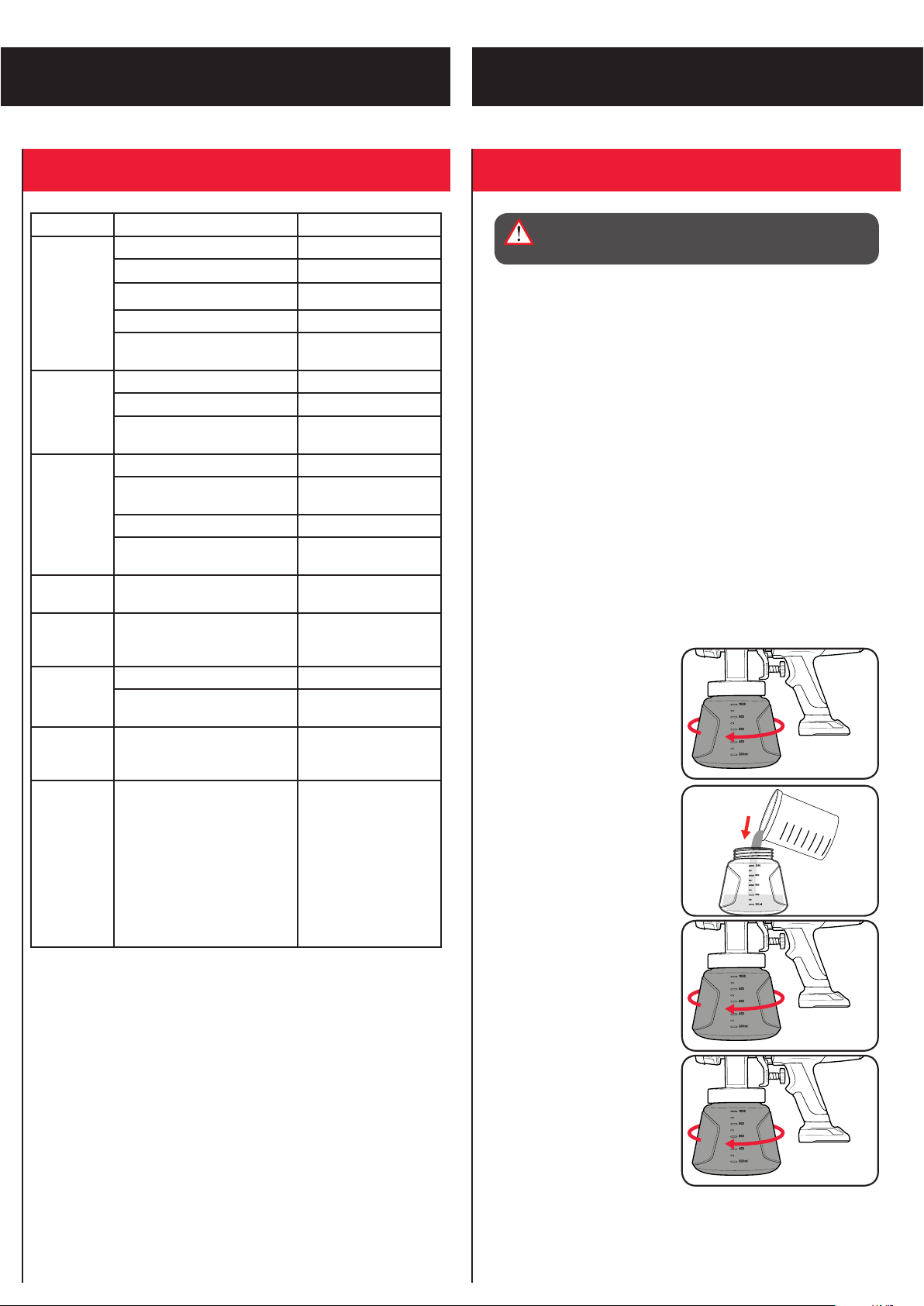

6. TROUBLESHOOTING 7. CLEANING
Problem Cause Remedy
Little or no
material ow
Nozzle / Suction tube clogged Clean
Spray regulator dial too low Increase regulator dial
Suction tube loose Ret suction tube
No pressure build up in paint pot Tighten paint pot
Material is too viscous for nozzle Swap to the larger Ø
nozzle
Material
leaking
Nozzle loose Tighten
Nozzle worn Replace
Material build up on air cap and
nozzle
Clean
Atomization
is too coarse
Viscosity of material too high Thin material
Material volume too large Decrease spray regulator
dial
Nozzle clogged Clean or replace
Too little pressure build up in
container
Tighten paint pot
Spray jet
pulsates
Material in paint pot running out Rell
Pattern runs
or sags
Applying to much material Decrease spray
regulator dial or increase
movement speed
Too much
overspray
Gun too far from spray object Reduce distance
Too much material applied Decrease spray regulator
dial
Pattern is
very light and
splotchy
Moving the spray gun too fast Decrease spray regulator
dial or decrease
movement speed
Excessive
spitting
during start
up
Too large spray nozzle Try using a smaller size
nozzle and spray on scrap
piece of material.
If the issue re-occurs, try
depressing the trigger
halfway for 3-5 seconds
before fully depressing
the trigger to start the
paint ow.
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Water Vs Oil Based Coating Materials
After each use it is essential that the spray gun is cleaned thoroughly. This
will prevent any blockages from occurring and ensure reliable performance
when you next come to use it.
If coating material was water based (acrylic paint), use ONLY water
when performing the cleaning procedure. Use of solvent based cleaning
materials on water based paints will result in a new substance that will be
extremely difcult to clean.
If coating material was oil based (enamel paint etc.) use ONLY the
appropriate cleaning solution. Read the cleaning instructions printed on the
coating material’s label to determine which cleaning material you need. The
following solvent based cleaning products are safe to use in this spray gun:
• Mineral Turpentine
• Paint Thinner
Flushing The System
1. Unscrew the Paint Pot and return
any remaining coating material
into a container for storage or
proper disposal.
2. Clean the Paint Pot and Suction
Tube with the Cleaning Brush
and solvent/water depending
on the type of coating material
previously used in the Spray Gun.
Note: Only use solvents with a
ash point over 21°C
3. Rell the Paint Pot with fresh
solvent/water and then screw
the Pot back onto the Spray
Head.
4. Spray the water/solvent through
the system into an empty
container. Repeat this step as
necessary until the water/solvent
coming out of the Spray Gun runs
clear.
5. Remove the Paint Pot and empty out any remaining solvent.
Note: Do not pour solvent or contaminated water down the drain as doing
so could pollute our water systems. Always dispose of waste material in an
appropriate and responsible manner.

DESCRIPTION OF SYMBOLS
VVolts WWatts
AAmperes DIN-s
L
DIN seconds
Millilitres per minute
Litres
Warning
Read instruction manual
Regulatory Compliance Mark (RCM)
Wear eye, ear & respiratory
protection
ml/min
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
Cleaning The Parts
1. Turn the Spray Head Locking
Knob to the unlocked position
and detach the Spray Head from
the Spray Gun.
2. Unscrew the Nozzle lid from the
Spray Head and disassemble the
Nozzle parts.
Note: The ring end of the
Cleaning Brush/Needle can be used
to hook and pull out the Nozzle if it
is stuck.
3. Remove the Suction Tube and
seal.
4. Dip a clean rag in water/solvent and clean the nozzle lid, Nozzle parts,
Spray Gun housing, rear of the Paint Head and Suction Tube.
Note: Use the Cleaning Needle to remove any clogged parts on the unit.
5. Ensure all parts are clean and dry before re-assembling and storing the
paint gun.
General Tool Care
• Keep the vents of the spray gun clean at all times. If possible, prevent
foreign matter from entering the vents.
• If the body of the spray gun requires cleaning, use a moist soft cloth
dipped in water/solvent. Never let any liquid get inside the gun body;
never immerse any part of the spray gun into a liquid.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the sander by an unauthorised person or by
mishandling of the spray gun.

ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged
or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged or defective may result in a
risk of fire and electric shock.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
SPRAY GUN SAFETY WARNINGS
WARNING! This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
• NEVER under any circumstances aim the nozzle at another person or animal.
• In the event of an injury occurring, seek medical advice immediately.
• The spray gun must not be used for spraying flammable paints and solvents with a flash
point of less than 21ºC.
• Always ensure there is adequate ventilation when spraying.
• The use of ear protection is recommended.
• Eye protection is recommended to keep hazardous vapours and liquids out of eyes.
• Always wear a face mask when spraying.
• Always read the paint manufacturers thinning instructions before using.
• Never allow the spray to come in direct contact with the skin.
• Never immerse the spray gun in liquid. This could lead to electric shock, personal injury and
material damage.
• NEVER spray near a naked flame, including an appliance pilot light.
• NEVER smoke whilst spraying.
• NEVER allow children to operate or play with the spray gun.
• Before cleaning, always disconnect the battery from the tool.
• Always disconnect the battery when refilling the paint pot.
• After every use ensure you clean your spray gun thoroughly.
• NEVER use the spray gun outside when it is raining.
• Ensure the battery cover is used with tha paint sprayer at all times.
