Ozito ATAK-009 User manual

AIR TOOLS &
ACCESSORIES KIT
9 PIECE
INSTRUCTION MANUAL
SPECIFICATIONS
Long Nose Air Blow Gun
Nozzle: 100mm
Working Pressure: 58psi (4bar)
Air Inflation Gun
Working Pressure: 116psi (8bar)
Spray Nozzle Washing Gun
Tank Size: 1L
Working Pressure: 87psi (6bar)
Air Water Washing Gun
Working Pressure: 87psi (6bar)
Max. Water Inlet Pressure: 50psi (3.4bar)
Gravity Fed Spray Gun
Cup Size: 0.6L
Flow Rate: 160 - 240mL/min
Working Pressure: 50psi (3.4bar)
Kit Weight: 2.9kg
ATAK-009
STANDARD EQUIPMENT
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ozito.com.au
Air/Water Washing Gun & 1L Spray
Nozzle Washing Gun
Air Inflation Gun & Long Nose Air
Blow Gun
0.6L Gravity Fed Spray Gun
5m Air Hose & 3 x Inflation
Accessories
0921
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.

Connecting The Air Tools
1. Pull back the sleeve on the
air hose Nitto fitting and
insert the male Nitto on the
desired air tool.
2. Release the sleeve; the Nitto
coupling should click into
place.
3. Check that the fitting is secure by tugging gently on the
connector. If the hose detaches, repeat steps 2 & 3, pushing the
Nitto connector firmly into the outlet.
4. To disconnect the air tool, retract the sleeve on the female Nitto
fitting and disconnect the air hose from the air tool.
WARNING! ENSURE YOU HAVE A FIRM GRIP ON THE
AIR HOSE WHEN DISCONNECTING IT FROM THE AIR
COMPRESSOR, AS PRESSURISED AIR IN THE TANK
MAY CAUSE IT TO WHIP AROUND AND INFLICT INJURY
OR DAMAGE.
Attaching The Inflation Nozzles
The inflation nozzles can be attached
to the air inflation gun.
The needle nose nozzle can be used
for sports balls.
The tapered nozzle can be used for rubber
dinghies, small inflatable swimming pools & air
bed.
Note: A suitable air compressor will be required to
inflate these.
1. Press down the clamp and
insert the desired nozzle.
2. Release the clamp and
ensure the nozzle is securely
attached by tugging gently
on it.

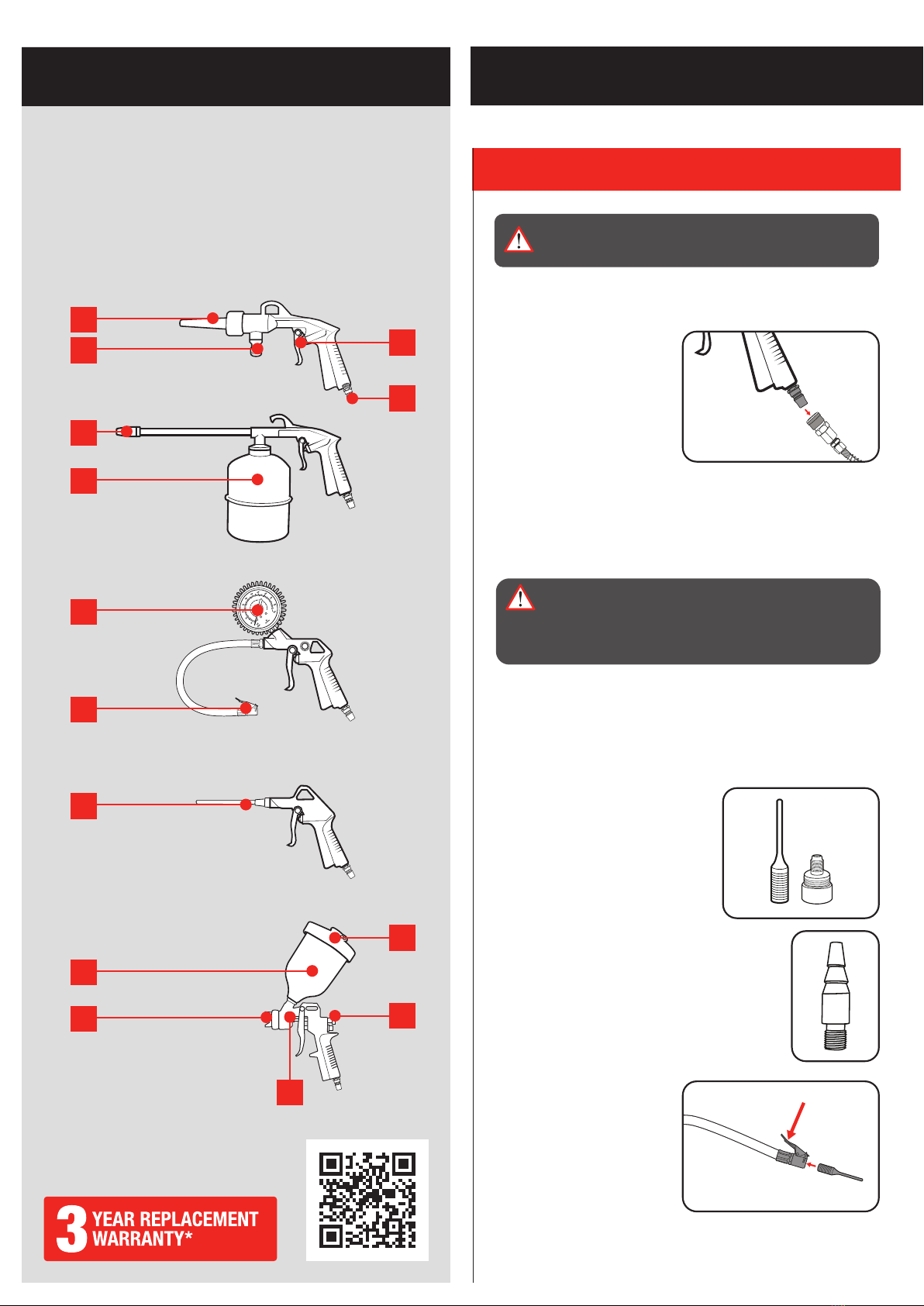

1. Water Nozzle
2. Water Inlet Port
3. Nitto Style Fitting
4. On/Off Trigger
5. Adjustable Nozzle
6. 1L Tank
7. Pressure Gauge
8. Hose Clamp
9. 100mm Inflator Nozzle
10. Material Cup
11. Spray Nozzle
12. Fan Adjustor
13. Spray Regulator Dial
14. Material Cup Lid
AIR TOOLS
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
2
6
7
8
9
10
11
1
5
13
12
14
4
3
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.
a.
b.
AIR/WATER WASHING GUN
1L SPRAY NOZZLE
WASHING GUN
AIR INFLATION GUN
LONG NOSE AIR
BLOW GUN
0.6L GRAVITY FED
SPRAY GUN

Thinning Paints
Thinning is particularly important when spraying. Most paints
are supplied ready for brush application and need to be diluted
sufficiently for spraying purposes. Follow the manufacturers
guide for thinning ratios which should be labelled on the paint
container.
1. Before pouring any paint or
thinners work out how much
of each substance is needed.
2. Pour the required paint and
thinners through a filter
into a mixing cup and mix
thoroughly.
3. Unscrew the lid of the
material cup and pour the
thinned paint in.
4. Replace the lid and attach the air tool to the air hose.
Spray Fan Size
The fan size of the spray can be controlled with the fan adjustor.
1. Turn the dial anti-clockwise
to increase the size of the
fan jet.
2. Turn the dial clockwise to
decrease the size of the jet.
2. SETTING UP THE SPRAY GUN
Choosing The Spray Direction
To change spray patterns, the
nozzle can be rotated to the
desired pattern.
1. For surfaces that are taller
than they are wide (vertical
surfaces), use a horizontal
fan spray. Rotate the nozzle
until it is in the position
shown.
2. For surfaces that are wider
than they are tall (horizontal
surfaces), use a vertical fan
spray. Rotate the nozzle until
it is in the position shown.
Spray Regulator Dial
The amount of paint being sprayed can be adjusted with the spray
regulator dial.
1. Fully tighten the spray regulator dial.
2. Slightly loosen the dial.
3. Test the setting on a scrap
piece of material. Squeeze
the on/off trigger to start
spraying.
4. Repeat steps 2 & 3 until the desired spray setting is achieved.
WARNING! FOR BEST RESULTS, SURFACE
PREPARATION AND PAINT THINNING SHOULD BE
PERFORMED. ENSURE ALL SURFACES ARE FREE OF
DUST, DIRT, & GREASE.
WARNING! PAINTING CAN BE A MESSY TASK.
WEAR SUITABLE CLOTHING AND ENSURE THE
SURROUNDINGS ARE PROPERLY COVERED
AND PROTECTED. USE OF A DROP SHEET IS
RECOMMENDED WITH THE SPRAYER.
PAINT
THINNERS
PAINT
THINNERS
WARNING! THE SPRAY GUN CANNOT BE USED WITH
MATERIALS CONTAINING ABRASIVE SUBSTANCES,
GLAZES, DISPERSION PAINTS, CAUSTIC AND
ALKALINE SUBSTANCES, OR TEXTURED COATINGS.

3. SETTING UP THE WASHING GUNS 4. INFLATING OBJECTS
OPERATION
ATAK-009
Connecting A Water Source
A water hose (not supplied) can be
connected to the Air/Water Washing
Gun.
WARNING! THE WATER INLET PRESSURE MUST NOT
EXCEED 50PSI (3.4BAR).
\
Push the standard quick coupling adaptor on the water hose onto
the water inlet port of the Washing Gun.
Using The 1L Spray Nozzle Washing Gun
Alternatively, you can fill the
tank of the Spray Nozzle
Washing Gun with 1L of water
if you only require a small
amount of liquid.
The size of the spray jet can be
adjusted by rotating the nozzle.
Inflating A Tyre
1. With the inflation gun
connected to a suitable air
compressor, press down the
clip on the end of the hose
and push the clamp onto the
nozzle of the tyre.
2. Release the clamp and pull on it gently to check that the hose is
attached correctly.
3. Pull the trigger and monitor
the inflation pressure with
the attached pressure gauge.

MAINTENANCE DESCRIPTION OF SYMBOLS
Cleaning
1. We recommend that you clean the appliance immediately after
you use it.
2. Keep the safety devices free of dirt and dust as much as
possible. Wipe the equipment with a clean cloth.
3. Clean the appliance regularly with a damp cloth and some soft
soap. Do not use cleaning agents or solvents; these may be
aggressive to the plastic parts in the appliance. Ensure that no
water can get into the interior of the appliance.
Cleaning The Spray Gun
WARNING! IT IS ESSENTIAL TO CLEAN THE SPRAY
GUN THOROUGHLY AFTER EACH USE. FAILURE TO DO
SO WILL CAUSE BLOCKAGES WHICH WILL PREVENT
THE TOOL FROM WORKING & VOID THE WARRANTY.
If oil based paint was used, use a solvent such as turps
for cleaning. If water based paint was used, use water for
cleaning.
1. Empty the paint pot of remaining material & fill with appropriate
cleaning solution.
2. Connect the spray gun to the air supply and spray the cleaner
onto a scrap piece of cardboard. Repeat this procedure until the
solution coming out of the gun runs clear.
3. Disconnect the air supply.
4. Remove the paint pot and rinse until clean.
5. Unscrew the nozzle. Dip
a clean cloth in cleaning
solution and use this to clean
the nozzle parts and gun
housing.
6. Allow all parts to air dry completely before re-assembling.
Storage
Disconnect the air tools from the air hose and make sure that it is
secured in such a way that it cannot be started up again by any
unauthorised person. Store the tools in a dry location which is not
accessible to unauthorised persons.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the tool by an unauthorised person
or by mishandling of the tool.
WARNING! BEFORE CLEANING THE APPLIANCE OR
CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT IT IS DISCONNECTED FROM THE
POWER SUPPLY TO PREVENT ACCIDENTAL STARTING.
Warning
Wear eye, ear & breathing
protection
mm MIllimetre psi Pounds per square inch
LL/min LitresLitres per minute
Read Instruction Manual
Power tools that are no longer usable should not
be disposed of with household waste but in an
environmentally friendly way. Please recycle where
facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution
in the environment. Please recycle packaging where
facilities exist. Check with your local council authority for
recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk at your
local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
• Ensure the air valve (or trigger) is in the ‘off’ position before connecting to the air supply.
• Do not use any additional force upon the tool.
• Only use with accessories rated to handle the forces exerted by this tool during operation. Other accessories not
designed for the forces generated may break and forcefully launch pieces.
• Attach all accessories properly to the tool before connecting the air supply. A loose accessory may detach or
break during operation.
• Use this tool with both hands only. Using tools with only one hand can result in loss of control.
• When you disconnect the hose coupling, hold the coupling element in your hand to prevent injury from the
whiplashing hose.
• Never point the blow guns at other persons and never use it to clean clothes that are still being worn.
• Be certain to read all the labels on the containers of paint or other materials to be sprayed. Closely follow all
safety instructions. Use a respirator mask if there is a chance that you might otherwise inhale the spray material.
Carefully check the effectiveness of any respirator mask you intend using.
• Always wear safety goggles or glasses when using the air tools. Never point the nozzle of an accessory towards
any part of your body or towards another person.
• Protect the air hose from damage. Inspect for weak or worn spots regularly and replace if necessary.
• Check the maximum pressure rating of any tools or accessories that you intend using with the compressor. The
output pressure of the air from the compressor must be regulated so that it never exceeds the rated pressure of
the tool or accessory.
• Never apply the outlet air directly on to any part of a person’s body. Do not attempt to block the air outlet with
your finger or any part of your body.
• The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will
be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or injury
resulting from such cases of misuse.
• The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from such
changes.
• Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tool’s construction and design:
- Damage to the lungs if an effective breathing mask is not worn.
- Damage to hearing if effective earmuffs are not worn.
- Damage to the eyes if effective safety goggles or shield are not worn.
• WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the compressor. A
broken air line which is not supported is extremely dangerous and can whip around very quickly, both with the
capability of striking people, and blowing foreign particles into the air. Do not attempt to catch the air line but
immediately keep bystanders well clear and turn off the air supply to the hose, turn off the compressor at the On
/ Off button, and then remove the hose from the compressor.
• Always check for leaks and correct operation before use. Never operate the spray gun if there are any leaks or
faults. Faults or leaks can cause injury.
• NEVER under any circumstances aim the nozzle at another person or animal. In the event of an injury occurring,
seek medical advice immediately.
• Always ensure there is adequate ventilation when spraying.
• NEVER spray near a naked flame, including an appliance pilot light.
• NEVER smoke whilst spraying.
• NEVER allow children to operate or play with the spray gun.
• NEVER put your hand in front of the gun. Gloves will not provide protection against an injection injury.
• All accessories must be rated at or above the maximum operating pressure range of the sprayer. This includes
spray tips, guns, extensions, and hose.
• High-pressure hoses must be checked thoroughly before they are used. Replace any damaged high pressure
hose immediately.
• Never pull on the high-pressure hose to move the device.
• Do not twist the high-pressure hose.
• Do not put the high-pressure hose into solvents. Use only a wet cloth to wipe down the outside of the hose.
• Lay the high-pressure hose in such a way as to ensure that it cannot be tripped over.
• Follow material and solvent manufacturer’s warnings and instructions. Be familiar with the coating material’s
SDS sheet and technical information to ensure safe use.
• Use lowest possible pressure to flush equipment.
• Protective clothing, gloves and possibly skin protection cream are necessary for the protection of the skin.
Observe the regulations of the manufacturer concerning coating materials, solvents and cleaning agents in
preparation, processing and cleaning units.
• ALWAYS follow the material manufacturer’s instructions for safe handling of paint and solvents.
• Do not spray on windy days.
• Never leave this equipment unattended. Keep away from children or anyone not familiar with the operation of
airless equipment.
AIR TOOL SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate air tools in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust. Air tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a air tool. Distractions can cause you to lose control.
2. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a air tool. Do not use a air
tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while
operating air tools may result in serious personal injury.
b.Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool. Carrying air tools with your finger on the switch or
energising air tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the air tool on. A wrench or a key left attached to a
rotating part of the air tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the air tool in
unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool
safety principles. A careless action can cause severe injury within a fraction of a second.
3. Air tool use and care
a. Do not force the air tool. Use the correct air tool for your application. The correct air tool will do the job better
and safer at the rate for which it was designed.
b. Do not use the air tool if the switch does not turn it on and off. Any air tool that cannot be controlled with the
switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the air tool before making any
adjustments, changing accessories, or storing air tools. Such preventive safety measures reduce the risk of
starting the air tool accidentally.
d. Store idle air tools out of the reach of children and do not allow persons unfamiliar with the air tool or
these instructions to operate the air tool. Air tools are dangerous in the hands of untrained users.
e. Maintain air tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition
that may affect the air tool’s operation. If damaged, have the air tool repaired before use. Many accidents are
caused by poorly maintained air tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the air tool, accessories and tool bits etc. in accordance with these instructions, taking into account
the working conditions and the work to be performed. Use of the air tool for operations different from those
intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
4. Service
a. Have your air tool serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the air tool is maintained.
