Ozito ATK-030 User manual

SUCTION FEED
SPRAY GUN
130-210 ml/min
INSTRUCTION MANUAL
SPECIFICATIONS
Working Air Pressure: 50psi (3Bar)
Max Air Pressure: 87psi (6Bar)
Air Consumption: 85-226L/min (3-8cfm)
Nozzle Size: ø1.5mm
Spray Width: 40-70mm
Flow Rate: 130-210ml/min
Feed Type: Suction
Paint Pot Size: 850ml
Air Inlet: 1/4” BSP
WHAT’S IN THE BOX
Spray Gun
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
ATK-030
0414
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 Nozzle
2 Nozzle Collar
3 Fan Adjustment Dial
4 Paint Pot
5 Variable Trigger
6 Air Inlet
7 Fluid Adjustment Dial
TOUCH UP SPRAY GUN
KNOW YOUR PRODUCT
1 2 3 4 5 6
1. ASSEMBLY
SETUP & PREPARATION
1 Wrap the threaded male air
inlet of the spray gun with
teon tape in a clockwise
direction.
3 Pull back the sleeve on
hose tting, insert male
end & release sleeve on
hose tting.
2 Screw the female tting
clockwise onto the male
end of the air inlet.
Attaching To a Compressor
WARNING! ENSURE THE TOOL IS DISCONNECTED FROM
THE AIR SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
1 Align the nut on the top of
the paint pot with the screw
on the spray gun head.
1 Slide the paint pot over the
suction tube and align with
the lid.
3 To remove unscrew the
paint pot and pull away
from the lid.
2 Screw the nut clockwise to
secure in place.
2 Screw the paint pot into
place by rotating in a
clockwise direction.
Installing the Paint Pot and Lid
Inserting the Paint Pot
7

3. ADJUSTING THE SPRAY GUN
OPERATION
2. PREPARATION
1 Before pouring any paint
or thinners work out how
much of each substance is
needed.
3 Once the correct viscosity
is obtained, pour the
mixture into the paint pot.
Thinning is particularly important when spraying. Most paints
are supplied ready for brush application and need to be diluted
sufciently for spraying purposes.
Follow the manufacturers guide for thinning ratios which
should be labelled on the paint container.
2 Pour the required paint and
thinners through a lter into
a mixing cup and then mix
thoroughly.
Thinning
NOTE: FOR BEST RESULTS, SURFACE PREPARATION AND PAINT
THINNING ARE THE TWO MOST IMPORTANT AREAS. ENSURE
ALL SURFACES ARE FREE OF DUST, DIRT AND GREASE.
IMPORTANT! THE SPRAY GUN CANNOT BE USED WITH
MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES,
CAUSTIC AND ALKALINE SUBSTANCES.
Fluid Adjustment Dial
PAINT
THINNERS
PAINT
THINNERS
3 Repeat step 2 until desired uid output is reached.
Note: The further the variable trigger is pressed, the more uid
will ow through the gun.
Variable Trigger
1 Lightly squeezing the trigger
will allow air only to ow
through the gun. Depress
trigger fully for paint ow.
2 Release the variable
trigger to stop spraying.
1 Fully tighten the uid
adjustment dial.
The uid adjustment dial is a stop that limits the distance the
trigger can be pressed, thereby limiting the amount of paint
being sprayed.
2 Slightly loosen the dial
then test setting on a
scrap piece of material.

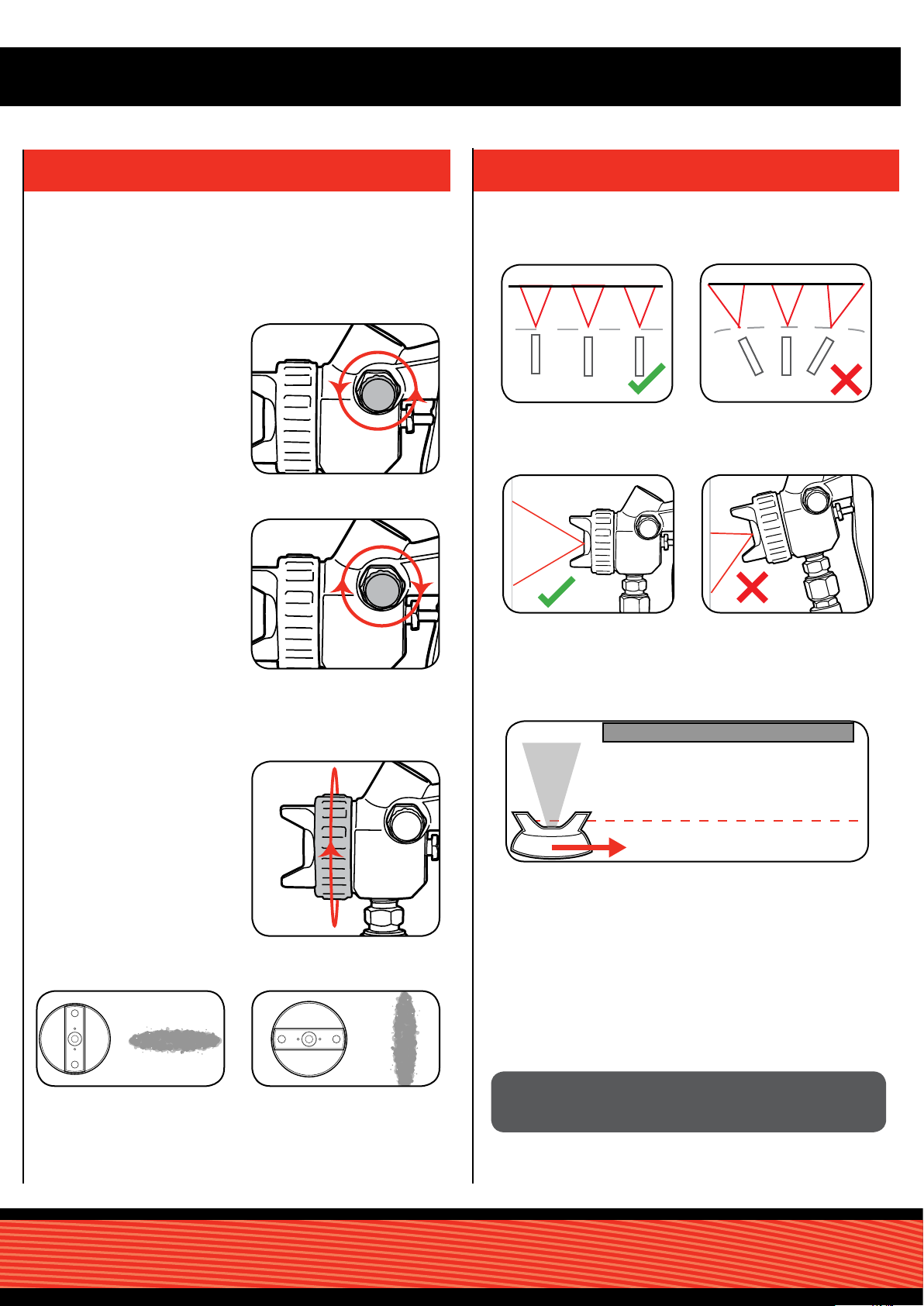

4. ADJUSTING THE SPRAY GUN CONT. 5. SPRAYING TECHNIQUE
ATK-030
3 Begin 15cm off the edge of the area being sprayed. Start
the movement of the stroke before squeezing the trigger.
Release trigger once passed the opposite edge of the
workpiece.
For vertical surfaces:
1 To change the spray
pattern, loosen the nozzle
collar and rotate the nozzle
to the desired position.
Tighten nozzle collar to
secure nozzle in place.
For horizontal surfaces:
Choosing Spray Patterns
1. Move the gun with the entire arm, not by exing the
wrist. This will keep the spray gun at right angles to the
surface, keeping the pattern even.
2. Keep the spray gun perpendicular to the surface, so
spray distance is consistent.
Helpful Hints
1. Maintain the same distance from workpiece (approx 15cm)
throughout each pass.
2. Maintain the same speed throughout each pass.
3. Always allow a coat to completely dry before adding another coat.
4. Avoid stopping and starting in the middle of workpiece as this can
lead to a patchy nish.
1 Start with the fan
adjustment dial completely
loosened.
2 Partly tighten the dial then
test setting on a scrap
piece of material.
Fan Adjustment Dial
3 Repeat step 2 until desired fan pattern is reached.
NOTE: After each use it is essential that the spray gun is
cleaned thoroughly. Failure to do so will likely cause blockages
which will prevent the tool from working.
FAILURE TO CLEAN THE TOOL WILL VOID THE WARRANTY.
The fan adjustment dial controls the distibution of paint in the
fan. Turned all the way clockwise, paint is concentrated in the
centre of the fan. As the dial is turned anti-clockwise more paint
is distributed toward the edges.

CLEANING PROCEDURE TROUBLE SHOOTING
SPARE PARTS
Problem Cause Remedy
Little or no material
ow
Fluid adjustment dial too limited Turn uid adjustment dial further
out clockwise
Air pressure too low Increase air pressure at the
compressor
Material too thick Thin material
Nozzle clogged Clean nozzle
Material leaking
Nozzle loose Tighten nozzle
Nozzle worn Contact Ozito for replacement
spare parts
Spray pattern is
heavy in the middle
Fan requires adjustment Turn fan adjustment dial further
out anti-clockwise
Air pressure too low Increase air pressure at the
compressor
Spray pattern
heavy at the edges
Fan requires adjustment Turn fan adjustment dial in
clockwise
Air pressure too high Reduce air pressure at the
compressor
Spray jet pulsates
Material in paint pot running out Rell paint pot
Nozzle clogged Clean nozzle
Material too thick Thin material
Pattern runs or
sags
Too much material is being
applied
Turn uid adjustment dial further
in clockwise
Increase spray speed
Material is too thin Thicken material by adding more
paint
Too much
overspray
Gun too far from the spray
surface
Reduce distance & turn uid
adjustment dial further in
clockwise to reduce the amount
of paint being applied.
Pattern is very light
and splotchy
Material is too thick Thin the material
Moving the spray gun to fast Decrease spray speed
Nozzle Assembly SPATK030-S4A
Needle Assembly SPATK030-S14A
Paint Pot Seal SPATK030-S32
Paint Pot SPATK030-S33
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
4 Connect the spray gun to the air
supply then spray solution into a
bucket.
3 Fill paint pot with appropriate
cleaning solution.
9 Dry all components and then re-assemble the spray gun.
5 Repeat steps 3-4 until the cleaning solution runs clear from gun.
If coating material was water based (acrylic paint), use ONLY
water when performing the cleaning procedure. Use of solvent
based cleaning materials on water based paints will result in a
new substance that will be extremely difcult to clean.
If coating material was oil based (enamel paint, lacquer etc.)
use ONLY the appropriate cleaning solution. Read the cleaning
instructions printed on the coating material’s label to determine
which cleaning material you need. The following solvent based
cleaning products are safe to use in the paint sprayer:
• Diggers Easy Cleanup Turpentine Substitute (highly
recommended)
• Mineral Turpentine
• Paint Thinner
1 Empty the paint pot of remaining
material.
2 Rinse paint pot, suction tube &
nozzle with cleaning solution. Wipe
all parts with a clean cloth.
6 Unscrew and remove uid
adjustment dial, needle & spring.
Clean all parts in cleaning solution.
7 Unscrew and remove nozzle.
Clean in cleaning solution.
8 Take note of the 4 holes on the
nozzle, if blocked clean carefully
using a small needle.
