Pepperl+Fuchs IPT FP Series User manual

IPT*-FP WITH U-P*-R4
Read/write station
with addressable
serial interface
FACTORY AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is appli-
cable: The General Terms of Delivery for Products and Services of the Electrical Industry,
published by the Central Association of the Electrical Industry (Zentralverband Elektrotech-
nik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary
clause: "Expanded reservation of proprietorship"
IPT*-FP WITH U-P*-R4

3
IPT*-FP WITH U-P*-R4
1 Introduction ................................................................. 5
2 Declaration of conformity........................................... 6
2.1 CE conformity ............................................................................................6
3 Safety ........................................................................... 7
3.1 Symbols relevant to safety .......................................................................7
3.2 Intended use ..............................................................................................7
3.3 General safety instructions ......................................................................7
4 Product description .................................................... 8
4.1 Product family............................................................................................9
4.1.1 Code/data carrier.........................................................................................9
4.2 Range of application ...............................................................................10
4.3 Delivery package .....................................................................................10
4.4 Display and controls ............................................................................... 11
4.5 Interfaces and connections .................................................................... 11
5 Installation ................................................................. 12
5.1 Storage and transport.............................................................................12
5.2 Unpacking ................................................................................................12
6 Commissioning ......................................................... 13
6.1 General information on commissioning................................................13
6.2 Commands...............................................................................................13
6.2.1 Command overview...................................................................................14
6.2.2 System commands ....................................................................................16
6.2.3 Read/write commands...............................................................................19
6.2.4 IPC03 configuration commands ................................................................21
6.2.5 IPC03 password mode ..............................................................................25
6.2.6 Write fixcode ..............................................................................................26
6.2.7 Legend ......................................................................................................28
6.2.8 Status and error messages .......................................................................28

4
IPT*-FP WITH U-P*-R4
7 Technical specifications ...........................................29
7.1 Read/write station IPT*-FP ..................................................................... 29
7.2 Read/write distances IPT*-FP ................................................................ 30
7.3 Lower sections........................................................................................ 31

IPT*-FP WITH U-P*-R4
Introduction
098407 2009-04
5
1 Introduction
Congratulations
You have chosen a device manufactured by Pepperl+Fuchs. Pepperl+Fuchs develops,
produces and distributes electronic sensors and interface modules for the market of
automation technology on a worldwide scale.
Before you install this device and put it into operation, please read the operating instructions
thoroughly. The instructions and notes contained in this operating manual will guide you step-
by-step through the installation and commissioning to ensure the trouble-free usage of this
product. This is useful to you, because with this you:
• support the safe operation of the device
• can utilize the device’s entire range of functions
• reduce faulty operation and the associated errors
• reduce costs from downtime and incidental repairs
• increase the effectiveness and operating efficiency of your plant.
Store this operating manual somewhere safe in order to have it available for future work on the
device.
Directly after opening the packaging, please ensure that the device is intact and that the
package is complete.
Symbols used
The following symbols are used in this manual:
Handling instructions
You will find handling instructions beside this symbol
Contact
If you have any questions about the device, its functions, or accessories, please contact us at:
Pepperl+Fuchs GmbH
Lilienthalstraße 200
68307 Mannheim
Telephone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Note!
This symbol draws your attention to important information.

098407 2009-04
6
IPT*-FP WITH U-P*-R4
Declaration of conformity
2 Declaration of conformity
2.1 CE conformity
This product was developed and manufactured under observance of the applicable European
standards and guidelines.
Note!
A declaration of conformity can be requested from the manufacturer.

IPT*-FP WITH U-P*-R4
Safety
098407 2009-04
7
3 Safety
3.1 Symbols relevant to safety
3.2 Intended use
Together, the devices IPT*-FP and U-P*-R4 of the inductive identification system IDENT-I
system P comprise a read/write station.
Always operate the device as described in these instructions to ensure that the device and
connected systems function correctly. The protection of operating personnel and plant is only
guaranteed if the device is operated in accordance with its intended use.
3.3 General safety instructions
Only instructed specialist staff may operate the device in accordance with the operating
manual.
Independent interventions and separate modifications are dangerous and will void the warranty
and exclude the manufacturer from any liability. If serious faults occur, stop using the device.
Secure the device against inadvertent operation. In the event of repairs, send the device to
Pepperl+Fuchs.
The connection of the device and maintenance work when live may only be carried out by a
qualified electrical specialist.
The operating company bears responsibility for observing locally applicable safety regulations.
Store the not used device in the original packaging. This offers the device optimal protection
against impact and moisture.
Danger!
This symbol indicates a warning about a possible danger.
In the event the warning is ignored, the consequences may range from personal injury to death.
Warning!
This symbol indicates a warning about a possible fault or danger.
In the event the warning is ignored, the consequences may course personal injury or heaviest
property damage.
Caution!
This symbol warns of a possible fault.
Failure to observe the instructions given in this warning may result in the devices and any
connected facilities or systems develop a fault or fail completely.
Note!
Electronic waste is hazardous waste. Observe local disposal regulations.

098407 2009-04
8
IPT*-FP WITH U-P*-R4
Product description

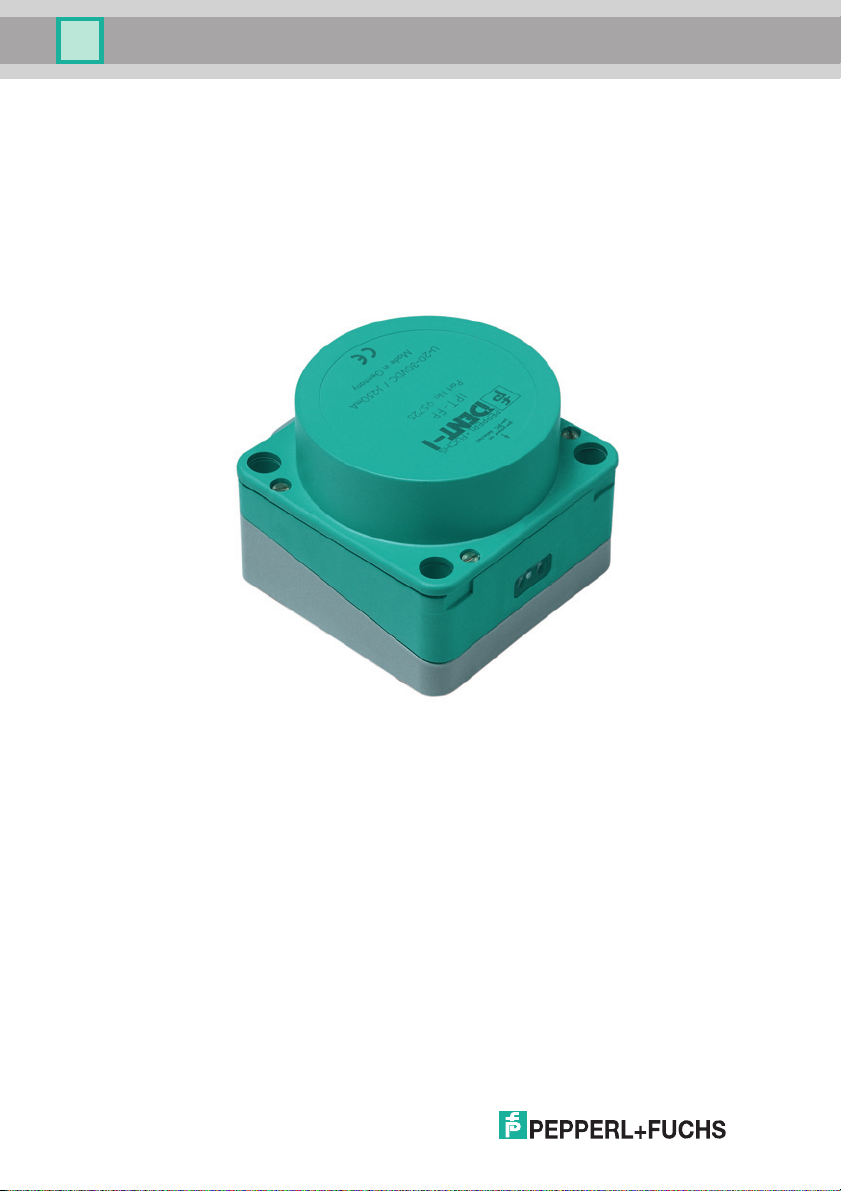

4 Product description
The brand name IDENT-I System P represents a complete identification system. The read/write
station consists of the read/write head IPT*-FP (standard version: IPT1-FP) and the lower
section U-P*-R4 with addressable serial interfaces RS485. With the use of 125 kHz technology,
the system is extensively open for the implementation of other components.
U-P*-R4 stands for:
U-P3-R4 = Standard device with metric ISO thread (EU)
U-P4-R4 = Standard device with NPT pipe thread (USA)

IPT*-FP WITH U-P*-R4
Product description
098407 2009-04
9

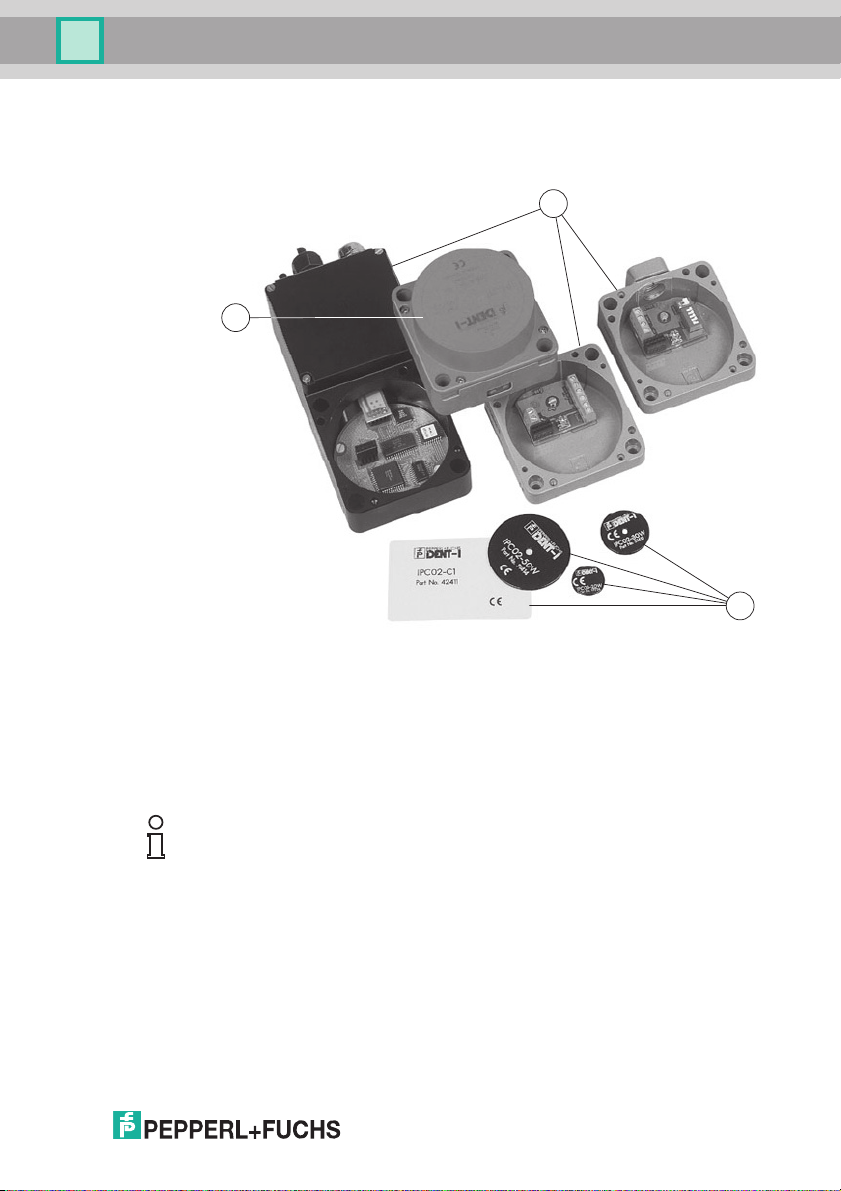

4.1 Product family
The inductive identification system IDENT-I system P from Pepperl+Fuchs offers various
possible combinations of individual components.
4.1.1 Code/data carrier
A wide assortment of designs is available for the inductive 125 kHz code and data carriers.
Data carriers are available for temperatures up to 300 °C (max. 5 min) in chemical-resistant
housings for installation in metal and in protection class IP68/IP69K. IPC02-... code carriers
offer 40-bit fixcode. IPC03-... data carriers have 928 bits of freely programmable memory and a
non-variable fixcode of 32 bits. The storage area of the IPC03-…can be protected against
unauthorized read and write. 40-bit fixcodes that can be freely determined can be generated
with IPC11-... code carriers. These fixcodes can be generated one time permanently or they
can be modifiable.
1Read/write station
2Lower sections
3Code/data carrier
2
1
3
Note!
Detailed information on the components of the identification system IDENT-I system P can be
found in the sensor systems 1 catalog.

098407 2009-04
10
IPT*-FP WITH U-P*-R4
Product description
4.2 Range of application
The system is suited for the following applications:
• Automation
• Material flow control in production
• Acquisition of operating data
• Access control
• Identification of e.g. storage vessels, pallets, work piece carriers, refuse containers, tanks,
containers, etc.
4.3 Delivery package
IPT*-FP contains:
• 1 Read/write head
• CD with documentation (incl. this manual)
U-P*-R41contains:
• Lower section
1The lower section must be ordered separately.

IPT*-FP WITH U-P*-R4
Product description
098407 2009-04
11

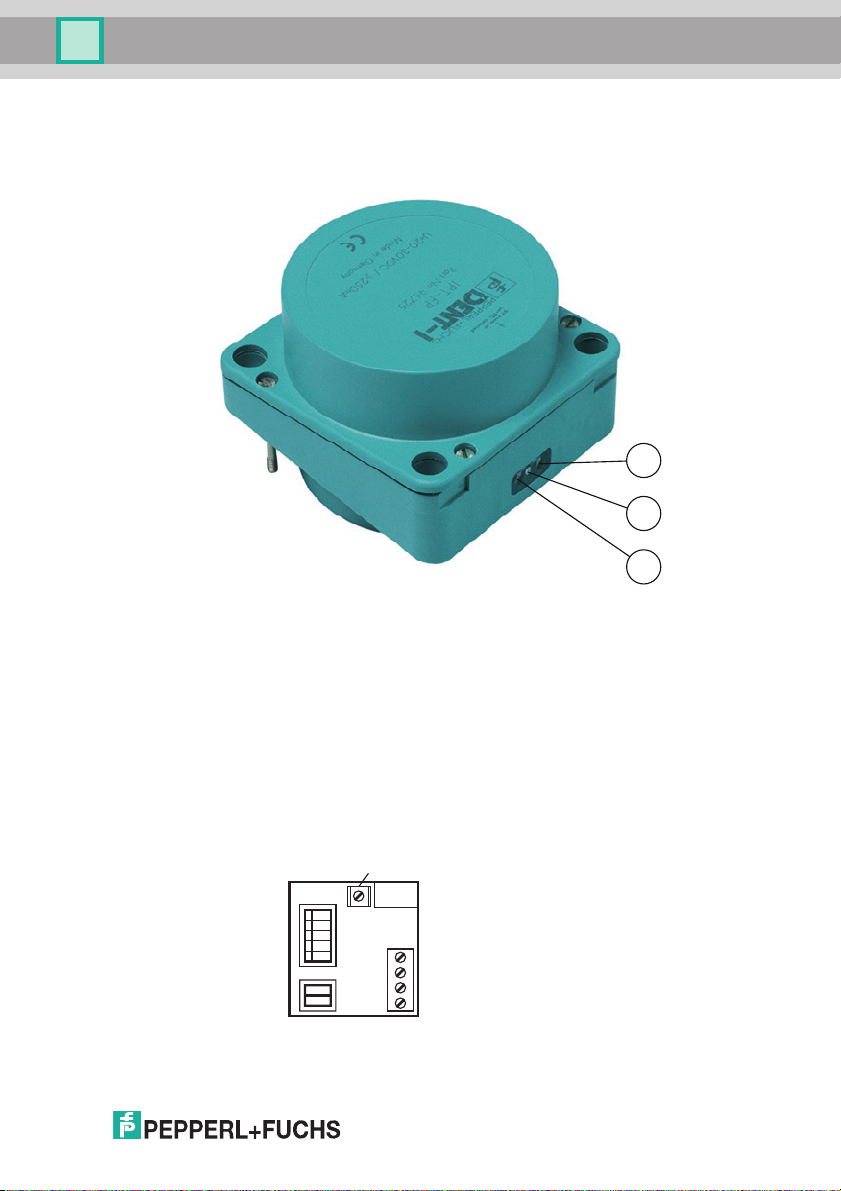

4.4 Display and controls
The following displays and controls are located on the read/write head.
4.5 Interfaces and connections
The following interfaces and connections are located on the lower section U-P*-R4:
LED display
1Bus error - red
2IPC recognized - yellow,
command executed successfully (approx. 1 second)
3Power on - green
2
1
3
DIP-switch
address
Terminating
resistor
Cable gland
+
- 24 V DC
B RS 485
A
PE
2
3
4
5 LSB
OFF
1 MSB
ON
OFF ON

098407 2009-04
12
IPT*-FP WITH U-P*-R4
Installation
5 Installation
5.1 Storage and transport
For storage and transport purposes, package the unit using shockproof packaging material and
protect it against moisture. The best method of protection it to package the unit using the
original packaging. Furthermore, ensure that the ambient conditions are within permissible
range.
5.2 Unpacking
Check the product for damages while unpacking. In the event of damage to the product, inform
the post office or parcel service and notify the supplier.
Check the package contents with your purchase order and the shipping documents for:
• Delivery quantity
• Device type and version in accordance with the type plate
• Accessories
• Manual/manuals
Retain the original packaging in case the device must be stored or shipped again at a later
date.
Should you have any questions, please direct them to Pepperl+Fuchs.

IPT*-FP WITH U-P*-R4
Commissioning
098407 2009-04
13
6 Commissioning
6.1 General information on commissioning
After connecting the supply voltage, the green LED must illuminate. Configure the read/write
station with the described system commands.
The factory set transfer rate is 9600 baud and no timeout. “Autodetect”is set as the data
carrier type.
6.2 Commands
To operate the read/write station, commands are sent to the station. The station reacts to them
–with the exception of the reset command –by sending an acknowledgement of receipt. Data
is retrieved with get data commands.
The commands contain the number of the read/write station <KopfNr>, so that individual
stations can be addressed in a multidrop connection.
To avoid a number of stations communicating simultaneously, the master or host must wait for
a response after sending a command (other than the reset command). This takes place in a
maximum of 250 ms. If the master does not receive a response after this time, no read/write
station with the requested head number is functional.
All of the system settings received by the interface are stored in a non-volatile manner. They
are automatically active after a reset.
All commands conclude with the characters <CHCK> = “checksum”and <ETX> = “end of text”.
This serves to secure the data of the serial transfer. For simplified usage with a standard
terminal, the read/write station also accepts a #<CR> [<LF>] in place of <CHCK> <ETX>.
Warning!
Before commissioning, ensure that the plant is not in danger relating to device malfunction, e.g.
from uncontrollable triggered processes.
Note!
Before commissioning, check once again that the connections are correct.

098407 2009-04
14
IPT*-FP WITH U-P*-R4
Commissioning
6.2.1 Command overview
The commands in the list are described in detail on the following pages.
System commands
Standard read/write commands
Read data
Write data
Fixcode
Command code Command description
Abbrevi
ation
240d F0h get data GD
3d 03h version VE
2d 02h quit QU
4d 04h change tag CT
21d 15h configure interface CI
22d 16h reset RS
23d 17h configuration store CS
Command code Command description
Abbrevi
ation
16d 10h single read words SR
32d 20h auto read words AR
48d 30h buffered read words BR
25d 19h enhanced buffered read words ER
Command code Command description
Abbrevi
ation
64d 40h single write words SW
80d 50h auto write words AW
96d 60h buffered write words BW
26d 1Ah enhanced buffered write words EW
Command code Command description
Abbrevi
ation
1d 1h single read fixcode SF
8d 8h auto read fixcode AF
9d 9h buffered read fixcode BF
29d 1Dh enhanced buffered read fixcode EF

IPT*-FP WITH U-P*-R4
Commissioning
098407 2009-04
15
Special command modes
IPC03 configuration
Password mode with IPC03
Write fixcode
Commands for the IPC10
Command code Command description
Abbrevi
ation
18d 12h single write configure SC
19d 13h auto write configure AC
20d 14h buffered write configure BC
102d 66h enhanced buffered write configure EC
97d 61h single get configuration SG
98d 62h auto get configuration AG
99d 63h buffered get configuration BG
104d 68h enhanced buffered get configuration EG
Command code Command description
Abbrevi
ation
24d 18h password mode PM
65d 41h password change PC
66d 42h password set PS
Command code Command description
Abbrevi
ation
31d 1Fh single write fixcode SX
100d 64h auto write fixcode AX
101d 65h buffered write fixcode BX
36d 24h enhanced buffered write fixcode EX

098407 2009-04
16
IPT*-FP WITH U-P*-R4
Commissioning
6.2.2 System commands
get data
This command retrieves the data from the read station.
Data is only available for read commands. The data component is missing for write
commands.
Version
This command transfers the software version.
Command: gd <DeviceNo> <CHCK> <ETX>
Response: <Status> <DeviceNo>
<ExecCounter>{<Data>}<CHCK> <ETX>
Note!
After a reset, a get data command returns the status "2" (switch-on message).
Command: ve <DeviceNo> <CHCK> <ETX>
Response: <Status> <DeviceNo> (c) P+F IDENT-I
<Type code>
<Part no.>
<SW no.>
<Date> <CHCK> <ETX>

IPT*-FP WITH U-P*-R4
Commissioning
098407 2009-04
17
Change Tag
This command tells the read station, which tag to communicate with. The read station status on
delivery is Type “00”.
The following data carrier types are currently supported:
With the type <TagType> = “00”, mixed operation of different code/data carriers is possible.
Since the read/write station for the autodetect requires a significantly longer time, only static
read and write is practical in this mode. In the “autodetect”operating mode, the parameters
word start address and word count are only first checked when a data carrier is read or written
because the memory ranges differ for the various data carrier types. The error message “Status
4”can therefore only occur when a data carrier is before the read/write station.
Quit
The running buffered, enhanced-buffered or auto command is interrupted.
Command: "ct“<DeviceNo> <TagType> <CHCK>
<ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Data carrier-
type
Descrip-
tion
P+F
Chip-Typ Access Bits <WordAddr> Fixcode
length
[Byte]
Frequency
range
High
Byte
Low
Byte
'0' '0' Autodetect
'0' '2' IPC02 Unique,
EM4102 (EM
microelectronic)
Fixcode 40 5125 kHz
'0' '3' IPC03 EM4450 (EM
microelectronic)
, Titan
R/W
fixcode
928
32
00h ... 1Dh 4125 kHz
'1' '0' IPC10 Nova (Sokymat) R/W 40 00 -125 kHz
Command: "qu“<DeviceNo> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>

098407 2009-04
18
IPT*-FP WITH U-P*-R4
Commissioning
Configure Interface
This command sets the timeout and the baud rate. The values are stored in a non-volatile
manner. A change always requires a reset to take effect.
The timeout indicates the amount of time, after which the device no longer waits for more
characters in a command. After the timeout runs through, the user gets an error message. To
deactivate the timeout, the time must be set to “0”.
The number of data bits is always 8. A parity bit is never used.
The following settings are possible:
The default values are a timeout of “0”and a baud rate of “9600”.
Reset
This command sets the changed system settings, e.g. timeout and baud rate, newly loaded
from the non-volatile memory.
Configuration store
If <Param> = “1”, the next command entered in this setting is stored in the non-volatile memory.
This command is also executed. After a reset it is automatically active again.
<Param> = “0”deletes the stored command.
Command: "ci“<DeviceNo> <Timeout>, <Baud>
<CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
<Timeout>: "0“... “100”(x 100 ms, timeout in 100-ms
steps)
<Baud>: "1200“, "2400“, "4800“, "9600“, "19200“
Command: “rs”<DeviceNo> <CHCK> <ETX>
Response: "2" <DeviceNo> <CHCK> <ETX>
Command: cs <DeviceNo> <Param> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>

IPT*-FP WITH U-P*-R4
Commissioning
098407 2009-04
19
6.2.3 Read/write commands
Single Read Words:
One attempt is made to read <WordNum> 32-bit words from the address <WordAddr> .
Auto Read Words:
An attempt is made until successful, to read <WordNum> 32-bit words from the address
<WordAddr> .
Buffered Read Words:
An attempt is made until successful, to read <WordNum> 32-bit words from the address
<WordAddr> . Only changing data is transferred via the interface.
Enhanced Buffered Read Words:
An attempt is made until successful, to read <WordNum> 32-bit words from the address
<WordAddr>. Only changing data is transferred via the interface. When a data carrier leaves
the read range, the status “5”is output.
Code or data
carrier Access
Address range
<WordAddr>
Data range
<WordNum>
Storage size in
bytes
IPC01 Read/write 0000...0017 01...18 96
IPC02 Fixcode - - 5
IPC03 Read/write 0000...001C 01...1D 116
IPC03 Fixcode - - 4
IPC10 Read/write 01,3 12
Command: “sr”<DeviceNo> <WordAddr> <WordNum>
<CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "ar“<DeviceNo> <WordAddr> <WordNum>
<CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "br“<DeviceNo> <WordAddr> <WordNum>
<CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "er“<DeviceNo> <WordAddr> <WordNum>
<CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>

098407 2009-04
20
IPT*-FP WITH U-P*-R4
Commissioning
Single Write Words:
One attempt is made to write <WordNum> 32-bit words from the address <WordAddr>.
Auto Write Words:
Repeated attempts are made until <WordNum> 32-bit words are written from the address
<WordAddr>.
Buffered Write Words:
Repeated attempts are made until <WordNum> 32-bit words are written from the address
<WordAddr>. After every successful write, the response is sent and then continuous reading
ensues. Then the same data carrier is read, until it has left the read/write range or a new data
carrier appears in front of the read/write head. The command then starts again from the
beginning.
Enhanced Buffered Write Words:
This command behaves like the Buffered Write Words command. When a data carrier leaves
the read range, the status “5”is output.
Single Read Fixcode:
One attempt is made to read a fixcode.
Command: "sw“<DeviceNo> <WordAddr> <WordNum>
<Data> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "aw“<DeviceNo> <WordAddr> <WordNum>
<Data> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "bw“<DeviceNo> <WordAddr> <WordNum>
<Data> <CHCK> <ETX>
Response: <Status><DeviceNo> <CHCK> <ETX>
Command: "ew“<DeviceNo> <WordAddr> <WordNum>
<Data> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
Command: "sf“<DeviceNo> <CHCK> <ETX>
Response: <Status> <DeviceNo> <CHCK> <ETX>
