Phoenix Contact FL EP74 Series User manual

User manual
UM EN FL SWITCH EP74... HDWE
Hardware and installation for FL SWITC H
EP74…

2020-07-10
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany
phoenixcontact.com
4083_en_A
Hardware and installation for FL SWITCH EP74…
This user manual is valid for:
Designation Version
FL SWITCH EP7428R-L3F1
FL SWITCH EP7428R-L3F1-C1
FL SWITCH EP7400-PS-LV
FL SWITCH EP7400-PS-MV
FL SWITCH EP7400-PS-HV
FL SWITCH EP7400-PS-LV-C1
FL SWITCH EP7400-PS-MV-C1
FL SWITCH EP7400-PS-HV-C1
FL SWITCH EP7400-M8GRJ45
FL SWITCH EP7400-M8GRJ45-C1
FL SWITCH EP7400-M8GSFP
FL SWITCH EP7400-M8GSFP-C1
FL SWITCH EP7400-M4GSFP
FL SWITCH EP7400-M4GSFP-C1
FL SWITCH EP7400-ABLK
User manual
UM EN FL SWITCH EP74... HDWE, Revision A

Table of contents
4083_en_A PHOENIX CONTACT 3/40
Table of contents
1 For your safety ............................................................................................................................5
1.1 Labeling of warning notes......................................................................................5
1.2 Qualification of users .............................................................................................5
1.3 Field of application of the product ..........................................................................5
1.3.1 Intended use ..........................................................................................5
1.3.2 Product changes ....................................................................................6
2 Overview and ordering data........................................................................................................7
2.1 Description ............................................................................................................7
2.2 Ordering data ........................................................................................................7
3Components ...............................................................................................................................9
3.1 Switch base ...........................................................................................................9
3.2 Port/line modules.................................................................................................11
3.3 Power supply modules.........................................................................................12

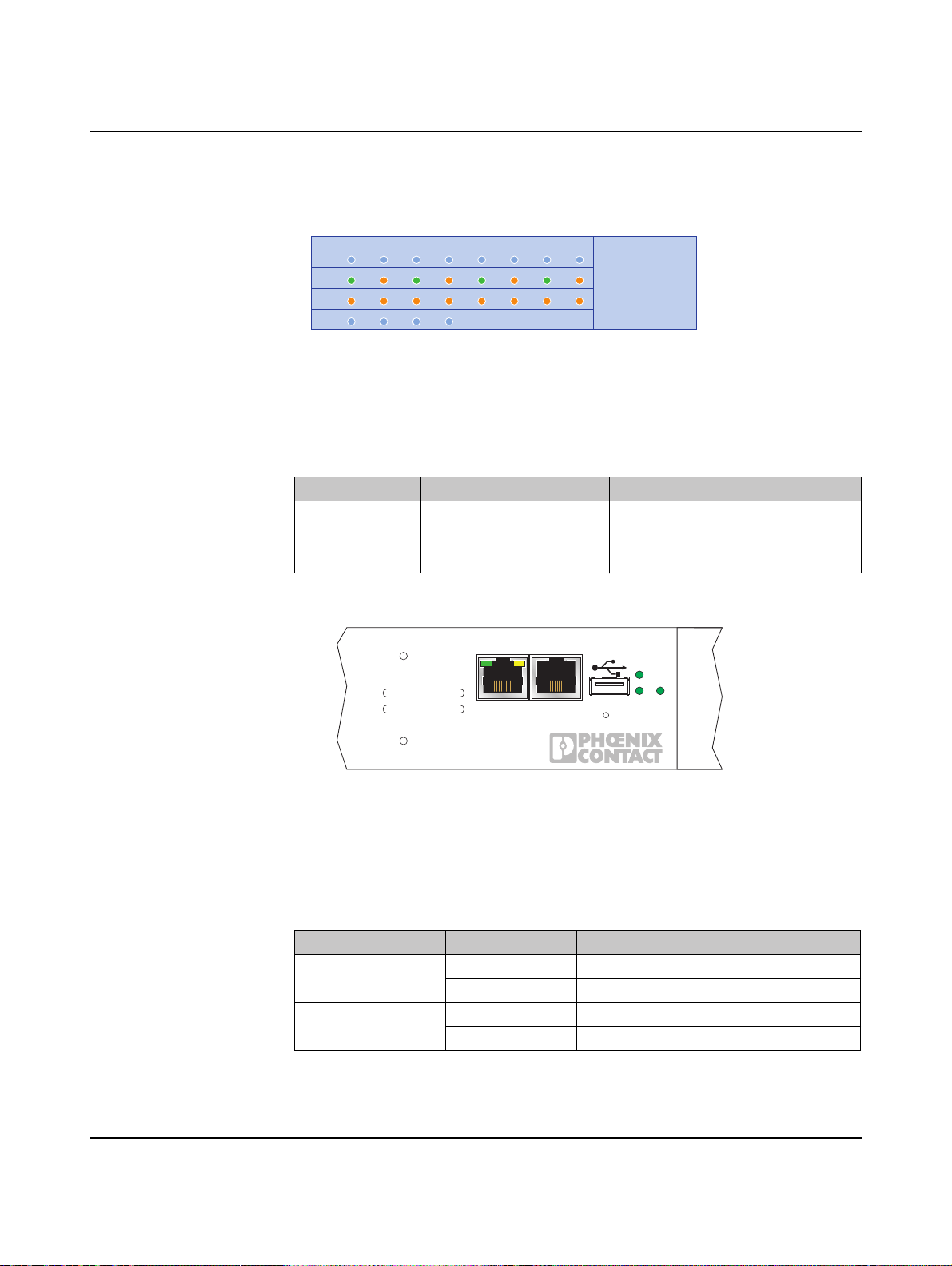

3.3.1 Status indicators ..................................................................................13
4Installation.................................................................................................................................15
4.1 Prevention of electrical discharge damage ..........................................................15
4.2 Unpacking ...........................................................................................................15
4.3 Electrical/mechanical hazards prevention ...........................................................16
4.4 Installation ...........................................................................................................17

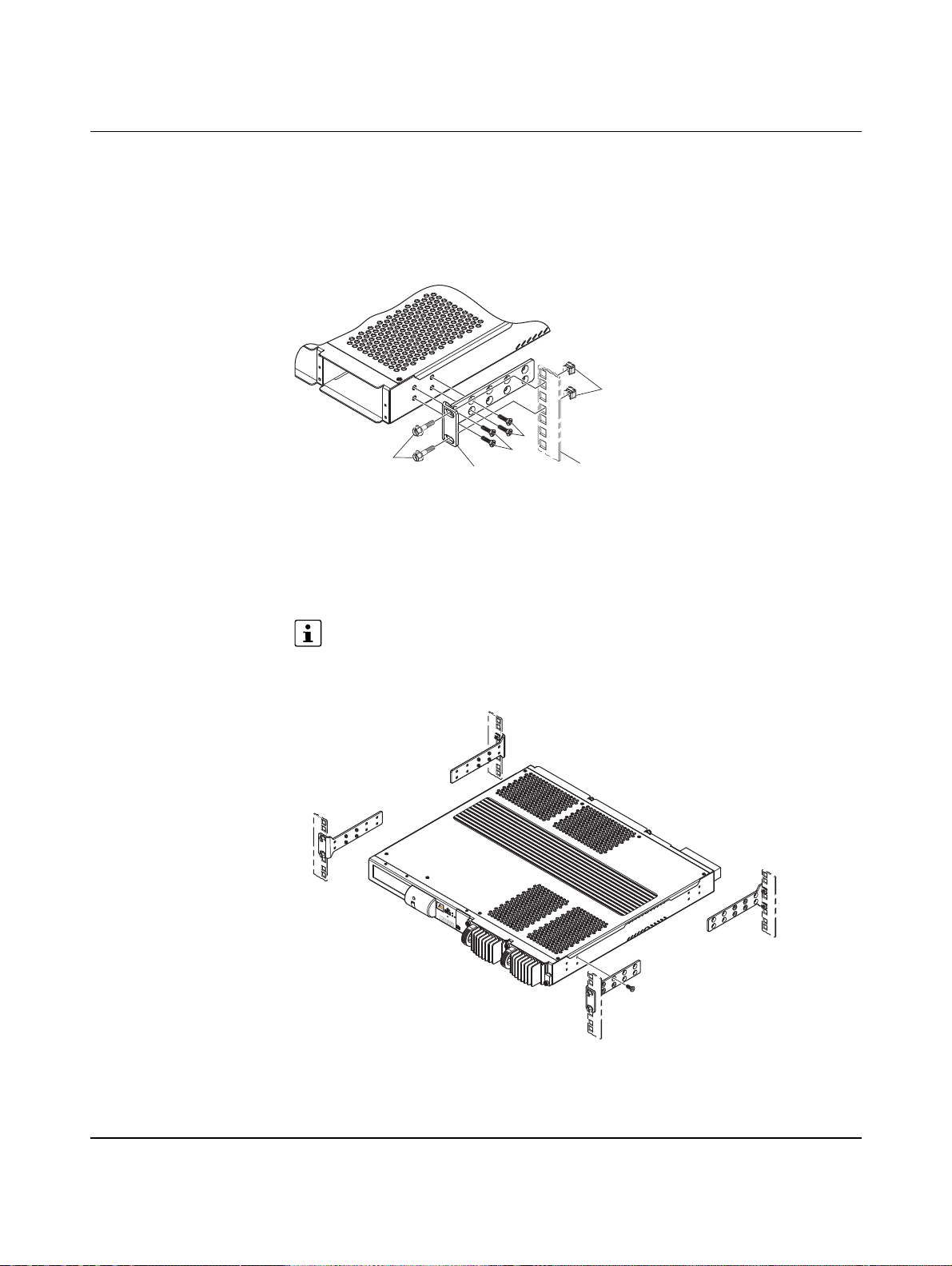

4.4.1 Mounting the switch in a rack ...............................................................17

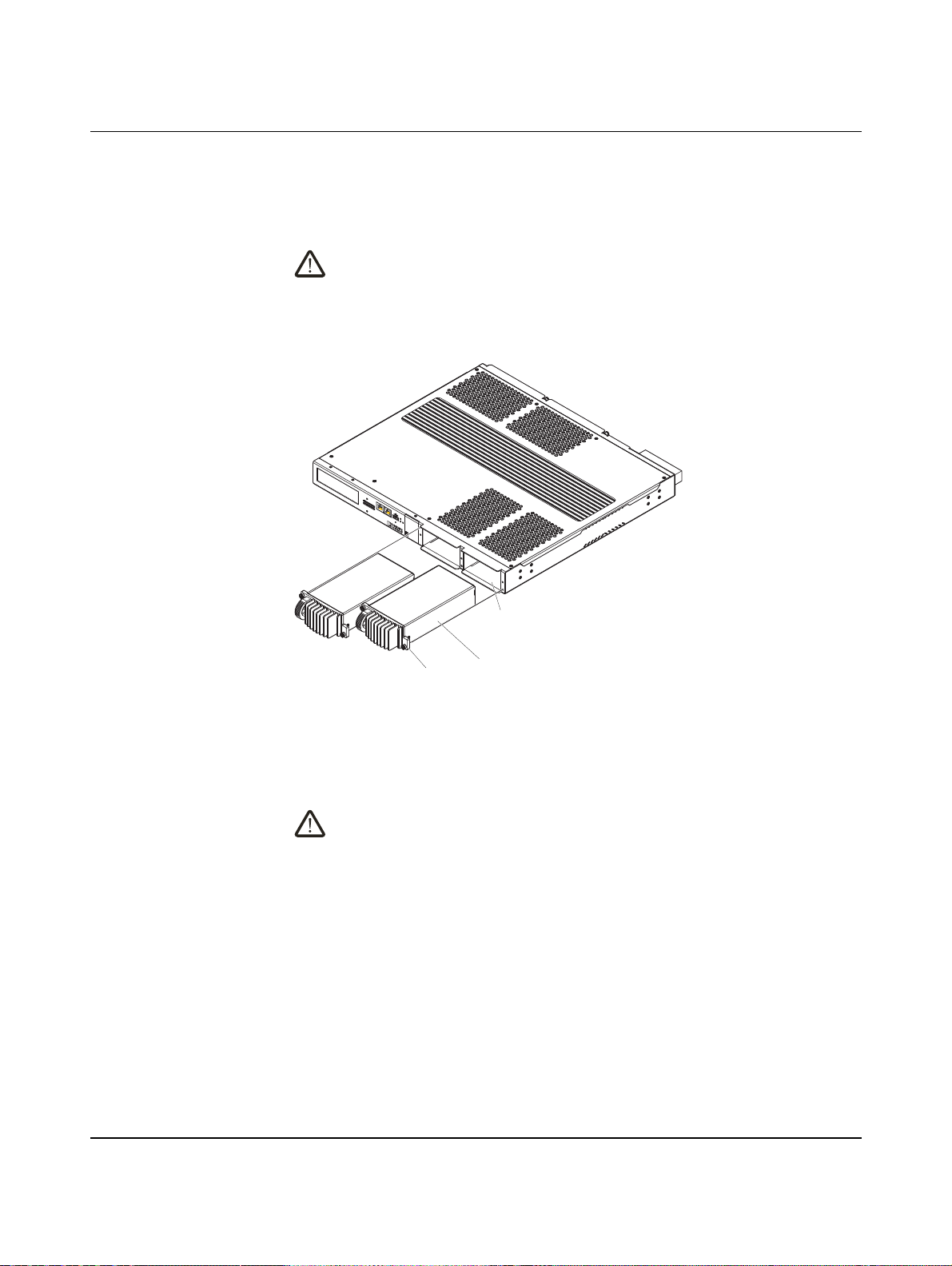

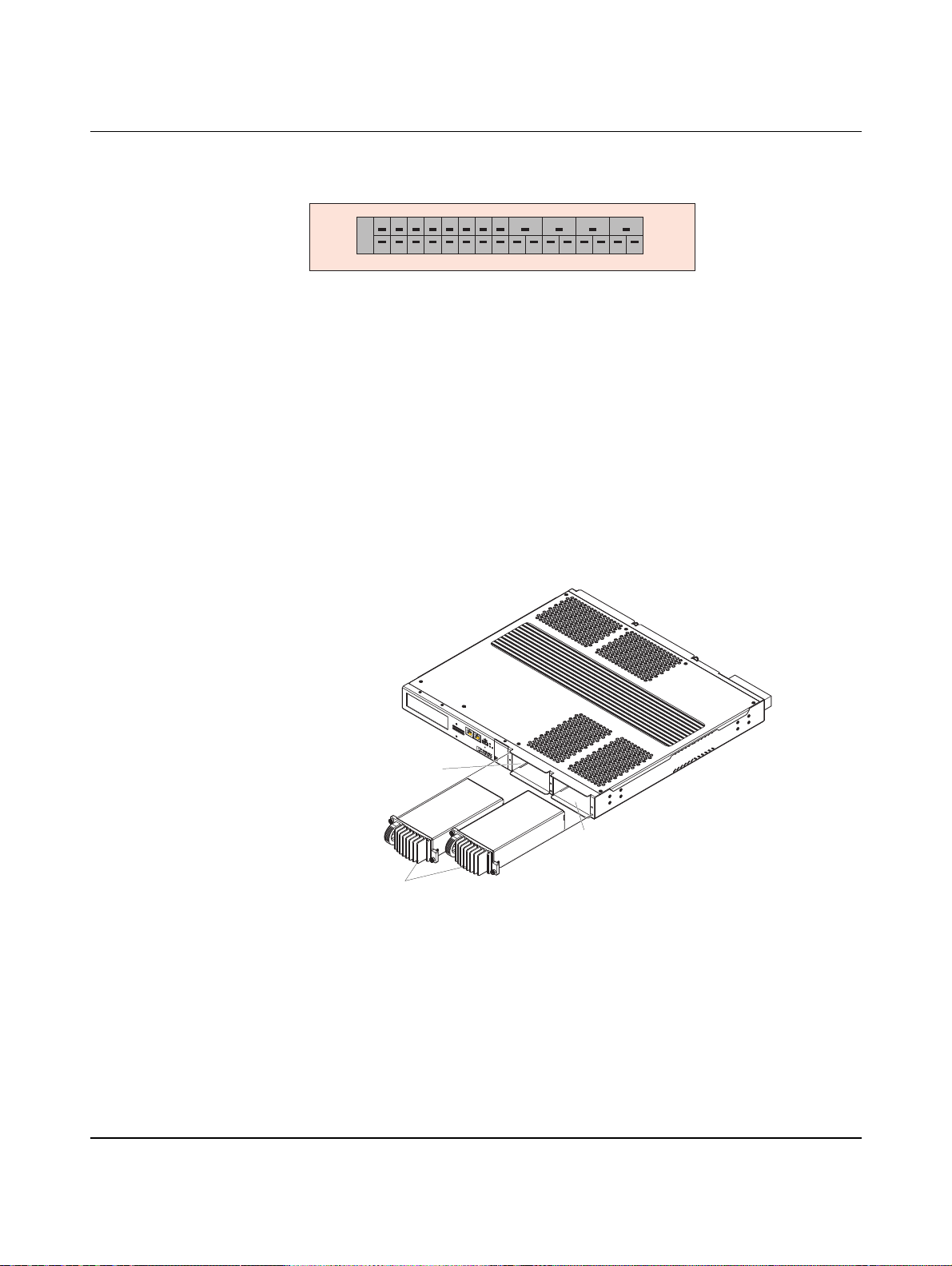

4.4.2 Power supply module installation .........................................................18
4.4.3 Port/line module installation .................................................................19
4.4.4 SD card ................................................................................................19
4.5 Connections ........................................................................................................20

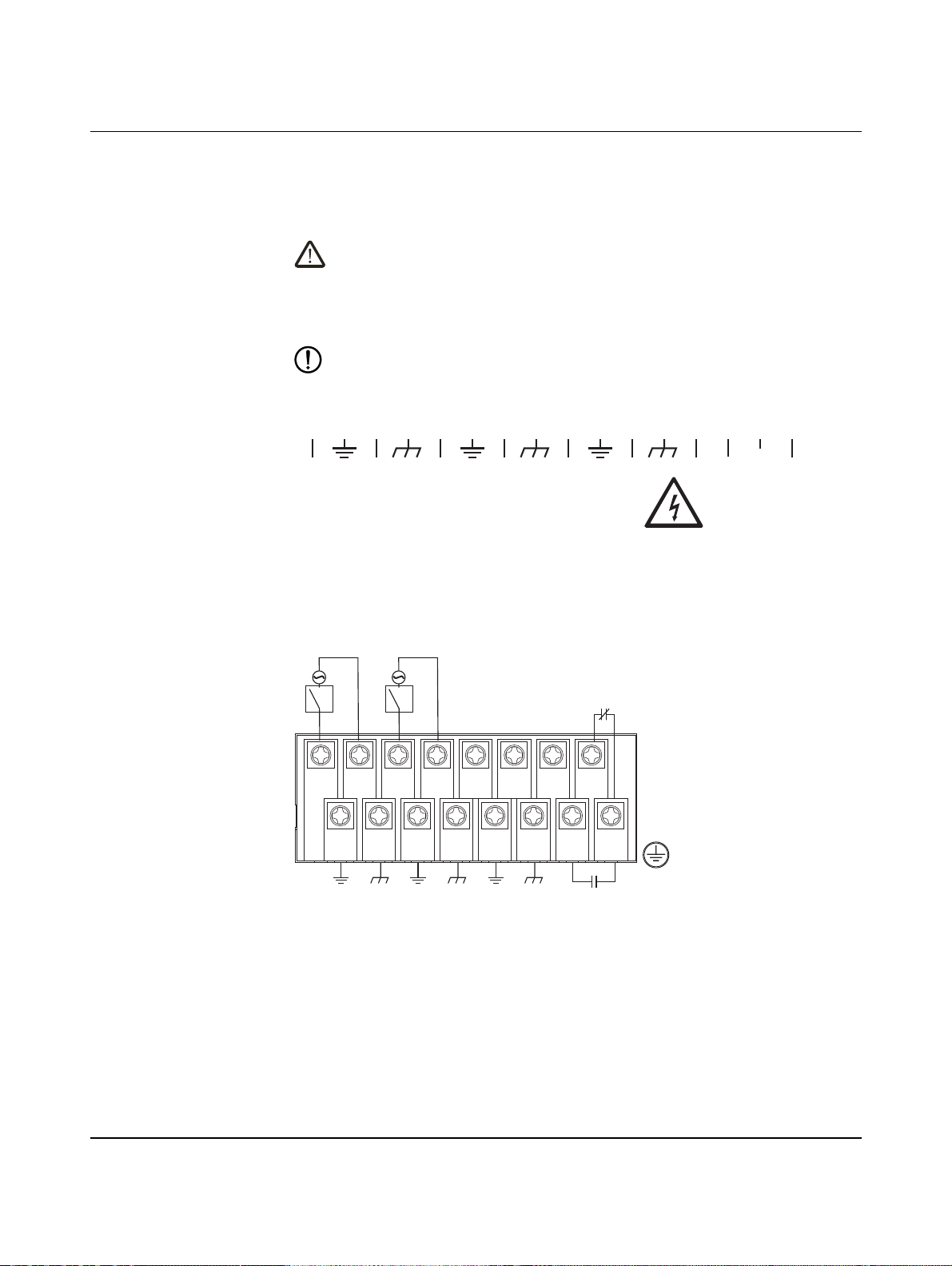

4.5.1 AC power .............................................................................................20
4.5.2 DC power .............................................................................................21
4.5.3 Connecting the ground ........................................................................22
4.5.4 Alarm relay connections .......................................................................23
5Device management.................................................................................................................25
5.1 Serial console ...................................................................................................... 25
5.2 Ethernet ports and communication cabling..........................................................25
5.3 RJ45 Ethernet pinout ...........................................................................................26
5.4 Recommendations for cables in high electrical noise environments....................27
5.5 SFP......................................................................................................................27

FL SWITCH EP74…
4/40 PHOENIX CONTACT 4083_en_A
5.5.1 General fiber optic cable handling instructions .....................................27
5.5.2 SFP application considerations ............................................................28
ATechnical appendix...................................................................................................................29
A 1 Switch base ....................................................................................................... 29
A 2 Power supply modules ....................................................................................... 30
A 3 Port/line modules................................................................................................ 31
BAppendixes...............................................................................................................................35
B 1 List of figures ...................................................................................................... 35
B 2 List of tables ....................................................................................................... 37

For your safety
4083_en_A PHOENIX CONTACT 5/40
1 For your safety
Read this user manual carefully and keep it for future reference.
1.1 Labeling of warning notes
This symbol indicates hazards that could lead to personal injury.
There are three signal words indicating the severity of a potential injury.
DANGER
Indicates a hazard with a high risk level. If this hazardous situation is not
avoided, it will result in death or serious injury.
WARNING
Indicates a hazard with a medium risk level. If this hazardous situation is not
avoided, it could result in death or serious injury.
CAUTION
Indicates a hazard with a low risk level. If this hazardous situation is not avoided,
it could result in minor or moderate injury.
This symbol together with the NOTE signal word warns the reader of actions
that might cause property damage or a malfunction.
Here you will find additional information or detailed sources of information.
1.2 Qualification of users
The use of products described in this manual is intended for network technical support per-
sons or persons instructed by them who are responsible for installation, commissioning,
and maintenance of the device.
1.3 Field of application of the product
1.3.1 Intended use
This document provides users with the required specifications and installation guidelines for
the FL SWITCH EP74… switch. Hardware assembly, environmental conditions, wire con-
nections, and associated application factors are included.
Configuring the firmware for a switch to perform in a way it is not capable of will result
in no action.

FL SWITCH EP74…
6/40 PHOENIX CONTACT 4083_en_A
1.3.2 Product changes
Changes or modifications to hardware and software of the device are not permitted.
Incorrect operation or modifications to the device can endanger your safety or damage the
device. Do not repair the device yourself. If the device is defective, please contact
Phoenix Contact.
This document was created with content and permission of IS5 Communications, Inc.
(®2019 IS5 Communications, Inc., All Rights reserved.)

Overview and ordering data
4083_en_A PHOENIX CONTACT 7/40
2 Overview and ordering data
2.1 Description
FL SWITCH EP74… advanced modular managed network switches provide an adaptable
platform to meet the electric power industries increasing requirements for scalable network
performance, uptime and security.
The modular 19-in. rack mount switch is hardened for areas heavily affected by EMI, such
as switchgear, transformer stations, and local substations. The switch works reliably under
extreme -40°C to +75°C/85°C environmental conditions and complies with the IEC 61850-
3 Ed 2, and IEEE 1613 specifications. The expandable “all Gigabit capable” architecture
combines cost effective answers for near term needs with upgrade paths for port quan-
tity/bandwidth and functions. A powerful Layer 2 and Layer 3 feature set with hardware-
based IEEE 1588 V2 PTP synchronization, based on the IEC61850-9-3 Utility Power Profile,
provides extensive options to meet changing performance and security needs.
The 28-port switch has four module slots. Three slots accept 10/100/1000 Mbps port mod-
ules (up to eight ports) for device connections, and a fourth slot supports a four-port SFP
module with 1 or 10 Gigabit up-link or device connections. SFP module options provide fur-
ther single point TX/fiber connection customization while allowing for electrically isolated
and secure communication lines between the control house and equipment throughout the
station.
Power is provided by redundant, modular power supplies. The modules are designed for
power source flexibility (AC/DC) and allow for hot-swappable replacement for uninterrupted
24/7 operation.
Power supply modules must be purchased separately.
2.2 Ordering data
Products
Description Type Order No. Pcs./Pkt.
61852 28-port modular rack switch - L2/L3, 128-bit encryp-
tion
FL SWITCH EP7428R-L3F1 1144353 1
61852 28-port modular rack switch - L2/L3, 128-bit encryp-
tion, conformal coated
FL SWITCH EP7428R-L3F1-
C1
1216924 1
Power supply module, 24 V DC (10 … 36 V DC) FL SWITCH EP700-PS-LV 1144367 1
Power supply module, 48 V DC (36 … 72 V DC) FL SWITCH EP700-PS-MV 1144372 1
Power supply module, AC/DC (85 … 264 V AC/88 …
300 V DC)
FL SWITCH EP700-PS-HV 1144175 1
Power supply module, 24 V DC (10 … 36 V DC), conformal
coated
FL SWITCH EP700-PS-LV-
C1
1216922 1
Power supply module, 48 V DC (36 … 72 V DC), conformal
coated
FL SWITCH EP700-PS-MV-
C1
1216669 1
Power supply module, AC/DC (85 … 264 V AC/88 …
300 V DC), conformal coated
FL SWITCH EP700-PS-HV-
C1
1216920 1
Port/line module, 8 RJ45 ports, 10/100/1000 Mbps FL SWITCH EP7400-
M8GRJ45
1144375 1

FL SWITCH EP74…
8/40 PHOENIX CONTACT 4083_en_A
Port/line module, 8 SFP slots, 100/1000 Mbps FL SWITCH EP7400-
M8GSFP
1144383 1
Port/line module, 4 SFP+ slots, 1/10 Gbps FL SWITCH EP7400-
M4TGSFP
1144388 1
Port/line module, 8 RJ45 ports, 10/100/1000 Mbps, confor-
mal coated
FL SWITCH EP7400-
M8GRJ45-C1
1216921 1
Port/line module, 8 SFP slots, 100/1000 Mbps, conformal
coated
FL SWITCH EP7400-
M8GSFP-C1
1216925 1
Port/line module, 4 SFP+ slots, 1/10 Gbps, conformal coated FL SWITCH EP7400-
M4TGSFP-C1
1216923 1
Accessories
Description Type Order No. Pcs./Pkt.
Slot cover FL SWITCH EP7400-ABLK 1144428 1
Redundancy module, Ethernet PRP, with 3 RJ45 ports FL RED 2003E PRP 2701863 1
Redundancy module, Ethernet PRP, with 1 RJ45 and 2 fiber
LC multimode ports
FL RED 2001E PRP2 LC 2701864 1
SFP module, RJ45, 100 Mbps/1Gbps FL SFP GT-H 1207198 1
SFP module, multimode fiber, 2 km, 1310 nm, LC, 100 Mbps FL SFP FX 2891081 1
SFP module, single mode fiber, 40 km, 1310 nm, LC,
100 Mbps
FL SFP FX SM 2891082 1
SFP module, multimode fiber, 1 km, 1310 nm, LC, 1 Gbps FL SFP SX 2891754 1
SFP module, single mode fiber, 30 km, 1310 nm, LC, 1 Gbps FL SFP LX 2891767 1
SFP module, multimode fiber, 300 m, 850 nm, LC, 10 Gbps FL SFP-10G-SR 1145046 1
SFP module, single mode fiber, 20 km, 1310 nm, LC,
10 Gbps
FL SFP-10G-ER20 1145203 1
Products
Description Type Order No. Pcs./Pkt.

Components
4083_en_A PHOENIX CONTACT 9/40
3 Components
3.1 Switch base
The switch base FL SWITCH EP74… installs in a standard 19-inch rack using 1U vertical
space with an additional unit (or 44 mm) of space required for cooling above and below the
switch.
CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SDCARD
PS1
ALARM
SD
1LCD screen
2SD port cover
3SD port
4Management and console ports
5USB port
6Power status LEDs
7Alarm LED
8Power supply modules
1
23
4
56
7
8

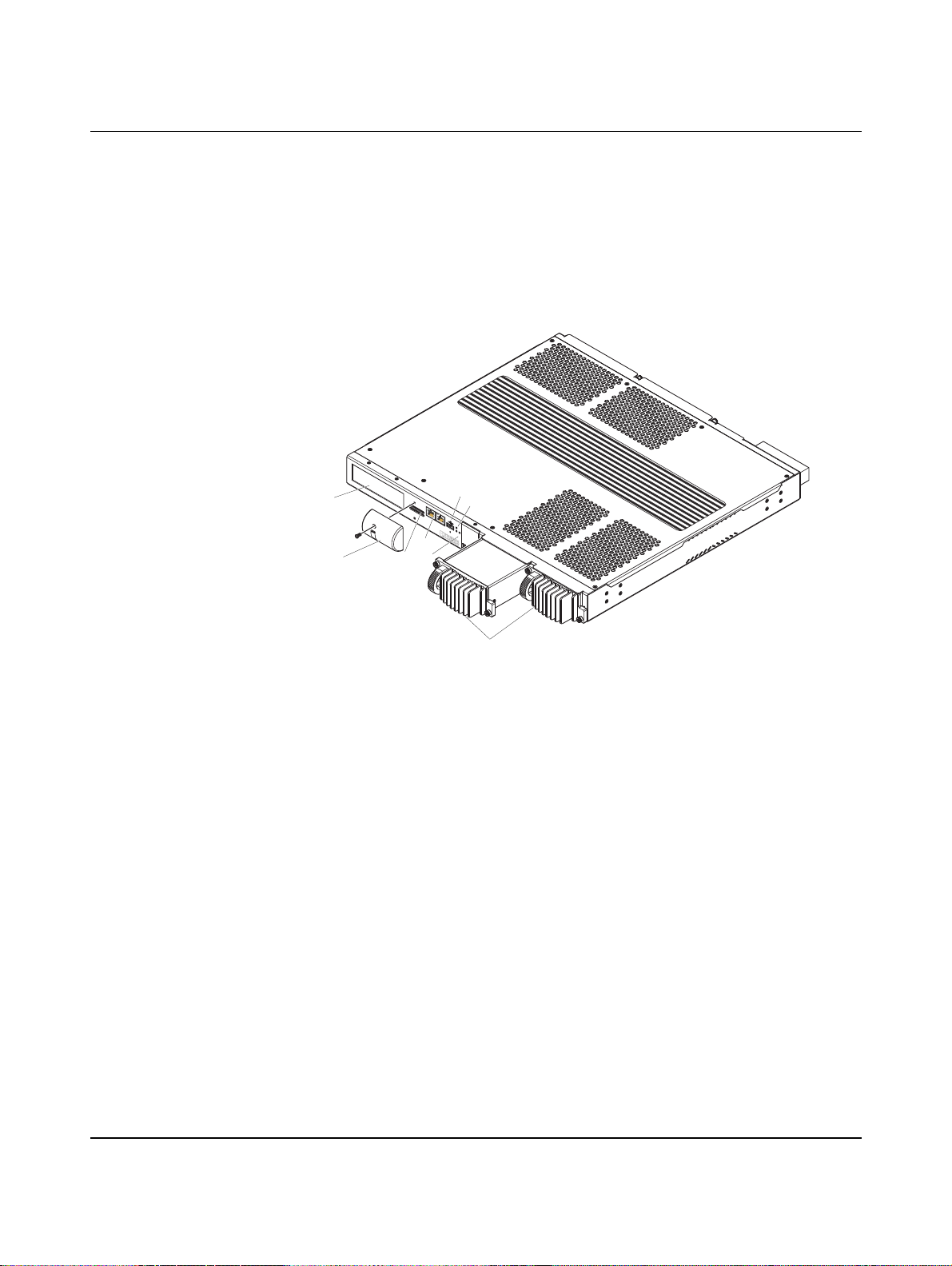

Figure 3-1 FL SWITCH EP74… view from front
Heat generated by the switch is channeled outwards from the enclosure. For improved con-
vectional airflow, make sure there is at least one rack unit (1U) or 44 mm of space around
all sides of the device or between the devices on the rack.
Forced airflow is not required. However, any increase in airflow will result in a reduction of
ambient temperature and improve the long-term reliability of the equipment mounted in the
rack space.
The color LCD displays switch revision information and port status.
The SecureDigital (SD) port cover covers the following:
– SD card slot #1 (top) is for factory use and is disabled.
– SD card slot #2 (bottom) is available for storing up to 32 GB of Syslog event files.
– The management port, a 10/100 Base-T Ethernet port, that is used as an out-of-band
factory service port. It is disabled by default and not available for user access.
– Power status LEDs indicate the status of the installed power supply modules.

FL SWITCH EP74…
10/40 PHOENIX CONTACT 4083_en_A
USB port
The USB 2.0 port can be used with a USB memory stick to upgrade firmware, back up the
configuration files or transfer Syslog Files. Live access to the switch configuration and diag-
nostics is only provided through the console port or an Ethernet connection using one of the
28 ports. The USB port does not provide PC access to switch configuration and diagnostic
information.
The reset button in the power supply LED area restarts the switch if pressed for less than
2 s. If pressed for more than 2 s in conjunction with secure console commands restores the
switch to the factory default configuration and IP address.
LM2
LM1
LM4
LM3
1Terminal block
2Ground screw
3Port/line modules (4 shown)
4Port/line slots
1
3
4
2
Figure 3-2 FL SWITCH EP74… view from back
Terminal block
Used to wire to the power supplies, alarm contact, and future internal module options.
Port/Line modules 1-3
10/100/1000 Mbps slots accept up to eight port/line modules, typically for device connec-
tions. These slots also support IEE1588-based Precision Time Protocol (PTP) timing sig-
nals
Port/Line module 4
1 Gigabit/10 Gigabit slot accepts a four-port module, typically used for network trunk up-
links, but can also be used for added device connections This slot does NOT support IEEE
1588-based PTP signals.
The FL SWITCH EP7400-ABLK blank slot filler plate protects empty slots from envi-
ronmental contamination and unauthorized access to slot connectors. It may be in-
stalled over slots 1-4.

CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SDCARD
PS1
ALARM
SD
AmphenolAmphenolAmphenolAmphenolAmphenolAmphenolAmphenolAmphenol
CONSOLE
PS2
PS1
RESET
PS1 ALARM
MGMT
1
2
SDCARD
PS2
SD
473.15
(18.63)
32
(1.26)
486.15
(19.14)
403.55
(15.89)
443.71
(17.47)
448.42
(17.65)
44.36
(1.75)
Components
4083_en_A PHOENIX CONTACT 11/40
Figure 3-3 FL SWITCH EP74… dimensions
3.2 Port/line modules
Four slots in the switch base allow installation of the port/line modules. LM slots 1-3 accept
modules with up to eight Ethernet or SFP ports that operate at 10/100/1000 Mbps. LM slot
4 accepts a module with four SFP+ ports that operates at 1000/10000 Mbps.
1Port/line module slot (LM1)
2Port/line module slot (LM2)
3Port/line module slot (LM3)
4Port/line module slot (LM4)
5Port/line modules
LM2
LM1
LM4
LM3
3
2
1
4
5
Figure 3-4 Port/line module installation

FL SWITCH EP74…
12/40 PHOENIX CONTACT 4083_en_A
With all port/line modules installed, the port locations that correlate to the firmware port des-
ignations are noted in Figure 3-5.
LM 1
LM 2
01
09
03
10
03
11
04
12
05
13
06
14
07
15
08
16
17
EX0/1
18 19
EX0/2
20 21
EX0/3
22 23
EX0/4
24 LM 3
LM 4
Figure 3-5 Port numbering
3.3 Power supply modules
Two slots in the switch base allow installation of the power modules. The slots are the same
and any available power supply module may be installed in any slot.
Three power supply modules are available:
– FL SWITCH EP7400-PS-LV (Order No. 1144367) accepts a 10 to 36 V DC (24 V DC
nominal) input signal.
– FL SWITCH EP7400-PS-MV (Order No. 1144372) accepts a 36 to 72 V DC (48 V DC
nominal) input signal.
– FL SWITCH EP7400-PS-HV (Order No. 1144175) accepts 88 to 300 V DC and 85 to
264 V AC, 50/60 Hz input signals.
CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SDCARD
PS1
ALARM
1
2
1Power supply slot 1 (PS1)
2Power supply slot 2 (PS2)
3Power supply modules
3
Figure 3-6 Power supply module installation

Components
4083_en_A PHOENIX CONTACT 13/40
3.3.1 Status indicators
LCD display
LM1:
LM2:
LM3:
LM4:
12345678
Figure 3-7 LCD display of port status
The LCD displays the status of each port for the installed port/line modules. It also displays
the hardware and firmware revision status during boot up.
Table 3-1 Port LCD status
Color RJ45 port SFP port
Green Link established Link established
Red – SFP module inserted, not linked
Grey No link or cable SFP module is not present
Front LEDs
CONSOLE
PS2
RESET
PS1 ALARM
MGMT
1
2
SD CARD
Figure 3-8 LED status indicators, front view
The front LEDs indicate that status of the installed power supply modules and the operating
status (alarms) of the FL SWITCH EP74…. An LED at each port on each module indicates
the port link and activity of that port.
Table 3-2 Front LED indicators
Label Color Indication
PS1 and PS2 Green Normal operating status
Off No power or module not installed
Alarm Green Alarms cleared or acknowledged
Red Active alarms

FL SWITCH EP74…
14/40 PHOENIX CONTACT 4083_en_A
Rear LEDs
Amphenol
RJ45 SFP SFP+
Figure 3-9 Port LEDs
Table 3-3 Port status LEDs
Port type Indication Indication
RJ45 Left-side LED On Linked (on)
Right-side LED flashing Data transfer in process
SFP/SFP+ On
Flashing
Linked (on)
Data transfer in process

Installation
4083_en_A PHOENIX CONTACT 15/40
4 Installation
4.1 Prevention of electrical discharge damage
The device components are subject to electrostatic discharge (ESD) damage. ESD dam-
age can cause intermittent or complete component failures. Potentially destructive static
voltages can happen during handling of plastic or foam packing material, or when moving
components across plastic or carpets.
If a grounding strap is not available, then to ground yourself, touch the exposed bare metal
of the device with the other hand immediately before inserting the component into the de-
vice.
Avoid contact between the component that is subject to ESD damage and clothing. ESD
voltages emitted from fabric can damage components.
When removing or installing a component that is subject to ESD damage, always place its
components upside on an antistatic surface, in an antistatic card rack, or in an antistatic
bag. If you are returning a component, place it in an antistatic bag before packing it.
4.2 Unpacking
Inspect the package for damage before opening.
Open the package and visually inspect all items for issues.
Confirm that all items are available.
– Switch base packaged items
– Switch within a protective bag, with one power supply slot covered
– Four mounting brackets with screws to attach to the switch base
– Console cable: RJ45 to D-SUB 9
– Installation instruction sheet
– Power and port module packaged items
– Installation instruction sheet
The blank slot filler module comes with screws for securing to the switch base.
If there any missing or damaged items, contact your local Phoenix Contact office.

FL SWITCH EP74…
16/40 PHOENIX CONTACT 4083_en_A
4.3 Electrical/mechanical hazards prevention
DANGER: Electrocution hazard
Always disconnect the power at the supply source before connecting or disconnect-
ing wires to the terminal block. The cover must be installed over the terminal block be-
fore applying power.
If redundant power supplies are used, ensure that both power supply sources are dis-
connected.
CAUTION:
This equipment is intended only for use in a restricted access area.
Access to the battery located inside the unit is prohibited.
Access to wiring terminals and replaceable modules is restricted to skilled persons
only.
For improved convectional cooling and airflow, make sure that there is at least one rack unit
(44 mm) of space exists between devices on the rack.
Forced airflow is not required. However, any increase in airflow will result in a reduction of
ambient temperature and improve the long-term reliability of the equipment mounted in the
rack space.
When installing the device in a closed or multi-device rack, be aware that the ambient tem-
perature of the rack may be higher than the ambient temperature of the room. Make sure the
rack is installed in a suitable environment that can withstand the maximum ambient tem-
perature generated by the rack.
Do not exceed the maximum number of devices or weight restriction specified by the rack
manufacturer.
Do not overload the supply circuit. Refer to the overcurrent protection and power supply rat-
ings specified by the rack manufacturer.
Make sure the rack and all devices have a proper ground-to-Earth connection. Pay particu-
lar attention to power supply connections other than direct connections to the branch circuit
(e.g. power strips). Ensure that the rack mount adapters are installed on the correct side of
the chassis.
Do not store the switch in locations where it will be subject excessive dirt and dust and high
humidity. Conformal coating is recommended for humid/moist applications.

Installation
4083_en_A PHOENIX CONTACT 17/40
4.4 Installation
4.4.1 Mounting the switch in a rack
A minimum of two mounting brackets must be installed. Four mounting brackets are pro-
vided for high shock/vibration applications.
PS1
1
2
2
3
4
5
Figure 4-1 Mounting bracket installation
1. Attach the mounting brackets (1) to the switch using the M4 screws (2) provided.
2. Repeat step 1 for all four brackets.
3. Place the device in the desired location on the rack (3) using the mounting hardware (4
+ 5) provided with the rack to secure the device in place.
When both front and rear brackets are used, the switch must have clearance above
or below in the rack to be angled (with the mounting brackets installed) and placed in-
side the rack mounting rails.
CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SDCARD
PS1
ALARM
SD
Figure 4-2 Rack mounting brackets showing four mounting brackets

FL SWITCH EP74…
18/40 PHOENIX CONTACT 4083_en_A
4.4.2 Power supply module installation
The FL SWITCH EP74… switch accepts up to two (for redundancy) FL SWITCH EP7400-
PS-… power supply modules. A slot cover is provided if the switch is operated with only one
power supply module.
WARNING:
CONSOLE
MGMT
PS2
PS2
PS1
RESET
1
2
SDCARD
PS1
ALARM
1
2
3
Never install or operate the device with an open power supply module slot. Always
have a cover or power module installed.
Never connect AC power cables to a 24 or 48 V DC power supply terminal block.
Always install equipment according to applicable federal, state, and local laws.
Figure 4-3 Power supply module installation
Voltage supply conductors connect to the terminal block on the rear of the switch, not di-
rectly to the power supply modules.
The power supply modules are hot-swappable and accessible from the front of the switch
when mounted in a rack for maximum uptime.
WARNING:
Before installing or replacing a power supply module, ensure that the rated voltage of
the module matches the voltage from the supply source.
1. Remove the screws securing the cover plate over the power slot on the front of the
switch.
2. Insert the desired power supply module (1) into the slot (2) until the connectors are firm-
ly seated.
3. Secure the module with the module retaining screws (3).
4. Repeat the process for the other PS slot.
Removal
To remove a power supply module, remove the screws securing the module in the slot. If a
replacement module will not be installed, a blank cover (Order No. 1144428) must be in-
stalled on the slot.

Installation
4083_en_A PHOENIX CONTACT 19/40
4.4.3 Port/line module installation
All port, power, and relay connections are at the rear of the switch.
– LM slots 1 to 3 accept modules with up to 8 ports. Data rates for these modules range
from 10/100 Mbps to 1000 Mbps.
– LM slot 4 accepts 4-port modules with data rates up to 10 Gbps. Slot 4 ports typically
connect to main network uplinks.
– All LM and PS modules may be removed while the system is operating (hot swappable).
NOTE:
LM2
LM1
LM4
LM3
3
2
1
4
5
A blank slot cover (FL SWITCH EP7400-ABLK, Order No. 1144428) must be installed
on any slots that do not have a module installed.
LM slots are in the back of the switch. Unless access to the back of the switch is avail-
able, the port/line modules should be inserted before the switch is installed in the rack.

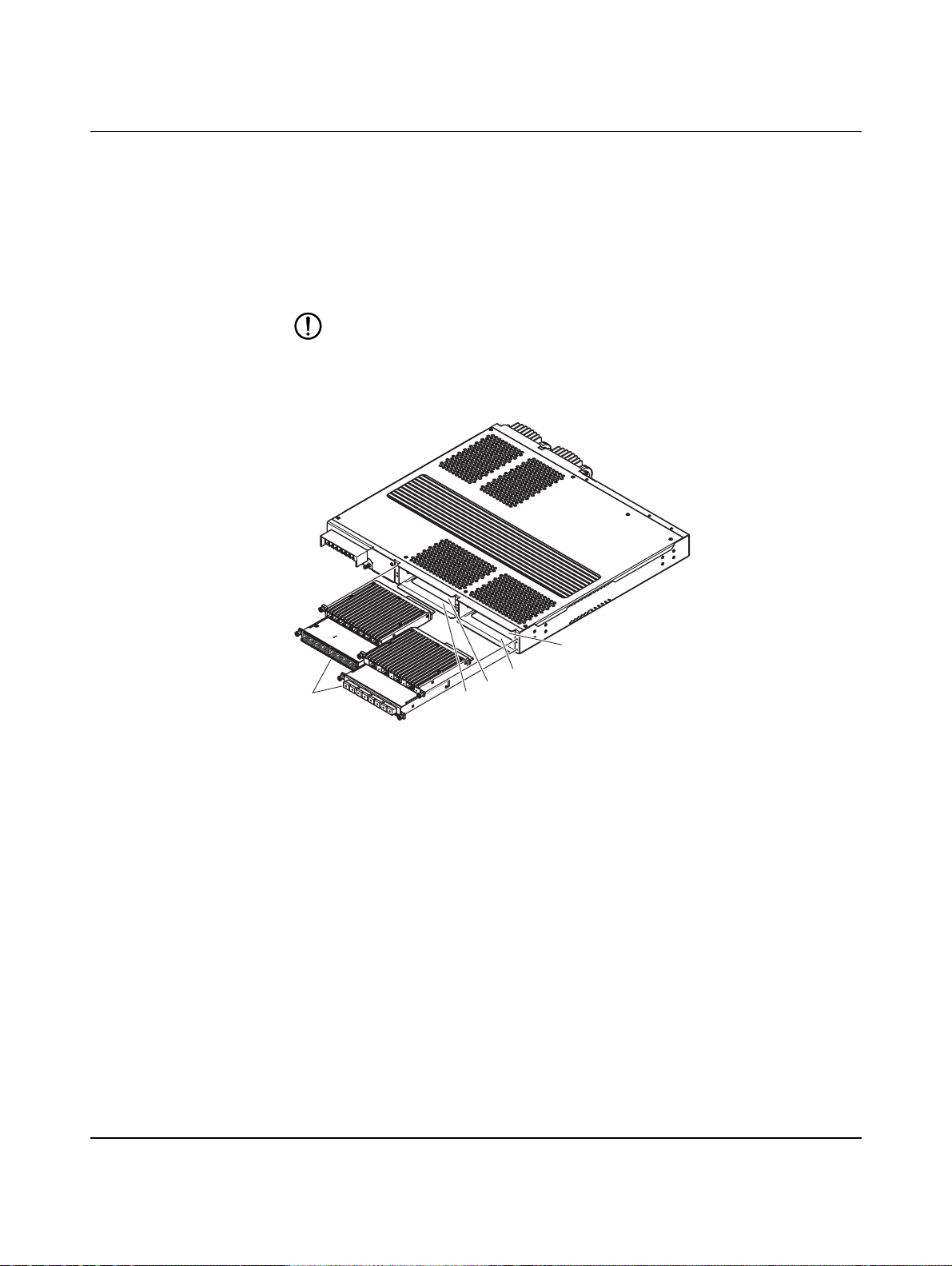

Figure 4-4 Port/line module structure
1. Remove the cover plate (FLSWITCH EP7400-ABLK), if installed.
2. Insert the desired module into an appropriate slot (see table above). Modules inserted
into LM1 and LM3 slots must be turned over with the cooling fins down and flat side up.
3. Secure the module with the module retaining screws.
Removal
To remove a port/line module, remove the screws securing the module in the slot. If a re-
placement module will not be installed, a blank cover (Order No. 1144428) must be installed
on the slot.
4.4.4 SD card
SD cards provide extra Syslog memory and allow manual transfer of Syslog files to a com-
puter.

FL SWITCH EP74…
20/40 PHOENIX CONTACT 4083_en_A
4.5 Connections
Voltage supply conductors are connected directly to the rear of the switch, not the power
supply modules.
WARNING:
Ensure the voltage supply is turned off before connecting the voltage supply conduc-
tors to the terminals on the switch.
Disconnect all power sources. Device may have multiple power sources.
Ensure the supplied terminal block cover is installed before reapplying power.
NOTE:
12345678910111213141516
(+/L) (-/N)
PWR 1 PWR2 Alarm Relay
24VDC, 1A
Options
(+/L) (-/N) NO NC C
HV Specs: 100-240 VAC, 1A, 50/60Hz, 100-240 VDC, 1A
MV Specs: 48 VDC, 1.25A
LV Specs: 24 VDC, 2.5A
Do not connect AC power cables to the FL SWITCH EP7400-PS-MV or FL SWITCH
EP7400-PS-LV modules. Discard and replace modules if this occurs.
Figure 4-5 Terminal block connections
4.5.1 AC power
13579111315
2 4 6 8 10 12 14 16
NO
PEPEPE
LN NCL
AC
N
AC L = Line
N = Neutral
PE = Protective earth
NO = Normally open
NC = Normally closed
Figure 4-6 AC power connections
For 100-240 V AC rated equipment, protection for earth fault is provided by a 20 A maximum
branch circuit from AC input in the building installation. The protection in the building instal-
lation is relied upon for short-circuit backup protection.
– The specification for AC breaker is 5 A, 2P, 277 V AC (min) circuit breaker, thermomag-
netic or equivalent type.
– The plug connector and wire gauge sizing is to be selected with appropriate design as
per the electrical code for a 60 W, 1-phase device.
All equipment must be installed according to applicable local wiring codes and standards.
