Mounting and installing the Gigabit Modular Switch
8042_en_00 PHOENIX CONTACT 1-1
1 Mounting and installing the Gigabit Modular Switch
1.1 Mounting the head station
Mount the head station on a clean DIN rail according to DIN EN 50 022 (e.g., NS 35 ... from
Phoenix Contact). To avoid contact resistance only use clean, corrosion-free DIN rails. Fix
the DIN rail tightly and secure it against twisting to avoid damaging the switch in applications
with a high level of mechanical strain (strong vibrations or shocks). When using "NS 35..."
rails with heavy loads, fix/screw the rails at a distance of about 75 mm.
Before mounting the modules, an end clamp (E/AL-NS 35, Order No. 1201662) should be
mounted on the left-hand side next to the head station to stop the modules from slipping on
the DIN rail. After installation of the modules, install one of the above end clamps to the right
of the station.
Assembly:
1. Place the module onto the DIN rail from above (A). The upper holding keyway must be
hooked onto the top edge of the rail. Push the module from the front towards the
mounting surface (B).
Figure 1-1 Snapping the head station onto the DIN rail
2. Once the module has been snapped on properly, check that it is fixed securely on the
rail. Check whether the positive latches are facing upwards, i.e., snapped on correctly.
Unless otherwise expressly stated, all information provided in this user manual always
applies to both the FL SWITCH GHS 12G/8 and the FL SWITCH GHS 4G/12.
NOTE: Always switch off the supply voltage when mounting/removing the head station
and extension modules.
B
A
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

FL SWITCH GHS
1-2 PHOENIX CONTACT 8042_en_00

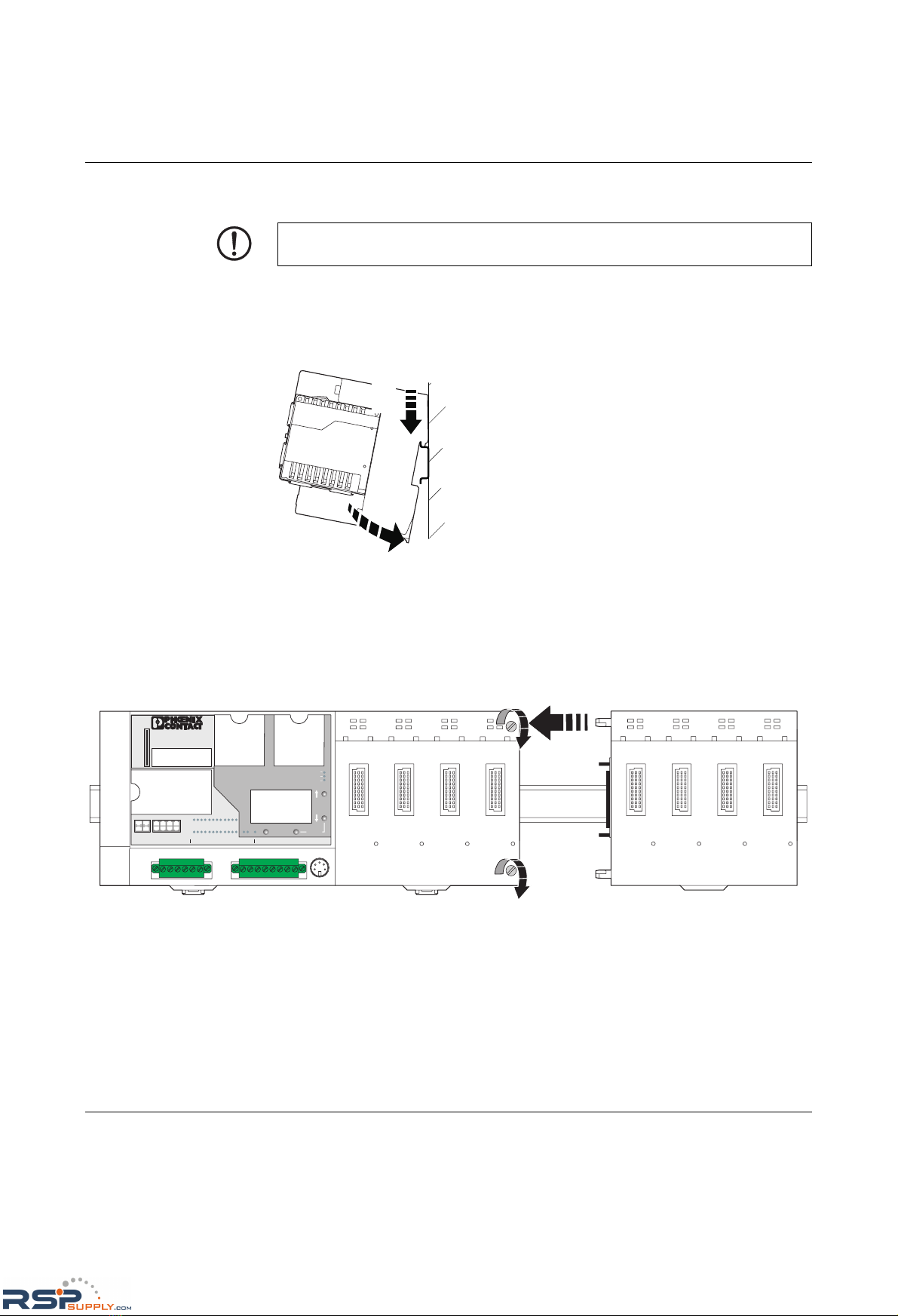

1.2 Mounting of the extension module
Mounting:
1. Place the module onto the DIN rail from above (A). The upper holding keyway must be
hooked onto the top edge of the rail. Push the module from the front towards the
mounting surface (B). Check that the positive latches have snapped on properly.
Figure 1-2 Mounting extension modules
2. Now that the extension module is snapped onto the DIN rail, push it along the DIN rail
towards the head station (A), until the male connector/female connector of the modules
are interlatched and the sides of the modules lie flush with one another. Secure the
connection using the two screws (B).
Figure 1-3 Mounting extension modules
NOTE: Always switch off the supply voltage when mounting/removing the extension
module.
B
A
MAC
Address
Ord.No. 29 89 200
X29
MEM
FL SWITCH GHS 12G/8
X6
X5
X8
X7
X10
X9
X12
X11
X1 X3
X2 X4
X30 X31US1 UIGND GNDI GND DI2
MODE
LNK
X1 59 26
10
37 11 48 12
GNDI R2 R4 V.24
RESET
DI1
US1
US2
FAIL
DI2 UI
US2 DI1UI R1 R3 X32
A
B
B
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

Mounting and installing the Gigabit Modular Switch
8042_en_00 PHOENIX CONTACT 1-3
1.3 Installing the GHS
1.3.1 Connecting the supply voltage to the GHS
24 V DC The system is operated using a 24 V DC nominal voltage, which can be supplied from
separate power supply units if required.
1.3.1.1 Supplying the device from one voltage source
Figure 1-4 Supplying the system using one voltage source
Please refer to the UM EN FL SWITCH GHS user manual for information on how to
connect the redundant power supply, the sensor supply, and the alarm contacts.
If redundant supply voltage monitoring is active (default setting), an error is indicated if
only one voltage is applied. A jumper between US1 and US2 prevents this error message.
It is also possible to deactivate monitoring via the management interfaces.
Please refer to the UM EN FL SWITCH GHS user manual for information on how mount
and connect the interface modules as well as the SFP modules.
MAC
Address
Ord.No. 29 89 200
X29
MEM
FL SWITCH GHS 12G/8
X6
X5
X8
X7
X10
X9
X12
X11
X1 X3
X2 X4
X30 X31US1 UIGND GNDI GND DI2
MODE
LNK
X1 59 26
10
37 11 48 12
GNDI R2 R4 V.24
RESET
DI1
US1
US2
FAIL
DI2 UI
US2 DI1UI R1 R3 X32
US1
GND
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

FL SWITCH GHS
1-4 PHOENIX CONTACT 8042_en_00
1.4 Operability of the GHS
The device will boot automatically after you have connected the supply voltage. After a short
time the display will show the following:
Figure 1-5 Display after termination of the boot phase in default upon delivery
When the device is in the default upon delivery, it will send BootP requests. The GHS tries
to obtain IP addresses with these requests.
If your Switch displays something different, we recommend using the Smart Mode to reset
it to the default state upon delivery.
Before you can access the web-based management of the GHS, the device must be
assigned an IP address/IP parameters (see "Assigning IP parameters" on page 1-5) or the
default IP address must be activated (see "Activating the default IP address" on page 1-4).
1.5 Activating the default IP address
After the boot phase, use the buttons/display to proceed as follows:
•Press "Menu".
•Select "IP Menu" and then press "Select".
•Select "IP Settings" and then press "Select".
•Select "Default IP" and then press "Set".
Now the Switch can be accessed with IP address: 192.168.0.100. You may have to adapt
your PC (see "Making contact between the GHS and PC for initial configuration" on
page 1-7).
Please refer to the UM EN FL SWITCH GHS user manual for information on calling and
using the Smart Mode.
Please refer to the UM EN FL SWITCH GHS user manual for information on how to use
the display.
Please observe the following:
– The selection of the default IP is not saved retentively. Save the desired configuration
via the management interfaces.
– Make sure that there is only one device with the IP 192.168.0.100 in your network.
No IP assigned (01)
MENU MODE
SPD FD
ACT
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

Mounting and installing the Gigabit Modular Switch
8042_en_00 PHOENIX CONTACT 1-5
1.6 Assigning IP parameters
The allocation of valid IP parameters is vital to the management function of the switch.
1.6.1 Assigning IP parameters with IPAssign
IPAssign is a free tool that does not require installation, but can be used to assign IP
parameters very easily using BootP. This tool can be found on the included CD or at
www.phoenixcontact.com.
Procedure

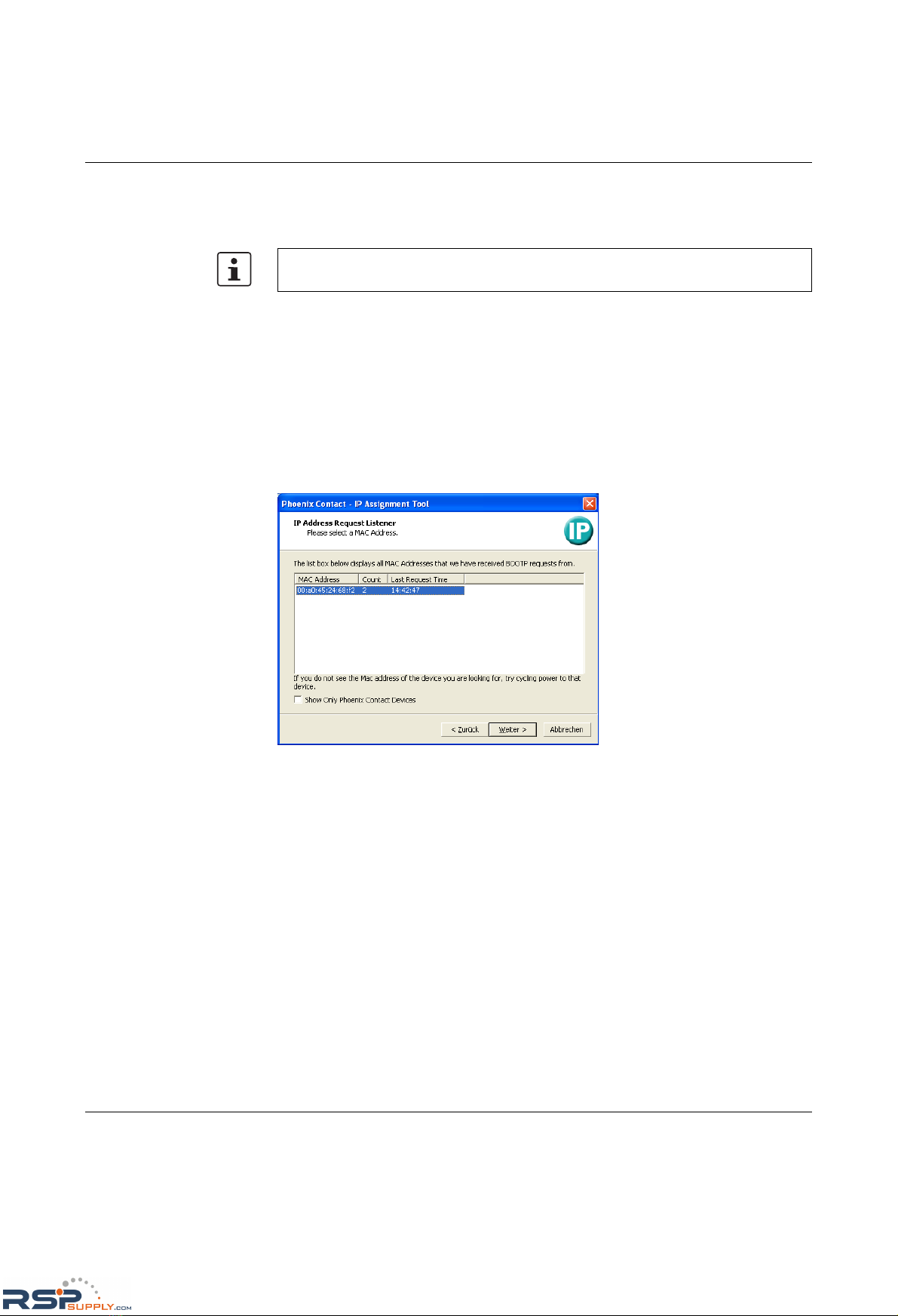

•Connect the switch to your PC and start IPAssign. The tool then displays the devices
that are sending BootP requests to assign an IP.
Figure 1-6 Devices sending BootP requests in IPAssign
If the switch has not been assigned valid IP parameters, "No IP assigned 01" will appear
in the display.
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

FL SWITCH GHS
1-6 PHOENIX CONTACT 8042_en_00

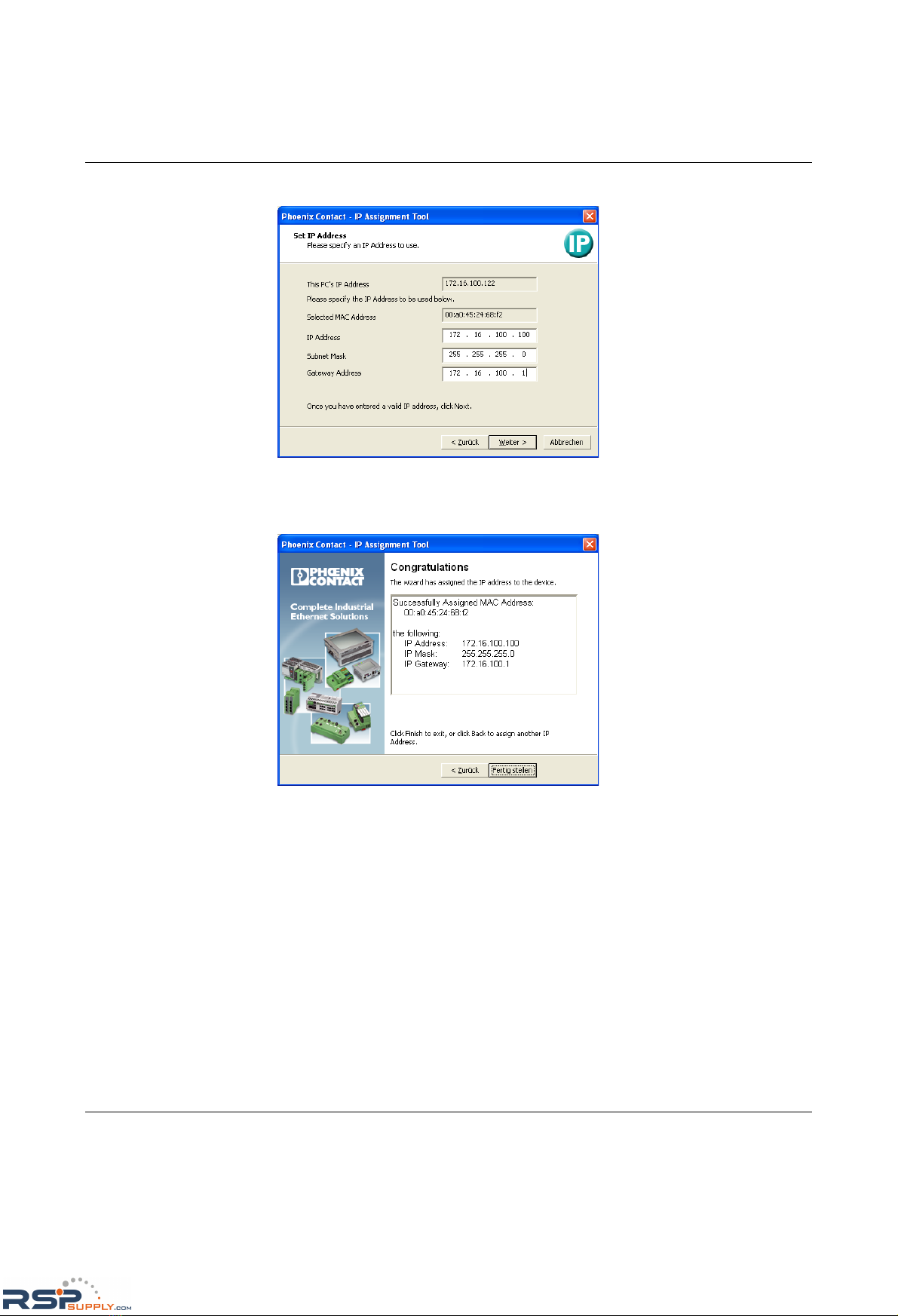

•Click "Next" and enter the desired IP parameters.
Figure 1-7 Mask for IP parameters
•Click "Next". If successful, this window is displayed.
Figure 1-8 Message in IPAssign
If you cannot access the web-based management of the GHS, you may have to adapt some
settings of your PC.
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

Mounting and installing the Gigabit Modular Switch
8042_en_00 PHOENIX CONTACT 1-7
1.7 Making contact between the GHS and PC for initial
configuration
1.7.1 Operation with static IP addresses
To enable the GHS to be accessed using the desired IP address, make sure that the
computer and the GHS are in the same IP subnetwork. In this case, for initial contact your
computer must be configured so that contact is possible. The following screenshots were
created under Windows XP Professional.

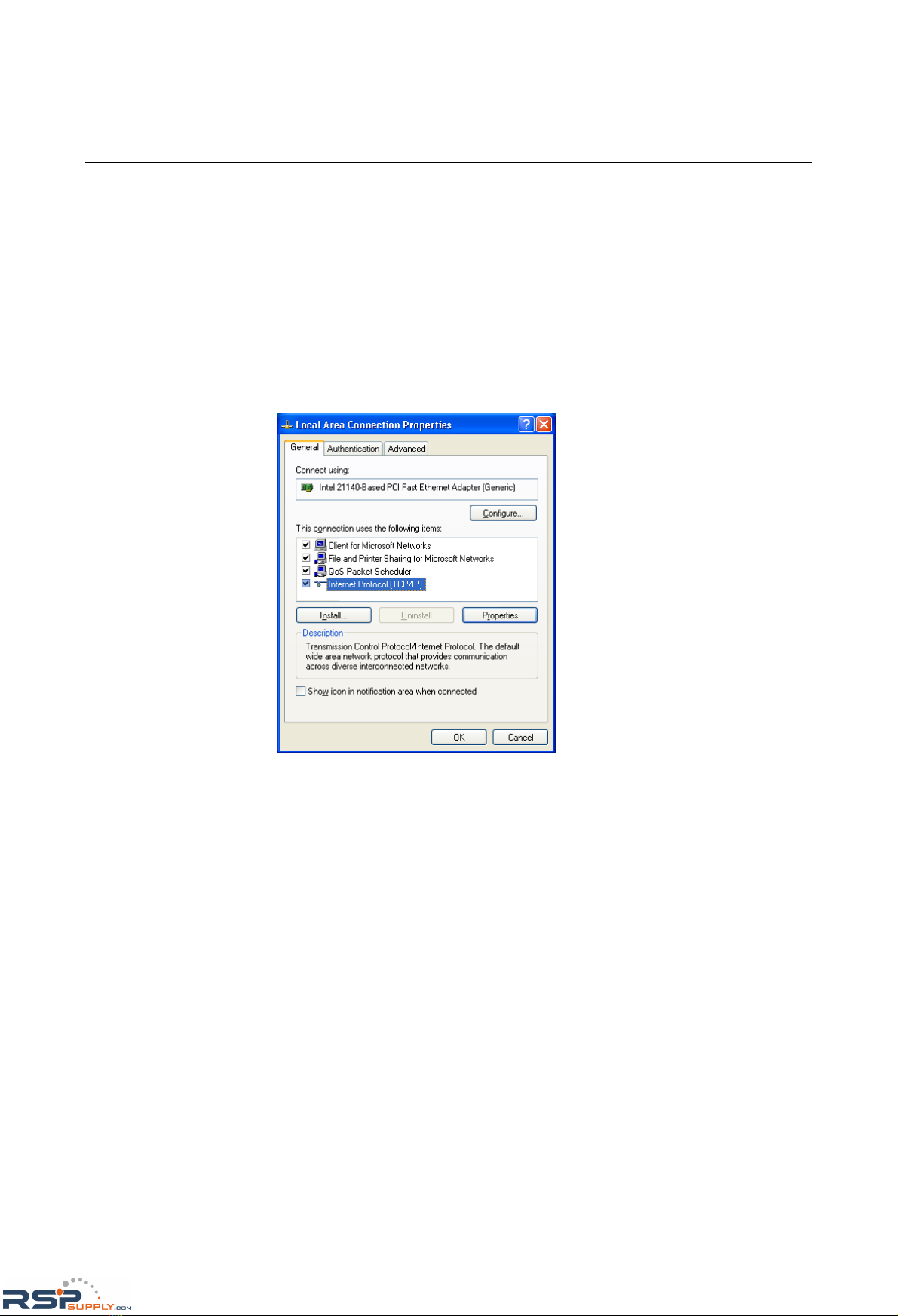

To set the IP parameters, open the Properties tab for your network adapter. Activate
"Internet Protocol (TCP/IP)" and then click on "Properties".
Figure 1-9 Properties dialog box for the network card
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

FL SWITCH GHS
1-8 PHOENIX CONTACT 8042_en_00
In the dialog box that opens, click on "Use the following IP address".
Figure 1-10 Internet Protocol Properties dialog box
Enter the desired IP address of your computer (not that of the GHS) in the "IP address" field
and the corresponding subnet mask. Close the dialog boxes with "OK".
The device can now be accessed via a web browser. In the address line of your browser,
enter the IP address of the GHS in the following format:
http://xxx.xxx.xxx.xxx
After entering the IP address in the browser, an overview page is displayed for the GHS
where no login is required.
After the correct user name and password have been entered the device configuration
pages are loaded.
1.7.2 Requirements for the use of WBM
As the web server operates using the Hyper Text Transfer Protocol, a standard browser can
be used. Access is via the URL "http://IP address of the device".
Example: "http://172.16.29.112".
For full operation of the web pages, the browser must support JavaScript 1.2 and cascading
style sheets Level 1. We recommend the use of Microsoft Internet Explorer 6.0.
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

Mounting and installing the Gigabit Modular Switch
8042_en_00 PHOENIX CONTACT 1-9
1.8 Web-based management
The user-friendly web-based management interface can be used to manage the switch from
anywhere in the network using a standard browser. To do this, http or https can be used,
this selection is made in the management interface. Comprehensive configuration and
diagnostic functions are clearly displayed on a graphic user interface. Every user with a
network connection to the device has read access to that device via a browser. Depending
on the physical structure of the switch, various information about the device, the set
parameters, and the operating state can be viewed.
You can now access the WBM of the GHS.
Modifications can only be made by entering the valid login details. By default upon
delivery, the user name is "admin" and the password is "private".
For security reasons, we recommend you enter a new, unique password.
Please refer to the UM EN FL SWITCH GHS user manual for information on how to use
the other management interfaces, (e.g., CLI, V.24).
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx

FL SWITCH GHS
1-10 PHOENIX CONTACT 8042_en_00
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-14161-Phoenix-Contact-2700271-FL-SWITCH-GHS-4G/12-Modular-Ethernet-Switch.aspx
