Pilz PIT si1.2 User manual

PIT si1.2
Operating Manual-21039-EN-05
}Control and signal devices

Preface
This document is the original document.
Where unavoidable, for reasons of readability, the masculine form has been selected when
formulating this document. We do assure you that all persons are regarded without discrim-
ination and on an equal basis.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for the user's internal purposes. Suggestions and comments for improving this documenta-
tion will be gratefully received.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PIT si1.2
21039-EN-05 | 3
Introduction ............................................................................................................................4
Validity of documentation ..........................................................................................................4
Using the documentation ..........................................................................................................4
Definition of symbols .................................................................................................................4
Safety ......................................................................................................................................5
Intended use .............................................................................................................................5
Safety regulations .....................................................................................................................5
Use of qualified personnel.........................................................................................................5
Warranty and liability.................................................................................................................5
Disposal ....................................................................................................................................5
Unit features ...........................................................................................................................6
Function description ..............................................................................................................6
Installation and wiring ...........................................................................................................7
Wiring ........................................................................................................................................7
Installation .................................................................................................................................8
Connection examples ............................................................................................................9
Driven via PNOZmulti................................................................................................................9
Driven via PSSuniversal............................................................................................................10
Dimensions .............................................................................................................................10
Technical details ....................................................................................................................11
Order reference ......................................................................................................................12

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 4
Introduction
Validity of documentation
This documentation is valid for the product PIT si1.2. It is valid until new documentation is
published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 5
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Safety
Intended use
The muting lamp is intended for use as an indicator in muting mode.
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see chapter entitled "Technical details").
Safety regulations
Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by persons who are competent to do so.
A competent person is a qualified and knowledgeable person who, because of their train-
ing, experience and current professional activity, has the specialist knowledge required. To
be able to inspect, assess and operate devices, systems and machines, the person has to
be informed of the state of the art and the applicable national, European and international
laws, directives and standards.
It is the company’s responsibility only to employ personnel who
}Are familiar with the basic regulations concerning health and safety / accident prevention,
}Have read and understood the information provided in the section entitled Safety
}Have a good knowledge of the generic and specialist standards applicable to the specific
application.
Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended,
}Damage can be attributed to not having followed the guidelines in the manual,
}Operating personnel are not suitably qualified,
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
Disposal
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 6
Unit features
}Muting lamp in accordance with EN 61496
}2 semiconductor outputs for function monitoring
}Scope of supply:
– Muting lamp including bulb
– Mounting bracket
– 2 screws
Function description
In muting mode, the operator must be made aware of the hazard that results from the sus-
pension of the safety function. The muting lamp is designed for this purpose. It illuminates
as soon as muting mode is started.
Two semiconductor outputs enable the function of the lamp to be monitored.
}Normal mode:
If the lamp is not operated, both outputs are low. If the lamp is operated and illuminated
(muting mode active), both outputs are high.
}Error during operation
If an error occurs or the lamp is faulty, at least one of the two output signals changes to
low.
Recommendation: To increase the availability of the plant, you can use a second muting
lamp. If one of the muting lamps fails (e. g. faulty bulb), the second muting lamp takes over
its function.

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 7
Installation and wiring
The cover must be taken off and the bulb removed for installation and wiring:
}Turn the cover to the right and pull it off upwards.
}While applying slight downward pressure, rotate the bulb by approx. 90° to the right and
pull it out.

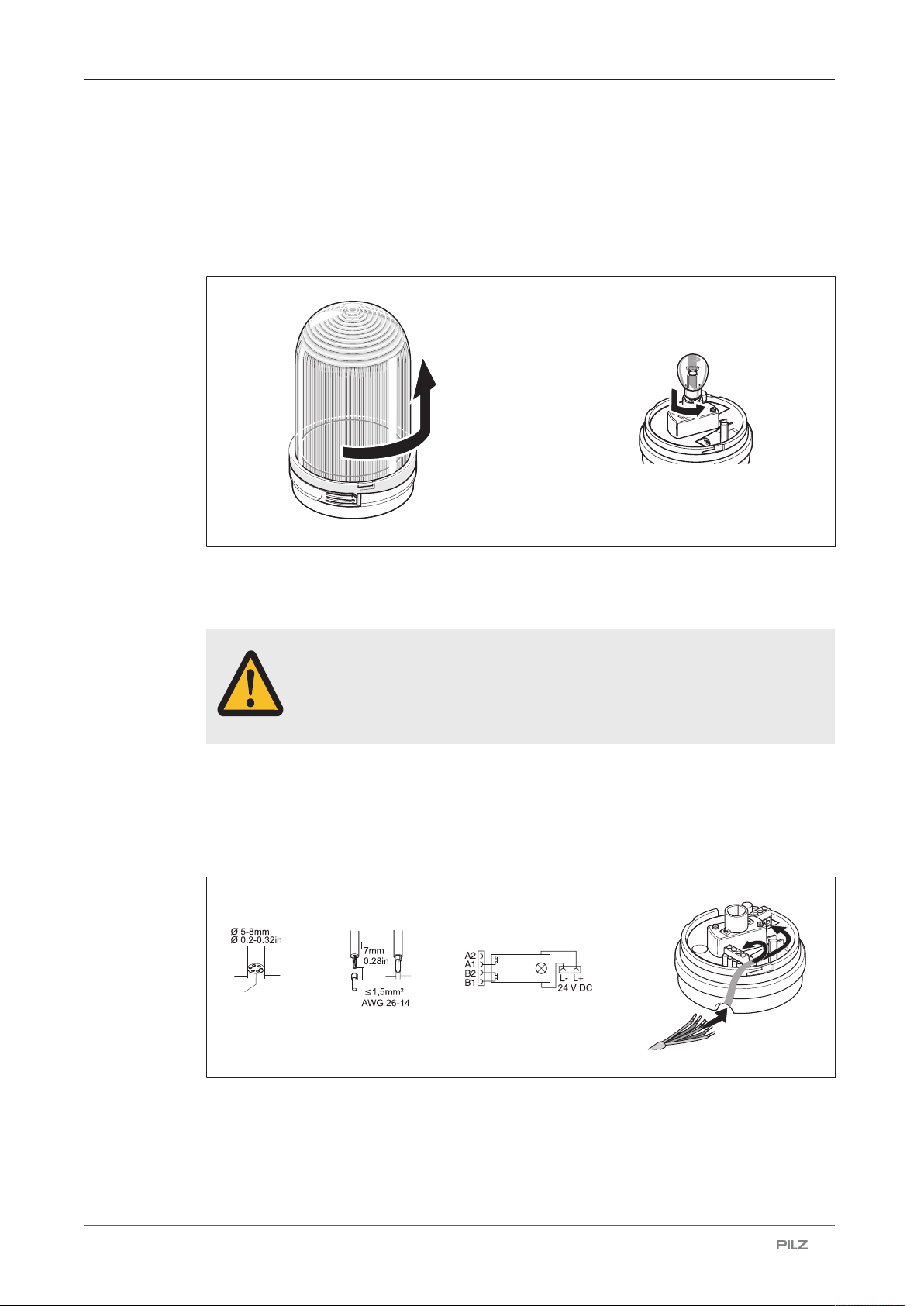

Fig.: Take off the cover and remove the bulb
Wiring
CAUTION!
Wire the lamp when it is isolated from the power supply.
}Perforate the stuffing box using a screwdriver.
}Connect the supply voltage and the input signal that signals muting mode to the 3-pole
terminal.
}Depending on the category required, connect one or both semiconductor outputs to an
evaluation device.
6 cores
Fig.: Wiring

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 8
Installation
CAUTION!
The muting lamp must be mounted upright.
}Install the base directly on a horizontal surface or on the fastening bracket using the two
screws supplied.
}Install the fastening bracket with the base on a vertical surface.
Fig.: Installation
}Refit the bulb and the cover. To ensure that no dirt enters the housing, the cover must be
securely locked to the base. Rotate the cover to the left until the lug on the cover en-
gages behind the lug on the base.
Fig.: Fit the bulb and lock the cover
If it is necessary to open the cover again, e.g. to replace the bulb, press down the strip un-
derneath the lug using a screwdriver. In this way the cover is unlocked and can be opened
by rotating.

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 9

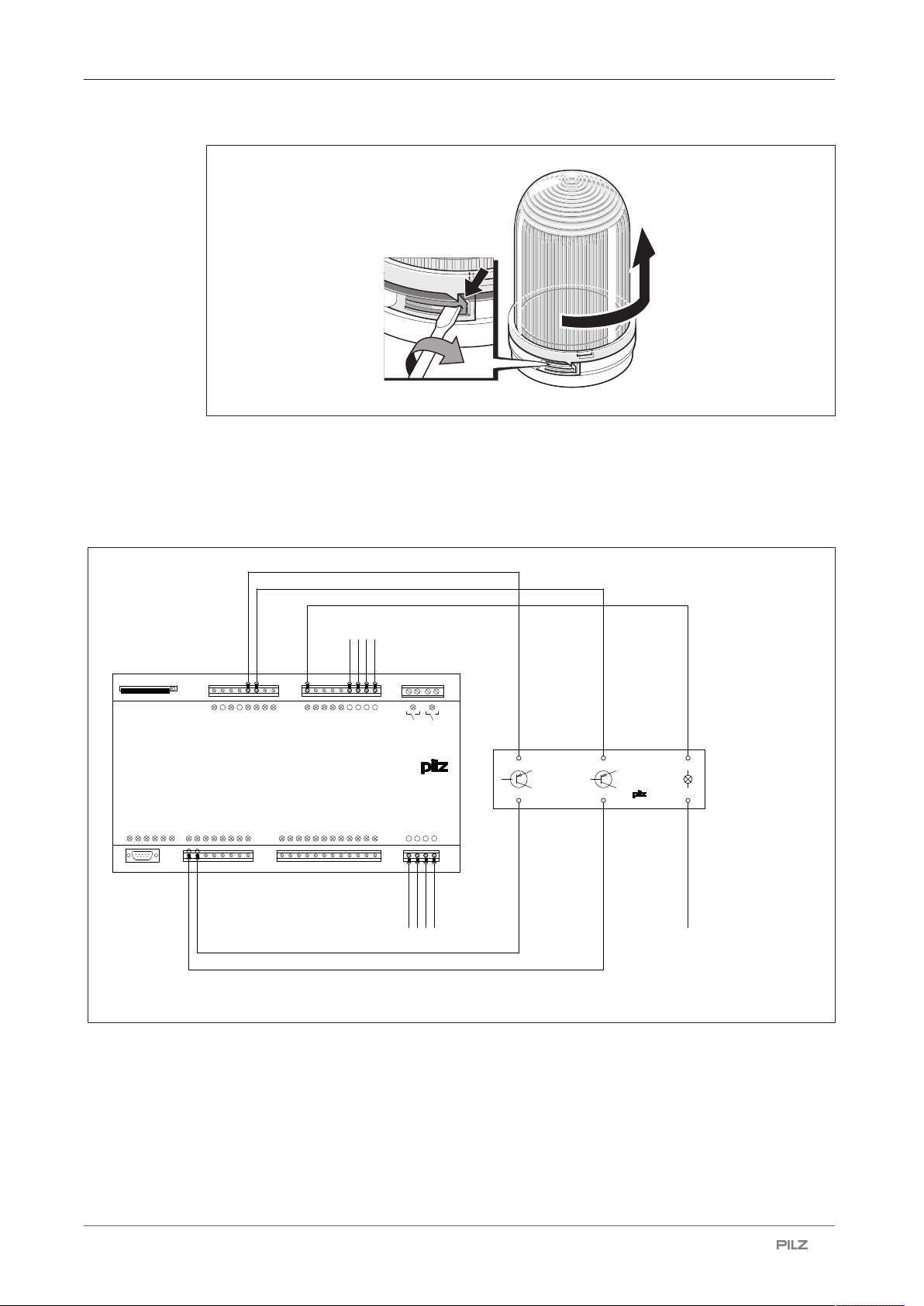

Fig.: Re-open cover
Connection examples
Driven via PNOZmulti
. . . . . .
19
OA0
O3 O2 O1 O0
X2
I FAULT O FAULT
81
. . . . . .
X5
I0 I1 I2 I3 I4 I5 I6 I7
81
. . . . . .
X1
CI+
CI-
CO-
CO+
T0 T1 T2 T3
121
. . . . . .
X6
I8 I9 I10 I11 I12 I13 I14 I15 I16 I17 I18 I19
CHIP-Card
RUN
41
. . . .
X3
13 14
O4
23 24
O5
POWER
X4
DIAG FAULT
41 X7
. . . .
/1.a.5
-A1
24V 24V
0V 0V
A1 A1 A2 A2
PNOZ m1p
-H1
24VDC A1
A2
B1
B2
+24V
0V
A2 A1 A1 A2
24V 24V 0V 0V
0V
PIT si1.2
Dual-channel operation
Open circuit monitoring
Monitoring of shorts across
contacts
Fig.: Driven via PNOZ m1p

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 10
Driven via PSSuniversal
USB
Dev
I/OSB
Usb
USB
D-
D+
GND
5
3
2
0
3
6
9
x1
0
3
6
9
x10
SB ADDRESS
SafetyBUS p
21
0V
Err
11
24V
24V
5V
22
0V
23
24V
24
C
14
C
13
24V
12
0V
PSSu BS
1/8S
Err
11
14
21
24
21
I1
12
T0
13
T1
14
I2
24
I3
23
T1
11
I0
22
T0
-A1 PSSu E F 4DI
312 200
Err
11
14
21
24
21
O1
12
0V
13
(C)
14
O2
24
O3
23
(C)
11
O0
22
0V
FS0
FS2
FS1
FS3
-A1 PSSu E F 4DO 0.5
312 210
PSSu BP
1/8S
11 21
2212
13 23
2414
PSSu BP
1/8S
11 21
2212
13 23
2414
T0 T0 T1 T1
Periphery
Supply
Periphery
Supply
-A1
PSSu E F 4DI Fail-safe 24 V DC Part 1 of 2
12
+24V
22
+24V
13
+24V
23
+24V
-A1
Digital Input Part 2 of 2
24
I3
14
I2
11
I0
21
I1
PSSu E F 4DO 0.5
-A1
11
O0
12
0V
-A1
312 010
X1
-A1
312 190
2111
22
13 23
14 24
12
-H1
24VDC A1
A2
B1
B2
+24V
0V
+24V Periph.Supply
0V Periph.Supply
+24V Module Supply
0V Module Supply
PSSu A ET
End bracket
Terminating plate
PSSu A EC
C-rail supply
PIT si1.2
Dual-channel operation
Open circuit monitoring
Monitoring of shorts across
contacts
Fig.: Driven via PSSu H SB with PSSu E F PS, PSSu E F 4DI and PSSu E F 4DO 0.5
Dimensions
Fig.: Dimensions

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 11
Technical details
General
Certifications CE, TÜV, UKCA, cULus Listed
Self-monitored yes
Lamp
Kind Bulb
Type BA15d, 24 V DC, 7W
Electrical life 1,000 hours
Electrical data
Supply voltage
Voltage 24 V
Kind DC
Voltage tolerance -15 %/+15 %
Output of external power supply (DC) 7 W
Residual ripple DC 5 %
Duty cycle 100 %
Semiconductor outputs
Number 2
Current 100 mA
Short circuit-proof yes
Relay outputs
External contact fuse protection, safety contacts
Blow-out fuse, quick 0,5 A
Times
Reaction time
In operation and with broken bulb filament 1 - 5 ms
When fuse is triggered and with short circuit cur-
rent ≥ 4 A < 300 ms
Environmental data
Ambient temperature
Temperature range 0 - 50 °C
Storage temperature
Temperature range -25 - 50 °C
EMC EN 61000-6-2
Protection type
Housing IP65
Mechanical data
Cable diameter 5 - 8 mm
Cable gland ISO 20 mm
Mounting position vertical
Material
Cover PC
Bottom ABS
Connection type Screw terminal

PIT si1.2
Operating Manual PIT si1.2
21039-EN-05 | 12
Mechanical data
Torque setting with screw terminals 0,5 - 0,6 Nm
Dimensions
Height 138,5 mm
Diameter of pushbutton 100 mm
Weight 218 g
Where standards are undated, the 2013-04 latest editions shall apply.
Order reference
Product type Features Order no.
PIT si1.2 muting lamp self
monitoring
Signal lamp for muting mode with self monitoring 620020

We are represented internationally. Please refer to our homepage www.pilz.com
for further details or contact our headquarters.
Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: [phone], Telefax: [phone], E-Mail: [email protected], Internet: www.pilz.com
CECE®, CHRE®, CMSE®, InduraNET p®, Leansafe®, Master of Safety®, Master of Security®, PAS4000®, PAScal®, PASconfig®, Pilz®, PIT®, PLID®, PMCprimo®, PMCprotego®, PMCtendo®,
PMD®, PMI®, PNOZ®, PRBT®, PRCM®, Primo®, PRTM®, PSEN®, PSS®, PVIS®, SafetyBUS p®, SafetyEYE®, SafetyNET p®, THE SPIRIT OF SAFETY®are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries. We would point out that product features may vary from the details stated in this document, depending on the status at the time of publication and the scope of the equipment. We accept no responsibility for the validity, accuracy and entirety of the text and graphics presented in this information. Please contact our Technical Support if you have any questions.
1800XXXX-en-0X, 2021-01 Printed in Germany
© Pilz GmbH & Co. KG, 2021
Support
Technical support is available from Pilz round the clock.
Pilz develops environmentally-friendly products using
ecological materials and energy-saving technologies.
Oces and production facilities are ecologically designed,
environmentally-aware and energy-saving. So Pilz oers
sustainability, plus the security of using energy-ecient
products and environmentally-friendly solutions.
Americas
Brazil
[phone]
Canada
[phone]
Mexico
[phone]
USA (toll-free)
+1 877-PILZUSA (745-9872)
Asia
China
[phone]
Japan
[phone]
South Korea
[phone]
Australia and Oceania
Australia
[phone]
New Zealand
[phone]
Europe
Austria
[phone]
Belgium, Luxembourg
[phone]
France
[phone]
Germany
[phone]
Ireland
[phone]
Italy, Malta
[phone]
Scandinavia
[phone]
Spain
[phone]
Switzerland
[phone]
The Netherlands
[phone]
Turkey
[phone]
United Kingdom
[phone]
You can reach our
international hotline on:
[phone]
suppor[email protected]
Back cover
21039-EN-05, 2023-03 Printed in Germany © Pilz GmbH & Co. KG, 2019
