Pilz PNOZ ms2p TTL User manual

PNOZ ms2p TTL
Operating Manual-1001722-EN-03
}Configurable safety systems PNOZmulti

Preface
This document is a translation of the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for internal purposes. Suggestions and comments for improving this documentation will be
gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PNOZ ms2p TTL
1001722-EN-03 3
Section 1 Introduction 5
1.1 Validity of documentation 5
1.2 Using the documentation 5
1.3 Definition of symbols 5
Section 2 Overview 7
2.1 Scope 7
2.2 Unit features 7
2.3 Front view 8
Section 3 Safety 9
3.1 Intended use 9
3.2 System requirements 10
3.3 Safety regulations 11
3.3.1 Safety assessment 11
3.3.2 Use of qualified personnel 11
3.3.3 Warranty and liability 11
3.3.4 Disposal 11
3.3.5 For your safety 12
Section 4 Function description 13
4.1 Integrated protection mechanisms 13
4.2 Operation 13

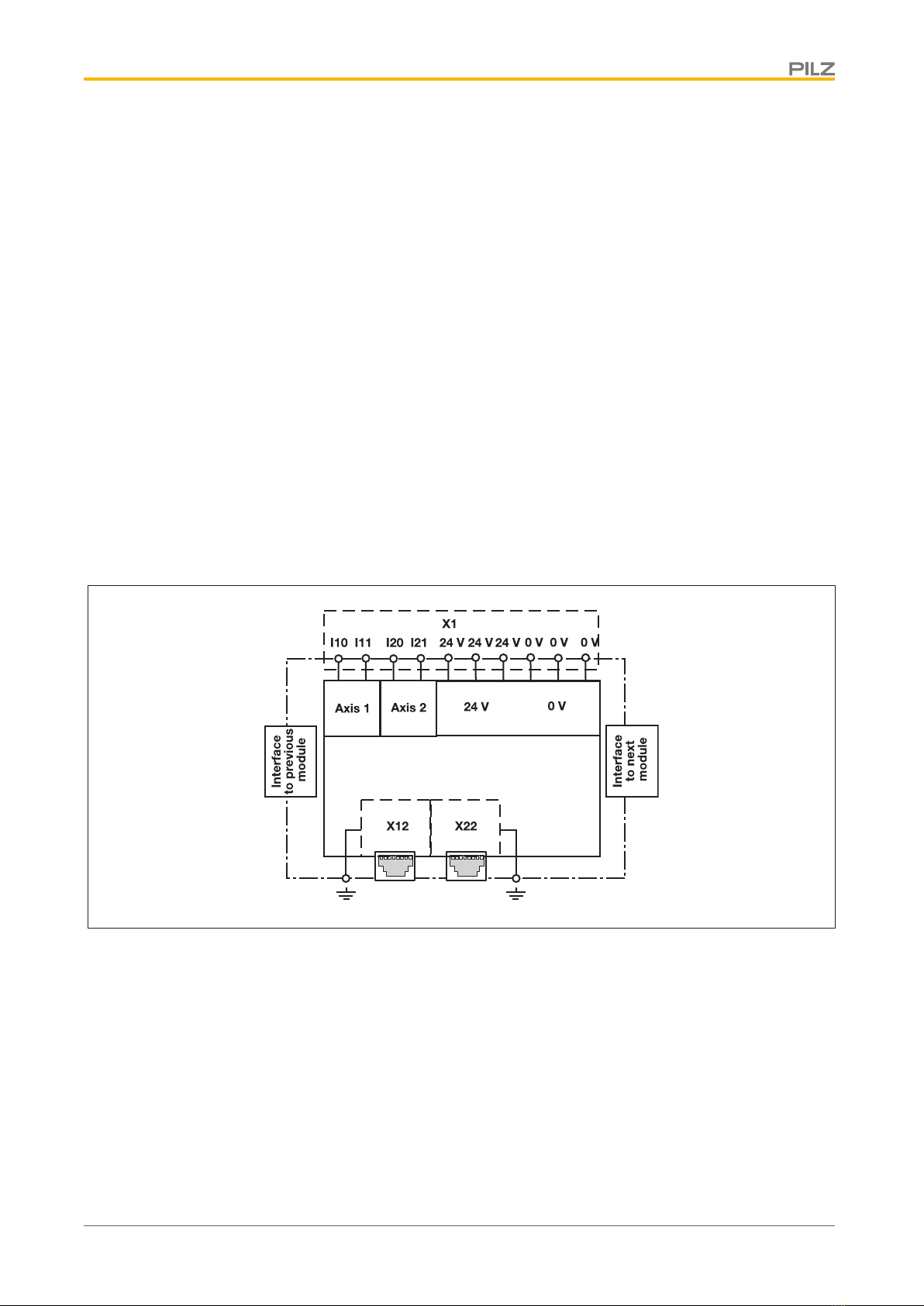

4.3 Block diagram 13
4.4 Input device types 14
4.4.1 Proximity switch 14
4.4.1.1 Requirements of the proximity switches 14
4.4.2 Incremental encoders 14
4.4.2.1 Requirements of the incremental encoders 14
4.4.2.2 Adapter for incremental encoders 15
4.4.3 Incremental encoder and proximity switch on one axis 15
Section 5 Installation 16
5.1 General installation guidelines 16
5.2 Dimensions 16
5.3 Connecting the base unit and expansion modules 17
Section 6 Commissioning 18
6.1 General wiring guidelines 18

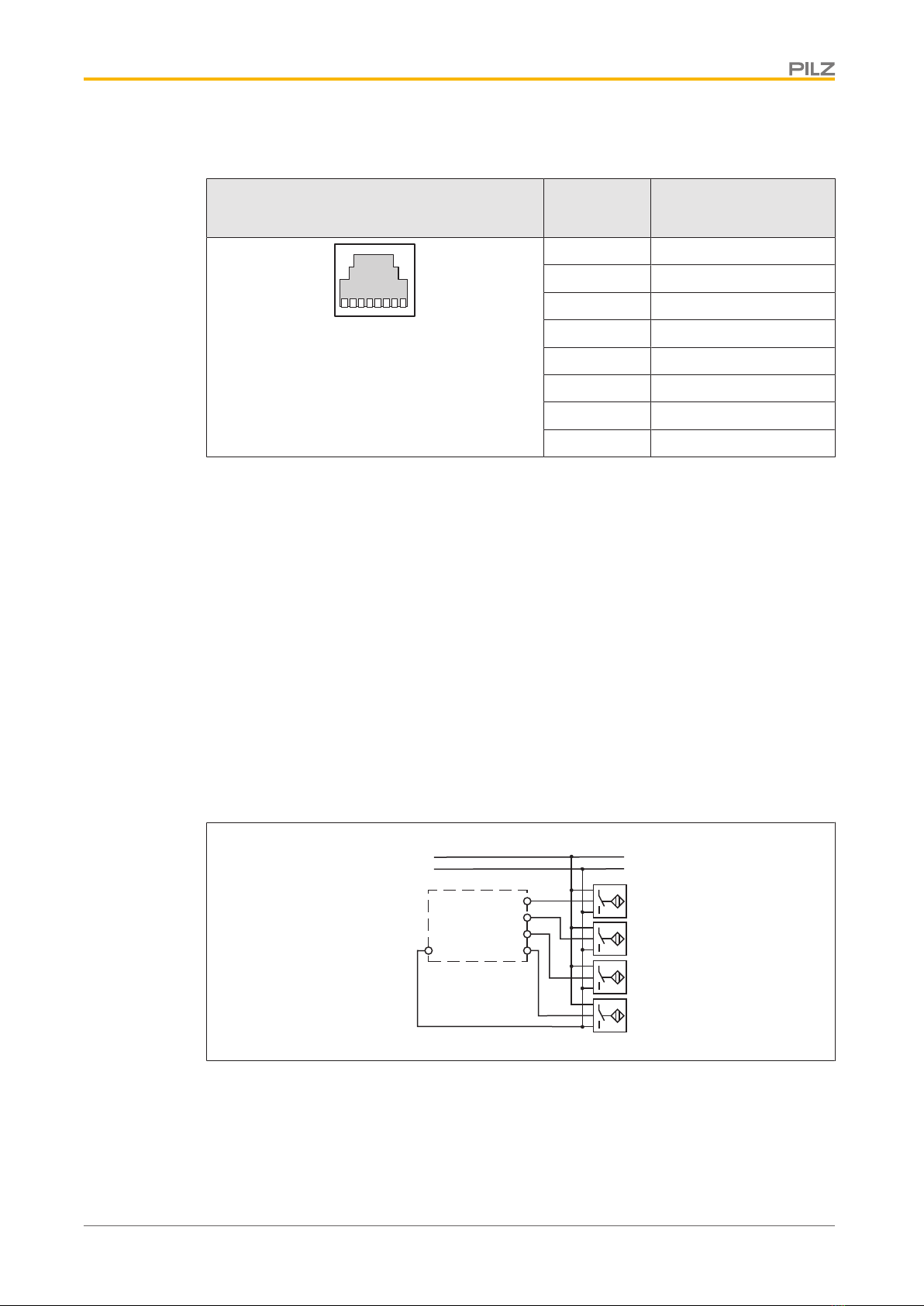

6.2 Pin assignment of RJ45 socket 19
6.3 Connection of proximity switches 19
6.4 Connection of the incremental encoder 20
6.4.1 Connect signals of the incremental encoder to the speed monitor 20
6.4.2 Connect incremental encoder to the speed monitor via an adapter 20
6.5 Connection of proximity switches and incremental encoder 22
6.5.1 Proximity switch and incremental encoder on various axes 22
6.5.2 Proximity switch and incremental encoder on one axis 23

Contents
Operating Manual PNOZ ms2p TTL
1001722-EN-03 4
6.6 Connection examples 24
6.6.1 Connection of 2 proximity switches and an incremental encoder 24
6.6.2 Connection of 4 proximity switches 25
6.6.3 Connection of an incremental encoder and proximity switch on an axis 26
Section 7 Operation 27
7.1 LED indicators 27
7.2 Signal statuses 28
7.3 Faults - malfunctions 28
Section 8 Technical details 29
8.1 Safety characteristic data 31
Section 9 Order reference 33
9.1 Product 33
9.2 Accessories 33
Section 10 Application Examples 34

Introduction
Operating Manual PNOZ ms2p TTL
1001722-EN-03 5
1 Introduction
1.1 Validity of documentation
This documentation is valid for the product PNOZ ms2p TTL (Coated Version). It is valid
until new documentation is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
1.2 Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
1.3 Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

Introduction
Operating Manual PNOZ ms2p TTL
1001722-EN-03 6
INFORMATION
This gives advice on applications and provides information on special fea-
tures.

Overview
Operating Manual PNOZ ms2p TTL
1001722-EN-03 7
2 Overview
2.1 Scope
}Expansion module PNOZ ms2p TTL (Coated Version)
}Jumper
2.2 Unit features
Using the product PNOZ ms2p TTL (Coated Version):
Speed monitor for connection to a base unit from the configurable control system
PNOZmulti
The product has the following features:
}Monitoring of 2 independent axes
}Connection per axis
– 1 incremental encoder
or
– 2 proximity switches
or
– 1 incremental encoder and 1 proximity switch
}Measured variables:
– Standstill
– Speed (8 values can be set)
– Direction of rotation
}Axis types, input device types and start mode can be selected in the PNOZmulti Config-
urator
}Status indicators for
– Supply voltage
– Incremental encoder
– Proximity switch
– Axis status, standstill and excess speed
– Faults on the system
}Proximity switch connection technology: Plug-in connection terminals (either cage
clamp terminal or screw terminal)
}Incremental encoder connection technology:
RJ45 female connector
}Galvanic isolation between the connections X1, X12 and X22
}Max. 4 speed monitors can be connected to the base unit
}Coated version:
Increased environmental requirements (see Technical details [ 29])

Overview
Operating Manual PNOZ ms2p TTL
1001722-EN-03 8

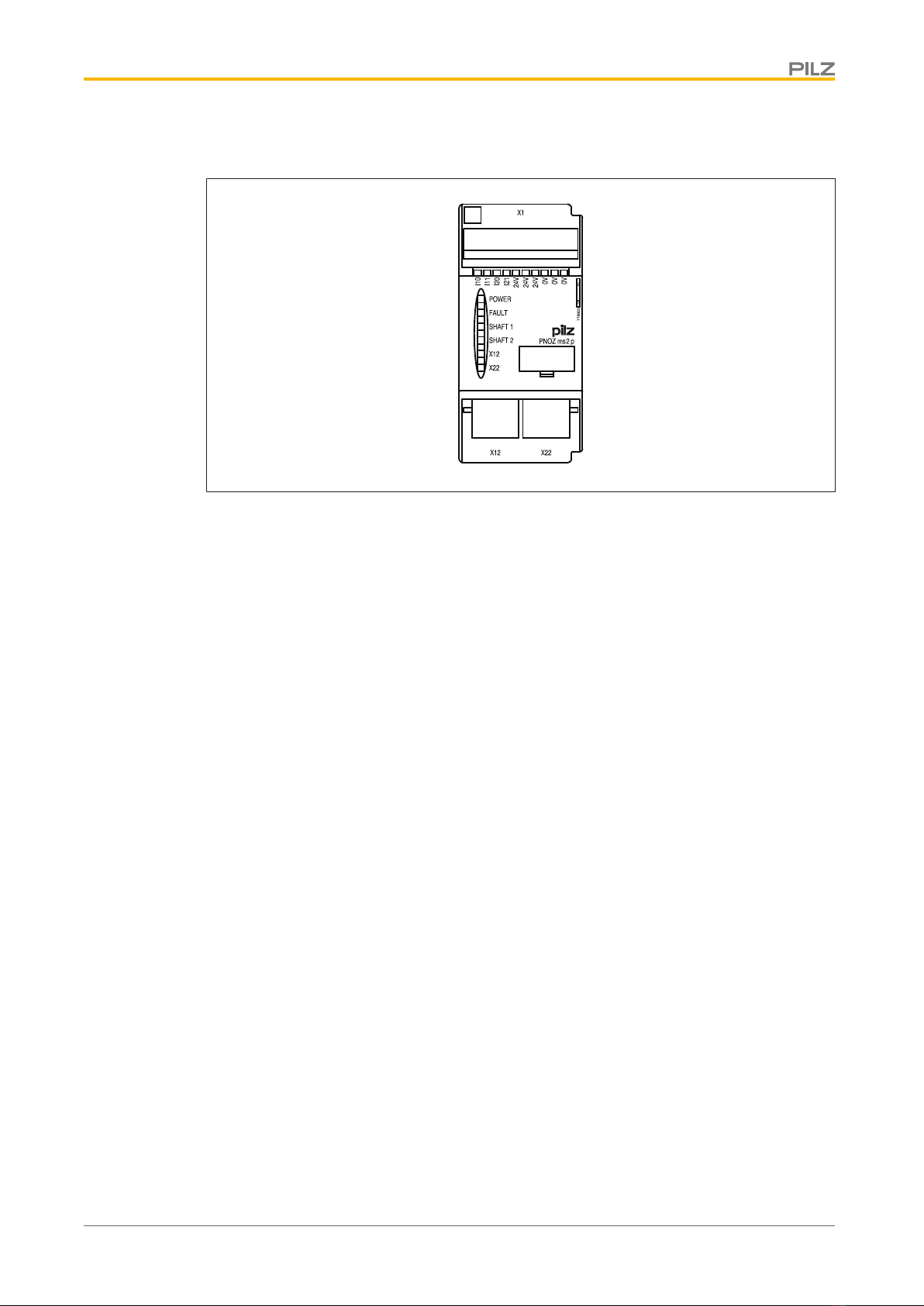

2.3 Front view
Key:
}X1:
– I10, I11:
connection terminals for proximity switch at axis1
– I20, I21:
connection terminals for proximity switch at axis2
– 0 V, 24 V:
supply connections
}X12:
– female connector for the connection of an incremental encoder at axis1
}X22:
– female connector for the connection of an incremental encoder at axis2
}LEDs:
– POWER
– FAULT
– SHAFT 1
– SHAFT 2
– X12
– X22

Safety
Operating Manual PNOZ ms2p TTL
1001722-EN-03 9
3 Safety
3.1 Intended use
The expansion module monitors standstill, speed and direction of rotation in accordance
with EN ISO 13849-1 up to PL e and EN IEC 62061 up to SIL CL 3.
The expansion module may only be connected to a base unit from the PNOZmulti system
(please refer to the document "PNOZmulti System Expansion" for details of the base units
that can be connected).
The configurable small control systems PNOZmulti are used for the safety-related interrup-
tion of safety circuits and are designed for use in:
}E-STOP equipment
}Safety circuits in accordance with VDE0113 Part 1 and EN60204-1
WARNING!
Users must take appropriate measures to detect or exclude errors (e.g. slip-
page or broken shearpin) which cause the frequency of the encoder signal
to no longer be proportional to the monitored speed.
Appropriate measures are:
– Using the monitored encoder to also control the drive
– Mechanical solutions
– Monitoring for broken shearpin by means of the speed monitor
WARNING!
A single-channel open circuit/input device error is recognised and leads to a
safe condition of the outputs at the relevant axis.
For applications in accordance with PL e and SIL CL 3, the "Overspeed"
output must be integrated into the safety function in every operating mode
and evaluated so that a shutdown occurs if the output switches to a safe
condition ("Overspeed" output = "0").

Safety
Operating Manual PNOZ ms2p TTL
1001722-EN-03 10
CAUTION!
If there are frequency differences between tracks A and B of the incre-
mental encoder and/or between the proximity switches on inputs I10 (I20)
and I11 (I21), the PNOZmulti switches to a safe state if a frequency ex-
ceeds the configured standstill frequency and is greater than 2 Hz. If the
speed monitor detects different directions of rotation, please note:
– With version 1.X devices the PNOZmulti changes to STOP.
– With devices from version 2.0, the axis in question switches to a safe
condition. The safe condition is cleared again as soon as the error is
remedied. Hazards that can arise through an automatic restart must
be excluded within the user program.
The coated version of the product PNOZ ms2p TTL (Coated Version) is suitable for use
where there are increased environmental requirements (see Technical details [ 29]).
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see Technical details [ 29]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.
3.2 System requirements
Please refer to the "Product Modifications PNOZmulti" document in the "Version overview"
section for details of which versions of the base unit and PNOZmulti Configurator can be
used for this product.
