OPERATING MANUAL PSEN op4F/H-A series
1 GENERAL INFORMATION
1.1 General description
1.1.1 General description of the safety light curtain
The safety light curtains in the PSEN op4F/H-A series are multibeam active optoelectronic
protective devices for work areas in which machines, robots and automated plants in general
could endanger the physical integrity of operators who could come into contact with moving
parts, even if only by chance.
Light curtains in the PSEN op4F/H-A series are designed as inherently safe Type 4 systems
for accident prevention in accordance with applicable international safety standards, in
particular the following:
IEC 61496-1:2004 Safety of machinery: Electrosensitive protective equipment. Part 1:
General requirements and tests.
IEC 61496-2: 2006 Safety of machinery: Electrosensitive protective equipment –
Particular requirements for equipment using active optoelectronic protective devices.
A light curtain pair consists of a transmitter and a receiver. They produce an infrared
protected field, which is able to detect an opaque object within the specific resolution. Both
the transmitter and the receiver have control and monitoring functions. The connections are
made via an M12 connector, which is located in the lower profile area. The transmitter and
receiver are synchronised optically, so the two units do not have to be connected directly to
each other. The infrared beams that are transmitted and received are controlled and
monitored via a microprocessor, which provides the user with information about the operating
state of the light curtain via LED indicators (see Chapter 8).
A light curtain pair consists of 2 units, which may comprise one or more transmitter and
receiver modules, depending on the respective model. The receiver is the main control unit
for all functions. If an error occurs, it checks all the safety actions and decides on the
measures that are to be implemented in terms of safety, as well as performing other general
functions.
During the installation phase the user interface makes it easier to align the two units (see
Chapter 5).
As soon as the beams emitted from the transmitter are interrupted by an object, a limb or the
body of an operator, both output signal switching devices (OSSD) are opened immediately.
This controls the stopping of the corresponding machine, which is connected to the OSSD.
Some parts or paragraphs of this manual, which are of particular importance to the user or
installation engineer, are highlighted as follows:
The information contained in paragraphs marked by this symbol is
particularly r
elevant to safety and is important for accident
prevention.
This information must be read with particular attention and must be
strictly observed.
1003067-EN-04
5

OPERATING MANUAL PSEN op4F/H-A series
This manual contains all the information you need to select and operate the protective
devices.
Specialised knowledge of safety issues is required to integrate a safety light curtain correctly
in a plant.
PILZ’s technical customer service team is available to provide any information you need
regarding the functionality of the PSEN op4F/H-A safety light curtains and the safety
regulations concerning correct installation.
1.1.2 Package content
The following components are included:
•Receiver (RX)
•Transmitter (TX)

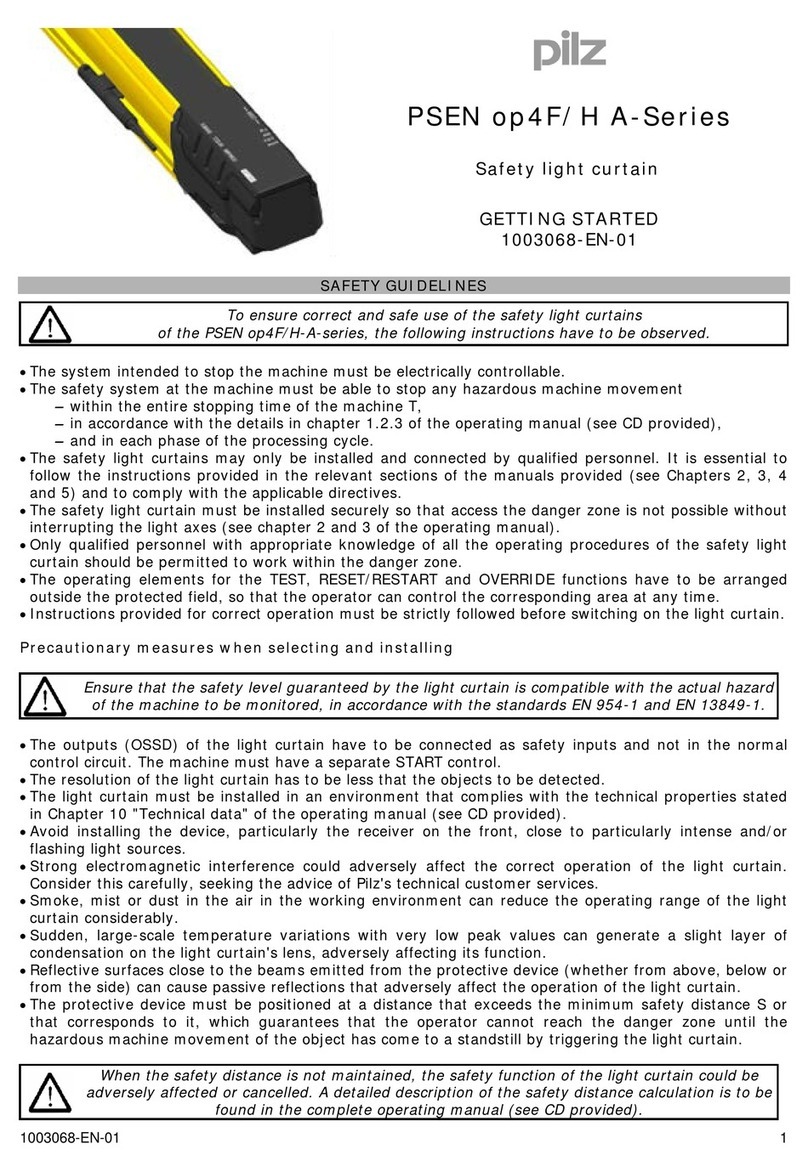

•Shortform for installing the safety light curtains in the PSEN op4F/H-A series
•CD with operating manual and other documents
•4 fastening brackets and corresponding mounting accessories
•2 fastening brackets for models with a height between 1200 and 1800 mm
6
1003067-EN-04

OPERATING MANUAL PSEN op4F/H-A series
1.2Guidelines for selecting the protective device
Once the hazards have been assessed appropriately, there are at least three essential
features to consider when selecting a safety light curtain:
1.2.1 Resolution
The device’s resolution is understood to be the minimum size that an opaque object must be
to safely interrupt at least one of the beams that form the area of the protected field.
The resolution is closely linked to the part of the body that requires protection.
R = 14 mm Finger protection
Type 4
R = 30 mm Hand protection
Type 4
As shown in Fig. 1, the resolution depends solely on the geometric properties of the lenses,
the diameter and the distance and so is unaffected by the light curtain’s ambient and
operating conditions.

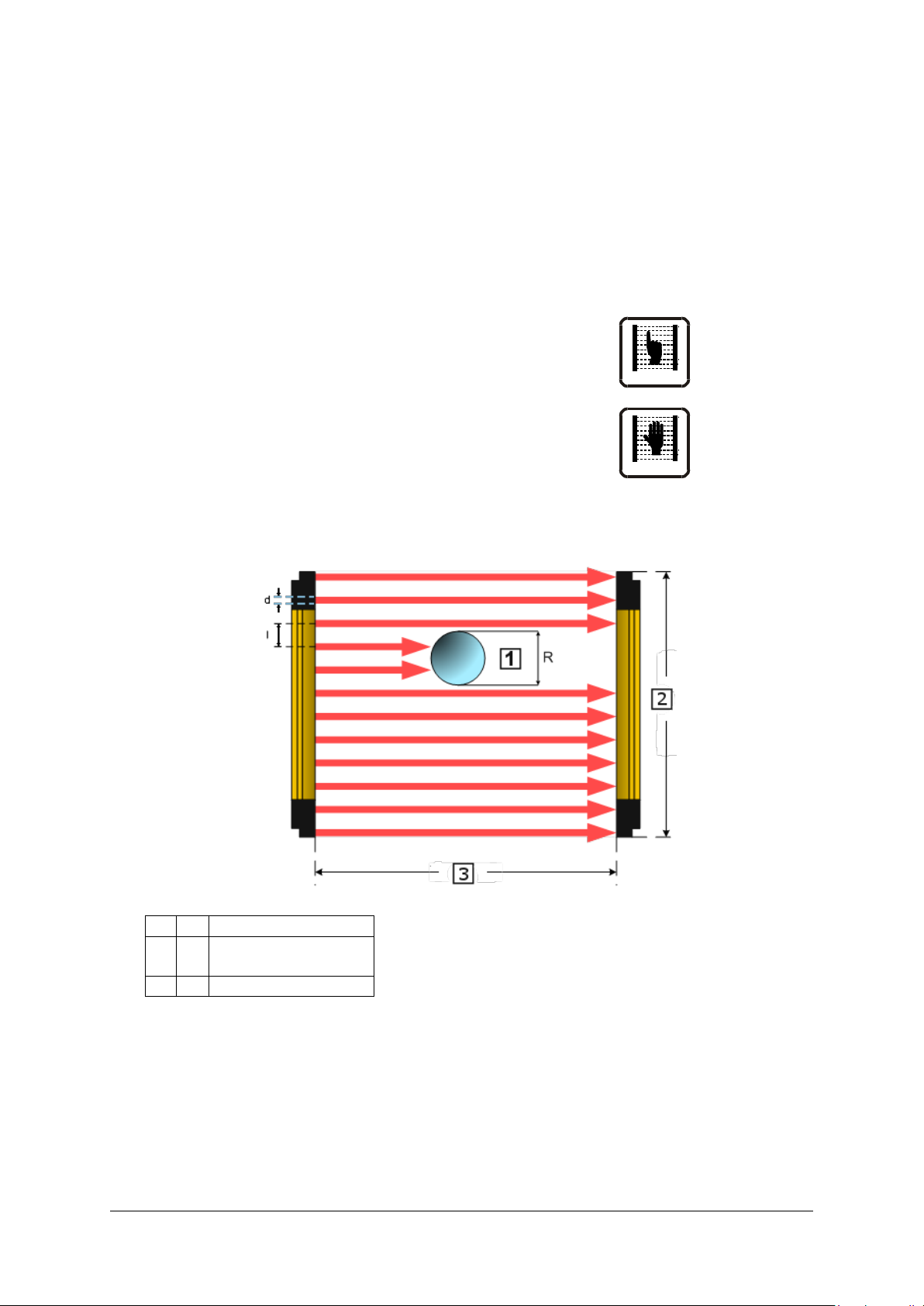

Fig. 1– Resolution
1
=
Opaque object
2
=
Height of protected
field
3
=
Operating range
The resolution value can be calculated using the following formula:
R = I + d
where:
I = Distance between two adjacent lenses
d = Lens diameter
1003067-EN-04
7

OPERATING MANUAL PSEN op4F/H-A series
1.2.2 Height of protected field
The height of the protected field is understood to be the height protected by the safety light
curtain.

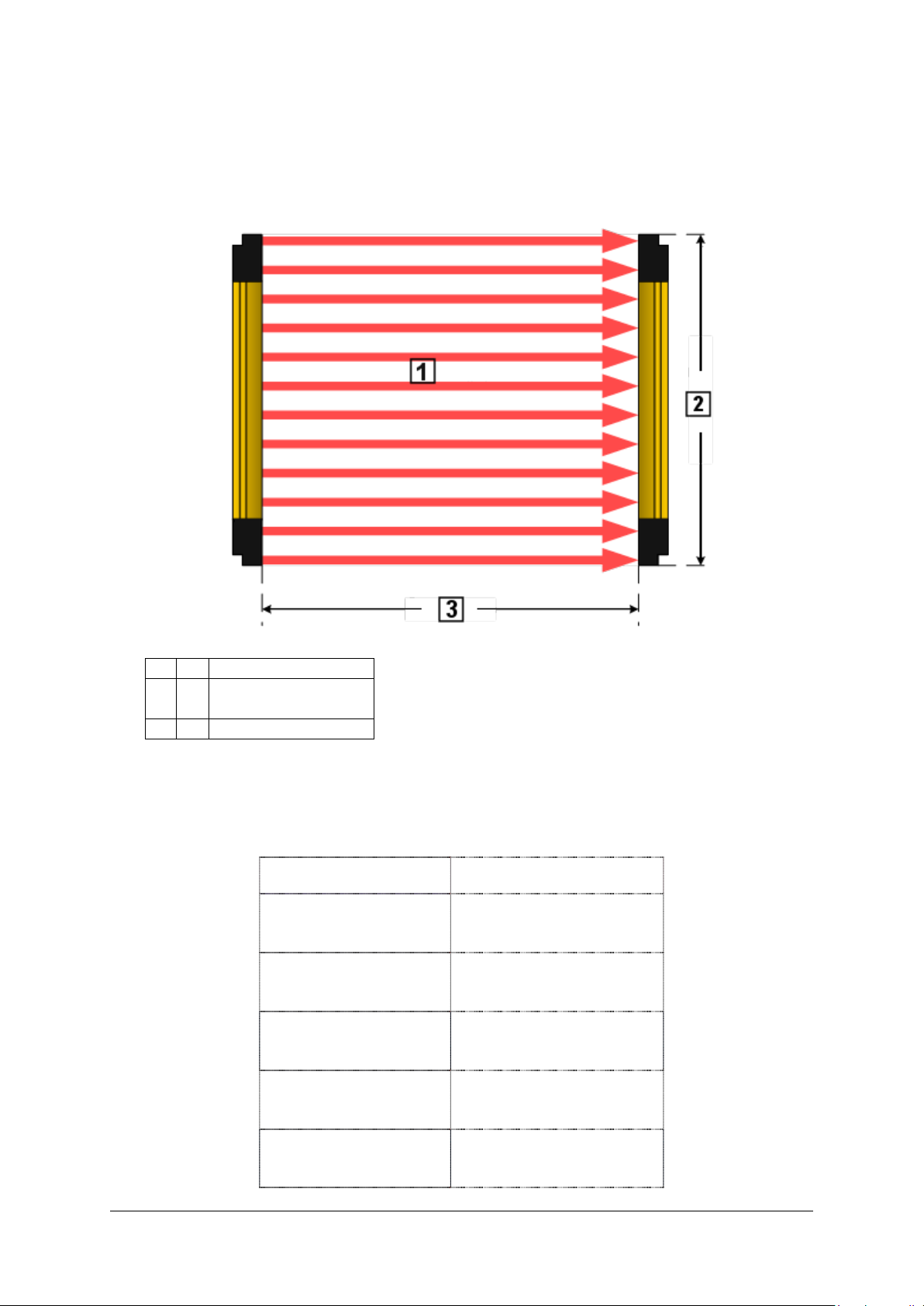

Fig. 2 – Height of protected field
1
=
Protected field
2
=
Height of protected
field
3
=
Operating range
The height monitored by the PSEN op4F/H-A corresponds to the overall height of the light
curtain.
With reference to the previous diagram, the height of the protected field can be taken from
the table below.
Model
Height of protected field
(mm)
PSEN op4F-A-14-030/1
PSEN op4H-A-30-030/1 300
PSEN op4F-A-14-045/1
PSEN op4H-A-30-045/1 450
PSEN op4F-A-14-060/1
PSEN op4H-A-30-060/1 600
PSEN op4F-A-14-075/1
PSEN op4H-A-30-075/1 750
PSEN op4F-A-14-090/1
PSEN op4H-A-30-090/1 900
8
1003067-EN-04

OPERATING MANUAL PSEN op4F/H-A series
PSEN op4F-A-14-105/1
PSEN op4H-A-30-105/1 1050
PSEN op4F-A-14-120/1
PSEN op4H-A-30-120/1 1200
PSEN op4F-A-14-135/1
PSEN op4H-A-30-135/1 1350
PSEN op4F-A-14-150/1
PSEN op4H-A-30-150/1 1500
PSEN op4F-A-14-165/1
PSEN op4H-A-30-165/1 1650
PSEN op4F-A-14-180/1
PSEN op4H-A-30-180/1 1800

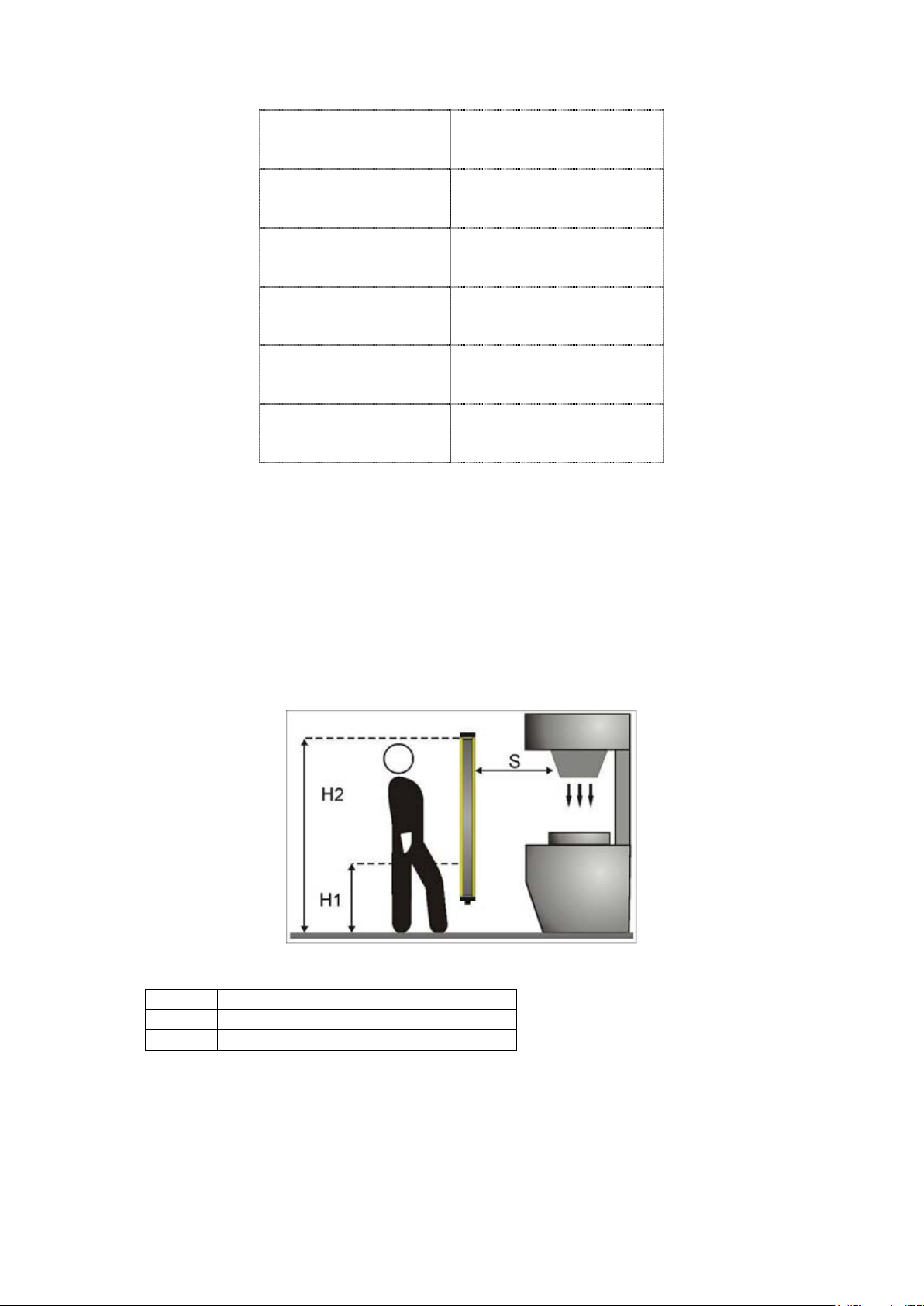

1.2.3 Minimum safety distance
The protective device must be positioned at a specific safety distance (Fig. 3), which
guarantees that the operator cannot reach the danger zone until the hazardous machine
movement has come to a standstill by triggering the light curtain.
In accordance with the standard ISO 13855, this distance depends on 4 factors:
•Response time of the light curtain (the time that elapses between the beams being
effectively interrupted and the OSSD contacts opening).
•Machine’s stopping performance (time that elapses between the light curtain contacts
opening and the hazardous machine movement effectively stopping).
•Light curtain’s resolution
•Approach speed of the object to be detected.
Fig. 3 – Safety distance (vertical)
H1
=
≥900 mm at a resolution > 40 mm
H2
=
≤300 mm at a resolution > 40 mm
S
=
Minimum safety distance in mm
1003067-EN-04
9

OPERATING MANUAL PSEN op4F/H-A series
The safety distance is calculated using the following formula:
S = K (t1 + t2) + C
Therefore:
S
Minimum safety distance in mm
K
Speed of the object (limb or body) approaching the danger zone in mm/s
t1
Light curtain’s response time in seconds (see Chapter 11)
t2
Machine’s stopping performance in seconds
C
Additional distance based on the possibility of placing the body or limb into the danger
zone before the protective device responds
C
8 (d -14) for devices with a resolution ≤ 40 mm
C
850 mm for devices with a resolution > 40 mm
d
Device’s resolution
Note:
The value K corresponds to:
•2000 mm/s, if the calculated value S is ≤ 500 mm
•1600 mm/s, if the calculated value S is > 500 mm
When using light curtains with a resolution of > 40 mm, the upper beam must be positioned
at a height of ≥ 900 mm (H2) from the supporting base, while the lower beam must be
positioned at a height of ≤ 300 mm (H1).
Where the light curtain must be installed horizontally (Fig. 4), the distance between the
danger zone and the most distant optical beam must correspond to the value calculated
using the following formula:
S = 1600 mm/s (t1 + t2) + 1200 – 0.4 H
Therefore:
S
Minimum safety distance in mm
t1
Light curtain’s response time in seconds (see Chapter 11)
t2
Machine’s stopping performance in seconds
H
Height of the beams above the floor. This height must always be less than 1000 mm.

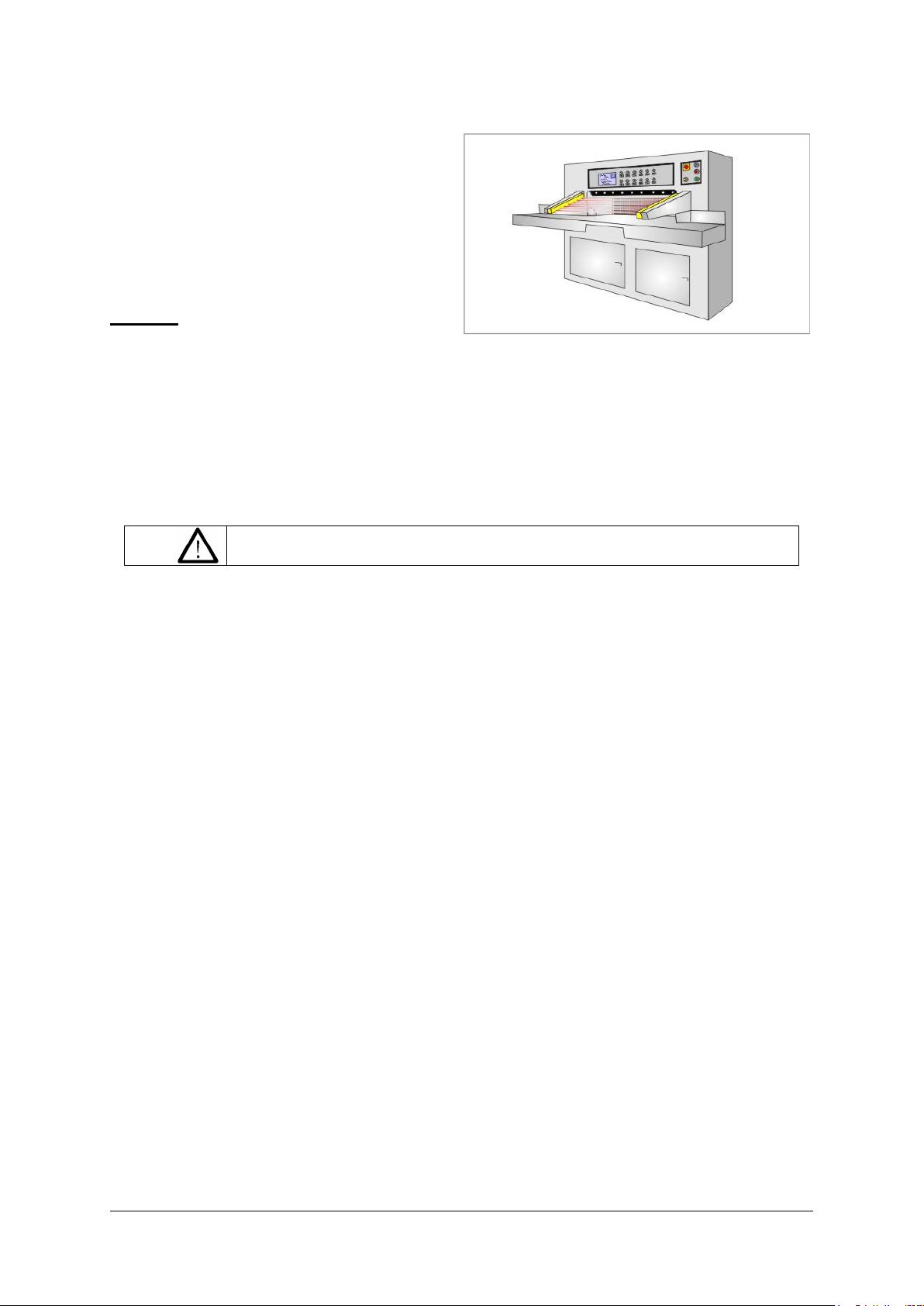

Fig. 4 – Safety distance (horizontal)
10
1003067-EN-04
