Pilz PNOZ mi1p User manual

PNOZ mi1p
Operating Manual 20880-EN-06
}Configurable safety systems PNOZmulti

Preface
This document is a translation of the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for internal purposes. Suggestions and comments for improving this documentation will be
gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital

Contents
Operating Manual PNOZ mi1p
20880-EN-06 3
Section 1 Introduction 4
1.1 Validity of documentation 4
1.2 Using the documentation 4
1.3 Definition of symbols 4
Section 2 Overview 6
2.1 Scope 6
2.2 Unit features 6
2.3 Front view 7
Section 3 Safety 8
3.1 Intended use 8
3.2 System requirements 8
3.3 Safety regulations 8
3.3.1 Safety assessment 8
3.3.2 Use of qualified personnel 9
3.3.3 Warranty and liability 9
3.3.4 Disposal 9
3.3.5 For your safety 9
Section 4 Function description 10
4.1 Integrated protection mechanisms 10
4.2 Functions 10
4.3 System reaction time 10
4.4 Block diagram 10
Section 5 Installation 11
5.1 General installation guidelines 11
5.2 Dimensions in mm 11
5.3 Connecting the base unit and expansion modules 12
Section 6 Commissioning 13
6.1 General wiring guidelines 13
6.2 Preparing for operation 13
6.3 Connection 13
6.4 Connection example 14
6.5 Download modified project to the PNOZmulti system 14
Section 7 Operation 15
7.1 Messages 15
Section 8 Technical details 16
8.1 Safety characteristic data 18
Section 9 Order reference 20
9.1 Product 20
9.2 Accessories 20

Introduction
Operating Manual PNOZ mi1p
20880-EN-06 4
1 Introduction
1.1 Validity of documentation
This documentation is valid for the product PNOZ mi1p from Version 4.0 .
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
1.2 Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
1.3 Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.

Introduction
Operating Manual PNOZ mi1p
20880-EN-06 5
INFORMATION
This gives advice on applications and provides information on special fea-
tures.

Overview
Operating Manual PNOZ mi1p
20880-EN-06 6
2 Overview
2.1 Scope
}Expansion module PNOZ mi1p
}Jumper
2.2 Unit features
The product has the following features:
}8 inputs for connecting:
– E-STOP pushbuttons
– Two-hand button
– Safety gate limit switches
– Start buttons
– Light beam devices
– Scanners
– Enabling switches
– PSEN
– Operating mode selector switches
}Can be configured in the PNOZmulti Configurator
}LED indicator for:
– Status of PNOZmulti
}Max. 8 PNOZ mi1p units can be connected to the base unit
}Test pulse outputs used to monitor shorts across the inputs
}Plug-in connection terminals (either cage clamp terminal or screw terminal)
}Coated version:
Increased environmental requirements (see Technical details [ 16])

Overview
Operating Manual PNOZ mi1p
20880-EN-06 7
2.3 Front view
773400
Legend:
}Inputs I0 – I7

Safety
Operating Manual PNOZ mi1p
20880-EN-06 8
3 Safety
3.1 Intended use
The expansion module may only be connected to a base unit from the PNOZmulti system
(please refer to the document "PNOZmulti System Expansion" for details of the base units
that can be connected).
The configurable small control systems PNOZmulti are used for the safety-related interrup-
tion of safety circuits and are designed for use in:
}E-STOP equipment
}Safety circuits in accordance with VDE0113 Part 1 and EN60204-1
The coated version of the product PNOZ mi1p is suitable for use where there are increased
environmental requirements (see Technical details [ 16]).
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see Technical details [ 16]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.
3.2 System requirements
Please refer to the "Product Modifications PNOZmulti" document in the "Version overview"
section for details of which versions of the base unit and PNOZmulti Configurator can be
used for this product.
3.3 Safety regulations
3.3.1 Safety assessment
Before using a unit it is necessary to perform a safety assessment in accordance with the
Machinery Directive.
Functional safety is guaranteed for the product as a single component. However, this does
not guarantee the functional safety of the overall plant/machine. In order to achieve the re-
quired safety level for the overall plant/machine, define the safety requirements for the
plant/machine and then define how these must be implemented from a technical and organ-
isational standpoint.

Safety
Operating Manual PNOZ mi1p
20880-EN-06 9
3.3.2 Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is someone who, because of their training, experience and current pro-
fessional activity, has the specialist knowledge required to test, assess and operate the
work equipment, devices, systems, plant and machinery in accordance with the general
standards and guidelines for safety technology.
It is the company’s responsibility only to employ personnel who:
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion
}Have read and understood the information provided in this description under "Safety"
}And have a good knowledge of the generic and specialist standards applicable to the
specific application.
3.3.3 Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended
}Damage can be attributed to not having followed the guidelines in the manual
}Operating personnel are not suitably qualified
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
3.3.4 Disposal
}In safety-related applications, please comply with the mission time TM in the safety-re-
lated characteristic data.
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).
3.3.5 For your safety
The unit meets all the necessary conditions for safe operation. However, you should always
ensure that the following safety requirements are met:
}This operating manual only describes the basic functions of the unit. The expanded
functions are described in the PNOZmulti Configurator's online help. Only use these
functions once you have read and understood the documentations.
}Do not open the housing or make any unauthorised modifications.
}Please make sure you shut down the supply voltage when performing maintenance
work (e.g. exchanging contactors).

Function description
Operating Manual PNOZ mi1p
20880-EN-06 10
4 Function description
4.1 Integrated protection mechanisms
The relay conforms to the following safety criteria:
}The circuit is redundant with built-in self-monitoring.
}The safety function remains effective in the case of a component failure.
4.2 Functions
The expansion module provides additional inputs.
The function of the inputs on the safety system depends on the safety circuit created using
the PNOZmulti Configurator. A chip card is used to download the safety circuit to the base
unit. The base unit has 2 microcontrollers that monitor each other. They evaluate the input
circuits on the base unit and expansion modules and switch the outputs on the base unit
and expansion modules accordingly.
The online help on the PNOZmulti Configurator contains descriptions of the operating
modes and all the functions of the PNOZmulti safety system, plus connection examples.
4.3 System reaction time
Calculation of the maximum reaction time between an input switching off and a linked out-
put in the system switching off is described in the document "PNOZmulti System Expan-
sion".
4.4 Block diagram
I0 I1
Interface
to previous
module
Interface
to next
module
I2 I3 I4 I5 I6 I7
Input

Installation
Operating Manual PNOZ mi1p
20880-EN-06 11
5 Installation
5.1 General installation guidelines
}The control system should be installed in a control cabinet with a protection type of at
least IP54. Fit the control system to a horizontal mounting rail. The venting slots must
face upward and downward. Other mounting positions could destroy the control system.
}Use the notches on the rear of the unit to attach it to a mounting rail. Connect the con-
trol system to the mounting rail in an upright position, so that the earthing springs on the
control system are pressed on to the mounting rail.
}The ambient temperature of the PNOZmulti units in the control cabinet must not exceed
the figure stated in the technical details, otherwise air conditioning will be required.
}To comply with EMC requirements, the mounting rail must have a low impedance con-
nection to the control cabinet housing.
CAUTION!
Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure against discharge
before touching the product, e.g. by touching an earthed, conductive sur-
face or by wearing an earthed armband.

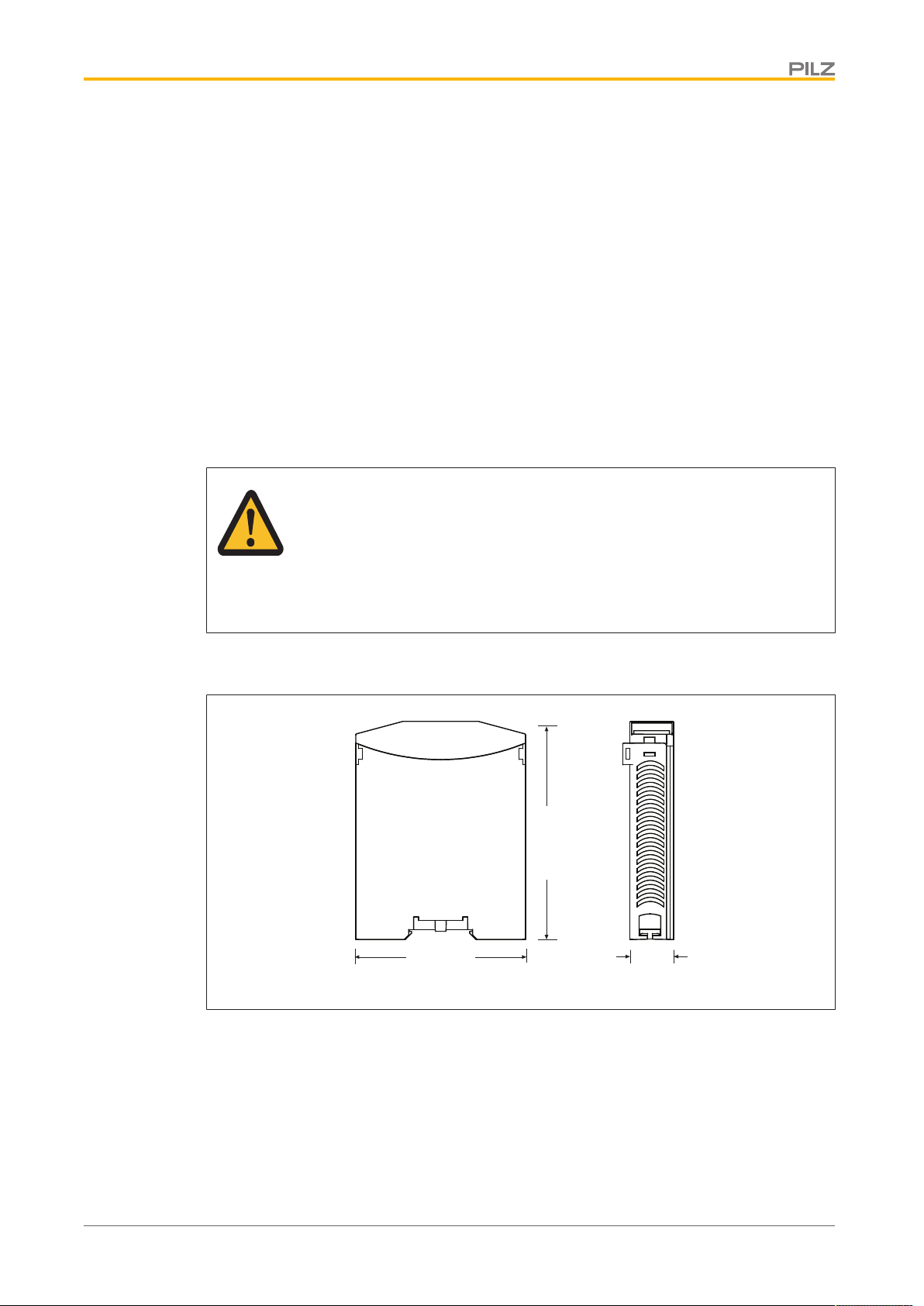

5.2 Dimensions in mm
94 (3.70")
22,5
(0.88")
121 (4.76")

Installation
Operating Manual PNOZ mi1p
20880-EN-06 12
5.3 Connecting the base unit and expansion modules
Connect the base unit and the expansion modules as described in the operating manuals
for the base modules.
}The terminator must be fitted to the last expansion module
}Install the expansion module in the position configured in the PNOZmulti Configurator.
The position of the expansion modules is defined in the PNOZmulti Configurator. The ex-
pansion modules are connected to the left or right of the base unit, depending on the type.
Please refer to the document "PNOZmulti System Expansion" for details of the number of
modules that can be connected to the base unit and the module types.

Commissioning
Operating Manual PNOZ mi1p
20880-EN-06 13
6 Commissioning
6.1 General wiring guidelines
The wiring is defined in the circuit diagram of the PNOZmulti Configurator.
Please note:
}Information given in the Technical details [ 16] must be followed.
}Use copper wire that can withstand 75°C.
}The safety system and input circuits must always be supplied by a single power supply.
The power supply must meet the regulations for extra low voltages with protective sep-
aration.
6.2 Preparing for operation
The N/C contact on the trigger element (e.g. E-STOP) must be connected to the input cir-
cuit. A short circuit in the input circuit may or may not be detected, depending on the config-
uration and wiring. The test pulse outputs on the base unit must be used to detect shorts
across contacts. The input assignment is defined in the PNOZmulti Configurator.
The input circuit should be connected as described in the table. The wiring at I0 and I1 is il-
lustrated as an example; inputs I2 ... 17 are wired in a similar way.
6.3 Connection
Input circuit Single-channel Dual-channel
Example:
E-Stop
without detection of shorts across
contacts
S1
I0 L+
S1
I1
I0 L+
L+
Example:
E-Stop
with detection of shorts across
contacts
I0
T0
S1
S1
T1
I1
T0
I0
Input circuit

Commissioning
Operating Manual PNOZ mi1p
20880-EN-06 14
6.4 Connection example
I0 I1 I2 I3 I4 I5 I6 I7 I8 I9 I10 I11 I12 I13 I14 I15 I16 I17 I18 I19 A1 A1 A2 A2
CI+ CI- CO- CO+ T0 T1 T2 T3 O0 O1 O2 O3 OA0 24V 24V 0V 0V 13 14 23 24
K1
K2
S1
K2
K1
S3
S4
L+
L-
I4 I5 I6 I7
I0 I1 I2 I3
S2
PNOZ m1p
PNOZ mi1p
6.5 Download modified project to the PNOZmulti system
As soon as an additional expansion module has been connected to the system, the project
must be amended using the PNOZmulti Configurator. Proceed as described in the operat-
ing instructions for the base unit.
NOTICE
For the commissioning and after every program change, you must check
whether the safety devices are functioning correctly.

Operation
Operating Manual PNOZ mi1p
20880-EN-06 15
7 Operation
When the supply voltage is switched on, the PNOZmulti safety system copies the configur-
ation from the chip card.
The LEDs “POWER”, “DIAG”, “FAULT”, “IFAULT” and “OFAULT” will light up on the base
unit.
The PNOZmulti safety system is ready for operation when the "POWER" and "RUN" LEDs
on the base unit are lit continuously.
Status indicators:
}I0 ... I7 lights: Safety input I0 ... I7 carries a high signal.
}I0 ... I7 does not light: Safety input I0 ... I7 carries a low signal.
7.1 Messages
Legend
LED on
LED flashes
LED off
Base unit
PNOZ
mi1p
Error
Input Ix
RUN
DIAG
FAULT
IFAULT
OFAULT
FAULT
Input Ix
External fault at the input, which leads to a safe state.
The fault or short across the contact is at the inputs
whose LEDs are flashing
Internal error on the expansion module

Technical details
Operating Manual PNOZ mi1p
20880-EN-06 16
8 Technical details
General 773400 773405
Approvals
BG, CCC, CE, EAC (Eurasian),
KOSHA, TÜV, cULus Listed
BG, CCC, CE, EAC (Eurasian),
KOSHA, TÜV, cULus Listed
Electrical data 773400 773405
Supply voltage
for Module supply Module supply
internal Via base unit Via base unit
Voltage 5,0 V 5,0 V
Kind DC DC
Voltage tolerance -2 %/+2 % -2 %/+2 %
Power consumption 2,5 W 2,5 W
Status indicator LED LED
Inputs 773400 773405
Number 8 8
Signal level at "0" -3 - +5 V DC -3 - +5 V DC
Signal level at "1" 15 - 30 V DC 15 - 30 V DC
Input voltage in accordance with
EN 61131-2 Type 1 24 V DC 24 V DC
Min. pulse duration 18 ms 18 ms
Pulse suppression 0,6 ms 0,6 ms
Maximum input delay 4 ms 4 ms
Potential isolation No No
Times 773400 773405
Switch-on delay 5,00 s 5,00 s
Supply interruption before de-ener-
gisation 20 ms 20 ms
Simultaneity, channel 1 and 2 max. 3 s 3 s
Simultaneity in the two-hand circuit 0,5 s 0,5 s
Environmental data 773400 773405
Ambient temperature
In accordance with the standard EN 60068-2-14 EN 60068-2-14
Temperature range 0 - 60 °C -25 - 60 °C
Forced convection in control
cabinet off 55 °C –
Storage temperature
In accordance with the standard EN 60068-2-1/-2 EN 60068-2-1/-2
Temperature range -25 - 70 °C -25 - 70 °C
Climatic suitability
In accordance with the standard EN 60068-2-30, EN 60068-2-78 EN 60068-2-30, EN 60068-2-78
Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C
Condensation during operation Not permitted Short-term
EMC EN 61131-2 EN 61131-2

Technical details
Operating Manual PNOZ mi1p
20880-EN-06 17
Environmental data 773400 773405
Vibration
In accordance with the standard EN 60068-2-6 EN 60068-2-6
Frequency 10,0 - 150,0 Hz 5,0 - 500,0 Hz
Acceleration 1g 1g
Broadband noise
In accordance with the standard – EN 60068-2-64
Frequency – 5 - 500 Hz
Acceleration – 1,9grms
Corrosive gas check
SO2: Concentration 10ppm,
duration 10days, passive – DIN V 40046-36
H2S: Concentration 1ppm, dur-
ation 10days, passive – DIN V 40046-37
Shock stress
In accordance with the standard EN 60068-2-27 EN 60068-2-27
Acceleration 15g 15g
Duration 11 ms 11 ms
Max. operating height above sea
level 2000 m 2000 m
Airgap creepage
In accordance with the standard EN 61131-2 EN 61131-2
Overvoltage category III III
Pollution degree 2 2
Rated insulation voltage 30 V 30 V
Protection type
In accordance with the standard EN 60529 EN 60529
Mounting area (e.g. control cab-
inet) IP54 IP54
Housing IP20 IP20
Terminals IP20 IP20
Mechanical data 773400 773405
Mounting position Horizontal on top hat rail Horizontal on top hat rail
DIN rail
Top hat rail 35 x 7,5 EN 50022 35 x 7,5 EN 50022
Recess width 27 mm 27 mm
Max. cable length
Max. cable length per input 1,0 km 1,0 km
Material
Bottom PPO UL 94 V0 PPO UL 94 V0
Front ABS UL 94 V0 ABS UL 94 V0
Connection type Spring-loaded terminal, screw
terminal
Spring-loaded terminal, screw
terminal

Technical details
Operating Manual PNOZ mi1p
20880-EN-06 18
Mechanical data 773400 773405
Conductor cross section with screw
terminals
1 core flexible 0,25 - 1,50 mm², 24 - 16 AWG 0,25 - 1,50 mm², 24 - 16 AWG
2 core with the same cross sec-
tion, flexible without crimp con-
nectors or with TWIN crimp con-
nectors 0,25 - 0,75 mm², 24 - 20 AWG 0,25 - 0,75 mm², 24 - 20 AWG
Torque setting with screw terminals 0,25 Nm 0,25 Nm
Stripping length with screw termin-
als 7 mm 7 mm
Conductor cross section with
spring-loaded terminals
1 core flexible without crimp
connector 0,25 - 1,50 mm², 24 - 16 AWG 0,25 - 1,50 mm², 24 - 16 AWG
1 core flexible with crimp con-
nector 0,25 - 0,75 mm², 24 - 20 AWG 0,25 - 0,75 mm², 24 - 20 AWG
Spring-loaded terminals: Terminal
points per connection 1 1
Stripping length with spring-loaded
terminals 9 mm 9 mm
Dimensions
Height 94,0 mm 94,0 mm
Width 22,5 mm 22,5 mm
Depth 121,0 mm 121,0 mm
Weight 120 g 123 g
Where standards are undated, the 2008-03 latest editions shall apply.
8.1 Safety characteristic data
NOTICE
You must comply with the safety-related characteristic data in order to
achieve the required safety level for your plant/machine.
Operating
mode
EN ISO
13849-1:
2008
PL
EN ISO
13849-1:
2008
Category
EN 62061
SIL CL
EN 62061
PFHD [1/h]
IEC 61511
SIL
IEC 61511
PFD
EN ISO
13849-1:
2008
TM [year]
1-channel PL d Cat. 2 SIL CL 2 2,50E-09 SIL 2 2,20E-04 20
2-channel PL e Cat. 4 SIL CL 3 2,90E-10 SIL 3 4,50E-06 20
Short circuit-
forming
safety mats PL d Cat. 3 SIL CL 2 1,81E-09 SIL 2 9,34E-05 20
1-ch., pulsed
light barrier PL e Cat. 4 SIL CL 3 2,50E-10 SIL 3 2,21E-05 20

Technical details
Operating Manual PNOZ mi1p
20880-EN-06 19
All the units used within a safety function must be considered when calculating the safety
characteristic data.
INFORMATION
A safety function's SIL/PL values are not identical to the SIL/PL values of
the units that are used and may be different. We recommend that you use
the PAScal software tool to calculate the safety function's SIL/PL values.

Order reference
Operating Manual PNOZ mi1p
20880-EN-06 20
9 Order reference
9.1 Product
Product type Features Order No.
PNOZ mi1p Expansion module, 8 inputs 773 400
PNOZ mi1p
coated version
Expansion module, 8 inputs, coated version 773 405
9.2 Accessories
Connection terminals
Product type Features Order No.
Set spring terminals 1 set of spring-loaded terminals 783 400
Set screw terminals 1 set of screw terminals 793 400
Terminator, jumper
Product type Features Order No.
PNOZmulti bus terminator Terminator 779 110
PNOZmulti bus terminator
coated
Terminator, coated version 779 112
KOP-XE Jumper 774 639
KOP-XE coated Jumper, coated version 774 640
