Polaris 2883455 User manual

APPLICATION
Verify accessory fitment at Polaris.com.
IMPORTANT
This Wireless Remote Kit is intended for use with HD
4500 Lb. Winch Kit (PN 2882714).
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.
KIT CONTENTS
This Kit includes:
REF QTY PART DESCRIPTION PART NUMBER
1 1 Receiver, Wireless -
2 4 Screw, Torx®Pan Head, High/Low - #14 X 0.75 7519731
3 1 Remote, Wireless -
4 1 Holder, Wireless Remote -
5 2 Screw, Torx®Pan Head, High/Low - #10 X 0.75 7512026
1 Instructions 9929286
Instr 9929286 Rev 01 2018-04 Page 1 of 5
P/N 2883455
WIRELESS REMOTE KIT

Instr 9929286 Rev 01 2018-04 Page 2 of 5
TOOLS REQUIRED
• Safety Glasses
• Drill
• Drill Bit: 1/8 inch (3 mm)
• Pliers, Push Pin Rivet
• Screwdriver Set, Torx®
• Socket Set, Metric
• Wrench Set, Metric
IMPORTANT
Your Wireless Remote Kit is exclusively designed for your vehicle. Please read the installation instructions
thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris. For your safety, and to
ensure a satisfactory installation, perform all installation steps correctly in the sequence shown.
ASSEMBLY TIME
Approximately 20–30 minutes
NOTE
Additional time may be required for optional step, or to accommodate other accessories.
HARNESS DETAIL
WIRELESS RECEIVER qq:
REF PART DESCRIPTION WIRE
COLOR
PIN QTY/
GENDER
CONNECTS TO
1A Wireless Receiver - - Vehicle structure
1B Connector, Autostop Controller/
Contactor
-4 male Main vehicle harness breakout;
see instructions for detail
1C Connector, Wired Remote -4 female Wired remote socket; see
instructions for detail

Instr 9929286 Rev 01 2018-04 Page 3 of 5

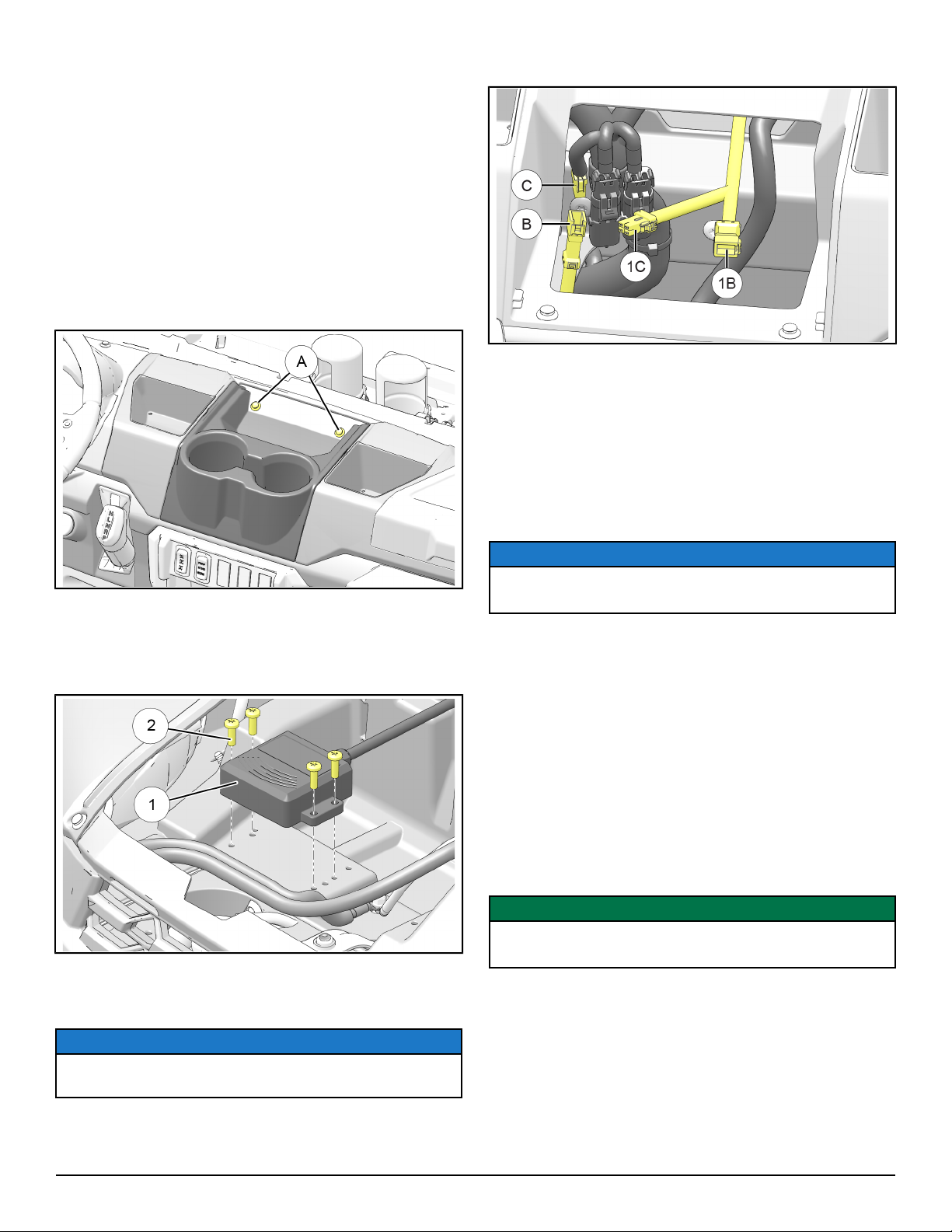

INSTALLATION INSTRUCTIONS
1. Shift vehicle transmission into “PARK”. Turn
ignition key to “OFF” position and remove from
ignition switch.
2. Flip up passenger seat bottom, remove driver’s
seat and underseat storage compartment, then
disconnect black negative (-) cable from battery.
3. Gain access.
a. Remove hood.
b. Remove upper dash cupholder by removing
two push pin rivets A, then sliding cupholder
rearward. Retain rivets.
4. Install wireless receiver.
a. Install wireless receiver qto RH side of under-
hood liner using four screws w. Do not over-
tighten screws.
b. Route wireless receiver connectors 1B and 1C
rearward through firewall grommet into upper
dash compartment.
NOTE
See previous section, HARNESS DETAIL, for
connector identification.
c. Detach existing wired remote connector B
from main vehicle harness breakout connector
C.
d. Join wired remote connector Bto wireless
remote connector 1C.
e. Join wireless remote connector 1B to main
vehicle harness breakout connector C.
5. OPTIONAL: Install wireless remote.
NOTE
Wireless remote can be stowed in any suitable
location. Holder ris not required.
a. Remove wireless remote efrom holder r.
Determine suitable mounting location for holder
with special attention to the following:
• Driver operation of vehicle (including travel of
controls, such as shift lever)
• Driver visibility
• Adequate clearance between holder
mounting fasteners and other vehicle
components on underside of mounting
surface
b. Using holder ras template, mark and drill two
1/8 inch (3 mm) holes into mounting surface.
IMPORTANT
Control drill depth to prevent damage to underlying
structure or components.
c. Install holder rusing two screws t. Do not
over-tighten screws.
d. Reinstall wireless remote into holder.
6. Restore access. See Step 3.
7. Reconnect black negative (-) cable to battery, then
reinstall under-seat storage compartment and
driver’s seat.

Instr 9929286 Rev 01 2018-04 Page 4 of 5
OPERATION
OPERATIONAL CHECK
Wireless remote allows winch operation from outside
the vehicle. If winch does not operate as described,
refer to the TROUBLESHOOTING section.
IMPORTANT
The winch operator is always responsible for using
the winch properly, as described in the “Winch User
Guide” included in the winch kit.
1. To turn wireless remote “ON”, depress and hold
power button for three seconds or until LED light
illuminates.
2. To extend rope, depress and hold the “OUT”
button. To recover rope, depress and hold the “IN”
button.
3. The wireless remote will automatically turn “OFF”
after 30 seconds of inactivity. To manually turn off,
depress and hold power button for three seconds
or until LED light extinguishes.

Instr 9929286 Rev 01 2018-04 Page 5 of 5
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSES RECOMMENDED SOLUTION
Dead vehicle
battery
Incorrect, damaged, or
corroded electrical
connections
Verify all winch electrical connections are per instruction
manual and free of damage and/or corrosion.
Winch will not
operate
Contactor not receiving
power
Turn vehicle key on.
Wireless remote not
powered on
Turn wireless remote on.
Incorrect, damaged, or
corroded electrical
connections
Verify all winch electrical connections are per instruction
manual and free of damage and/or corrosion.
Keyed power circuit
(orange wires) not
properly powered
Check 10A accessory circuit fuse for continuity; replace as
required.
Winch operates in
one direction only
Autostop fairlead not
properly connected
If winch operates only outward then ensure magnetic stop
(black rubber puck) is not touching autostop fairlead.
If winch operates inward even when magnetic stop is
touching fairlead then verify all winch electrical connections
are per instruction manual and free of damage and/or
corrosion.
Winch makes noise
but rope/cable does
not move
Contactor powered, but
not winch
If clicking sound is heard when winch control button is
depressed, but winch motor is silent, then verify electrical
connections between winch and contactor are free of
damage and/or corrosion.
If winch makes noise but does not move, verify winch is in
gear.
If winch is in gear, but winch still does not move, have a
dealer inspect the winch.
Winch operates too
slowly
Winch is improperly
loaded
Verify rope/cable is not binding on spool or fairlead.
Winch will not
change gears
Rope/cable is under
load
Changing gears while under load is intentionally difficult to
prevent accidental operation, which could lead to personal
injury or winch failure. Ensure rope/cable is under no tension,
and rope/cable is not binding on spool or fairlead. Briefly
operate winch, then attempt to shift again.
FEEDBACK FORM
A feedback form has been created for the installer to provide any comments, questions
or concerns about the installation instructions. The form is viewable on mobile devices
by scanning the QR code or by clicking HERE if viewing on a PC.
FEEDBACK FORM

FCC Statement:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
