PR Lighting TANGO FRAMING User manual

1
TANGO FRAMING
PR-6611
The user manual contains important information about thesafe installation and use of a projector. Pleaseread and
followtheseinstructionscarefullyandkeepthe manualina safeplaceforfuturereference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2
INDEX
1.
SAFETYANDWARNINGS ………………………………………………………………………………………
3
2.
INSTRUCTIONS……………………………………………………………………………………………………
4
3.
APPEARANCE………………………………………………………………………………………………………
5
4.
INSTALLATION……………………………………………………………………………………………………
5
5.
SETUPANDCONFIGURATION……………………………………………………………………………………
7
6.
OPERATIONMENU ………………………………………………………………………………………………
8
7.
DMXPROTOCOL …………………………………………………………………………………………………
12
8.
TECHNICALDATA ………………………………………………………………………………………………
16
9.
CIRCUITDIAGRAM& PCBCONNECTIONS……………………………………………………………………
19
10.
COMPONENTORDERCODES……………………………………………………………………………………
22
ACCESSORIES
The followingitems are supplied withtheprojectorandpleasecheck:
Name
Quantity
Unit
Remark
Power cord
1
Pc
Safetycord
2
Pcs
User manual
1
Pc
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any
consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in
good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not
use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
Any future technical change in the user manual won’t be with any notice.
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the
delivery date but the light source is not within the warranty

3
1. SAFETYANDWARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
thesafety informationhereinafter!

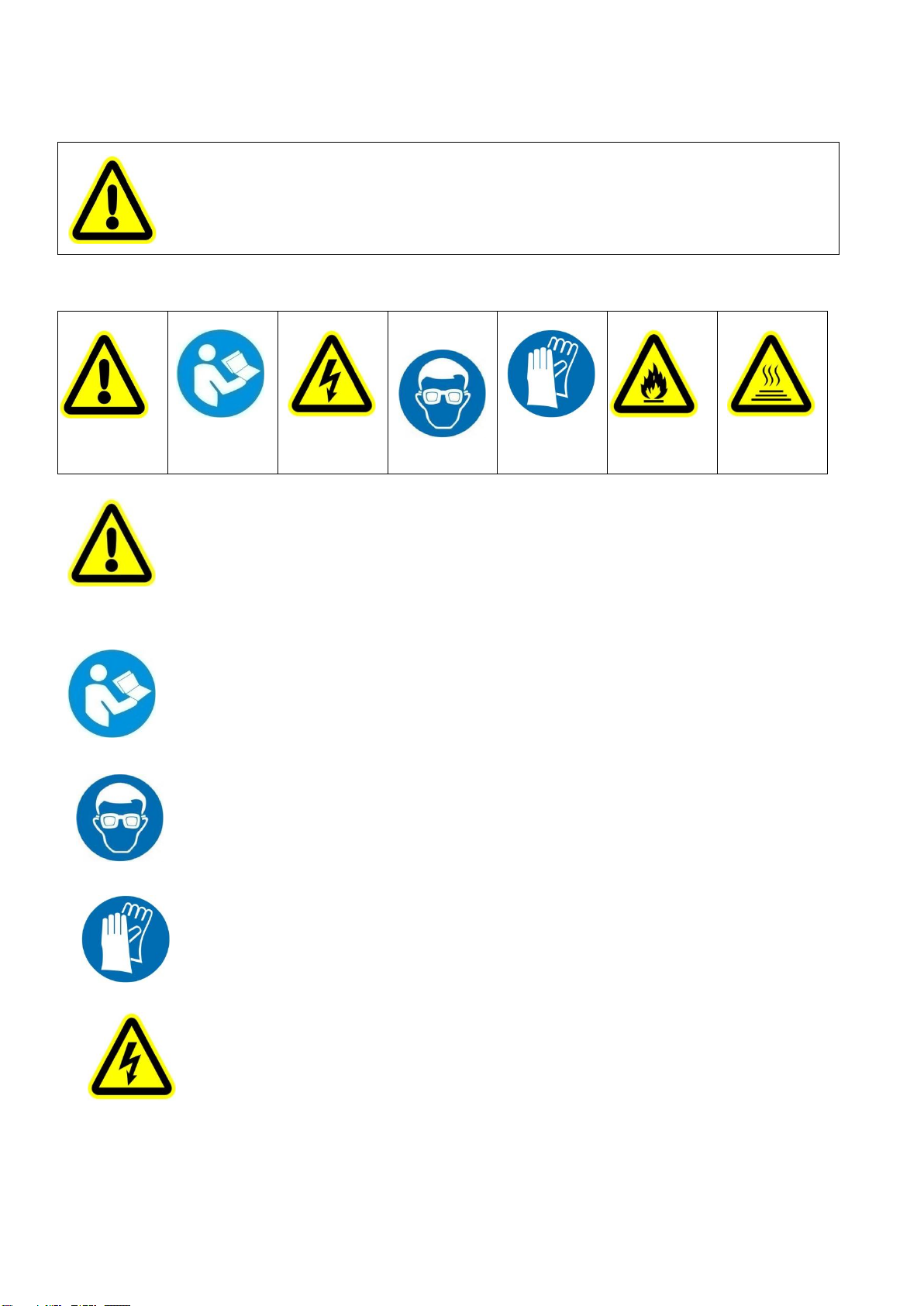

Thefollowingsafetysignsareusedinthe usermanual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● When unpacking , check if there is transportation damage before using the projector. Should there be any
damage causedbytransportation,consultyourdealeranddonotuseit.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector as
he/she likes
●Please benoted thatthe damagecausedbychangingtheprojectoratwill isnot warranted.
●Do nothesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is forindooror outdoor use only, for its IPrating,pleaserefertoTechnicalData inusermanual.
● The projector should be keptindryplace, avoiddamp, over-heatandover-dustyplaces.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while being
operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the operation
must strictlyfollowtheproceduresinthe manual
●Norepairable partsintheprojectoranddo notopencovers for maintenancebyyourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyeswillbeburned.
●Do notconnect thisdevice to anytypeofdimmerpack
●Afterprojector switchedon,theminimumdistancebetween the projector and illuminated surfaceis 10m
●lens and other opticalpartsshall be replaced immediately if theyhave deformed or been damaged,otherwise the light
outputwillbe compromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a projector
whilecovers(housing)areoff
●Keepthelamp cleanand do not touchit withbare hands.
●While operatingit, wearprotective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required fortheprojector
●Each projector must be properly earthed andinstalled asperrelated electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefullyor bypullingthe
powercable.
●All power cords must conform to related safety and regulations
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other electrical parts’
lifewill beshortened.

4
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through
thesafetycordholesfor safetysupport.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power mains.
●After running for 5minutes under steady temperature, the temperature of the housing of the projector is 55℃.After stable
operation,itstemperatureis70℃.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean the projector
hassomedefects.
●During its use, don’t touch the covers with bare hands(theyare veryhot)!
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the projector andilluminated items
is10m.
●A projector should be installed with good ventilation and the minimum distance between the projector and walls is 50cm. At the
sametime,pleaseensurethefansandairinletsandoutletsareworkable.
2. INSTRUCTIONS
●CLEANINGANDMAINTENANCE
The accumulationofoil, smokeanddustonthelenswillcompromisethelightoutput. Cleaningaprojectoris verynecessaryto ensure areliableuseofit.
The projector is of IP65(waterproof projector), unless approved by a professional technician to replace some internal components, it’s forbidden to
dismantleaprojector.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning work. It’s advised
externalopticalsystembecleanedevery20days.Keeplensclean anddonottouchopticalpartswithbarehands.
●Beforeanymaintenanceandcleaning,pleaseensuretheprojectisoffthepower
●Onlyqualifiedpersonisallowedtodomaintenance
●Duringmaintenanceandbefore maintenance, theprojectormust beoffpower.
●To avoid damage a projector internally, where it is in use or not, don’t let sunlight or other light beam penetrate through the
frontlens.
●Do not use alcohol or other organic solvent to clean the housingtoavoiddamage.
●Do not use any solvent with chemical elements to clean color filters or hot mirror.
●TROUBLESHOOTING
PROBLEM
ACTION
Theprojector can’t be switched on
Check ifthepowercordisconnectedwell.
Check if the switching power supply is bad or not connected well. A
professional technicianisrequired for therepair
Check if the control board is connected well. .Aprofessional technician
isrequired fortherepair
Theprojector canbeswitchedon,but the LED
lamp’s brightness can’t be controlled
Check if the LED driver board is connected well. A professional
technicianisrequired for therepair
The projectorcanbeswitchedonnormally,but
not controlledbytheDMXcontroller
Makesurethattheprojector’s start address is right
Replaceorrepair the XLRsignalcable.
The beamis not bright anditsbrightness
decreasessharply
Makesurethefansareworkingwellorfansandtheirshieldsarenotblocked
bydust.

5
3.APPEARANCE
4.INSTALLATION

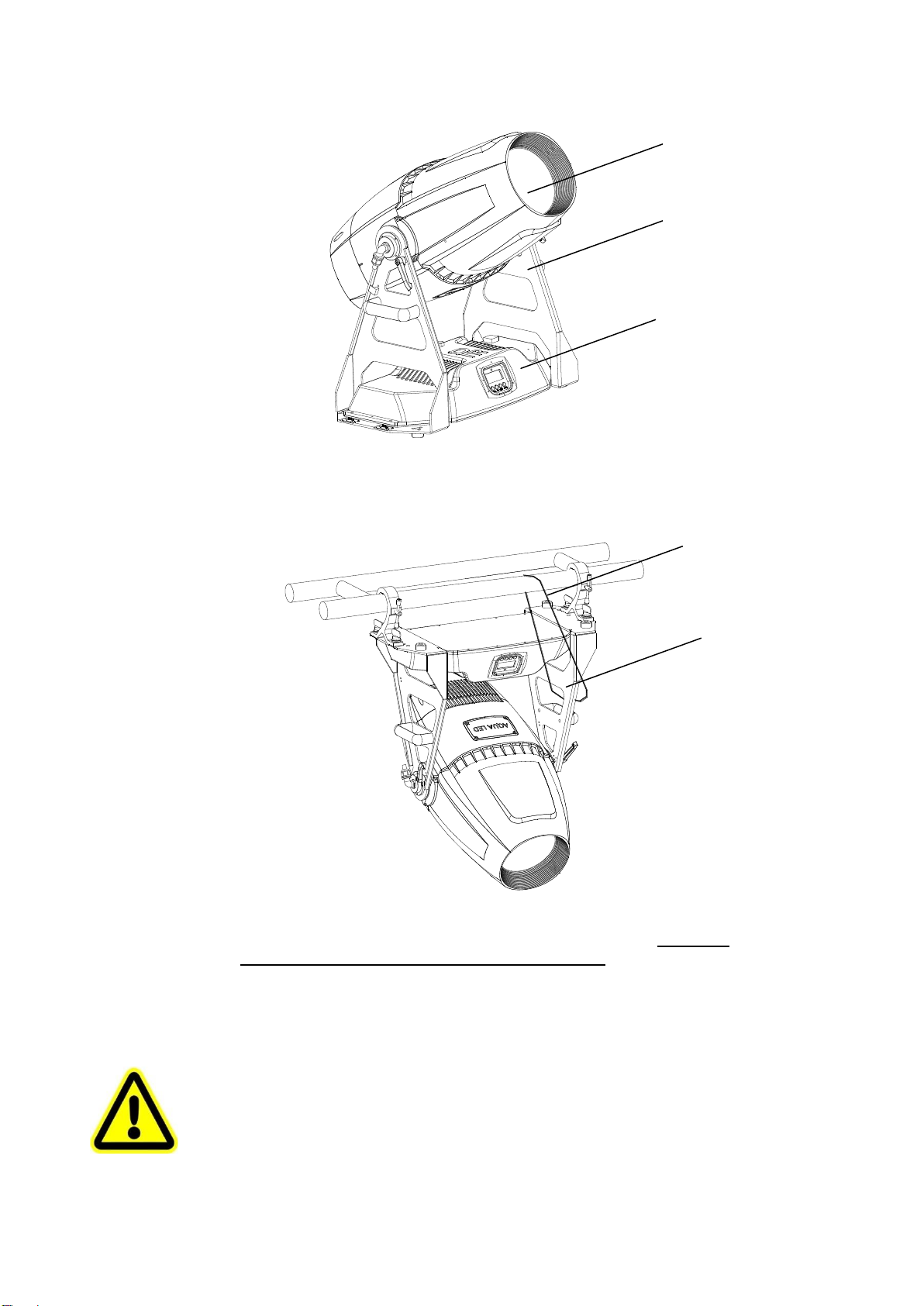

●RIGGING
Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to
eachclamp. Hang the fixture on the structure and fasten the screws attached to eachclamp. (See the WARNINGon the underside of
the base as shown above) To pass the SAFETY CORD throughthe HOLES for safety! Always ensure thatthe projector is firmly
anchored to avoid vibration and slipping whilstfunctioning. Always ensure that the structure that youare going to mount the projector
toissecure and strongenoughto support the weight of the unit.
(Ifa projectoris withwireless control function, while rigging, theantenna should facedownwards)
WARNING:
●The projectorMUSTbe lifted or carriedbytheHANDLESinstead ofclamps.
●.Forsafetythesafetycord should afford 10 times the Projector’s weight.
●POWERCONNECTION
HEAD
SUPPOR
T
BASE
SAFETY
CORD
SUPPOR
T
WARMING
Forsafety, please run thesafety
cords through safety holes and
ensuretheyarelockedwell.

6
Connectthepower cordasfollows:
L(live)=brown
E(earth) =yellow/green
N(neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connectedwithpowerseparatelyso that theymaybeindividuallyswitchedonand off.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector withthe Power Mains, then connect its
POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected.Ifthe voltage supplied is 200V-240V,
the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores of the wires for the
Power in/out cablesmust be equalorbiggerthan2.5mm2.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection
mustbeinaccordancewiththestandardsconcerned.
●If any questions about the electrical installation, do not continue but consult a qualified
electrician.

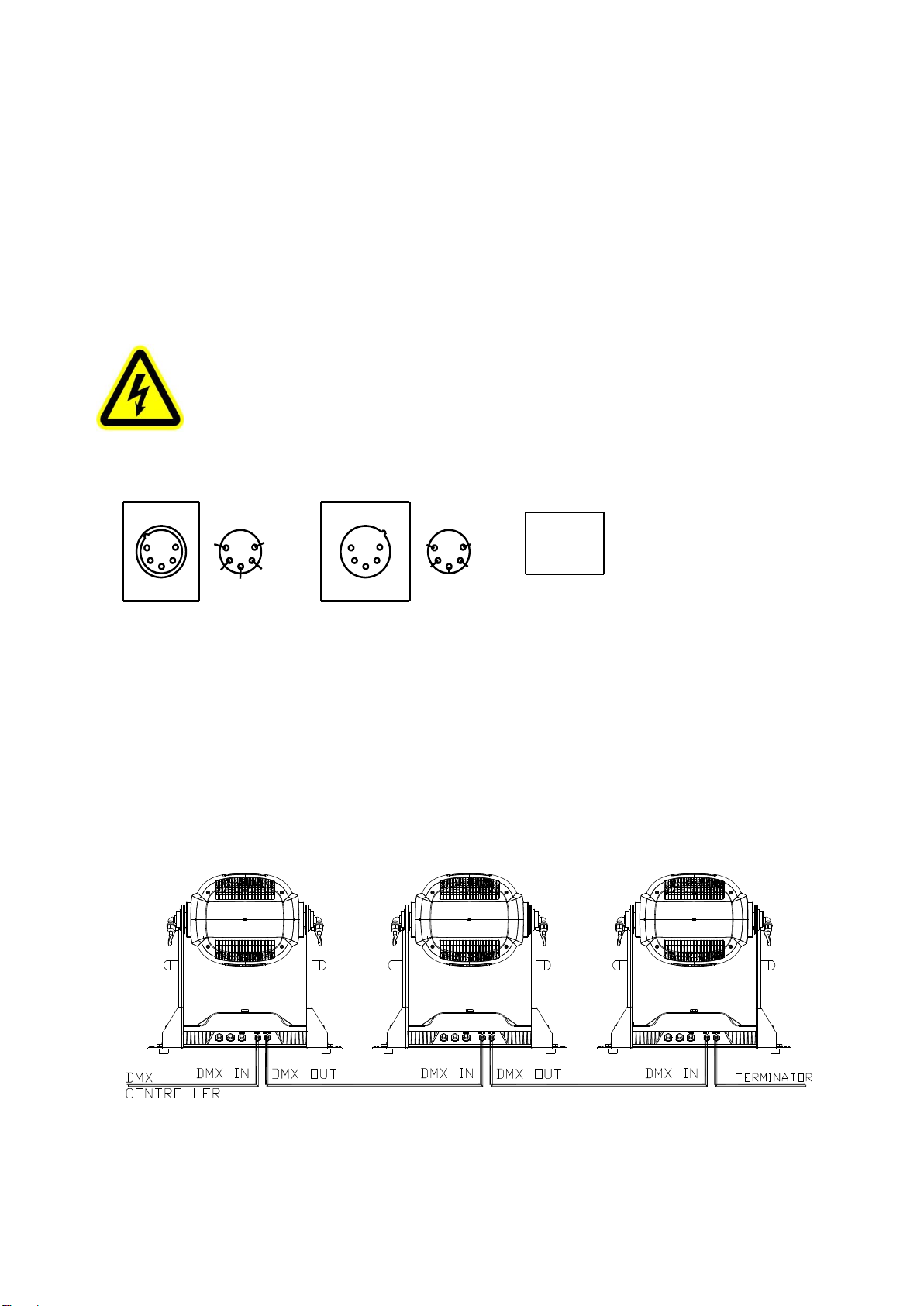

●DMXCONTROLCONNECTION:
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each
wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector)
or 5pin XLR plugsand sockets.The XLR's areconnected asshown in the figure above.
Note: care should be taken to ensure that none ofthe pins touchthe metallic bodyof the plug or each other. XLR plugs and sockets mustn’t
be connected in any way other than mentioned in the above figure. The XR330BWS accepts digital control signals in protocol DMX512
(1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s
DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator asshown
inthefigurebelow.
●DMXTERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output hasto be connected withaDMX terminator. This prevents electrical
noise fromdisturbingand corruptingtheDMXcontrol signals.
The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged into
4N/C
N/C
5
PIN FUNCTION
GND
1
3 DATA+
DATA-
2
DMX 512
DMX 512
2DATA-
DATA+3
1GND
FUNCTION
PIN
五芯
三芯
DMX OUT DMX IN
DMX IN
DMX OUT
1
2
3
1
2
3
4
5
12
3
5
4
3
2
1

7
theoutput socketonthelastprojectorinthechain.Theconnectionsare illustratedbelow.
5.SETUPANDCONFIGURATION
●FRONT PANEL OPERATION
Projector configuration canbe setconveniently viapushbuttonandLCDdisplay.
Launch the projector and press button ENTER for more than 3 seconds to unlockthe panel, the LCD will show the function menuof the
projector, each main menu has itssubmenus and each submenu has a specific function. For details, please see the “OPERATION
MENU” section.
To set up or browse through its functions, press buttonUP or DOWN
Pressbutton ENTER to saveyour settingsorenter thesubmenu.
Pressbutton UP or DOWN tochange values(plusor minus)
Pressbutton FUNC, it willreturnto theupper menu. Ifbutton FUNC notpressed, the defaultwill showdisplaystatusautomatically.
●DMXSTARTADDRESS
Each unit must be givena DMX startaddressso thatthe correctprojectorrespondsto the correct control signals. This DMXstartaddress is
the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. The unit
has 3 DMX modes. There are standard mode(29channles) ,short mode(26channles) and extended mode(39channles). For example
standard mode has 29 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 030, No. 3 projector’s address 059,No.4
projector’s address088,and so on.
Launchthe projector. Press button ENTER more than 3secondsto unlock panel.
Pressbutton ENTER to displayDMXaddress;
Pressbutton UP and DOWN,youcanset the address;
Pressbutton ENTER to confirm;after powered on nexttime, the default willbe last value saved
Pressbutton FUNC, it willreturnto the upper menu
.
●DMXWIRELESSCONTROL(Iftheprojectorhasthe function)
The projectorhaswireless controlfunction withwirelessreceiver moduleand antenna forremotecontrol.
The setup ofitisbelow:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the front
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain. PIN 3
PIN 2

8
panelwillbe on, meaning wireless controlfunction is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press
“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●STAND-ALONEMODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.

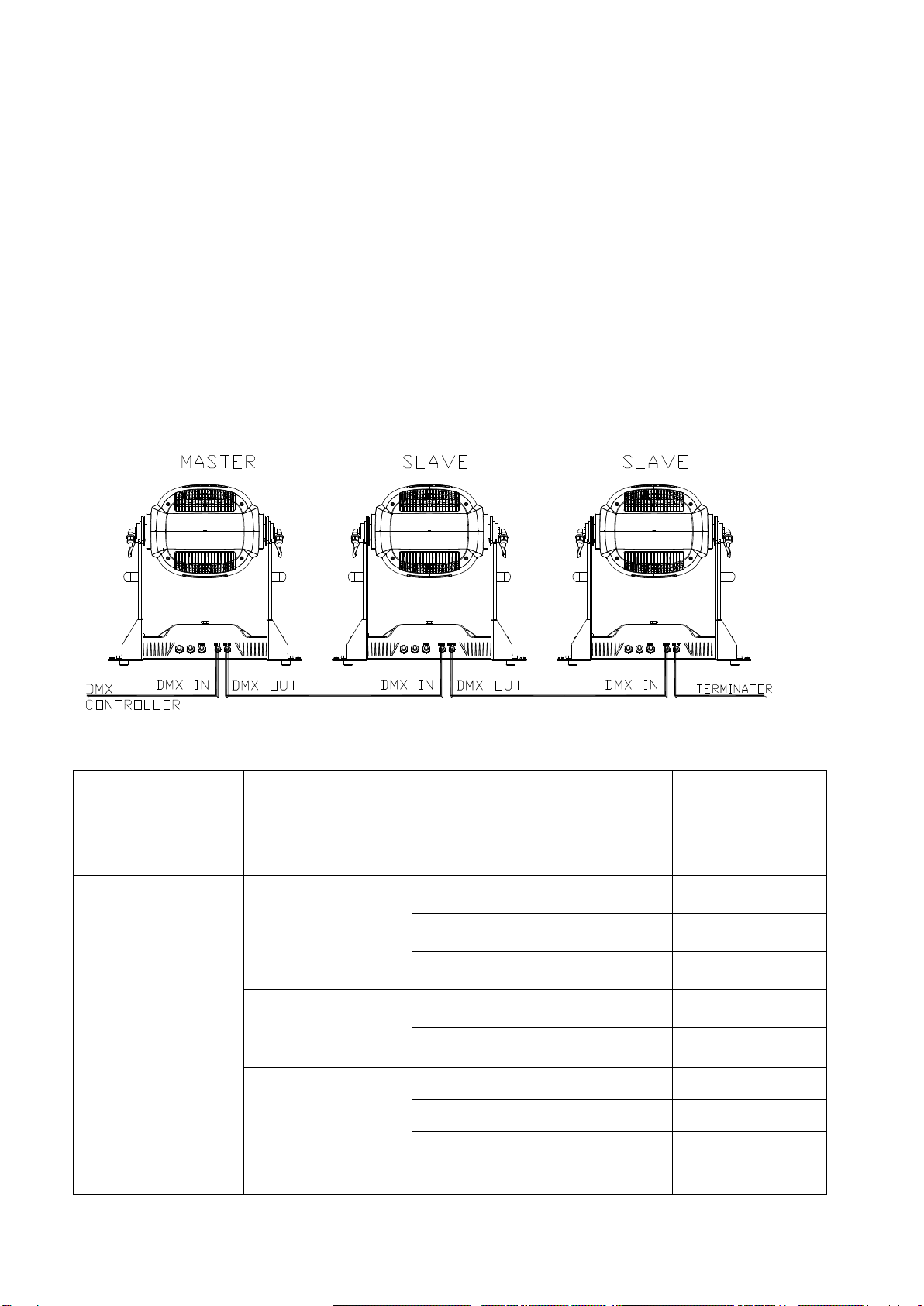

●MASTER/SLAVEMODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last
fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be
set accordingly.
AfterPowered on,the group willruninMaster/Slave Mode
6. OPERATIONMENU
1st levelmenu
2nd levelmenu
3rd levelmenu
4th levelmenu
ADDR
(DMXaddress)
1-484
Rese
(Reset)
YES
CONF
DMX
DMX Mode
（Default：Standardmode ）
Std 29
(Standard mode)
Ext 38
(Extended mode )
Shor 26
(Short mode)
LOSS
(LossofDMXsignal)
（Default：Out）
Out
(Device shutoff)
Hold
(Holdlaststatus)
SIGS
(WirelessMode)
（Default：XLRFirst）
XLRF
(XLRfirst)
XLRO
(OnlyXLR)
Wi O
(Onlywireless)
WIF
(WirelessFirst)

9
WTOX
(WirelesstoXLR)
MORS
Master/Slave
（Default：SLAV）
Slav
(Slave)
Mast
(Master)
DISM
DisplayMode
（Default：Offafterdelay）
Dela
(Offafter delay)
On
(Always on)
DimA
(AllDimmer)
XXX
0-128
UNLW
(Unlinkwireless)
YES
ResL
(Resetlamphours)
YES
ResU
(Resetuser memory)
YES
ResO
(Resetoptions)
YES
FactS
(Factorysettings)
YES
ParT
(Parameterstransmitted)
YES
Opti
Options
CoLP
(Color wheelpositon)
（Default：Step）
Step
Linear
DimI
(Dimmer invert)
（Default：Off）
Off
On
ZooI
(Zoominvert)
（Default：Off）
Off
On
Info
PowH
(Power-on hours)
XXXX
VER
(Softwareversion)
AXXX
Displayboard X.X.X
CXXX
Driverboard 1 X.X.X
DXXX
Driverboard 2 X.X.X
EXXX
Driverboard 3 X.X.X
FXXX
Fan board X.X.X
TEMP
(Temperature)
HXXX
Headsensor
XX
A XXX
Displayboard
XX
CXXX
Driverboard 1
XX
DXXX
Driverboard2
XX
EXXX
Driverboard3
XX
FXXX
Fanboard
XX
DMXV
(DMXvalue)
Channel XXX=XXX
ESN
(ElectronicID.)
SN=XXXXXXXXXXXX
RDMD
XX

10
(RDM version)
(RDM Devicelabel)
RDM
SENE
(Positionsensor)
Co1H
(Magnetsensor for colorwheel 1)
Co2H
(Magnet sensor forcolor wheel 2)
EFFH
(Magnet sensor foreffectwheel)
RGH
(Magnet sensor forrotatinggobowheel)
GRH
(Magnetsensorforgoborotation)
FOCH
(Magnet sensor forfocus)
ZOOH
(Magnet sensor forzoom)
PR1H
(Prism1)
RR1H
(Prism1 rotation)
PR2H
(Prism1)
RR2H
(Prism2 rotation)
TEST
SelT
(Selftest)
YES
Stro
(Strobe)
Open
Str1
Strobe1
Str2
Strobe2
Co1W
(Color wheel1)
Whit
White
Col1-Col6
color1-6
Rota
Forwardrotation
Reve
Reverserotation
Co2W
(Color wheel2)
Whit
White
Col1-Col6
color1-6
Rota
Forwardrotation
Reve
Reverserotation
R-G
(Rotatinggobowheel)
White
GOB1-6
Gobo 1-6
Rota
Forwardrotation
Reve
Reverserotation
SHA1-6
Shakeeffect1-6
R-G
(Goborotation)
Stop
Rota
Forwardrotation
Reve
Reverserotation

11
Pri1
Prism1
No
Have
Prismin
Pr1R
Prism1rotates
Stop
Rota
Forwardrotation
Reve
Reverserotation
Pri2
Prism2
No
Have
Prismin
Pr2R
Prism2rotates
Stop
Rota
Forwardrotation
Reve
Reverserotation
EffE
Effectwheel
No
Have
Effectwheelin
Ef1R
Effect wheel1rotates
Stop
Rota
Forwardrotation
Reve
Reverserotation
Ef2R
Effect wheel2rotates
Stop
Rota
Forwardrotation
Reve
Reverserotation
Dim
Dimmer
0-255
Lineardimmer
FR1L
0-255
FramingBlade1 linearlyin fromleft
FR1R
0-255
FramingBlade1linearlyinfromright
FR2L
0-255
FramingBlade2linearlyinfromleft
FR2R
0-255
FramingBlade2linearlyinfromright
FR3L
0-255
FramingBlade3linearlyinfromleft
FR3R
0-255
FramingBlade3linearlyinfromright
FR4L
0-255
FramingBlade4linearlyinfromleft
FR4R
0-255
FramingBlade4linearlyinfromright
Focu
Focus
0-255 Linearfocus
Zoom
0-255 linearzoom
Mode
DMX mode
DMX
DMXoperationmode
PreM
Presetmemory
User

12
Usermemory
S 1-16
Staticscene
CH1 Stro/Strobe
0-255
CH2 Dimm/Dimmer
0-255
CH3 DimS/Dimmerspeed
0-255
CH4 Co1W/color wheel1
0-255
CH5 Co2W/colorwheel2
0-255
CH6 R-G/rotatinggobowheel
0-255
CH7 G-R/ goborotation
0-255
CH8 FRM/framingmodulemacro
0-255
CH9 FR1L/Framingblade1left
0-255
CH10 FR1R/Framingblade1right
0-255
CH11 FR2L/Framingblade2left
0-255
CH12 FR2R//Framingblade2right
0-255
CH13 FR3L/Framingblade3left
0-255
CH14 FR3R/Framing/blade3right
0-255
CH15 FR4L/Framingblade4left
0-255
CH16 FR4R//Framingblade4right
0-255
CH17 Pri1/Prism1
0-255
CH18 Pr1R/Prismrotates
0-255
CH19 Pri2/Prism2
0-255
CH20 Pr2R/Prism2rotates
0-255
CH21 Effe/Doubleeffectwheels
0-255
CH22 Ef1R/Effetctwheel1rotates
0-255
CH23 Ef2R/Effetctwheel2rotates
0-255
CH24 Focu/Focus
0-255
CH25 ZOOm/Zoom
0-255
CH26 Ket/Keeptime
0-100
Remark:
1).In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
displaysetting,operation mode(usermemory);
2).AllprojectorsAcceptingparameterswillautomaticallybesettoslavemode.
7.DMXPROTOCOL
Short
mode
Standard
mode
Extended
mode
Function
DMXvalue
Description
1
1
1
Strobe
000
NO
001-127
Pulsestrobefromslowto fast
128-255
Strobefromslowtofast
2
2
2
Dimmer
000-255
Lineardimmer(0-100%)
3
3
Dimmer in
16bit
000-255
16 bitdimmer
3
4
4
Dimmer
speed
000-255
Fromslowtofast
4
5
5
Color
wheel1
000-010
White
011-019
White /color1
020-028
Color1(Blue)
029-037
Color1/Color2

13
038-046
color2（Green）
047-055
Color2/color3
056-064
Color3（Orange）
065-073
Color3/Color4
074-082
Color4（Magenta ）
083-091
Color4/Color5
092-100
Color5（Red）
101-109
Color5/Color6
110-118
Color6（HighCRI）
119-127
Color6/White
128-191
Forward rotationfromslowto fast
192-255
Reverserotation fromslow to fast
5
6
6
Color
wheel2
000-010
White
011-019
White/color1
020-028
Color1（Darkcyan）
029-037
Color1/Color2
038-046
Color2（Lightyellow）
047-055
Color2/Color3
056-064
Color3（Darkmagenta）
065-073
Color3/color4
074-082
Color4（Lightcyan）
083-091
Color4/color5
092-100
Color5（Lightgreen ）
101-109
Color5/Color6
110-118
Color6（Yellow）
119-127
Color6/White
128-191
Forward rotationfromslowto fast
192-255
Reverserotation fromslow to fast
6
7
7
Rotating
gobo wheel
000-018
White
019-036
Gobo1
037-054
Gobo2
055-073
Gobo3
074-091
Gobo4
092-109
Gobo5
110-127
Gobo6

14
128-156
Forward rotationfromslowto fast
157-185
Reverserotation fromslow to fast
186-196
Shakeeffect1fromslowtofast
197-208
Shakeeffect2fromslowtofast
209-220
Shakeeffect3fromslowtofast
221-232
Shakeeffect4fromslowtofast
233-244
Shakeeffect5fromslowtofast
245-255
Shakeeffect6fromslowtofast
7
8
8
Gobo
rotation
000-128
Goboindexing(0-540degrees)
129-188
Forward rotationfromslowto fast
189-195
Stop
196-255
Reverserotation fromslowto fast
9
9
16 bit
rotation
000-255
Goborotation in16bit
8
10
10
Framing
module
macros
0
White
1-23
Framing graphic1
24-46
Framing graphic2
47-69
Framing graphic3
70-93
Framing graphic4
94-116
Framing graphic5
117-139
Framing graphic6
140-162
Framing graphic7
163-186
Framing graphic8
187-209
Framing graphic9
210-232
Framing graphic10
233-255
Framing graphic11
9
11
11
Framing
blade1left
000-255
Linearchange0-100%
12
000-255
16bit
10
12
13
Framing
blade1
right
000-255
Linearchange0-100%
14
000-255
16bit
11
13
15
Framing
blade2left
000-255
Linearchange0-100%
16
000-255
16bit
12
14
17
Framing
blade2
right
000-255
Linearchange0-100%
18
000-255
16bit
13
15
19
Framing
000-255
Linearchange0-100%

15
20
blade3left
000-255
16bit
14
16
21
Framing
blade3
right
000-255
Linearchange0-100%
22
000-255
16bit
15
17
23
Framing
blade4left
000-255
Linearchange0-100%
24
000-255
16bit
16
18
25
Framing
blade4right
000-255
Linearchange0-100%
26
000-255
16bit
17
19
27
Prism1
000-016
White
017-255
Prism1in
18
20
28
Prism1
rotates
000-128
Prismindexing(0-540degrees)
129-191
Forward rotationfromslowto fast
192
Stop
193-255
Reverse rotation fromslowto fast
19
21
29
Prism2
000-016
White
017-255
Prism2in
20
22
30
Prism2
rotates
000-128
Prismindexing(0-540degrees)
129-191
Reverserotation fromslow to fast
192
Stop
193-255
Forward rotationfromslowto fast
21
23
31
Metal effect
wheel
000-019
White
020-127
Effectwheellinearlyin
128-170
Effectwheelshake effect 1fromslowto fast
171-213
Effectwheelshake effect 2fromslowto fast
214-255
Effectwheelshake effect 3fromslowto fast
22
24
32
Effect
wheel1
rotates
000-063
Stop
064-127
Reverserotation fromslow to fast
128-191
Stop
192-255
Forward rotationfromslowto fast
23
25
33
Effect
wheel2
rotates
000-063
Stop
064-127
Reverserotation fromslow to fast
128-191
Stop
192-255
Forward rotation fromslowto fast
24
26
34
Zoom
000-255
Linearzoom
35
16 bit zoom
000-255
Zoomin16 bit

16
25
27
36
Focus
000-255
Linearfocus0-100%
28
37
Focus in16
bit
000-255
Focus in16bit
26
29
38
Control
000-047
Reserved
048-255
Reset(Stopfor5S)
8.TECHNICALDATA
ELECTRICPARAMETERS
Inputvoltage 190V~240VAC，50/60Hz
Inputpower 800W@220V
Maximumcurrent: 3.7A
Power factor:PF>0.9
THESPECIFICATIONSOF THELIGHTSOURCE
Power 600W
Color temperature 7000K
ratedlife 20000hrs
COLORS
2color wheels:11exchangeable colors+Open+1 HighCRIfilter
Halfcoloreffect,rainboweffect withbi-directional and variable speeds,
Stepping/linear colorchanging
SomeCTcorrectionfilters asoptions
GOBO
1RotatingGoboWheel:6replaceable gobos+White, GlassorMetal Gobo
Bi-directionalRotationwith variablespeeds
WithIndexingFunction
GoboShake Effect withVariableSpeeds
Bi-directionalScrollingwithVariableSpeeds
Goboouter size:37.5mm
Goboimage size: 26mm
Framingmodulewith4 famingbladescanproduce manygraphicswithdifferentsizes and shapesfreelyand4 blades fully coverlightbeam
PRISM
1pc of4 facet circular prism,Bi-directionalrotationwithvariablespeedsand indexingfunction(Optional:3-facetprismor 4-facetcolor prism)
1 pc of6-facet linear prism, Bi-directionalrotation with variable speeds and indexing function(Optional: 3-facet prism with optional angles or
4-facetgradientprism)
EFFECTWHEEL
Doubleeffectwheels,bi-directionalrotation withvariablespeedswithdifferent control;shakeeffect with variablespeeds

17
FOCUS
DMX linearFocusing
DIMMER
0-100% Linearadjustment
STROBE
Doubleshutterblades,0.3~25 F.P.S
BEAMANGLE
linearzoom 8°～52°with16bitfunction
CONTROL
DMX512,5pininterfaces(Optional3-pininterfaces)
RDM controlprotocol
Ethernet Control
26channelsinshortmode, 29channelsinstandardmodeand38channelsinextendedmode
Master/Slavesynchronizedmode
Stand-alone mode
Self-test mode
OTHERFUNCTION
Total hoursdisplayable
Software versionsdisplayable
Inputsignalisolation
Modular Structure for easy maintenance
HOUSING
HightemperatureABS+ Hightensilecastaluminum,IP65
NETWEIGHT
37.2Kg
Gross weightof46.58 KGincardboardbox

18
SIZES
MOUNTINGDIAGRAM
LIGHTOUTPUT
DISTANCE (m) 0
52°Lux 0
8°DIAMETER(m) 0
8°Lux 0
52°DIAMETER(m) 0

19
9. CIRCUITDIAGRAM& PCBCONNECTIONS

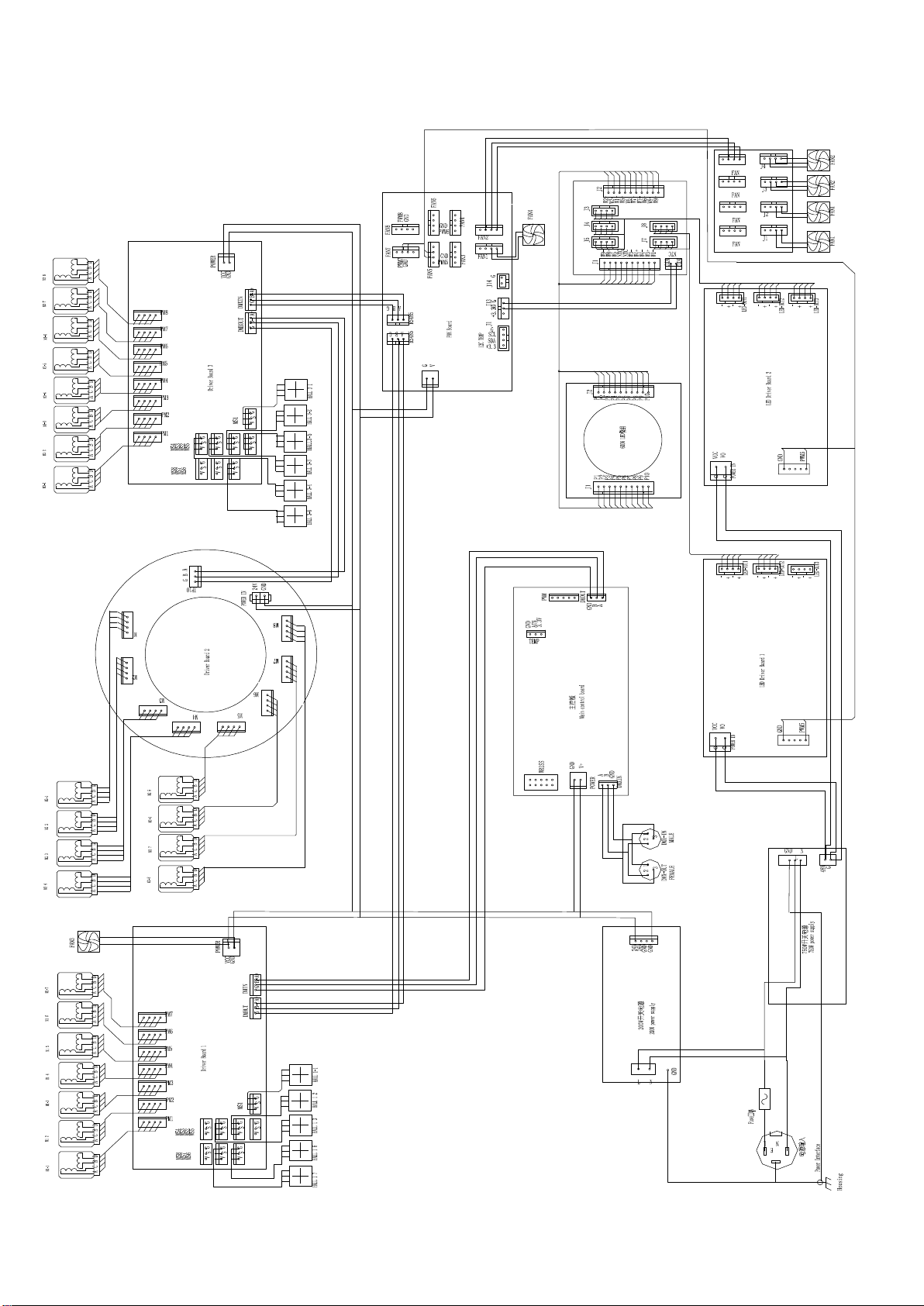

● CIRCUITDIAGRAM
电机驱动2
风机板
转接板
风机转接板
LED驱动板2
LED驱动板1
图案自转磁偶 图案盘公转 效果盘公转 色片盘磁偶2 色片盘磁偶1
调焦1 调焦2 变焦1 变焦2 棱镜1 棱镜自转1 棱镜2 棱镜自转2
棱镜自转2
电机驱动1
棱镜1
棱镜自转1 棱镜2 变焦磁偶 调焦磁偶
造型电机4 造型电机3 造型电机2 造型电机1
造型电机8 造型电机7 造型电机6 造型电机5
电机驱动3
色片盘1 色片盘2 效果盘公转 效果盘自转1 效果盘自转2 图案盘公转 图案盘自转
PR-6611电气接线图

20
● PCB CONNECTIONS
MAINBOARD
LEDDRIVERBOARD
LEDMODULECONNECTION
8-CHANNELBOARD
15
7 6
8
23 4
NO
Name
1
Signalinput
2
Power input
3
Thermalsensor
(Reserved)
4
PWM output(Reserved)
5
Signaloutput
6
Wireless （Reserved）
NO
Name
1
LEDOutput1
2
LEDOutput2
3
LEDOutput3
4
LEDDimmer
5
power input
NO
Name
1
LEDmodule
2
LEDdriver
3
LEDdriver
4
LEDdriver
5
LEDmodule
6
LEDdriver
7
LEDdriver
8
Module NTC
NO
Name
1
Power
2
Signalinput
3
Signaloutput
4-7
PWMoutput
8-11
Fanspeedoutput
12
Reserved
13
Module NTC
14
Reserved
1
2
3
4
5
6
